Door Roll Forming Machine System > Production Equipment > Metal Door Frame Roll Forming Machine

ZTRFM 2023 Hot Sale 5.5KW 16 Stations 0-15m/min Galvanized Steel Door Frame or Window Frame Making Machine 4KW

Cangzhou Zhongtuo International Trade Co., Ltd

ZTRFM 2023 Hot Sale 5.5KW 16 Stations 0-15m/min Galvanized Steel Door Frame or Window Frame Making Machine 4KW

Name: ZTRFM 2023 Hot Sale 5.5KW 16 Stations 0-15m/min Galvanized Steel Door Frame or Window Frame Making Machine 4KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT83315037

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Power(W):

4KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Glaze Steel
Use
ROOF
Voltage
380v/50hz/3p
Rolling Thinckness
0.3-0.8mm
Feeding Width
1220 mm

ZTRFM 2023 Hot Sale 5.5KW 16 Stations 0-15m/min Galvanized Steel Door Frame or Window Frame Making Machine

APPLICATION

Love creats miracles; Profession casts success !

PRODUCT DESCRIPTION

Take the science and technology as the power; Strives for the survival by the quality !

1. Product Profile:

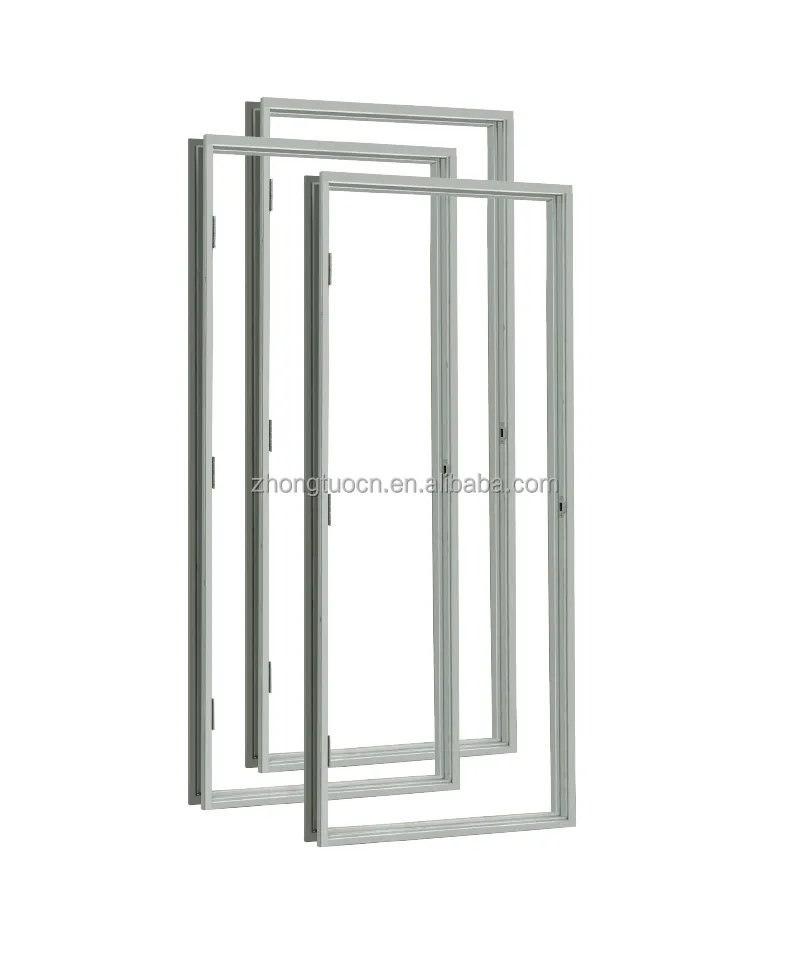

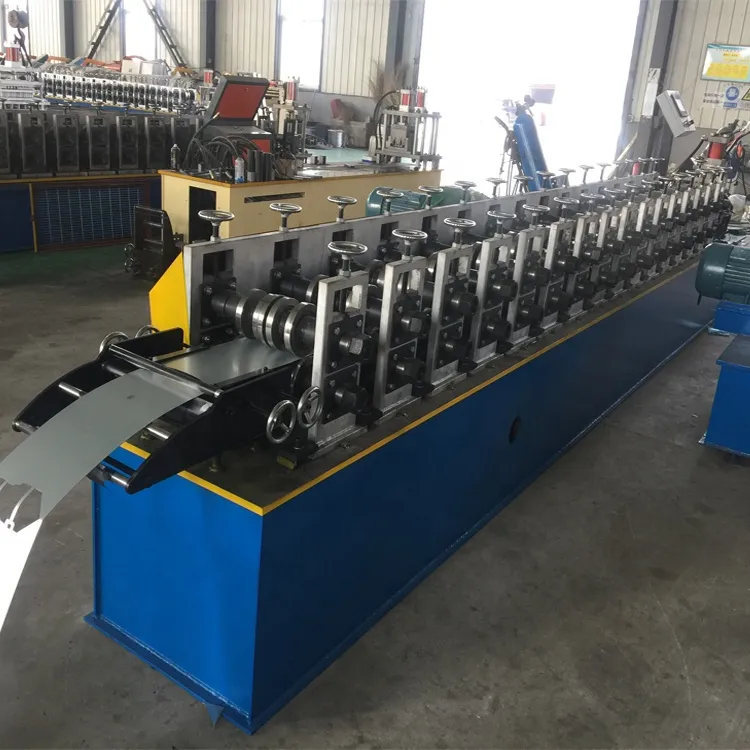

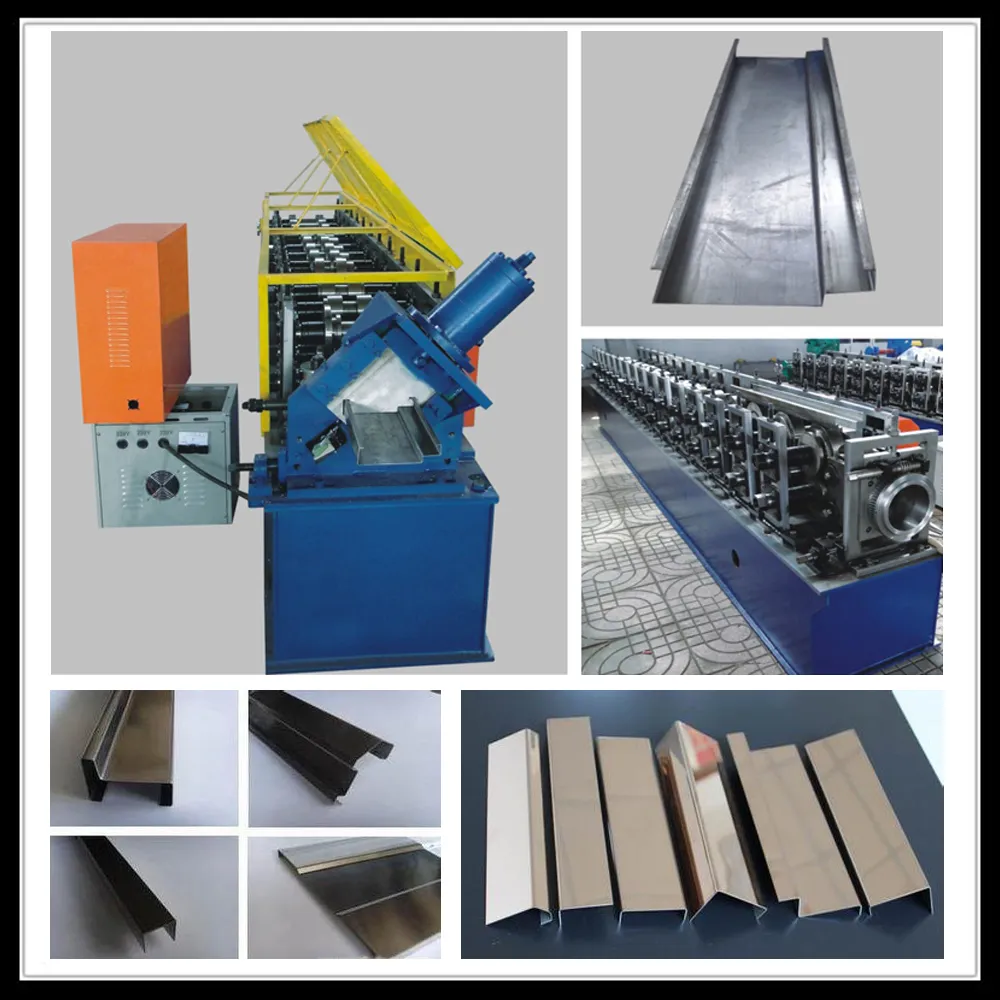

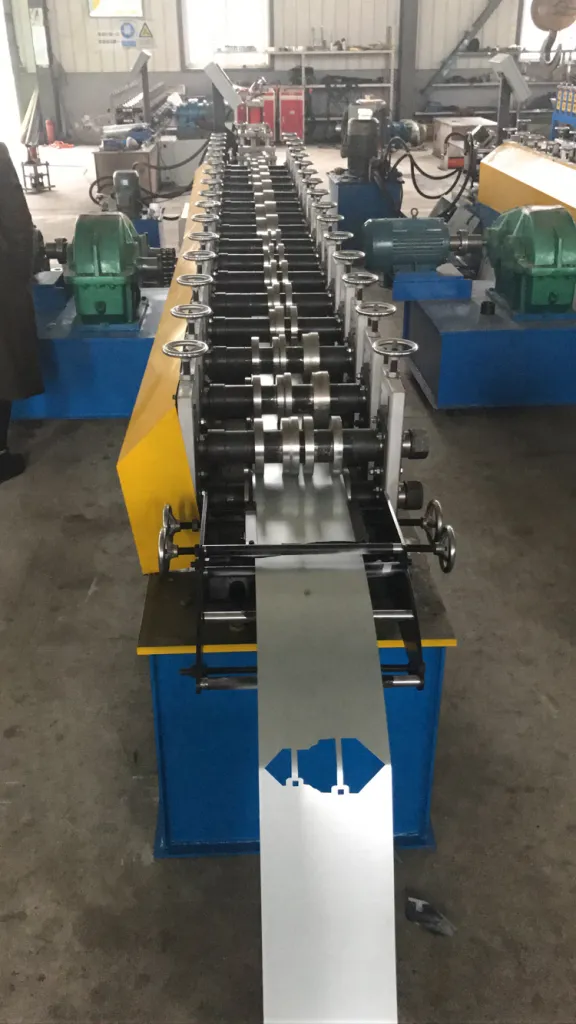

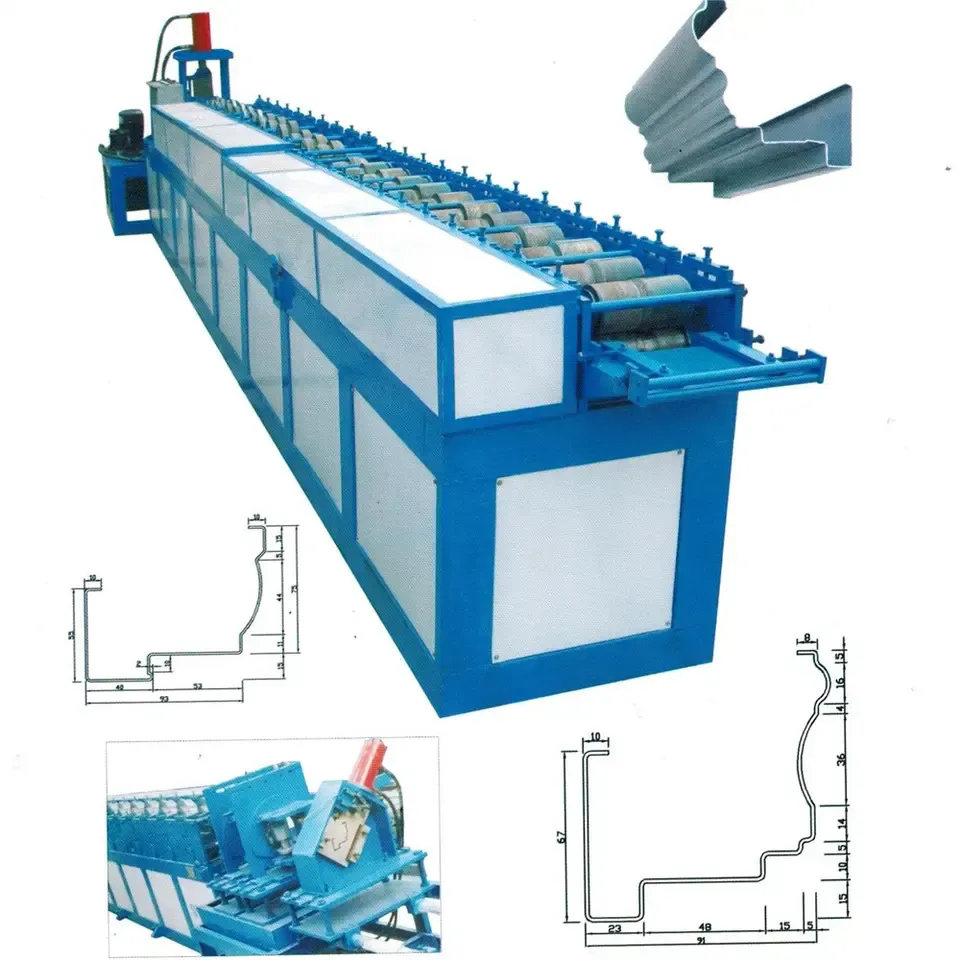

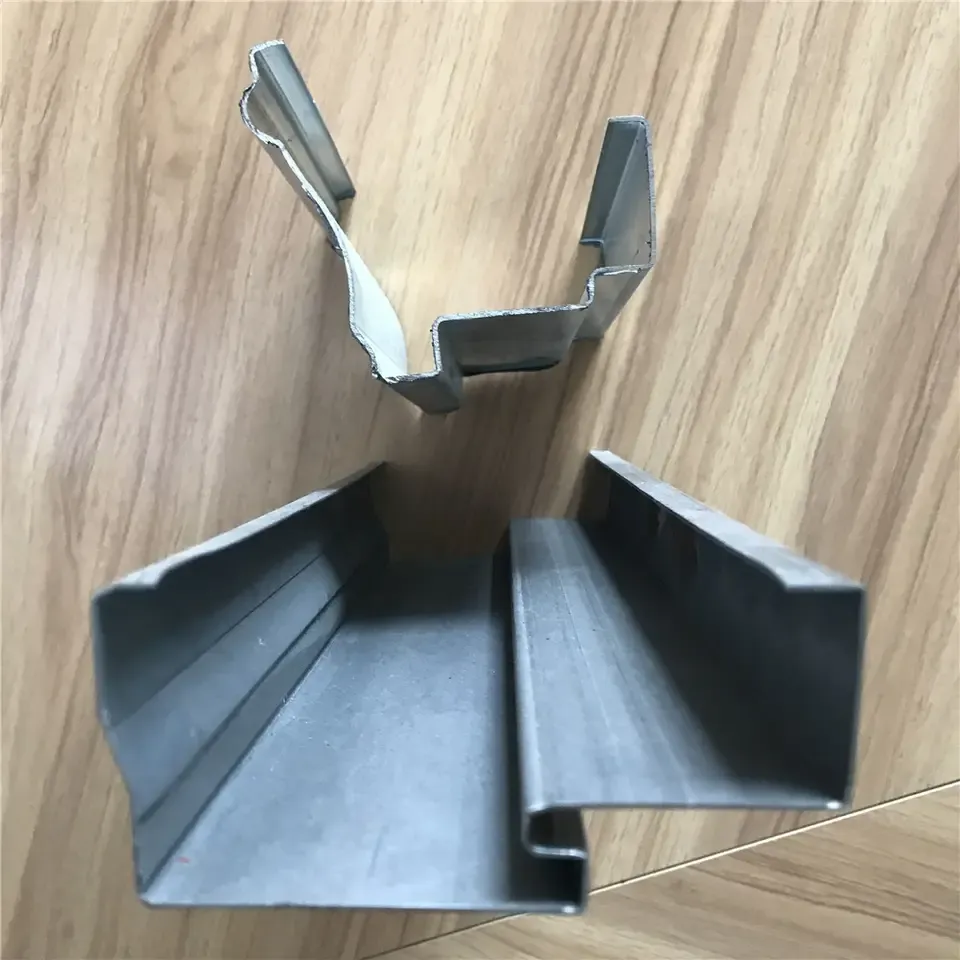

Steel door frame making machine is designed to roll form the galvanized steel to the door frame or window frame shape.

Normally the thickness of the door frame or window frame is from 0.65mm to 1.0mm.

Our door frame machine is widely used in the steel door or steel window manufacturing.

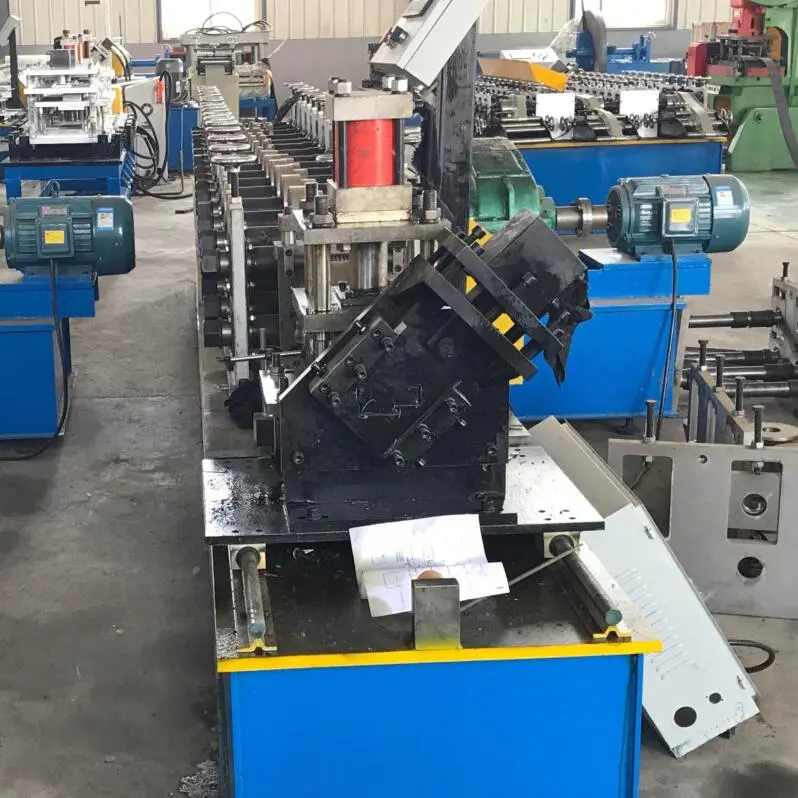

Steel door frame machine consists of uncoiler, leveler, mail roll forming machine, cutting part, runout table, PLC control box and hydraulic station.

The whole machine are controlled by the industrial PLC, which can gurantee the machine work automatically and precison of the final products.

2. Operational Process

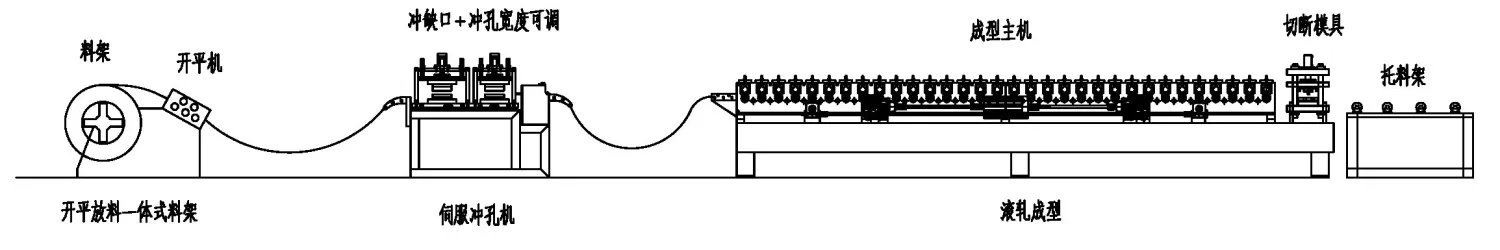

Manual decoiler→Guide roller→Feeding material →Leveling→punching→roll forming→strengthening→Hydraulic cutting→product receiving table

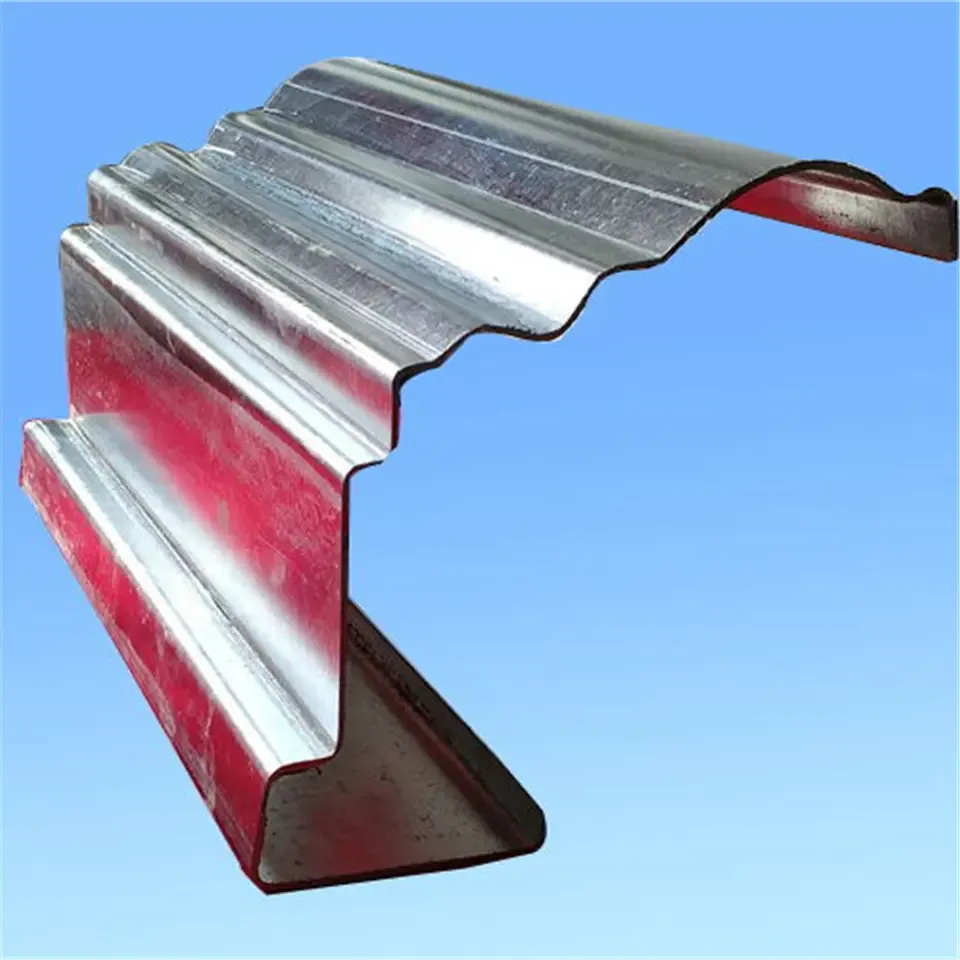

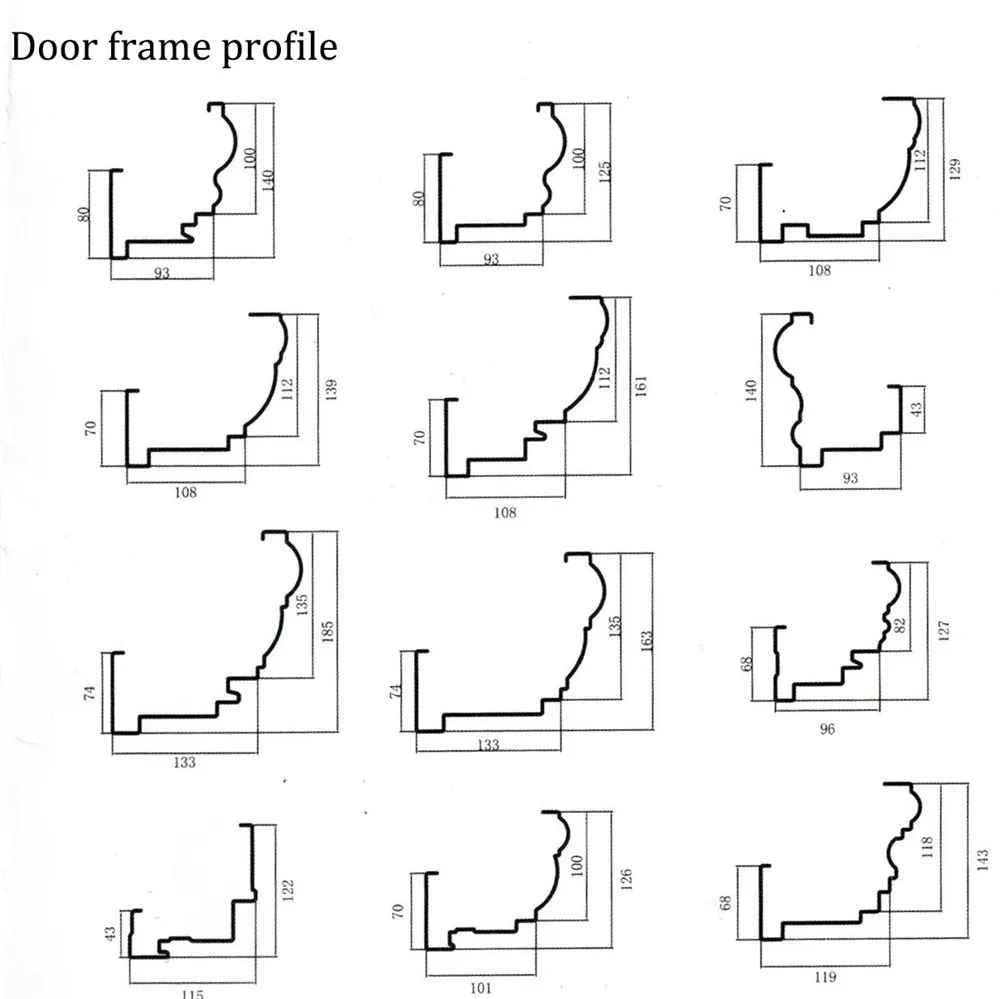

PROFILE DRAWING

Emphasize Technological Literacy; Enhance Research and Development Capabilities !

Our steel door frame making machine is customized, we can design the machine as customers' personal requirements. Customer can send us samples or send us the profile drawing of the door frame or window.

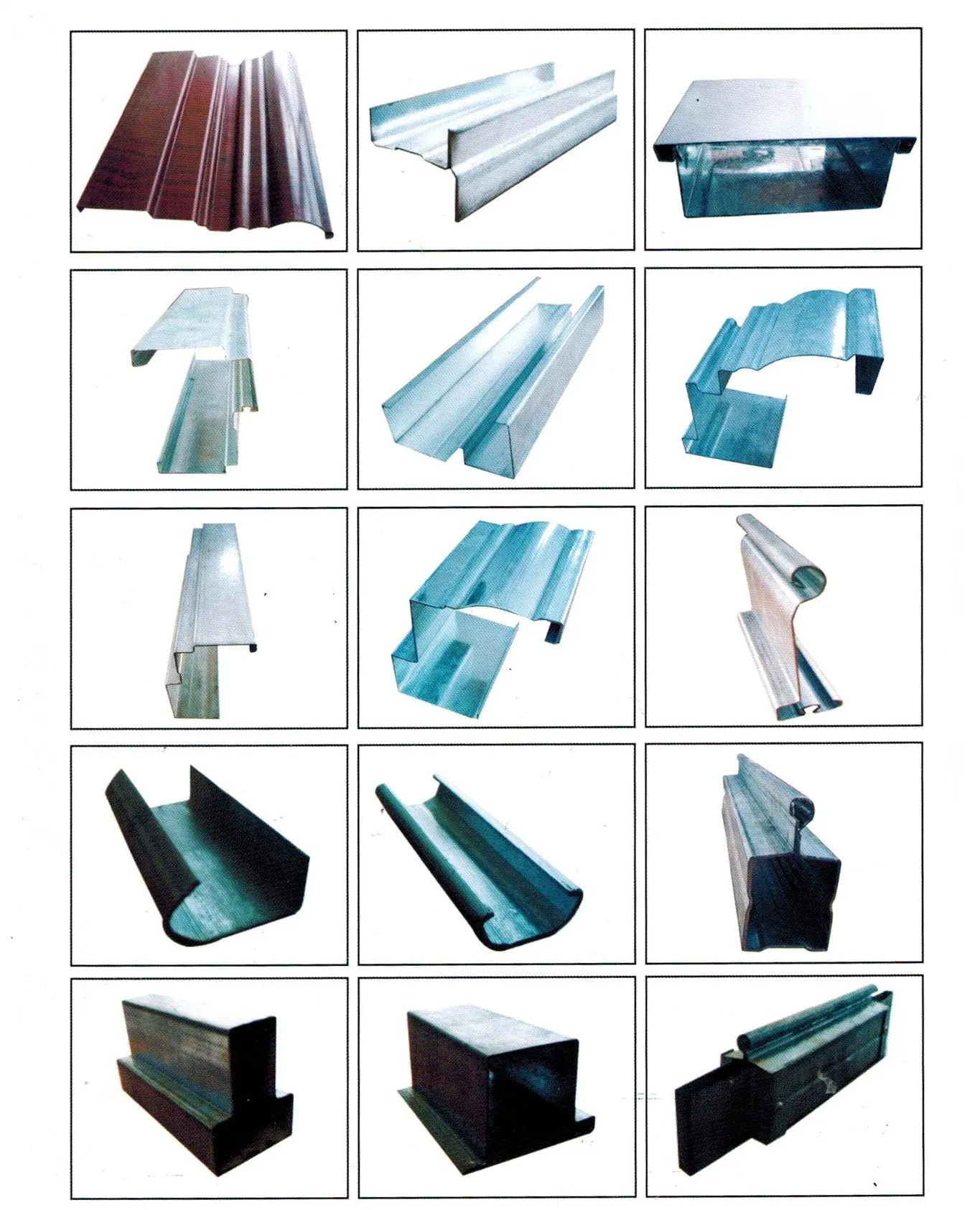

Here below I attached some door frame profile drawings for you reference, if you have this machine demand, please let me know your personal requirements and then I can prepare a machine proposal for you.

TECHNICAL PARAMETERS

Keeping Up with the Times, We Pursue the Ultimate in Technology.

Configurations	manual decoiler, feeding system, punching system, main machine of roll forming, cutting part, hydraulic station, Delta PLC control system, run out table
Material	raw material	galvanized steel
		thickness	0.65mm-1mm
		material hardness	5650MPA-350MPA

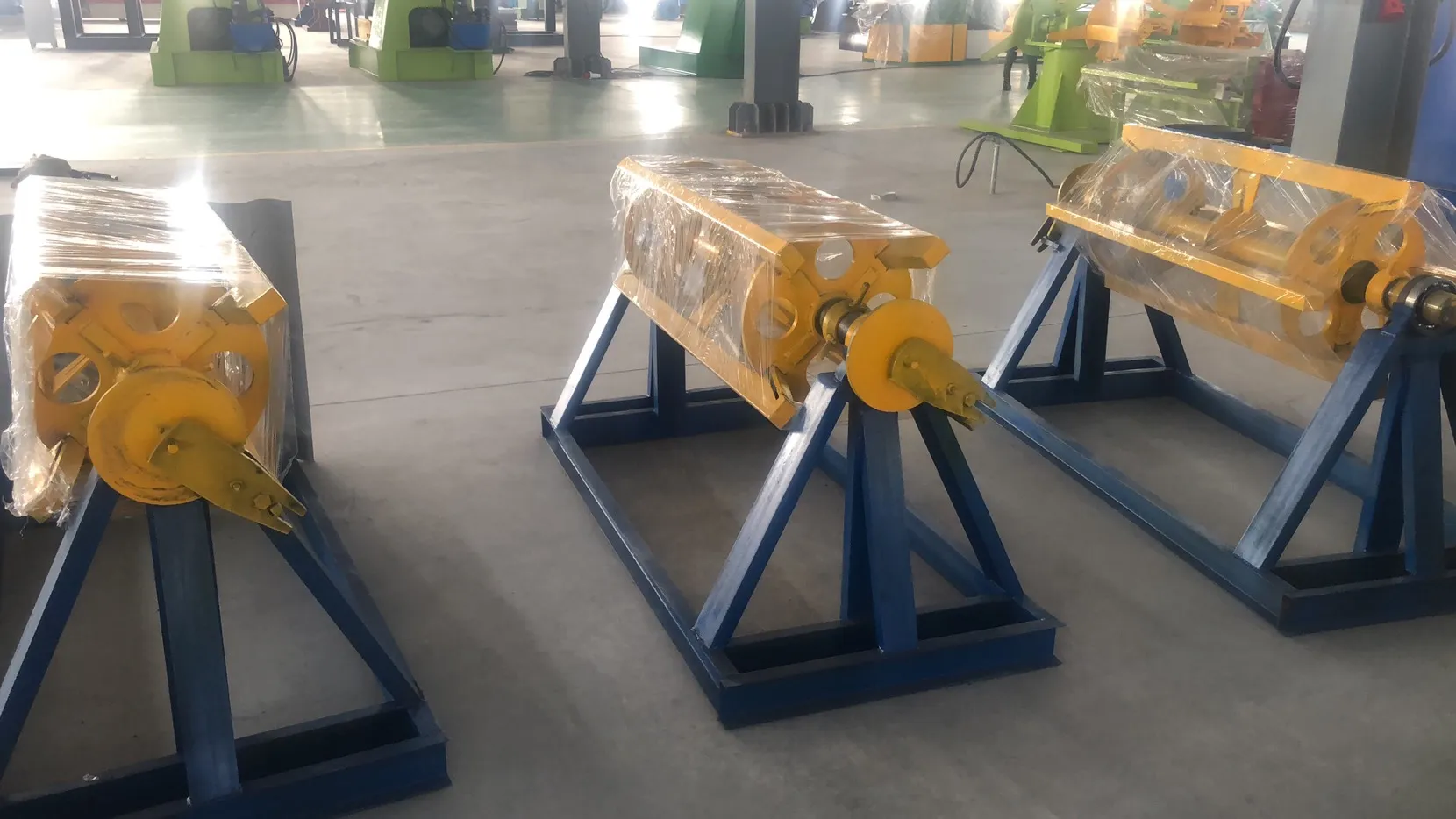

Manual Decoiler	inner diameter	450mm-550mm
		max coil width	300mm
		capacity	3T

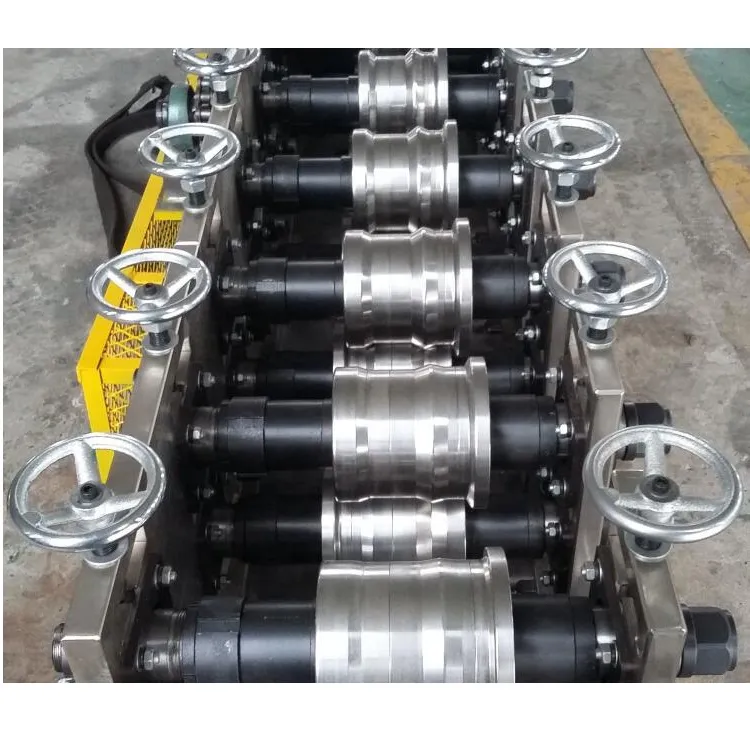

Main Forming Machine	forming steps	16 stations
		shaft diameter	50mm
		design type	middle plate welded, memorial arch frame type
		frame thickness	25mm
		roller material	GCR12MOV
		shaft material	45# steel with tempering
		work speed	0-15m/min
		transport	by gear
		power of main machine	5.5KW

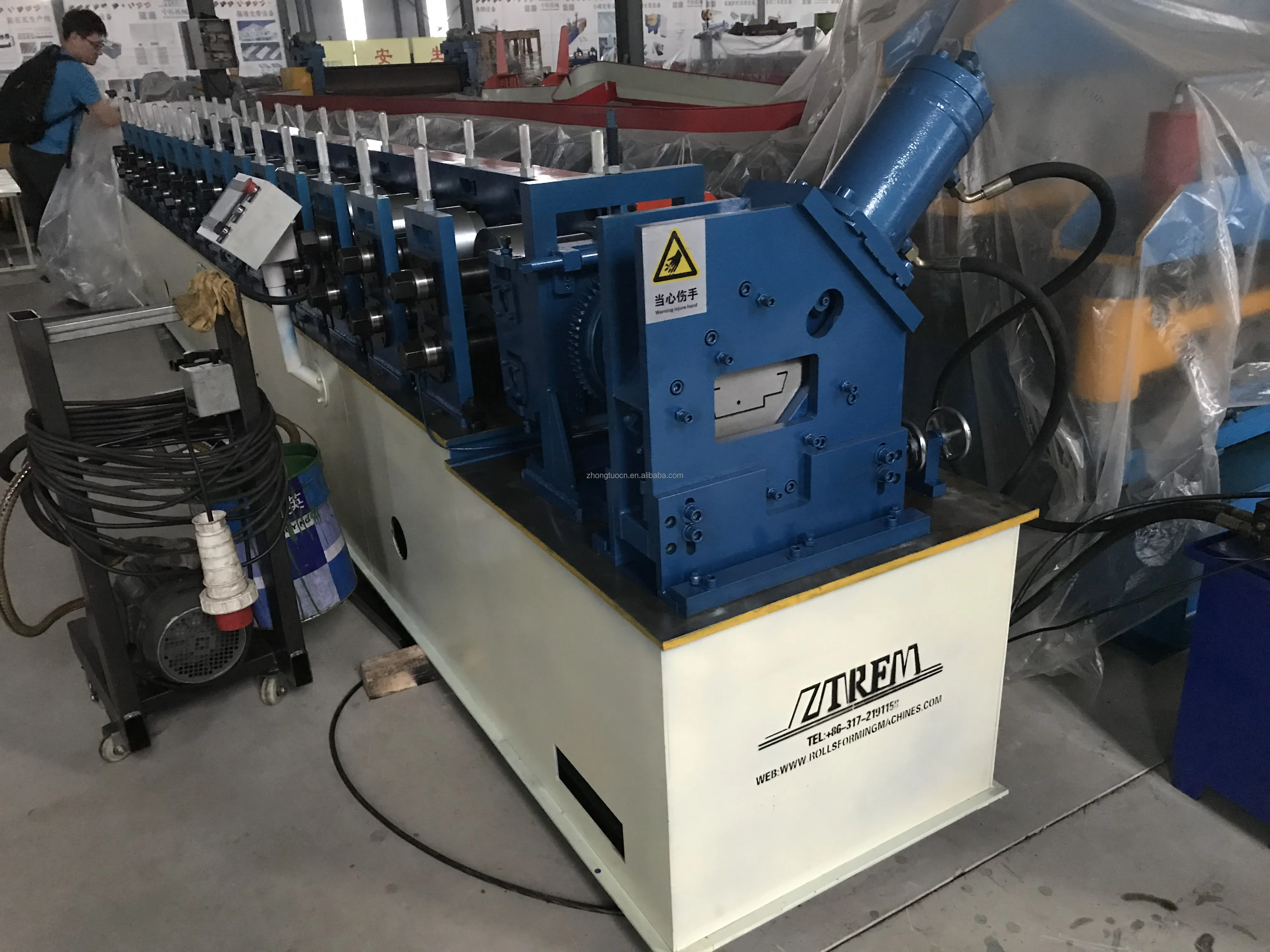

Hydraulic Cutting and Punching System	power supply	hydraulic station
		punching mould material	GCR12MOV
		blade mould material	GCR12MOV
		advantages	no distorting or wasting with a high level safety factor

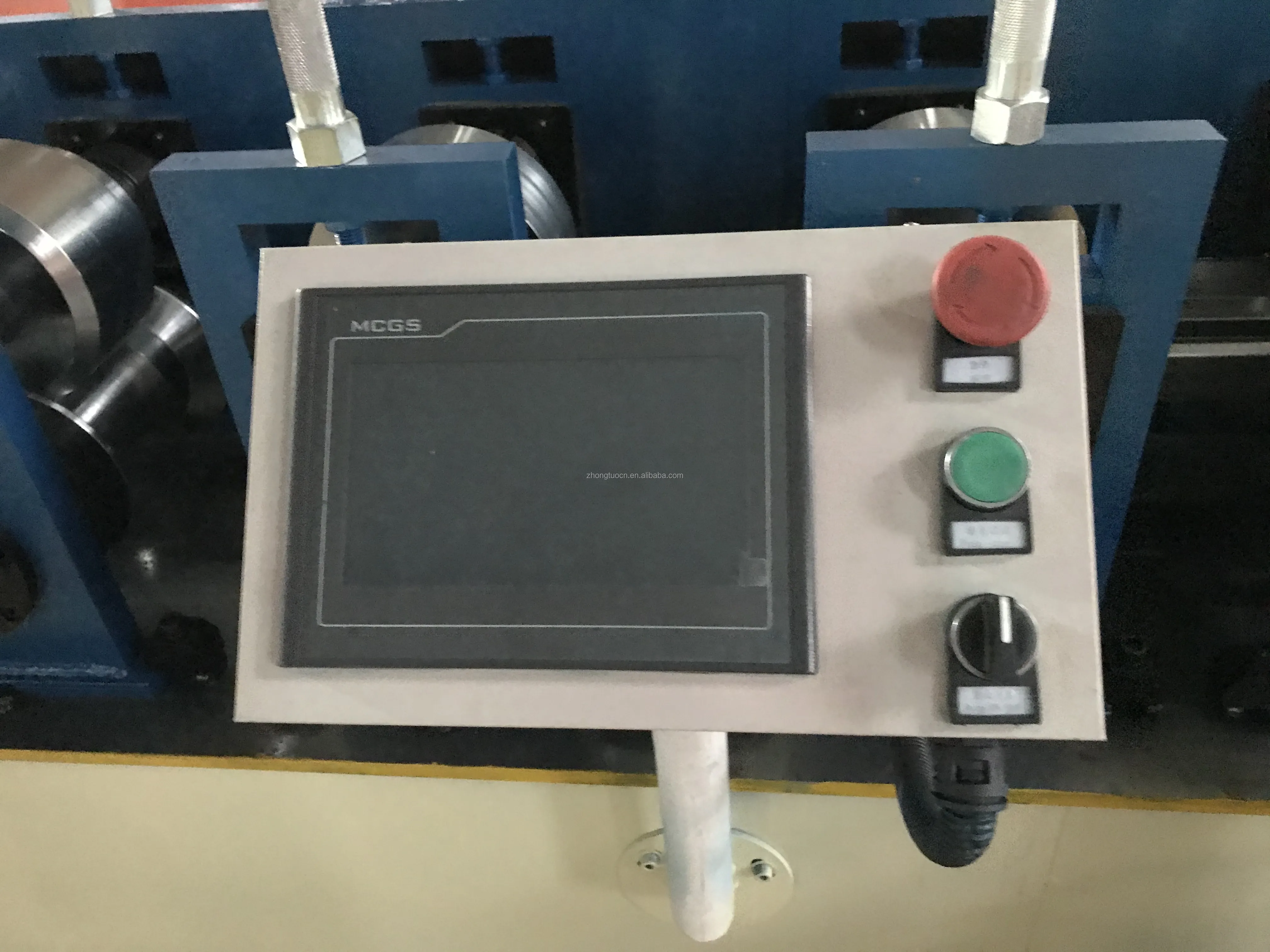

Control Device	control system	PLC
		PLC language	English and Chinese (or as required)
		screen	touch screen
		function	automatically adjust the length, punching and quantity measurement
Other Spare Parts	weight	about 3 tons
		dimension	4300mm800mm1400mm (LWH)
		main body color	customize for you
		voltage	380V/50HZ/3PH (customize for you)
		spare cutting blade	1 piece
		fuse	2 pieces
		relay	2 pieces
		travel switch	2 pieces
		solenoid value	1 piece

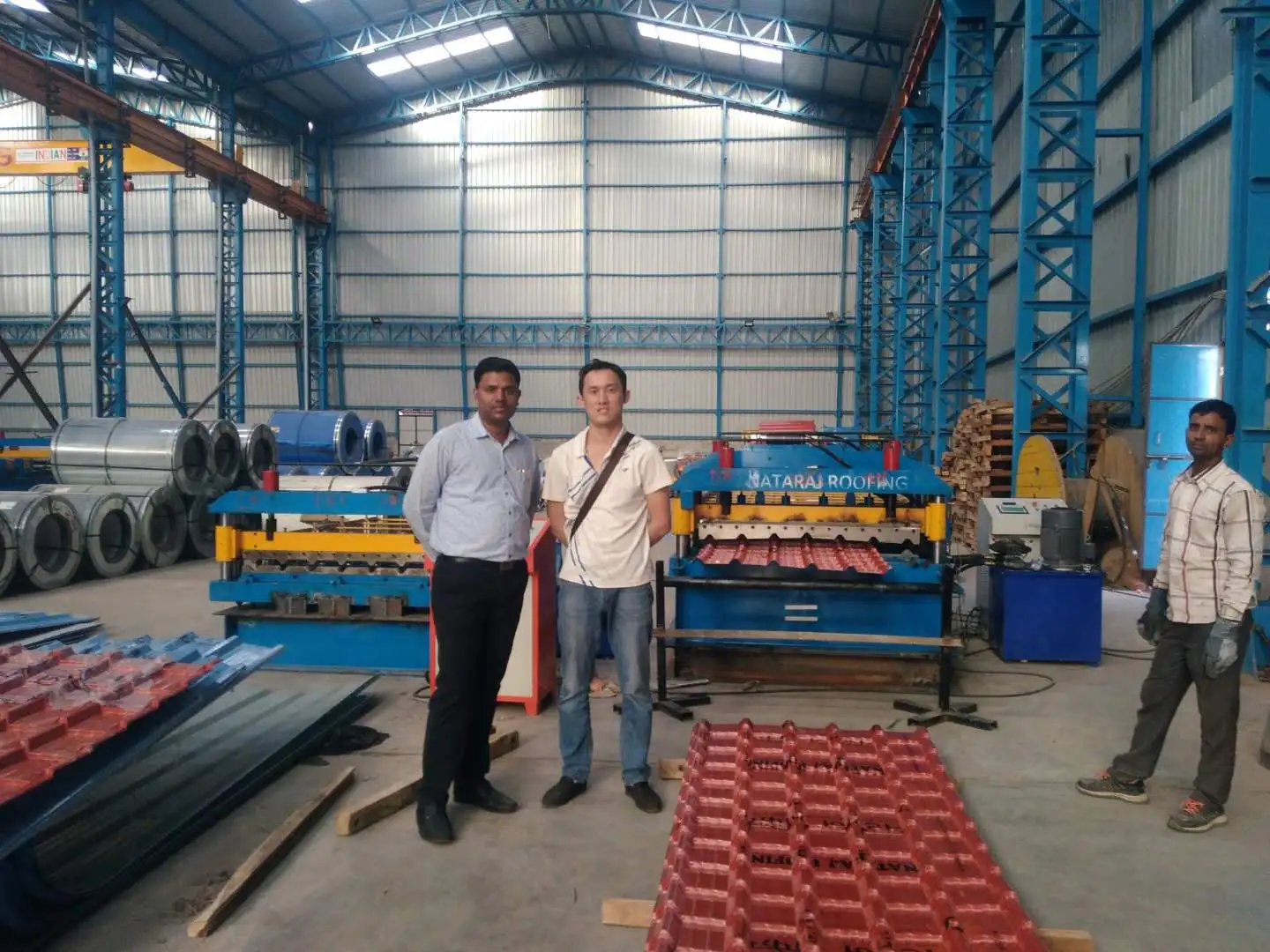

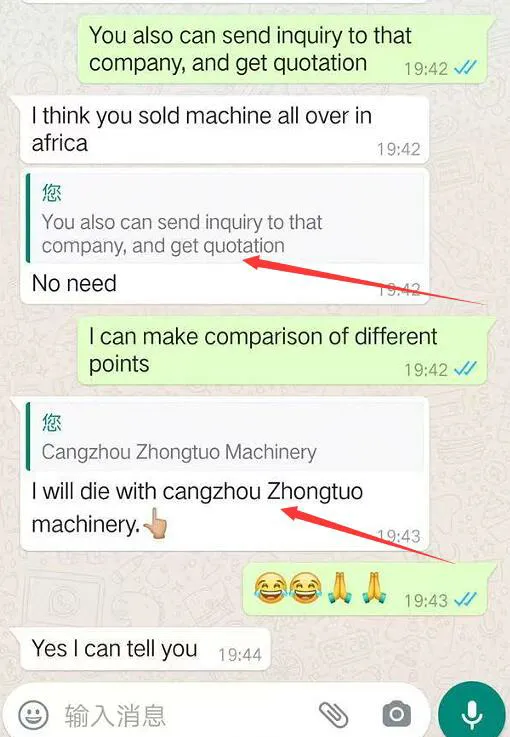

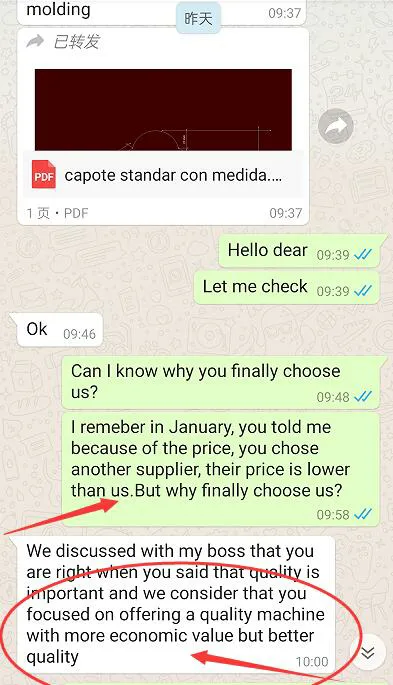

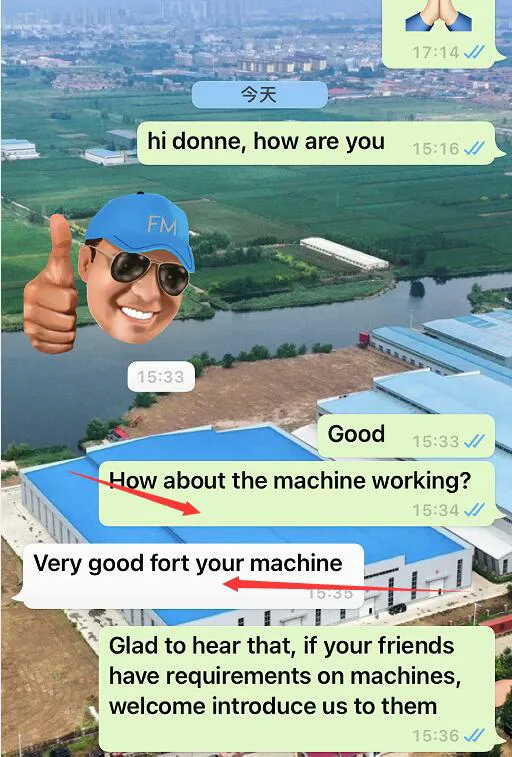

Customer Feedback

Meeting Your Requirements is Our Goal; Solve Your Problems Heart and Soul !

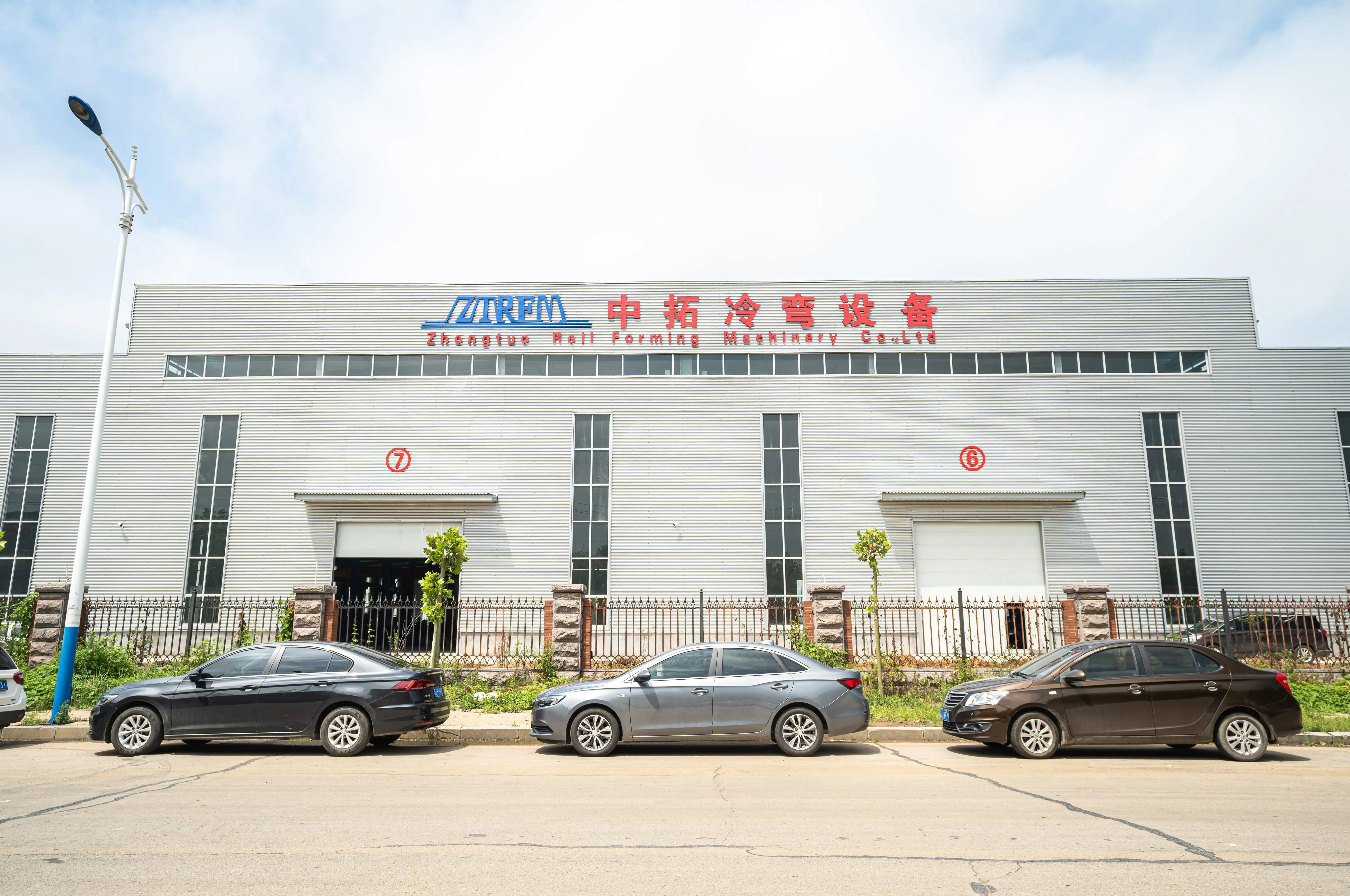

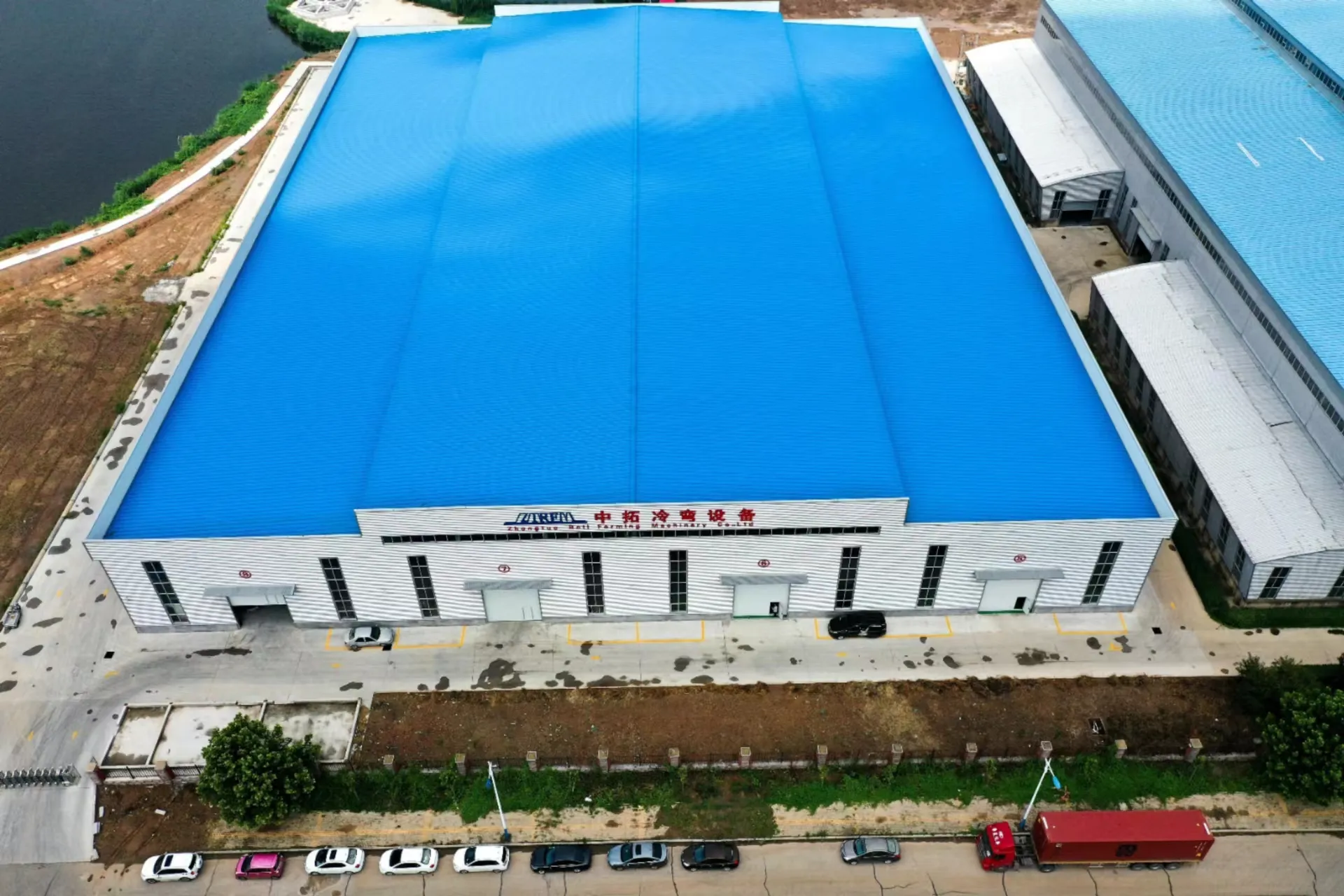

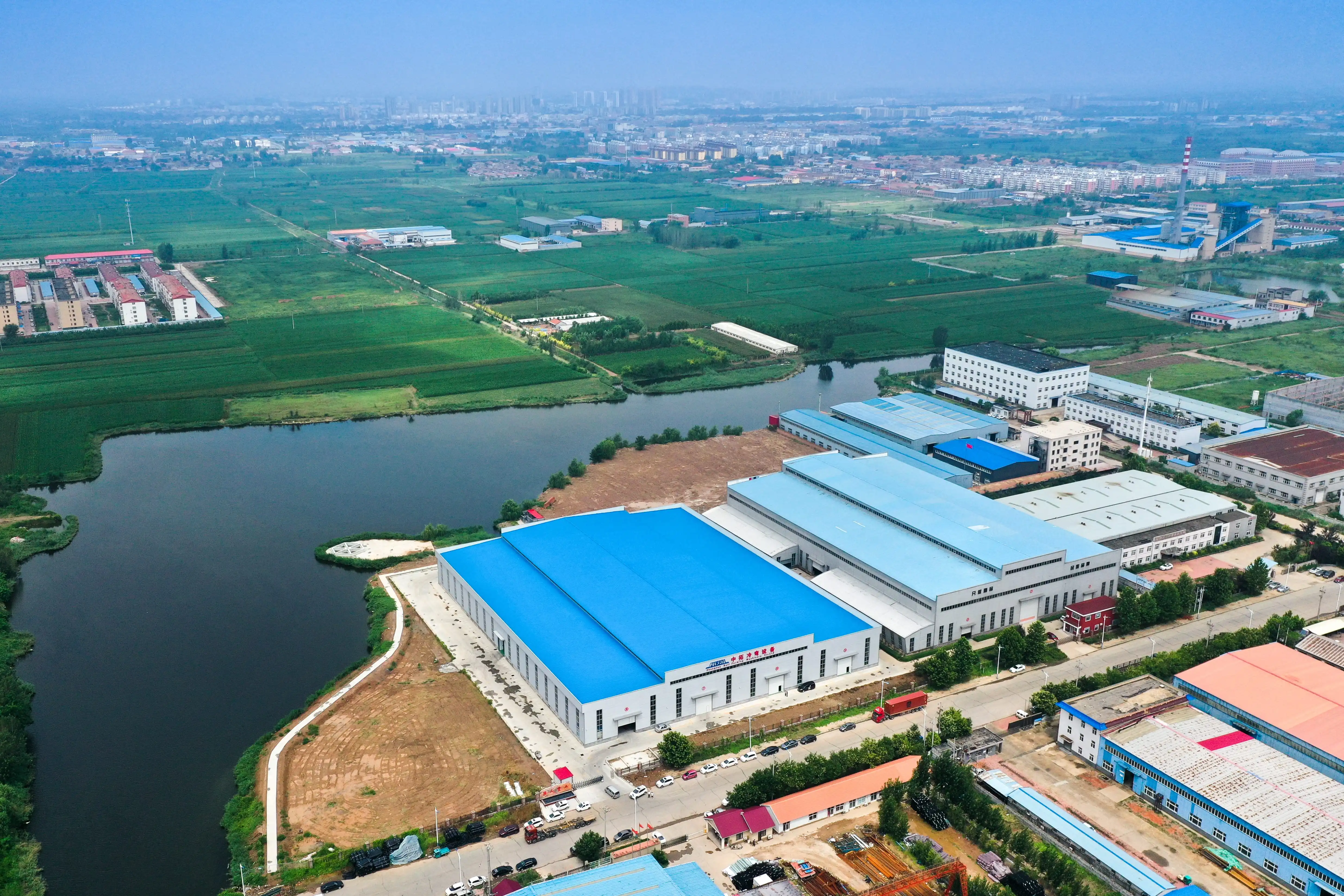

——OUR COMPANY——

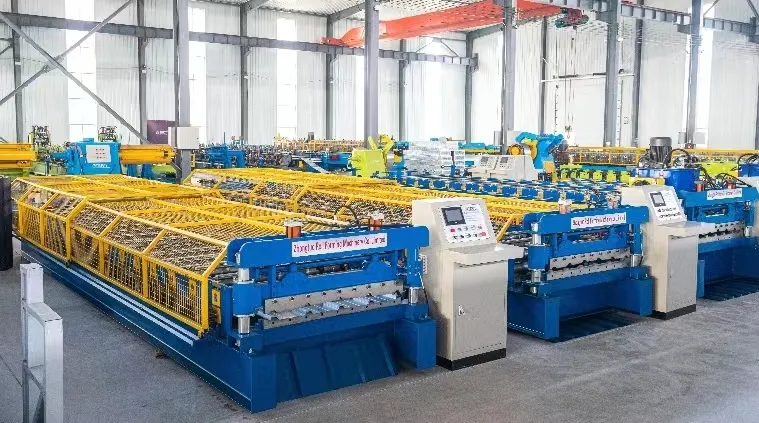

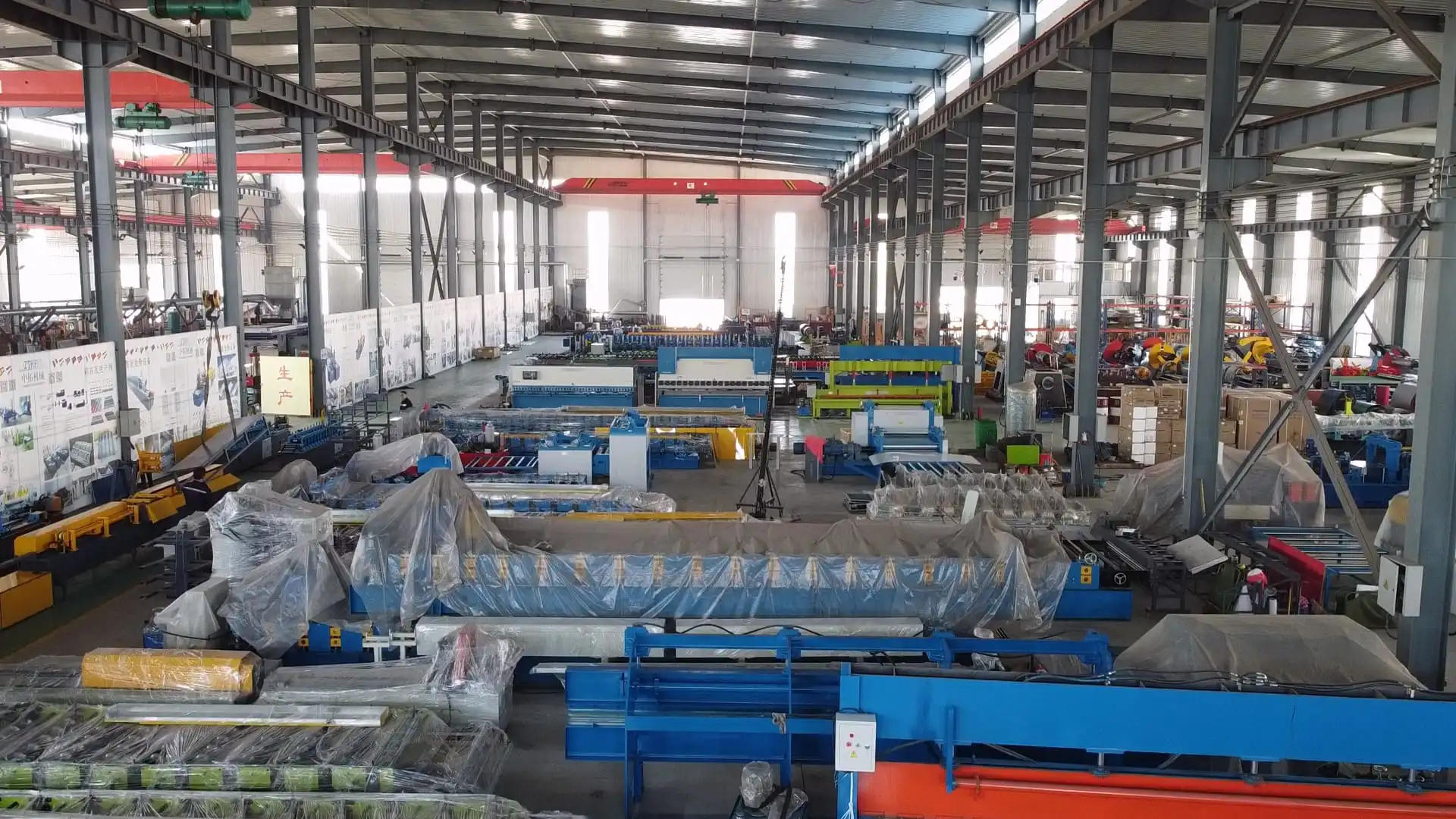

CANGZHOU ZHONGTUO came from Hebei-China, is a factory that committed to the desiging and manufacturing of different types cold roll forming machines. We are a factory that has a long history, we do the desiging and manufacturing of cold roll forming machines since 2006. The machines we can manufacture contains:roofing sheet machine, cz purlin machine, light steel gauge maghine, metal embossing machine, door system forming machine, ceiling system machine, pipe welding machine, slitting and cut to length machine as so on.The company has passed ISO9001 quality control system certification, European CE safety certification, North American CSA electric certification, and has instill the concept "time is money, quality is life" into the mind of every employees. We strictly control quality while improving production efficiency and shortening delivery time. All the machines produced by us need full line test before leaving the factory, we never send problematic equipment to customers. We have full experience of export and know well about the different needs of customers from both developing countries and developed countries, we provided many satisfactory machine proposals to customers in the past years. Nowaday our machines have already been exported to more than 150 countries and we established long-term and stable cooperative relationship with our clients. Development vision: become a global one-stop supplier of cold roll forming machines and accessaries. Development concept: time is money, quality is life.

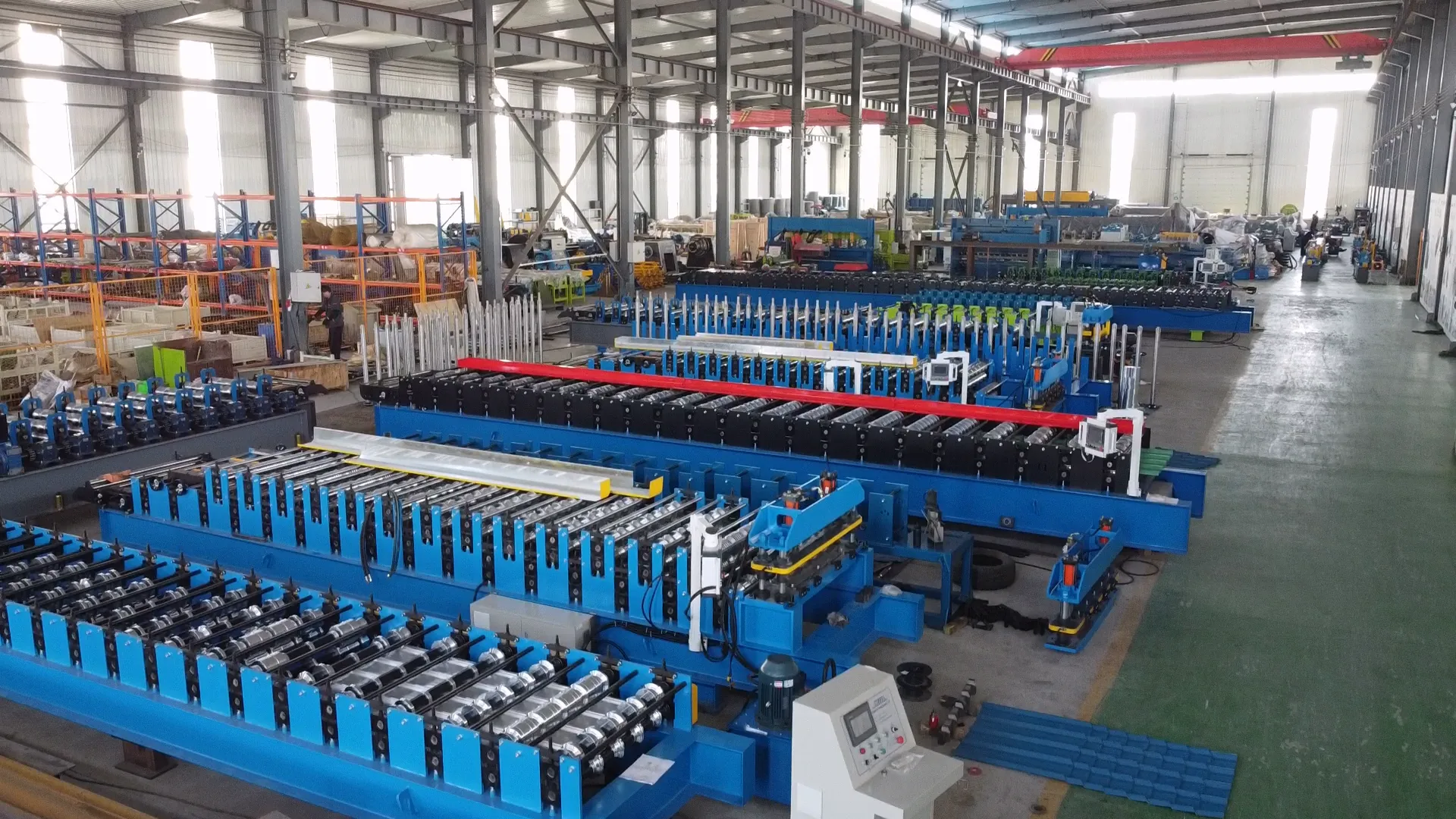

——OUR STRENGTH——

——OUR TECHNICAL TEAM——

——EXHIBITION——

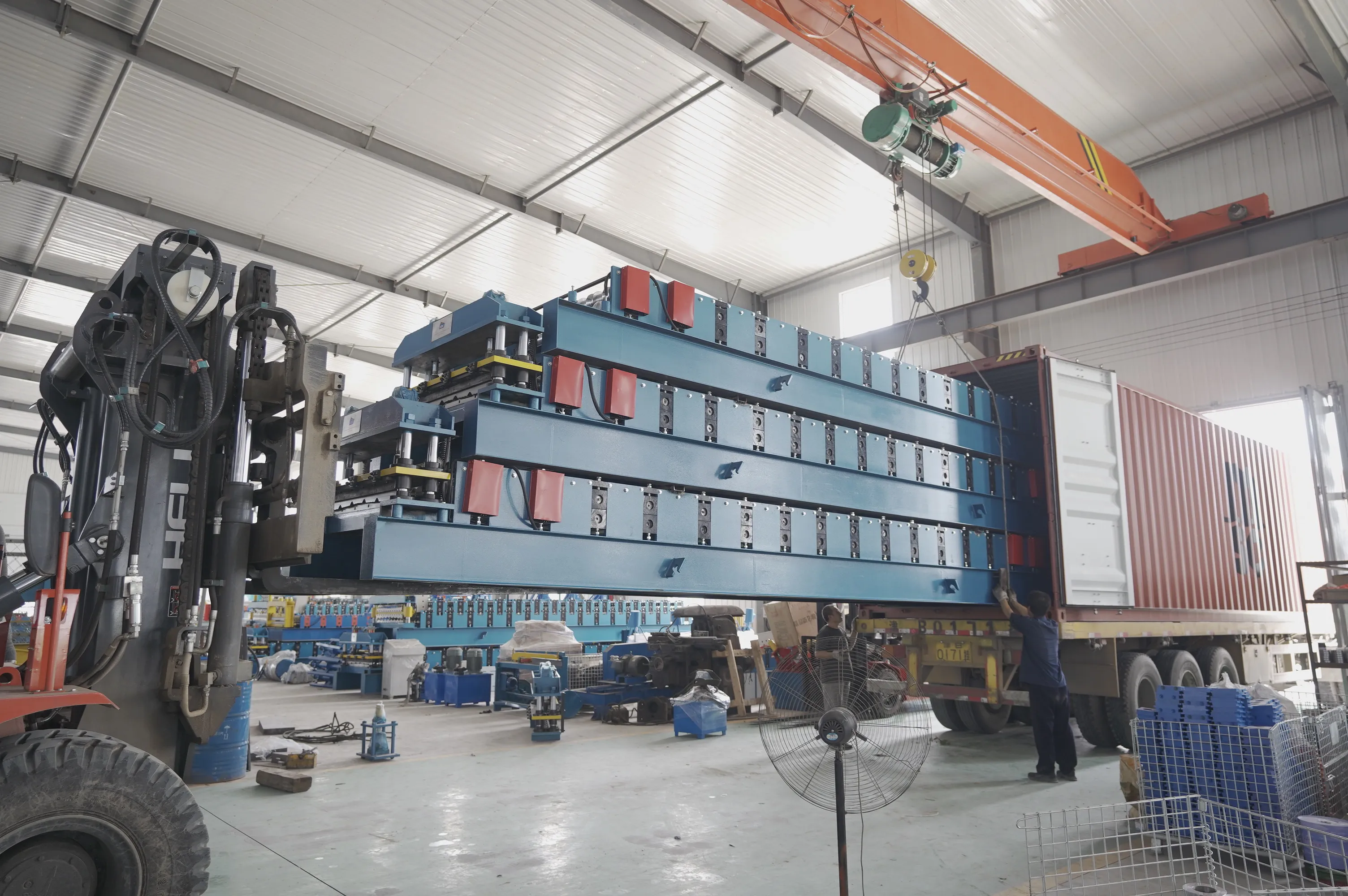

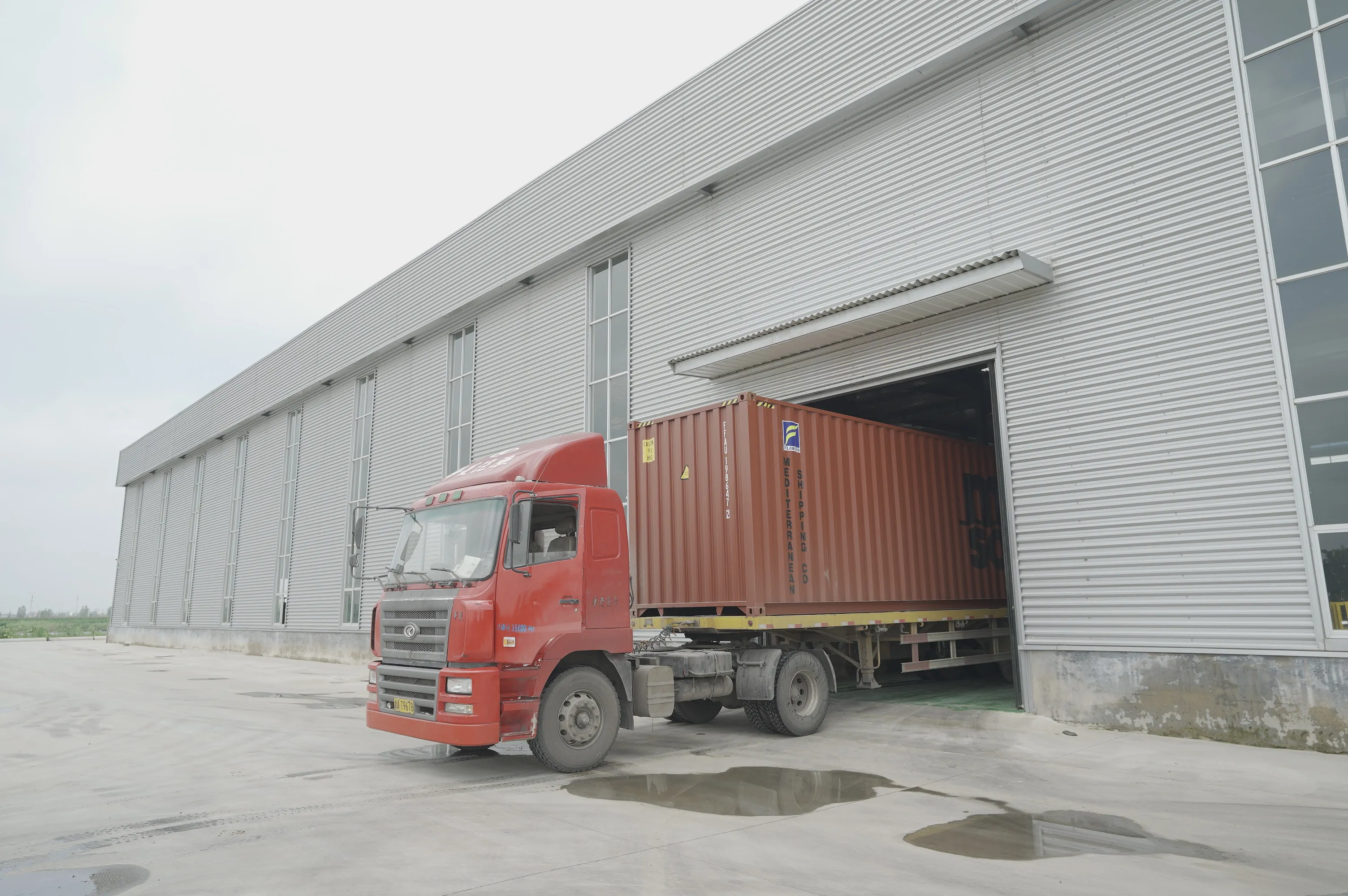

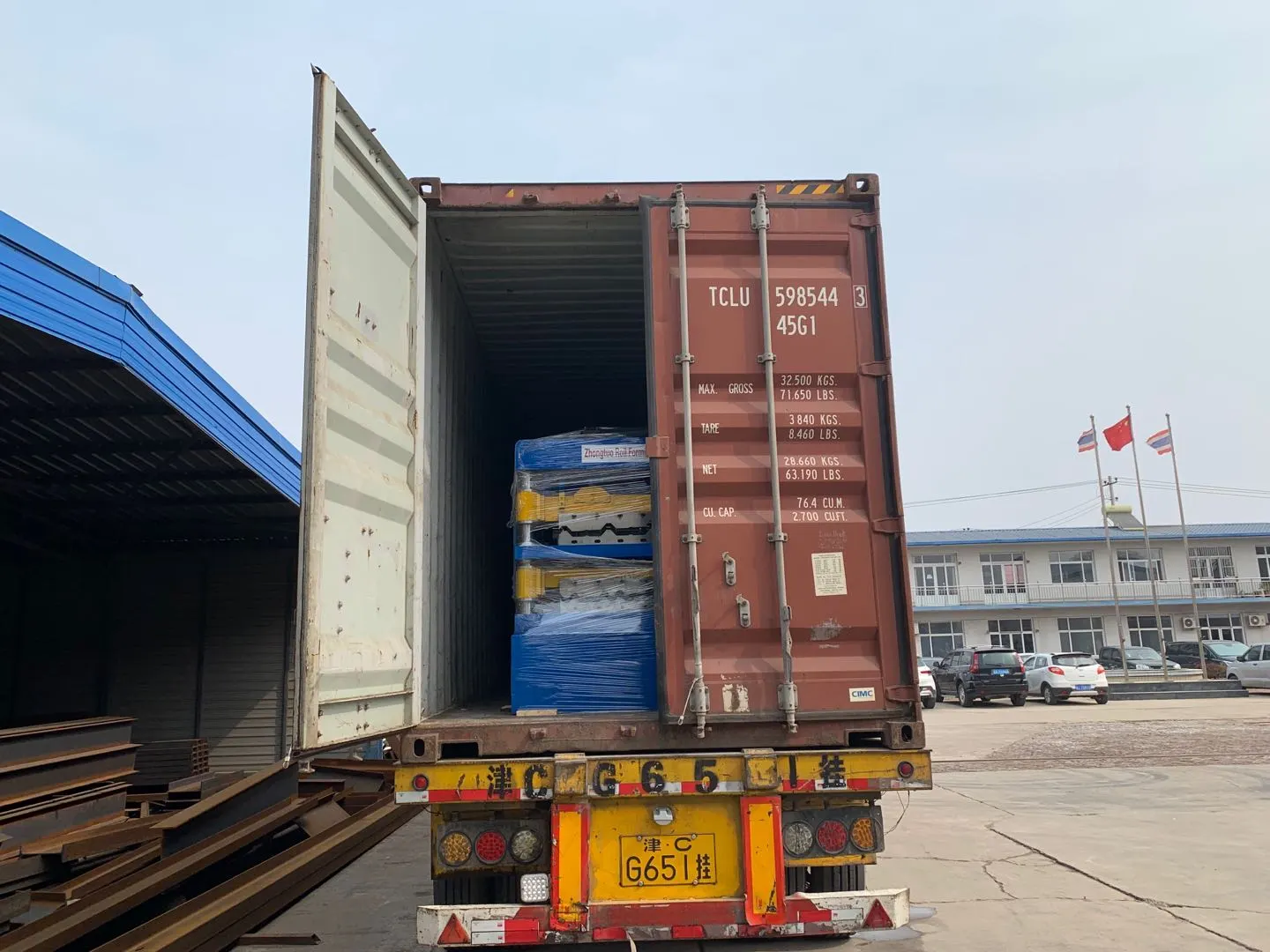

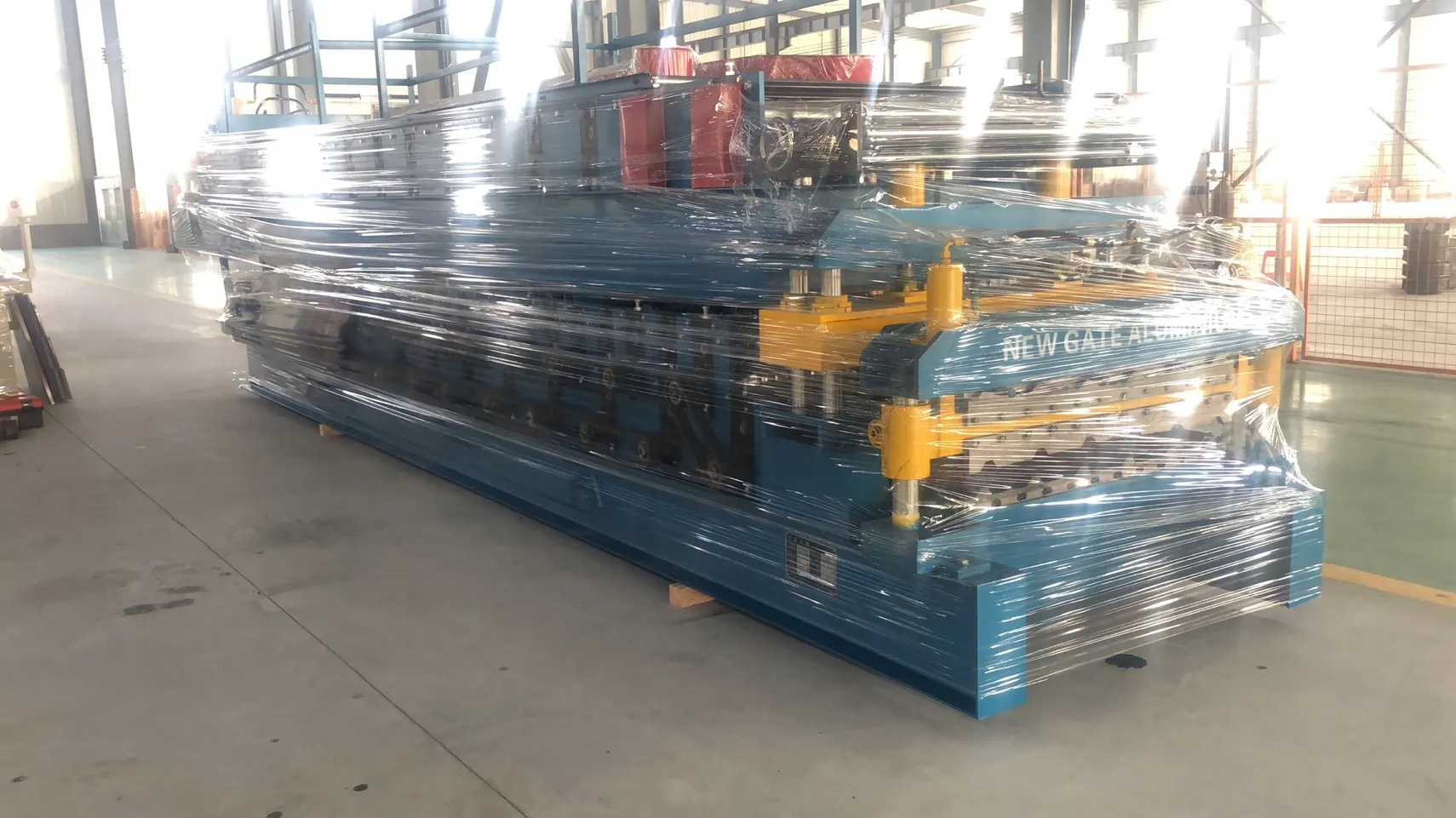

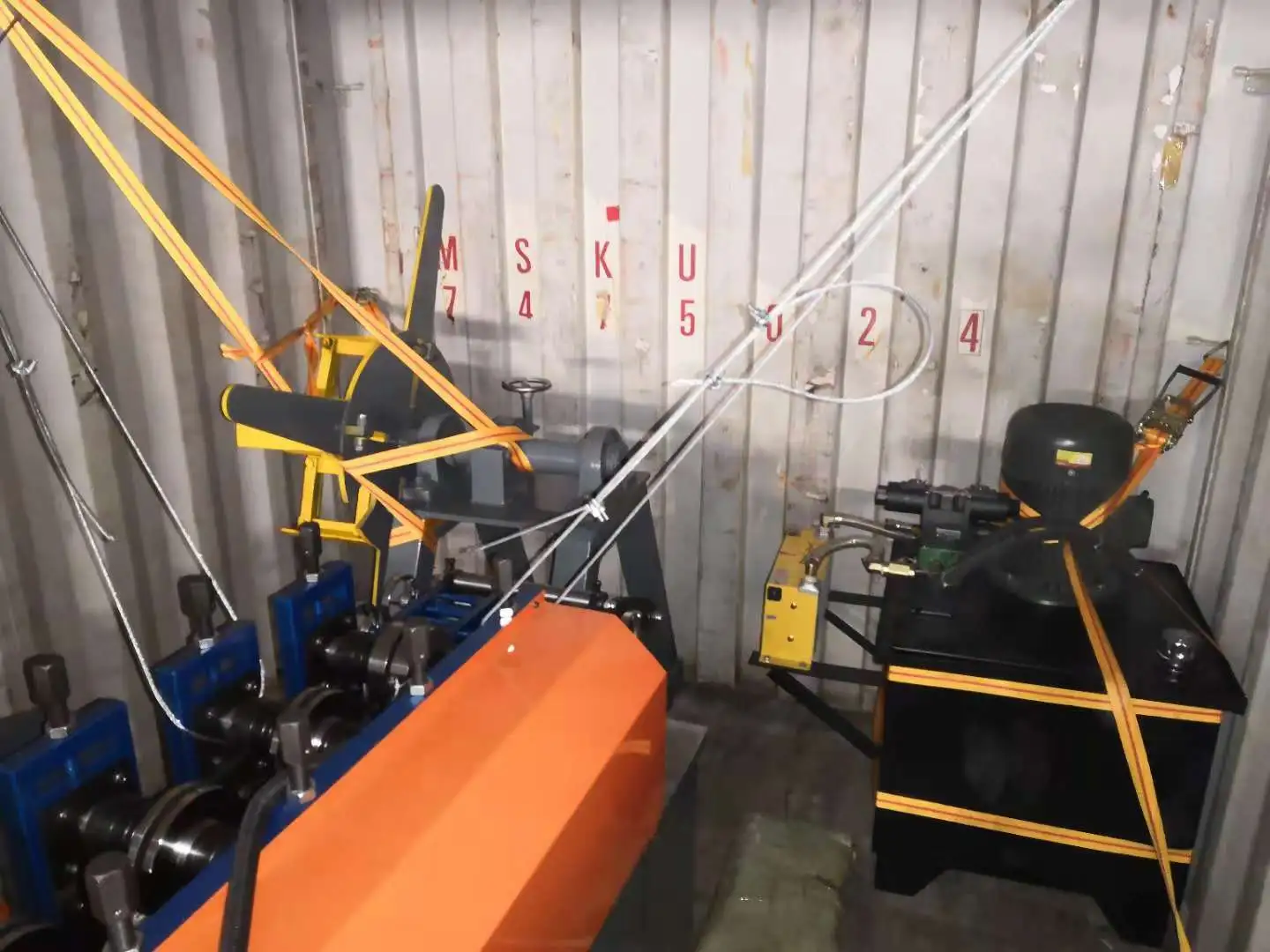

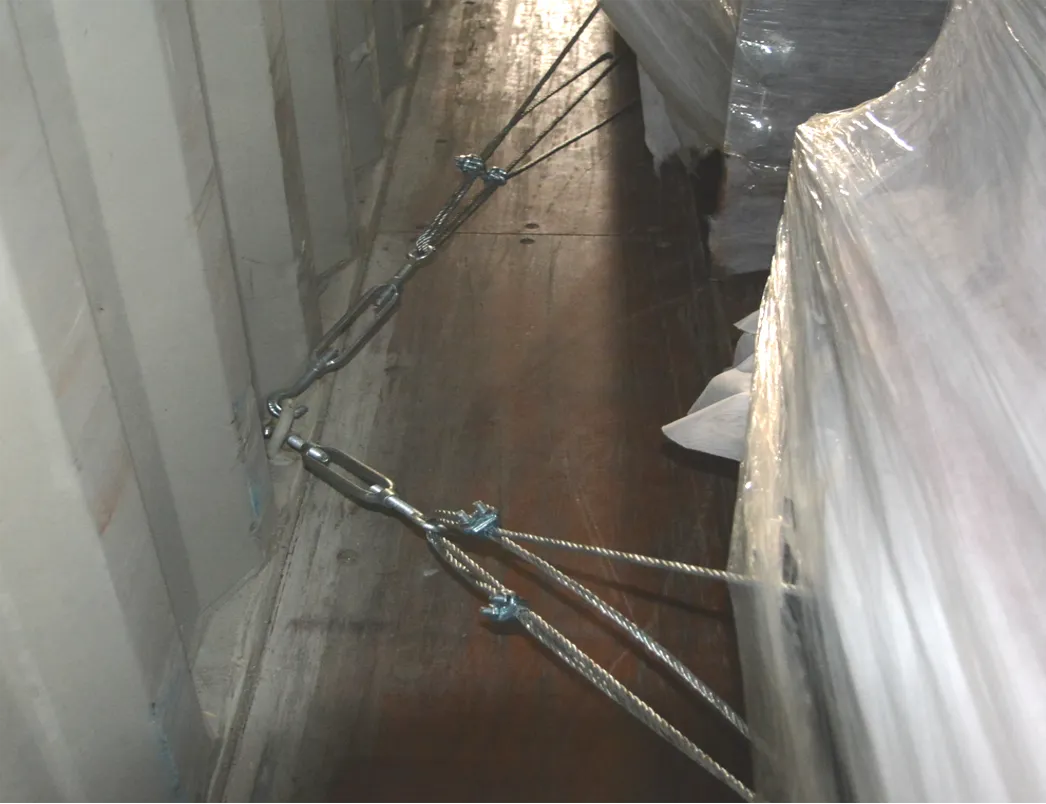

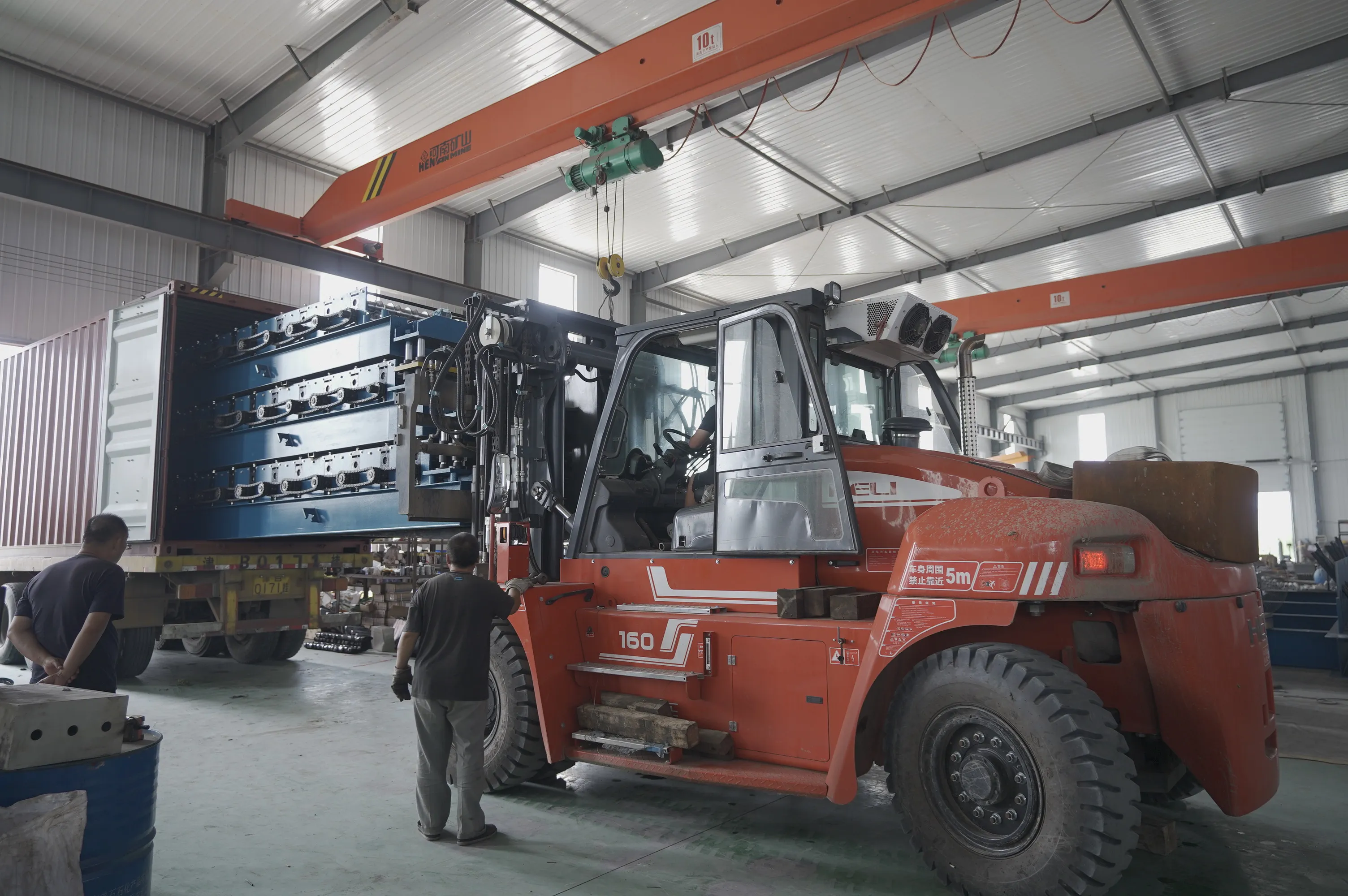

——PACKING AND LOGISTICS——

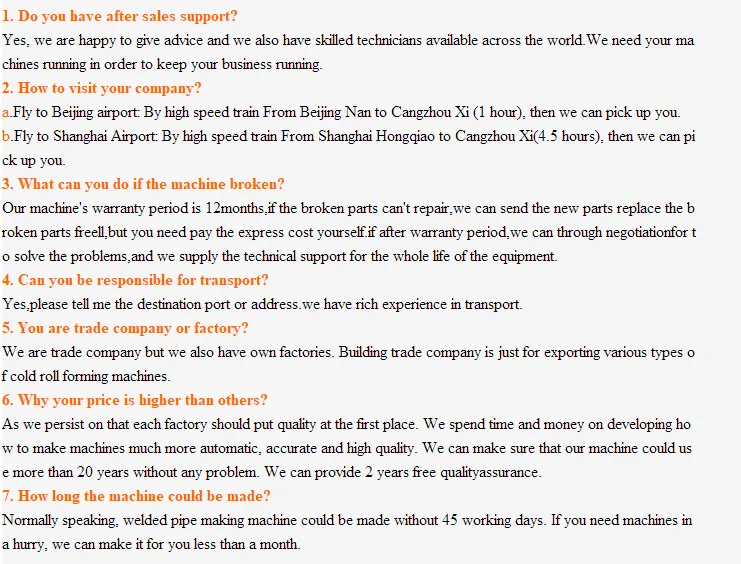

——FAQ——
