Color Coated Steel System > Production Equipment > Glazed Tile Roll Forming Machine

ZTPFM Automatic Glazed Tile Forming Machine Step Tile Roll Forming Machine Tile Making Machinery Roofing Sheet Roll Former 25 M/min+ztrfm+11kw

Cangzhou Zhongtuo International Trade Co., Ltd

ZTPFM Automatic Glazed Tile Forming Machine Step Tile Roll Forming Machine Tile Making Machinery Roofing Sheet Roll Former 25 M/min+ztrfm+11kw

Name: ZTPFM Automatic Glazed Tile Forming Machine Step Tile Roll Forming Machine Tile Making Machinery Roofing Sheet Roll Former 25 M/min+ztrfm+11kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT80186477

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

25 M/min

Model Number:

ztrfm

Power(W):

11kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Roll Forming Machine
Tile Type
Steel
Use
ROOF
Voltage
380 V
Rolling Thinckness
0.4-0.8mm
Feeding Width
≤1250mm

Product Description

ZTRFM full automatic metal glazed roof tile Making machine Hot Sale glazed Roof panel roll forming machine

Glazed Tile Roofing Sheet Machine Overview
The glazed tile roofing sheet machine is a type of cold roll forming equipment specifically engineered for producing steel tiles that mimic the elegant appearance of traditional antique glazed tiles. This machine seamlessly fuses classical design elements with the cutting-edge features of modern color-coated steel technology, resulting in roofing sheets that are both visually appealing and structurally advanced.

The features of this machine

Key Advantages of Glazed Steel Tiles:
1. Elegant and Timeless Design
These roofing sheets preserve the graceful contours and heritage-inspired style of traditional glazed tiles, while adopting
the precision and detail of contemporary steel processing techniques.

2. Lightweight with Superior Strength
Despite being only around one-tenth the weight of conventional ceramic tiles, these steel tiles offer significantly higher
mechanical strength. They exhibit excellent resistance to wind pressure and harsh weather conditions.

3. Enhanced Durability and Corrosion Resistance
Manufactured using specialized materials and coated with advanced anti-corrosion layers, the tiles are designed for long-term
durability, even in corrosive environments.

4. Waterproof and Fire-Resistant
The interlocking structure ensures tight, seamless installation on sloped roofs, providing exceptional waterproofing. The
non-combustible steel substrate also offers robust fire resistance, enhancing building safety.

5. Easy Installation and Complete Roofing Machine
The tiles produced by this equipment are compatible with full roofing system packages. This enables fast, hassle-free
installation, effectively lowering both labor intensity and construction costs.

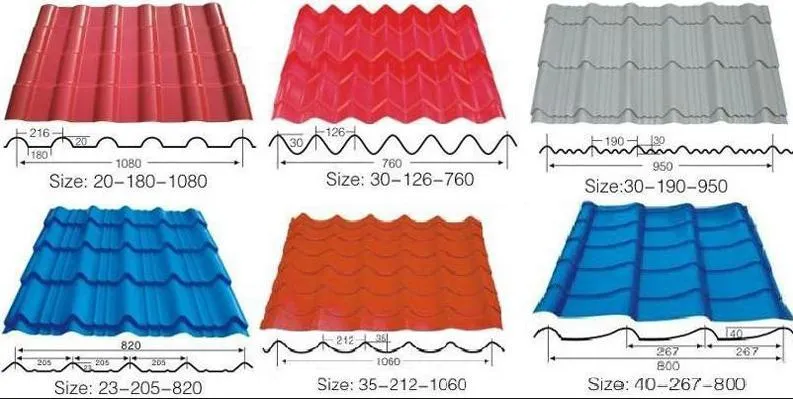

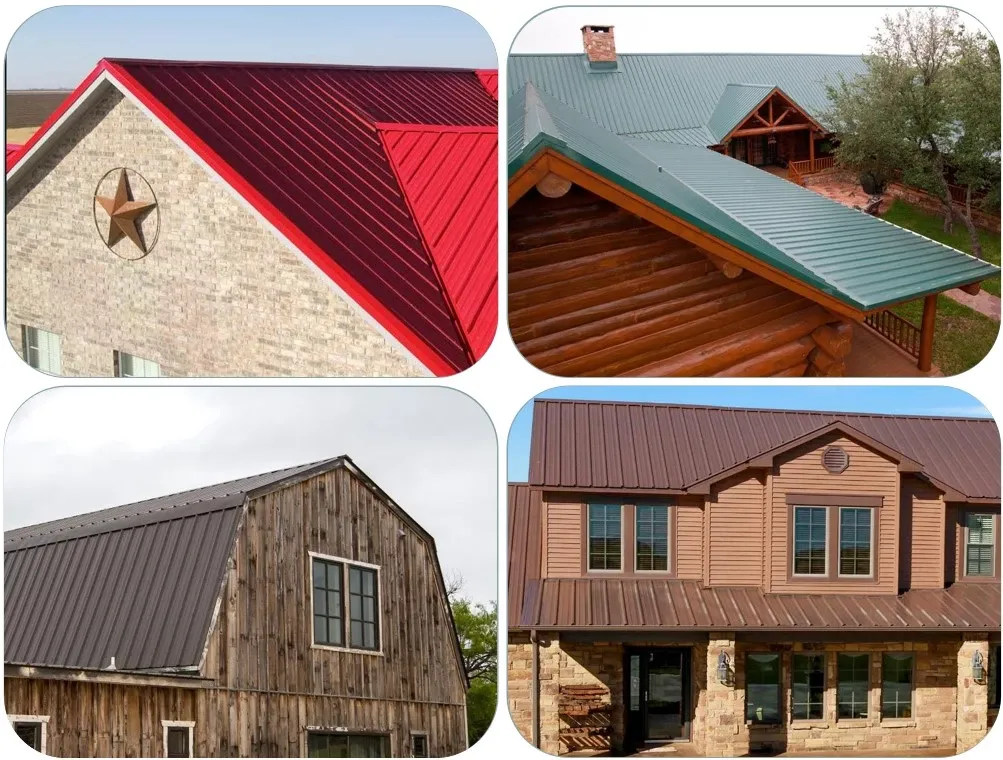

Application of the finished product showing

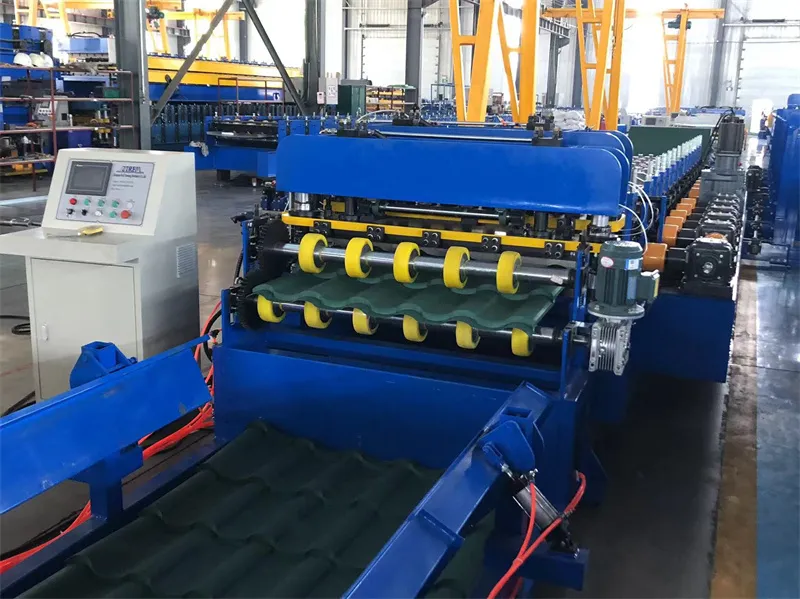

ZTRFM full automatic metal glazed roof tile Making machine Hot Sale glazed Roof panel roll forming machine
1.Formed Material	PPGI,GI,AI		Thickness:0.4-0.8mm

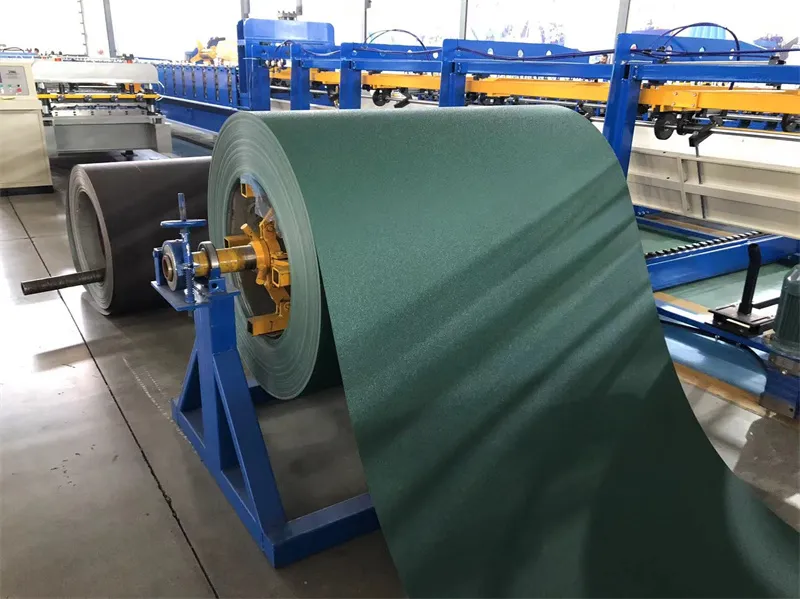

2.Decoiler	Hydraulic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		16 rows(As your requirement)
		Diameter of shaft		80mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine frame		350 H steel
		Drive		Chain transmission
		Dimension(LWH)		950016001600mm
		Weight		7.5T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		5.5KW
		Hydraulic system power		4KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		Support multiple languages
		PLC		Can set batch, length, quantity, etc.
18.Forming Speed	15-20m/min		The speed is adjustable

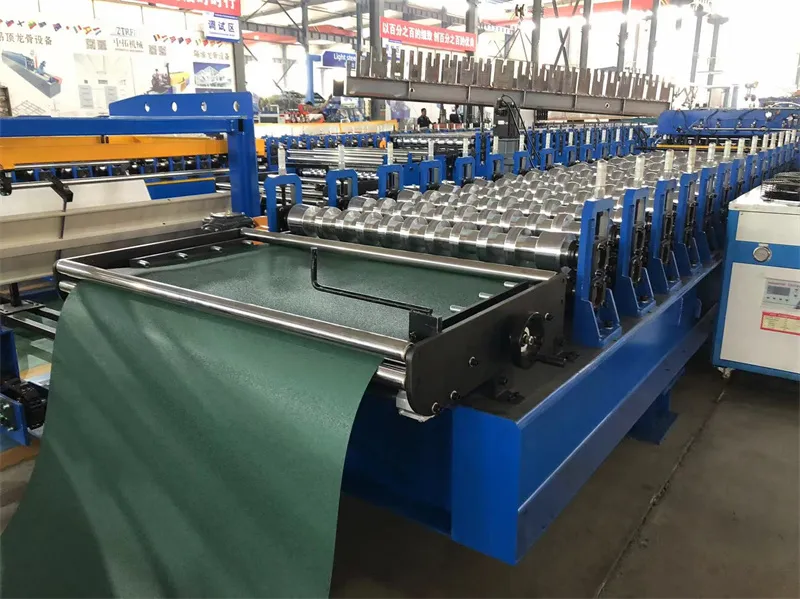

Feeding device

1.Hand wheels on both sides can be used to adjust the feeding width.

2.Four stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface.

3.There are three rows of orange plastic rollers can make the steel coil go into the machine smoothly.

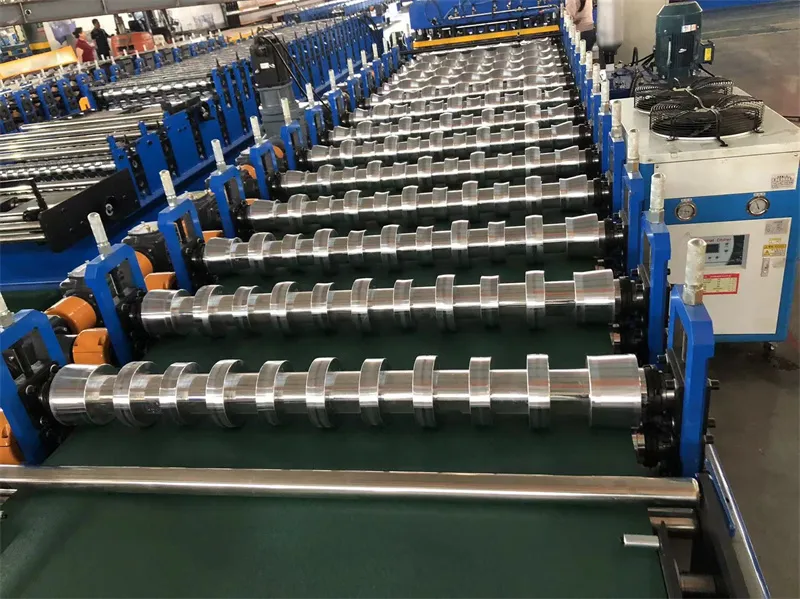

Roll Forming Device

1.rollers thick chromed good hardness for long service time.

2. Each roller has number and with keynotes, it can fix on the shaft stablely

3.gear and double chain,stable

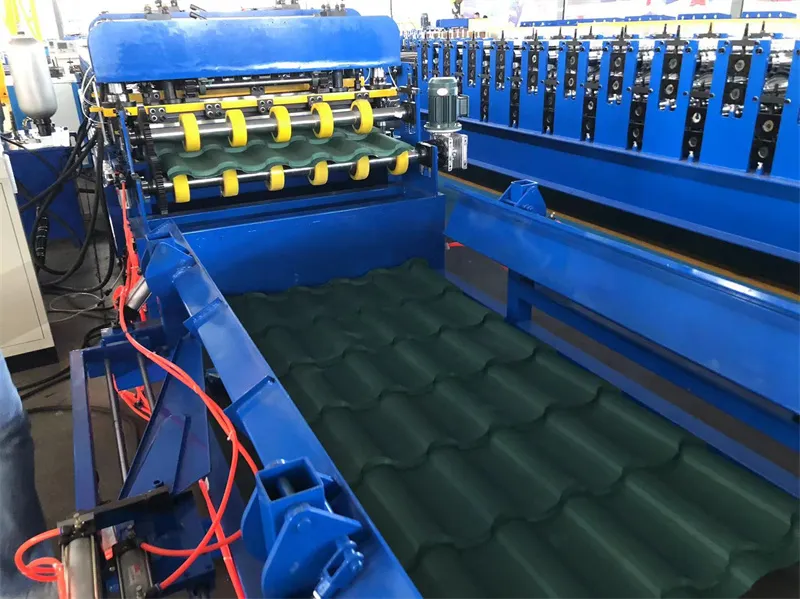

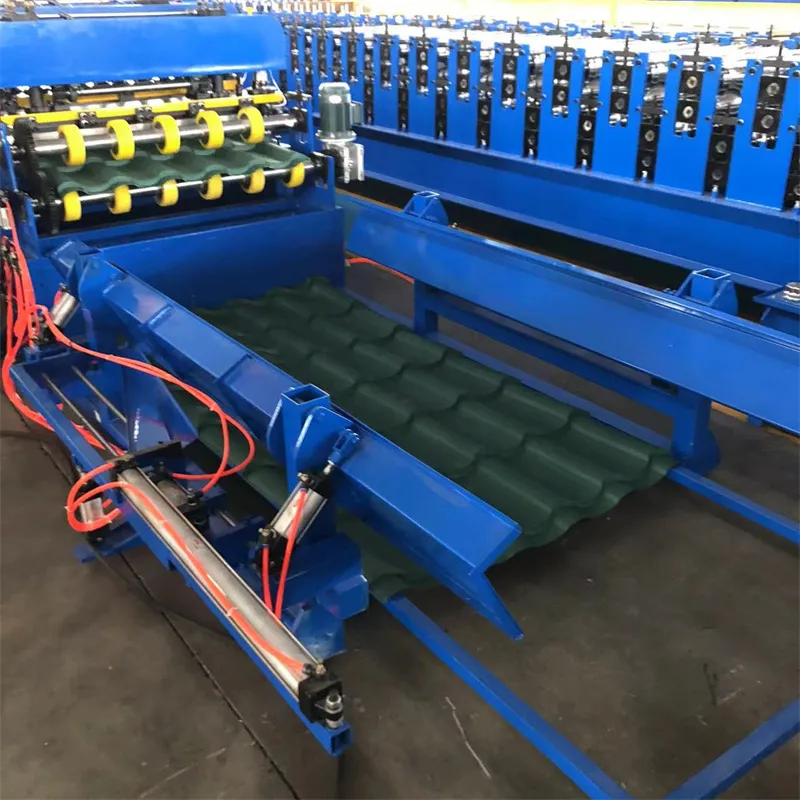

Hydraulic Cutting device

We use four pillars cutting system structure, it can make sure the cutting stable

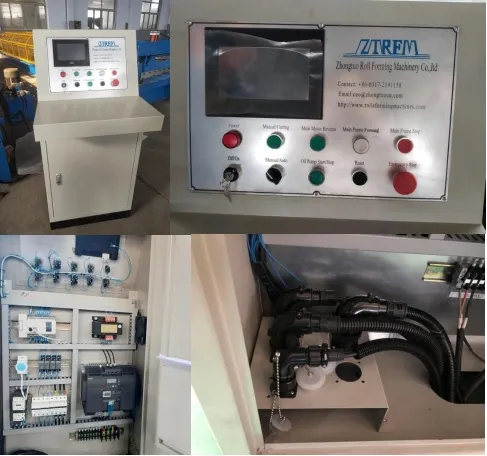

PLC control cabinet

● Encoder brand:Omron

● Electrical components:Schneider

● language:muti-language as requested
