ZTFRM Stone Coated Concrete Metal Tile Roof Making Machine PLC, Engine, Bearing, Motor, Gear, Pump+8m/ min+Hebei,China+6000 kg+1.5 year

Cangzhou Zhongtuo International Trade Co., Ltd

ZTFRM Stone Coated Concrete Metal Tile Roof Making Machine PLC, Engine, Bearing, Motor, Gear, Pump+8m/ min+Hebei,China+6000 kg+1.5 year

Name: ZTFRM Stone Coated Concrete Metal Tile Roof Making Machine PLC, Engine, Bearing, Motor, Gear, Pump+8m/ min+Hebei,China+6000 kg+1.5 year
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT60188684

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Work Pressure
380V 50Hz 3Phase(As your requirement)
Voltage
380V/50HZ 3Phase
Power(W)
30kw

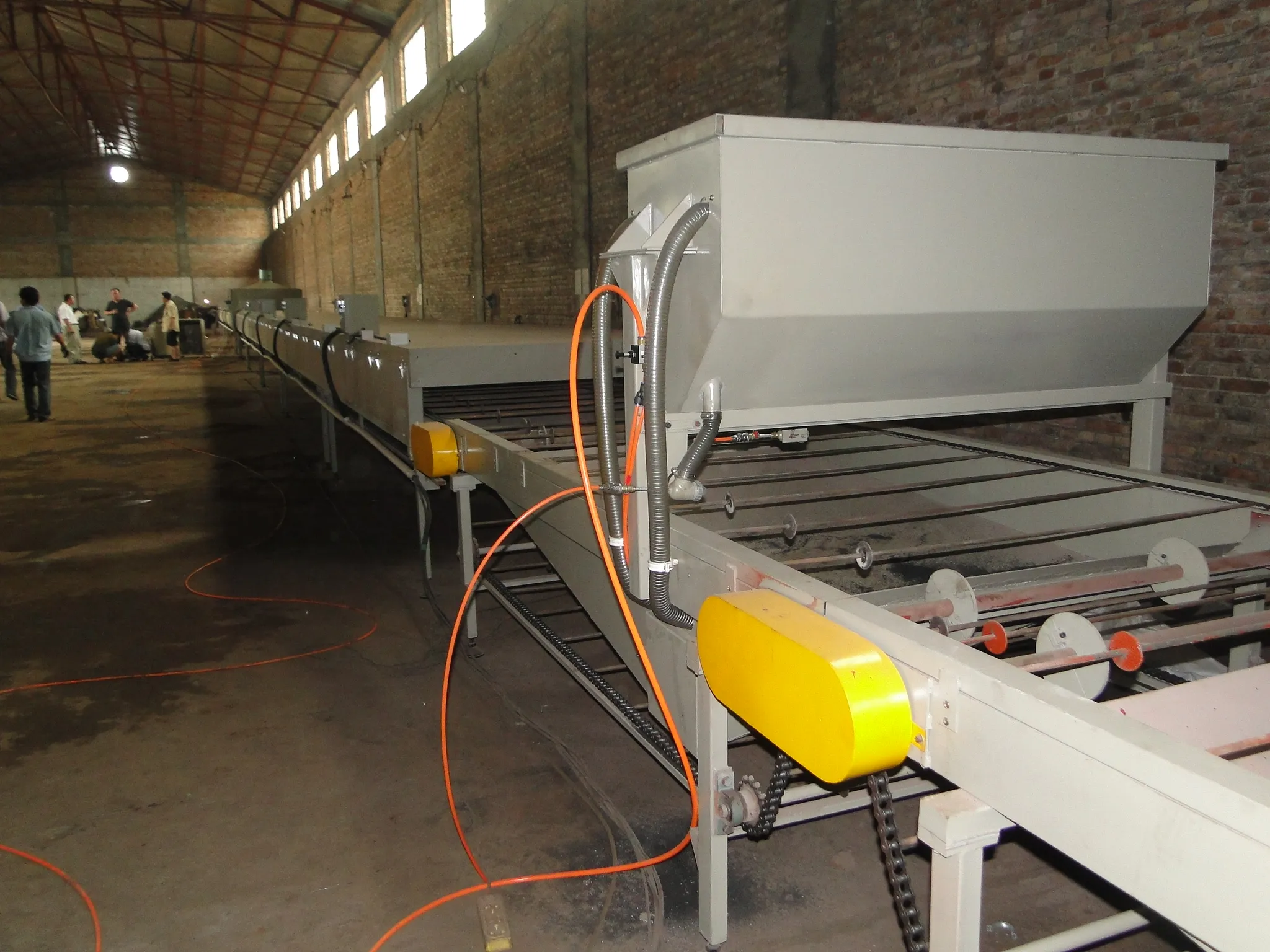

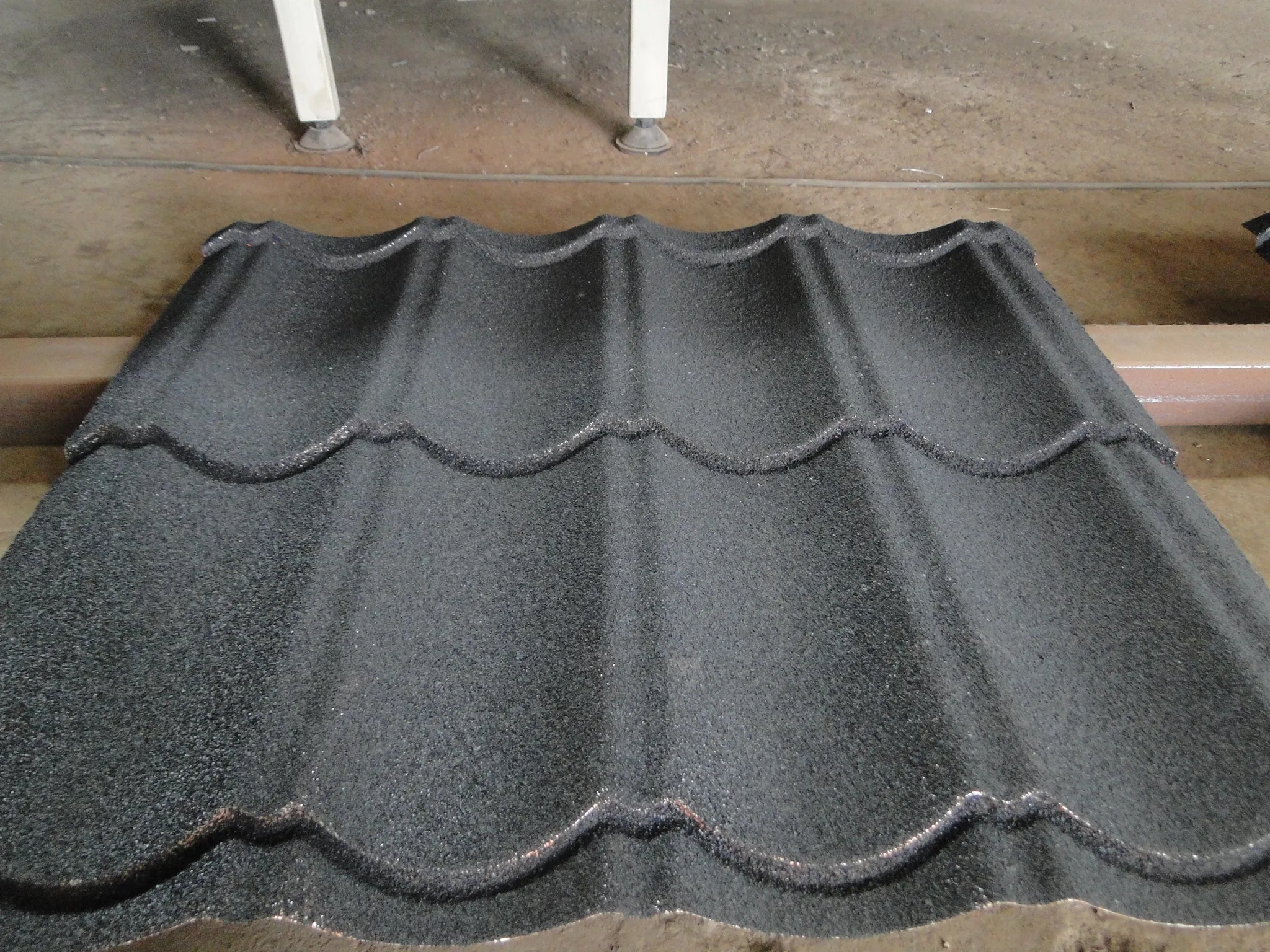

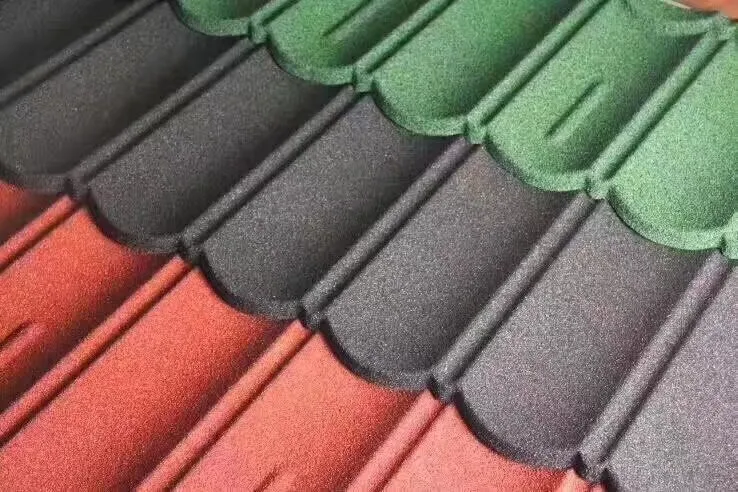

ZTFRM stone coated concrete metal tile roof making machine

Product categories of Stone Coated Roof Production Line, we are specialized manufacturers from China, Stone Coated Roof Production Line, Stone Chip Coated Roofing Tile Machine suppliers/factory, wholesale high-quality products of Stone Coated Roof Production Line R & D and manufacturing, we have the perfect after-sales service and technical support.

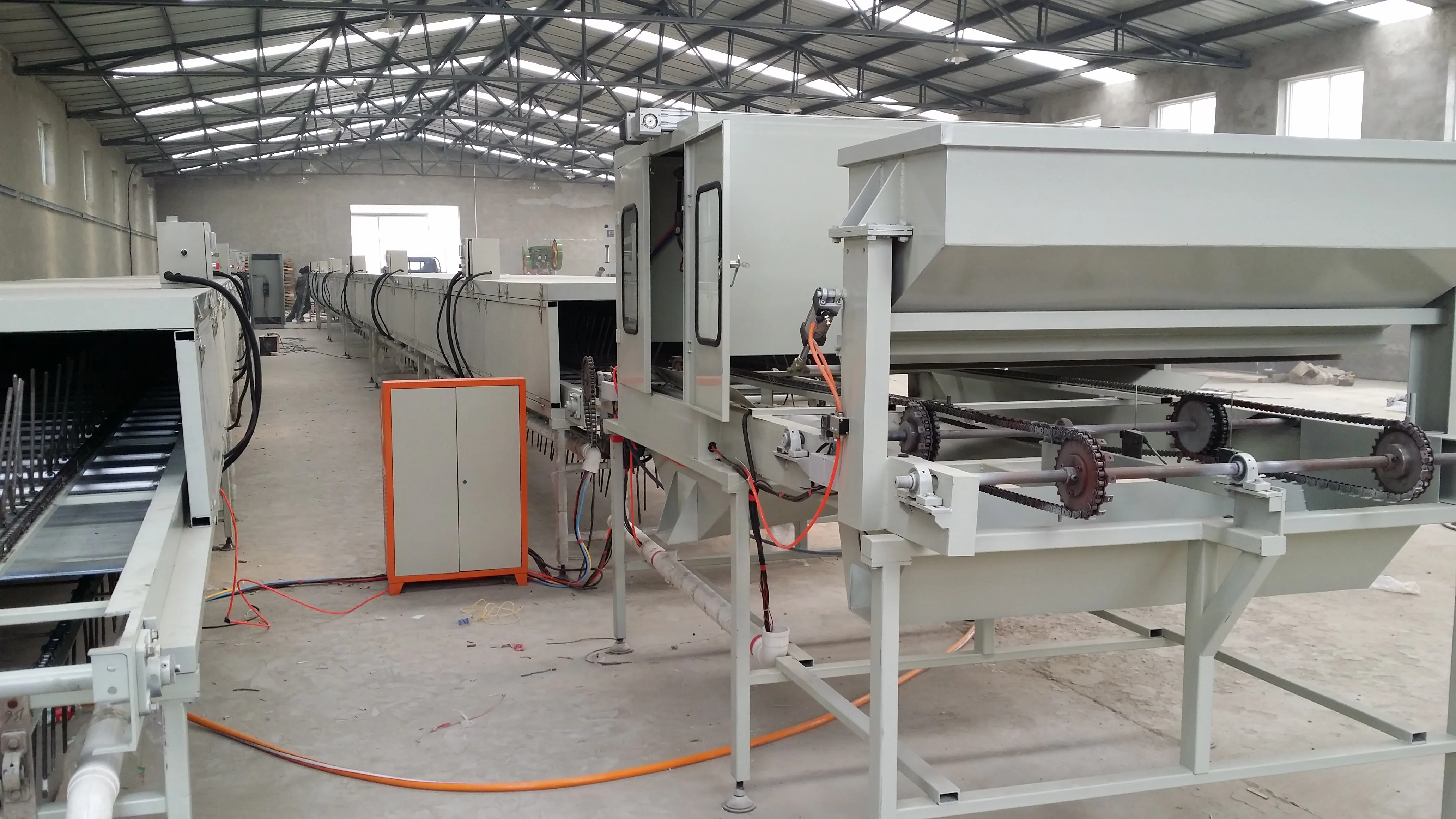

Working flow:

Manual decoiler--Slitting device--Hydraulic cutting device--Press mould machine--Automatic bottom glue spraying equipment--Automatic sandblasting room--First drying room--Automatic surface glue spraying equipment--Second drying room equipment component

N/M	Name	Specifications
The main technical date of the sand spray steel roof sheet production line	Machine dimension	75008001400 (mm)
		Work voltage	380V 50Hz 3Phase(As your requirement)
		Working power	2500KW
		Steel plate thickness	0.32mm-0.5mm
		Daily product ability	2000-5000 pcs
		Steel plate width	1000mm-1450mm
		Production speed	6-10pcs/min
		Number of roller stations	12
		Product condition	Plant area 2000 square meters (25*80m) working environment temperature above 20℃

Auto bottom glue spraying section
Appearance size:4000*1000*2000 mm
Driving section:3KW Excitation motor or frequency speed regulation (AS customers’ requirements )
Automatic pressure spray tank:1set capability:200kg Range:0.6~1Mpa
Automatic glue machine motor:Servo motor, Power:750w, PLC
Automatic spray gun:4 set(spare parts)
Dust collecting fan:1set, power:200w
Damp proof lamp:1pc, power:100w
Conveying device:Chain reciprocating
Air compressor:1set, power:7.5kw
Dust control of axial flow fan:1set, power: 200w
Agitator:1set, power:1.5kw

Auto bottom glue spraying section

Size:4000*1000*2000mm
Driving section: 3KW Excitation motor or frequency speed regulation(AS per customers’ requirements )
Automatic pressure spray tank:1 set ;

Capability: 200kg ;

Range: 0.6~1Mpa
Automatic glue machine motor: Servo motor;

Power: 750w;

PLC Automatic spray gun:
4 set (spare parts)
Conveying device:Chain reciprocating.

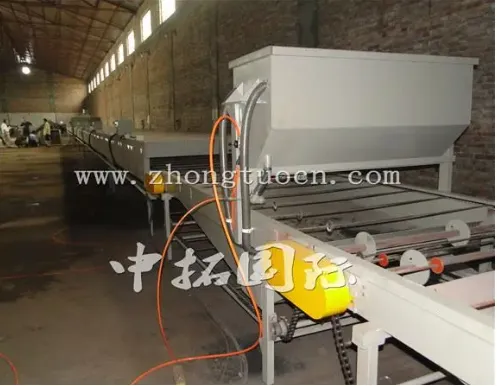

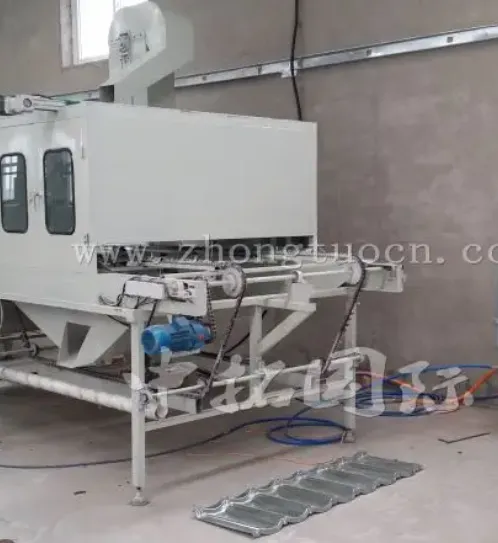

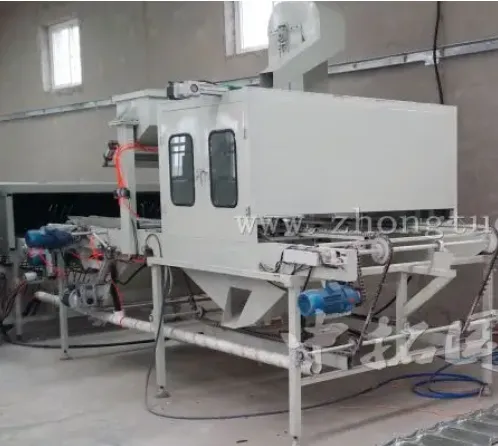

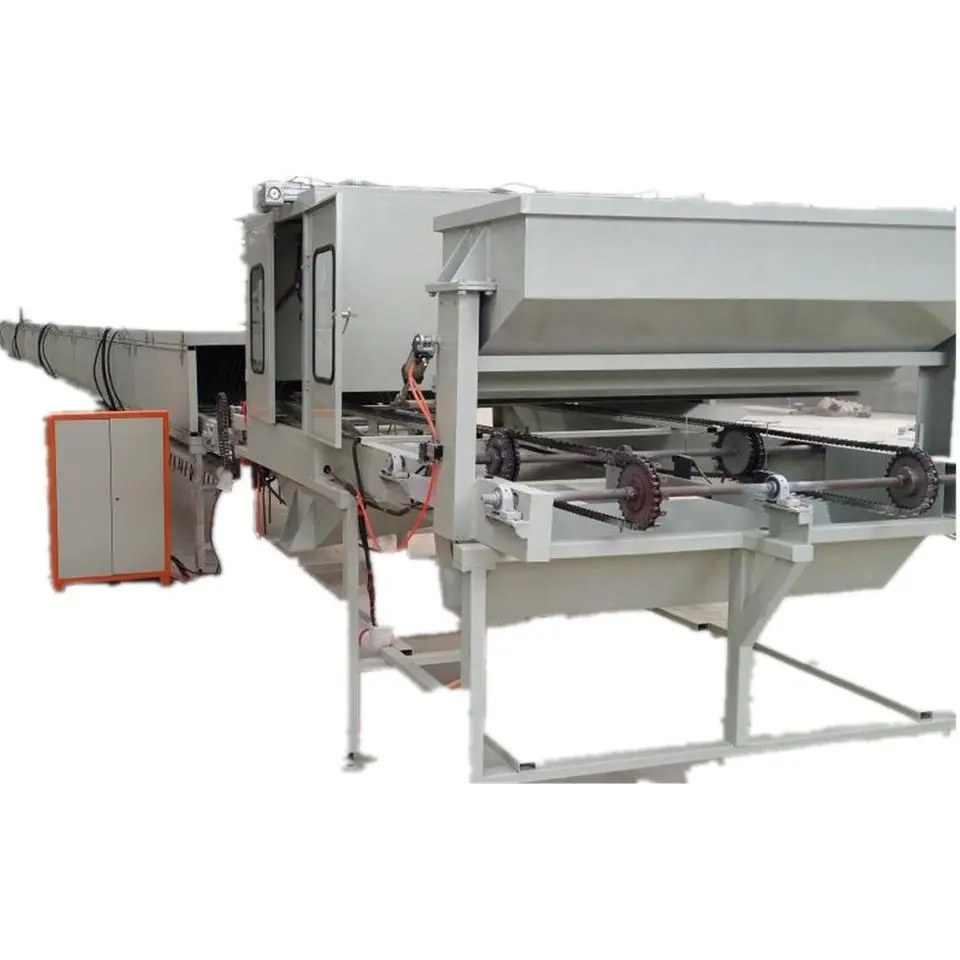

Auto stone coated section

Appearance size:
3500*1000*1500mm
Framework:Steel welding
Conveying device:Chain reciprocating
Automatic sand hopper:1 set ;

Capability: 200kg
Bucket lift: 1 set
Manual sandblast gun:4 sets

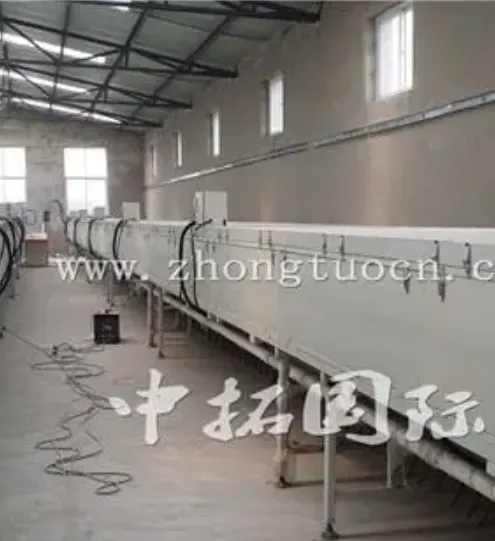

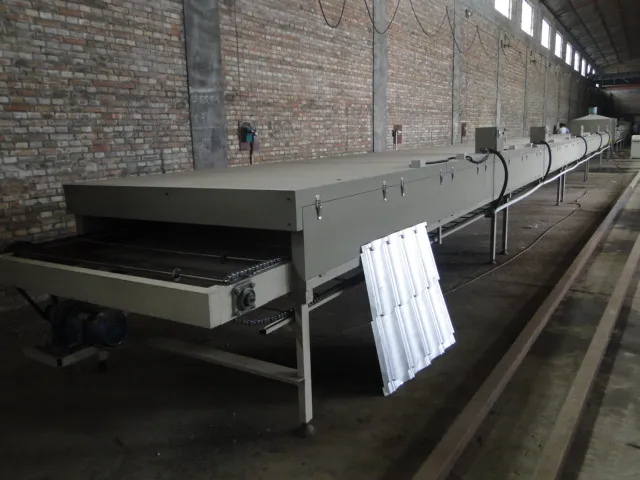

The first time drying section

Appearance size:25000*1000*1200mm
Framework:Steel welding
Frame type thermal insulation wall:1.2mm cold steel with Rock wool
Automatic temperature controller:4 sets ; Range: 0°~160°

Infrared heating tube:30pcs ;

Power: 30kw
Conveying device:Chain reciprocating
Air cooling device:1 set ;

Power: 200w

Auto face glue spraying section

Appearance size:3000*1000*2000mm
Framework:Steel welding
Damp proof lamp:1 pc ;

Power:100w
Automatic pressure spray tank: 1 set ; Capability: 200kg ;

Range: 0.6~1Mpa
Conveying device:Chain reciprocating
Automatic spray gun:4 sets (spare parts)
Manual patch glue gun:4 sets
Dust control of axial flow fan:
1 set ; Power: 200w

Automatic glue machine motor: Servo motor ; Power: 750w

The second time drying section

Appearance size:
30000*1000*1200mm
Framework:Steel welding
Frame type thermal insulation wall:1.2mm cold steel with Rock wool
Automatic temperature controller:4 sets ; Range: 0°~160°
Infrared heating tube:30pcs ; Power: 30kw
Conveying device:Chain reciprocating
Air cooling device:1 set ; Power: 200w
