YXB65-430 Bemo Standing Seam Roof Panel Roll Forming Machine YXB65-430

Overview

Standing seam panel roll forming machine with ZIP-LOCK profile cross-section and KingZip Linea 300/400/500 variants

The Zhongtuo YXB65-430 Bemo Roof Panel Roll Forming Machine is an automatic standing seam roll forming line for producing ZIP-lock and Bemo-style concealed-fix standing seam roof and wall panels from steel or aluminium coil. The machine forms the panel profile progressively through a series of hardened roller stations mounted on a rigid blue-painted frame, with a hydraulic cutting unit at the exit end. The effective panel width is 400 mm or 425 mm (material width 575 mm or 600 mm); forming speed is 8–15 m/min.

The machine processes steel (0.5–0.8 mm) and aluminium (0.7–1.0 mm) coil and is compatible with PPGI, PPGL, GI and aluminium. It is compact enough to fit into a 20GP container for delivery to site and is used by metal roofing contractors, building envelope manufacturers and prefabricated building producers worldwide.

• ZIP-lock / standing seam profile; effective width 400 mm or 425 mm
• Forming speed 8–15 m/min; steel 0.5–0.8 mm; aluminium 0.7–1.0 mm
• 15 kW drive; PLC control; 220 V / 380 V / 440 V
• Portable design — fits in a 20GP container
• 2-year warranty; machinery test report and video outgoing-inspection provided

Key Features

• ZIP-lock / Bemo standing seam profile. The toolset is configured for the YXB65-430 concealed-fix standing seam profile (65 mm seam height, 400 mm or 425 mm panel width), compatible with Bemo, ZIP-lock and KingZip Linea 300/400/500 roof systems.
• Steel and aluminium processing. The machine processes both steel coil (0.5–0.8 mm, PPGI/PPGL/GI) and aluminium coil (0.7–1.0 mm) on the same platform, with a rolling thickness range of 0.2–0.8 mm.
• Portable and site-deployable. The compact frame fits into a 20GP container, allowing the machine to be shipped directly to the construction site and put into production with minimal handling.
• Variable speed 8–15 m/min. Forming speed is adjustable from 8 to 15 m/min via the PLC panel to match material and profile requirements.
• Durable steel construction. The main frame and forming bed are fabricated from heavy structural steel and painted blue; the hydraulic column and cutting head are painted orange/red for visibility.
• PLC control; multiple voltages. PLC manages speed, cut length and piece count. Available in 220 V, 380 V and 440 V to suit local supply.
• 2-year warranty; lifetime technical support. 2-year machine warranty; machinery test report, video outgoing-inspection and on-site engineer support available.

Technical Specifications

Item	Specification
Product name	YXB65-430 Bemo / Standing Seam Roof Panel Roll Forming Machine
Profile	ZIP-lock / Bemo standing seam; seam height 65 mm
Effective panel width	400 mm / 425 mm
Material width	575 mm / 600 mm
Feeding width	1220 mm
Steel thickness	0.5–0.8 mm (PPGI / PPGL / GI)
Aluminium thickness	0.7–1.0 mm
Rolling thickness range	0.2–0.8 mm
Forming speed	8–15 m/min
Motor power	15 kW
Voltage	220 V / 380 V / 440 V
Control system	PLC
Core components	Engine, pump, PLC
Machine weight	4500 kg
Transport	Fits in a 20GP container
Warranty	2 years
Machinery test report	Provided
Video outgoing-inspection	Provided
Place of origin	Hebei, China

Machine Structure

The machine sits on a rigid blue-painted steel frame. At the infeed end a straightening and feeding unit guides the coil strip into the first forming station. The strip passes through a sequence of hardened roller pairs that progressively form the standing seam rib and the flat panel base. At the exit, a hydraulic four-column press unit performs the final seam closing and the flying cut. All roller shafts are precision-machined and supported on heavy bearings; the gearbox and hydraulic unit are enclosed within the orange-painted base section.

Close-up of the standing seam forming roller stations showing the progressive toolset arrangement

Full machine side view in workshop — roller bed, hydraulic column and base frame

Top view of infeed roller stations and seam-forming toolset sequence

Mid-section of the forming line showing hardened roller pairs with red-centred hubs

Profile & Applications

The YXB65-430 standing seam panel is a concealed-fix roof and wall cladding profile used on commercial buildings, industrial facilities, airports, stadiums and architectural facades. The 65 mm rib height provides high weather resistance; the click-lock or mechanically seamed joint is watertight without exposed fasteners. The machine produces panels to match Bemo, ZIP-lock and KingZip Linea 300/400/500 system specifications.

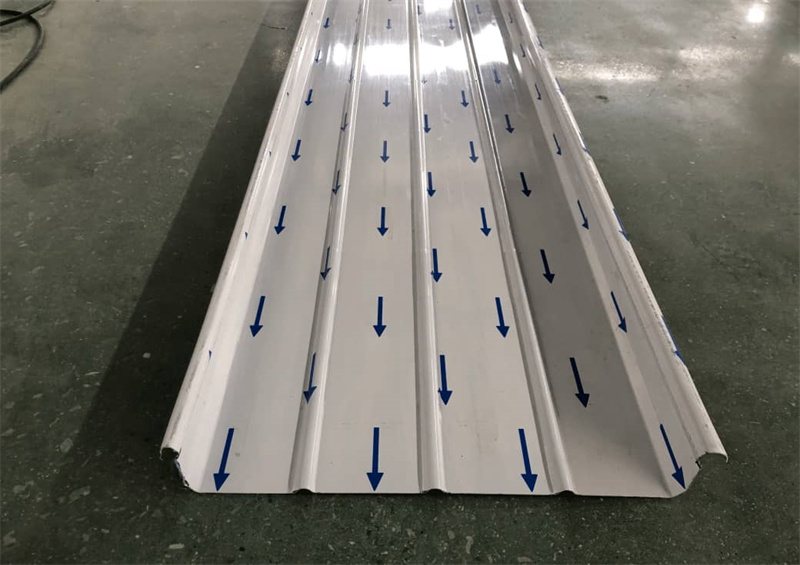

Finished white standing seam panel sample showing the YXB65-430 rib profile and panel surface

Customization Options

Item	Option
Panel width	400 mm or 425 mm effective width; other widths per drawing
Profile / seam type	ZIP-lock, Bemo, KingZip Linea; profile per drawing or sample
Material	Steel (PPGI/PPGL/GI) or aluminium coil
Voltage	220 V / 380 V / 440 V
Machine dimension	Per customer workshop and container requirements

Company Introduction

Cangzhou zhongtuo Cold Roll Forming Machinery Co. Ltd, established in 1996, It is a manufacturer dedicated to the design and manufacture of different types of cold roll forming machines.We provide ODM,OEM and one-stop service, From the raw material to the machine,and Related accessories you all can buy from us.The machines we can produce include: roof tile making machine, cz purlin making machine, light steel keel making machine, metal embossing machine, door system forming machine, ceilingsystem forming machine, high frequency pipe welding machine, slitting line, cut to length line, shelf system forming Machine, floor decking forming machine, color stone tile production line, etc.

Delivery

Item	Detail
Selling unit	1 set
Transport packaging	Delivered in a 20GP container
Machine weight	4500 kg
Lead time	60 days for 1 set

Certificate

FAQ

What standing seam systems is this machine compatible with?

The machine produces profiles compatible with Bemo, ZIP-lock and KingZip Linea 300/400/500 roof and wall panel systems. Profile dimensions can be customized per drawing or sample.

Can it process aluminium as well as steel coil?

Yes. The machine processes steel coil (0.5–0.8 mm, PPGI/PPGL/GI) and aluminium coil (0.7–1.0 mm) with a rolling thickness range of 0.2–0.8 mm.

How is the machine transported to site?

The machine is compact enough to fit in a standard 20GP container, allowing direct shipment to the construction site.

Can voltage be customized?

Yes — 220 V, 380 V and 440 V are available. Voltage is confirmed at order.

What is the delivery lead time?

60 days for one set. Panel drawing confirmation and sample profile verification are completed before production begins.

What training and after-sales support is available?

Manuals and video tutorials for machine operation and PLC wiring are provided; on-site engineer support is available. 2-year machine warranty with machinery test report and video outgoing-inspection.
