Window Guide Rail Roll Formerguide Rail Forming Machineroller Door Guide Machine shutte door+5.5kw

What is the application of window guide rail roll former?

Our company specializes in making door system machines since 1996. Now, we can manfacture almost every part of the shutter door, like door frame roller door guide machine,window guide rail roll former, bottom lath machine,roller shutter slats roller door guide machine and so on.

What is the working flow of rollwindow guide rail roll former?

window guide rail roll former is consisted of manual decoiler, main forming machine,cutting device,runouttable.The working flow is as follows:

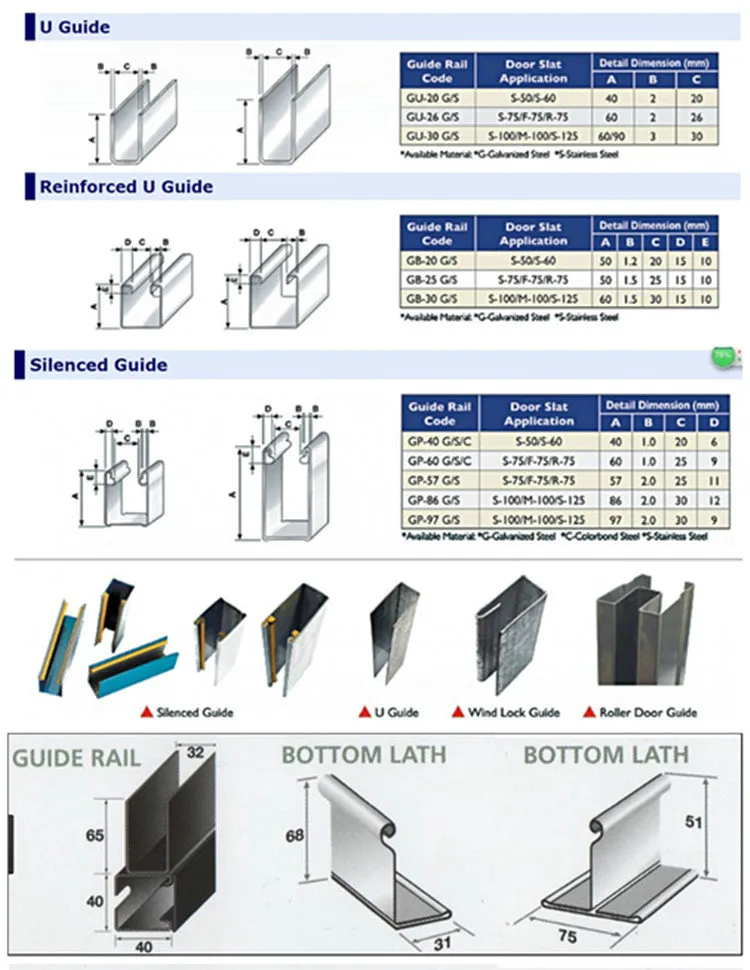

some drawings of window guide rail roll former

If you want to buy a window guide rail roll former, first you should give us a profile drawing of hte roller shutter guide rail like the following.

And if you don't have a drawing, we can recommend you the most popular roller shutter guide rail drawing in your country.The following is some drawings for your reference, we can also design the window guide rail roll former according to your drawing.

Usually if you want holes on the roller shutter guide rail, we can add a punching machine.

the basic Information of window guide rail roll former



name	window guide rail roll former
Processing material	galvanized plate
Material thickness	0.8---2.0 mm
Material hardness	550 mpa---350 mpa
Material width	200mm(according to the profile)
Formed width	101.6mm (according to the profile)
Forming speed	12m/min
Working speed	8m/min
Voltage	380V 50HZ 3Phase
Roller fixer	Guide column
Frame	400 H steel
Drive mode	chain
Material of rollers	45# steel, surface hard chromium plating.
Material of shafts	45# steel with tempering
Diameter of shafts	φ70mm
Number of rollers	20 rollers
Main power	5.5kw
Hydraulic power	3kw

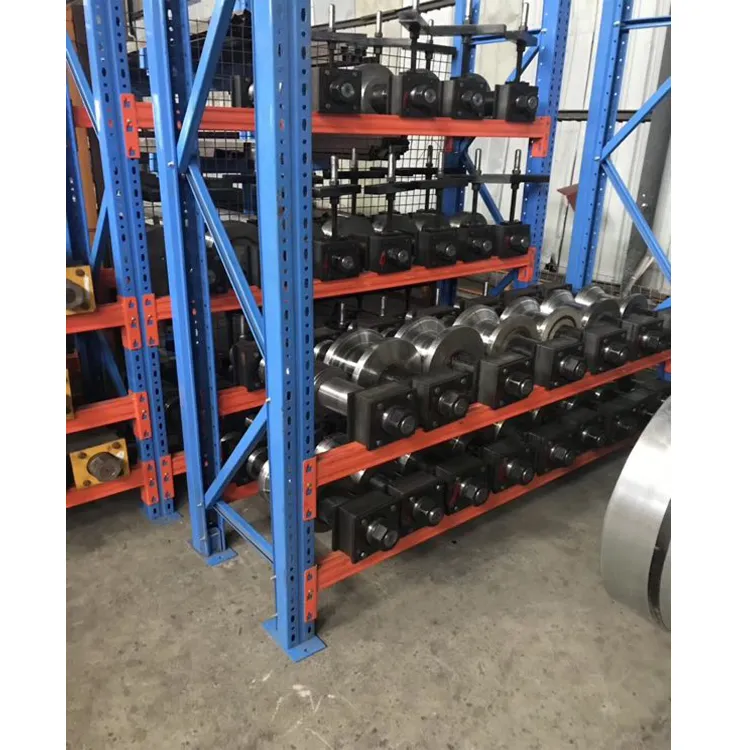

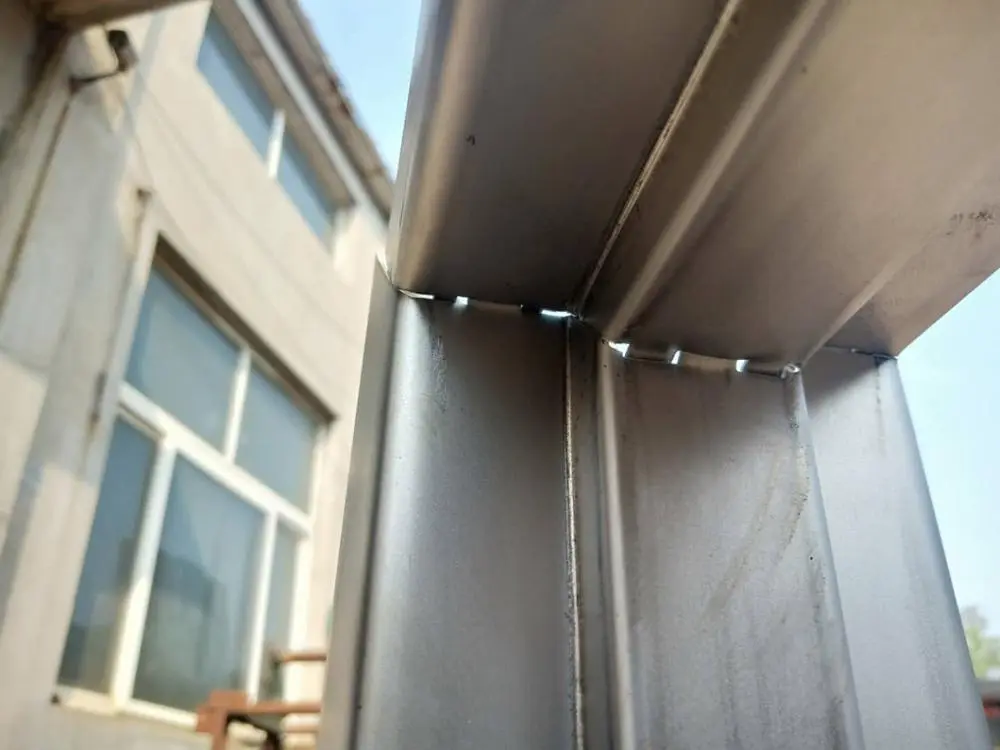

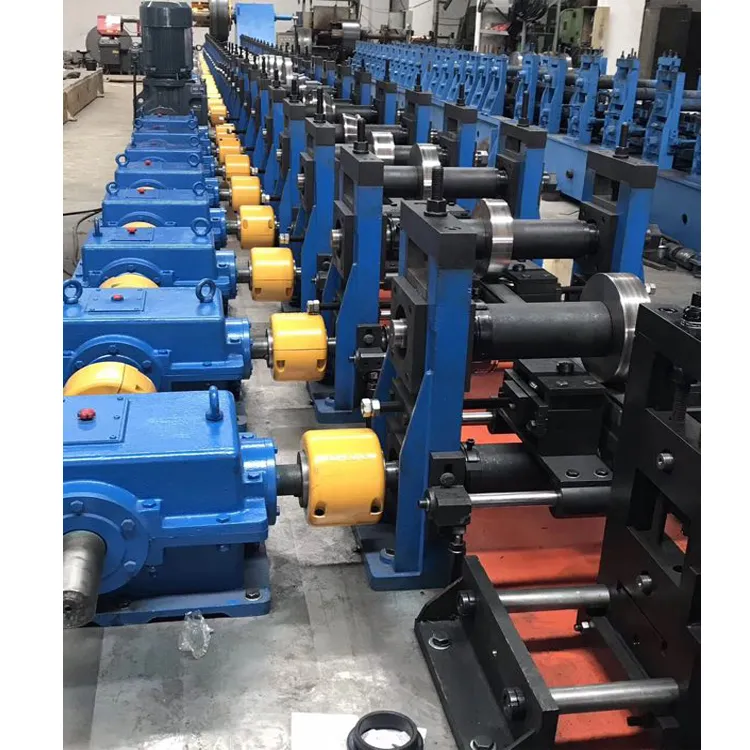

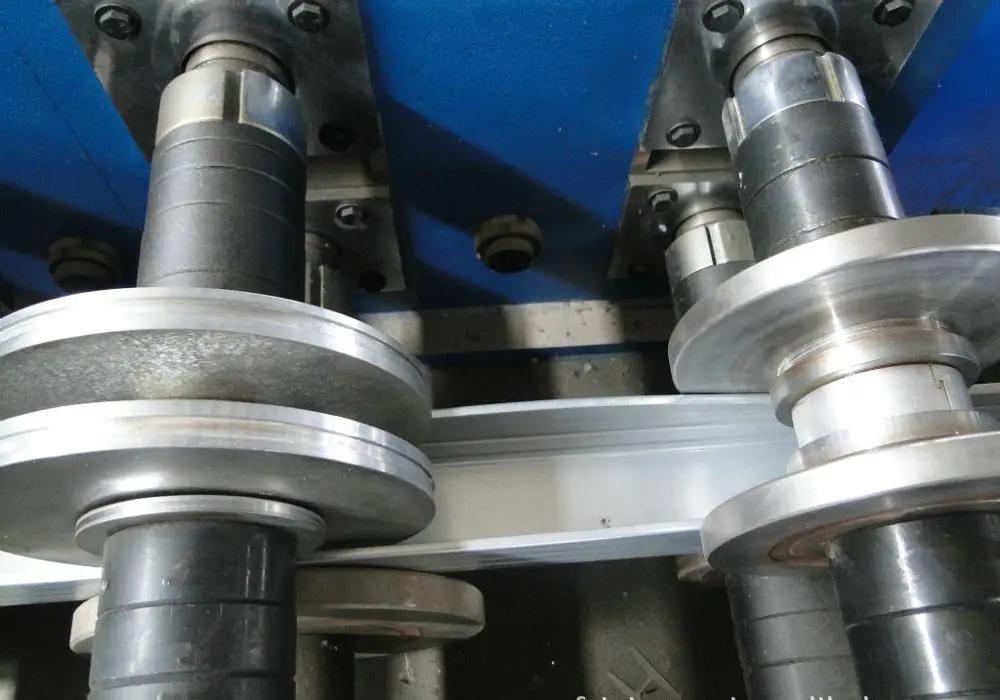

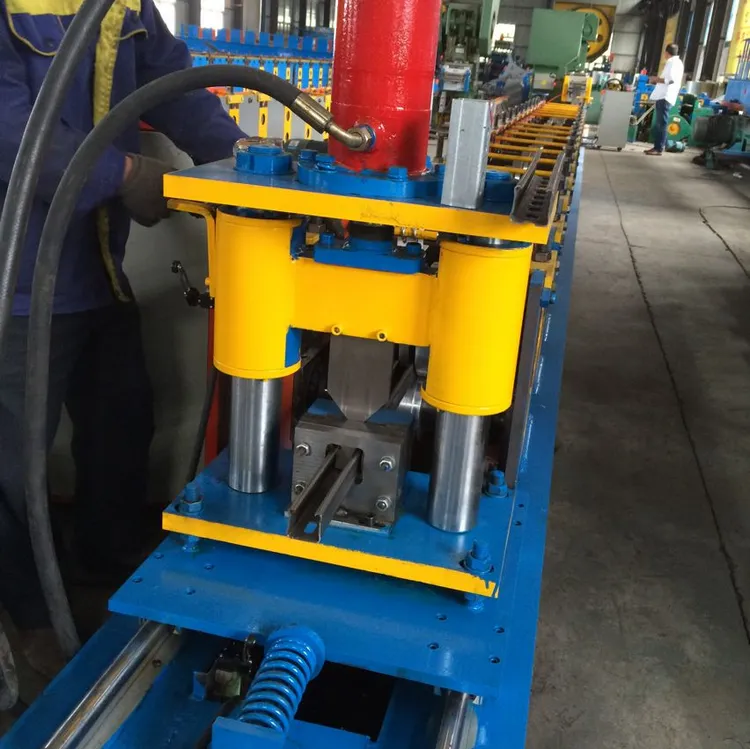

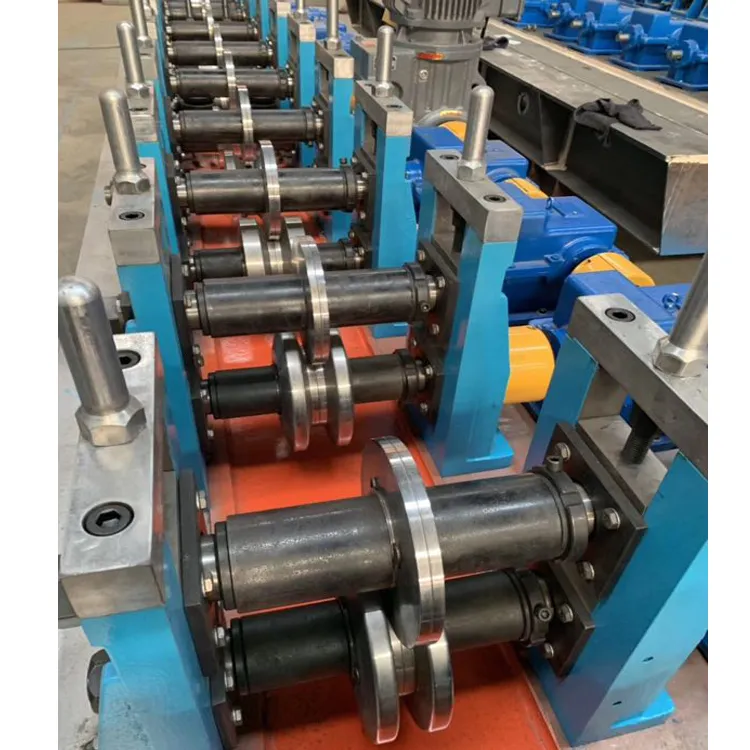

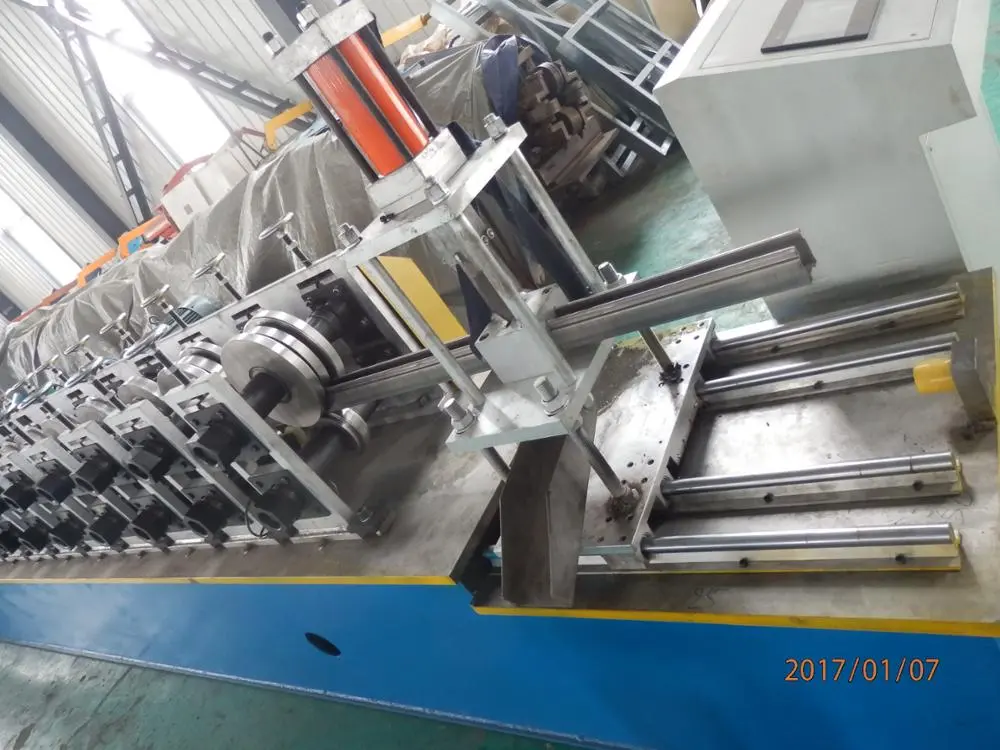

some details of window guide rail roll former

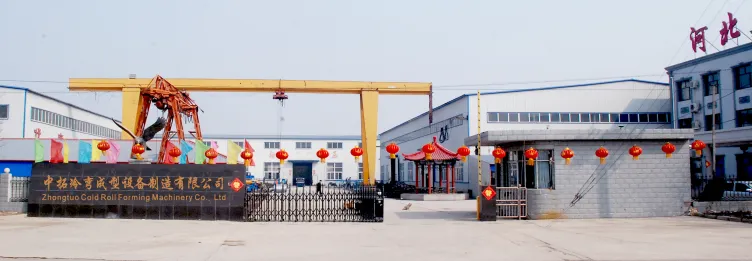

Cangzhou ZHONGTUO Roll Forming Machinery Co., Ltd is a professional manufacturer and exporter of cold roller door guide machines. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,South America, Australia and so on.

We specialized in manufacturing Color steel roll forming machinery, C UM Z purlin roll forming machine,Glazed tile roll forming machine, steel floor deck roller door guide machine, shutterdoor roll forming machine, metal stud and track roller door guide machine,highway guardrail roll forming machine, downspout machine,roller shutter guide rail machine,no beam roof tile machine, weldingpipe machine. For metal processing, we have slitting machine, cutting machine, decoiler, punching machine and others.

FAQ:

1.How to get a quotation of window guide rail roll former?
Give me the profile drawing and thickness for the roller shutter guide rail,this is the important.
Other spicific requirements is welcome,such as the speed,power and voltage you want.



2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.



4. What is your after-sale service?
roller shutter guide rail machine's warranty period is 12months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of the equipment.



6. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
