Width Adjustable Roof Cap Roof Ridge Making Machine New Curved Roof Ridge Tile Machine Ridge Cap Roll Forming Machine+5.5KW+30 m/min

Cangzhou Zhongtuo International Trade Co., Ltd

Width Adjustable Roof Cap Roof Ridge Making Machine New Curved Roof Ridge Tile Machine Ridge Cap Roll Forming Machine+5.5KW+30 m/min

Name: Width Adjustable Roof Cap Roof Ridge Making Machine New Curved Roof Ridge Tile Machine Ridge Cap Roll Forming Machine+5.5KW+30 m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT71625683

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

Ridge Cap Roll Forming Machine

Power(W):

5.5KW

Production Capacity:

30 m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
Wall
Voltage
380V 50HZ 3PH
Rolling Thinckness
0.2-0.8mm
Feeding Width
1220 mm

Company Profile

CANGZHOU ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

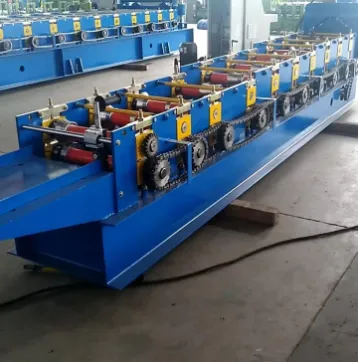

Width adjustable ridge cap rolling forming machine

Width adjustable ridge cap rolling forming machine is designed to make the ridge cap in adjustable type in batch fully automatically. The ridge cap acts as a barrier against water infiltration, preventing moisture from seeping into the underlying roofing materials and causing damage. Additionally, it helps to deflect wind-driven rain and snow,

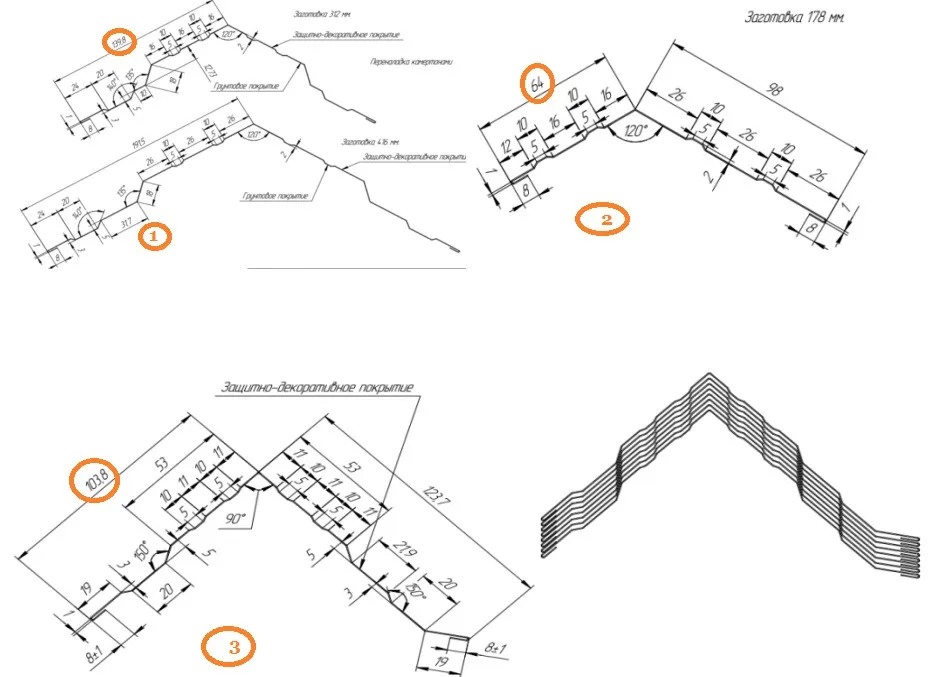

reducing the risk of leaks and water-related issues. Here we take the following drawing profiles for your reference:

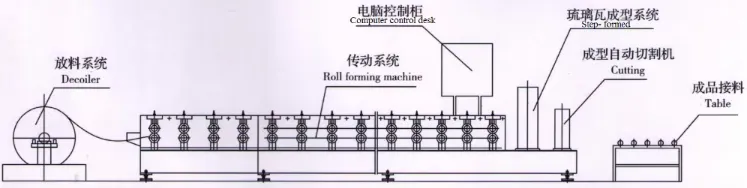

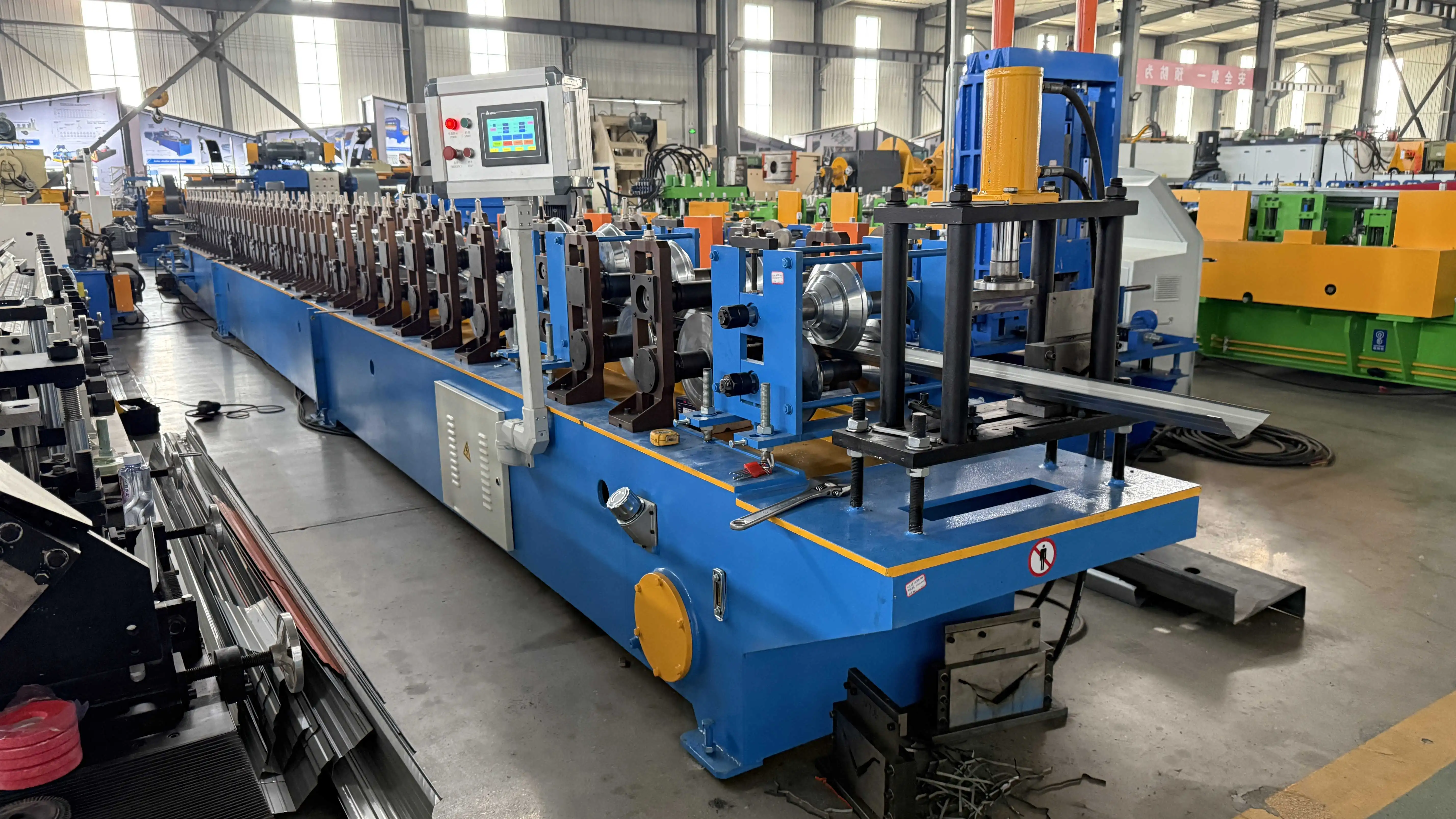

Width adjustable ridge cap rolling forming machine
1.Formed Material	PPGI,GI,AI		Thickness:0.3-1.0mmWidth:(customized)
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		22 rows(As your requirement)
		Diameter of shaft		70mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		350 H steel
		Drive		Gearbox transmission
		Dimension(LWH)		700016001600(customize)
		Weight		5T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		Siemens brand
		Hydraulic system power		7.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	0-5m/min		The speed depends on the final cutting length too

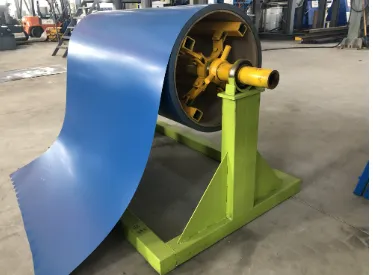

Manual Decoiler

1.Working type: Manual

2.Loading capacity: 10 tons

3.Coil inner diameter: 450-1000 mm

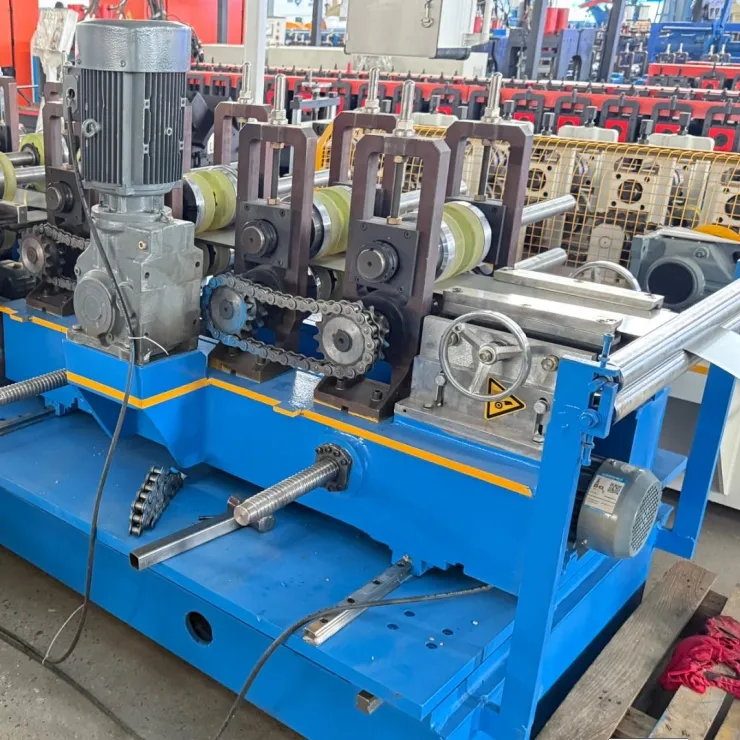

Transportation

1.Gear transmission
2.Ensure the high speed and stable efficiency of the machine

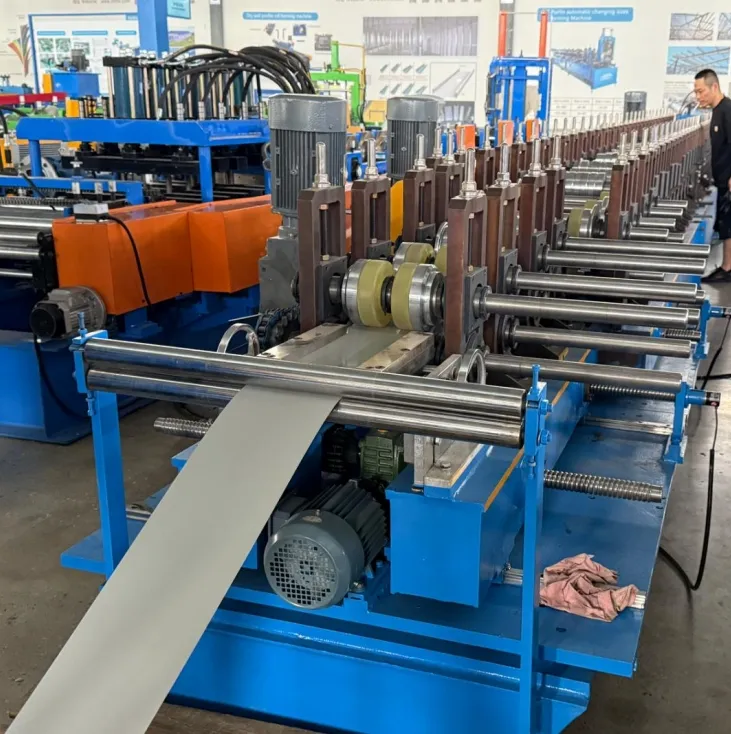

Feeding device

1.Protect coil material

2.With handwheels for easy adjustable.

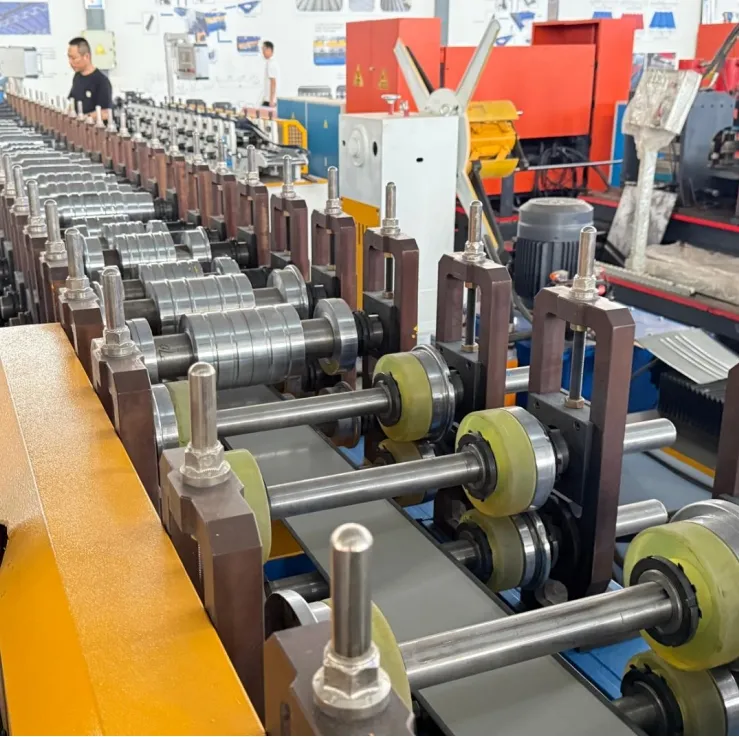

Rollers and shaft

1.Surface with chromed treatment
2.Material:45# steel

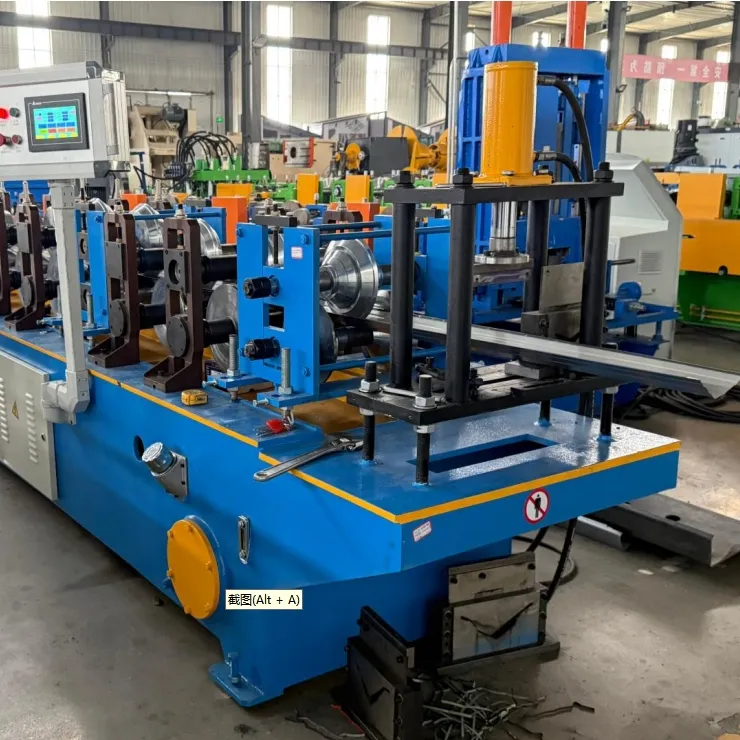

Cutting system

1.Fully automated knuckle pressing

2.Fully automated cut of products

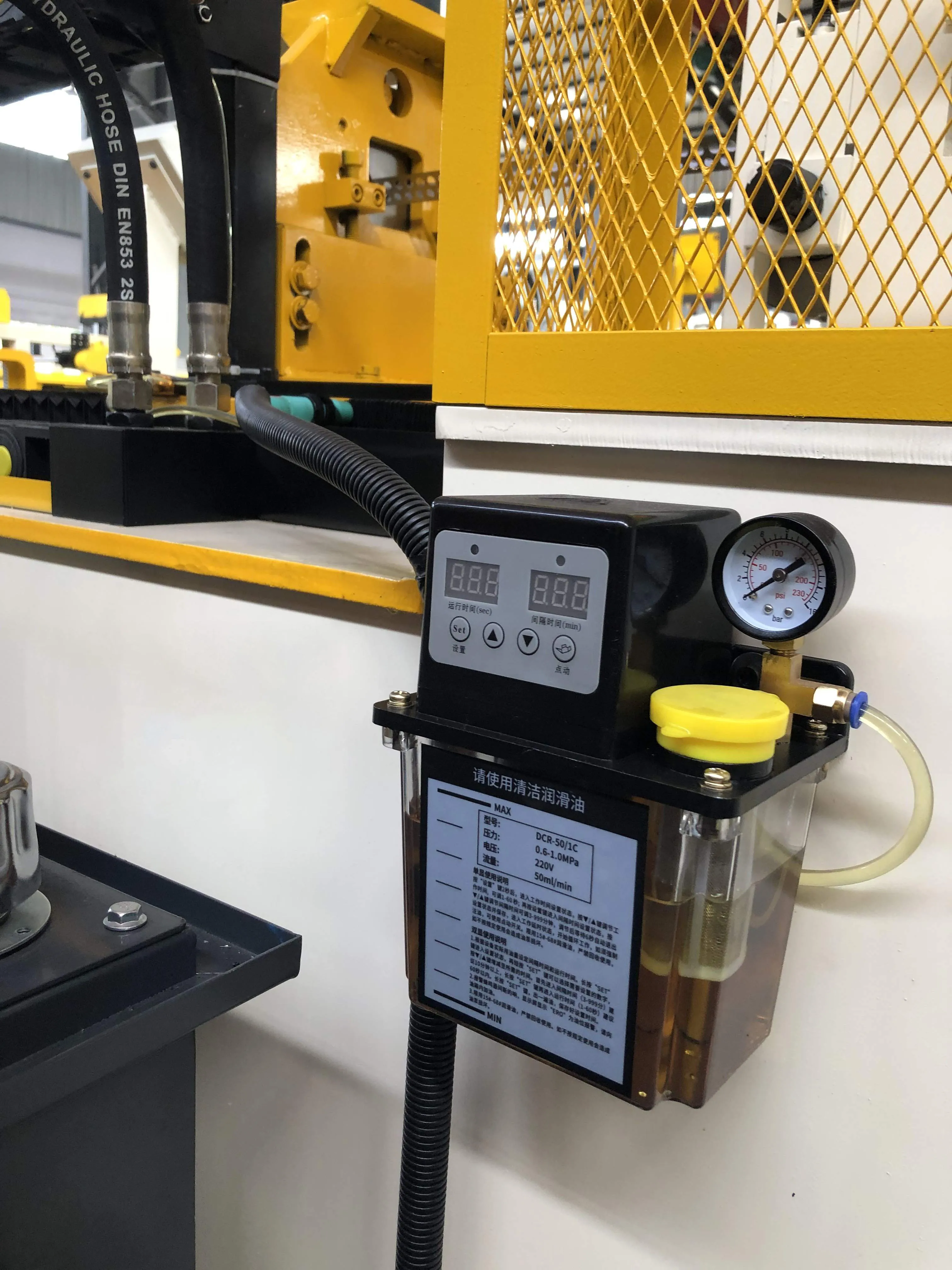

Automatic oil filler

1.Automatic lubrication for the cutter

2.Reduce machine maintenance time and cost

PLC control cabinet

1.Adopt DETLA electronic control, can support remote control

2.Adopt touch screen for easy operation.

3.Adopt aviation plugs for easy installation
4.Languages can be customized

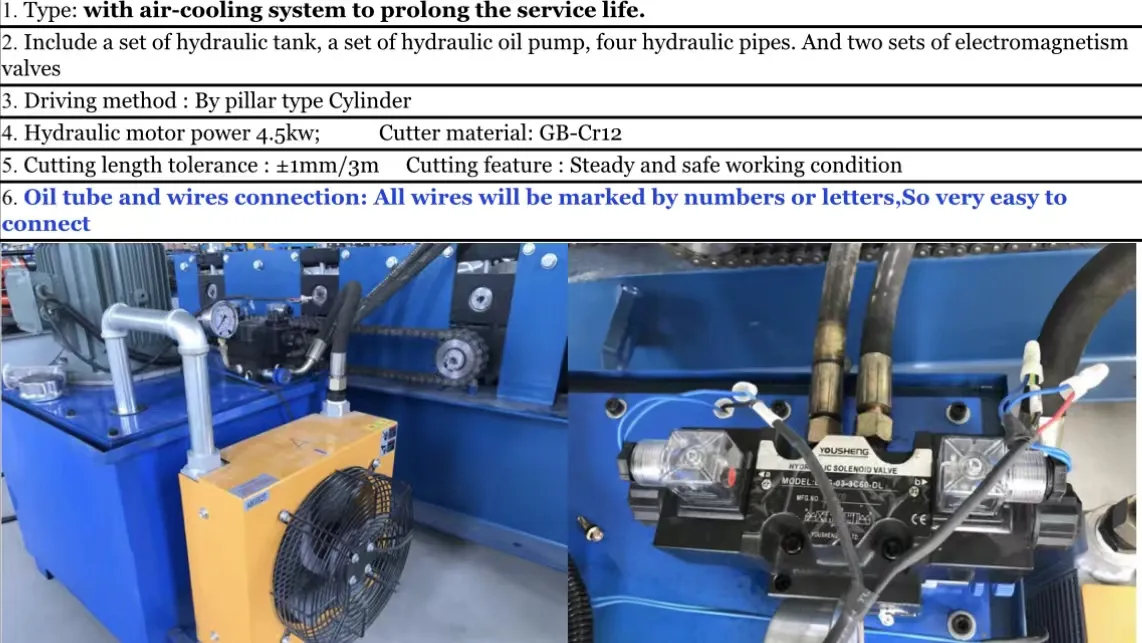

Hydraulic station

1.Updated type

2.Low noise
3.Cooling fan for long service time.

4.We add temperature ,it can be measured in real time, more convenient and faster

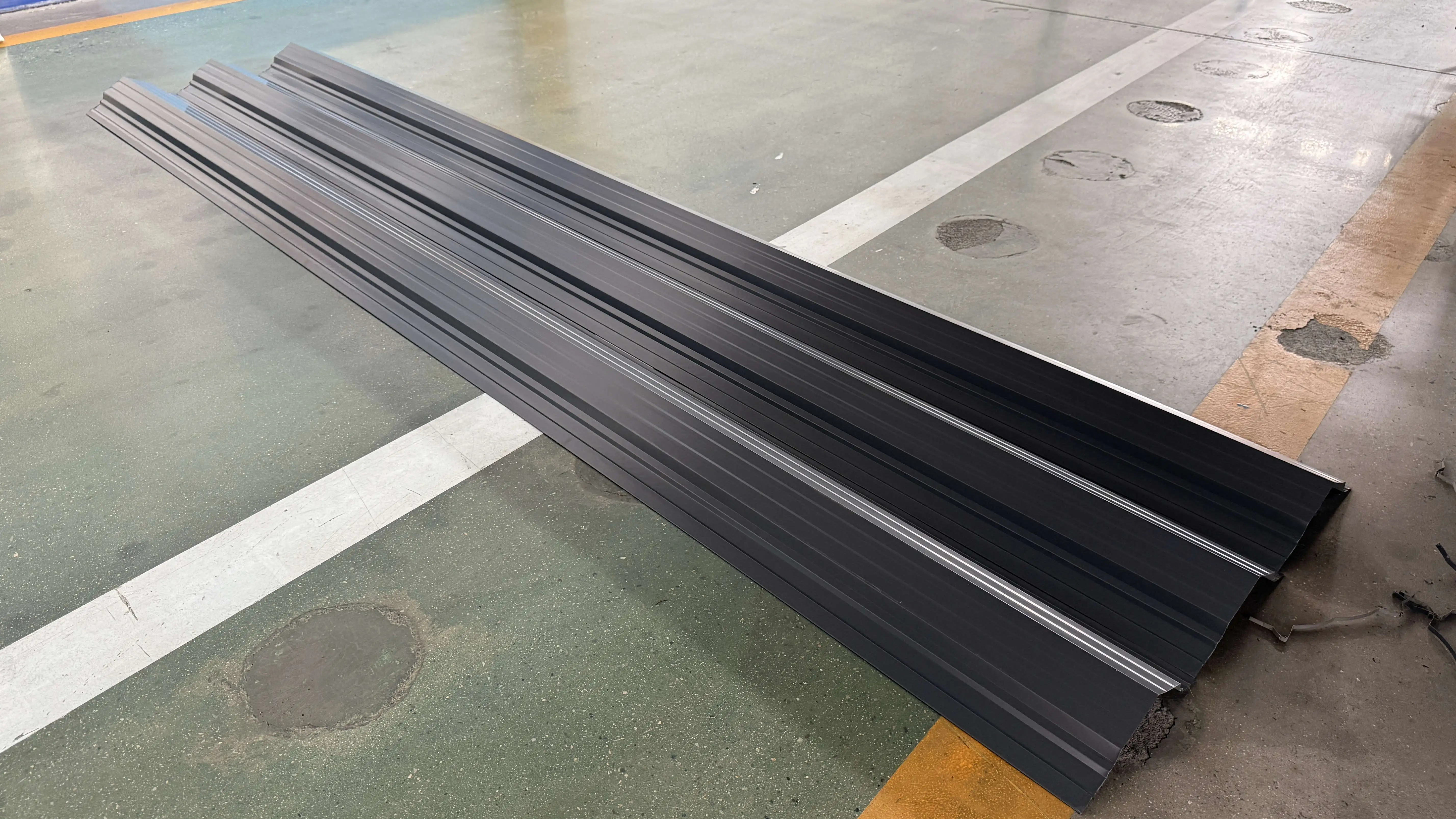

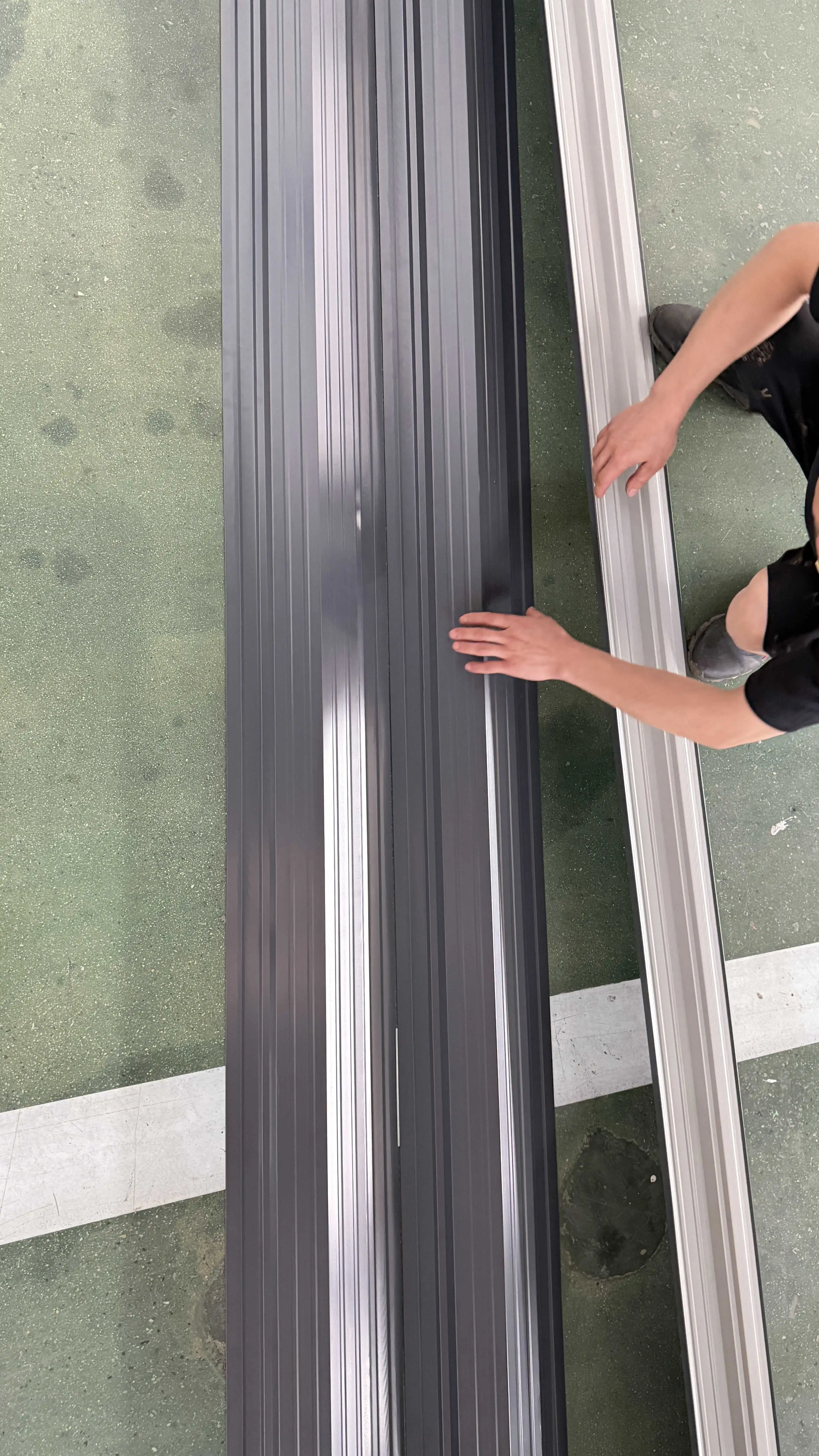

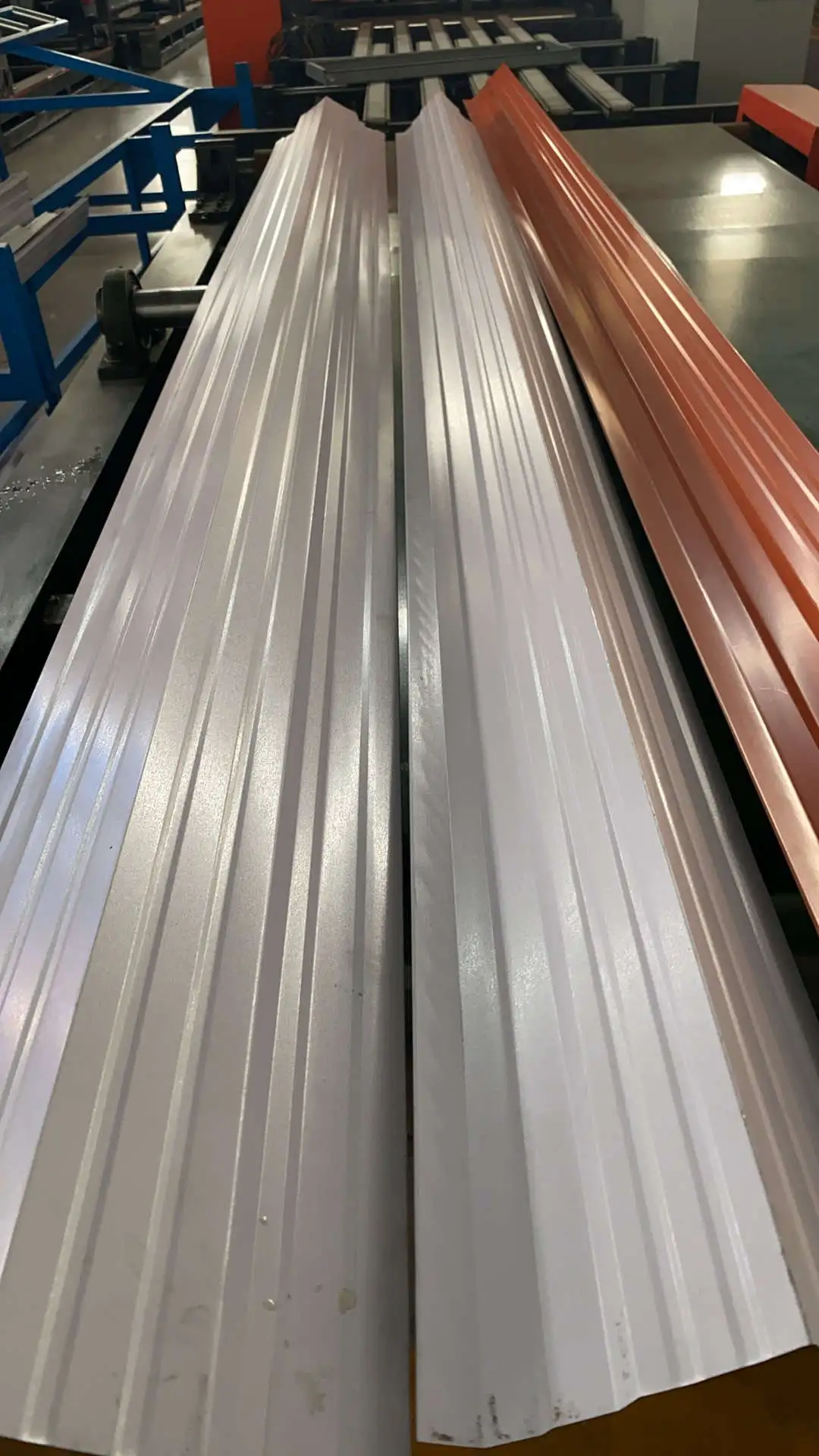

Product display

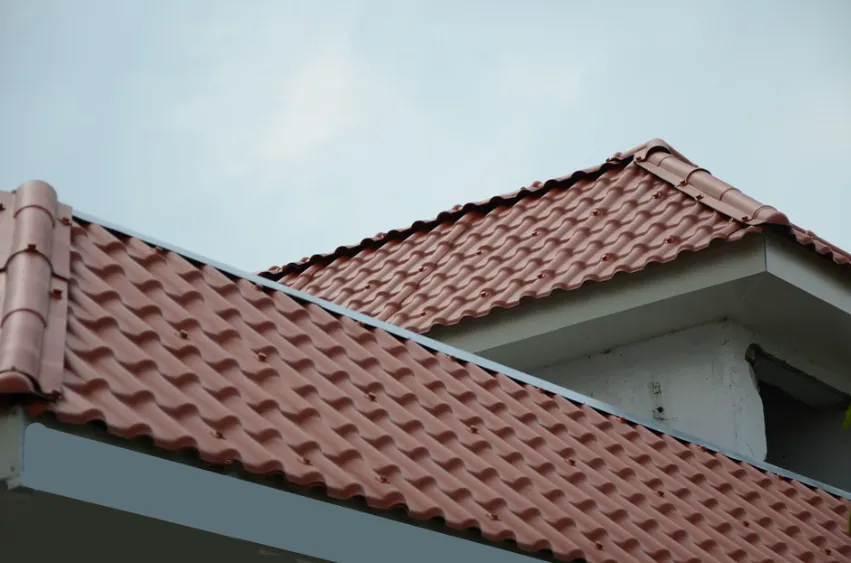

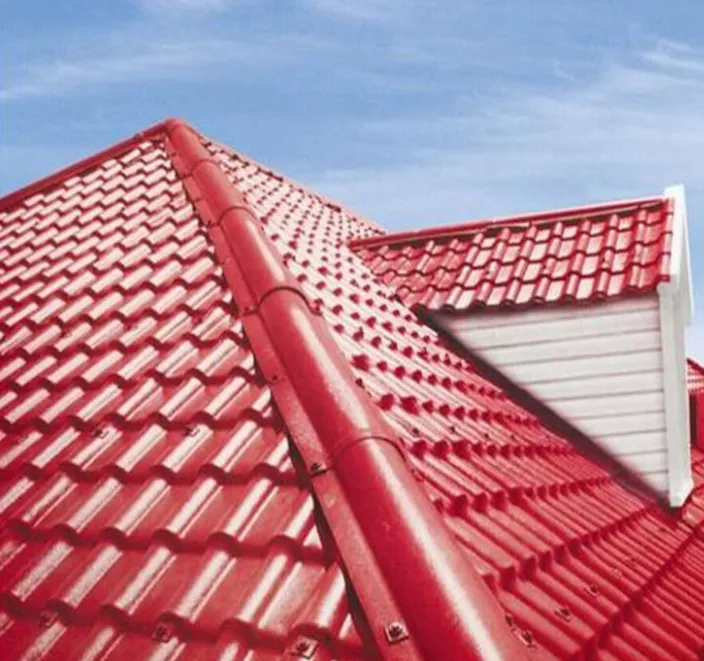

Application
