Product Details
Reviews(0)

Technical Specifications

Control System
PLC (SIEMENS / DELTA)
Roller Material
45# steel chrome plated
Shaft Material
High grade No.45 forged
Cutting Blade
Cr12MoV
Machine Weight
12000 kg
Warranty
More than 5 years
Type
Double layer roof panel roll forming machine
Profiles
Weather-Shield 1 / WF-7/8 Corrugated
Tile Type
Galvanized / Galvalume (29/26 gauge)
Rolling Thickness
22-29 gauge
Feeding Width
40 7/8" - 43"
Forming Speed
65 ft/min
Power
7.5 kW
Main Frame
400H steel

Weather-Shield 1 and WF-7/8 double layer roof panel roll forming machine

Product Overview

This double layer roof panel roll forming machine produces two profiles on one line: the Weather-Shield 1" box-rib panel and the WF-7/8" corrugated panel. It forms galvanized or galvalume coils into roof panels, cladding panels and fence panels with high productivity and high accuracy, driven by an imported SIEMENS or DELTA PLC control system.

Double layer line: Weather-Shield 1" and WF-7/8" corrugated profiles on one machine
Forming speed 65 ft/min, high productivity for large orders
Feeding width 40 7/8" - 43", material 22-29 gauge galvanized / galvalume
PLC control (imported SIEMENS / DELTA), high accuracy profiles
Electric pre-cutter and 4-pillar automatic post-cutter
400H steel main frame, 45# chrome plated rollers, Cr12MoV cutting blades

Key Features

Double Layer Production - One machine switches between the Weather-Shield 1" box-rib panel and the WF-7/8" corrugated panel, saving floor space and equipment cost for two-profile production.
High Productivity - Forming speed up to 65 ft/min with continuous production capability, suitable for large roofing and cladding orders.
High Accuracy - Imported SIEMENS or DELTA PLC control and precision chrome plated 45# steel rollers deliver consistent profile dimensions.
Heavy-Duty Construction - 400H steel main frame with high grade No.45 forged shafts and Cr12MoV cutting blades for long service life.
Complete Cutting System - Electric pre-cutter plus a 4-pillar automatic post-cutter for accurate panel length control.

Technical Specifications

Item	Specification
Type	Double layer roof panel roll forming machine
Profiles	Weather-Shield 1" box-rib panel; WF-7/8" corrugated panel
Tile type	Galvanized / Galvalume (29/26 gauge)
Rolling thickness	22 gauge - 29 gauge
Feeding width	40 7/8" - 43"
Forming speed	65 ft/min (20 m/min)
Power	7.5 kW
Voltage	220 V
Main frame	400H steel
Roller material	45# steel, chrome plated
Shaft material	High grade No.45 forged
Cutting blade material	Cr12MoV
Control system	PLC (imported SIEMENS / DELTA)
Pre-cutting system	Electric pre-cutter
Post-cutting system	Electric 4-pillar automatic cutter
Machine weight	12000 kg
Warranty	More than 5 years
Use	Roof panel / cladding panel / fence panel

Panel Profiles

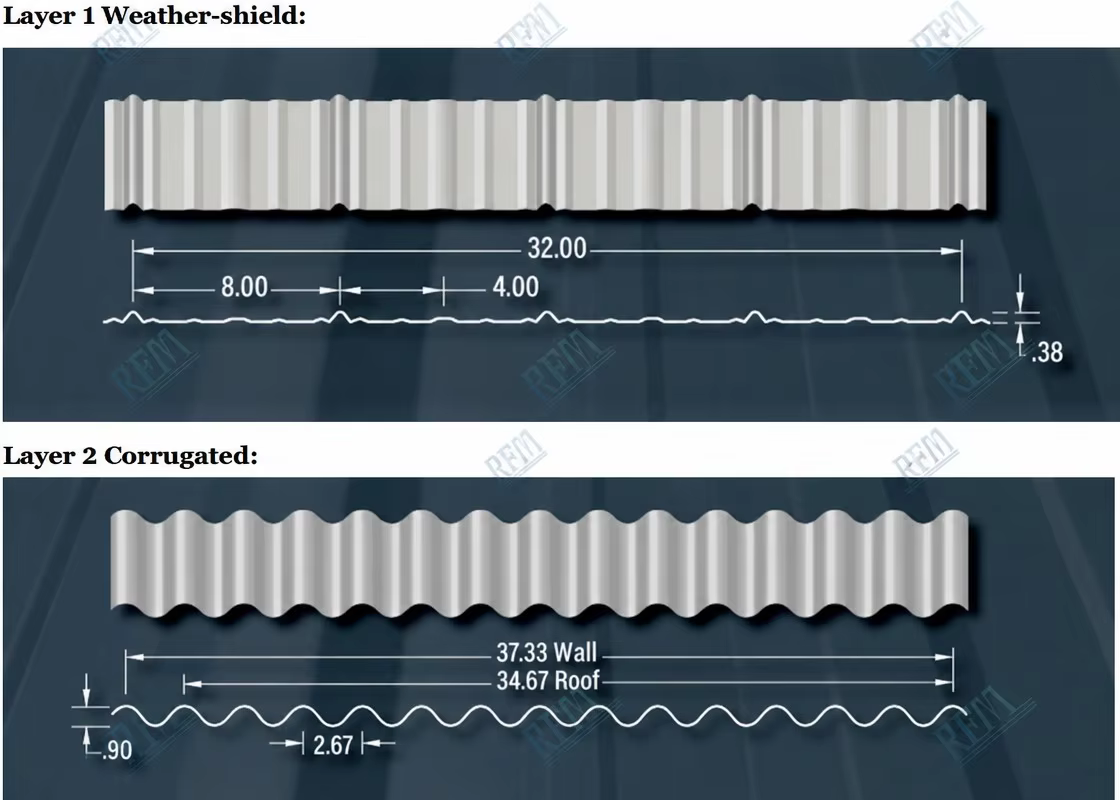

Weather-Shield 1 and WF-7/8 corrugated panel profile drawings

Layer 1 Weather-Shield 1": 32.00 coverage, 8.00 rib spacing, 0.38 rib height
Layer 2 WF-7/8" Corrugated: 37.33 wall coverage, 34.67 roof coverage, 0.90 wave height, 2.67 pitch

Machine Structure

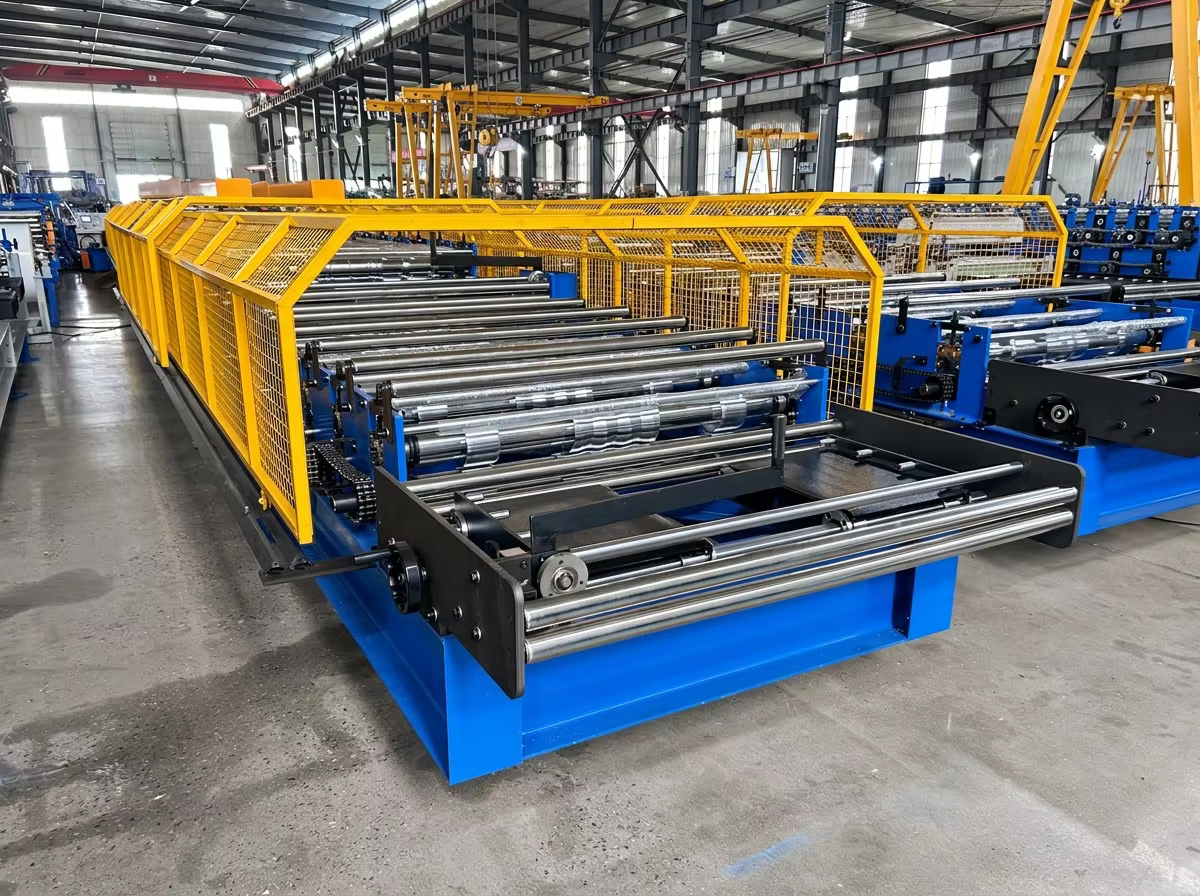

Double layer roof panel machine cutting section

The line is built on a 400H steel frame with chrome plated 45# steel rollers, an electric pre-cutter at the feed end and an electric 4-pillar automatic cutter at the discharge end, with the forming section enclosed by yellow mesh safety guarding.

Applications

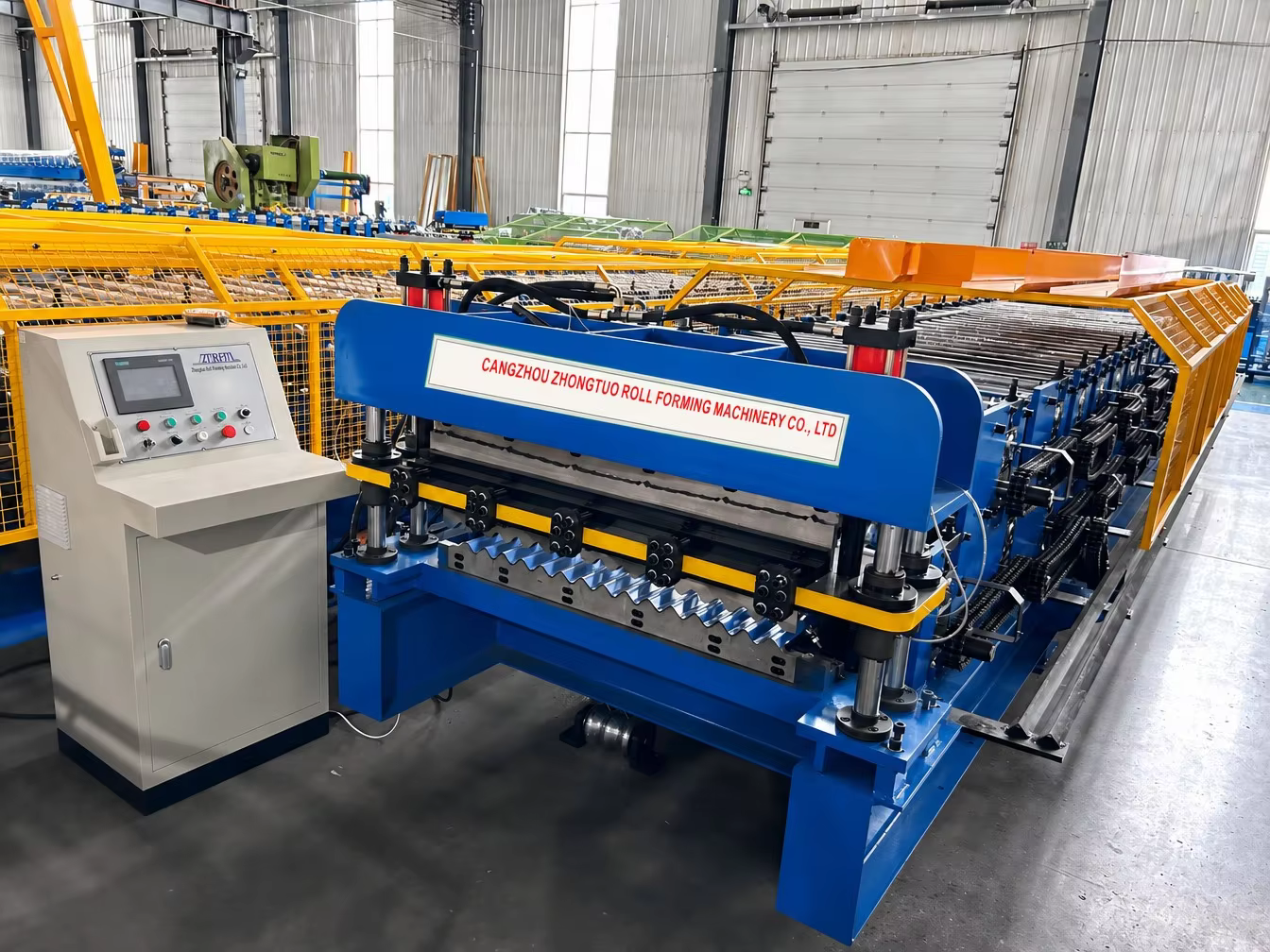

Double layer roof panel machine production line in factory

The machine produces roof panels, cladding panels and fence panels from galvanized or galvalume coils of 22-29 gauge, for industrial, commercial and residential steel building applications.

Packing & Shipping

Package size: 800 x 150 x 190 cm; machine weight: 12000 kg
Metal protective cover supported customized; machine color as client's request
Delivery time: 45 days for 1 set, 60 days for 2 sets
Machinery test report and video outgoing inspection provided
