Wall Panel Roll Forming Machine for Metal Ceiling & Wall Systems

This Metal Ceiling Panel Roll Forming Machine is customized for the Belarusian market and is designed to produce metal ceiling panels from 0.45-0.50 mm steel coil with a material strength of 350 MPa.

The complete production line integrates a 3-ton hydraulic decoiler, roll forming machine, hydraulic punching and cutting system, electrical control cabinet, and 3-meter receiving table, providing an efficient solution for continuous ceiling panel production.



Metal ceiling panels are widely used in various commercial, industrial, and public buildings, such as  offices, shopping malls,hotels & Restaurants , residential & Interior Projects, offering a practical solution for modern ceiling systems.

1. Technical Specification:

Application	Metal Ceiling Panel
Export Market	Belarus
Material Thickness	0.45-0.50 mm
Material Strength	350 MPa
Feeding Width	310 mm
Decoiler Capacity	3 Tons
Decoiler Type	Hydraulic, Forward & Reverse Rotation
Shaft Diameter	60 mm
Forming Stations	22 Rows
Machine Frame	350 Heavy-Duty Frame
Machine Structure	Cast Iron Wall Structure
Roller Material	40Cr Steel
Roller Treatment	Hard Chrome Plated
Transmission	Chain Drive
Forming Motor	5.5 kW Servo Motor
Production Speed	3-8 m/min, including punching
Punching	Hydraulic Punching
Receiving Table	3 m
Cutting Method	3-Blade Cutting
PLC & Inverter	Delta
Length Counter	Omron

2.  Key Equipment Configuration

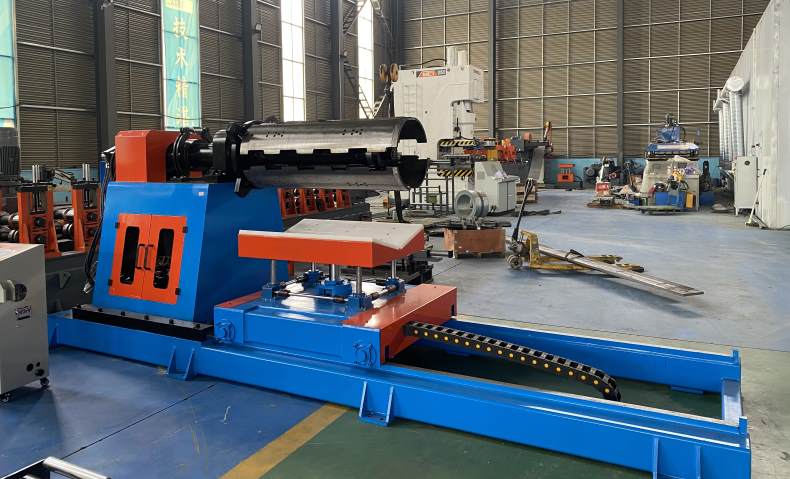

a. 3-ton hydraulic decoiler without loading trolley

Key features:
3-ton loading capacity
Hydraulic expansion
Forward and reverse rotation
Dedicated control panel
Designed for stable material feeding
The customer specifically requested attention to the control panel position to make operation more convenient.

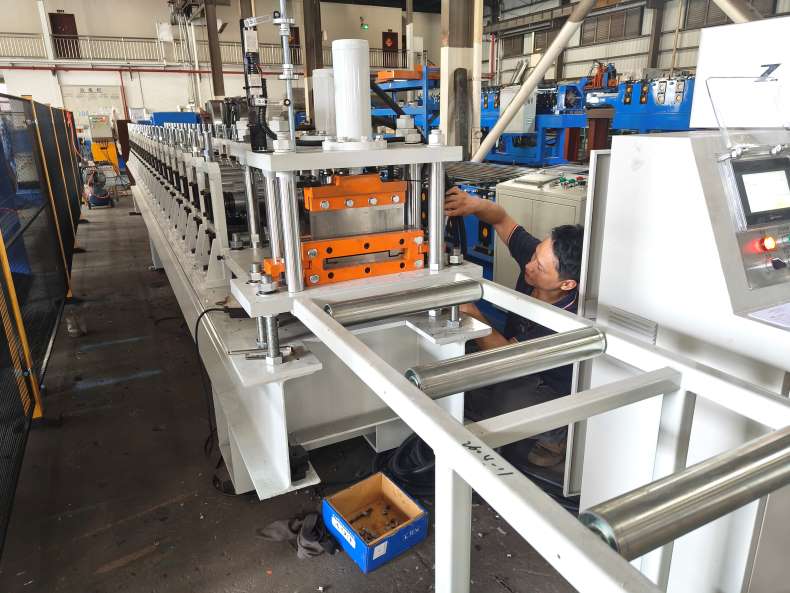

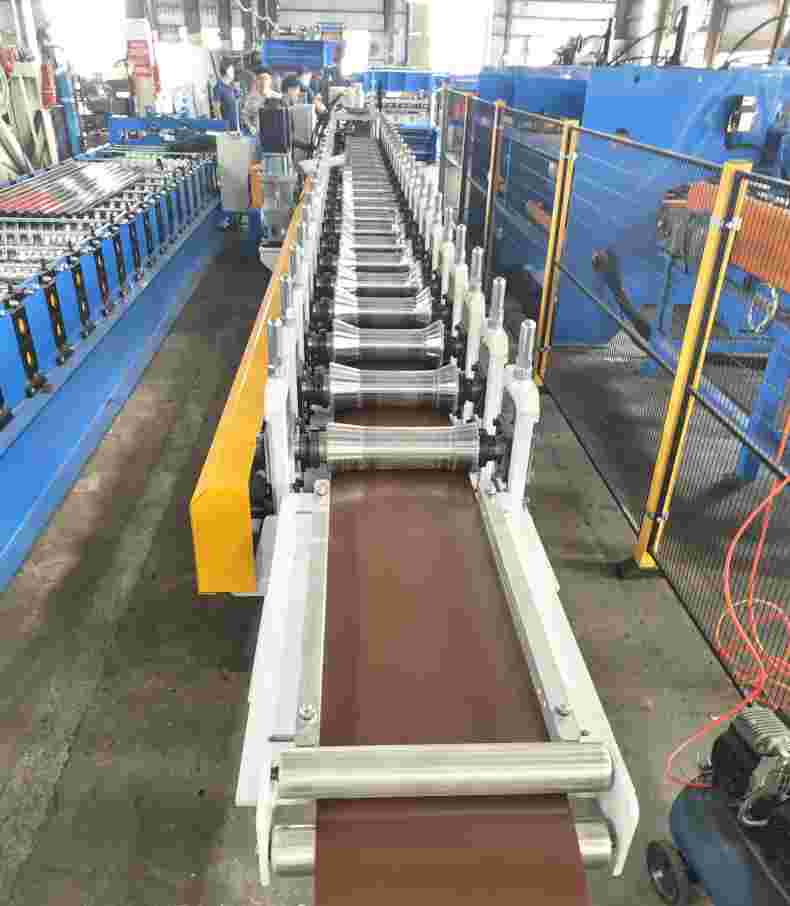

b. Heavy-Duty Roll Forming Machine

The forming machine adopts a 350 heavy-duty frame and cast iron wall structure, providing a stable foundation for continuous production.
Configuration:
22 forming stations
60 mm shaft diameter
40Cr steel rollers
Hard chrome-plated roller surface
Chain transmission
5.5 kW servo motor
Production speed: 3-8 m/min, including punching

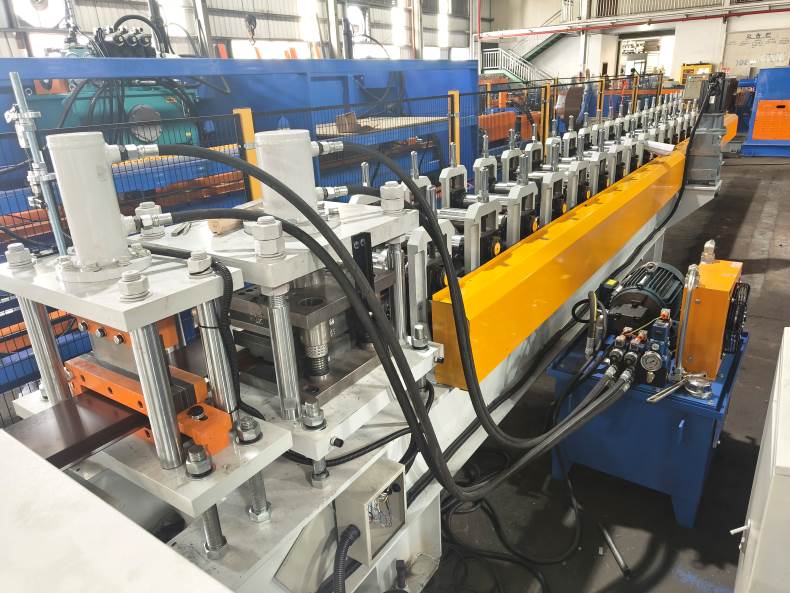

c. Hydraulic Punching & Cutting System

The hydraulic system performs both punching and cutting operations.
Features:
Hydraulic stop punching
Hydraulic cutting
3-blade cutting design
Independent 7.5 kW hydraulic station
Air-cooled hydraulic system
One additional punching die supplied as a spare
The punching dimensions and spacing are customized according to the customer's confirmed profile drawing.

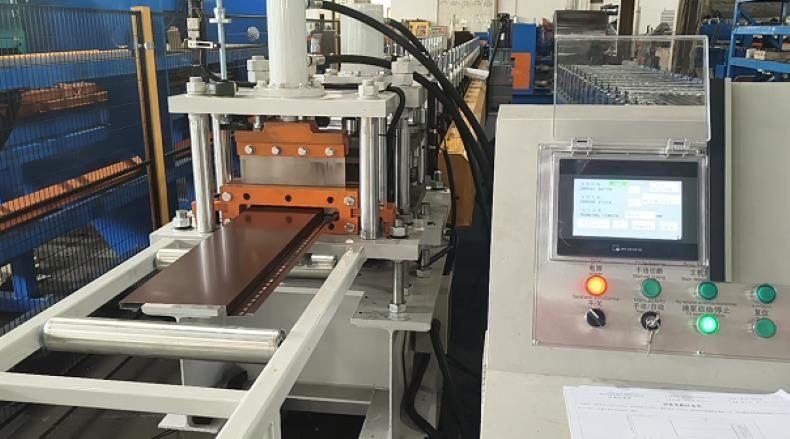

d. Multi-Language Control

The PLC control panel supports:
Chinese / English / Russian
The control labels on both the hydraulic decoiler and electrical cabinet are also available in these three languages, making the machine easier to operate for local operators.
Order Memory Function
The control system includes an order memory function.
After an order is completed, the machine can retain the previous production settings and quantity information, so operators do not need to enter the product length and other parameters again when restarting the same order.
This helps simplify operation and improve production efficiency.

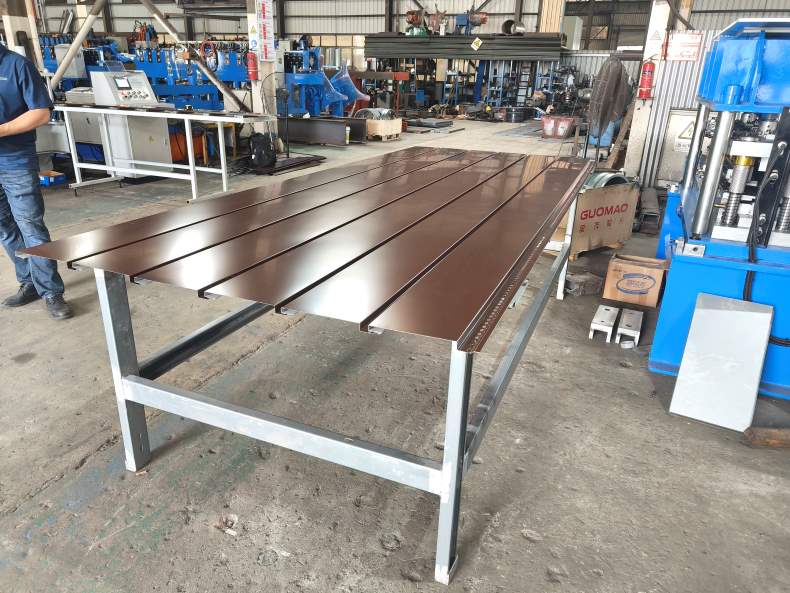

3.Finished Product

Every finished roofing panel is carefully tested to guarantee high precision and perfect installation performance.

4.Customized Design Features
This machine includes several customer-specific design details:
Flexible Equipment Layout
Extra-long cables and hydraulic hoses are supplied so that the electrical cabinet and hydraulic station can be positioned on either the left or right side of the forming machine.
External Start Switch
An external switch is added so operators can start the machine without opening the electrical cabinet door.
Adjustable Machine Height
The machine base is equipped with adjustable foot cups, allowing the machine height to be adjusted according to installation requirements.
Spare Punching Die
One additional set of punching dies is supplied as a spare part, helping reduce downtime during future maintenance.
