WF-12-36 & WF-636 Wall Double Layer Roll Forming Machine WF-12-36 & WF-636 WALL Double Layer

General Industry Tech Hebei Developing Co.,Ltd

WF-12-36 & WF-636 Wall Double Layer Roll Forming Machine WF-12-36 & WF-636 WALL Double Layer

Name: WF-12-36 & WF-636 Wall Double Layer Roll Forming Machine WF-12-36 & WF-636 WALL Double Layer
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT120532264

UseWall

Main Frame350H steel (25 mm welded plates)

DecoilerManual decoiler (free); 5t/8t hydraulic optional

Machine Weight12000 kg

WarrantyMore than 5 years; lifelong technical support

CertificationCE, BV, STV, ISO

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model:

WF-12-36 & WF-636 WALL Double Layer

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Use
Wall
Main Frame
350H steel (25 mm welded plates)
Decoiler
Manual decoiler (free); 5t/8t hydraulic optional
Machine Weight
12000 kg
Warranty
More than 5 years; lifelong technical support
Certification
CE, BV, STV, ISO
Profiles
WF-12-36 Wall Panel & WF-636 WALL Panel
Roller Stations
Up layer 26 rows; down layer 19 rows
Rolling Thickness
0.3-0.8 mm
Feeding Width
1250 mm
Forming Speed
20 m/min
Roller Material
45# steel chrome plated
Shaft Material
45# steel, outer diameter 70 mm
Control System
Siemens PLC, touchscreen, remote control

WF-12-36 and WF-636 wall panel double layer roll forming machine

Double layer wall panel machine in factory

Product Overview

The WF-12-36 & WF-636 WALL double layer roll forming machine produces two wall panel profiles - WF-12-36 and WF-636 - from one line. With 26 forming rows up and 19 down, Siemens PLC control and a forming speed of 20 m/min, it delivers easy operation and fully automatic control for corrugated metal wall panel production.

One machine, two profiles: WF-12-36 and WF-636 wall panels, switch in 5 minutes by chain brake
Heavy-duty 350H frame with 45# chrome-plated rollers and 70 mm solid shafts
Siemens PLC with touchscreen, remote control and customizable languages
20 m/min forming speed with precise Gcr12 quenched blade hydraulic cutting
Wide material range: 0.3-0.8 mm, feeding width 1250 mm
CE, BV, STV, ISO certified; lifelong technical support

Key Features

One Machine, Two Profiles - Double the Output - WF-12-36 and WF-636 wall panels from one double-layer line. Switch layers with a simple chain brake in just 5 minutes - no re-tooling - saving equipment cost and floor space.
Heavy-Duty Frame Built for Continuous Production - 25 mm welded steel plates (350H) deliver superior strength and vibration resistance. 45# forged chrome-plated rollers and 70 mm solid 45# heat-treated shafts ensure stable profile accuracy under non-stop loads.
Siemens PLC Control - Easy for New Workers - Siemens PLC with touchscreen, remote control and customizable languages; aviation plugs for quick installation. One-key automatic operation lets new workers run the line after half-day training.
20 m/min Production with Precise Hydraulic Cutting - 7.5 kW main motor forms up to 20 m/min with uninterrupted 45 m/min coil feeding. Gcr12 quenched blades cut precisely in-line - panels install directly with no secondary processing.
Wide Material Range 0.3-0.8 mm - Processes coils from 0.3-0.8 mm thick in any color. With 26 forming rows up and 19 down, profiles keep clean lines and consistent dimensions.
Safe Coil Handling with Optional Stacker - Pneumatic press arm and optional automatic stacker handle coils and panels safely, reducing operator fatigue and protecting the finished profile surface.

Technical Specifications

Item	Specification
Machine type	Wall panel making machine (double layer)
Profiles	WF-12-36 Wall Panel & WF-636 WALL Panel
Roller stations	Up layer 26 rows; down layer 19 rows
Rolling thickness	0.3-0.8 mm
Feeding width	1250 mm
Forming speed	20 m/min (45 m/min coil feeding)
Roller material	45# steel chrome plated
Shaft material	45# steel, outer diameter 70 mm
Cutting blade	Gcr12 quenched blades, in-line hydraulic cutting
Control system	Siemens PLC, touchscreen, remote control
Main frame	350H steel (25 mm welded plates)
Main motor	7.5 kW
Voltage	220 V / 380 V / 440 V
Decoiler	Manual decoiler (free); 5t/8t hydraulic decoiler optional
Machine weight	12000 kg
Warranty	More than 5 years; lifelong technical support
Certification	CE, BV, STV, ISO

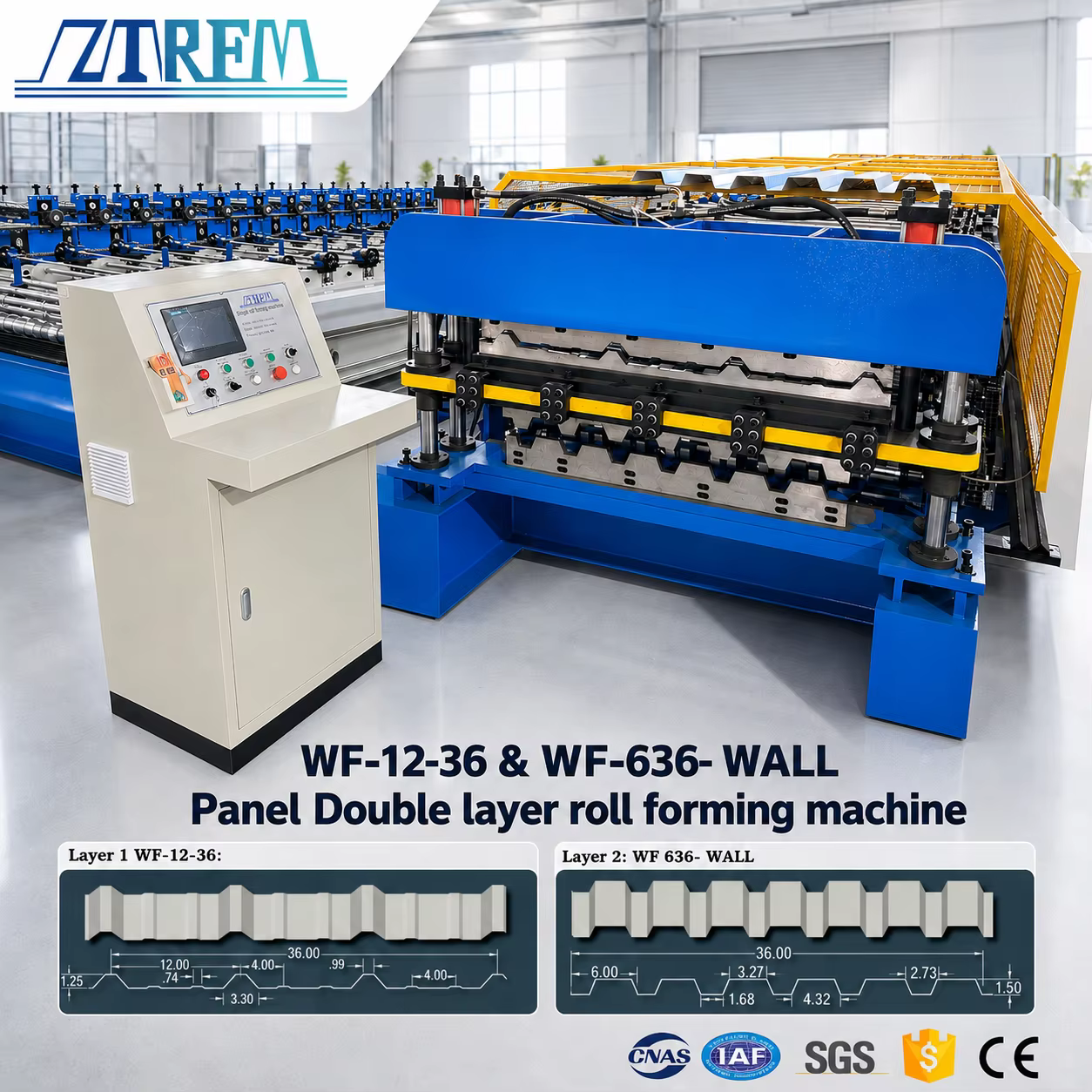

Panel Profiles

Dimension (in.)	Layer 1: WF-12-36	Layer 2: WF-636 WALL
Overall width	36.00	36.00
Rib height	1.25	1.50
Rib spacing (center to center)	12.00	6.00
Top of rib width	4.00	3.27
Bottom flat section	3.30	1.68
Inner flat / distance between ribs	0.99	4.32

Dimensions in inches, from the profile drawings on the product image (Layer 1 WF-12-36 and Layer 2 WF-636 WALL).

Machine Structure

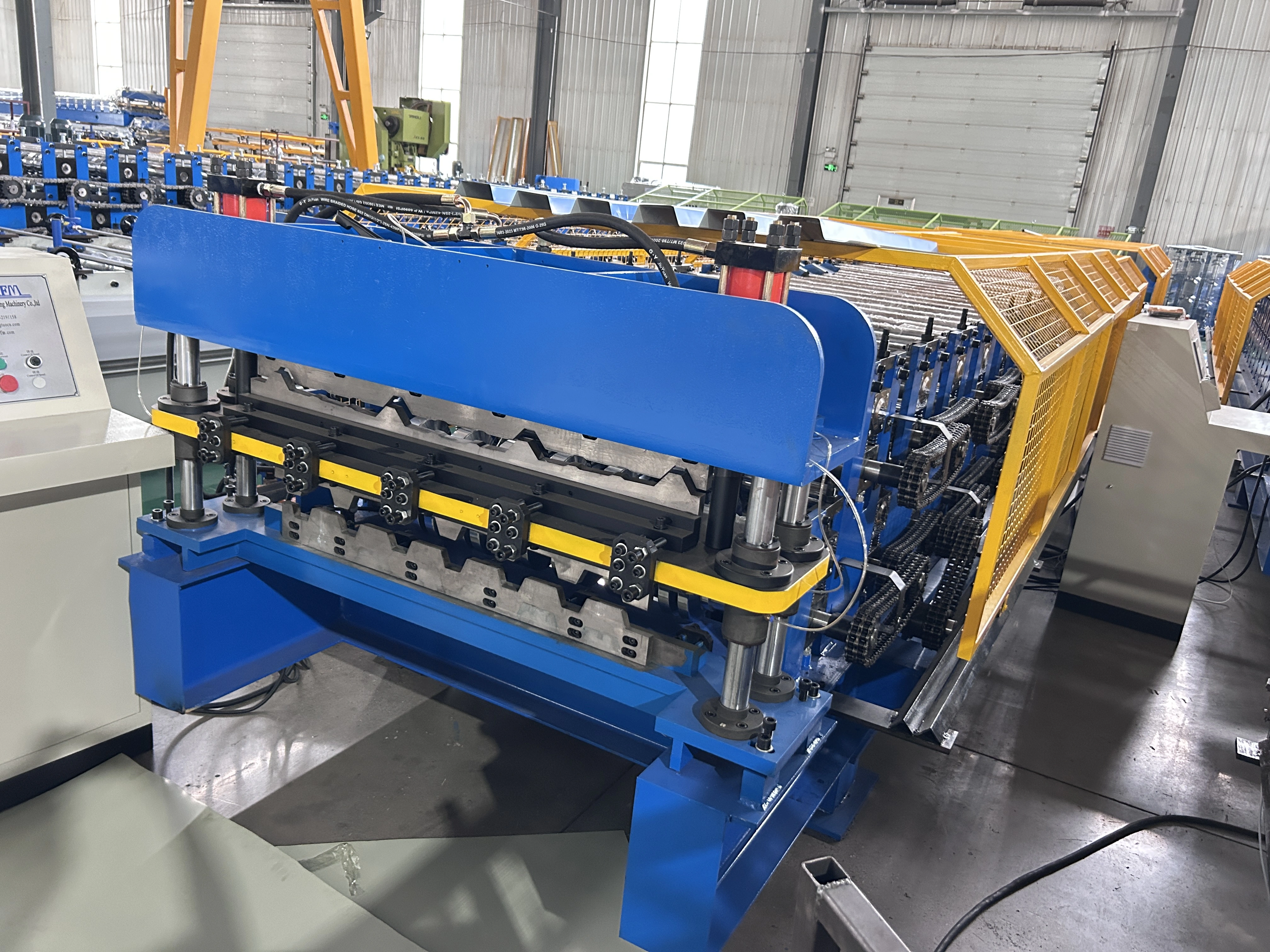

Double layer wall panel machine full line view

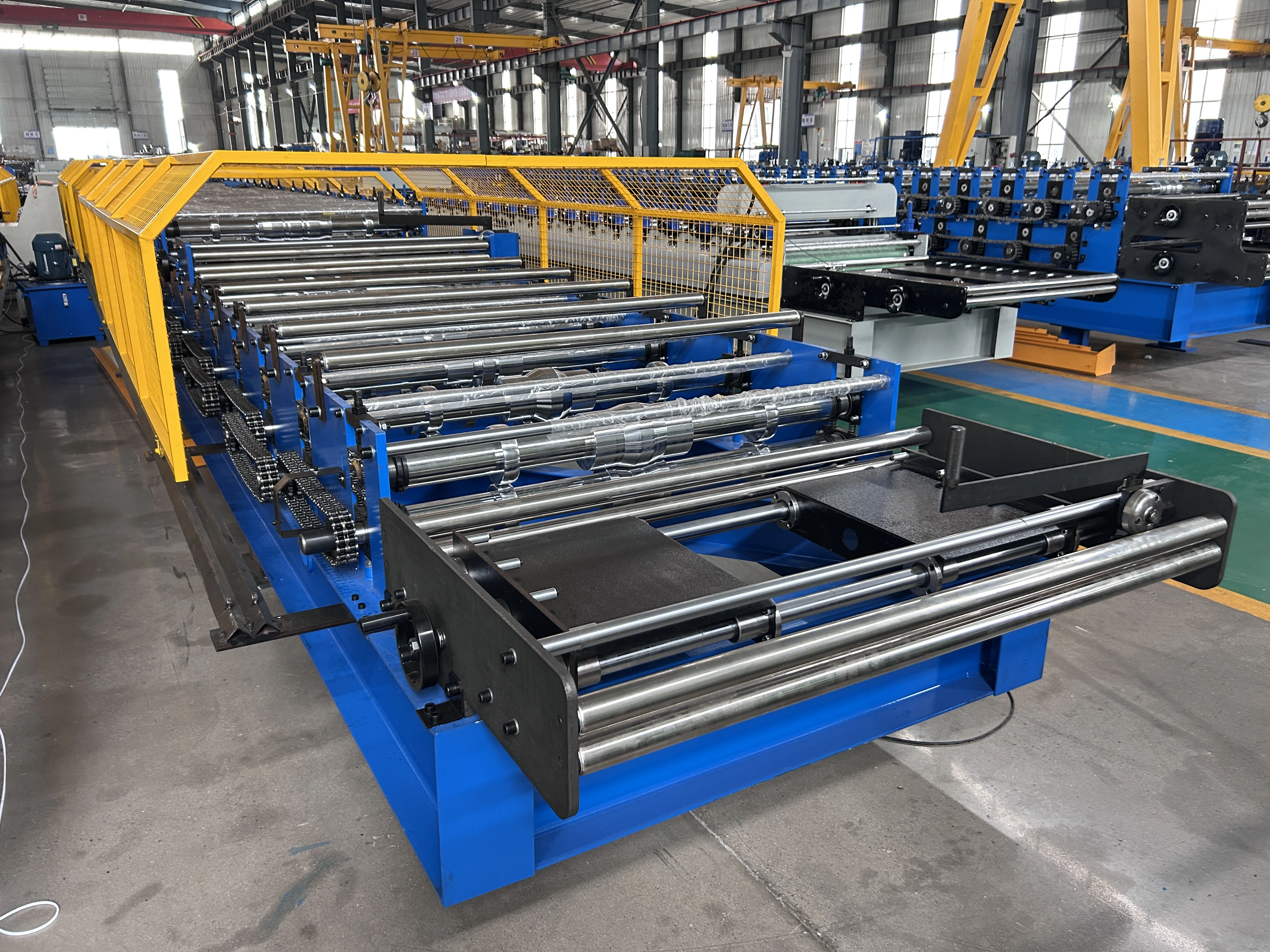

The line is a long double-layer configuration with two stacked sets of forming rollers and cutting blades. The cobalt blue frame, polished rollers, black drive chains and yellow mesh safety cages are clearly visible in the workshop.

Finished Product

Finished blue WF corrugated wall panels

Finished WF corrugated wall panels in bright blue with clean vertical ribs are stacked and checked on the factory floor, ready for packing.

Certifications

CE certified equipment certificates

The machine is CE certified for international procurement (CE trust No. 4Q230524.CZIDW02 / 4Q230524.CZIDW03), supported by COTECNA, Ente Certificazione Macchine and BAC certificates; the company holds CE, BV, STV and ISO certifications.

Company Profile

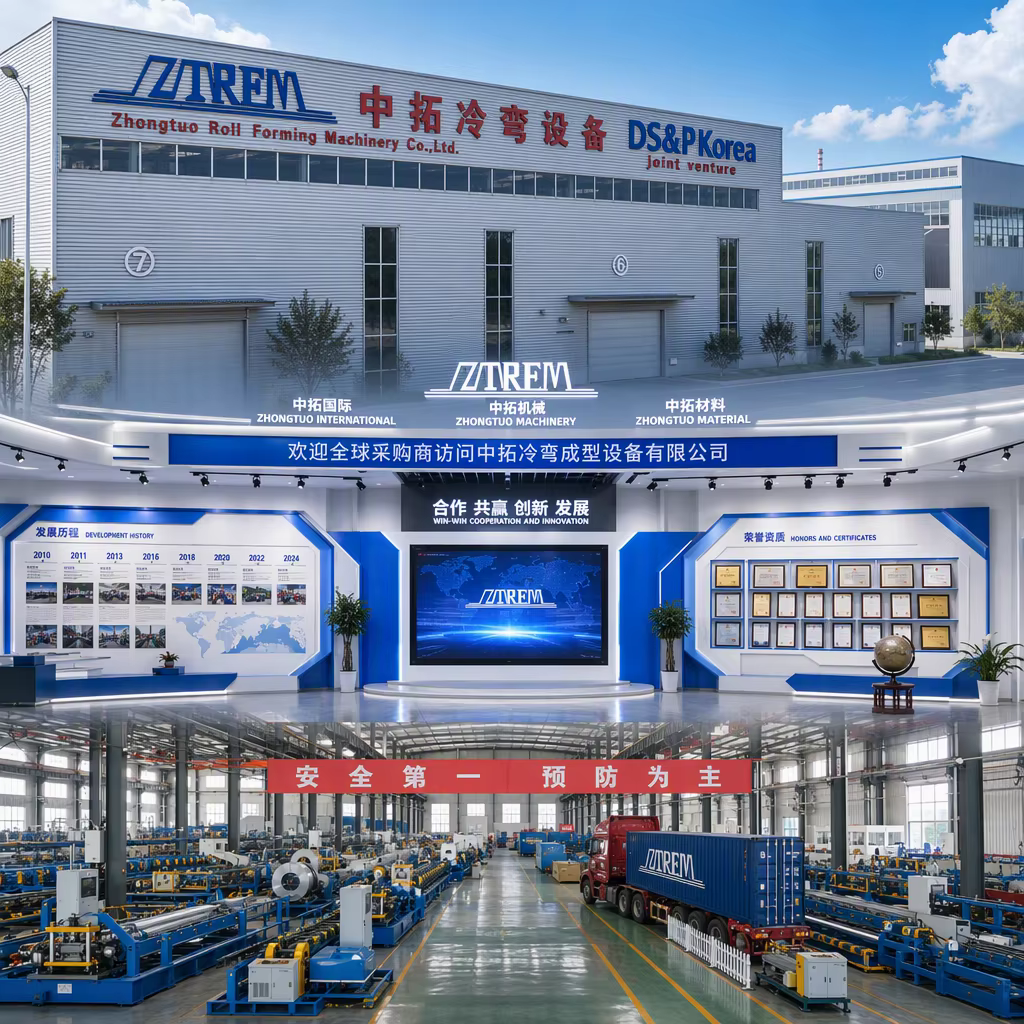

ZTREM factory, showroom and workshop

Zhongtuo Roll Forming Machinery Co., Ltd (ZTREM) is a cold forming equipment manufacturer with a modern factory, corporate showroom featuring development history (2010-2024) and honors, and a high-capacity workshop delivering roll forming lines worldwide.

Packing & Shipping

Package size: 1000 x 150 x 180 cm; machine weight: 12000 kg
Delivery time: 45 days for 1 set, 60 days for 2 sets
Machinery test report and video outgoing inspection provided
