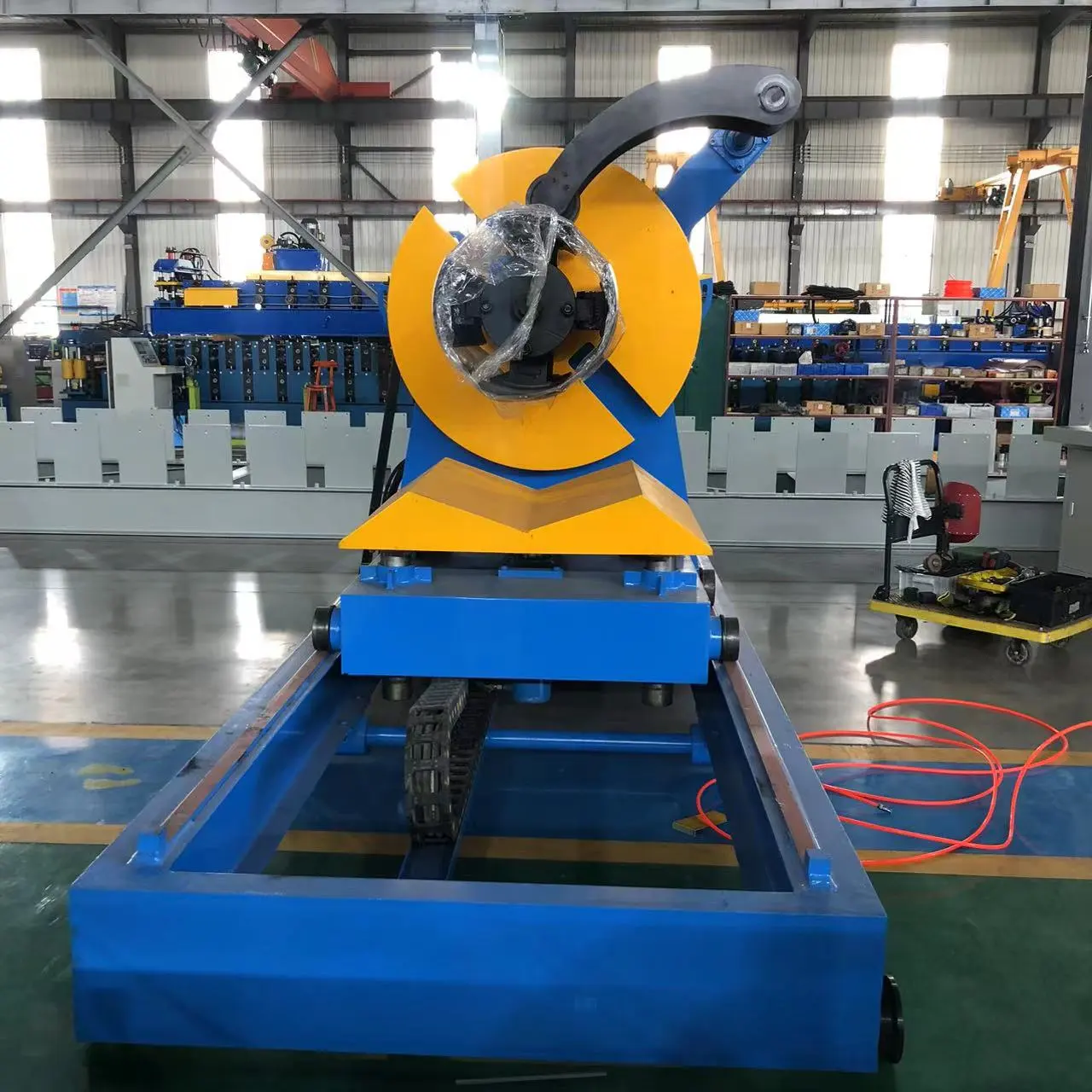

Uncoiler Hydraulic Decoiler With Loading Car 5T/8T/10T/15T/20T Open Steel Coil 30 m/min+Hydraulic decoiler with loading car+5.5KW

Cangzhou Zhongtuo International Trade Co., Ltd

Uncoiler Hydraulic Decoiler With Loading Car 5T/8T/10T/15T/20T Open Steel Coil 30 m/min+Hydraulic decoiler with loading car+5.5KW

Name: Uncoiler Hydraulic Decoiler With Loading Car 5T/8T/10T/15T/20T Open Steel Coil 30 m/min+Hydraulic decoiler with loading car+5.5KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT76326824

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

30 m/min

Model Number:

Hydraulic decoiler with loading car

Power(W):

5.5KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Decoiler
Tile Type
Steel
Use
FLOOR WALL ROOF
Voltage
380V or As customized
Rolling Thinckness
Other
Feeding Width
0-1500mm or As customized

Company Profile

Cangzhou ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

Hydraulic decoiler

Hydraulic Uncoiler is used to unroll metal materials in rolls (e.g. steel plates, aluminum plates, etc.) from rolls and feed them into the tile forming machine for subsequent forming process. During the material feeding process, the hydraulic unwinders are able to provide proper tension control of the material to ensure that the material is not overstretched or wrinkled during the molding process. Automation: Hydraulic unwinders are usually coupled with the automation control system of the tile press molding machine, which can realize automatic loading, automatic unwinding and automatic adjustment to improve production efficiency.

The Hydraulic decoiler advantages 1. Improve efficiency:

the use of hydraulic unwinders can greatly reduce manual operation and improve the automation of the production line, thus increasing production efficiency. 2. Strong adaptability:

Hydraulic unwinder can adapt to different thicknesses and materials of the coil, a wide range of applications. 3. High stability:

Hydraulic unwinder adopts hydraulic system, which has better stability and reliability and ensures the smoothness of the production process. 4. Accurate tension control:

hydraulic unwinder can precisely control the tension of the material to ensure that the material will not be deformed or other quality problems in the molding process. 5. Simple operation:

the operation of hydraulic unwinders is usually simple and easy to start, reducing the difficulty of operation. 6. High safety:

Hydraulic unwinders are designed with operator safety in mind, and usually have safety guards to reduce the occurrence of safety accidents.

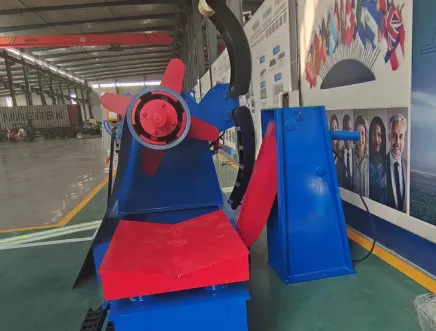

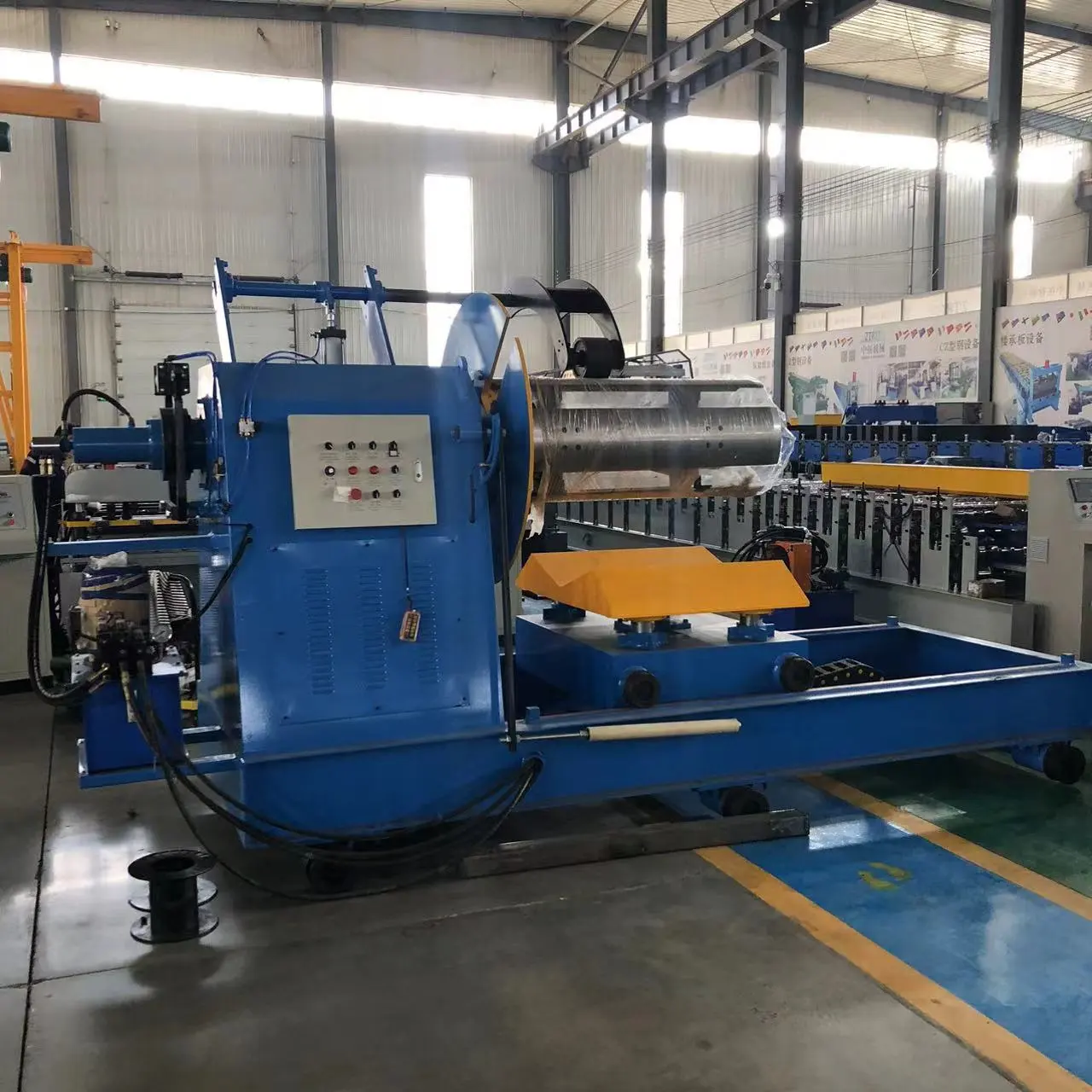

Hydraulic Decoiler

1.Automatic working

2.Hydraulic expansion
3.With press arm to keep the coil from loosing
4.With braking system and speed sensor to match the speed with other machines

5.Saving labor

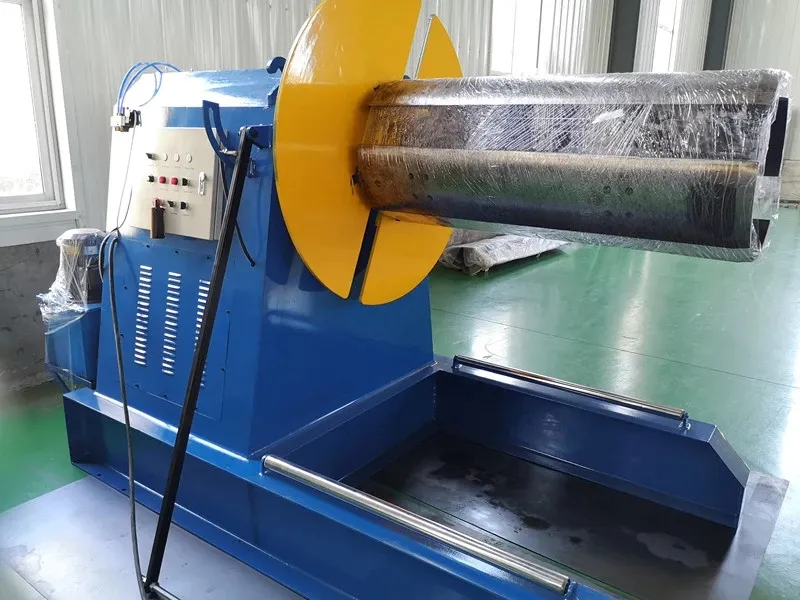

Full Automatic Hydraulic Decoiler
Raw material	PPGI,GI,AI,SS
Raw material		Thickness: 30-13 Gauge(0.3-2.0mm )
Main Body	Coil Width:900-1250mm Customized As Request
		Capacity:5 tons
		Hydraulic Power:4kw
		Motor Power:5.5kw
Press Arm	To Keep The Coil From Loosing
Braking System	Pnuematic
Voltage	480v 50hz 3phase(Provide Customized)
Forming Speed	0-40m/Min,Match With The Main roll forming Machine
Electrical Parts	Siemens
Expanding Device	Four Arms Expanding Device With Sliding Block Can Provide More Powerful Force To Fixing The Coil, The Synchronous Action Can Avoid The Deformation Of The Coil. The Block Installed On The The Arms Can Suit The Coils With Bigger Inner Diameter.

Pneumatic braking system

1. Can stop the rotate of coil immediatelywhen required, avoid unnecessary coil output.
2. Fast braking, more safer.
3. The matching high-speed forming machineneeds faster uncoiling speed, and the pneumatic brake can provide greater braking
force. Customers need to be equipped with their own compressed air source.

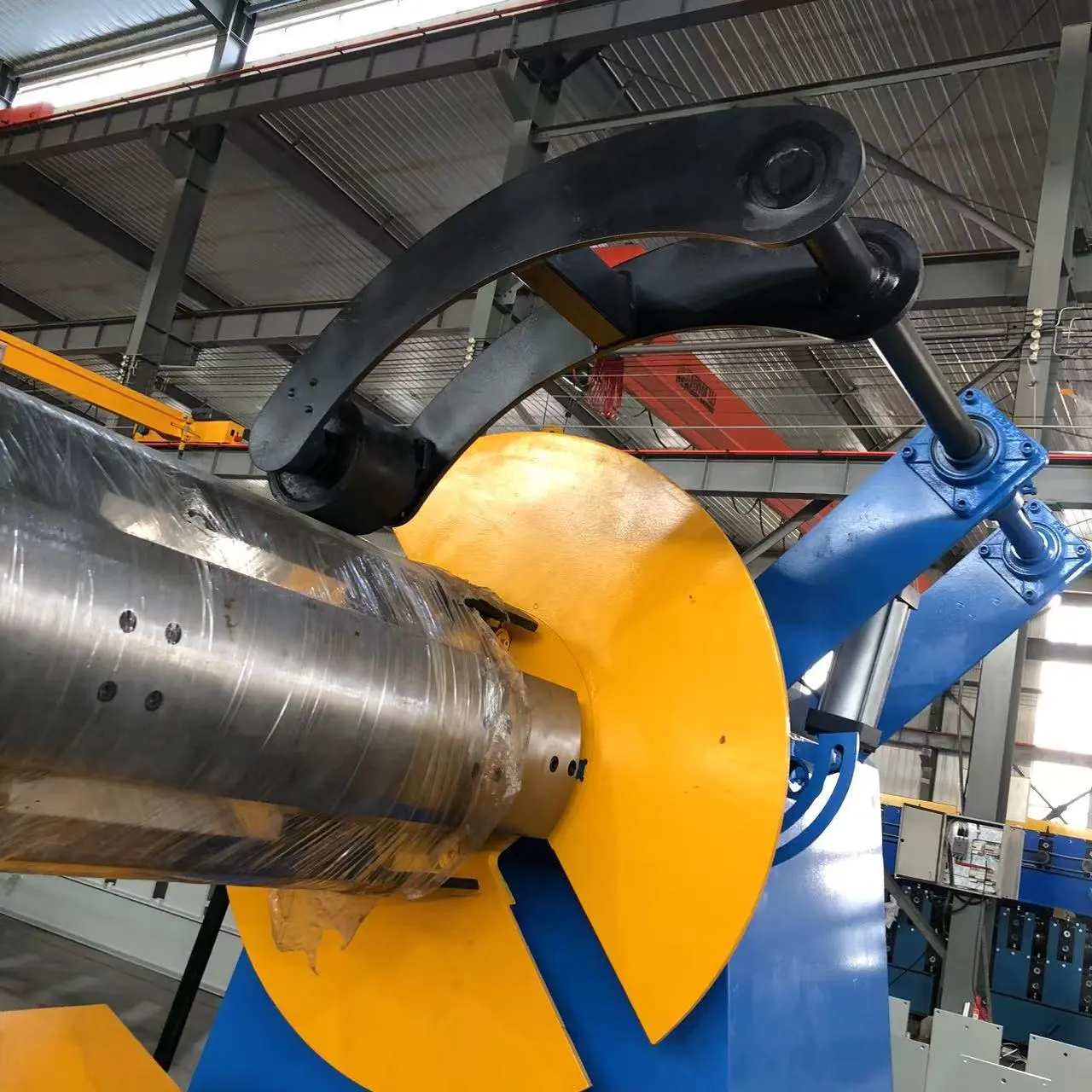

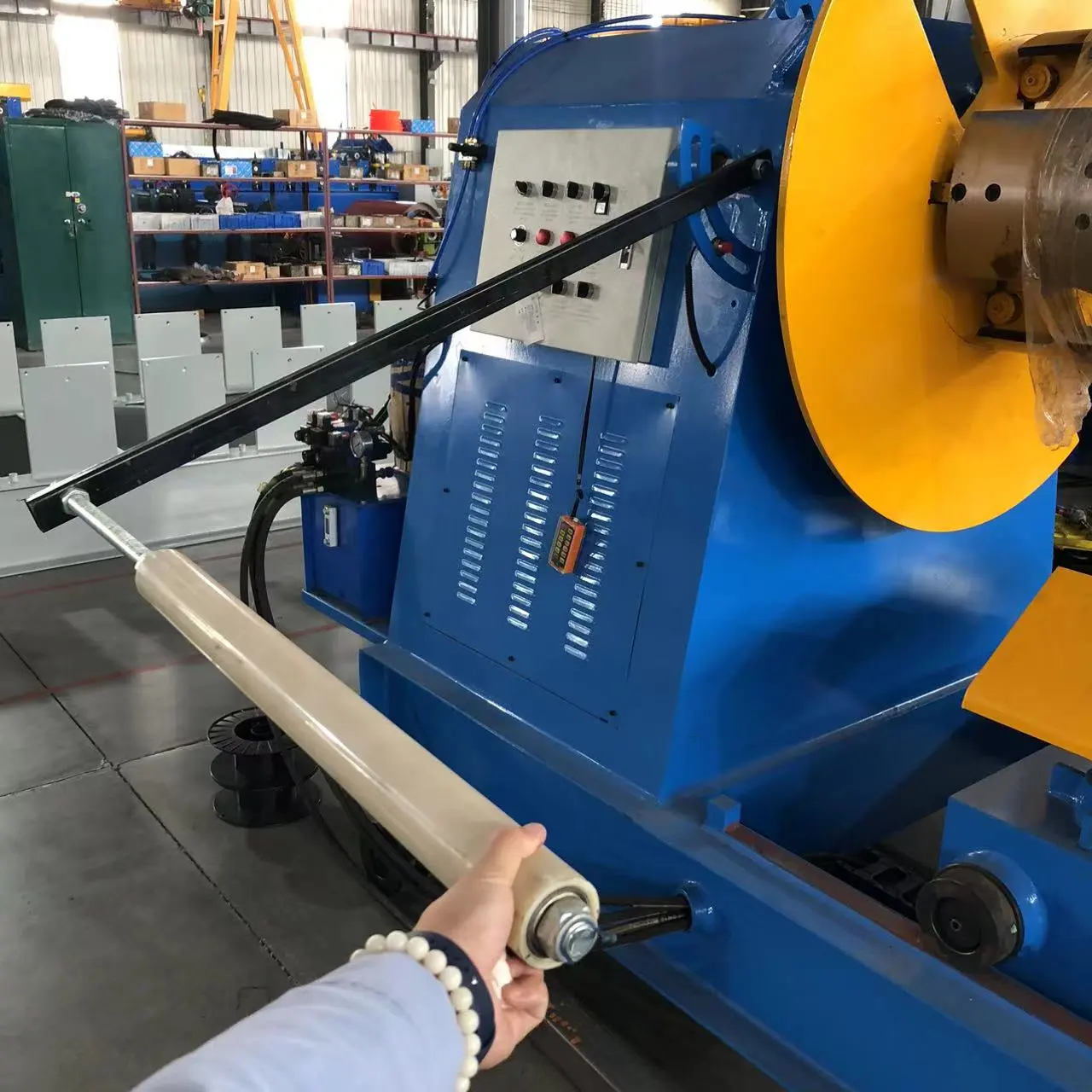

Limit Switch Arm and rollers on frame

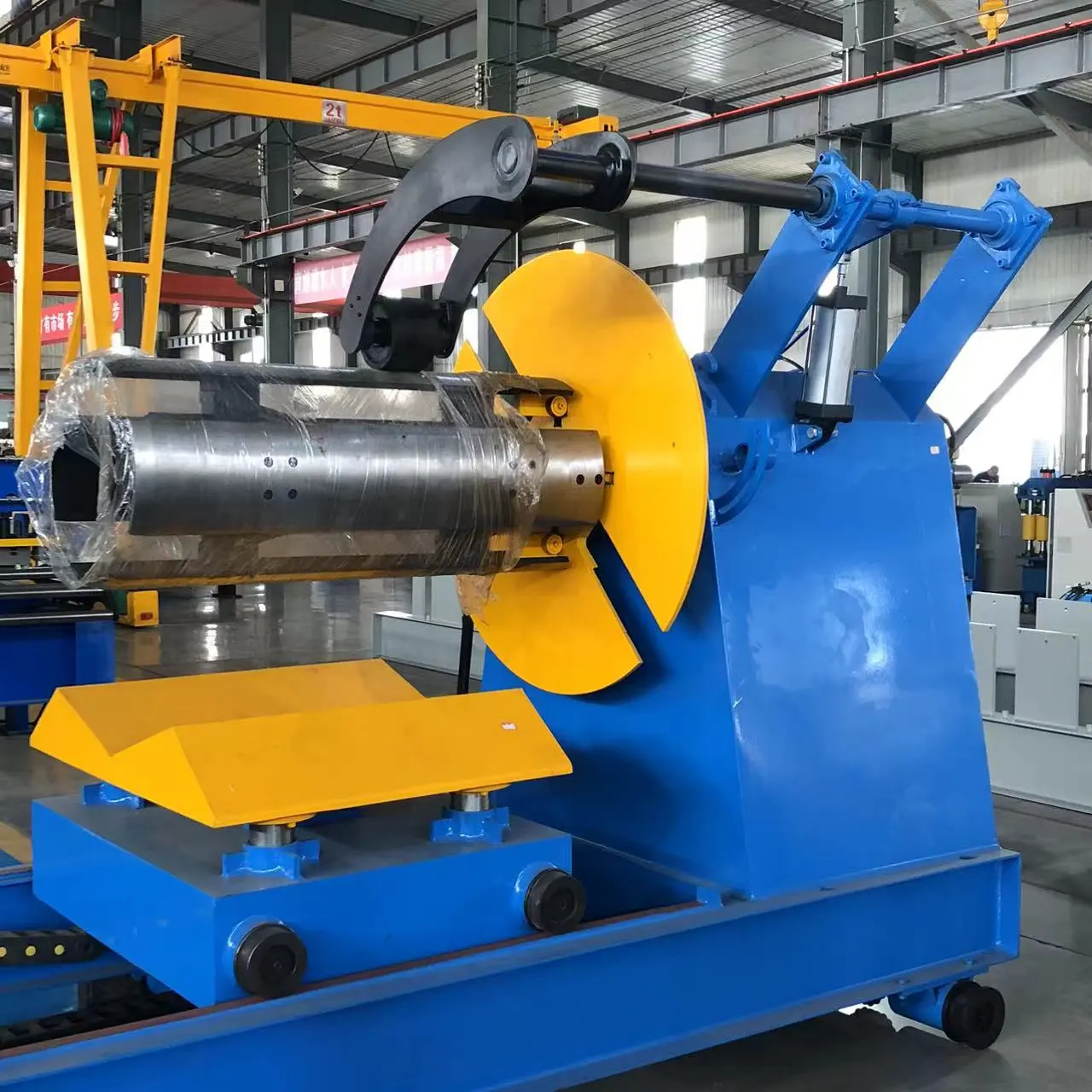

Expanding device

Four arms expanding device can provide more powerful force to fixing the coil, The synchronous action can avoid the deformation of the coil.

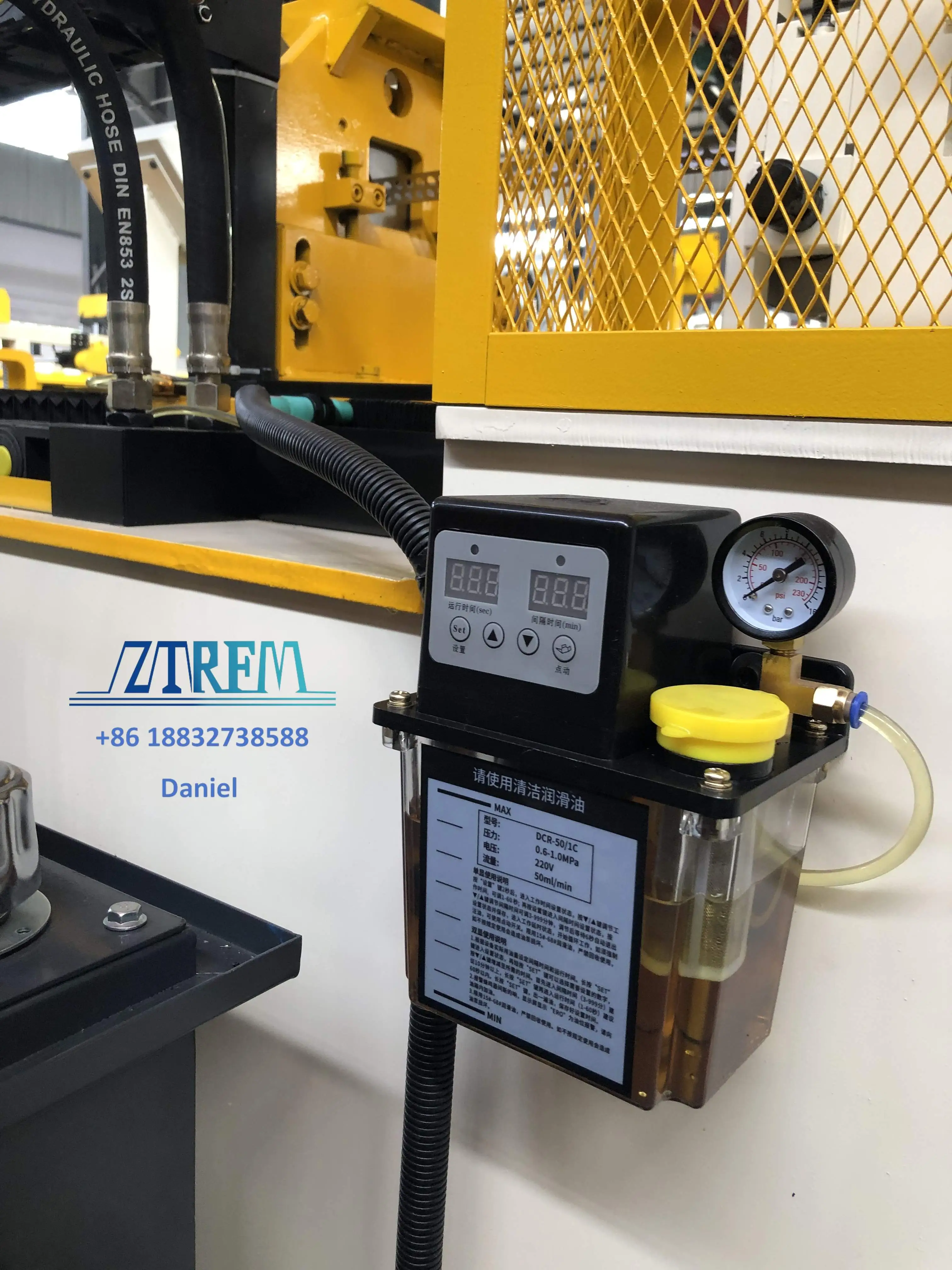

Automatic oil filler

1.Automatic lubrication for the cutter

2.Reduce machine maintenance time and cost

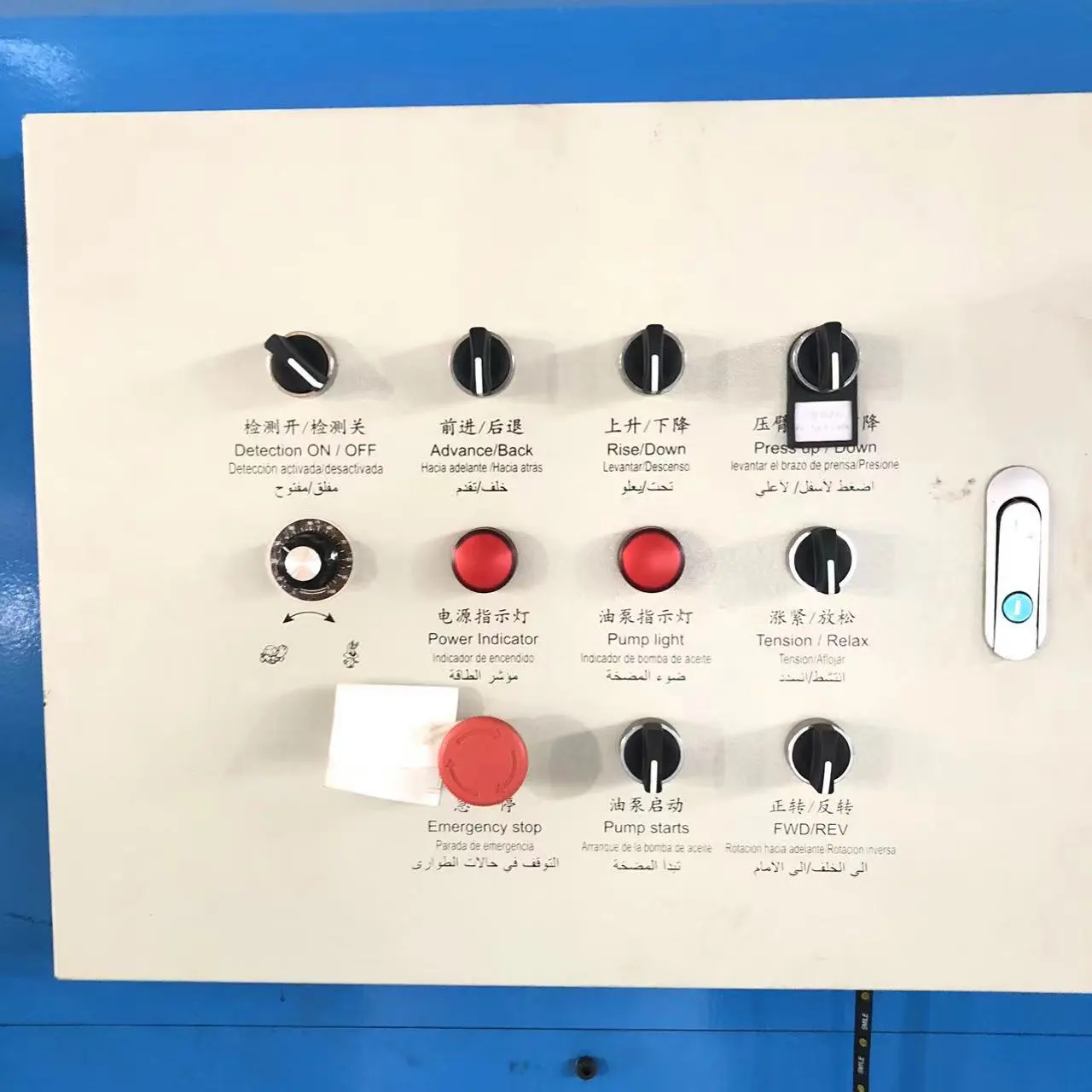

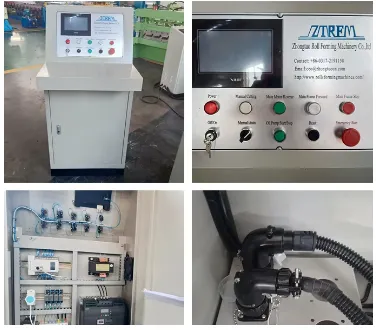

PLC control cabinet

1.Adopt Siemens electronic control, can support remote control

2.Adopt touch screen for easy operation.

3.Adopt aviation plugs for easy installation

4.Languages can be customized

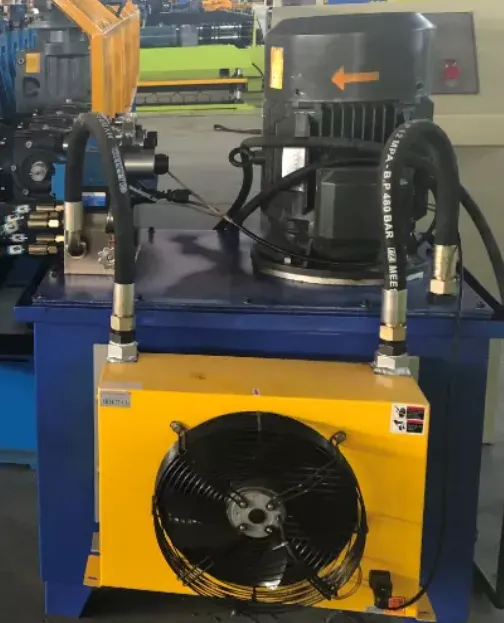

Hydraulic station

1.Updated type

2.Low noise

3.Cooling fan for long service time.

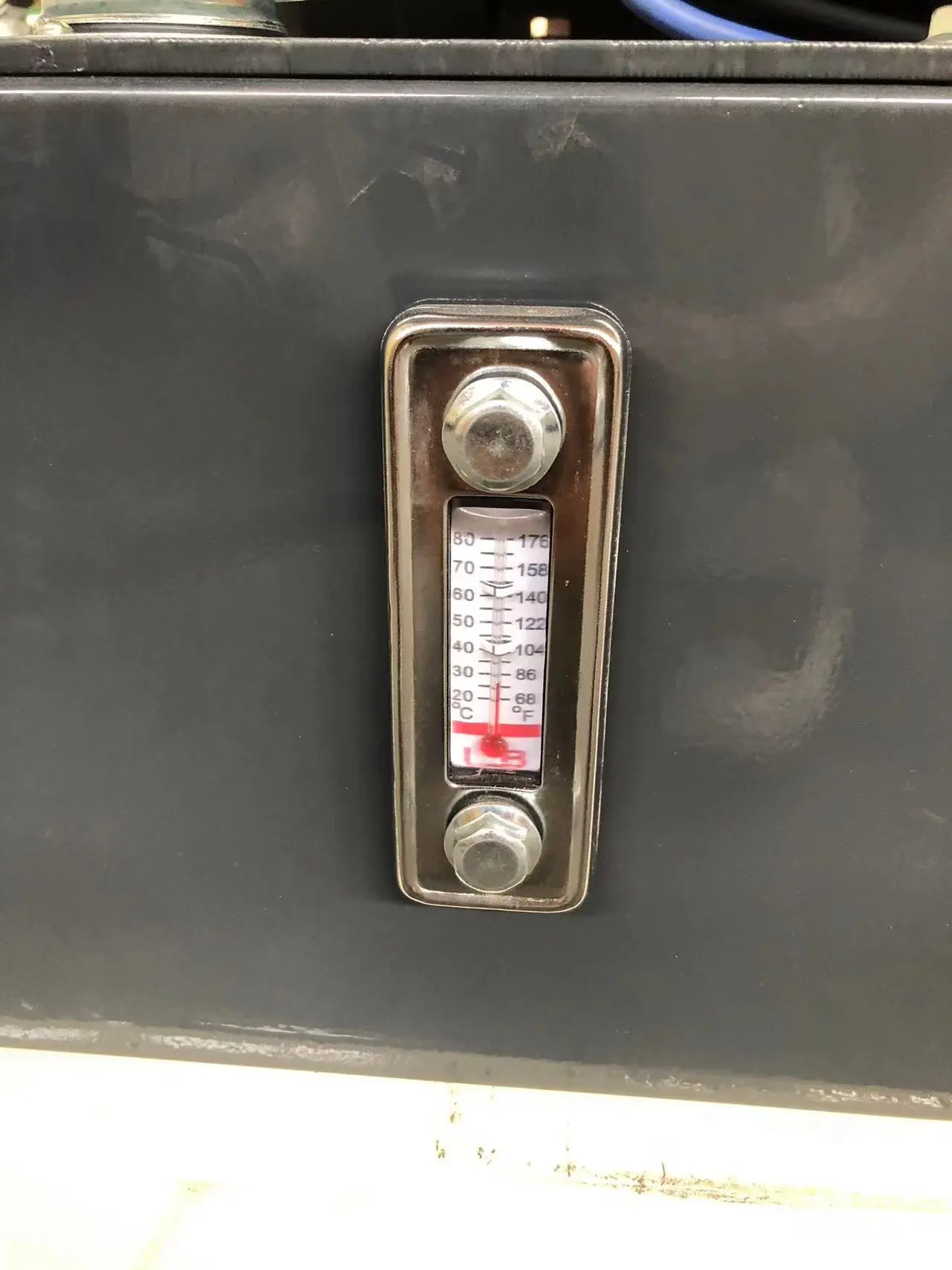

Thermometer

The temperature of the hydraulic station can be measured in real time, more convenient and faster

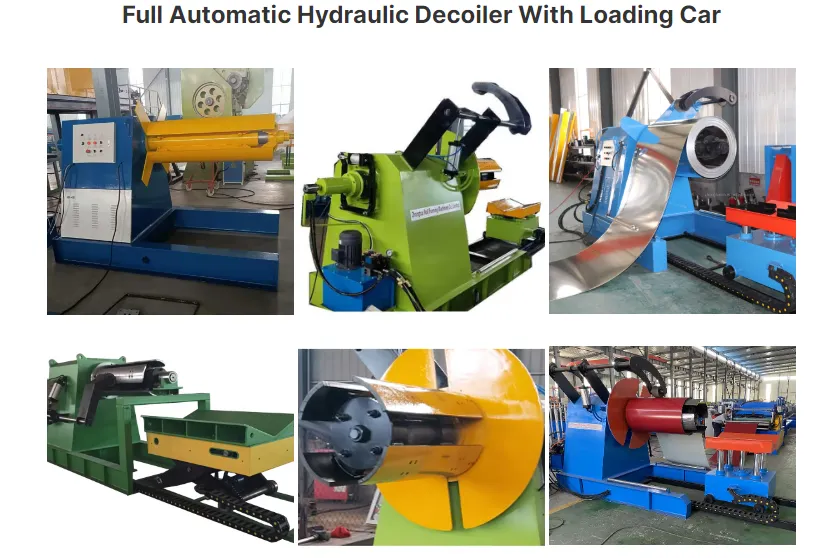

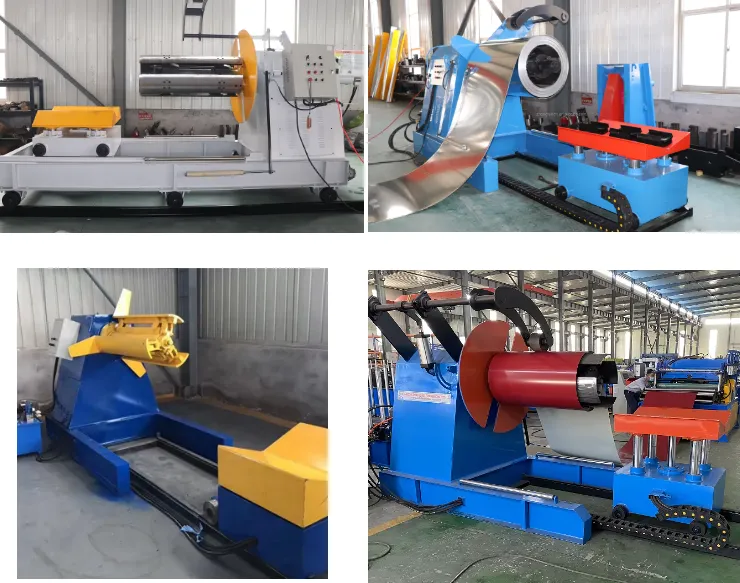

Product display

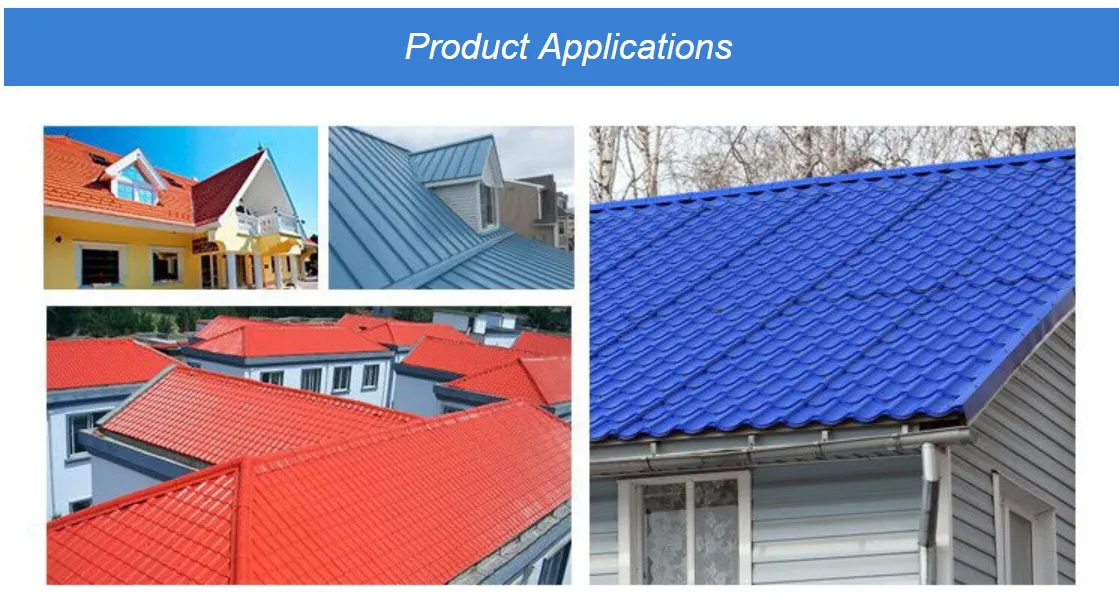

Application

Exhibition

Certification

Customer Photos
