    Specification:

    Core Components:
    PLC, Motor, Gear
    Production Capacity:
    20set/month
    Place of Origin:
    Hebei, China
    Weight:
    6000 kg
    Warranty:
    2 Years
    Payment:
    Transaction Protection:
    • Secure payments
    • Money-back protection
    • 24/7 support
    • Data privacy
    ZT75471726
    Quantity:
    -
    +
    Add to CartBuy Now
    • Product Details
    • Reviews(0)

    • Technical Specifications

      • Work Pressure
        380V 50Hz 3Phase(As your requirement)
      • Voltage
        380V 50Hz 3Phase(As your requirement)
      • Power(W)
        7.5+5.5KW
      U channel profile Drip Edge Metal Drywall Stud And Track Light Steel Frame Roll Forming Machine
      light gauge steel framing machine makes C Stud U Track profiles or Ceiling profiles channels, which are used to provide support for plaster board panels. The light gauge steel are highly technical profiles and must satisfy precise operating characteristics, complementing each other to form a high quality, sturdy frame work.
      Our montante OC and Guia UD Light Gauge Steel roll Forming Machines are with high speed and accuracy.

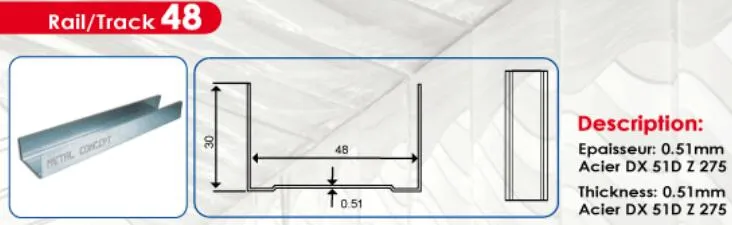

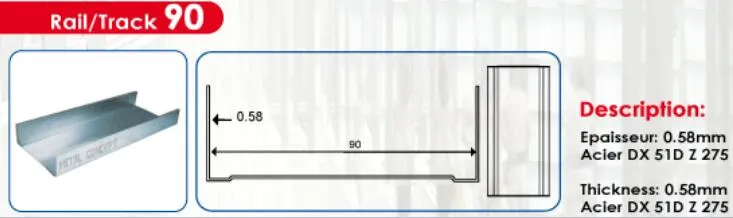

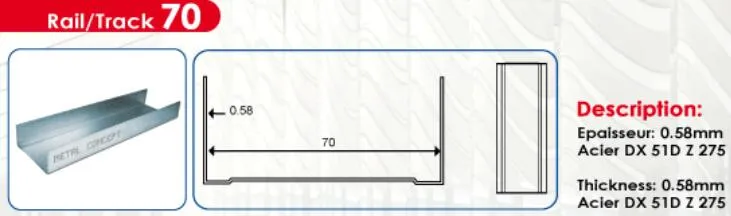

      Profile drawing for reference:

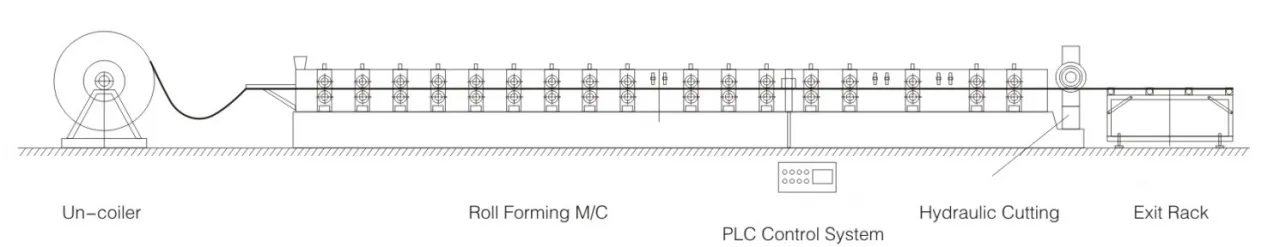

      Processing Flow

      The work flow for roll forming machine
      Series
      Details
      Parameter
      Comment
      Material
      Raw material
      Steel
      Customer confirmed
      Material thickness
      0.4-1.5 mm
      Decoiler
      Structure
      Manual passive type
      The standard one to match the production line
      Single head type
      Loading capacity
      1.5 Tons
      Coil inner diameter
      450-550 mm










      Roll forming machine
      Guiding device
      Placed on the machine by seller
      Rolling shaft material
      45# STEEL
      Shaft diameter
      50 mm
      Roller material
      GB-Cr12
      Rolling station
      12 stations
      Work speed
      40-45 m/min
      Machine structure
      Vertical memorial arch frame
      Machine basic frame
      Steel plate welded or Arch
      Bearing
      Roller bearing
      Famous brand of Harbin
      Work power
      7.5 kw

      Transmission
      By gear
      With cover
      Safety cover
      available
      Appearance
      Good appearance with no burrs in steel body nor traces of rust or defects in painting.
      Good electrical and hydraulic cable organization Car painting make the machine more glossy
      We confirm each detail can match the standard, ensure the machine is 100% new!

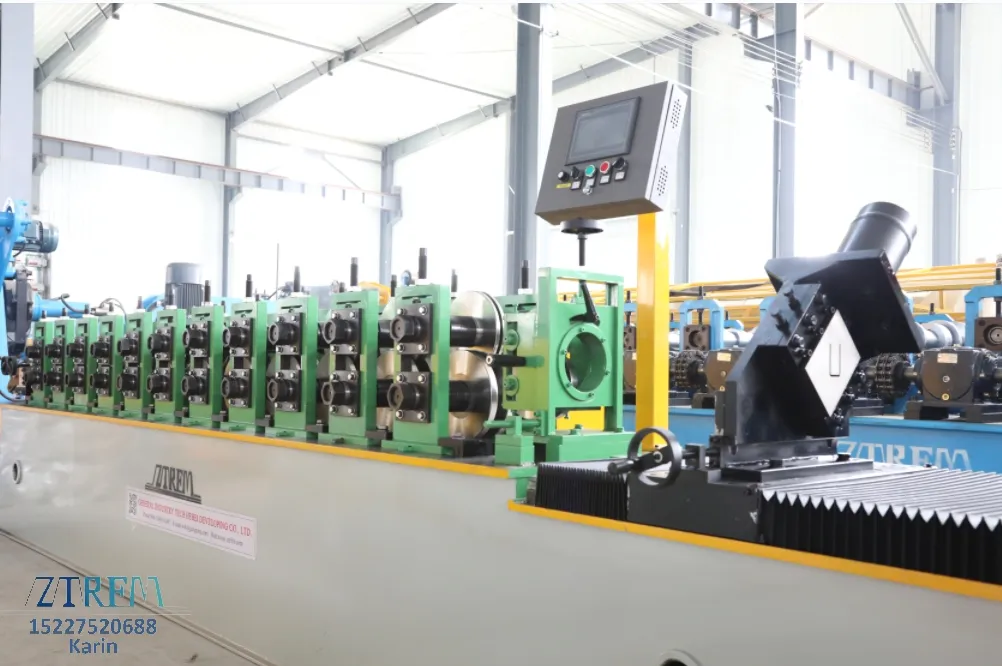

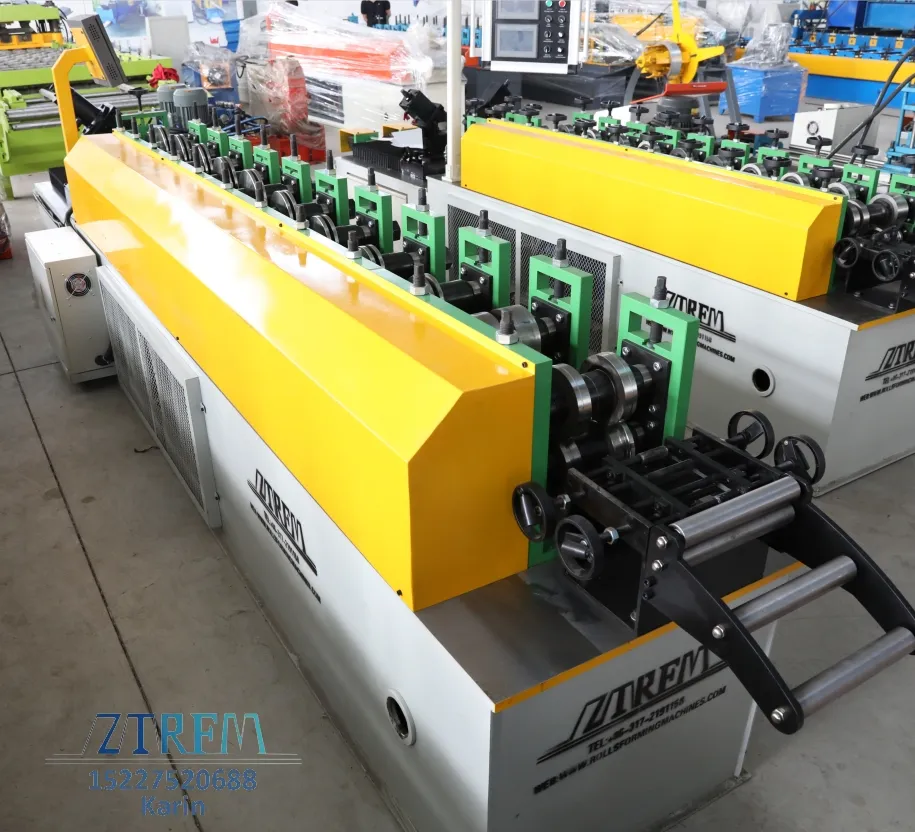

      Roll forming machine-1
      Roll forming machine-2

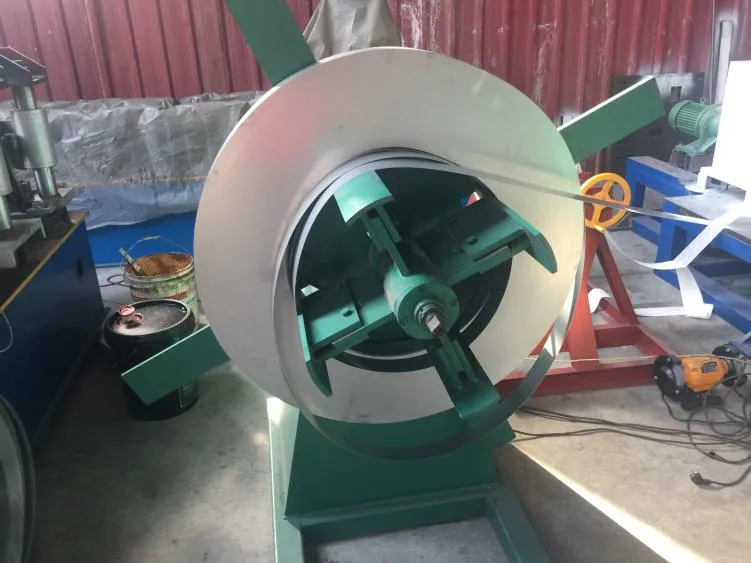

      1.5T decoiler

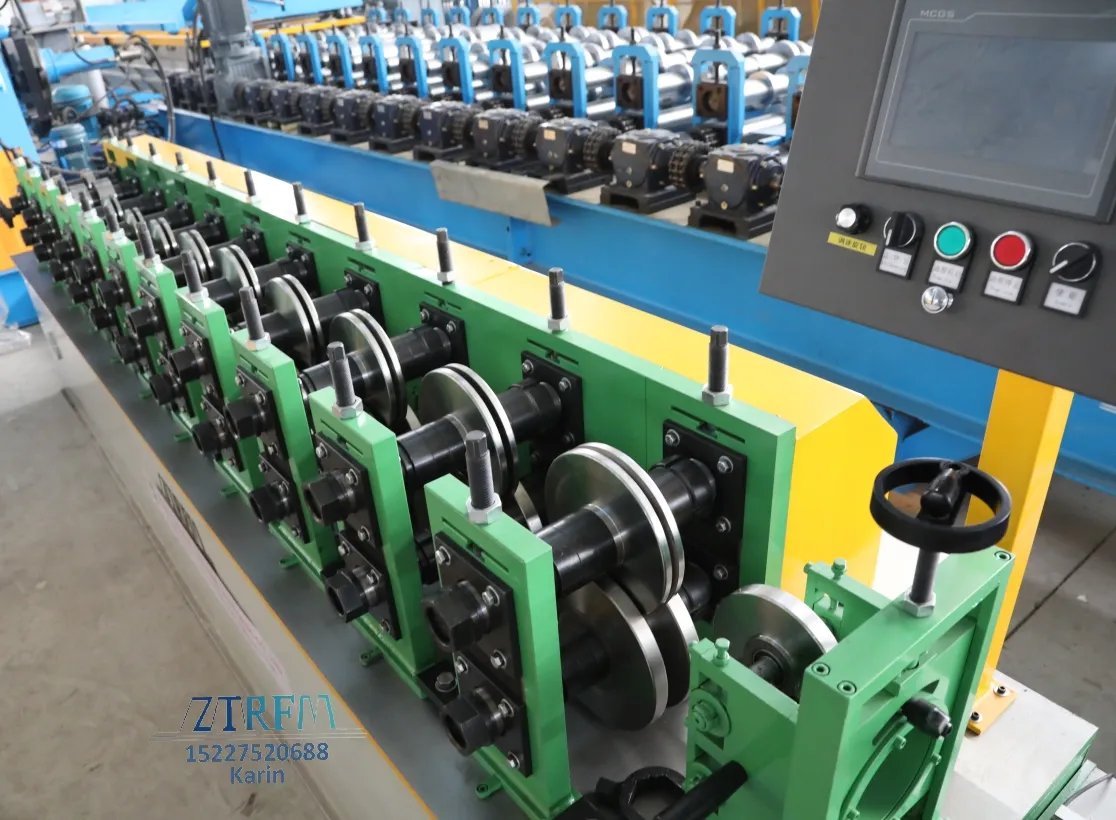

      PLC control station

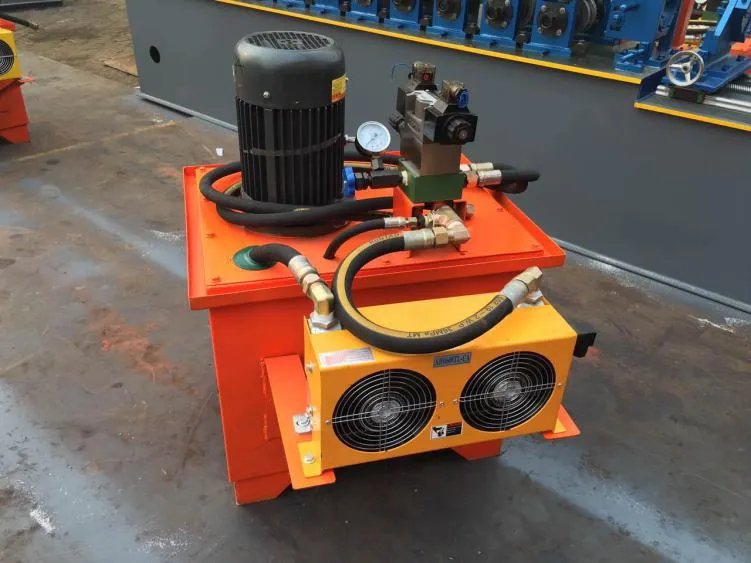

      Hydraulic oil pump with cooling system
      Product collect table

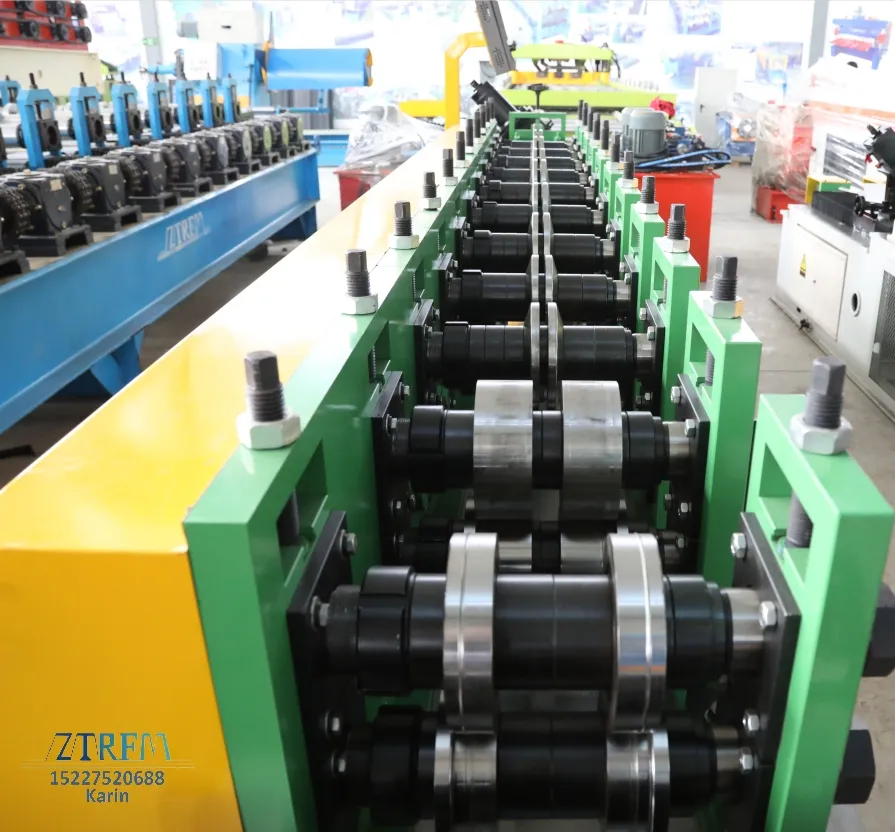

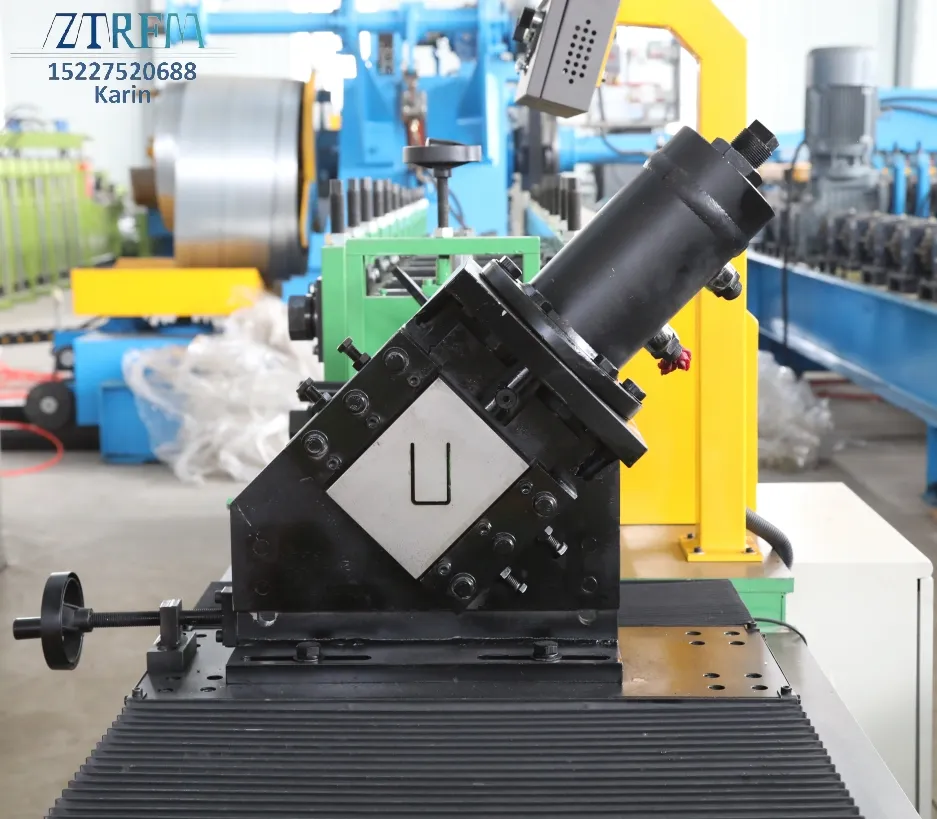

      The roll forming system

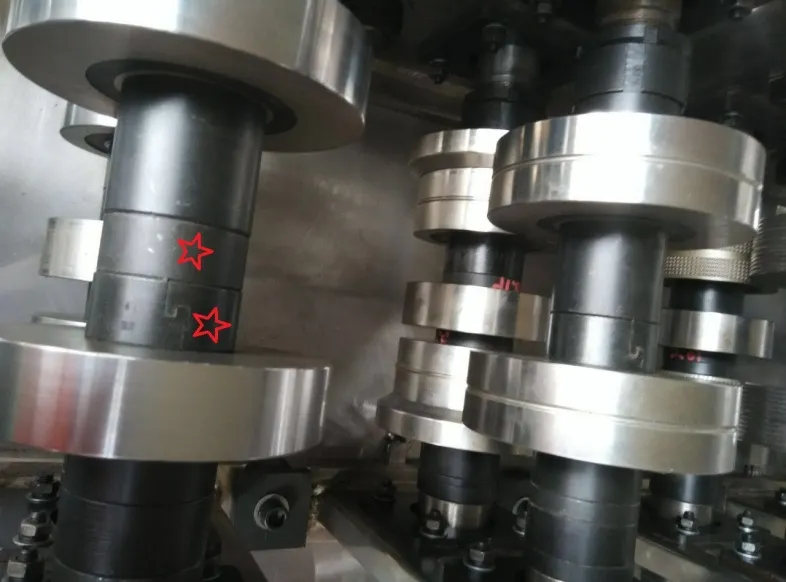

      The adjustable spacer to form another size





      Others
      Machine weight: 3.2 Tons
      Machine dimension: 4500*700*1400 mm
      Machine color: blue (As requested)
      Work voltage: 380V-50HZ-3P (As requested)
      Total power:7 kw
      HS code:8455221000

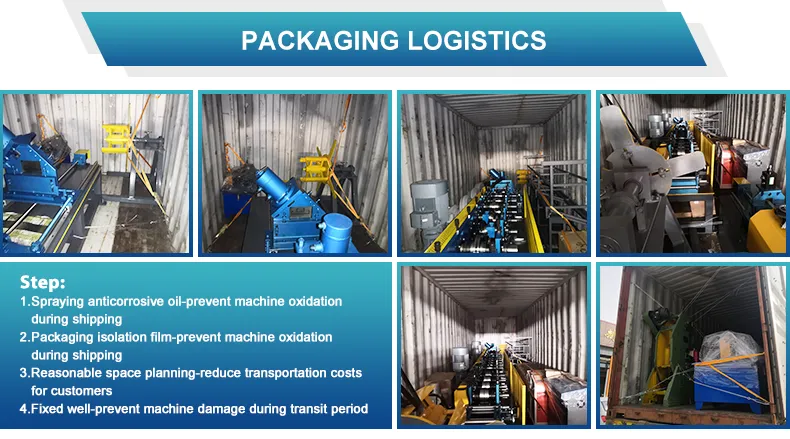

      Package: Nude package
      Container: 1*20 GP

      Afer-Sale Service

      1. Payment: 30%T/T in advance and 70%balance after testing and before shipment. Support 100% L/C payment method. 2. Delivery: Max.45 working days after the deposit. 3. Validity time: 10 days since the quote date. 4. After-sales service A: Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available. B: Training: the buyer should charge of visa, round-trip ticket, food and accommodation   overseas and USD120/person/day for salary. C. The advantage of my factory: we have a team of skilled engineers and one group for after-sale service.

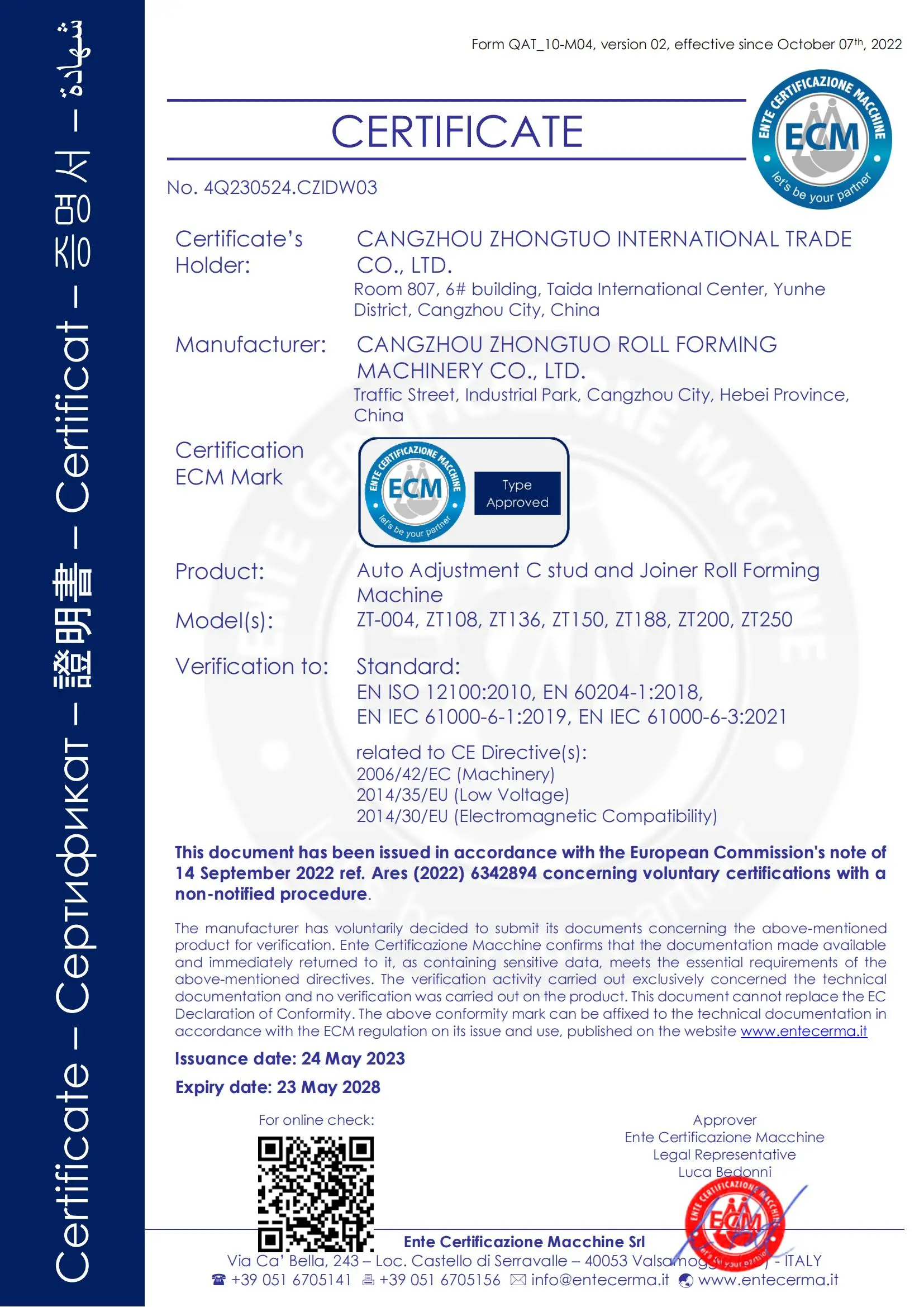

      No. 4Q230524.CZIDW03
      ISO 9001(No:ZL92090220234630)
