High Speed Guardrail Roll Forming Machine > Production Equipment > Highway Guardrail Roll Forming Machine

Two Waves Road Barrier Highway Express Guardrail Fence Crash Rolling Forming Machinery highway guardrail cold making machine+50kw

Cangzhou Zhongtuo International Trade Co., Ltd

Two Waves Road Barrier Highway Express Guardrail Fence Crash Rolling Forming Machinery highway guardrail cold making machine+50kw

Name: Two Waves Road Barrier Highway Express Guardrail Fence Crash Rolling Forming Machinery highway guardrail cold making machine+50kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT115822868

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

highway guardrail cold making machine

Power(W):

50kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
highway guardrail
Voltage
380V-50HZ-3P (As requested)
Rolling Thinckness
2.5-3.5mm
Feeding Width
1000mm

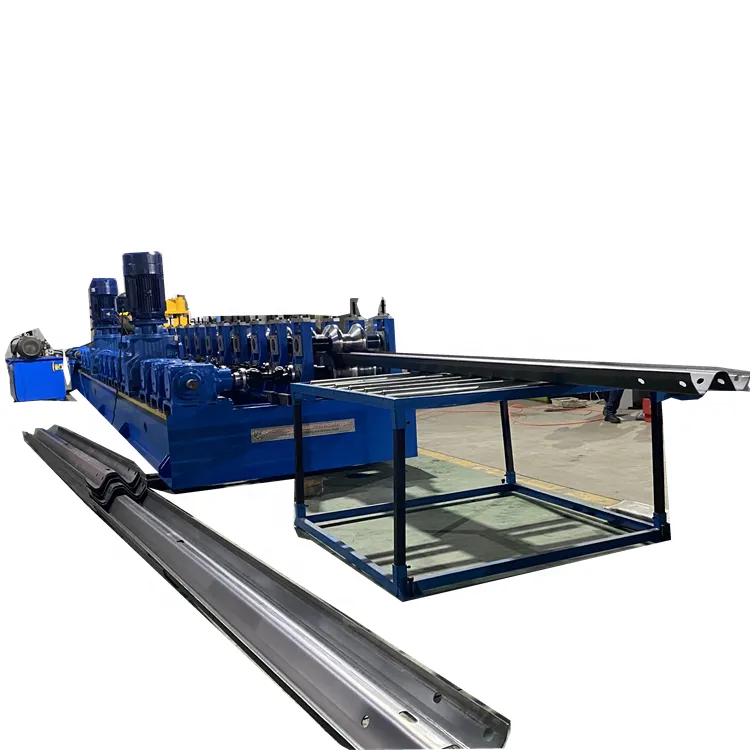

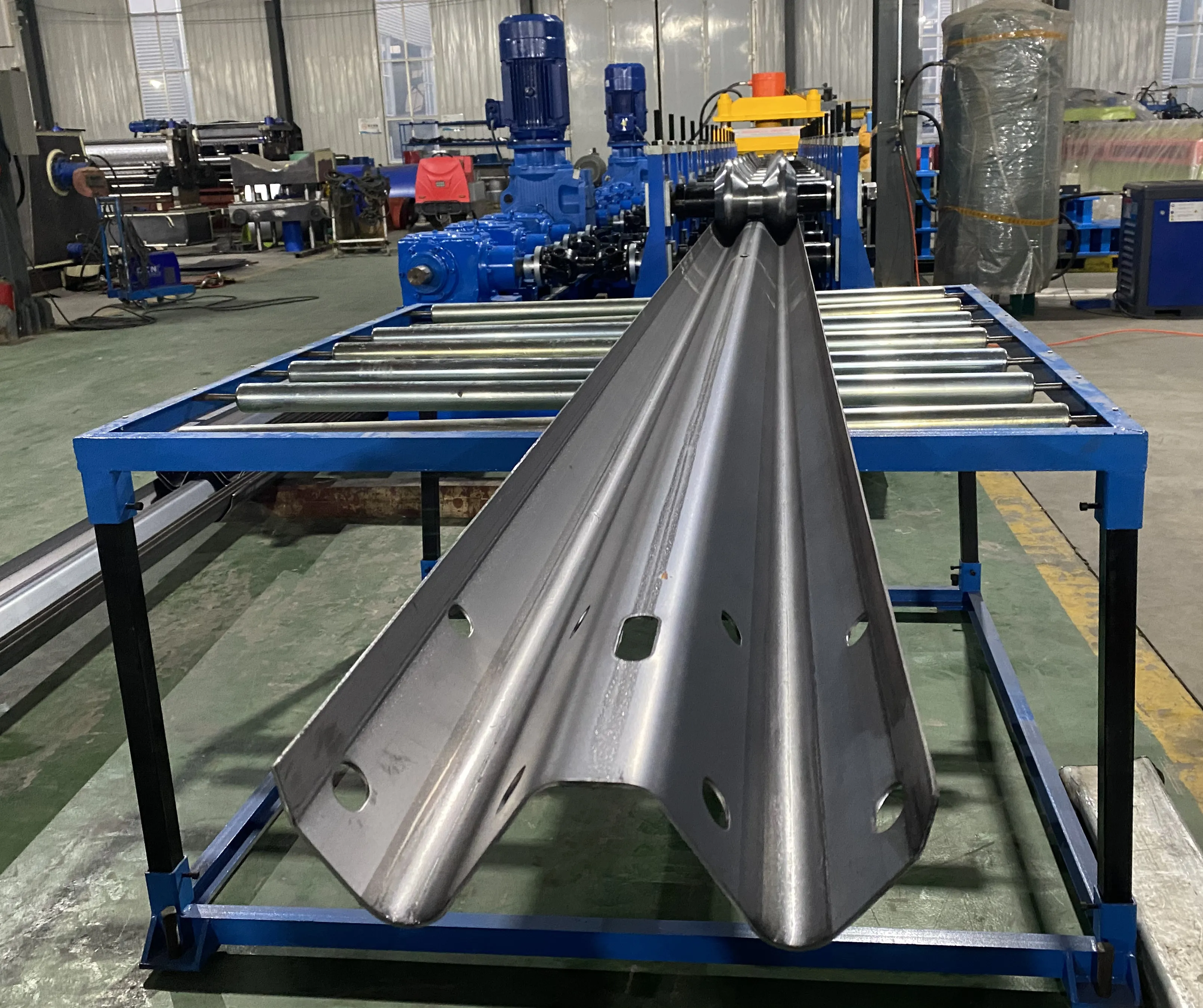

Two waves road barrier highway express guardrail fence crash rolling forming machinery

The two waves highway guardrail fence crash machine use gear box to drive.

The whole production line is stable when working, we designed the machine with pre- cutting, the material will be cut off before roll forming, and together with punching holes.

In this way, can imporve the machine speed and save the costs of hydraulic cutting device, and also the machine will use less space.

Product Description

Working flow of two waves highway express guardrail fence crash machine:

Uncoiling ⇒ Alignment guiding roller ⇒ 9 rollers leveling ⇒ hydraulic punching hole ⇒ Panel Transport table ⇒Swift sheet feeding ⇒ Photoelectrical switch ⇒ Roller guiding table ⇒ 15 stations roll forming ⇒ Finished product support table

Technical parameters:

Product
Material	Carbon steel, cold rolled steel, galvanized steel
Thickness	2.5-4 mm
Feeding width	490 mm
Cover width	312 mm
Coil inner diameter	508 mm

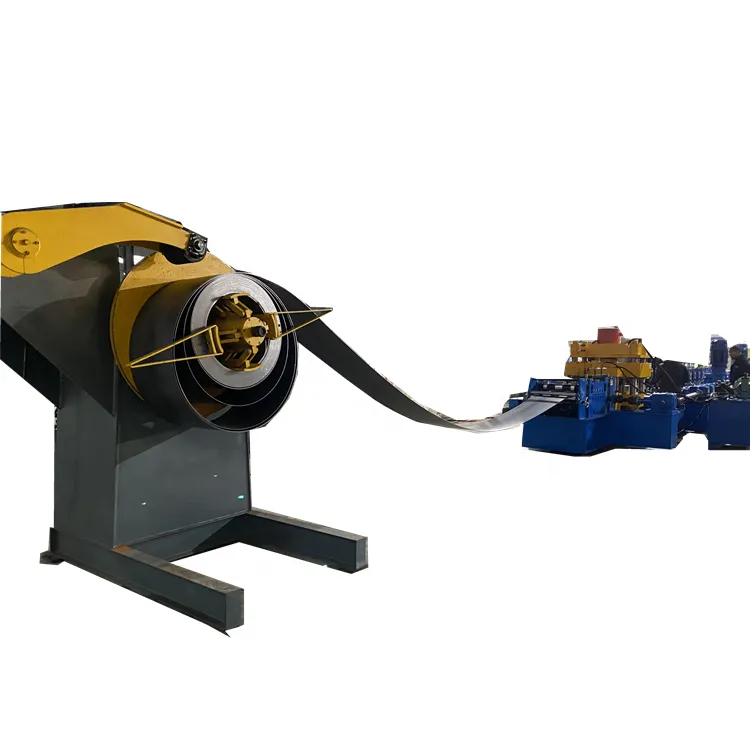

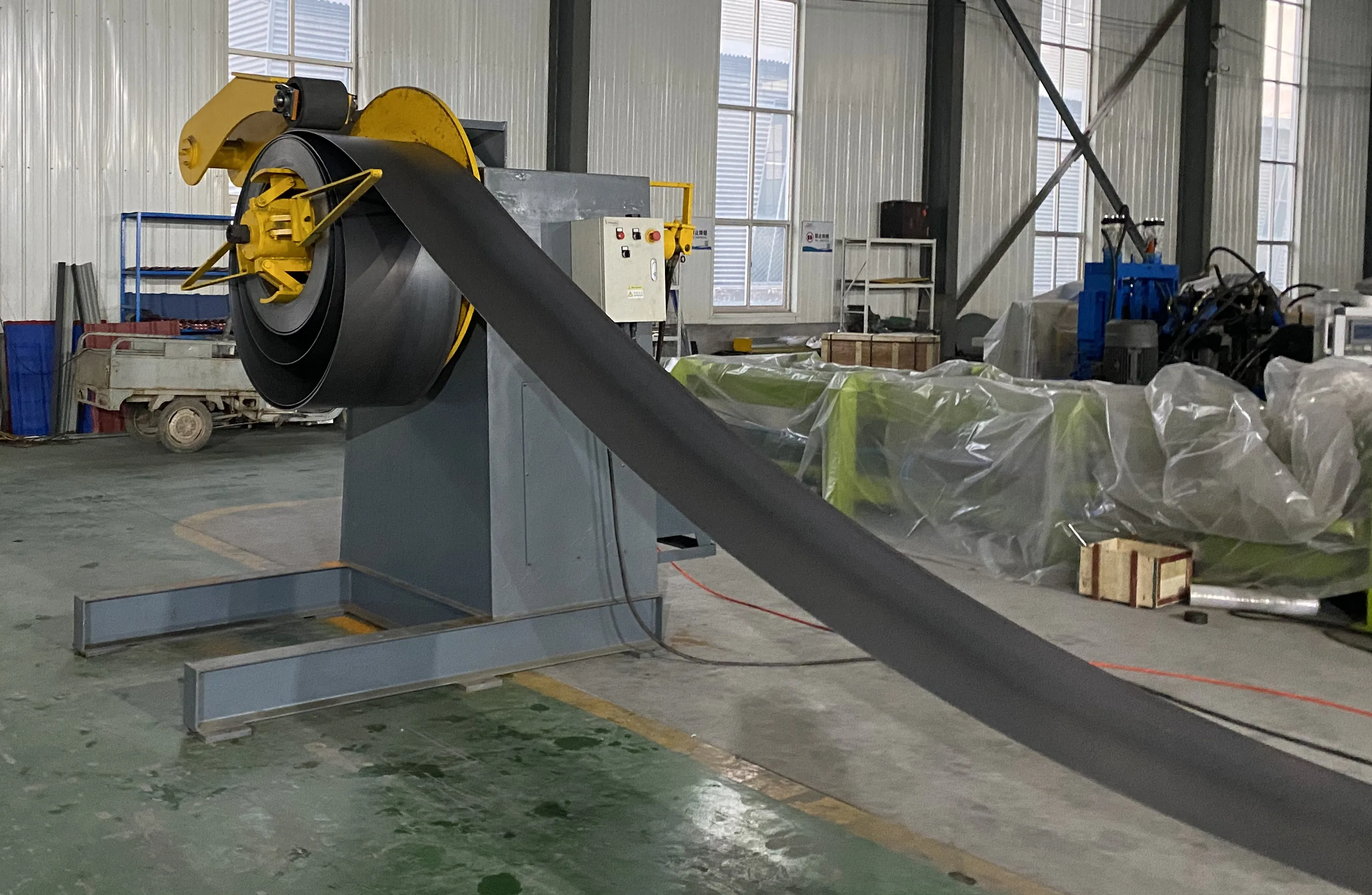

Decoiler
Working type	Hydraulic type
Loading capacity	10 Tons
Equipped with world famous brand “Schneider” electrical parts, more safety and reliable.
Can stop the rotate of coil immediately when required, avoid unnecessary coil output.
Fast braking, more safer.
The matching high-speed forming machine needs faster uncoiling speed, and the pneumatic brake can provide greater braking force. Customers need to be equipped with their own compressed air source.
Four arms expanding device with sliding block can provide more powerful force to fixing the coil, The synchronous action can avoid the deformation of the coil.
The block installed on the the arms can suit the coils with bigger inner diameter.
Equiped with high quality solenoid valve,it has the advantages of large flow, sufficient power and low failure rate. The oil tube is bundle arrangement with machine line, with pretty appearance and safer operation.

Alignment Guiding Roller

4 rollers on both side to control the feeding of the raw material, to avoid the raw material being left and right, or up and down, and use the screw to adjust.

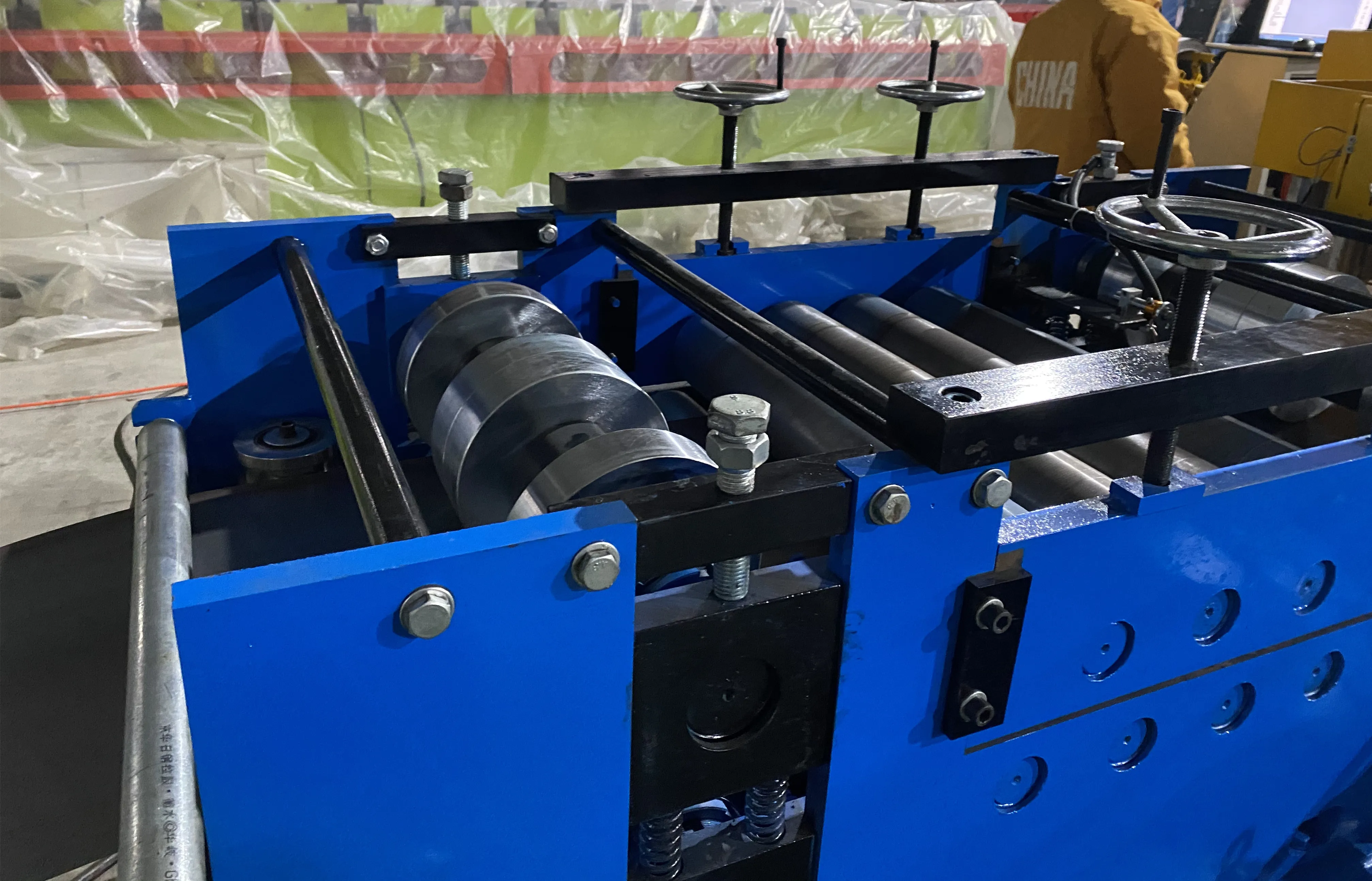

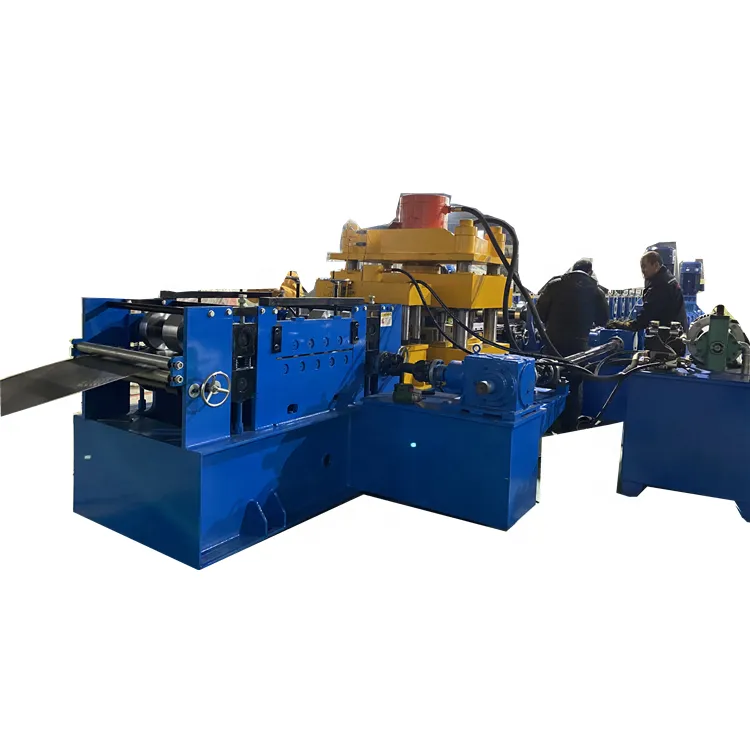

9 Rollers Leveling Machine

The diameter of the roller is dia. 117mm,material hardness is 40CrHRC 48-52 degree, the width of supplier table 600mm,the thickness of flat panel 2-4 mm, the power of motor 15kw,the K97 reducer, levering speed:15-22m/min.

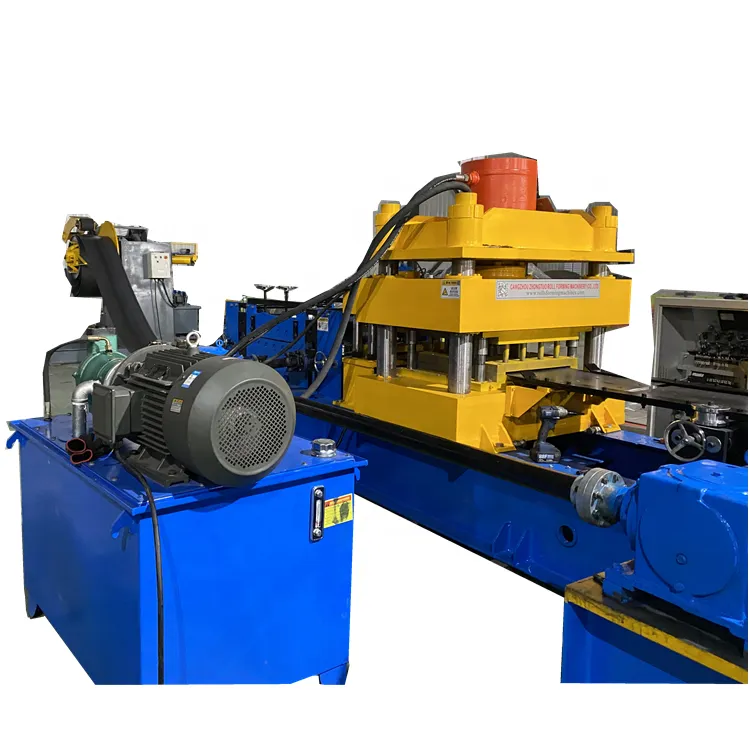

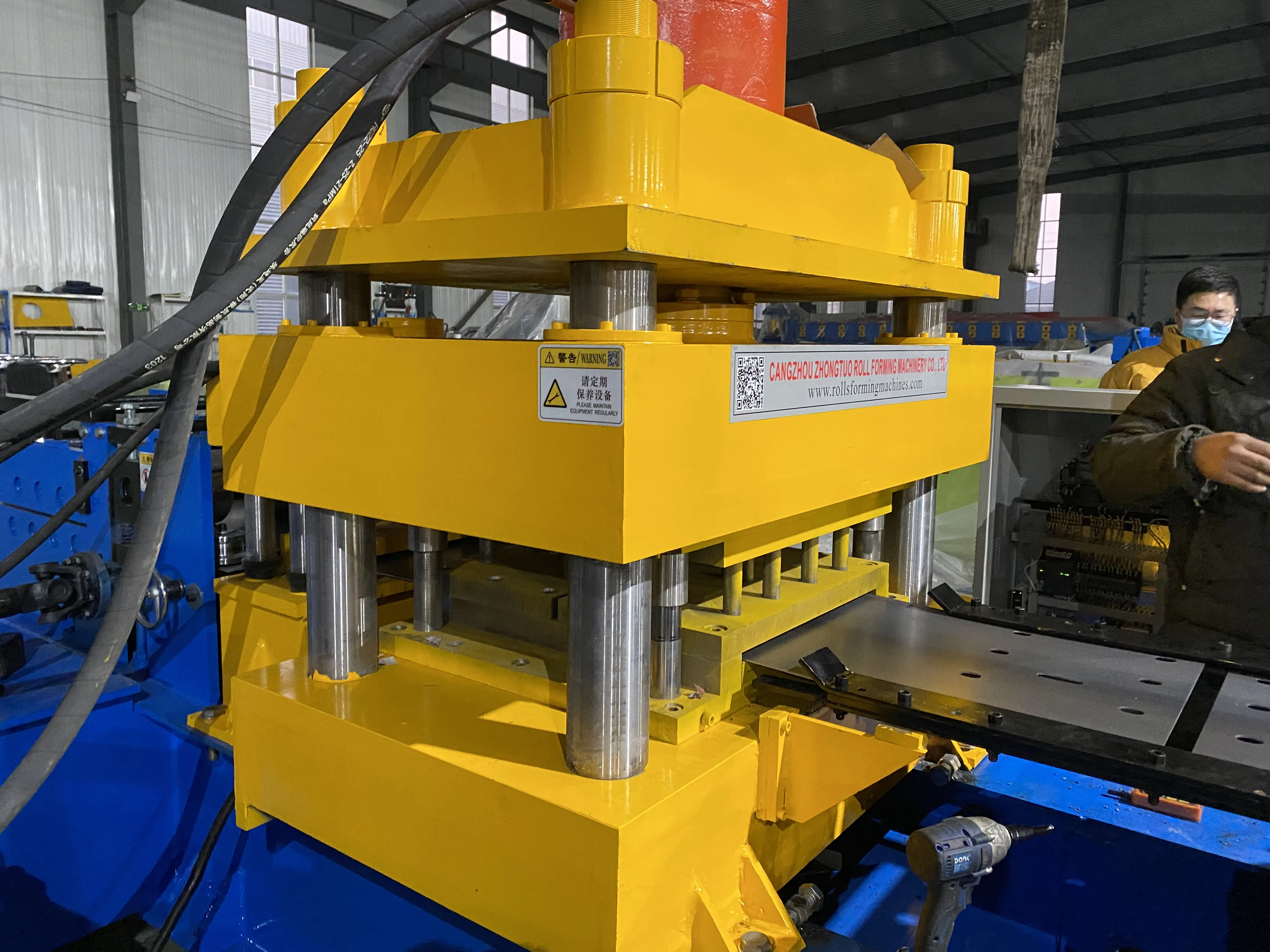

250T/ 315T Hydraulic Press
Hydraulic motor power: 22kw, YL-32-250 for #82-312; YL-32-315 for#83-506. We will design the punch as the requirement to ensure the flotsam will flow out the hydraulic machine automatically. The material of the punching head & cutting mould is: Cr12mov

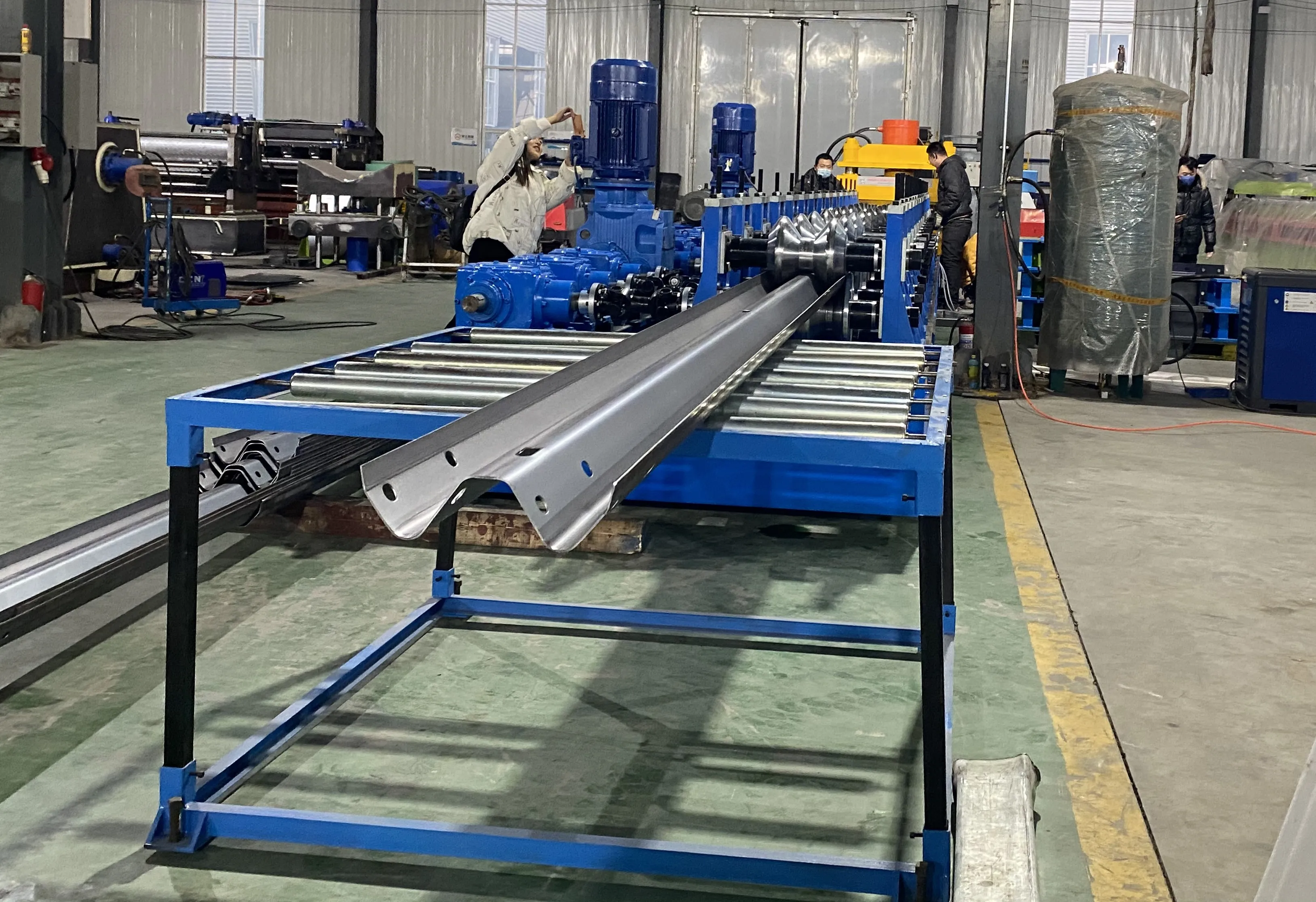

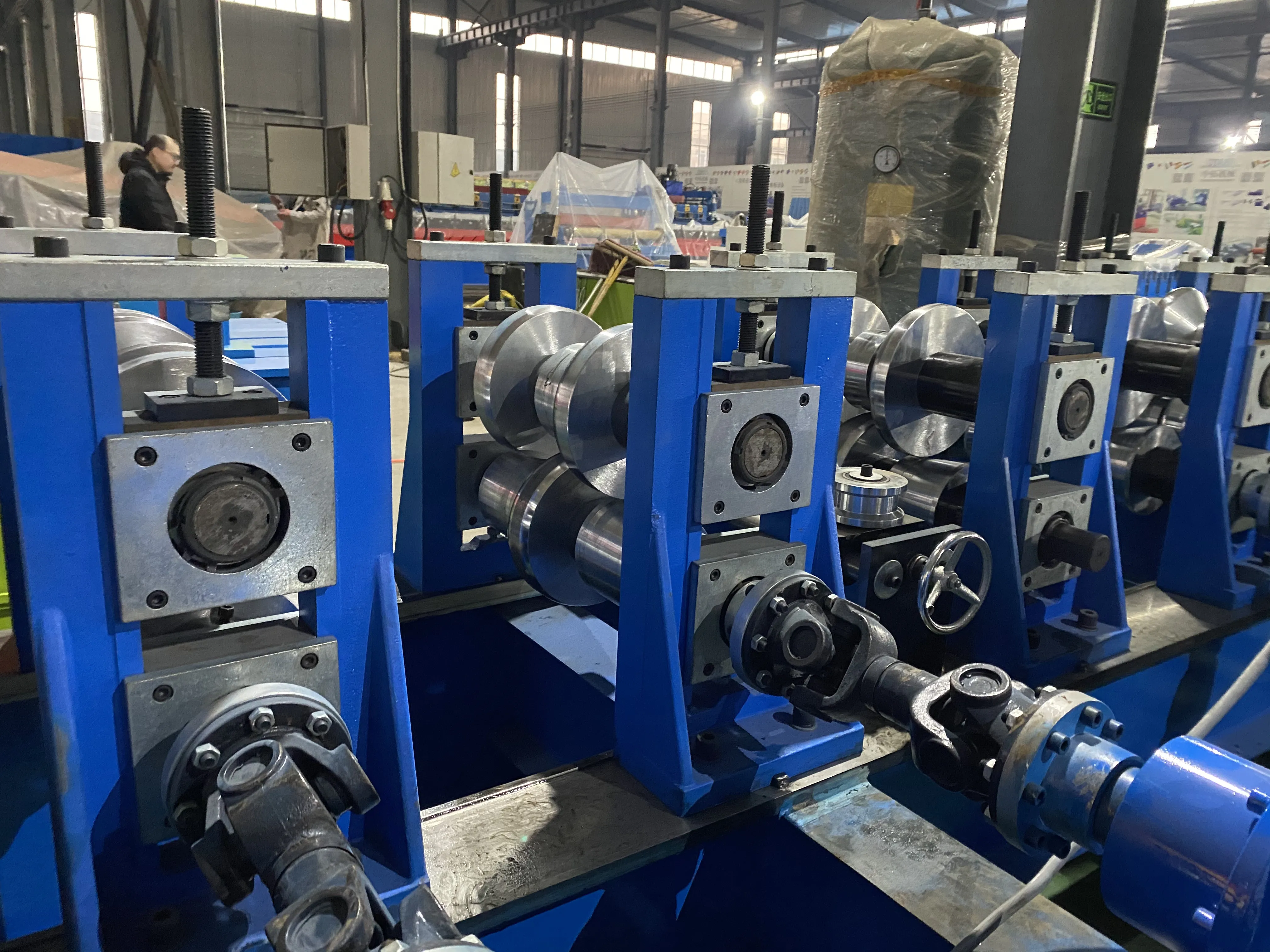

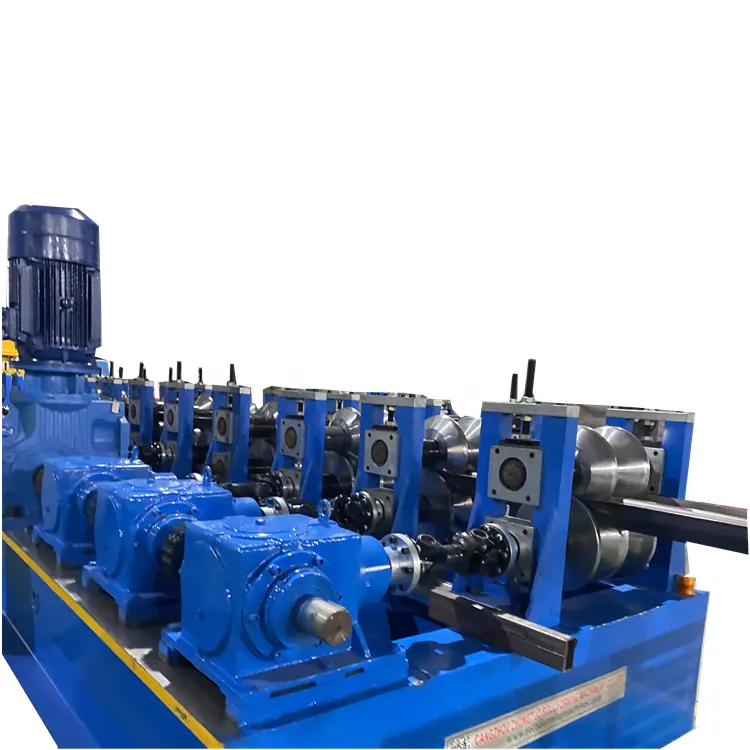

Main roll former
Roller material	GCr 15 (HRC55℃~60℃)
Main motor power	22 KW* 2
Roller station	15 roller stations
Roll forming speed	0-12 m/min
GY250S series in the style of door structure, rolling metal band (material: Q235) thickness(1-4mm), the diameter of the axis of roller(dia.80mm), the rolling speed (15-20m/min), approximately 2-2.5 pcs of guard rail panel which length is at 4320mm.The height of the material: 90mm , the material of main roller:Gcr15(HRC55-60), the guard rail panel is passed the JT/T281-2007 standard of the traffic department for the guard rail panel. Main transport: 22KW*2, K127 reducer.

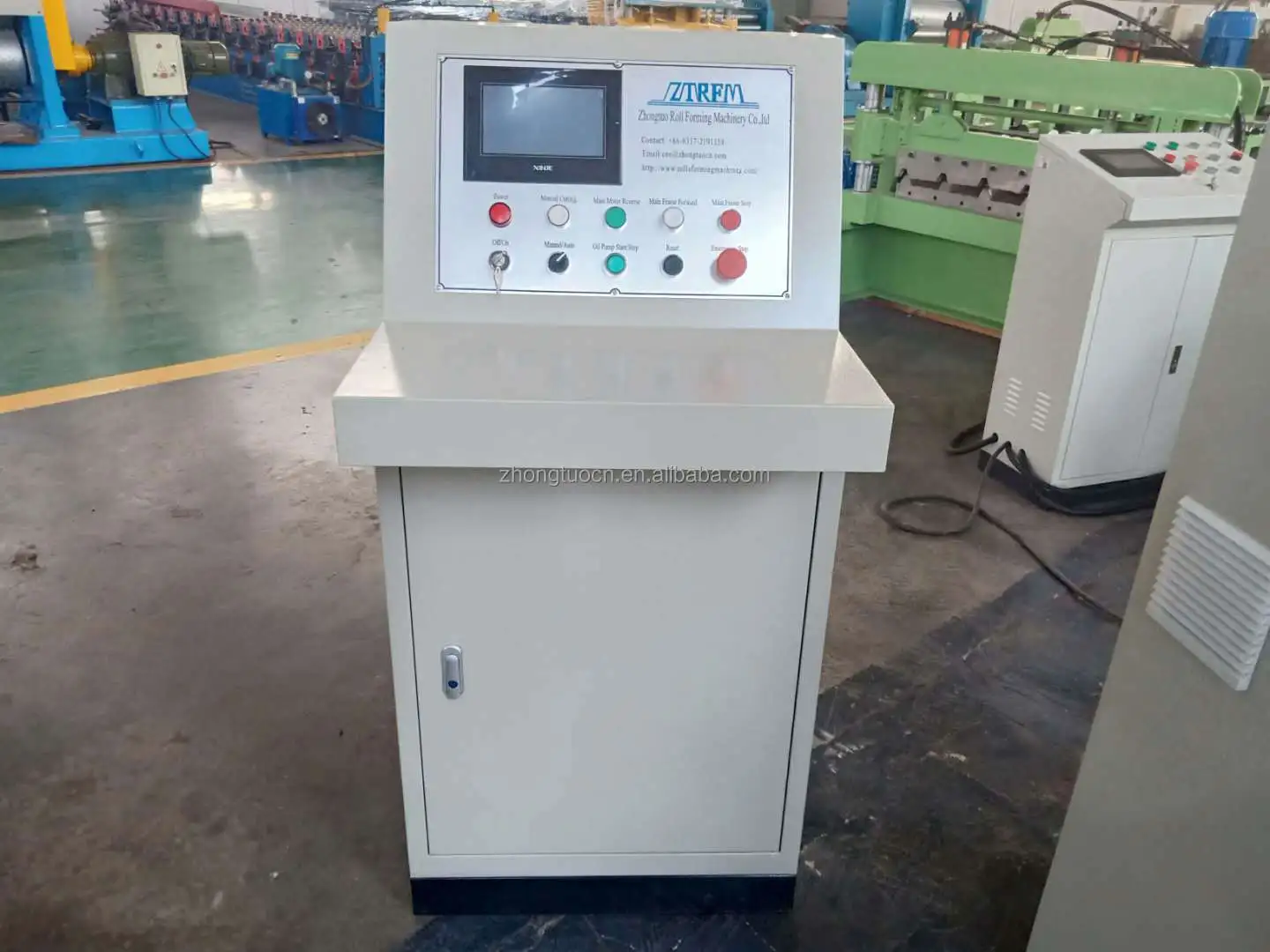

PLC control system
PLC brand	Siemens
Frequency brand	Siemens
Screen type	Touch screen with Siemens brand
Screen language	English/ Chinese or as your request
Cutting& punching demand	Yes
Highway guardrail length set up	Yes
Quantity set up	Yes
