Two Wave and Three Wave Guardrail Profile Rolling Forming Machine HG-1+45kw+5 m/min

Name: Two Wave and Three Wave Guardrail Profile Rolling Forming Machine HG-1+45kw+5 m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT115718605

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

HG-1

Power(W):

45kw

Production Capacity:

5 m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
guardrail roll forming machine
Voltage
380 V, 440 V, 220 V
Rolling Thinckness
Other
Feeding Width
Other

Product Description

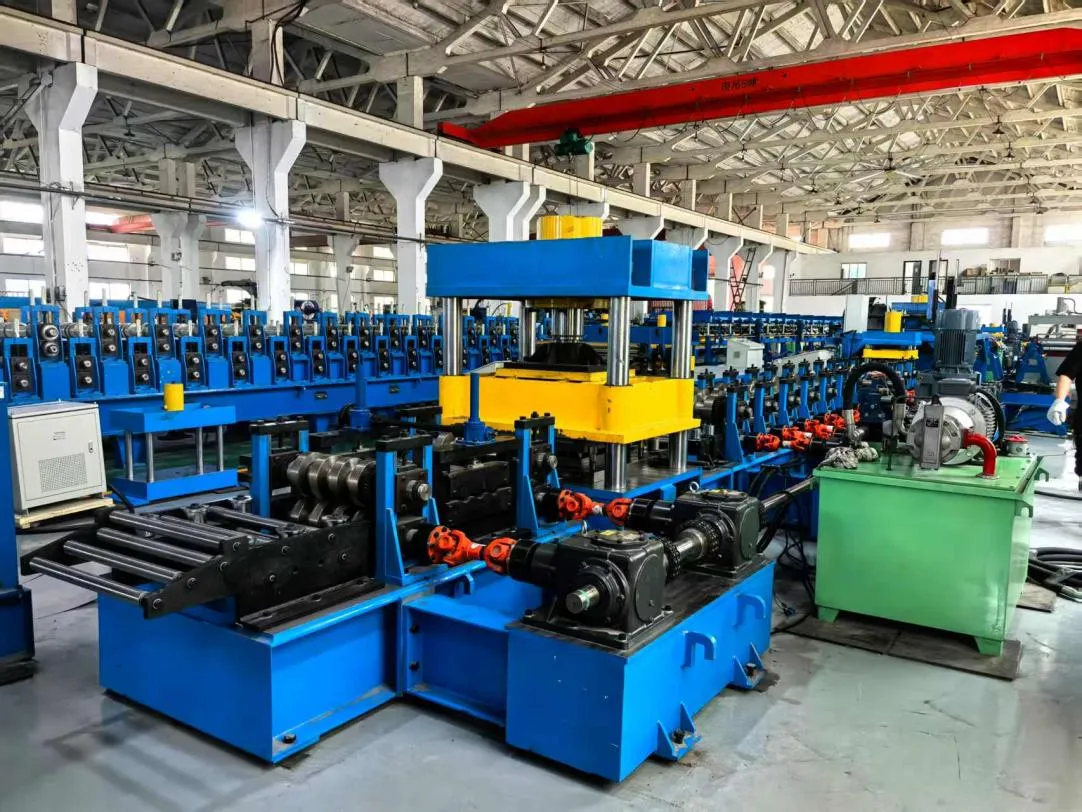

Two wave and three wave guardrail profile rolling forming machine

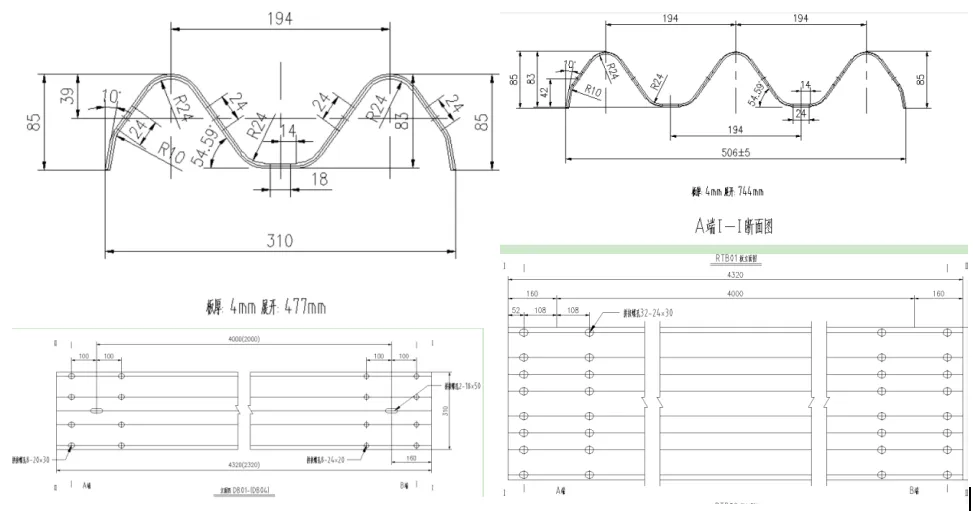

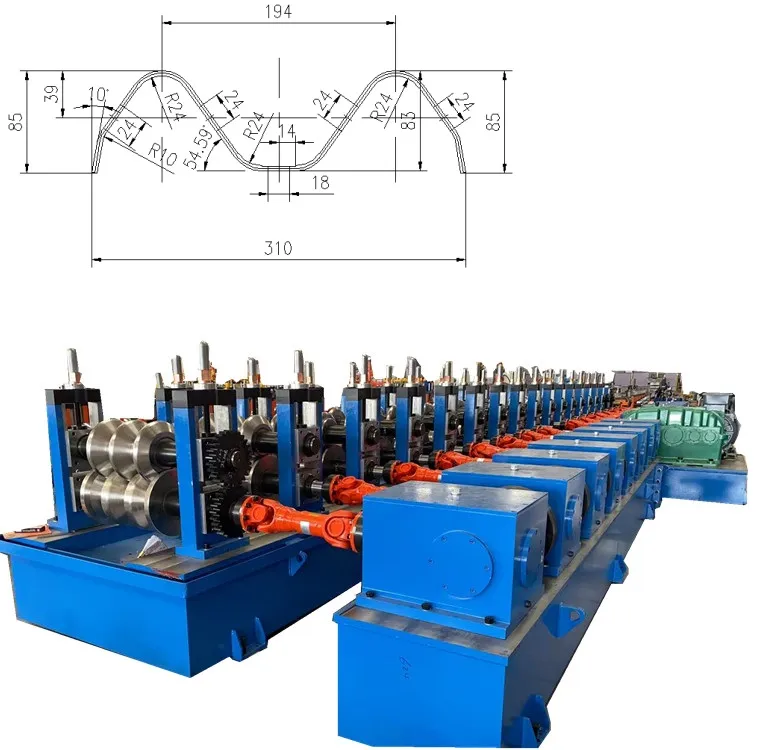

Two wave and three wave guardrail profile rolling forming machine either can make two wave guardrail and three wave guardrails in batch fully automatically. A guardrail is a safety barrier or railing designed to prevent falls, protect motorists, or secure areas, commonly used along highways, rooftops, and staircases. In technology, they act as security layers for DeFi protocols or AI systems, filtering, detecting, and validating content to prevent misuse. In the market, there are two types guardrail: two wave guardrail and three wave guardrail. Here are some drawing profiles for your reference:

Supported material: 1) Material: Q235 2) Steel strip thickness: 2.5-4.0mm 3) Steel strip width: 480mm/740mm 4) Inner diameter of steel coil: φ 508~φ 600 5) Outer diameter of steel coil: ≤φ 1900 6) Steel coil weight: ≤ 10T How to adjust from two wave guardrail to three wave guardrail? Compared with three wave guardrail, two wave just wave missing. Punching part, the holes less. So the machine we design, the punching hole parts adjustable. The main rolling forming m-achine simple adjust the input coil width and the leveling beach then okay as the coil narrow and then some rollers are not working. The machine we design using the before shearing, so no need to change the cutting blade. Let us check the guardrail machine working flow:

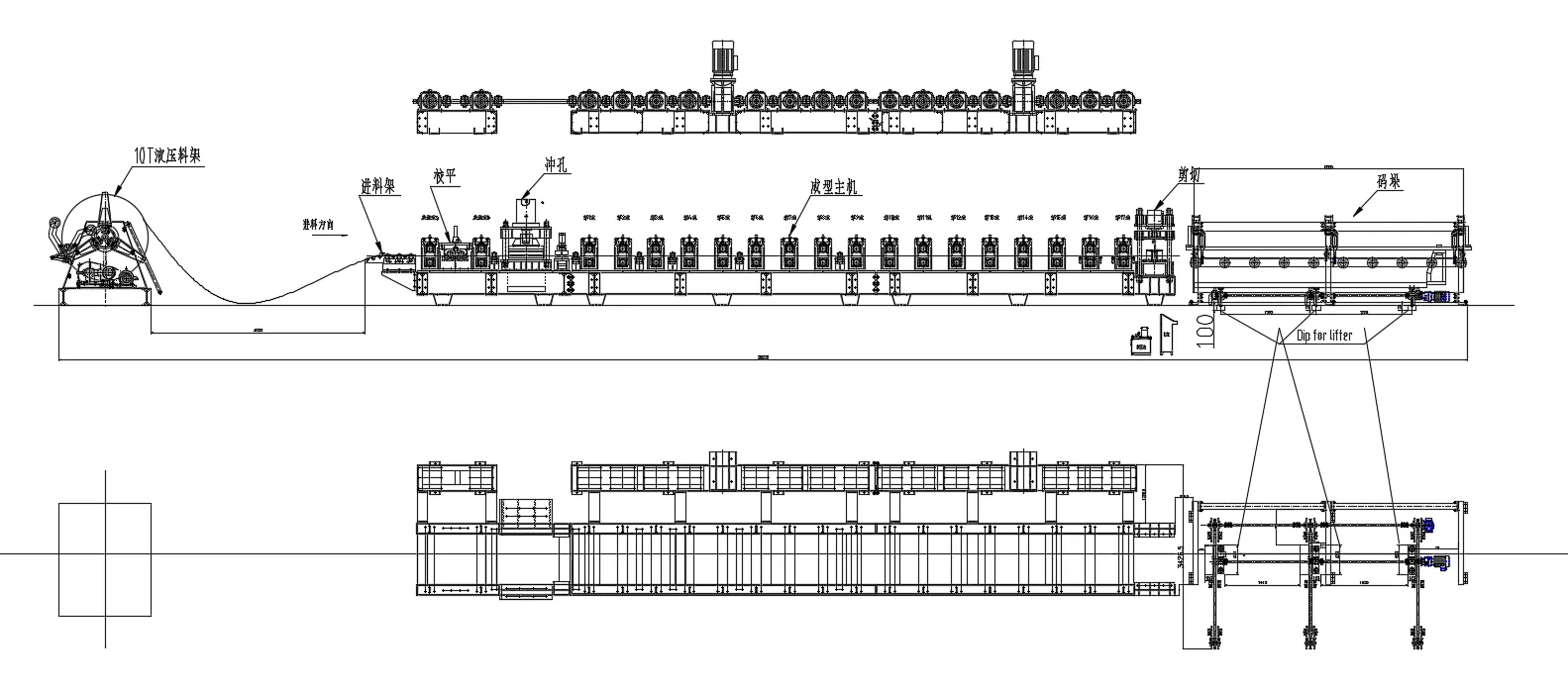

Two wave and three wave guardrail profile rolling forming machine
1.Formed Material	PPGI,GI,AI		(customized)
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）

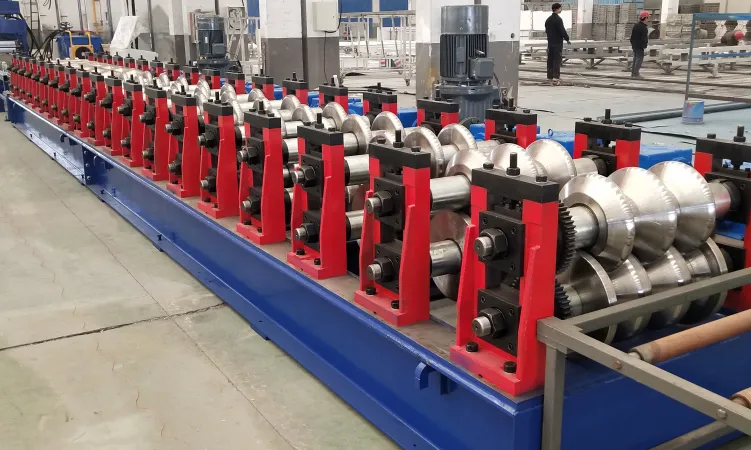

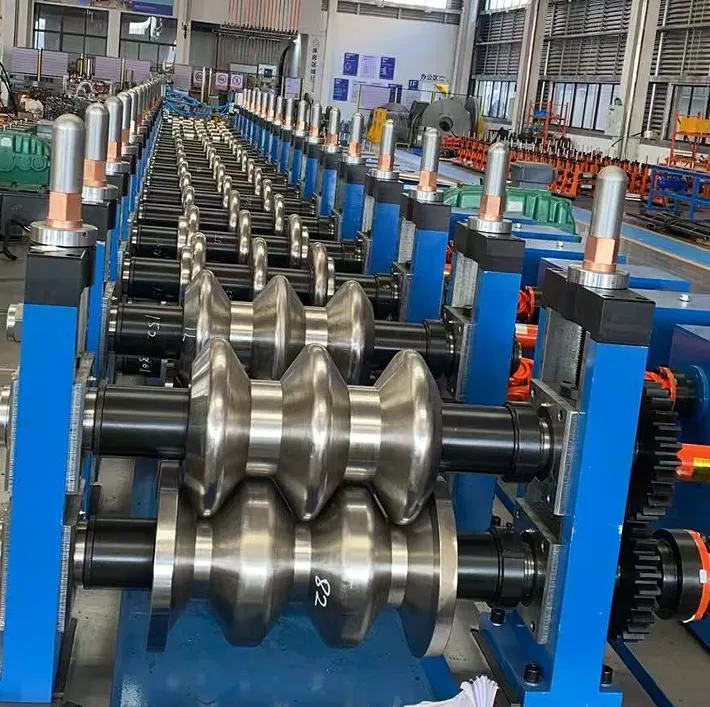

3.Main body	Roller station		16 rows(As your requirement)
		Diameter of shaft		φ95mm
		Material of rollers		45# steel with tempering
		Machine body frame		400 H steel
		Drive		Gearbox transmission
		Dimension(LWH)		1850012001500mm
		Weight		15T
4.Cutter	Automatic		Cr12 steel with quenched treated 60-62°C
5.Power	Motor Power		30kw,Siemens brand
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	25m/min		The speed depends on the shape of the tile and the thickness of the material.

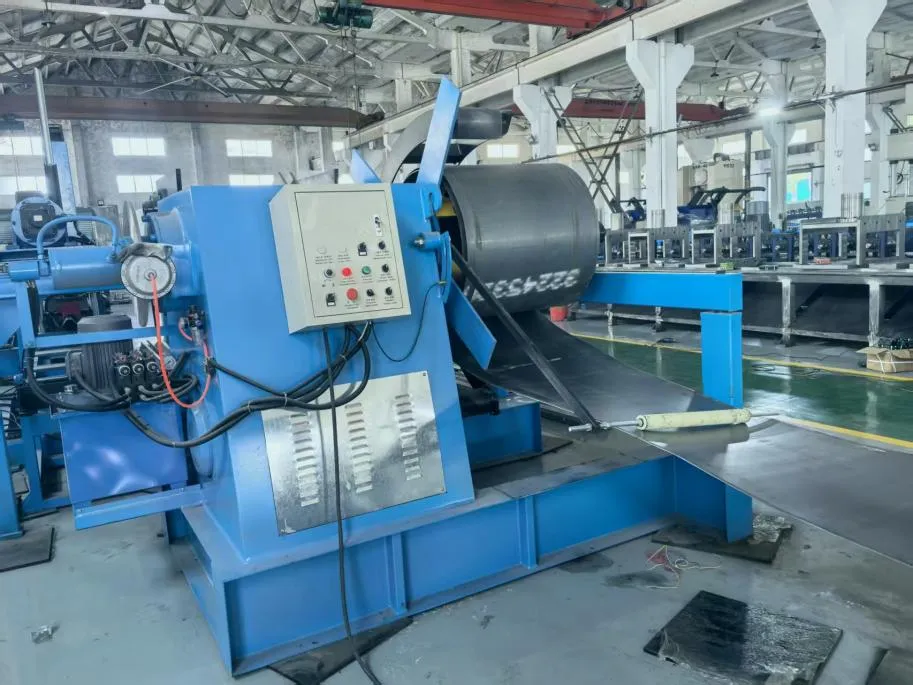

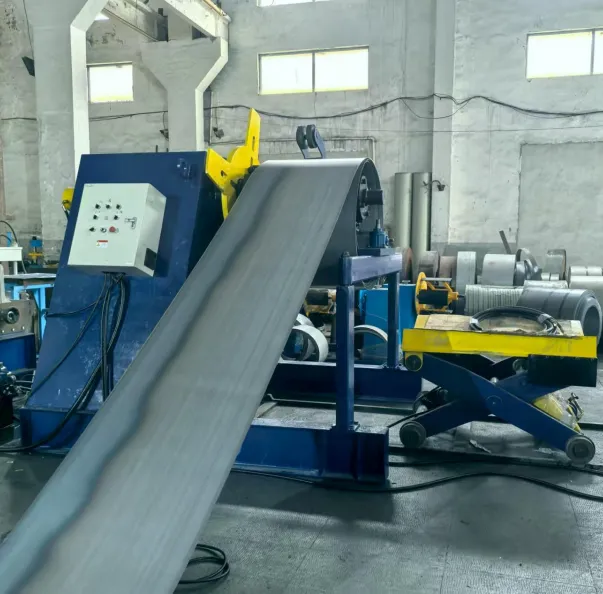

10 ton hydraulic decoiler

Material inner diameter: ø 508mm/ø 610mm 3. OD: ≤ ø 1500mm 4. Maximum load-weight: ≤ 10T 5. Expansion diameter: 480-630 (available with ø 508 material diameter) 6. Expansion method: hydraulic type 7. Hydraulic power of uncoiler: 3KW 8. Uncoiler motor power: 7.5KW 9. Speed regulation method: Variable frequency drive speed regulation 11. Is it equipped with a pressure arm

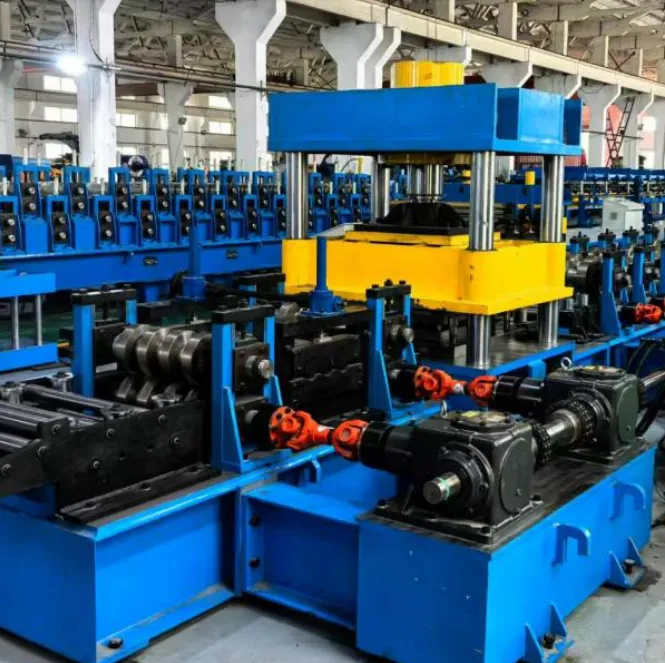

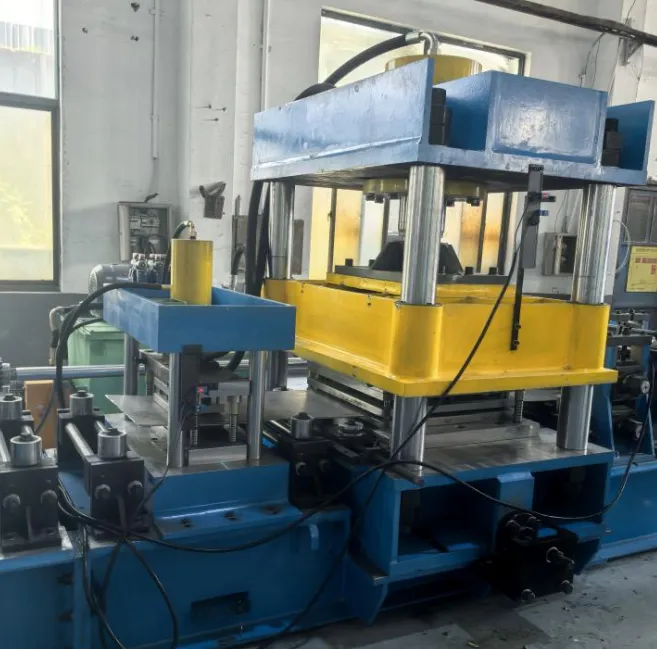

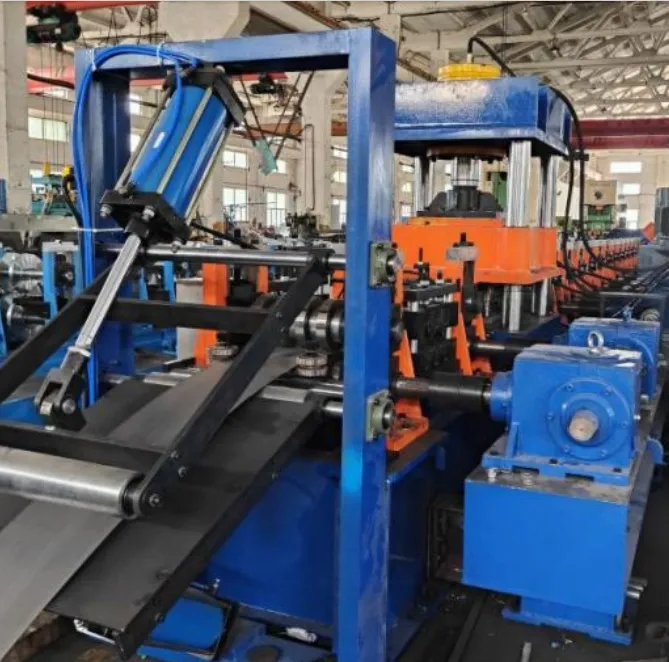

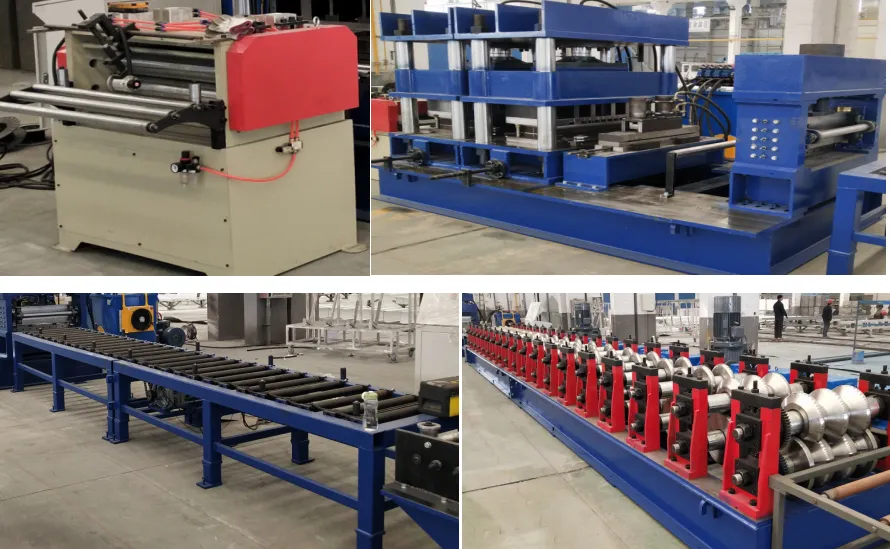

Second part punching and rolling forming machine parts: 1. Molding machine structure: cast iron memorial archway type gearbox transmission 2. Leveling mechanism structure: front and rear double roller clamping, seven roller leveling 3. Leveling shaft diameter: Φ 80mm 4. Leveling shaft material: 40Cr quenched and tempered (HB220-260) 5. Surface treatment method for leveling shaft: high-frequency quenching followed by ultra precision grinding and hard chrome plating treatment 6. Adjustment method for gap between upper and lower rollers: turbine lift adjustment reference image 7. Punching mechanism structure: Four column hydraulic punching (punching frame steel plate welded and tempered)

8. Punching mold: 1 set 9. Punching die upper and lower die material: SKD11 (HRC58-62) 10. Upper and lower template material: High quality carbon steel quenched and tempered with ultra precision grinding processing

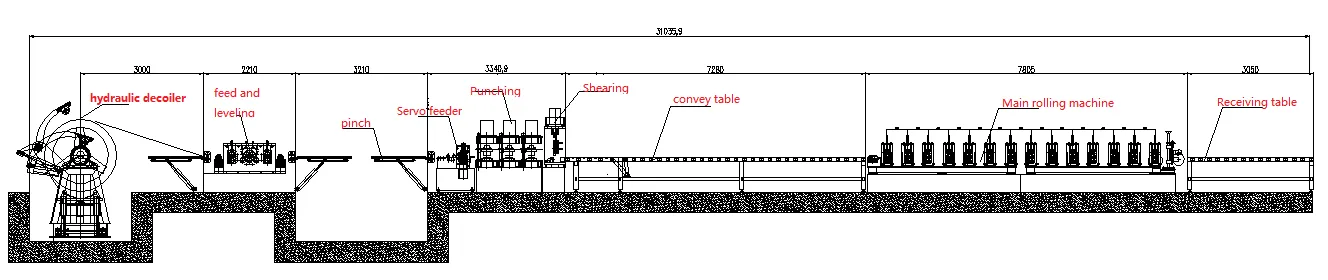

Above design is quite good for those: (For those ) who need high speed production. The factory can dig hole for storing coil. Those who can afford higher cost of machine For those who hoping that change the hydraulic station and mold more easily for two wave and three wave. For those who does not have too much space in the workshop and do not need big production, you can choose the following economic design: Loading (loading the steel coil into the internal support-type cutting frame and tightening it) ----- Clamping and leveling mechanism ----- Hydraulic punching ----- Forming (guiding the steel strip correctly into the forming machine via the feed guiding mechanism) ----- Hydraulic cutting ----- Unloading
