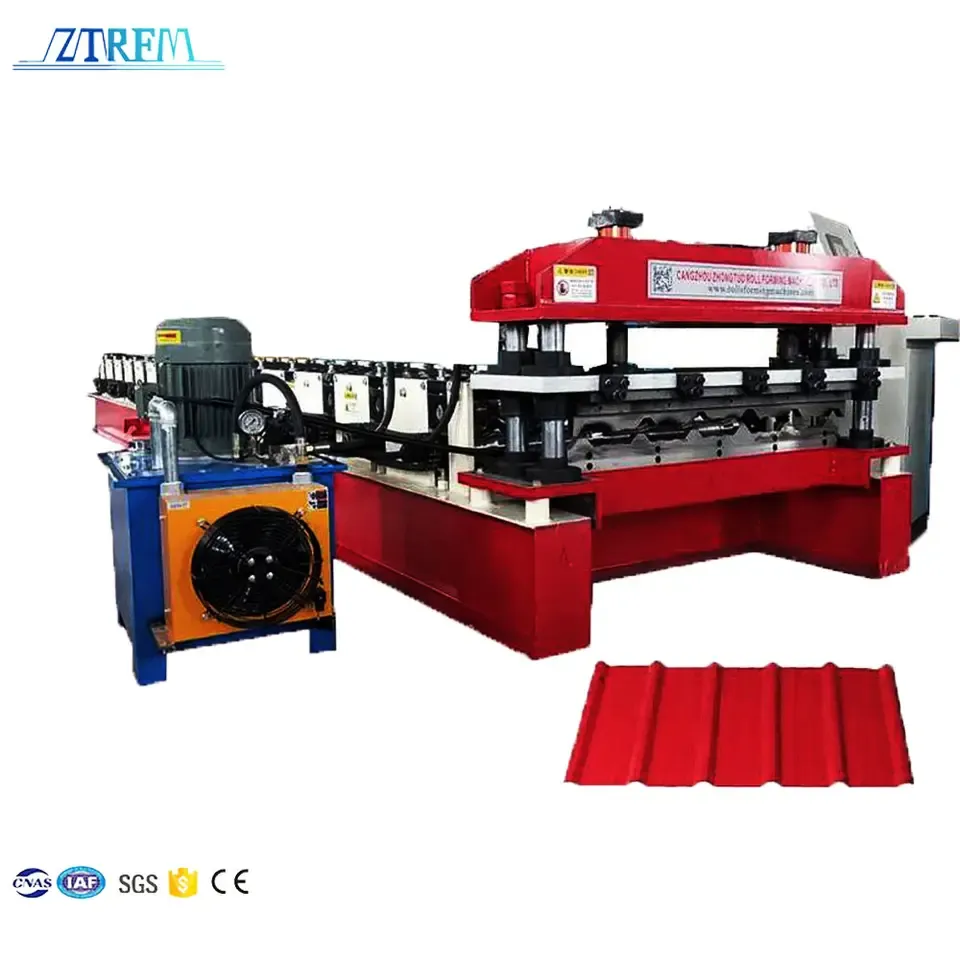

Trapezoidal Roof Sheet Machine Colored Steel System 5.5kw+15 m/min

Name: Trapezoidal Roof Sheet Machine Colored Steel System 5.5kw+15 m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT51140881

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Power(W):

5.5kw

Production Capacity:

15 m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Steel
Use
ROOF
Voltage
as your requests
Rolling Thinckness
0.3-0.8mm
Feeding Width
1220 mm

ZTRFM Full Automatic Terrazzo Making Machine IBR Sheet Machine Maquina Para Calaminon

Our Full automatic Africa Hot sale Ibr Roofing Sheet Machine for different models based on different designs or customer's samples. It is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

Profile drawing for reference:

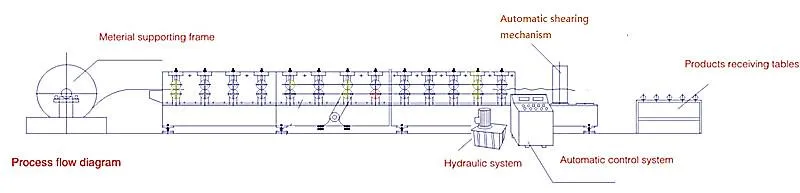

Working flow:

Uncoiling → Feeding material into machine →Roll forming →Auto cutting →Products receiving table

ZTRFM Full Automatic Terrazzo Making Machine IBR Sheet Machine Maquina Para Calaminon
Formed Material	PPGI,GI,AI
Thickness	0.4-0.7mm
Roller station	10-20 rows(As your requirement)
Diameter of shaft	70mm solid shaft
Material of rollers	45# steel, hard chrome plated on the surface
Machine body frame	350 H steel
Motor Power	5.5KW
Voltage	380V 50Hz 3Phase(As your requirement)
Control system	PLC
Forming Speed	20m/min
Cutting type	Hydraulic cutting
Hydraulic power	7.5kw
Cutting blade material	Cr12 with quenched treatment
Cutting tolerance	+/-1mm

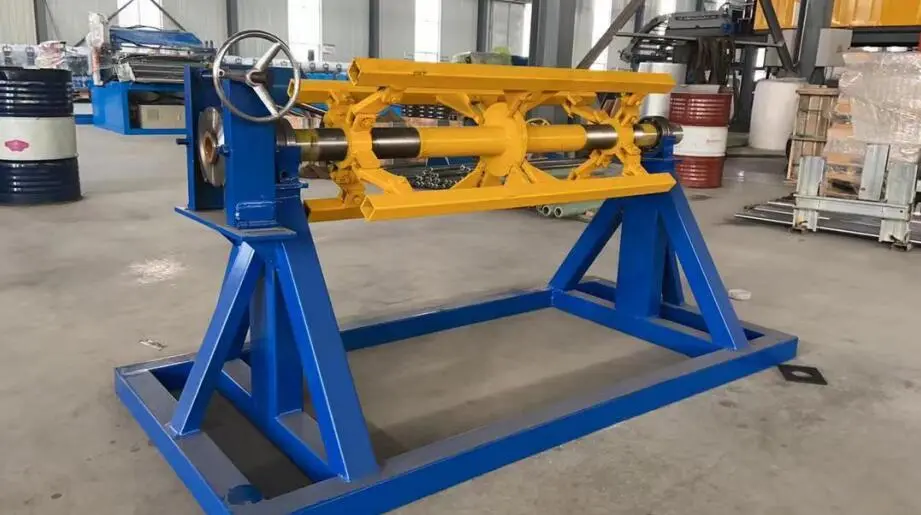

Manual Decoiler

1. Capacity: 5 tons
2. Coil inner diameter: 450-550mm
3. Coil outer diameter: 1500mm
4. Coil width: 1250mm(as customers' profile drawing)

Feeding device

The feeding rollers which we use is stainless steel.
And the ball bearing roller is inside the feeding rollers which is very convenient to feed the steel coil into it.

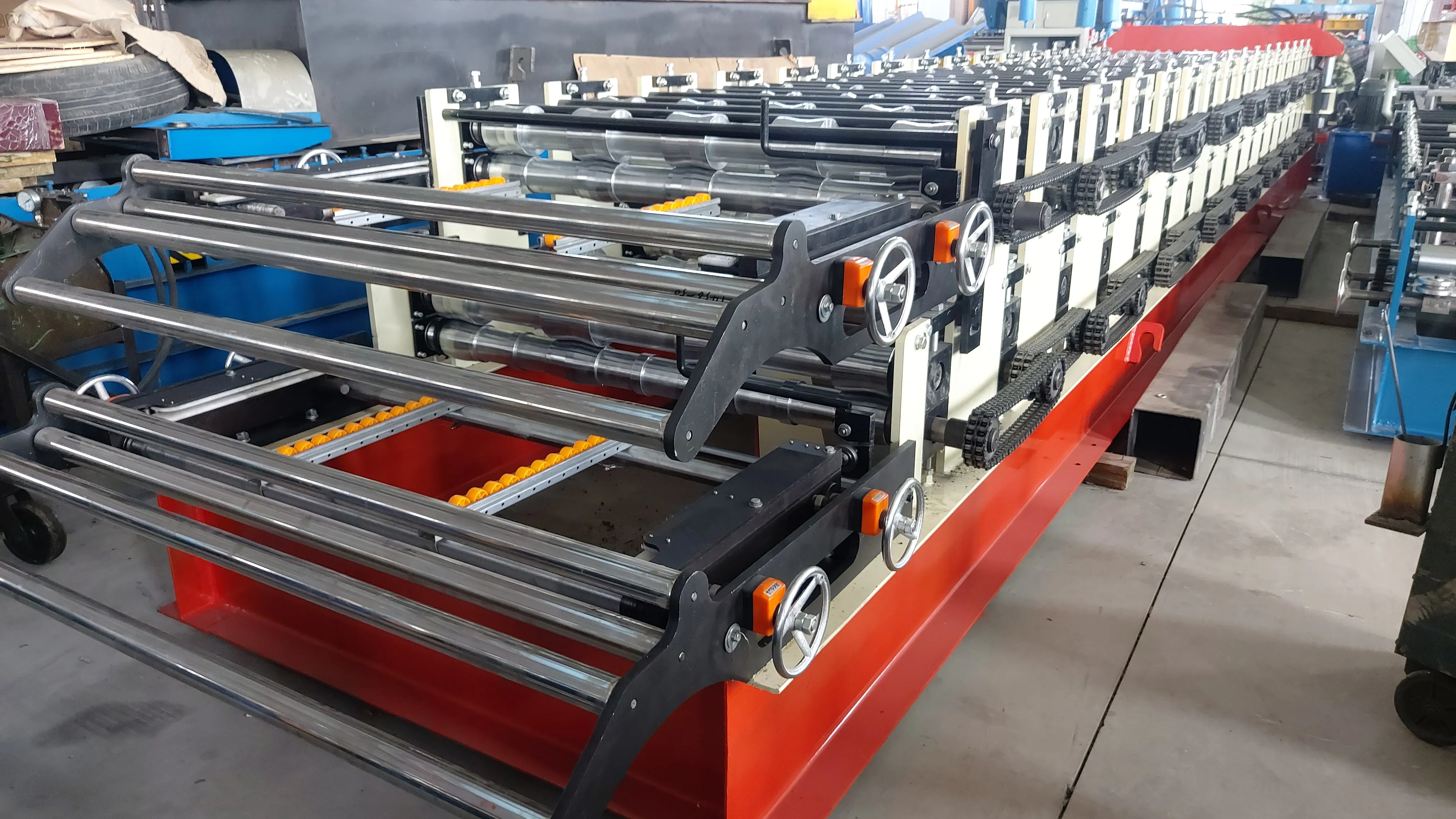

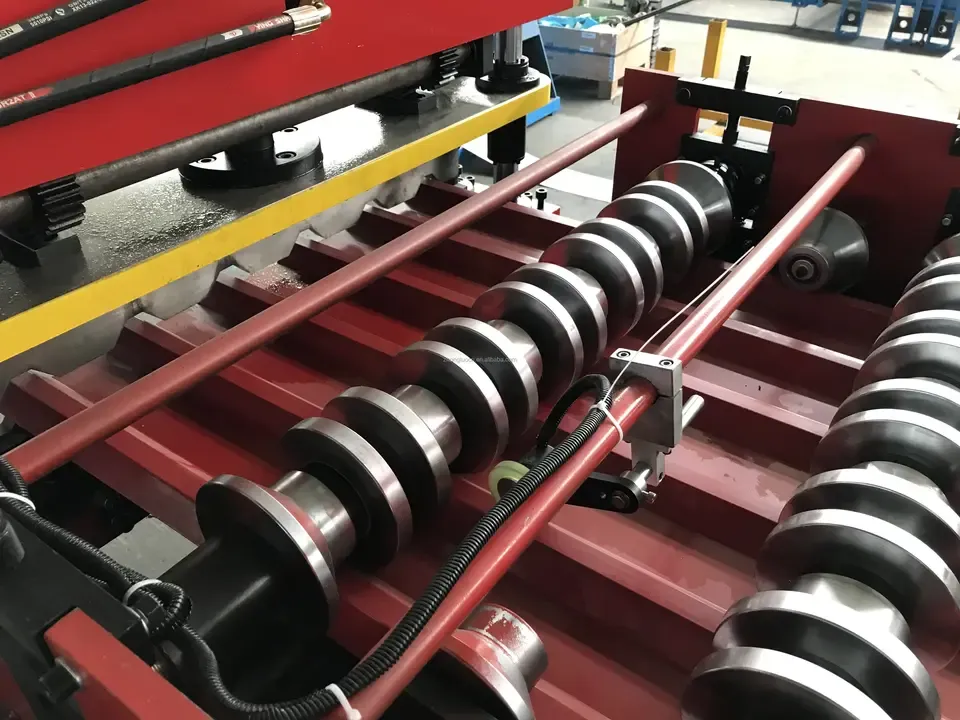

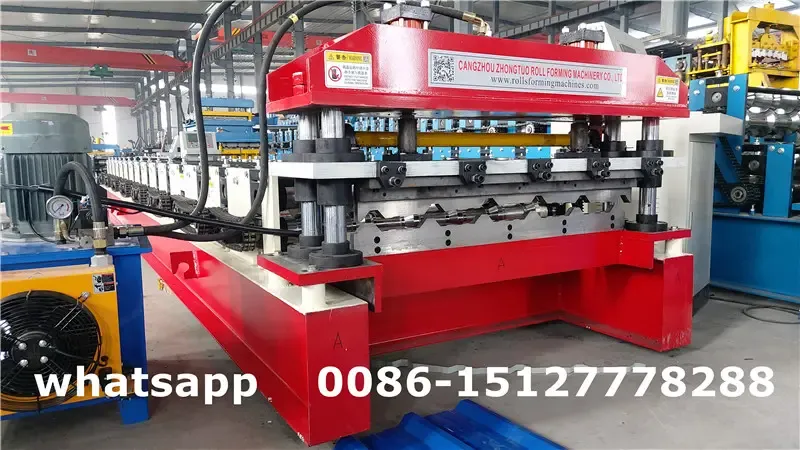

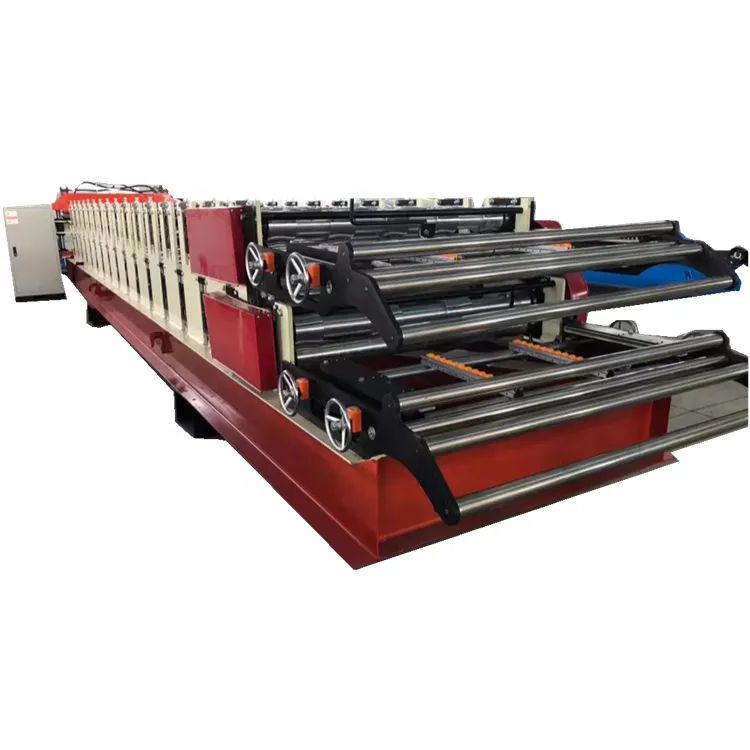

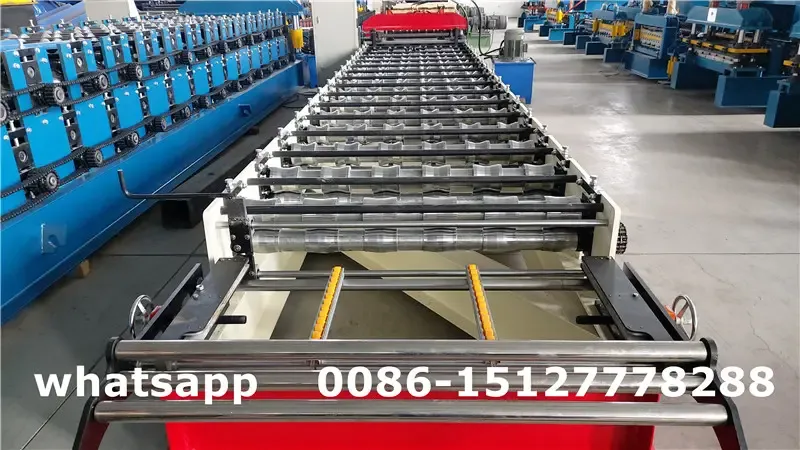

Roll forming device

Feature: Ensure stability , precision and lifetime.

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Hydraulic cutting device

We use pillars cutting system structure, it can make sure the cutting stable Hydraulic oil pump station will provide power to cutting system.

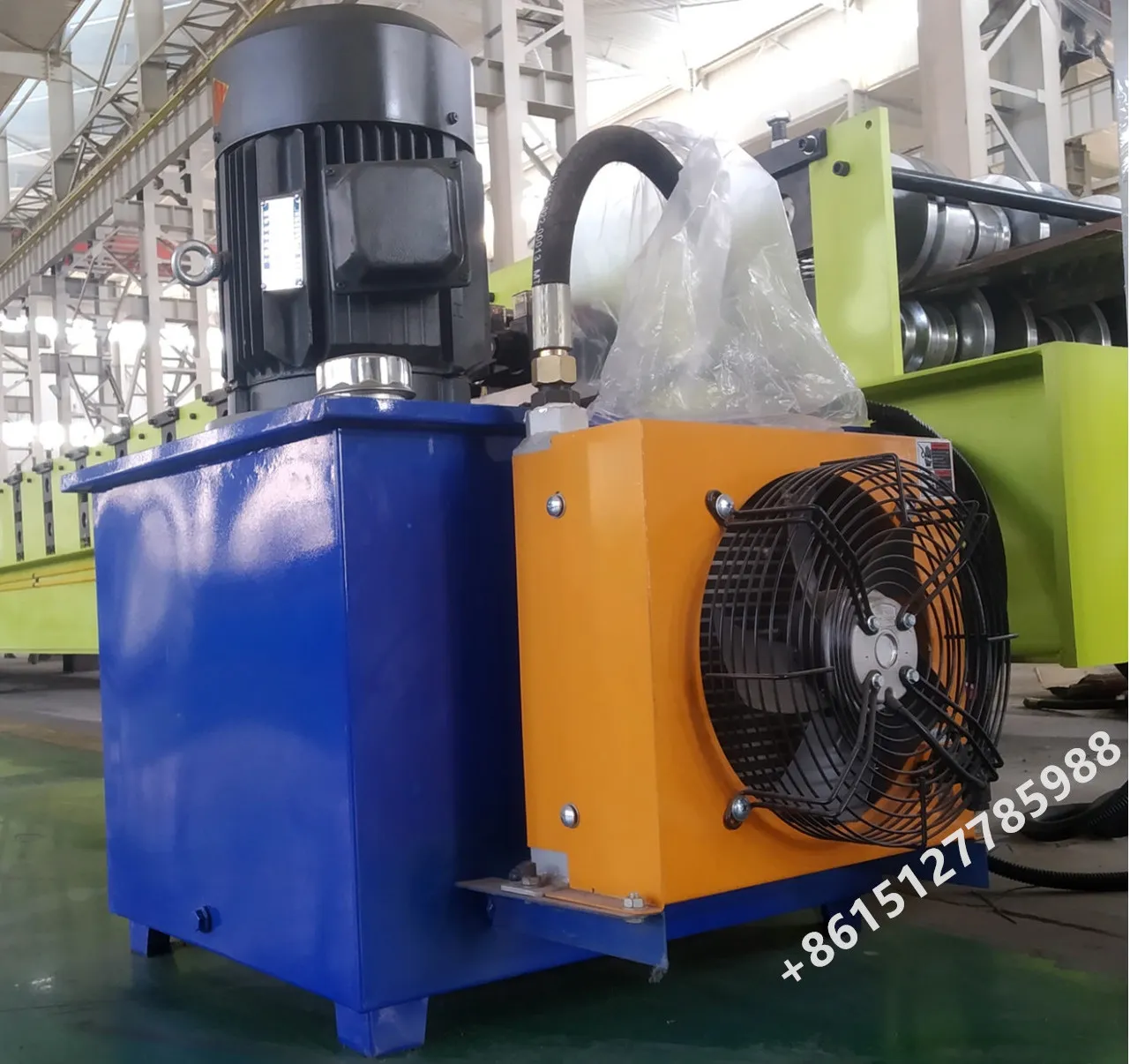

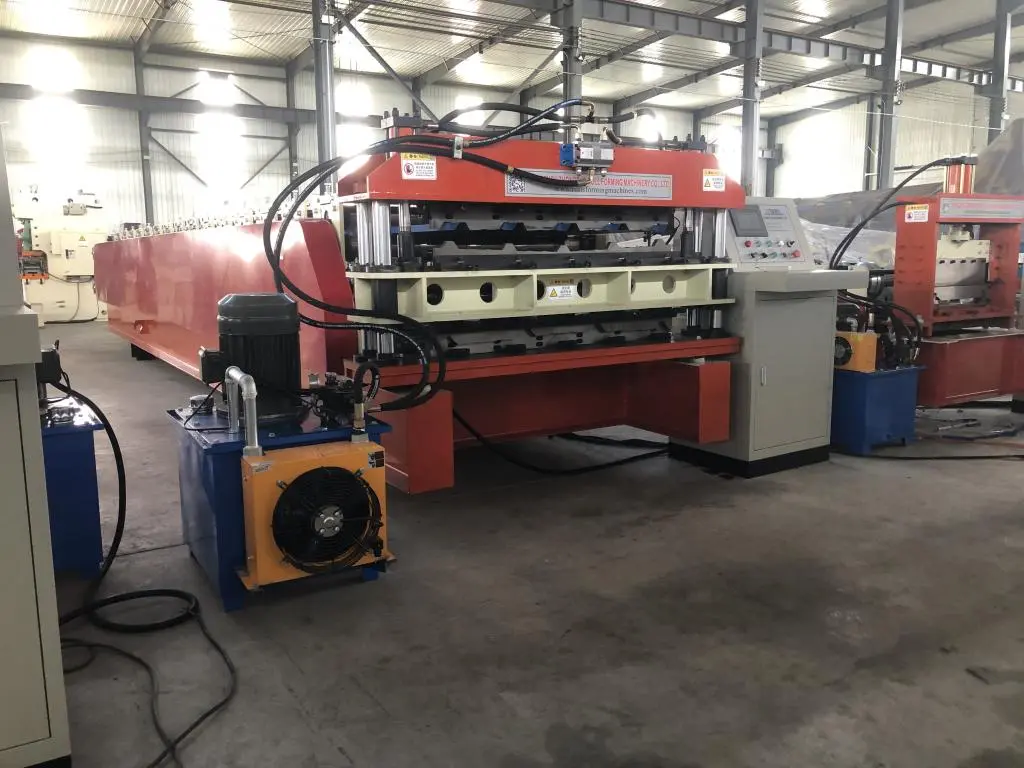

Hydraulic station

1. Hydraulic station motor: 5.5KW
2. Hydraulic oil: 46# hydraulic oil
All of our hydraulic stations are equipped with fan cooling, which can cool down the coil’s temperature after long time working or the working at hot weather.

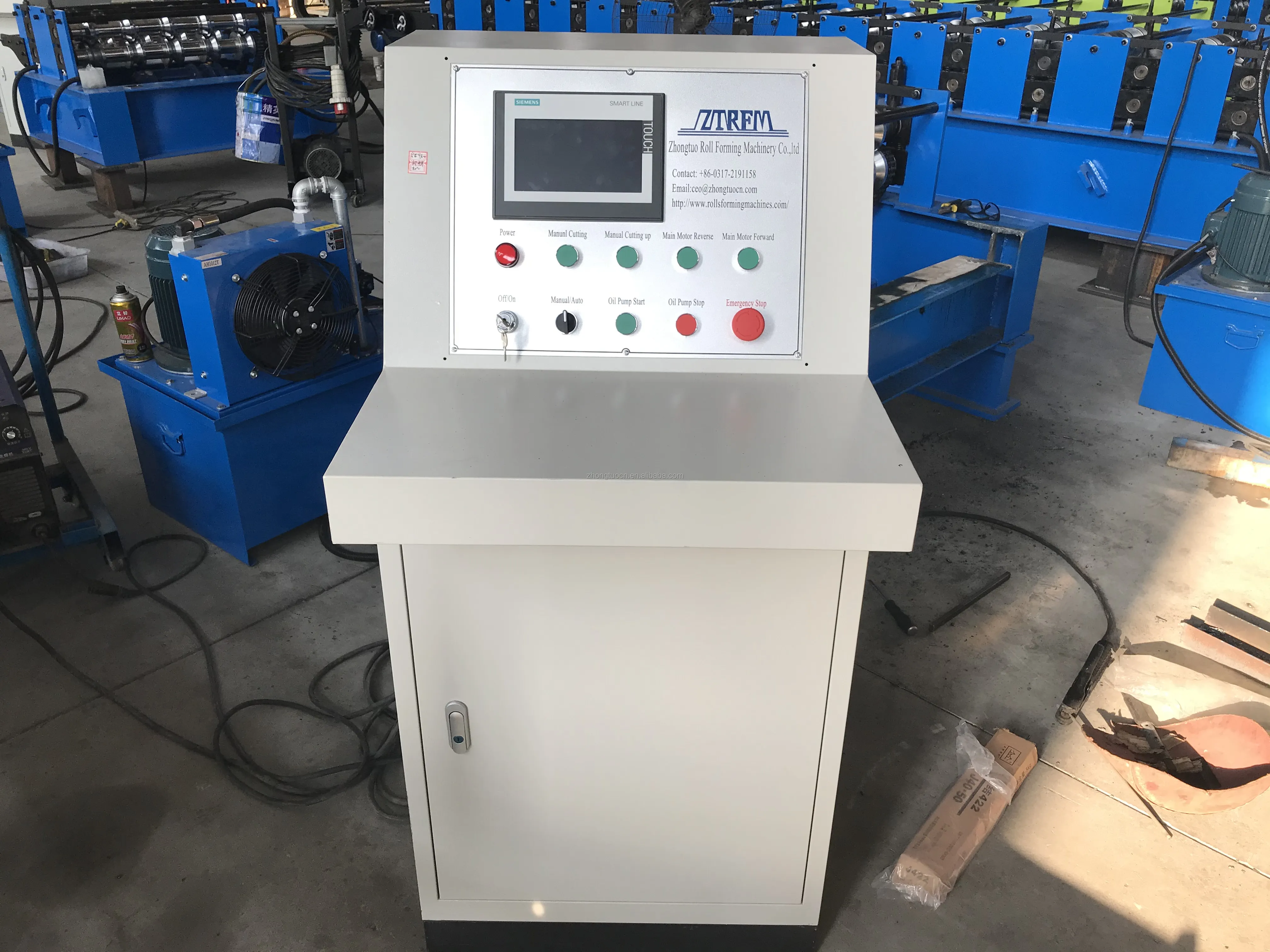

PLC control cabinet

1. PLC brand: Delta(Taiwan)
2. Frequency converter brand: Delta(Taiwan)
3. Encoder: Omron
4. Function: Automatic control the length,quantity and batch

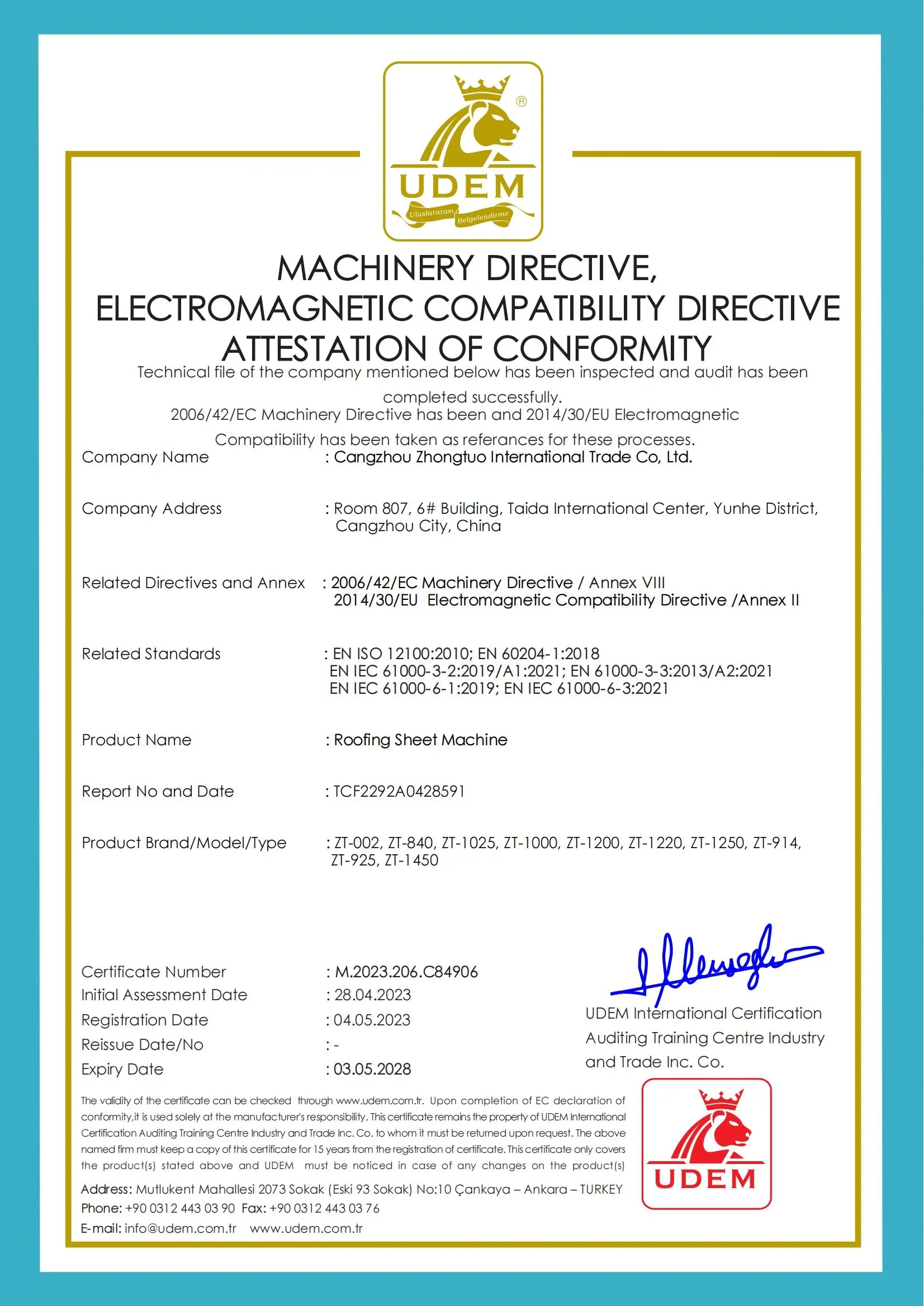

CE(No.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
