Trapezoidal Metal Roof Sheet Roll Forming Machine Popular PBR Iron Roofing Sheet Making Machine ZT1220+11+30 m/min

Cangzhou Zhongtuo International Trade Co., Ltd

Trapezoidal Metal Roof Sheet Roll Forming Machine Popular PBR Iron Roofing Sheet Making Machine ZT1220+11+30 m/min

Name: Trapezoidal Metal Roof Sheet Roll Forming Machine Popular PBR Iron Roofing Sheet Making Machine ZT1220+11+30 m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT51941011

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ZT1220

Power(W):

Production Capacity:

30 m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
ROOF
Voltage
380V 50Hz 3phases or as your requirement
Rolling Thinckness
0.3-0.8mm
Feeding Width
1220 mm

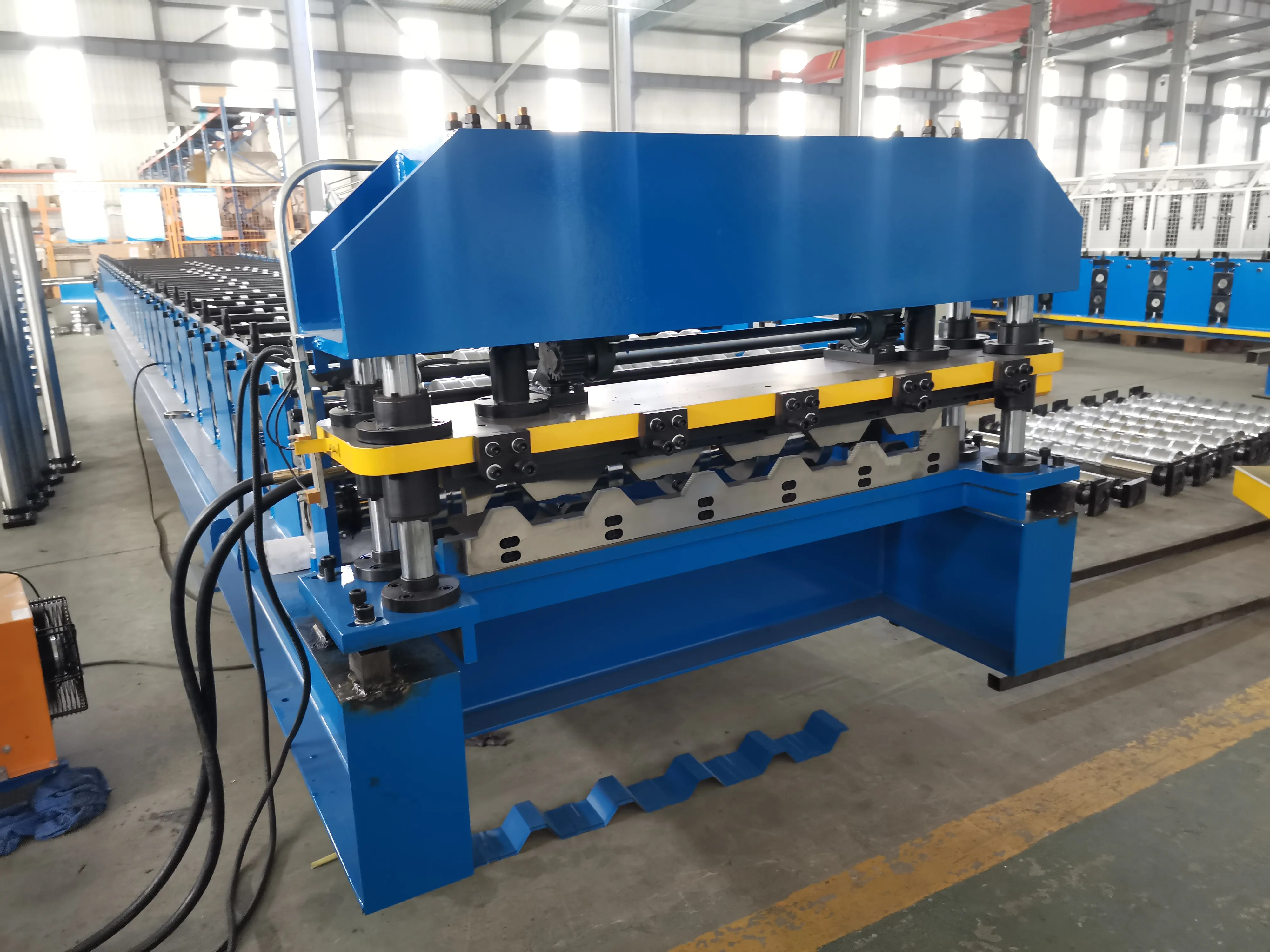

Trapezoidal Metal Roof Sheet Roll Forming Machine Popular PBR Iron Roofing Sheet Making Machine

Design Idea：

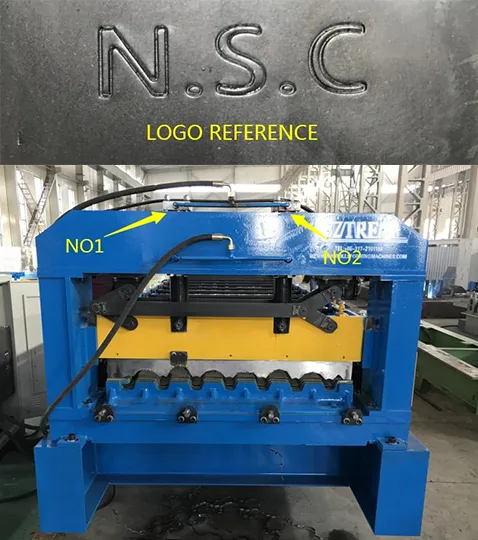

Logo press: add the logo press for customer, the logo will be pressed when the share part do the shearing job.

Good shearing: shearing system adopt double oil cylinder 7.5kw motor, more stable than single oil cylinder and can guarantee the cutter can cut 1.5mm thickness material easily.

Stable-transmission: 2 inches double chain with chain tensors.

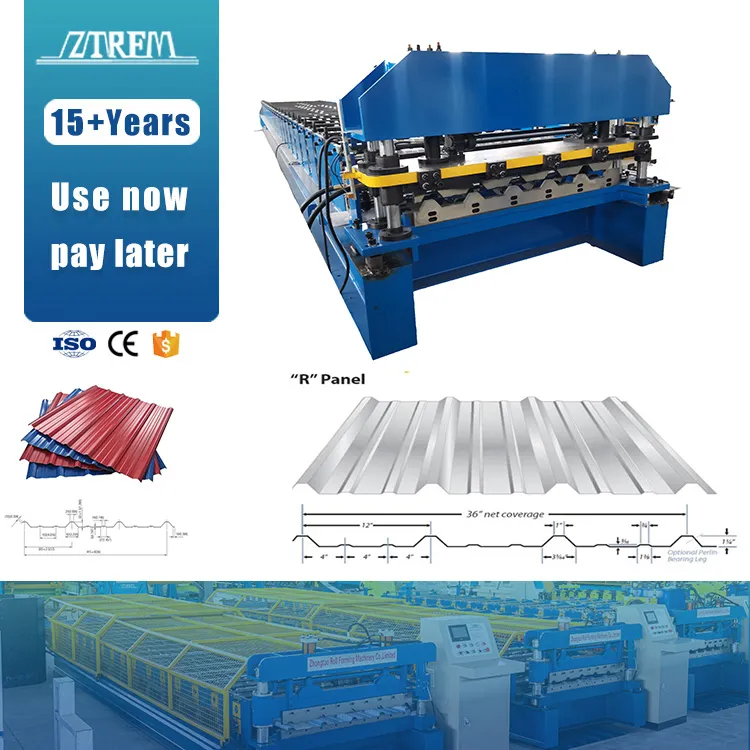

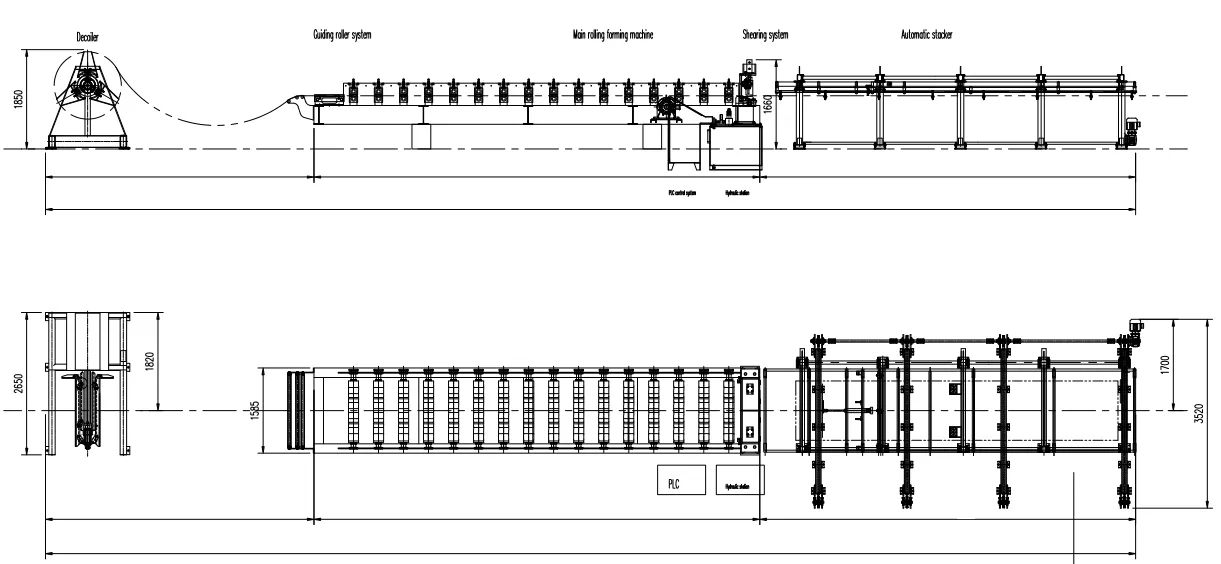

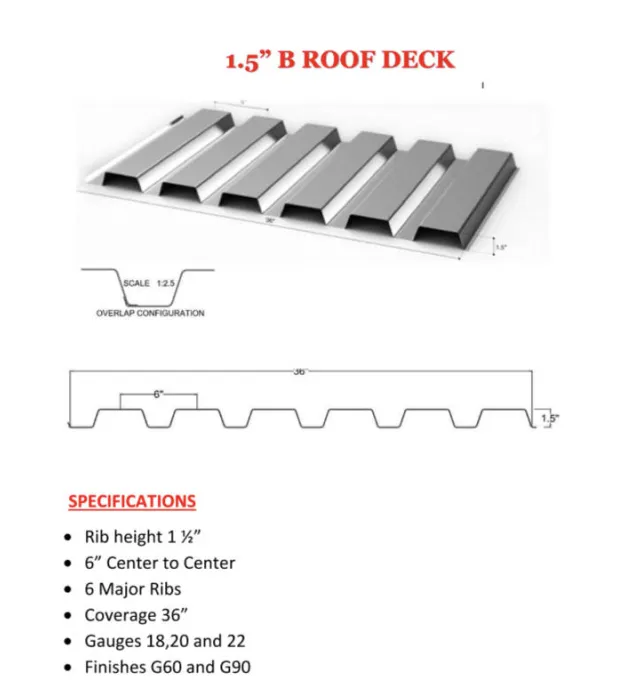

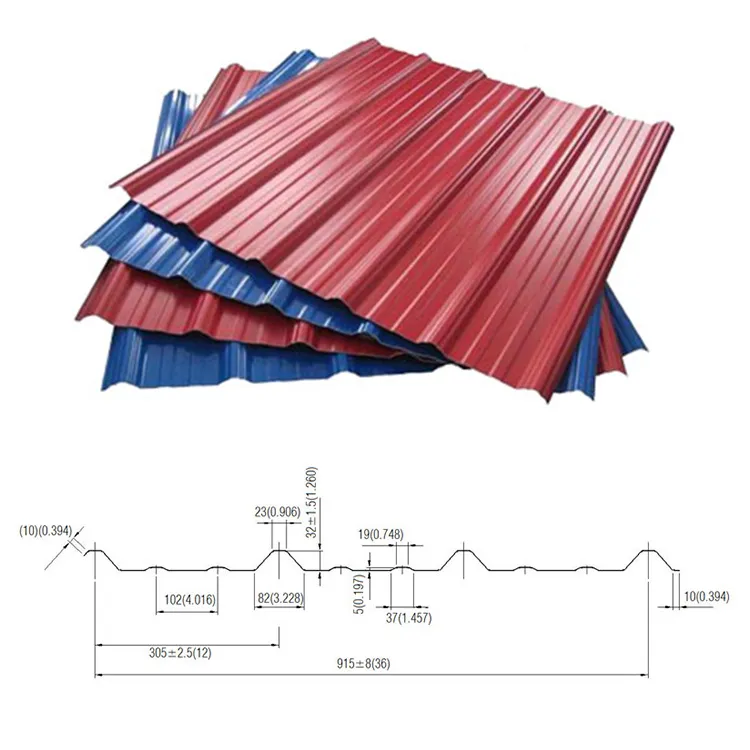

Profile drawing for reference:

We made many floor decking machines for the North American countries, such as the America,
Canada, Mexico. Especially for the America, we already sent many floor decking machines to there, we have customer from New York,Florida, Texas, California as so on.

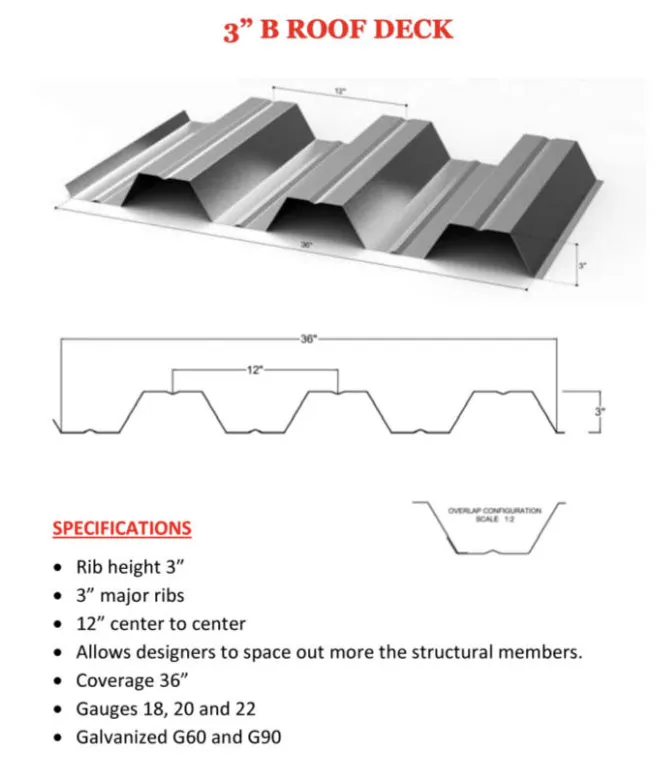

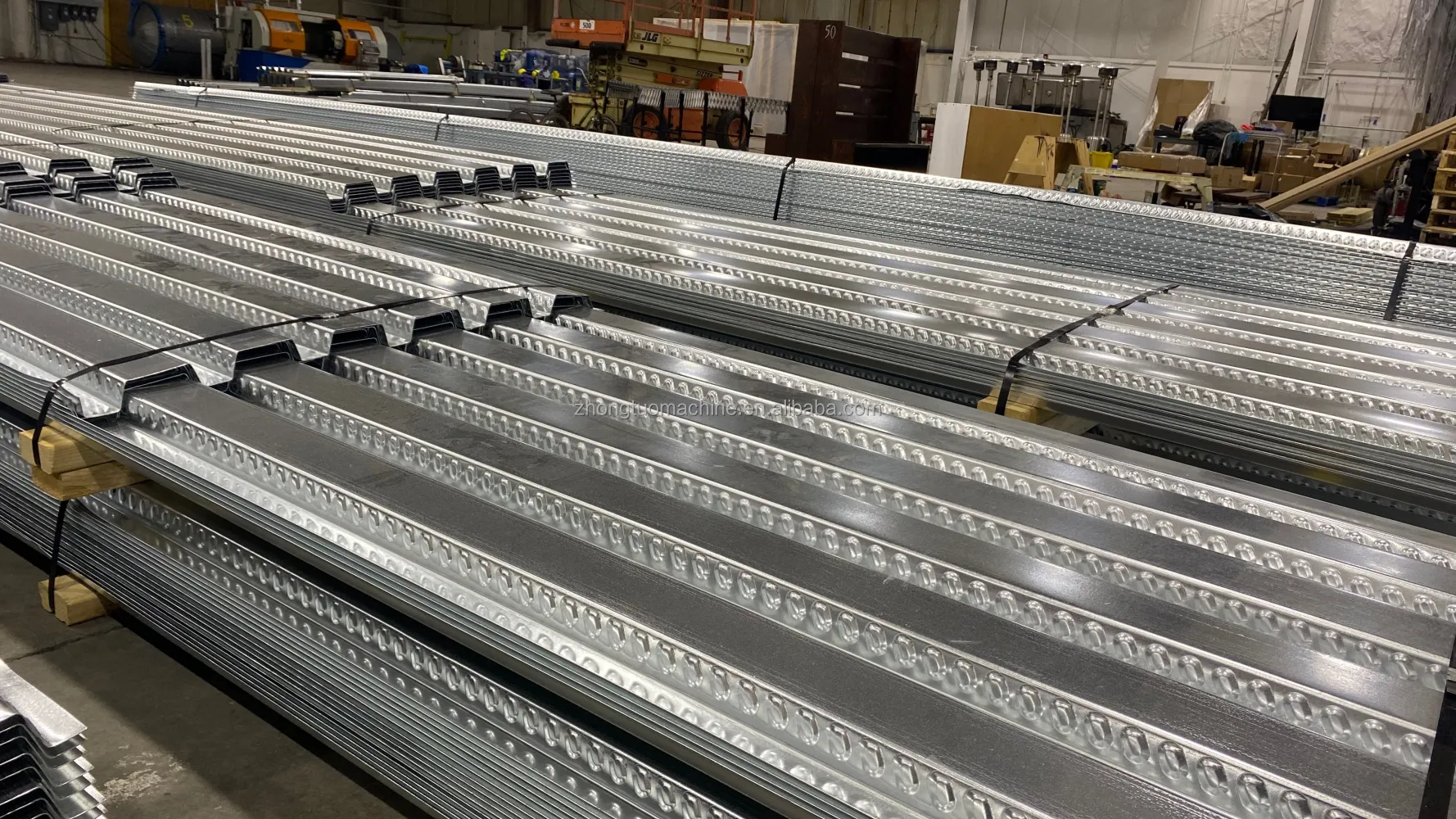

The floor decking machine America use are almost same and standard,1.5B type is one they normally used. and the material thickness they used are Gauges 16 18 20 22 as so on. Most of the metal floor decking panel are 36” effective width and 48” input material width.

Processing Flow

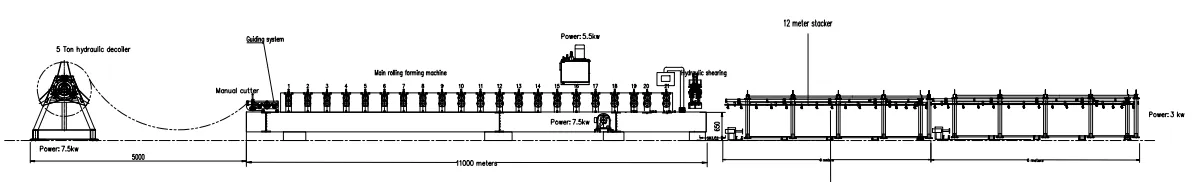

Decoiler-feeding material-roll forming-cutting-receiving the product

1.5B metal roof deck floor decking panel machine for north america
Raw material	Galvanized coils yield strength till 550 Mpa
Raw material		Material thickness:16-22gauge( 0.8-1.5 mm)
Machine frame	400 H beam steel welded
Roller fixer	Middle plate (thickness 20mm)
Material of rollers	Gcr15 quenching treat HRC58-60
Forming stations	28 roller stations
Diameter of shafts	φ 95 mm
Material of shafts	45# steel precision-machined
Forming speed	0-15 m per minute
Voltage	480 v 60 hz 3 phase or as request
Transmission way	Gear and 2 inches double chain with chain tensors
Drive motor	Power:18.5 kw x 2 sets installation: inside the machine
Cutting blade material	Cr12Mov quenched treatment to improve hardness
Cutting type	Hydraulic cutting
Dimension of the machine	15000 х 1850 х 1500 mm
Weight	about 15.5 t

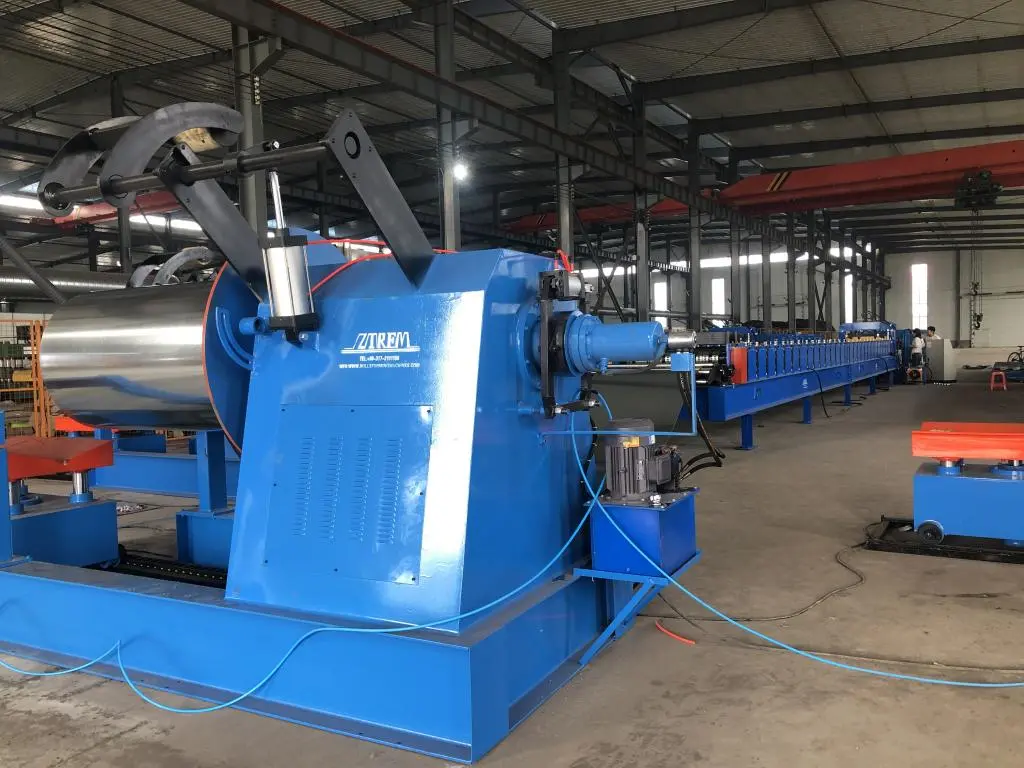

12 tons hydraulic decoiler with loading car

Loading capacity: 12t
Max coil width: 1250mm
Coil inner diameter: 480-610mm
Hydraulic mandrel expansion
Electric motor mandrel drive
Hydraulic motor power: 5.5kw
Drive motor power: 7.5kw

Feeding device

1. Rubber rollers protect raw material surface
2. With handwheels easy adjust for feeding different thickness raw material.

3.The feeding part is mold iron frame ,and there is a handle can adjust feeding width

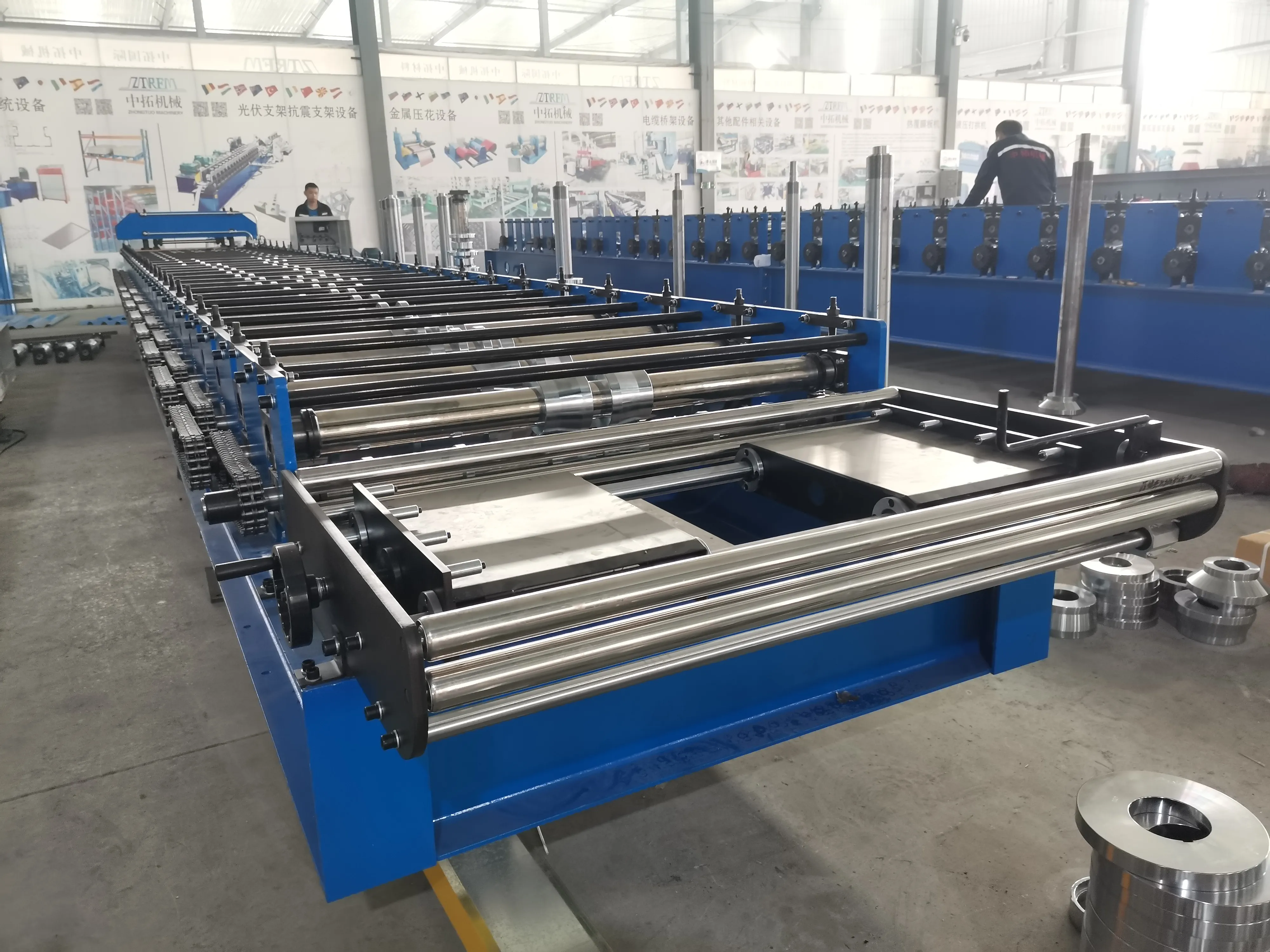

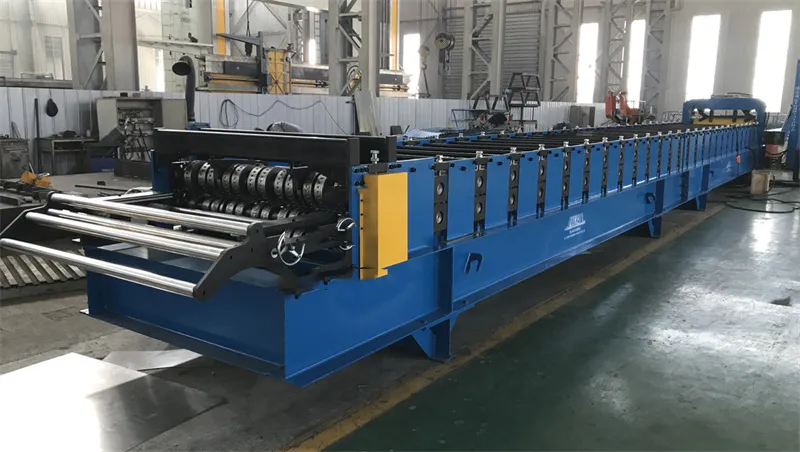

Roll forming device

1.rollers Gcr15 quenching treat HRC58-60 good hardness for long service time.

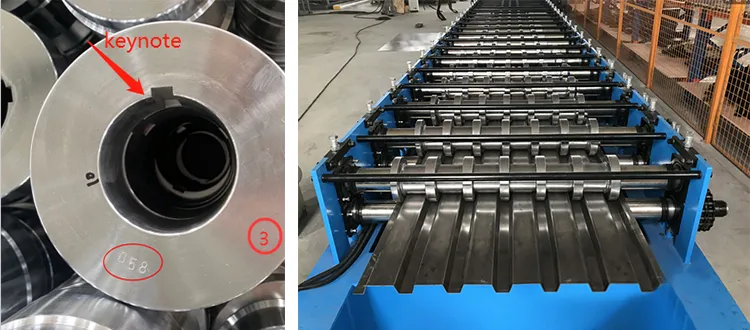

2. Each roller has number and with keynotes, it can fix on the shaft stablely

Transmission device

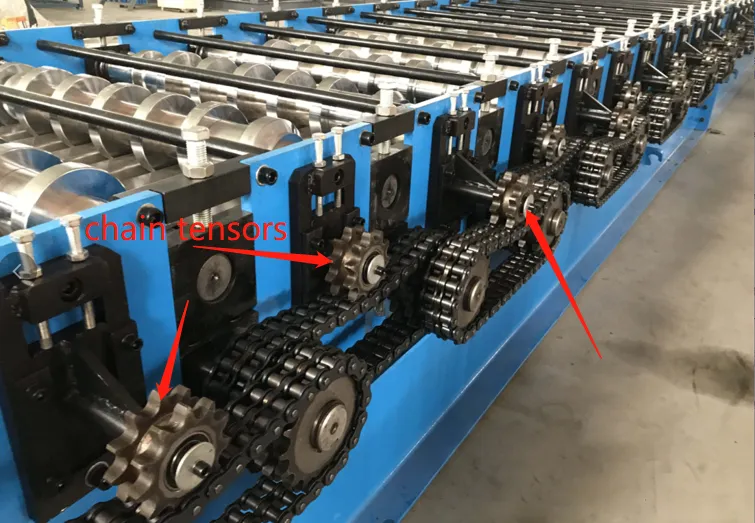

1.Gear and 2 inches double chain drive,strong and stable. 2.chain tensors design- can guarantee the chain is not loose after long time use

Hydraulic cutting device

1.Adopt double oil cylinder more stable than single oil cylinder
2.Logo press device added

PLC control system

Brand

PLC brand : Delta

Inverter brand: Delta Low electric part: Schneider

Encoder: Omron

Function:

1.Adopted aviation plugs,easy installation. 2.Full automatic easy operation. 3.Operation language:English(provide customized) 4.National coinsurance,spar parts Brand Siemens and Schneider.

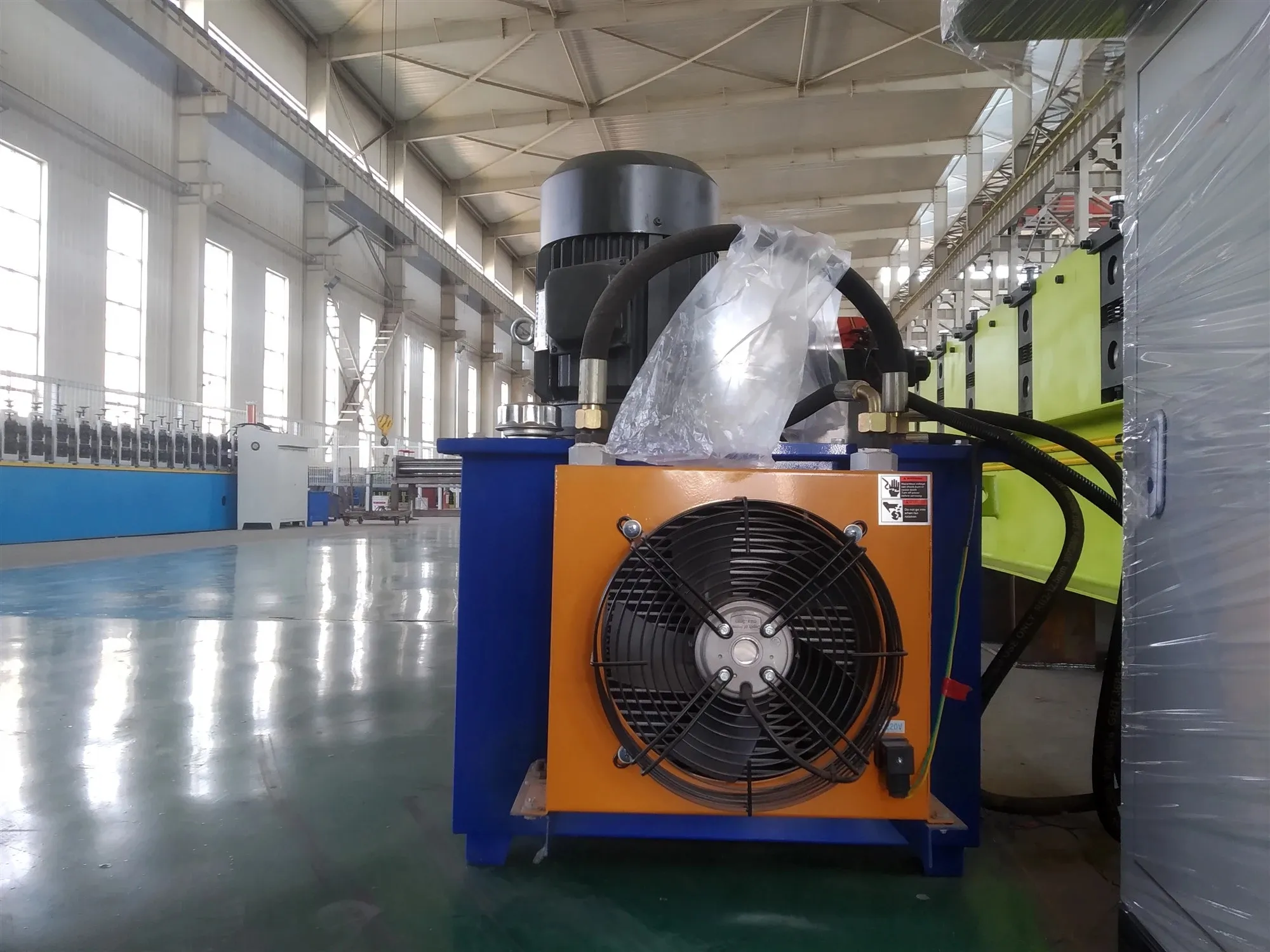

Hydraulic station

7.5kw motor with cooling system for long time using.

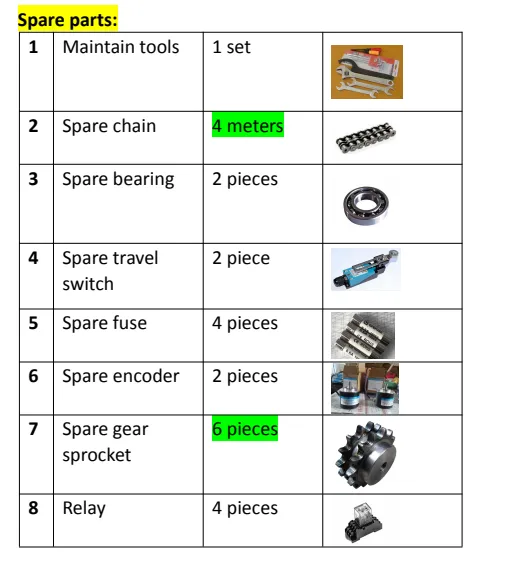

Spar parts

Our machine warranty time 2 years and the below spare parts are with the machine send to you free of charge

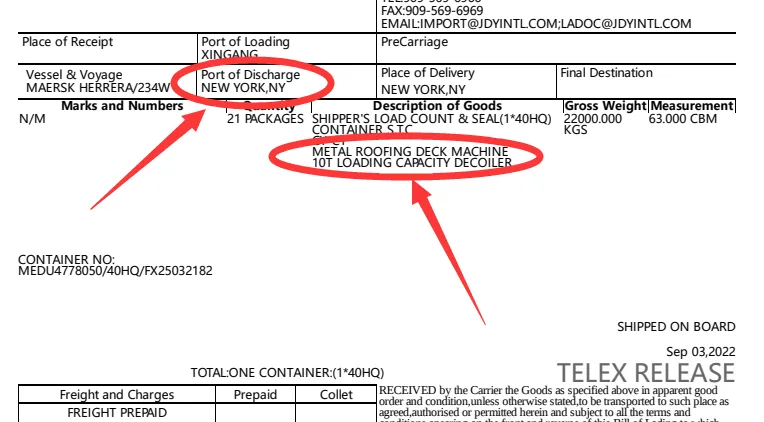

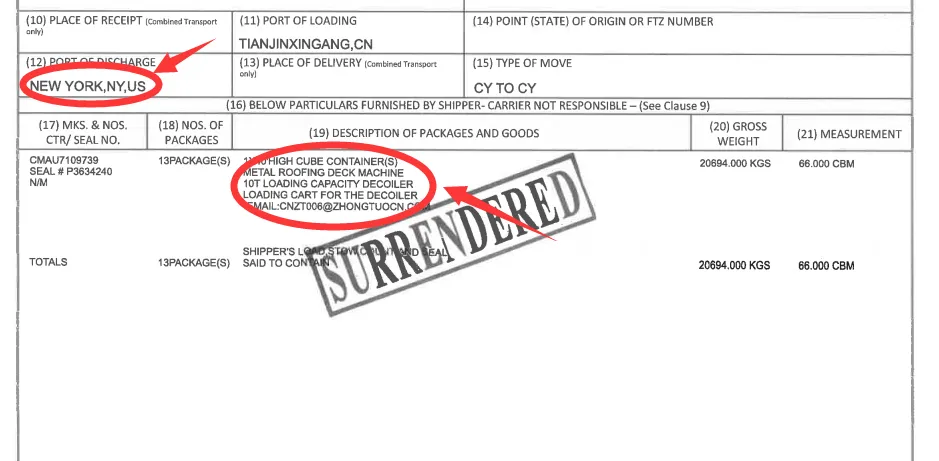

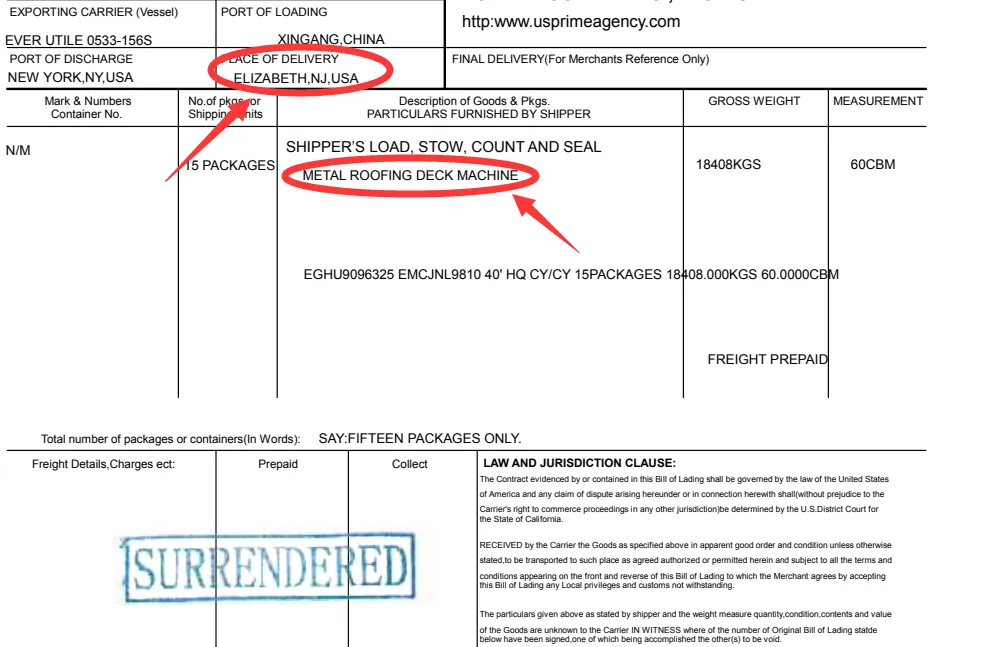

Bill of lading showing

we sent many same machines to North America market full of experience-we are the best choice for you.

Our Machine Sells Well In US
Gets High Praise From US Customers！
