Three Layer Trapezoid Corrugated Glazed Roof Tile Roll Forming Machine ZT-T

General Industry Tech Hebei Developing Co.,Ltd

Three Layer Trapezoid Corrugated Glazed Roof Tile Roll Forming Machine ZT-T

Name: Three Layer Trapezoid Corrugated Glazed Roof Tile Roll Forming Machine ZT-T
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT122803024

MaterialSteel; aluminum sheet, iron sheet, galvanized sheet and colored steel PPGI listed

ProfileGlazed, trapezoid and corrugated roof profiles

Rolling Thickness0.3-0.8mm

Feeding Width914-1450mm

Production Capacity15 m/min

Power7.5 kw

Control SystemDelta Inverter

ApplicationBuilding construction

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model:

ZT-T

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Material
Steel; aluminum sheet, iron sheet, galvanized sheet and colored steel PPGI listed
Profile
Glazed, trapezoid and corrugated roof profiles
Rolling Thickness
0.3-0.8mm
Feeding Width
914-1450mm
Production Capacity
15 m/min
Power
7.5 kw
Control System
Delta Inverter
Application
Building construction
Model
ZT-T
Profile Configuration
Three-layer; glazed, trapezoid and corrugated roof profiles
Suitable Material
Aluminum sheet, iron sheet, galvanized sheet and colored steel PPGI
Rolling Thickness
0.3-0.8mm
Feeding Width
914-1450mm
Production Capacity
15 m/min
Power
7.5 kw
Voltage
380V or as required
Warranty
2 Years
Moq
1
Ladder Prices
1-4 pcs: 19000 USD; 5-9 pcs: 15000 USD; >=10 pcs: 13000 USD

3-in-1 Three Layer Trapezoid Corrugated Glazed Roof Tile Roll Forming Machine

This automatic metal steel three-layer roll forming machine is configured for glazed, trapezoid and corrugated roofing profiles. The ZT-T line combines a multi-layer forming structure with steel-sheet processing, Delta inverter control and a roof-profile application focus for building construction.

Three Layer Trapezoid Corrugated Glazed Roof Tile Roll Forming Machine

3-in-1 profile capability: The product title and source images identify glazed, trapezoid and corrugated roof-sheet profile output from one three-layer line.
Multi-layer forming structure: The visible forming head uses three stacked profile-forming levels with a red formed sheet shown at the outlet.
Broad material compatibility: The source lists aluminum sheet, iron sheet, galvanized sheet and colored steel PPGI.
PLC-related control components: The source lists a Delta inverter control system and PLC among the core components.
Profile and feeding flexibility: Rolling thickness is listed as 0.3-0.8mm and feeding width as 914-1450mm.
Production-oriented configuration: The source lists 15 m/min production capacity, 7.5 kw power and high productivity as a key selling point.

Technical Specifications

Item	Specification
Product Type	Roll forming machine
Model	ZT-T
Layer / Profile Configuration	Three-layer; glazed, trapezoid and corrugated roof profiles
Suitable Material	Aluminum sheet, iron sheet, galvanized sheet and colored steel PPGI
Rolling Thickness	0.3-0.8mm
Feeding Width	914-1450mm
Production Capacity	15 m/min
Power	7.5 kw
Control System	Delta Inverter
Voltage	380V or as required; source also lists 380V, 50Hz, 3 phase
Shaft Material	High Grade No.45 Forged
Machine Dimensions	8.51.651.5m
Machine Weight	7800 kg
Use	Roof and wall
Application	Building construction
Core Components	Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC and Other
Warranty	2 Years
MOQ	1
Inspection Records	Machinery Test Report: Provided; Video outgoing-inspection: Provided

Machine Structure and Forming Process

The machine uses a long roll forming section followed by a three-layer forming head. The visible line guides metal sheet through roller stations and presents formed red roofing sheet at the outlet. The source images also show the ZTRFM-marked forming head, hydraulic hoses, drive components and control cabinet.

Three-layer roof tile forming head with red formed sheet

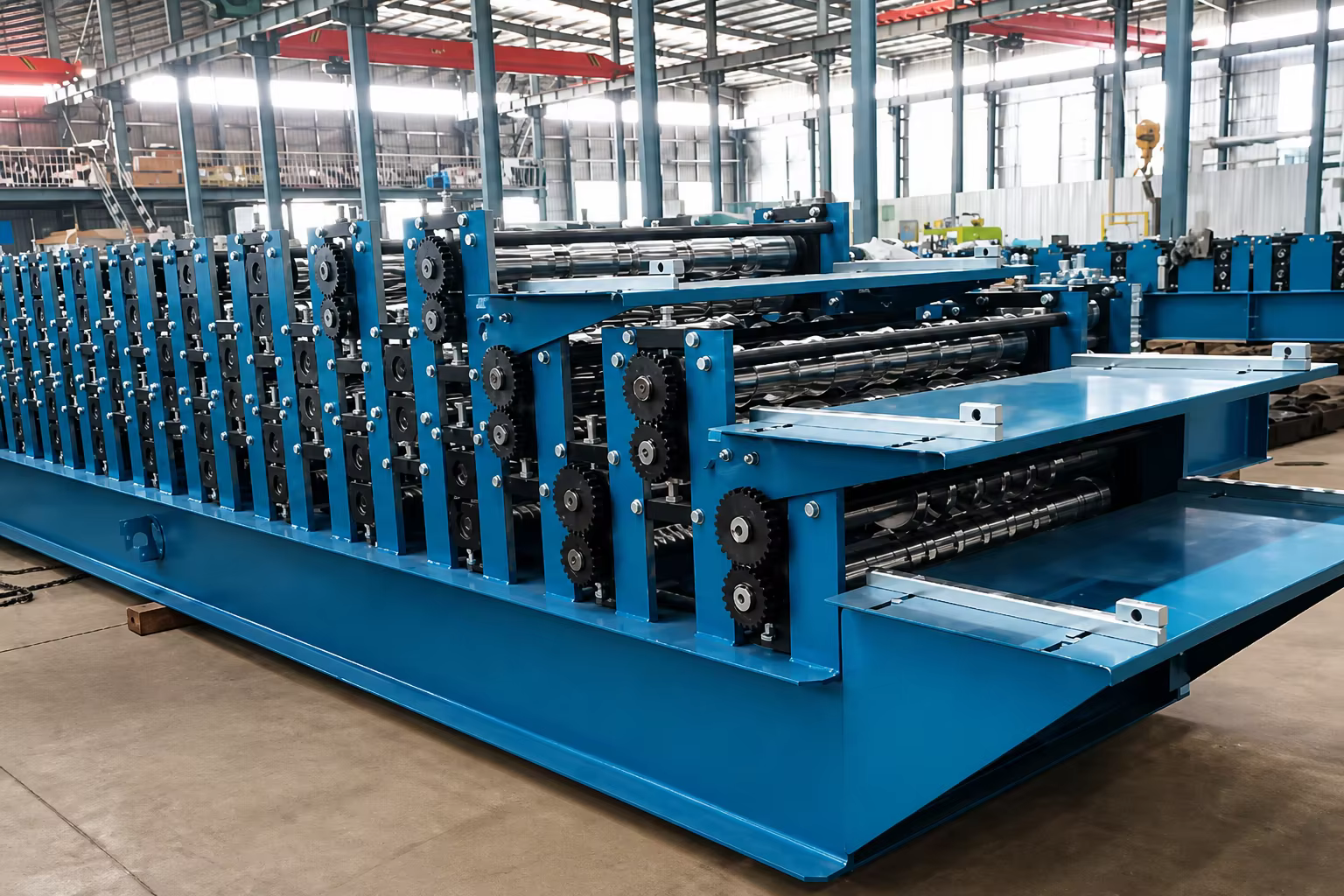

Long roof sheet roll forming line with roller stations

Roofing Profile Applications

The source identifies roof profile use and building construction application. The three-layer configuration is intended for different metal roofing profile outputs, including glazed, trapezoid and corrugated forms shown in the source visuals.

Three-layer roof tile forming machine in a factory workshop

Operator and red formed roofing sheet at the machine outlet

FAQ

What materials are listed for this line?
The source lists aluminum sheet, iron sheet, galvanized sheet and colored steel PPGI.

What thickness and feeding width are listed?
Rolling thickness is 0.3-0.8mm and feeding width is 914-1450mm.

What control system is specified?
The source lists Delta Inverter and includes PLC among the core components.

What is the listed warranty?
The source lists a 2 Years warranty.
