Cable Tray Roll Forming Machine > Production Equipment > Cable Tray Roll Forming Machine

Cangzhou Zhongtuo International Trade Co., Ltd

Suppliers Heavy Duty Cable Tray Roll Forming Machine Galvanized Steel Hot Sale Size Quick Change Profile Making Machine 20 M/Min+ZTRFM-C02+15kw

Name: Suppliers Heavy Duty Cable Tray Roll Forming Machine Galvanized Steel Hot Sale Size Quick Change Profile Making Machine 20 M/Min+ZTRFM-C02+15kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT116048140

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

20 M/Min

Model Number:

ZTRFM-C02

Power(W):

15kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Glaze Steel
Use
cable tray making machine
Voltage
220V/380V/440V customized
Rolling Thinckness
Other
Feeding Width
Other

Product Description

Suppliers Heavy Duty Cable Tray Roll Forming Machine Galvanized Steel Hot Sale Size Quick Change Profile Making Machine

What is the Application of Heavy Duty Cable Tray Roll Forming Machine?

Heavy Duty Cable Tray Roll Forming Machine is a kind of equipment for making cable tray by various material. In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction. They are especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe.

What is the working flow of Heavy Duty Cable Tray Roll Forming Machine?

decoiler-straightening-punching machine-cable tray roll forming machine-receiving

Products Display

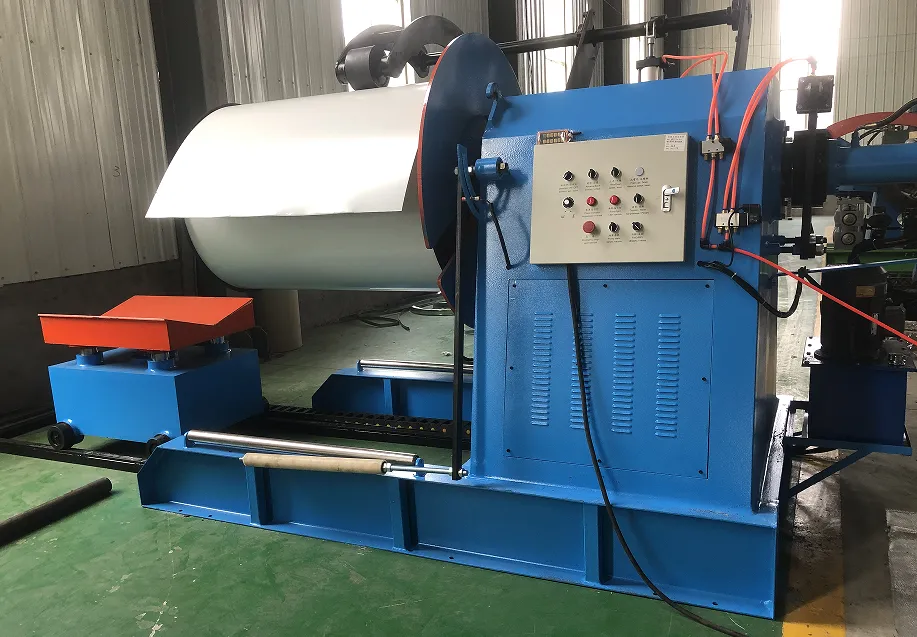

Hydraulic decoiler
loading weight	≤5T
Inner diameter of coil	508mm
inner expansion range	480-520 mm
The maximal of Diameter	1500mm
Motor power	5.5kw frequency change control
Feeding speed	0-15m/min, adjustable

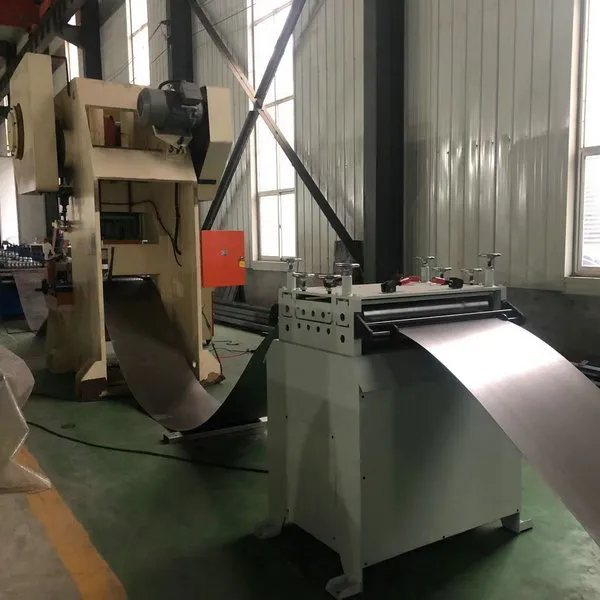

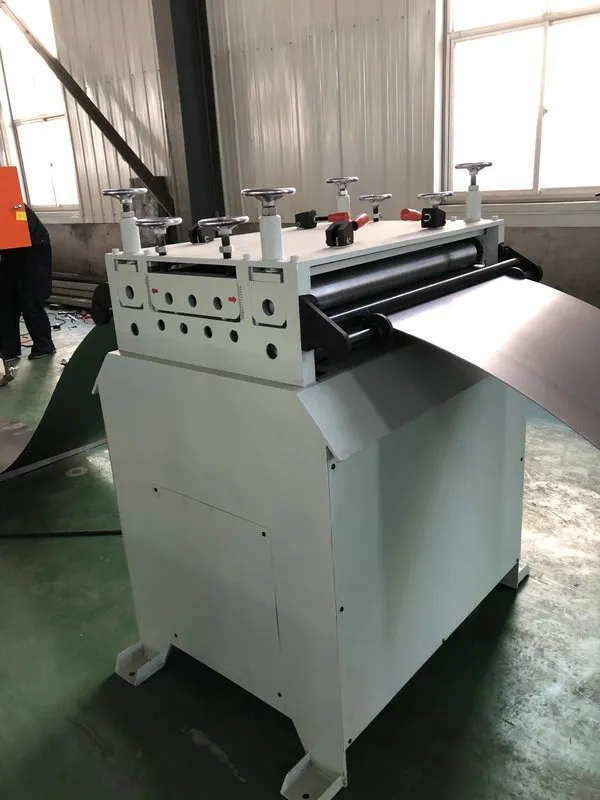

straightening device
working roller	nine rollers type leveling machine
Feature of structure	It is composed by the clamping roller and the leveling roller, the clamping roller may the independent control, the leveler has one pair of horizontal guide roller and two pairs of vertical guider roller and easy to adjust by hand wheel. Between the leveler and the feeding device, there is optical sensor, sends out the feedback signal to the control system, the control system sends out the instruction to the frequency conversion motor to change speed, Achieves the uninterrupted level goal.

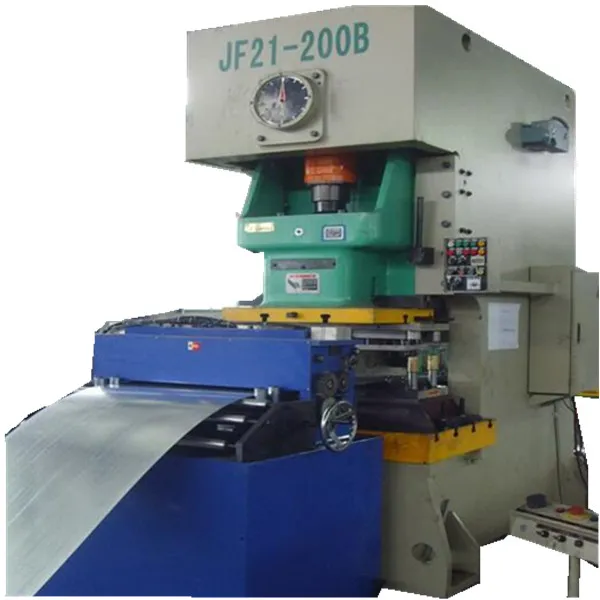

Punching device
Model of punching press	JF21-200B
Punching holes	customized
press tons	customized

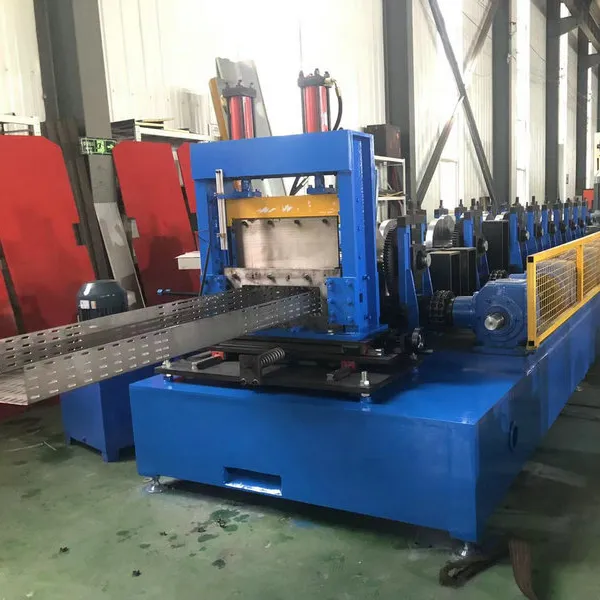

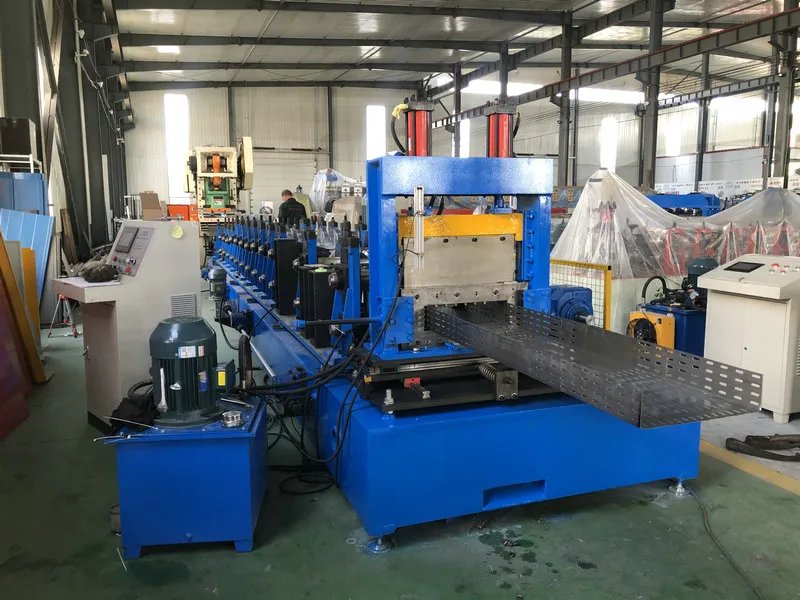

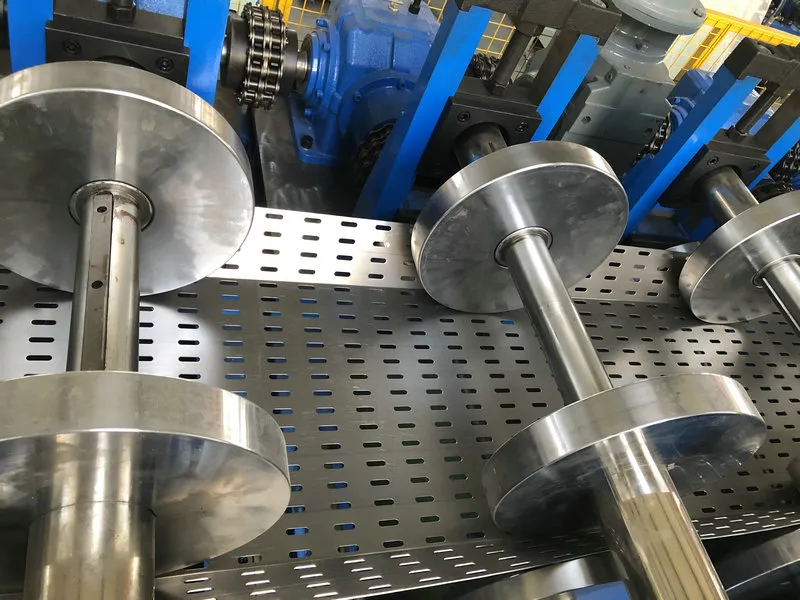

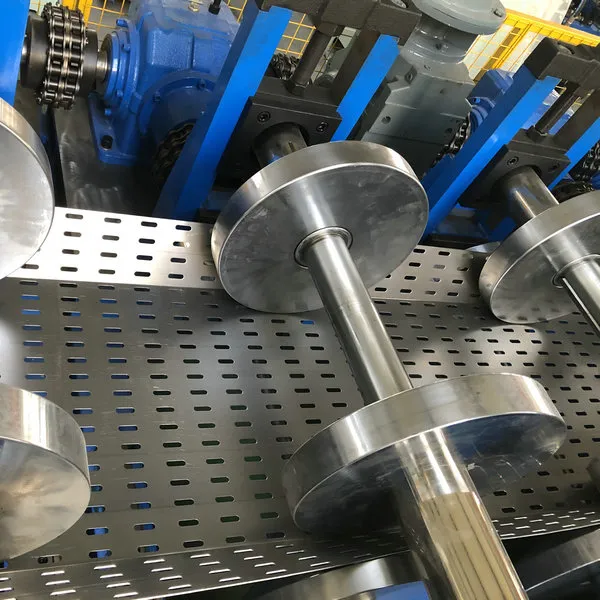

Cable tray roll forming machine
Feeding device	With handwheels for suit different material thickness
Forming station	14sets
The diameter of the roller axis	85mm
Cutting type	hydraulic cutting
Material of blade	Cr12, quench treatment, hardness HRC56-58
blade advantage	easy adjustable for produce different size cable tray,no need replace cutters.
Hydraulic power	5.5kw
PLC control brand	Delta or Simens

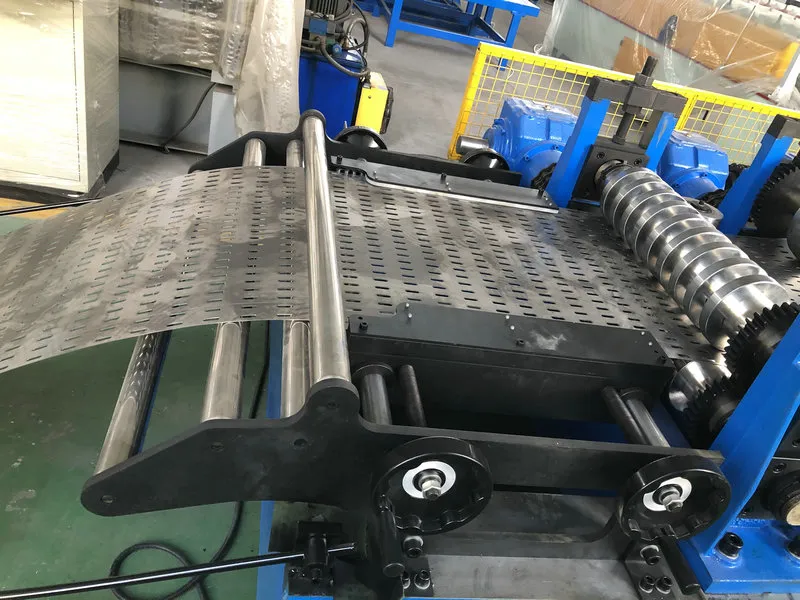

Feeding device

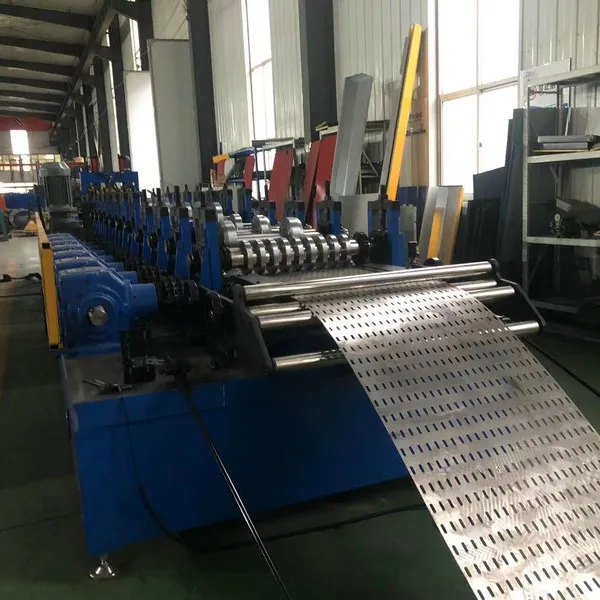

Roll forming device

cutting device

PLC control cabinet

The aviation plugs design-easy installation
