Sturdy Precision Roofing Sheet Tile Roll Forming Press for Metal Roof 7.5 kw

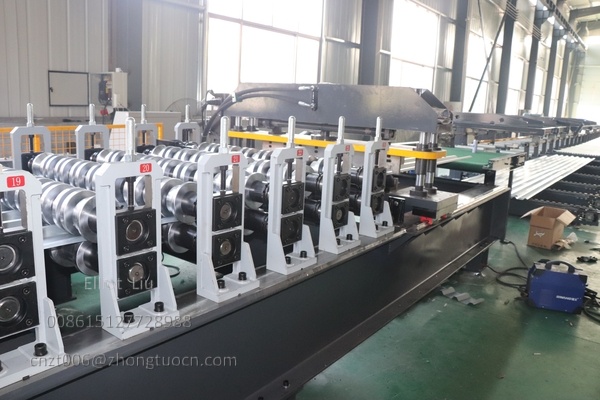

20 Roller Roofing Sheet Roll Forming Machine Delivers Reliable Automated Production

When order volumes increase and production runs get longer, operators have to handle more manual tasks. That slows down the line. A roofing sheet roll forming machine runs continuously, but if coil changes need manual handling, cutting needs manual measurement, and finished sheets need manual stacking, the forming speed does not help much. The automation level of a roofing sheet roll forming machine determines how much operators still need to do. This article explains which manual tasks automation reduces and how the hydraulic station and electrical control system support those automated functions.

Why Automation Affects Roofing Sheet Production

In continuous roofing sheet production, manual intervention mainly happens at four points. Coil changes require operators to feed the strip into the forming machine manually. Starting and stopping require manual control panel operation. Cutting length requires measurement and adjustment. Collection requires manual stacking.

Each manual task adds to the operator's workload. Together, they slow down the production rhythm. As order volumes grow and production runs extend, this problem becomes more obvious. Operators need to watch multiple points continuously, which increases fatigue and the risk of errors. A more automated line lets operators focus on monitoring production status instead of repetitive manual tasks. A roofing sheet roll forming machine with higher automation reduces these manual burdens.

Advantages of automation

• PLC automatic operation runs production after parameter setup

• Encoder measures length and triggers cutting automatically

• Auto counting stops the machine when quantity reaches the set value

• Hydraulic cutting completes cutting action automatically

Power and Control in Automated Production

Automated production depends on two systems working together. The hydraulic system provides cutting power. The electrical control system coordinates production actions. Both are essential.

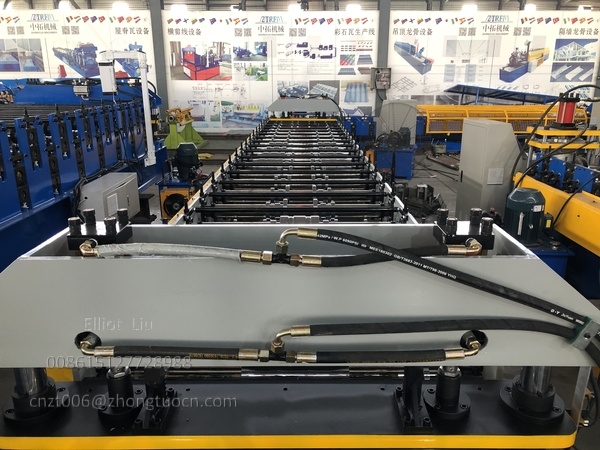

Hydraulic Station – Power Source for Cutting

The cutting action receives its power from the hydraulic station. The hydraulic station uses a pump to generate pressure that drives the cylinder to complete the cut.

The hydraulic station includes a tank, pump, hoses, and solenoid valves. Oil goes into the tank. The pump moves oil through hoses to the cylinder. Solenoid valves control the oil flow direction. A cooling system helps keep oil temperature stable during long runs.

On an automated line, the hydraulic station does not work alone. The electrical system sends cutting commands. Solenoid valves receive signals and switch oil flow to drive the cylinder. The hydraulic station provides reliable power to execute automated commands on a roofing sheet roll forming machine.

Electrical Control System – The Control Core of Production

The electrical control system coordinates automated production. It includes a PLC, a frequency converter, a touchscreen, and an encoder.

The PLC receives sensor signals and sends commands based on preset logic. The frequency converter adjusts motor speed to control production speed. The touchscreen gives operators a way to set and monitor parameters. The encoder measures sheet length and provides position and speed feedback.

The electrical system coordinates all stages: decoiling, forming, cutting, and collection. The PLC sends commands at the right time so each stage follows the correct sequence and rhythm. Higher automation means greater reliance on the electrical system. Its response speed and stability affect whether automated production runs reliably on a roofing sheet roll forming machine.

How Power and Control Work Together

The electrical system decides when to act, and the hydraulic system carries out the action.

The complete cutting sequence follows this path: encoder measures length in real time → PLC detects set value → PLC sends cutting command → solenoid valve switches oil flow → hydraulic oil drives cylinder → blade completes the cut.

Without precise control, even strong power cannot complete an automatic cut. Without reliable power, even precise control cannot execute actions. Both must work together for smooth automatic cutting. This coordination is the foundation of automated production on a roofing sheet roll forming machine.

Applications of the Roofing Sheet Roll Forming Machine

A roofing sheet roll forming machine produces panels for several building sectors:

• Industrial plants and warehouses: roof and wall covering

• Residential housing: sloped roofing

• Agricultural greenhouses: simple roof structures

• Large public buildings: metal roofing systems

• Commercial building facades: exterior wall panels

Different applications need different automation levels. Larger order volumes, tighter schedules, and higher quality consistency make automation more valuable.

What Manual Tasks Automation Reduces

The PLC is the center of automated control. After operators set length, quantity, and speed on the touchscreen, the machine runs automatically. This reduces the need for continuous monitoring and manual intervention.

The encoder measures sheet length in real time. When the set value is reached, the system triggers cutting automatically. Operators do not need tape measures or manual cutting buttons. Set the parameters and let the machine do the work.

The PLC also supports auto counting and auto stopping. When production reaches the set quantity, the machine stops automatically. No one needs to stand by the machine counting. These features reduce manual involvement in forming, cutting, and measuring. A roofing sheet roll forming machine with these capabilities helps operators focus on higher value tasks.

Machine Parameters

Automation is not just a label. It is a combination of specific functions: PLC control, encoder length measurement, and hydraulic cutting. The question is which parts of your production these functions cover. If coil change, cutting, and collection still need a lot of manual work, the machine's automation may not address your main needs. For a roofing sheet roll forming machine, the specific functions that automation covers determine how much it reduces manual tasks and improves continuous production.
