Stud and Track Roll Forming Production Line for Drywall and Shaftwall Construction with Automatic and High Precision 4~6m/min

Reliable Drywall Stud And Track Roll Forming Machine for 3 Modular Production Needs

Modular construction and prefabricated finishing require higher component standardization. Drywall studs and tracks are the core framing materials in light gauge steel partition walls and ceiling systems. The Drywall Stud And Track Roll Forming Machine produces these components with consistent quality and dimensional accuracy.

When a modular project requires the same stud and track specifications across thousands of square meters, any production deviation multiplies. A Drywall Stud And Track Roll Forming Machine that runs continuously, maintains dimensional accuracy, and supports quick size changes is essential for manufacturers supplying the modular construction market.

Drywall Stud And Track Applications in Modular Construction

In modular construction and prefabricated finishing, drywall studs and tracks are used in these scenarios:

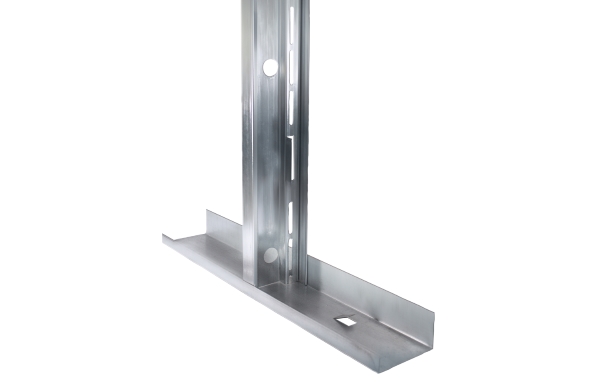

• Interior non load bearing partition walls. C shaped studs work with U shaped tracks to form light gauge steel framing, widely used in offices, hotels, apartments, hospitals, and commercial complexes

• Ceiling suspension systems. U tracks and C studs together form the load bearing framework for suspended ceilings

• Prefabricated wall panels. As the core framing of factory made wall units, they assemble on site with other components, significantly reducing construction time

• Light gauge steel villas and modular integrated houses. They form the wall framing and support structure for entire buildings

In prefabricated wall panels, the same stud and track specifications are used across dozens or even hundreds of wall units. If product dimensions vary between batches, on site assembly will have gaps, misalignment, or fitting issues. This demand for dimensional consistency and reliable supply points directly to the Drywall Stud And Track Roll Forming Machine's forming precision and continuous operation capability.

Core Advantages of the Drywall Stud And Track Roll Forming Machine

The Drywall Stud And Track Roll Forming Machine delivers specific value in five areas for standardized component production:

• Stable feeding and integrated leveling. The decoiler and leveler remove coil stress and keep the strip flat, creating the foundation for forming accuracy

• Continuous production. Decoiling, leveling, punching, forming, and cutting run on one integrated line

• Flexible specification changes. With adjustable spacers for 3 sizes, the machine switches between different stud and track profiles

• Automated operation. The control system runs the entire process automatically

• Reduced surface damage. The feeding guide and roller surface treatment help minimize scratches and indentations


Complete Production Flow of the Drywall Stud And Track Roll Forming Machine

The Drywall Stud And Track Roll Forming Machine starts at the passive decoiler and moves through leveling, punching, roll forming, and cut to length. The system runs continuously from coil to finished profile. The production sequence is:

Material rack → Leveling → Front punch → 32-unit forming → Back punch → Cutting

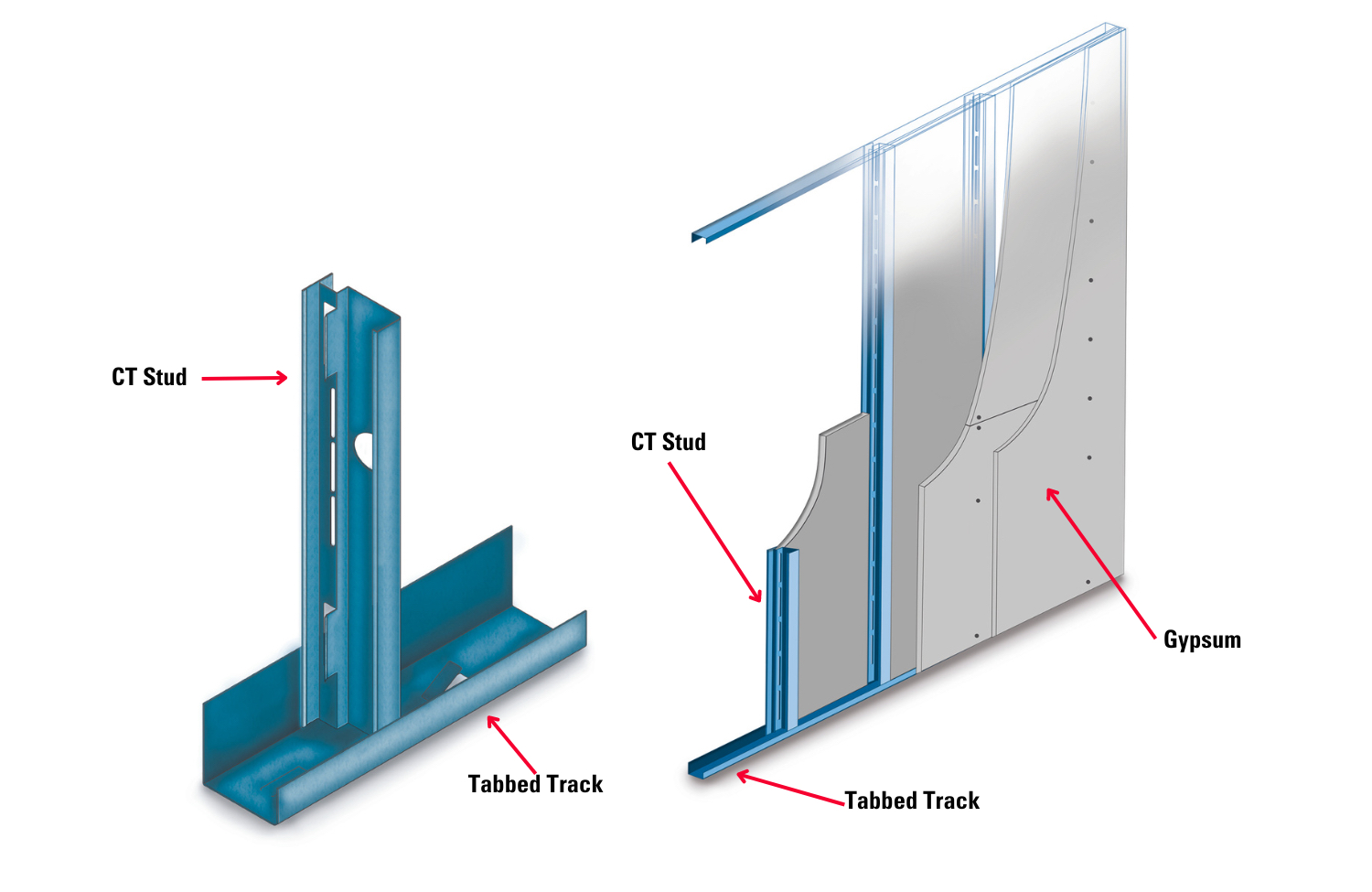

For shaftwall applications, the Shaftwall C-T Stud And Track Roll Forming Machine follows a similar production logic with specialized tooling for C-T profiles used in elevator shaft and stairwell enclosures.

Uncoiling and Leveling – The Foundation of Forming Stability

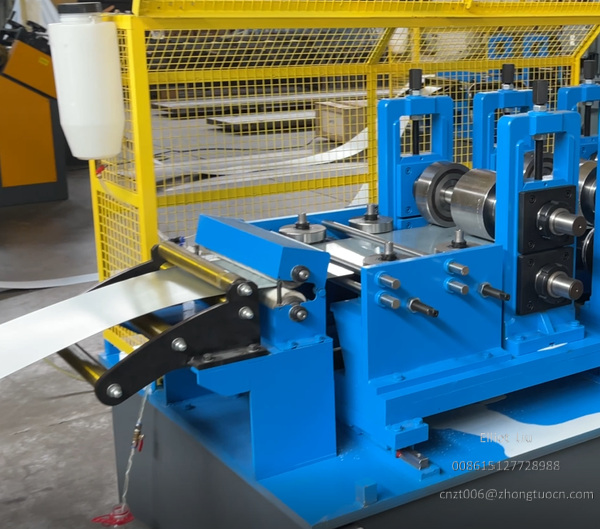

The Drywall Stud And Track Roll Forming Machine line starts at the passive decoiler. Steel coils are loaded onto the decoiler, which carries the coil and provides steady unwinding tension. The strip then enters the leveler, which removes internal stresses from coil storage and transport while correcting flatness issues.

A flat strip with even tension entering the forming station is essential for forming accuracy and dimensional consistency. The Drywall Stud And Track Roll Forming Machine's leveling stage directly affects subsequent forming quality.

Punching and Roll Forming – From Flat Strip to Finished Profile

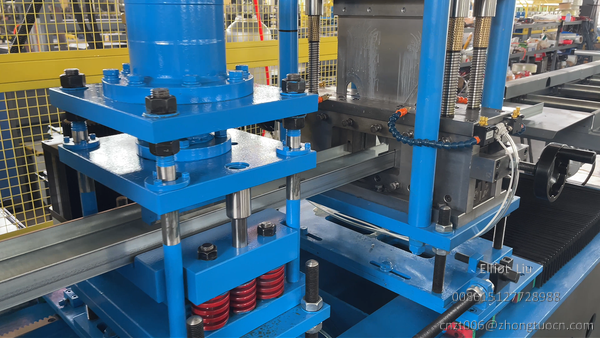

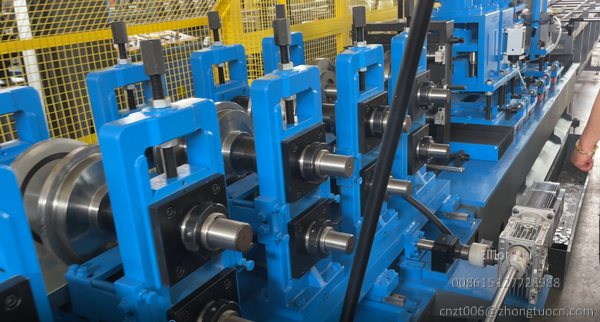

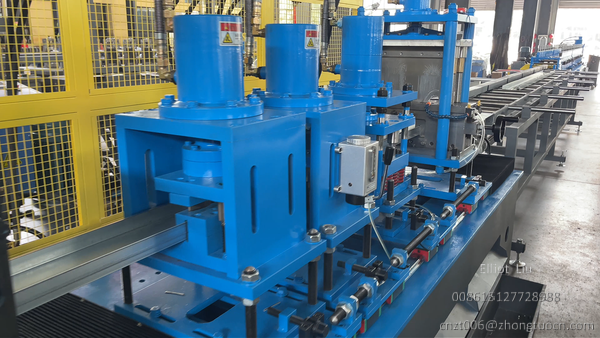

The leveled strip moves to the punching station and then the forming machine. The punching station creates mounting holes and service openings at preset locations. The Drywall Stud And Track Roll Forming Machine uses multi pass progressive forming to gradually roll the strip into the final profile.

Multi pass forming applies small bending angles progressively rather than forming the entire shape at once. This avoids cracking and stress concentration from sudden deformation. With adjustable spacers for 3 sizes, the Drywall Stud And Track Roll Forming Machine produces different web heights to cover common building project requirements.

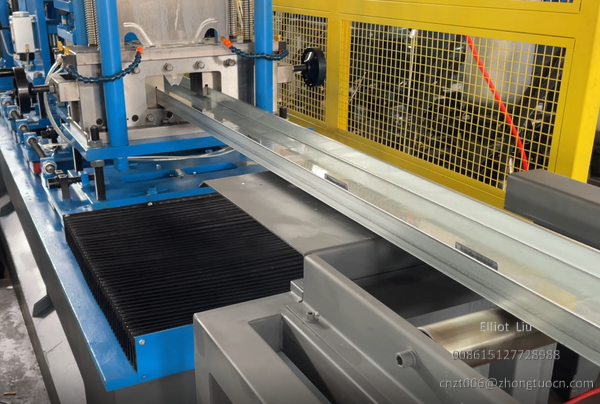

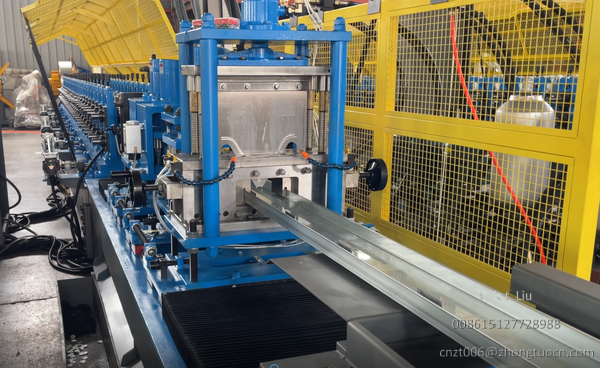

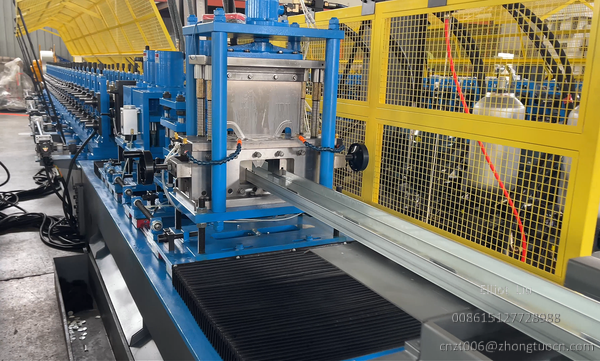

Cutting and Finished Output

The hydraulic cut off device performs length cutting while the line runs continuously. Finished profiles are collected after cutting and ready for packing or direct shipment to site. The Material Automatic Production Line configuration supports continuous operation with minimal manual intervention between stages.

Surface Protection Throughout Production

Galvanized coil surface quality affects the finished product's corrosion resistance and service life. The Drywall Stud And Track Roll Forming Machine includes features that help protect the material surface during production:

• Feeding guide design that reduces friction between the strip and equipment edges

• Roller surface treatment and material selection that control contact marks

• Dust cover that prevents foreign particles from pressing into the material surface

Protecting the surface from uncoiling to finished product helps maintain coating integrity and product quality.

Equipment Reference Specifications

The following specifications come from equipment configuration data:

Summary

Modular construction and prefabricated finishing demand standardized drywall stud and track production with reliable supply. The Drywall Stud And Track Roll Forming Machine helps manufacturers achieve consistent quality through integrated leveling, multi pass forming, and full line automation. The Drywall Stud And Track Roll Forming Machine can provide equipment selection advice based on your specific profile requirements and capacity needs.
