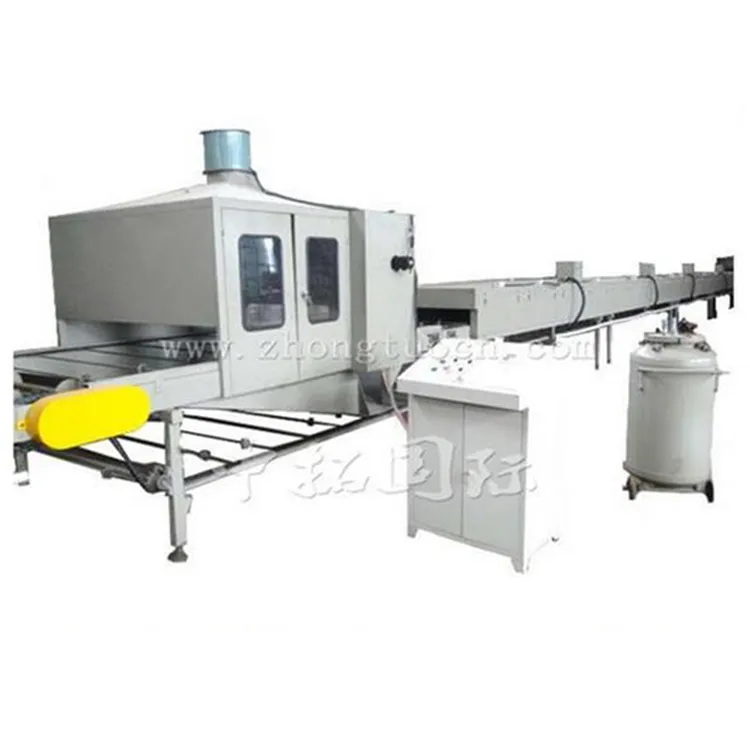

Stone Tile Making Machinery Stone Coated Steel Roof Machine 8-12m/min+welding pipe making machine+5.5KW

Name: Stone Tile Making Machinery Stone Coated Steel Roof Machine 8-12m/min+welding pipe making machine+5.5KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT82651058

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

8-12m/min

Model Number:

welding pipe making machine

Power(W):

5.5KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications
- Type
  Tile Forming Machine
- Tile Type
  Colored Glaze Steel
- Use
  ROOF
- Voltage
  380V 50Hz 3phases
- Rolling Thinckness
  1.2mm
- Feeding Width
  1000mm
stone tile making machine stone coated steel roof machine

stone tile making machine stone coated steel roof machine details

Name QTY Production time FOB price

Stone coated roofing sheet production line 1 set 90 working days 34500-150000 USD

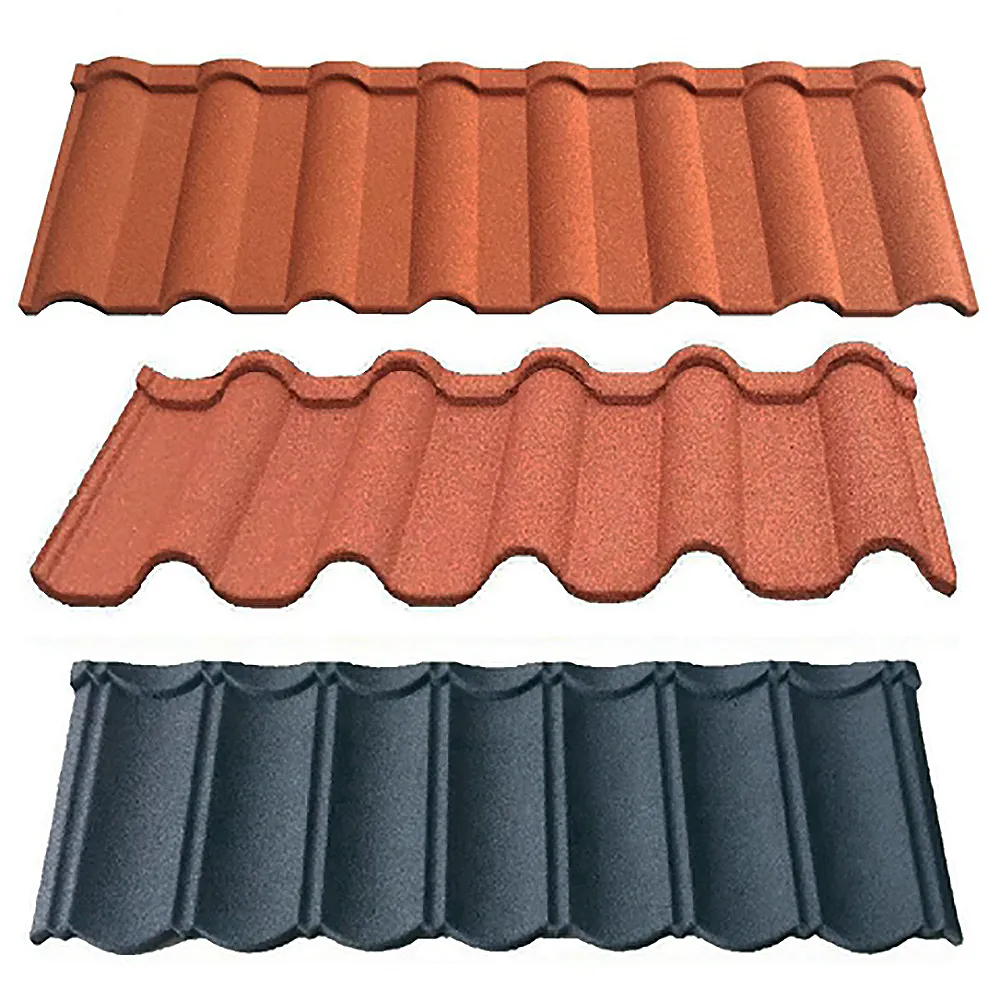

Colorful stone-coated metal roof tile is a modern environmentally friendly roofing material

with the basic of 0.4mm Al-zin coated steel. Covering color vermiculite surface which carried

under the high temperature technology.

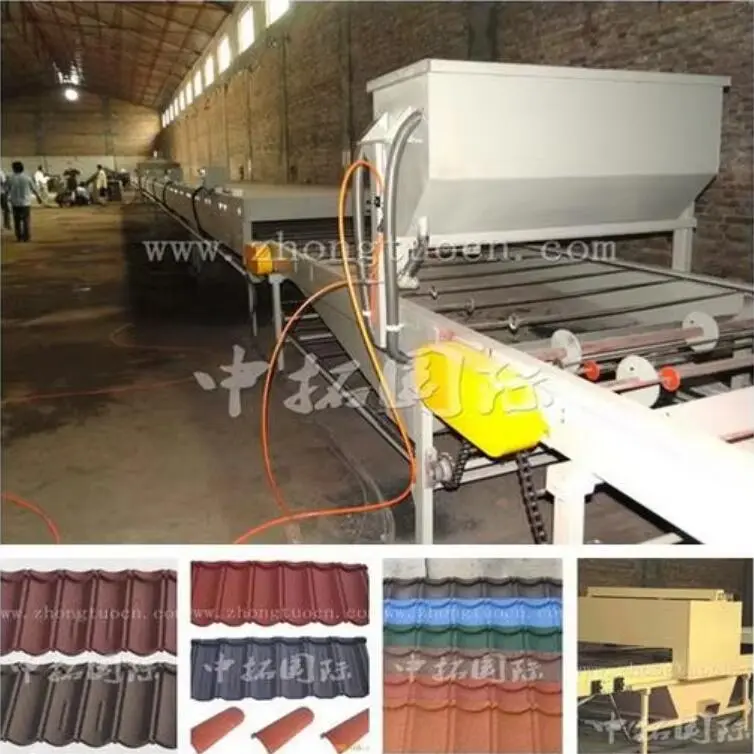

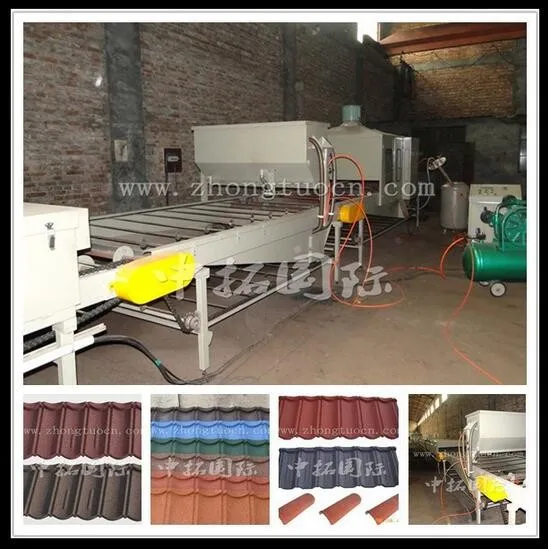

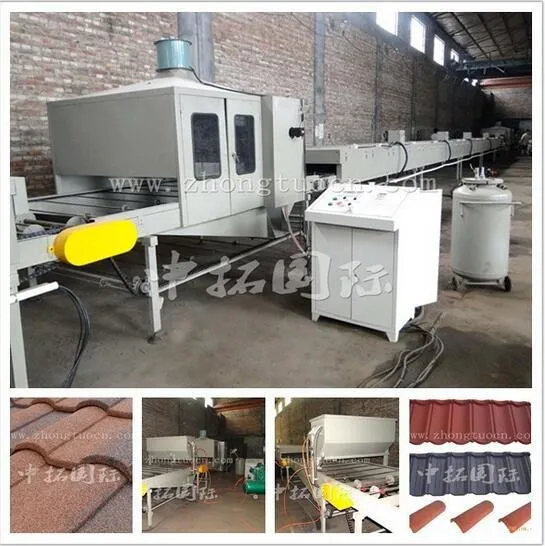

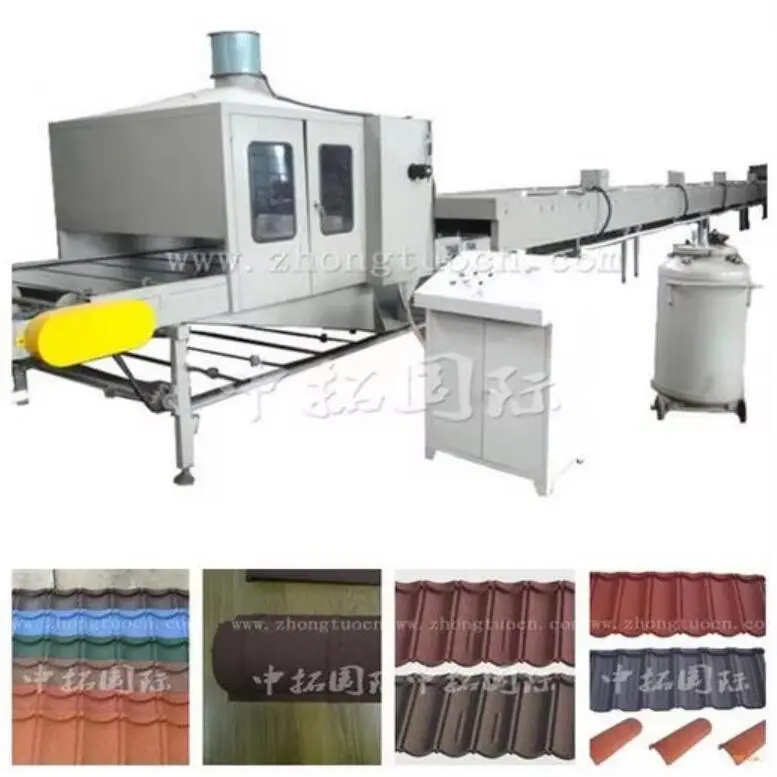

We developed this stone coated production line based on long time running and improvement.

It is high-performance, stable, energy-efficient and easy operation.

It is including five main parts:

1 Auto bottom gule spraying section

2Auto stone coated section

3 The first time drying section

4 Auto face gule spraying section

5 The second time drying section

Introduction:

1. Auto bottom gule spraying section

Appearance size: 4000*1000*2000          Unit: mm

Driving section: 3KW Excitation motor or frequency speed regulation (AS per

customers' requirements )

Automatic pressure spray tank: 1set  capability: 200kg   Range:0.6~1Mpa

Automatic glue machine motor: Servo motor, Power: 750w, plc

Automatic spray gun: 4 set (spare parts)

Dust collecting fan: 1set    power: 200w

Damp proof lamp: 1pc      power: 100w

Conveying device: Chain reciprocating

Air compressor: 1set   power: 7.5kw

Dust control of axial flow fan: 1set   power: 200w

Agitator: 1set   power: 1.5kw

2 .Auto stone coated section

Appearance size: 3500×1000×1500         Unit: mm

Framework: Steel welding

Conveying device: Chain reciprocating

Automatic sand hopper: 1set    capability: 200kg

Bucket lift: 1 set

Manual sandblast gun: 4sets

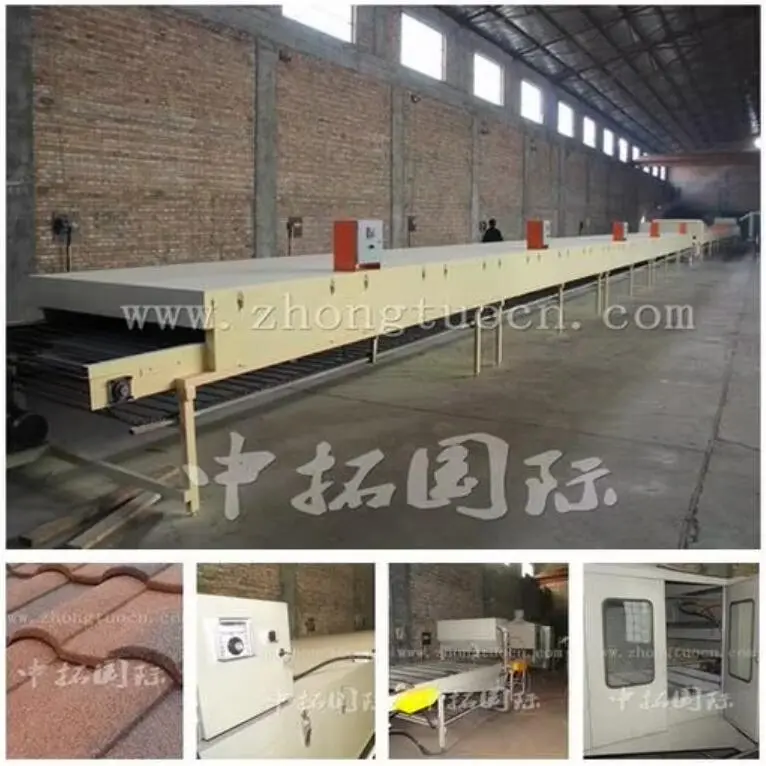

3. The first time drying section

Appearance size: 25000×1000×1200           Unit: mm

Framework: Steel welding

Frame type thermal insulation wall: 1.2mm cold steel with Rock wool

Automatic temperature controller: 4set  Range:0°~160°

Infrared heating tube: 30pcs   Power: 30kw

Conveying device: Chain reciprocating

Air cooling device: 1 set    Power:200w

The first time drying section

4. Auto face gule spraying section

Appearance size: 3000×1000×2000           Unit: mm

Framework: Steel welding

Damp proof lamp: 1pc        Power:100w

Automatic pressure spray tank: 1set   capability: 200kg   Range: 0.6~1Mpa

Conveying device: Chain reciprocating

Automatic spray gun: 4 set (spare parts)

Manual patch glue gun: 4 set

Dust control of axial flow fan: 1set    power: 200w

Automatic glue machine motor: Servo motor, Power: 750w

Product Description

Company Information

FAQ

1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

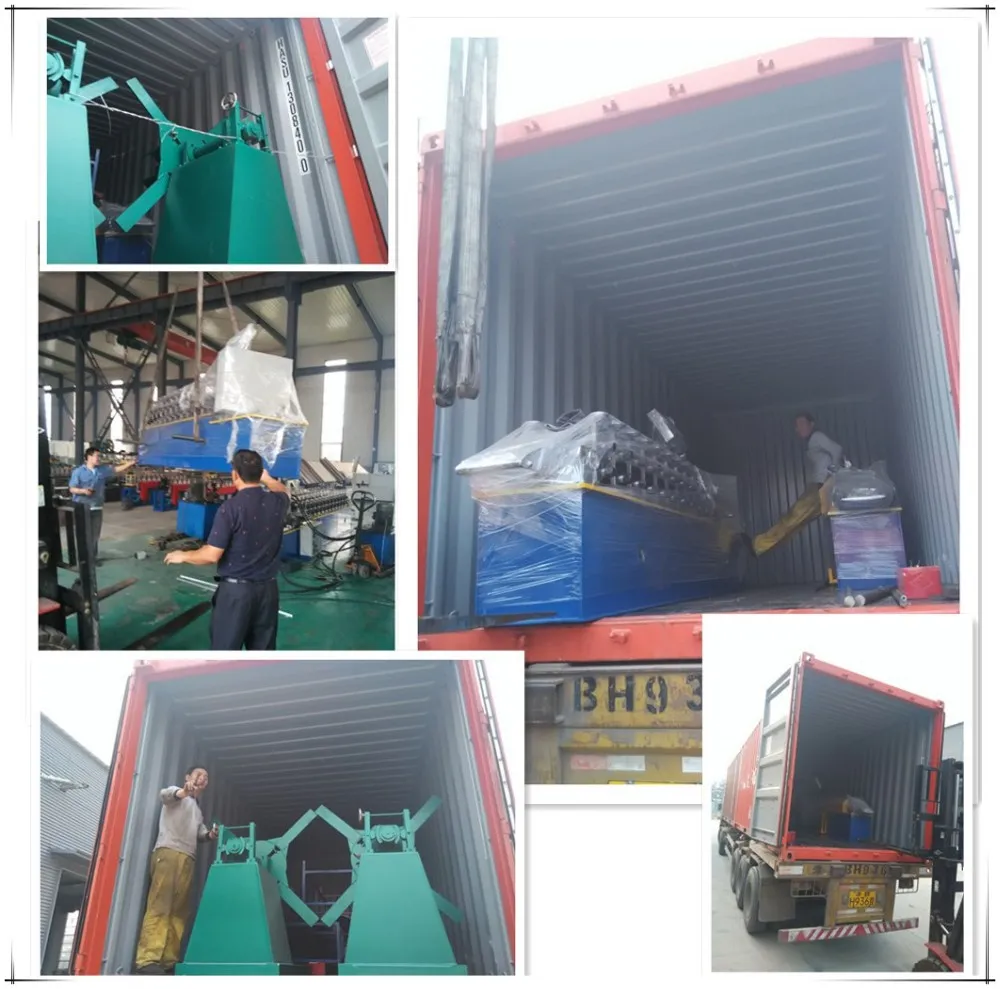

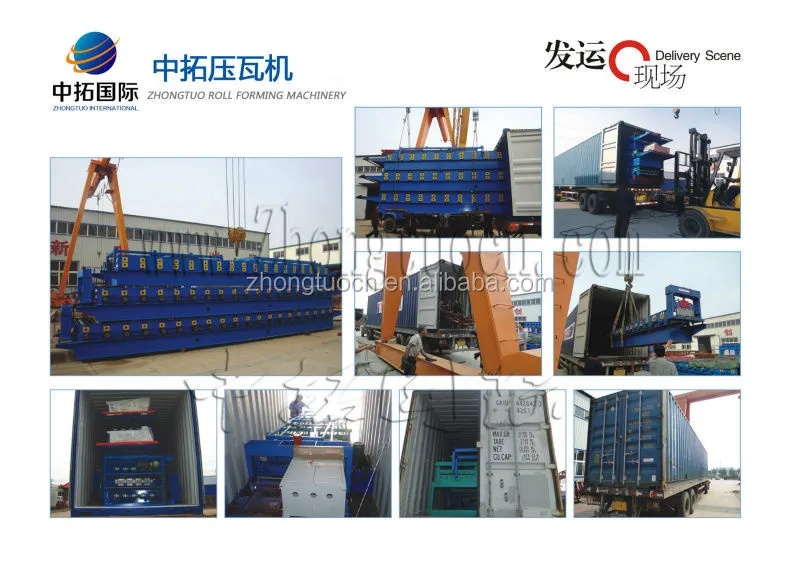

5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.

6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.

7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.

8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
