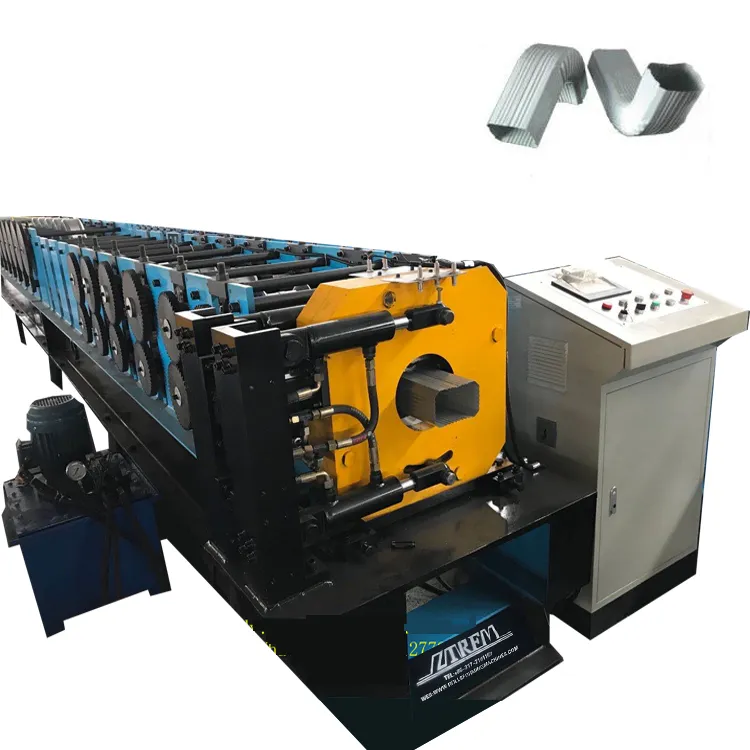

Steel Roof Rain Collection Gutter square Downspout Pipe Making Machine ZT--004+22kw

Cangzhou Zhongtuo International Trade Co., Ltd

Steel Roof Rain Collection Gutter square Downspout Pipe Making Machine ZT--004+22kw

Name: Steel Roof Rain Collection Gutter square Downspout Pipe Making Machine ZT--004+22kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT85343312

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ZT--004

Power(W):

22kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
ROOF
Voltage
380V 50Hz 3phases or as your requirement
Rolling Thinckness
0.3-0.8mm
Feeding Width
200-300mm

Product Description

steel roof rain collection gutter downspout pipe making machine

automatic control PPGI steel Downspout making Machine downspout machine and Bending Machine is for making the downspout pipe for rain water collection and guiding.

automatic control PPGI steel Downspout making Machine downspout machine and Bending Machine adopts new high-tech, owning higher speed and lower noise.All machines can be customized. Machine frame is Wall plate welded, plate thickness of 16mm, which is durable for many years. The production line consists of decoiler, downspout roll forming machine, control station,oill pump,run-out table,bending machine.

Main compoments of automatic control PPGI steel Downspout making Machine downspout machine

N/M	DESCRIPTION	QUANTITY
1	3 ton manual decoiler	1 set

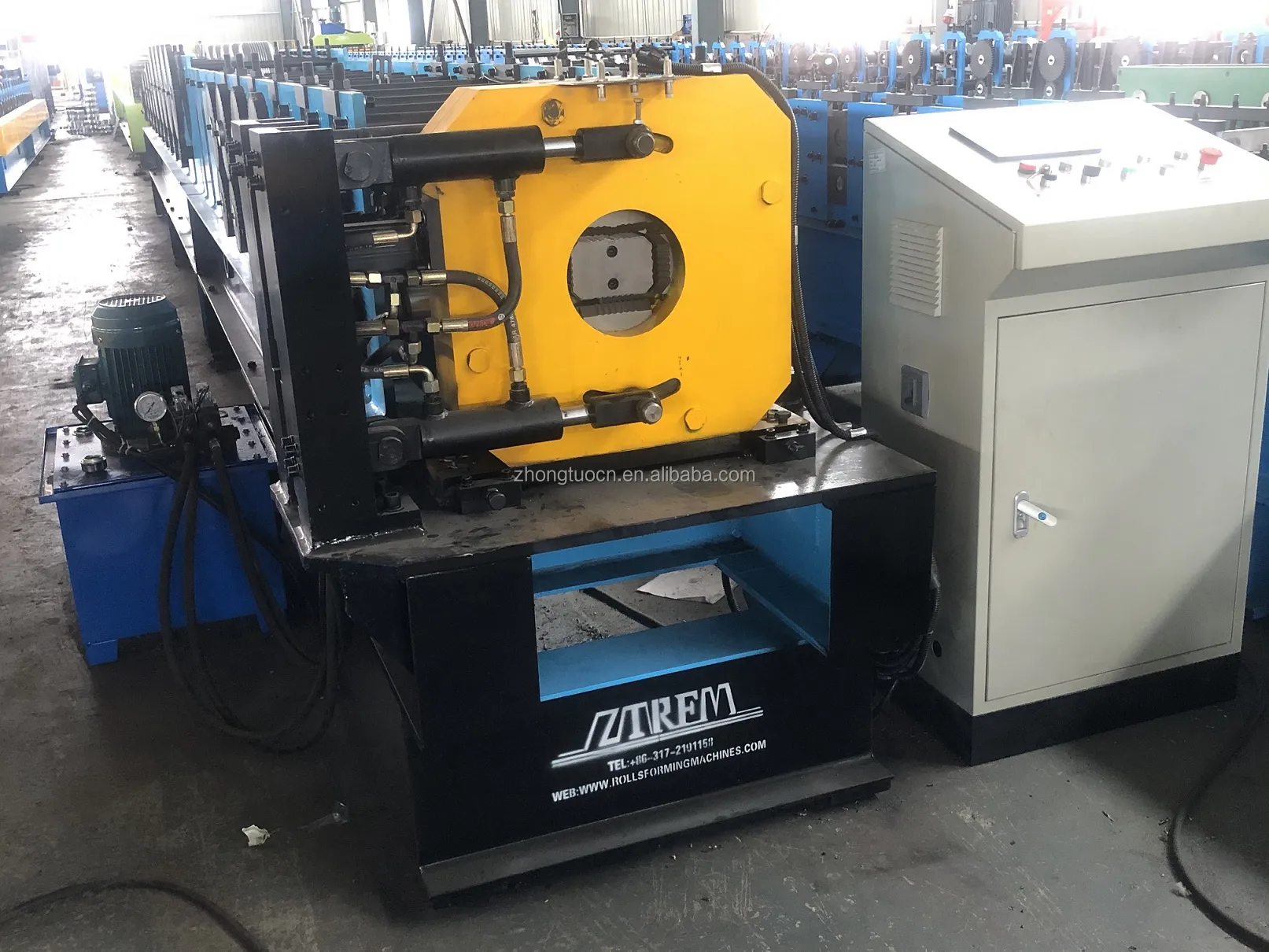

2	Downspout Roll Forming Machine with cutting	1 set
3	Control station	1 set
4	Oil pump station	1 set
5	Run-out table	1 set

Products Display

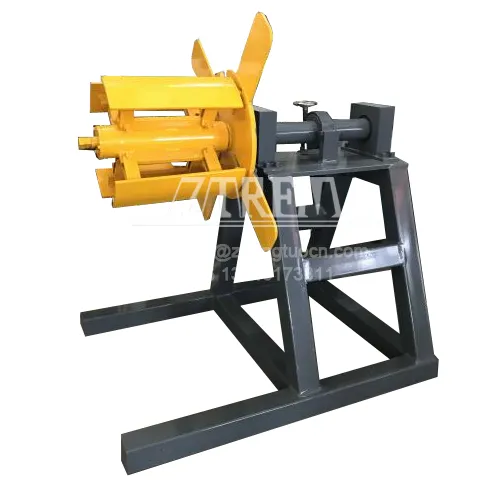

Manual decoiler
Power	by mannual
Loading capacity	3T
Inner diameter	450-550mm

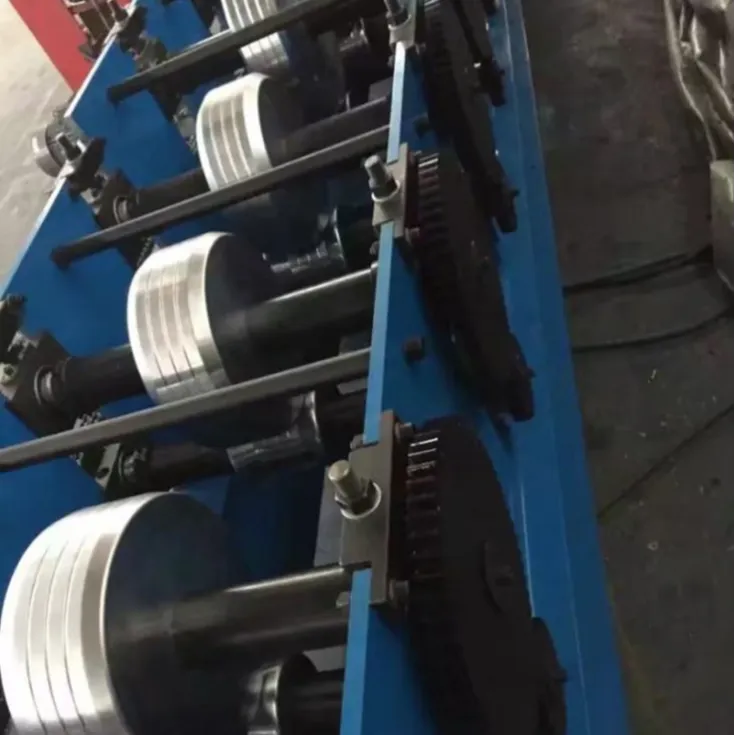

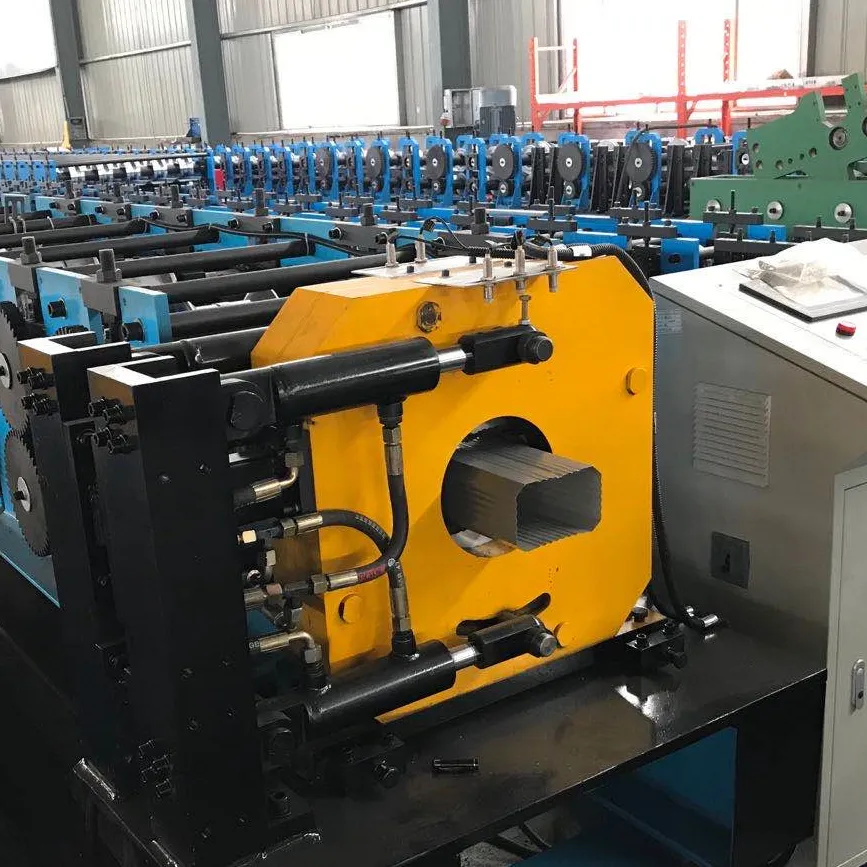

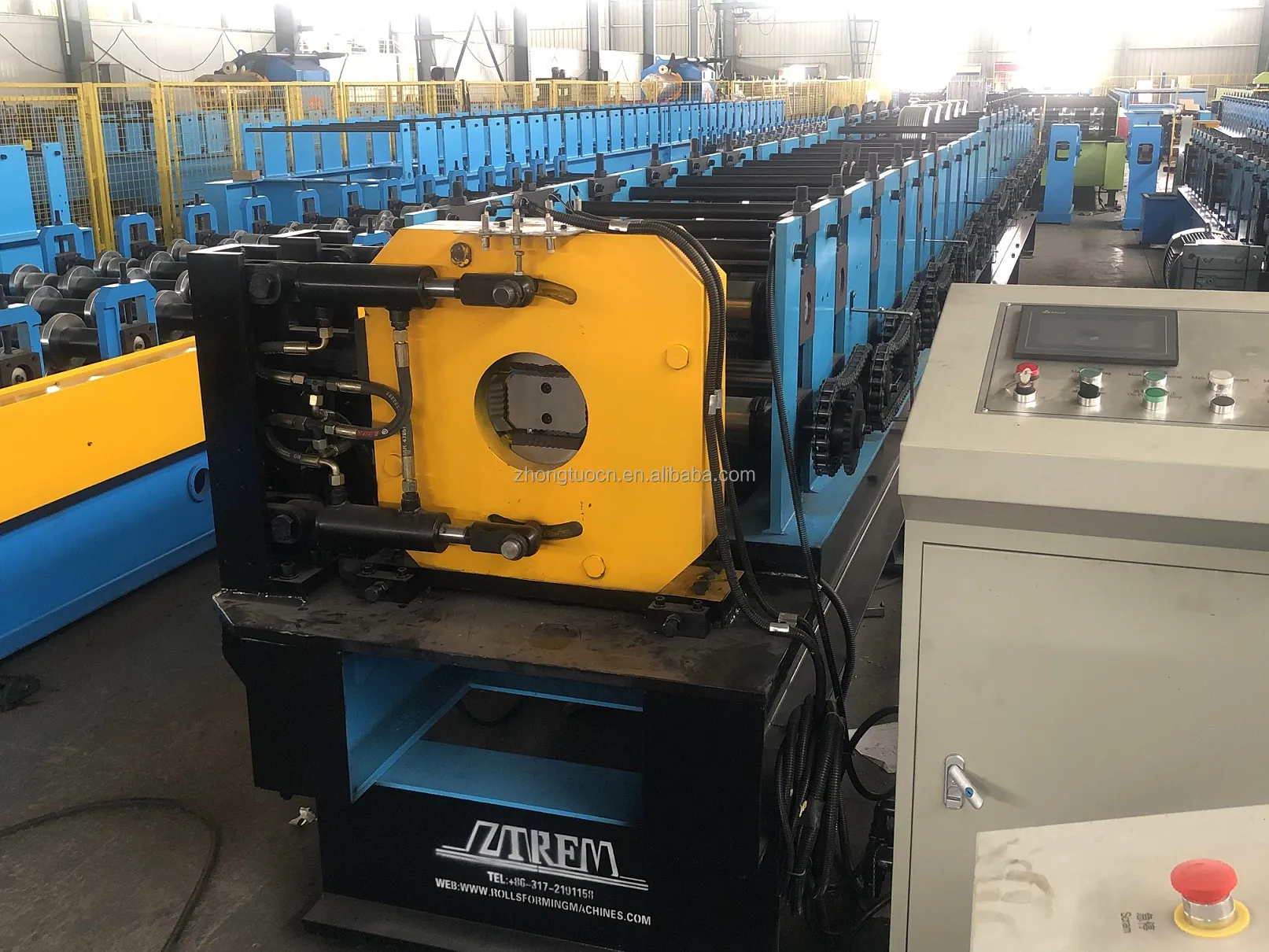

automatic control PPGI steel Downspout making Machine downspout machine
Raw material	PPGI/GI
Thickness	0.7 and 0.8mm(Thickness can be adjusted manually)
Feeding unit	Placed on the machine by seller
shaft material	45# steel
Roller shaft diameter	60mm
Roller station	21 stations in horizontal
speed	8-10m/min
Transmission	gear and chains
power	5.5kw

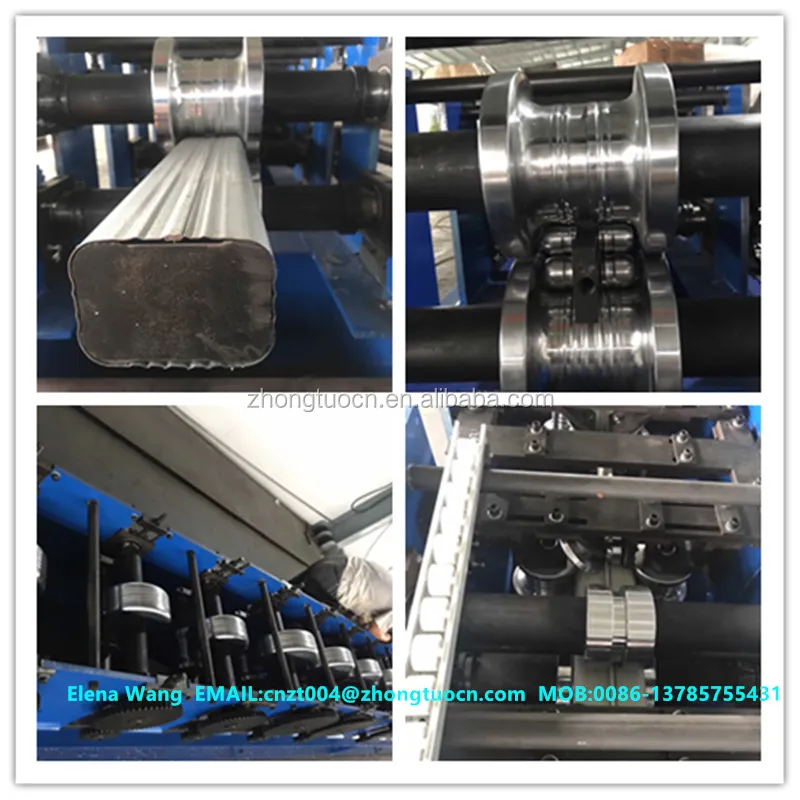

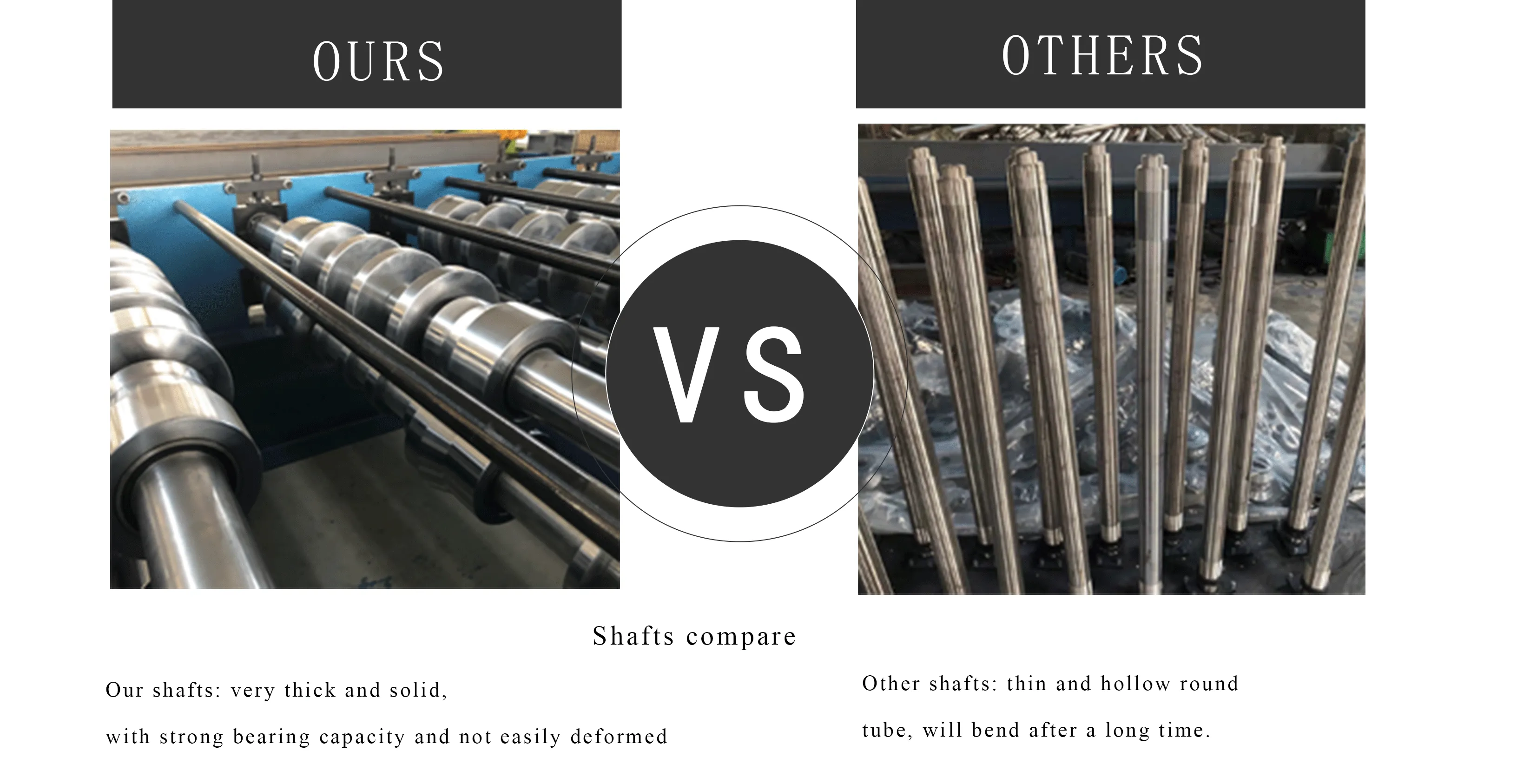

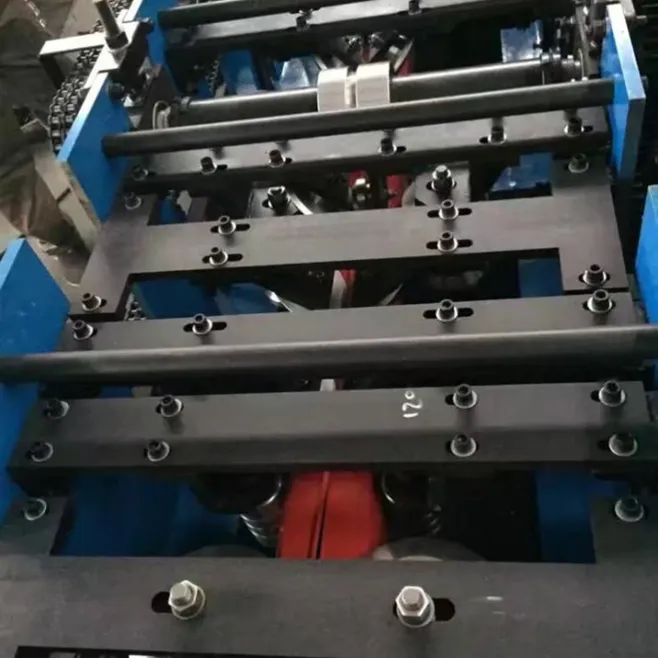

In order to keep the product shape and precision,chain dive, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working.

The machine adopts middle plate frame.
Feature: Ensure stability, precision and durable

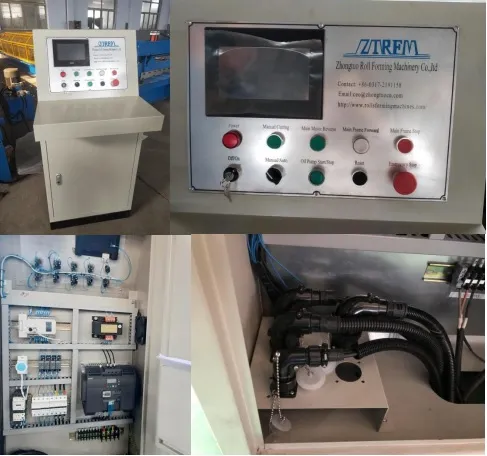

control system
Usage	Computer is used to control length and quantity. Machine will automatically cut to length you need and stop when required quantity is achieved.
PLC brand	Delta
Control panel	Touch screen
Advantage	Adopted Aviation plug，easy for customer installation.

Why Choose Us

Company Profile

Customer Photos

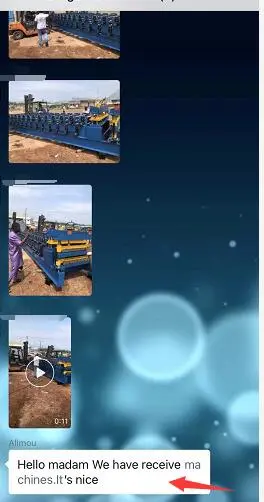

customer good feedback of our machines:

Recommend Products

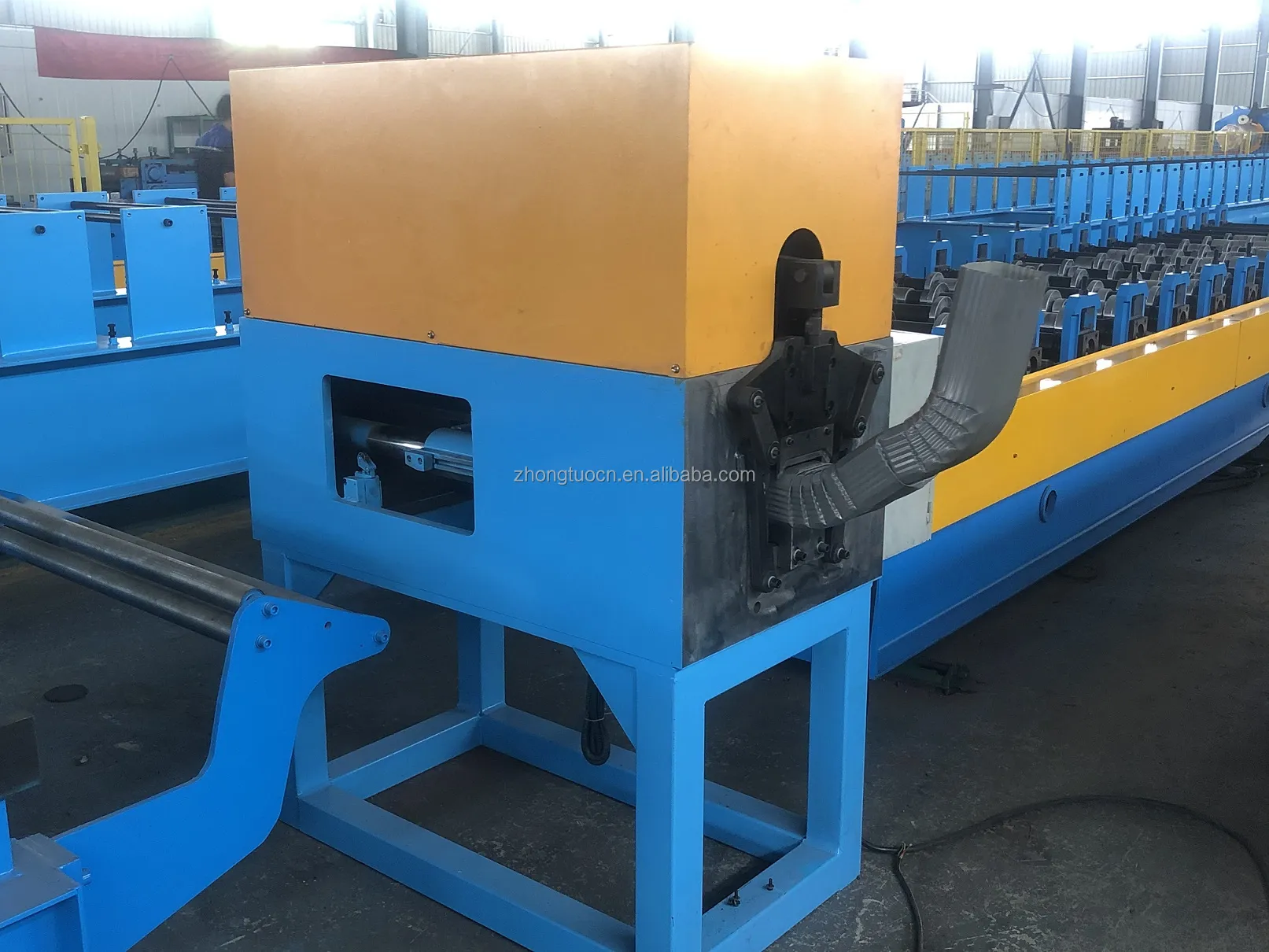

Metal Downspout Bending Elbow machine

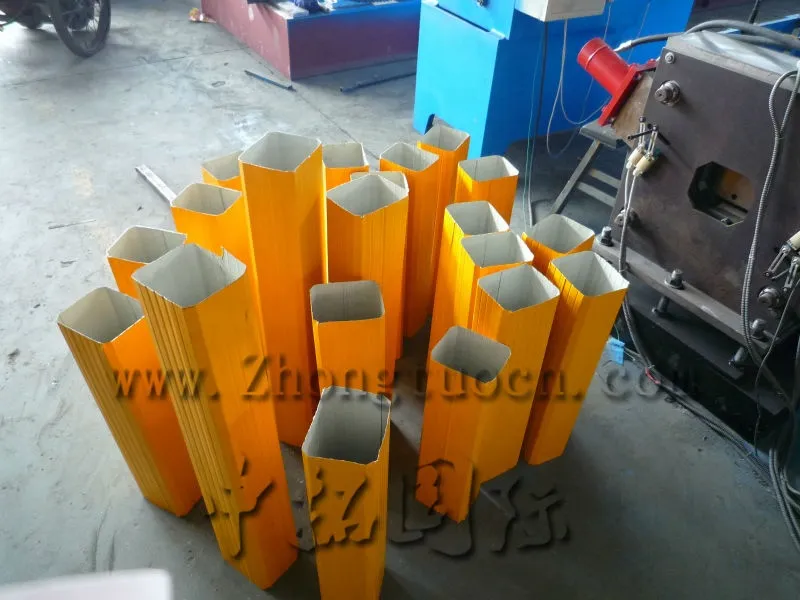

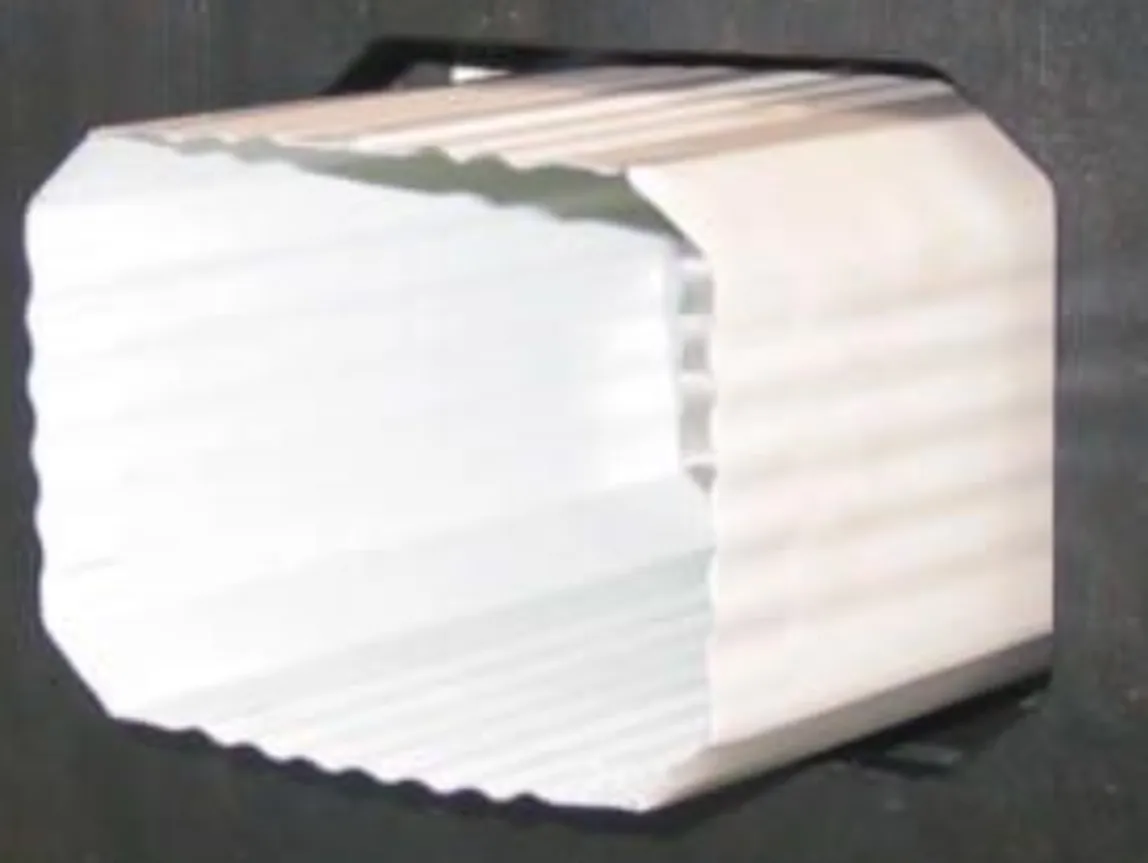

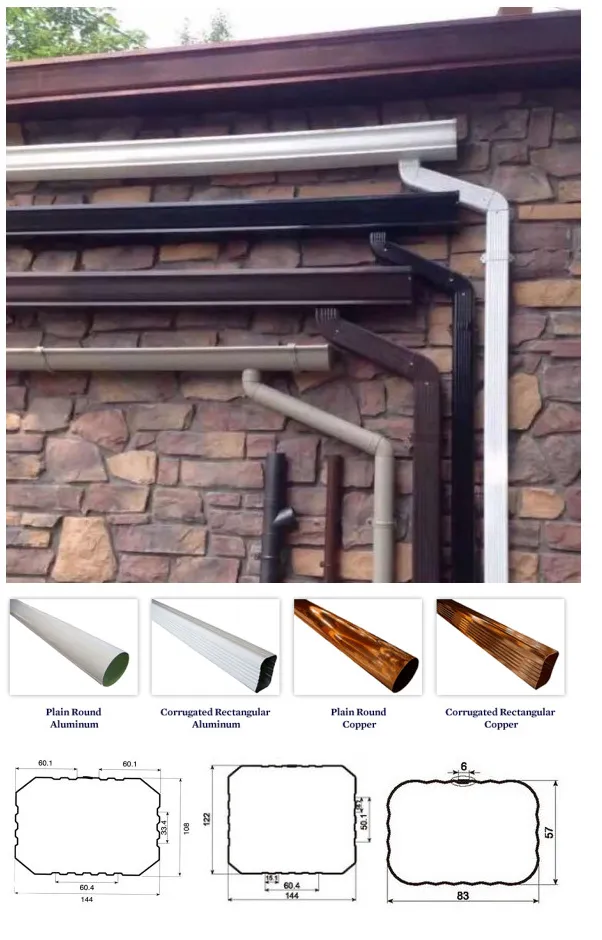

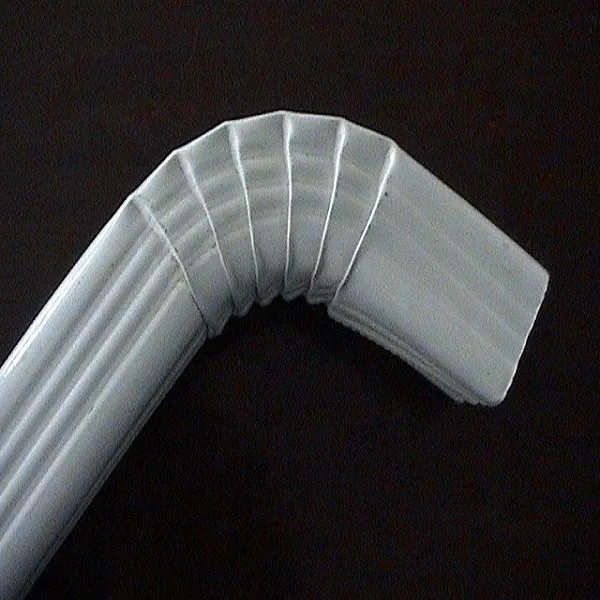

Machine finished products showing

Product packaging
