Product Overview

The Gear-Driven Stepped Roof Ridge Cap Roll Forming Machine is engineered to produce high-specification metal roof ridge tiles and apex flashing components for residential villas, industrial warehouses, and commercial prefabricated buildings. The gear-driven power train ensures uniform feeding speed and high profile precision even with thicker prepainted metal coils.

The line accommodates PPGI, PPGL, galvanized steel, and galvalume coils with an initial feeding width of 400mm (up to 1200mm uncoiled custom sheet capacity). It shapes materials from 0.3mm to 0.8mm (recommended 0.4-0.8mm for deep step definition) into finished ridge caps featuring a 300mm effective cover width, 95mm crown arch height, and 20mm lateral fixing lips.

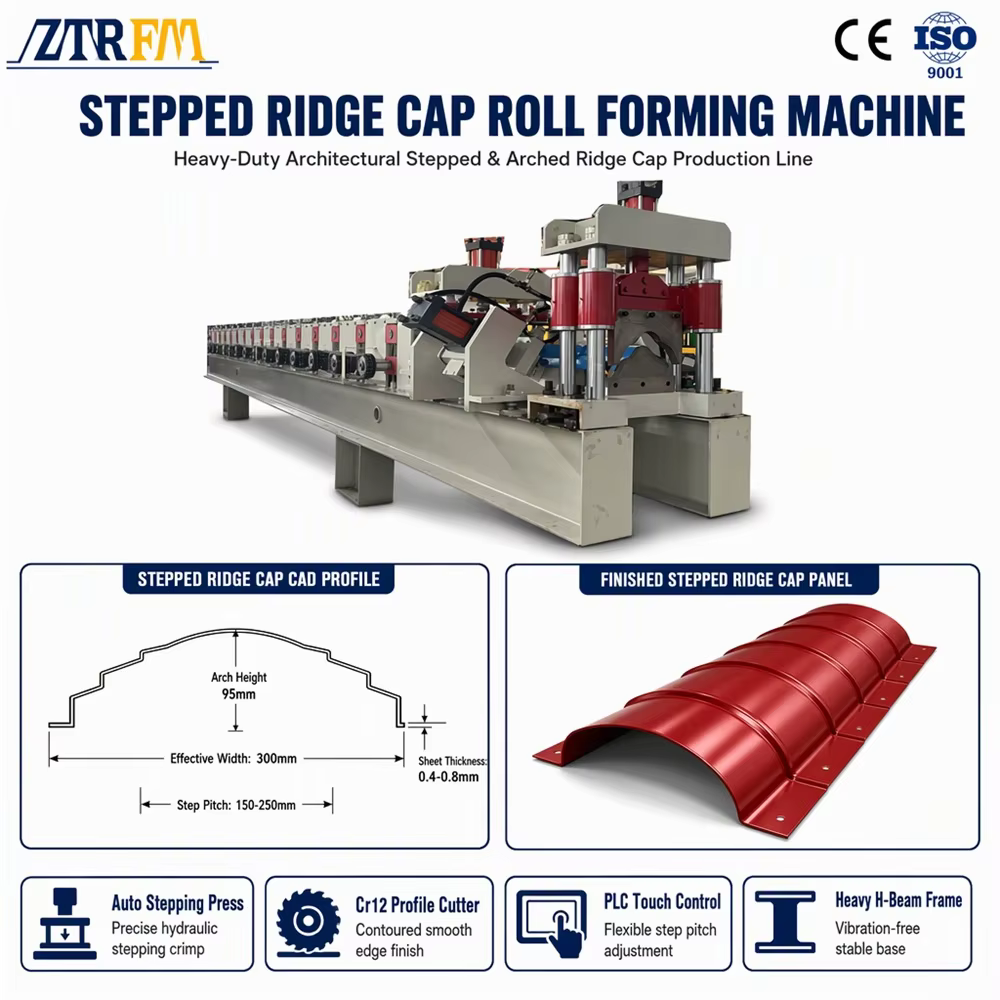

1: Gear-Driven Stepped Ridge Cap Machine Overview & CAD Profile

Key Technical Features

• Heavy H-Beam Welded Bed Frame: High-tensile structural H-beam foundation eliminates mechanical vibration and maintains absolute station-to-station alignment during high-speed rolling.
• Independent Side Gear Drive: Each forming station is powered by enclosed hardened steel gear sets, ensuring constant pitch velocity and eliminating chain stretch issues.
• Mirror Hard Chrome Plated Rollers: Roller dies undergo precision CNC contour turning and 0.05mm hard chrome plating, protecting prepainted coils from scuffing or micro-cracking.
• Polyurethane Anti-Scratch Support Rollers: Integrated wear-resistant yellow polyurethane guide wheels support the profile during progression, preserving coil surface finish.
• Integrated Electrical Control Console: User-friendly touchscreen console with emergency stop and pendant handheld controller for rapid inching and commissioning.

2: PLC Digital Control Console & Machine Line in Factory Workshop

Technical Specifications

Parameter / Item	Standard Specification
Equipment Type	Gear-Driven Stepped Metal Roof Ridge Cap Roll Forming Machine
Applicable Profile	Stepped Round Barrel Ridge Cap / Sidewall Flashing Panel
Finished Profile Geometry	Effective Width: 300 mm; Crown Arch Height: 95 mm; Flange Width: 20 mm
Suitable Raw Material	Prepainted Galvanized Steel (PPGI), Galvalume (PPGL), GI, GL
Raw Material Thickness	0.3 - 0.8 mm (Recommended: 0.4 - 0.8 mm)
Coil Feeding Width	400 mm (Design standard) / Up to 1200 mm custom input
Transmission Type	Gearbox Drive with Heavy Intermediate Transmission Gears
Production Speed	0 - 30 m/min (depending on stepping pitch)
Step Pitch & Depth	Pitch: 150 - 250 mm (Adjustable via PLC); Crimping Depth: 12 mm
Main Drive Motor Power	5.5 kW Heavy-Duty Electric Motor
Hydraulic Power Unit	High-pressure hydraulic station for stepping and profile cutting
Cutting & Stepping Tooling	Cr12MoV Die Steel, Vacuum Heat Treated, HRC 58-62
Shaft Material & Specification	High Grade No.45 Forged Solid Steel, Finish Machined & Quenched
Roller Surface Finish	Precision CNC Polished, Hard Chrome Plated (0.05 mm thickness)
Control System	Industrial PLC Control System with Multilingual Touchscreen HMI
Operating Voltage	380V / 50Hz / 3 Phase (Customizable to 220V/415V/440V)
Machine Dimensions (L*W*H)	Approx. 8000 × 1200 × 1500 mm
Total Weight	Approx. 4500 kg
Warranty & Support	2 Years standard warranty with lifetime technical support
Compliance & Quality Certification	CE Certified (Machinery Directive / Low Voltage Directive), ISO9001

3: Hydraulic Profile Cutting Station & Contoured Shear Die

Gearbox Transmission Stands & Roller Assembly

The machine utilizes precision side gear transmission stands mounted onto a normalized heavy channel base. Intermediate gears synchronize roll rotation, ensuring uniform progressive arc shaping without sheet slipping or surface scuffing.

• Transmission Gearbox: Enclosed gearboxes with heavy-duty spur gears for maintenance-free long service life.
• Anti-Scratch Polyurethane Rolls: Non-marking polyurethane auxiliary rolls prevent edge paint peeling on sensitive color-coated steel.
• Gradual Bending Progression: Multi-stand progression guarantees symmetrical arc curvature without camber or edge wave.

4: Gear-Driven Forming Stands with Chrome Rollers & Polyurethane Wheels

Stepped Ridge Cap Blueprint & Geometry

The produced stepped ridge cap delivers both functional weatherproofing and refined architectural aesthetics across sloped roofing installations:

• Arch Height: 95 mm
• Cover Width: 300 mm
• Feeding Width: 400 mm
• Step Pitch (Crimp Interval): 150 - 250 mm (adjustable)
• Step Crimping Depth: 12 mm
• Lateral Flange: 20 mm on both sides for watertight mechanical fastening

5: CAD Profile Blueprint & Finished Stepped Ridge Cap Panel

Applications in Steel Building Envelope

Stepped metal ridge caps serve critical weatherproofing and aesthetic functions in sloped roofing architectures:

• Main Ridge Capping: Seals the roof peak ridge junction against severe rain, wind, and debris infiltration.
• Hip Roof Transitions: Caps hip rafters in multi-slope residential villa designs for a clean, unified architectural profile.
• Sidewall Flashing: Provides watertight junctions between metal roofs and vertical parapet brick/masonry walls.

Supply Scope & Ocean Packaging

Standard supply scope covers complete turnkey production line equipment: 5-ton manual/hydraulic decoiler, gear-driven main roll forming mill with safety covers, hydraulic stepping press station, Cr12MoV profile cutting mechanism, hydraulic power pack, PLC digital control console, and discharge support racks.

All bare precision metal surfaces are coated with protective anti-rust oil. The heavy roll forming machine bed is securely lashed inside 40ft HQ container floorings using high-tensile steel wire ropes and wooden chocks. Electrical and hydraulic units are sealed against moisture and enclosed in reinforced export-grade plywood crates.

Quality Standards & Certifications

Our manufacturing processes conform to ISO9001 international quality management benchmarks. Equipment is fully compliant with European Union Machinery Directive (2006/42/EC) and Low Voltage Directive (2014/35/EU), carrying official CE compliance certificates for worldwide industrial commissioning.

6: CE Certification & ISO9001 Quality Management Verification
