Steel Frame and Purlin Roll Forming Machine with PLC Adjustment for C U Channel and Custom Sizes and High Precision 0-25 m per minute

Steel Frame Rolling Machine 2.7mm Hard Challenges Made Easier

Anyone working with steel knows that thicker material changes everything. The same roll forming process that runs smoothly with 1.0mm sheet can start producing inconsistent dimensions, off angles, and incorrect curves when you switch to 2.7mm. Setup technicians make adjustments, but the results stay unpredictable. The core issue is springback, a physical challenge that makes thick plate forming fundamentally different from thin sheet processing. This article covers the application industries, technical difficulties, and equipment configurations that matter.

Where 2.7mm Thick Steel Cold Forming Is Used

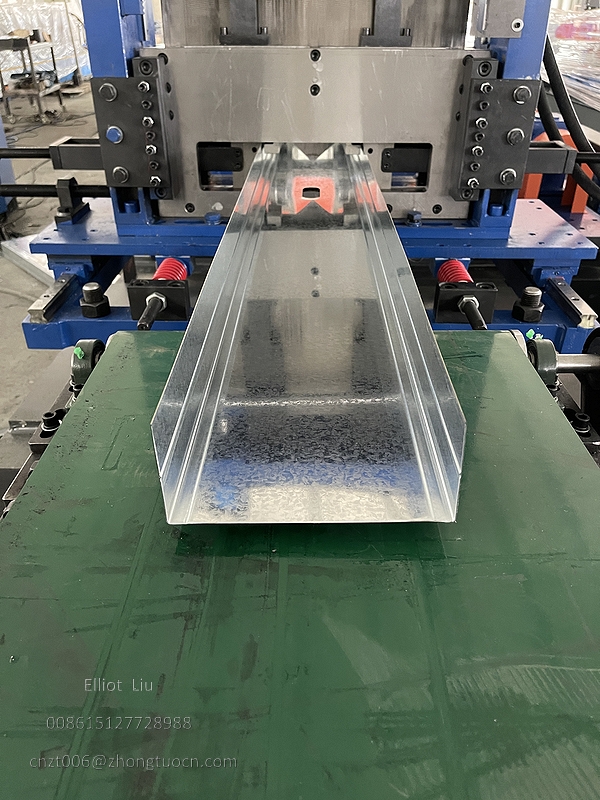

Cold formed profiles in the 1.2 to 2.7mm range are primarily used in load bearing structural applications:

• Heavy steel structures: roof purlins, wall purlins, and frame supports for factories, warehouses, and large public buildings

• Storage and logistics systems: uprights and beams for heavy duty racks that carry substantial loads

• Solar mounting systems: load bearing rails and support structures for photovoltaic installations

• Agricultural facilities: main load bearing frames and cross structures for large greenhouses

• Construction machinery: structural components and equipment frames

• Electrical industry: cable trays and equipment cabinets

What these applications share is a strict requirement for profile strength, rigidity, and dimensional consistency. Thicker material means greater forming difficulty and higher equipment demands.

Why Thick Steel Is Harder to Form Than Thin Steel

The core difficulty with thick plate forming is springback.

The principle is straightforward. During cold forming, the outer layer of the sheet stretches while the inner layer compresses. When the forming force is removed, internal elastic stress releases and the material tries to return to its original shape. That tendency to go back is springback.

Several factors make springback more noticeable with thicker material:

Greater thickness creates larger stress differences. Thicker sheet means a bigger gap between outer layer tension and inner layer compression. The force pushing the material back toward its original shape is stronger.

Thick plate typically has higher strength. Material used for load bearing structures generally has higher yield strength, and higher yield strength means greater elastic recovery and more significant springback.

Springback directly affects dimensional accuracy. Incorrect angles, wrong curves, and holes that do not align with mating components during installation all trace back to springback.

With thin sheet, springback is small enough to compensate through simple adjustments. At 2.7mm, however, springback becomes a more critical factor in whether the finished profile meets specifications.

Advantages of Thick Plate Steel Frame Rolling

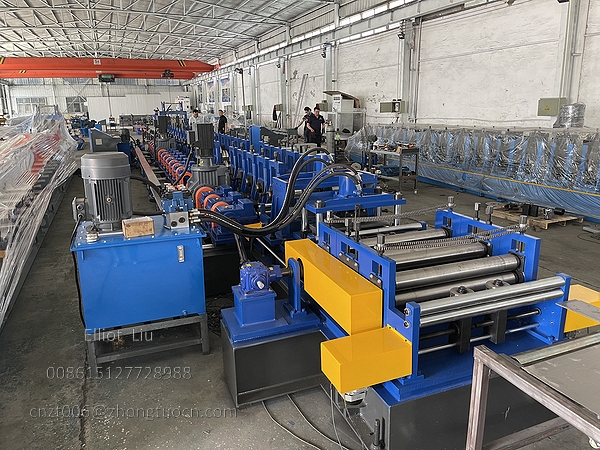

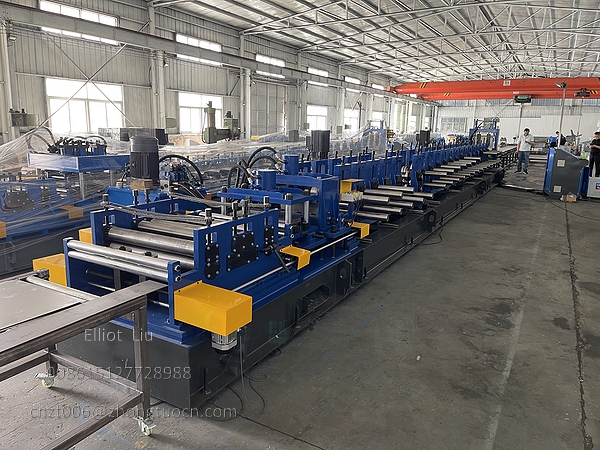

Steel frame structures demand profile strength, straightness, and dimensional consistency. For thick plate springback, this steel frame rolling machine addresses the challenge through three key configurations that influence whether it can consistently produce acceptable profiles.

Forming station count and springback control

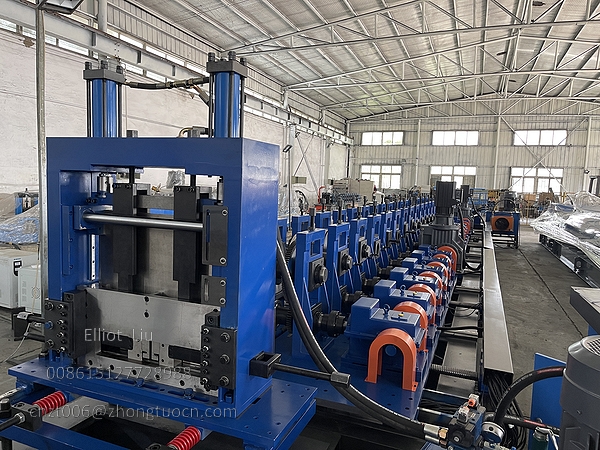

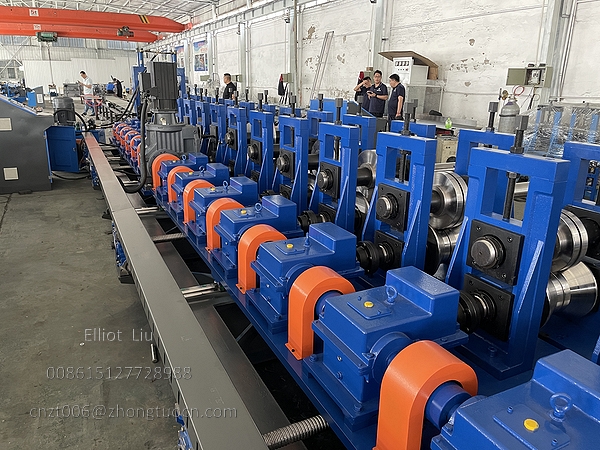

The machine uses 20 forming stations. More stations allow smaller deformation per step, which helps reduce internal stress accumulation. This configuration supports more stable forming results, particularly with thicker material.

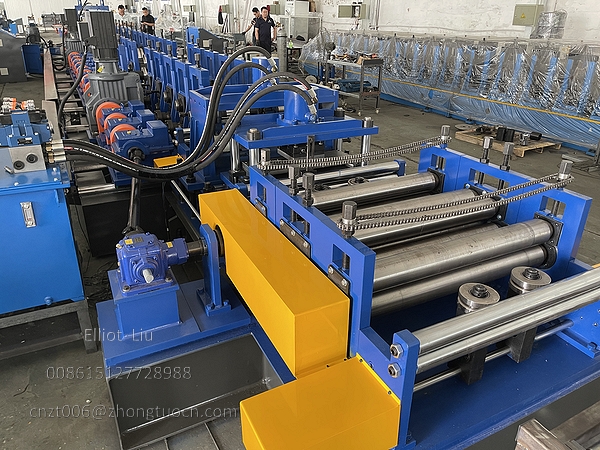

Machine rigidity for long term accuracy

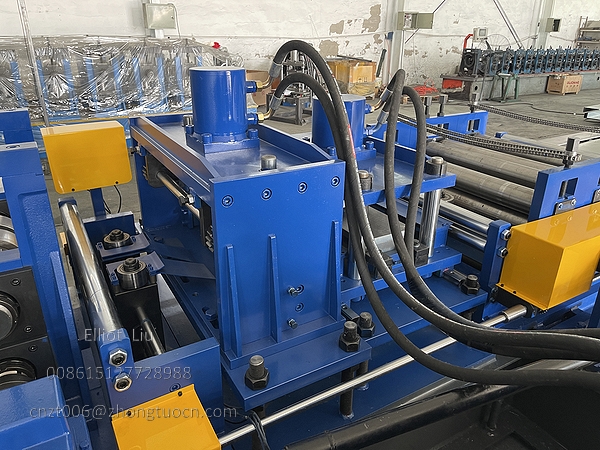

The machine uses a cast steel frame paired with an H beam base. This structural design provides rigidity under the high forces of thick plate forming. The shaft diameter is 230 mm in 45# steel. These specifications contribute to the machine's ability to maintain accuracy over extended production runs.

Roller material for sustained precision

The rollers use Cr15 with quench treatment. This material choice provides hardness for production demands. Thick plate causes more roller wear than thin sheet, so roller material and heat treatment affect whether the machine maintains dimensional accuracy over time.

These three capabilities support the steel frame rolling machine's performance when processing 2.7mm thick material. Buyers should verify each of these points during procurement to ensure the equipment meets their production requirements.

Key Specifications

The following parameters come from the equipment configuration for reference during purchase:

More Machines from the Same Builder

Behind this steel frame rolling machine is a manufacturer with over a decade of experience in cold roll forming equipment. Cangzhou Zhongtuo Cold Roll Forming Machinery Co., Ltd, established in 2014, specializes in the design and manufacture of various cold roll forming machines. Other equipment from the same factory includes:

• C/Z purlin forming machine

• Floor decking forming machine

• Light steel keel forming machine

• Color stone tile production line

• Slitting line

• Roof and wall panel forming machine

The factory provides ODM, OEM, and one stop services covering raw materials, equipment, and related accessories. This means the same supplier can fulfill additional production line equipment needs beyond this thick plate forming machine, reducing the coordination burden of managing multiple suppliers.

Summary

The key to thick plate cold forming lies in understanding springback and selecting the right equipment configuration. Forming stations, machine rigidity, roller material, and shaft diameter are not just numbers on a specification sheet. They influence whether the equipment can consistently produce quality thick plate profiles. Buyers should verify each of these capabilities during procurement to ensure the steel frame rolling machine performs reliably over the long term.
