Product Description

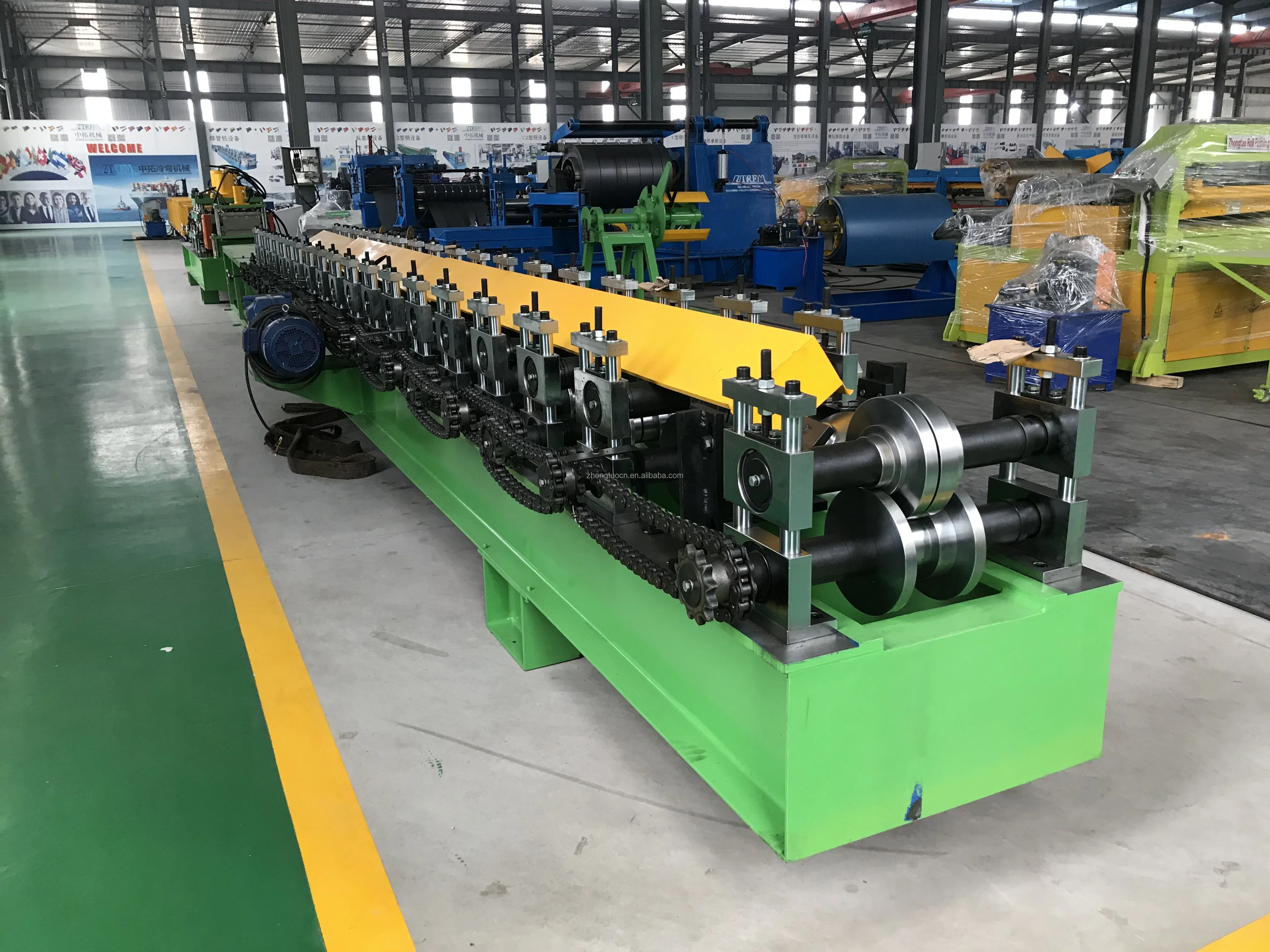

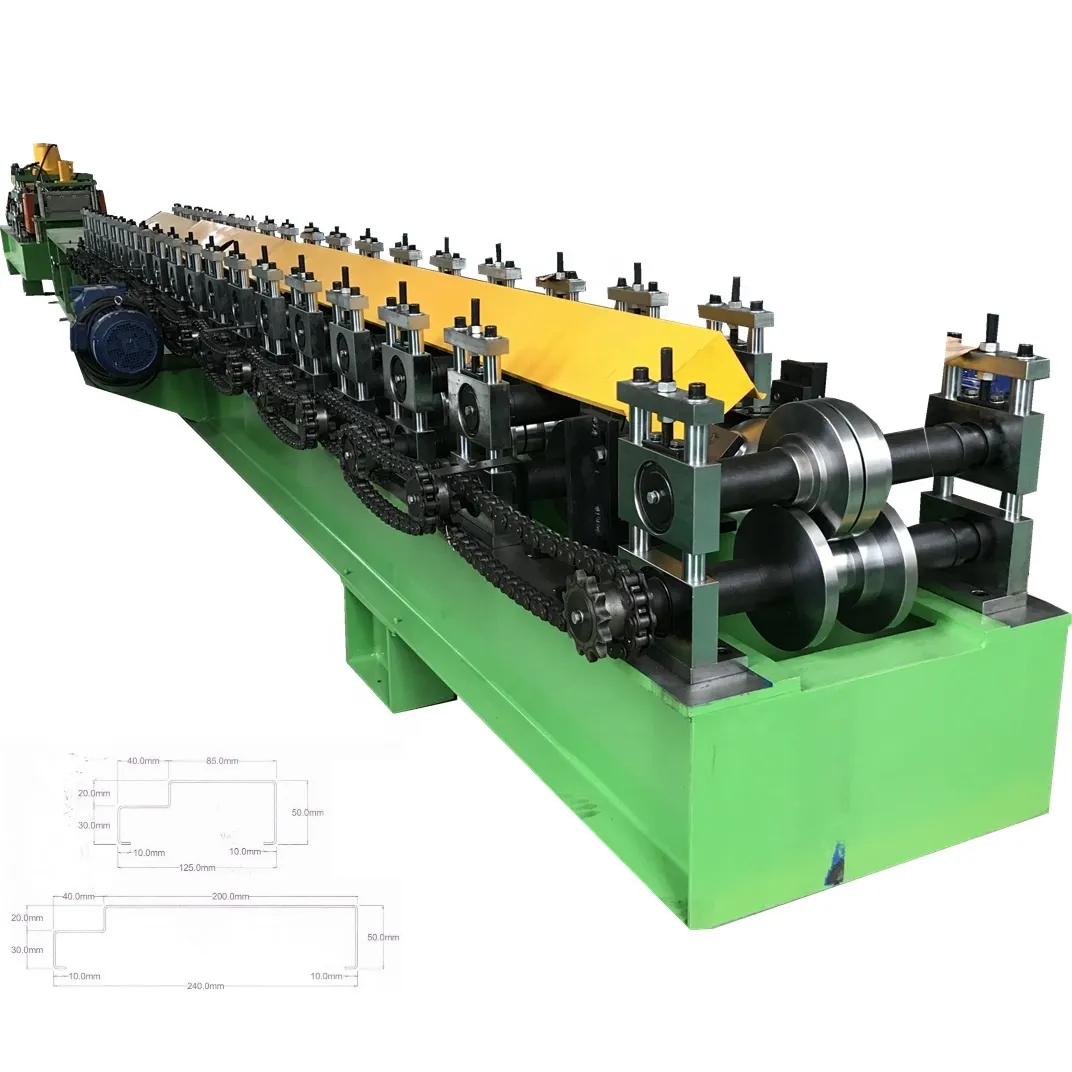

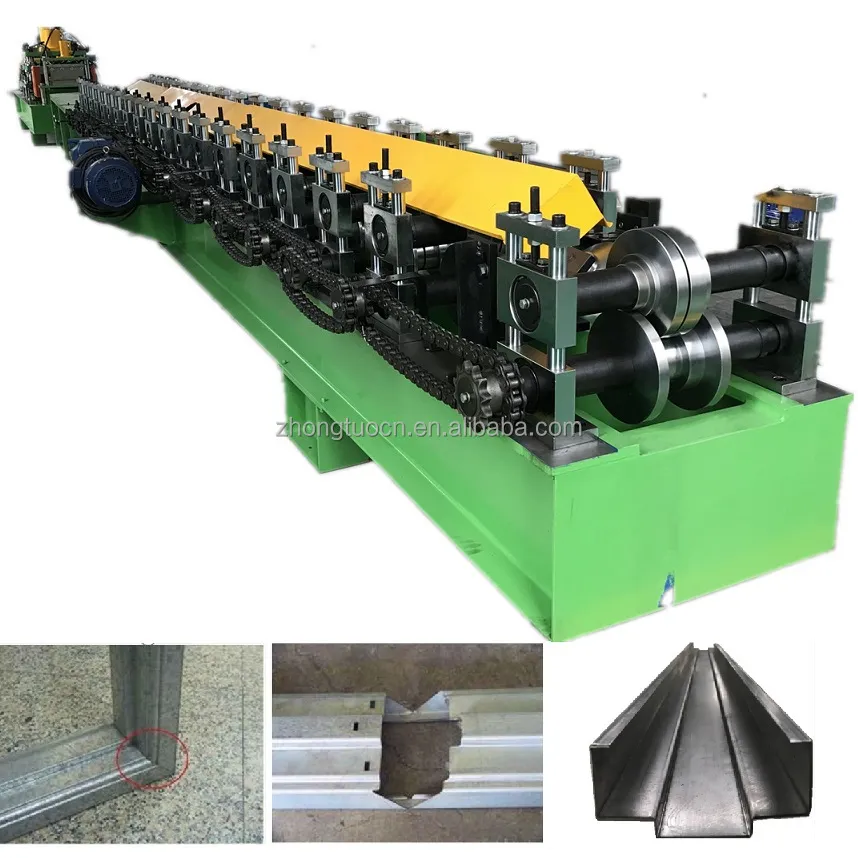

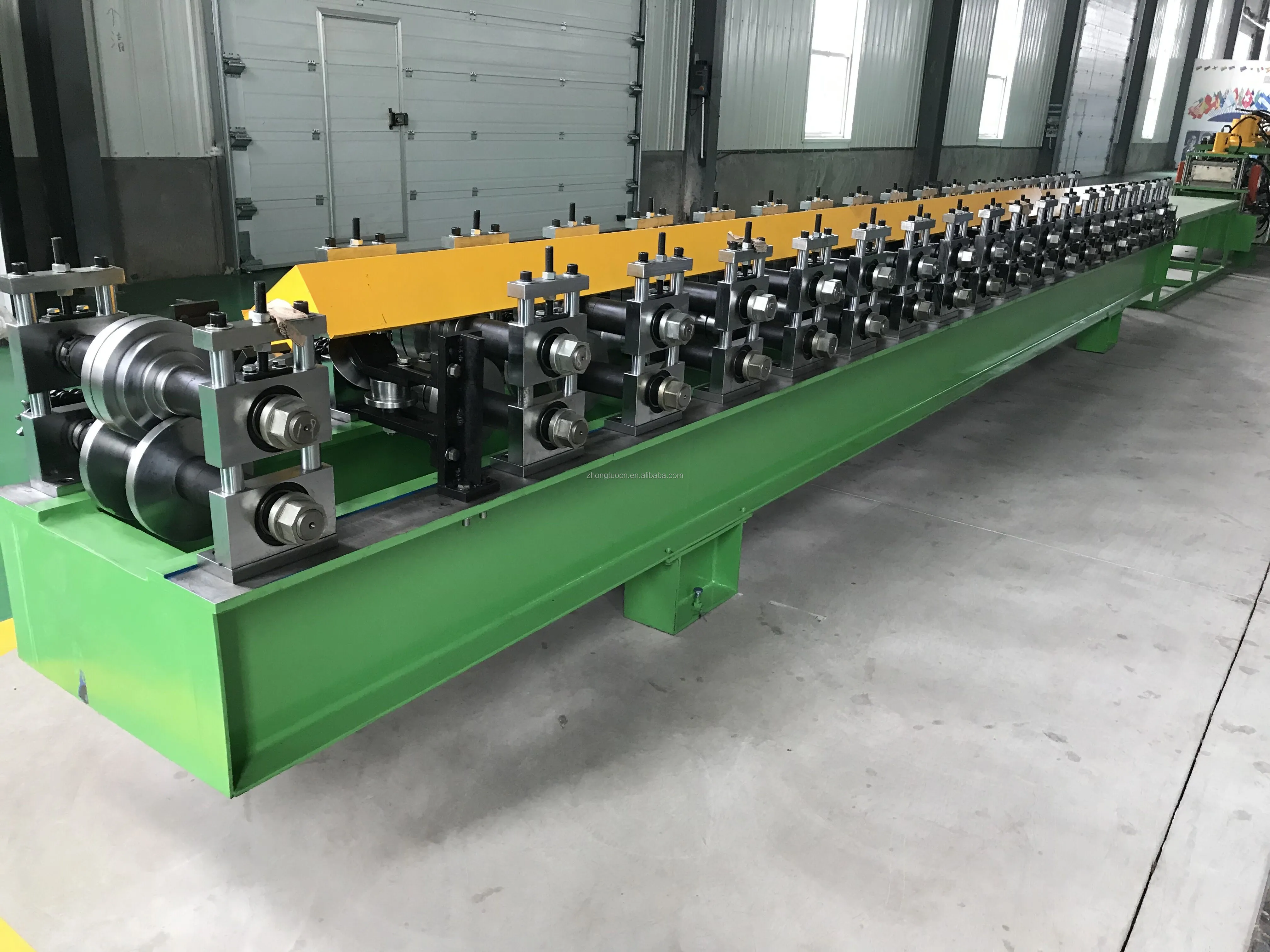

Aluminum steel door frame making machine

Door frame roll forming machines are specially designed to produce steel window or door frames that are strong and durable.

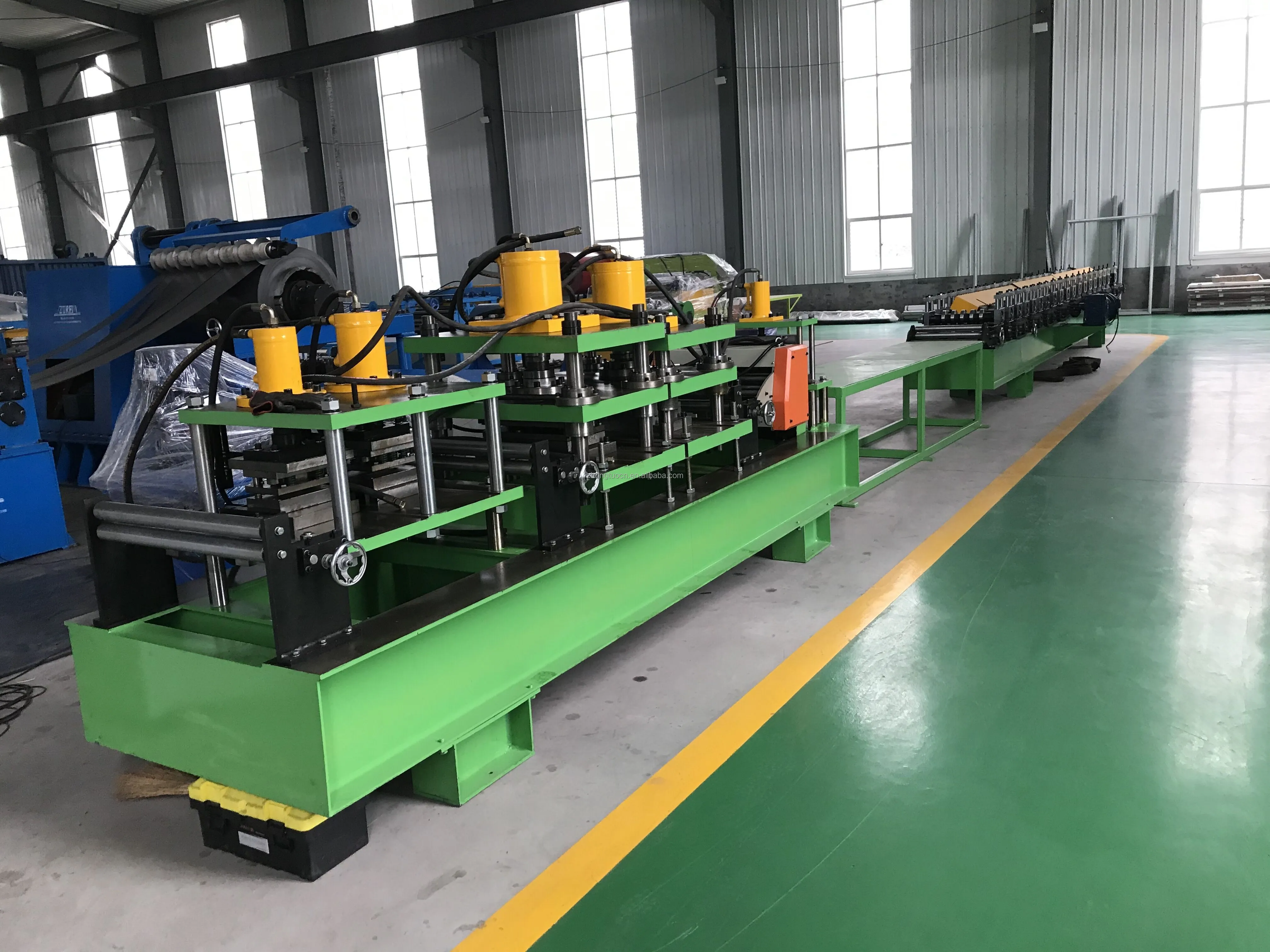

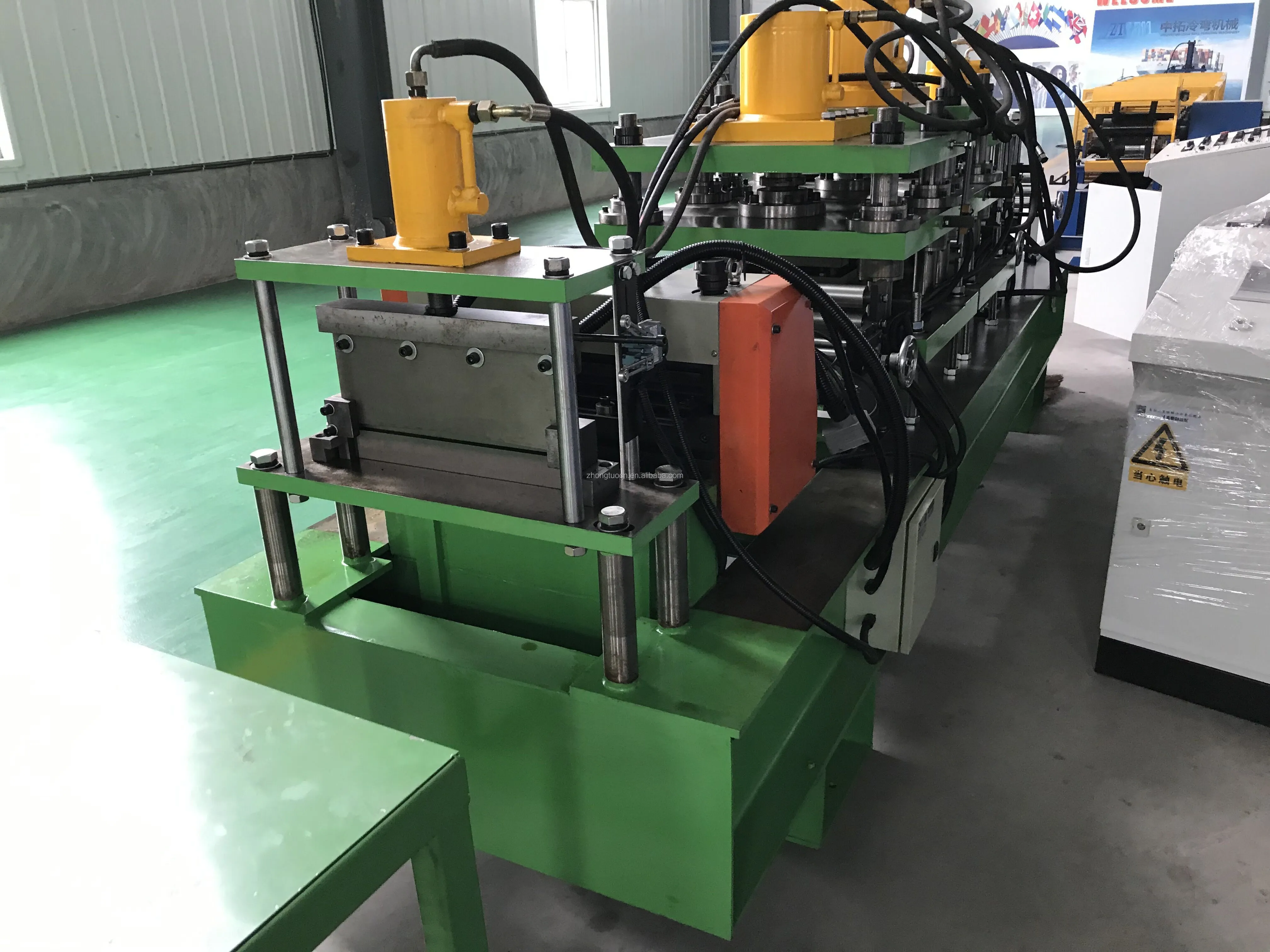

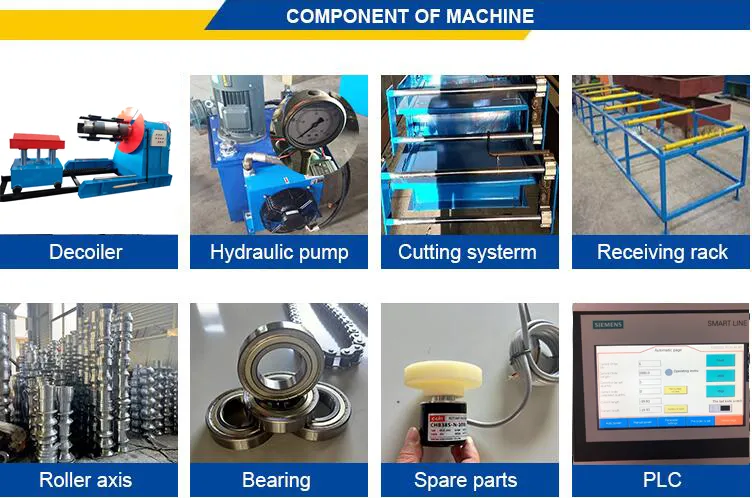

Our door profile roll forming machines are made up of a hydraulic de-coiler with a breaking unit, leveller, servo roll feeder, online multi station hydraulic punching equipment, rollformer with tooling, hydraulic cut-off, run out table or an automatic stacker.

We can also produce other kinds of Aluminum steel door frame making machines, any request, welcome inquiry, we will design the machine according to custom request.

Aluminum steel door frame making machine
1.Formed Material	PPGI,GI,AI		Thickness:0.8-2.0mm Width: customized
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		26 rows(As your requirement)
		Diameter of shaft		80mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		400 H steel
		Drive		Gearbox transmission or Chain transmission
		Dimension(LWH)		1500018001600(customize)
		Weight		7T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		7.5KW*2 sets,Siemens brand
		Hydraulic system power		7.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	30-35m/min		The speed depends on the shape of the tile and the thickness of the material.

Products Display

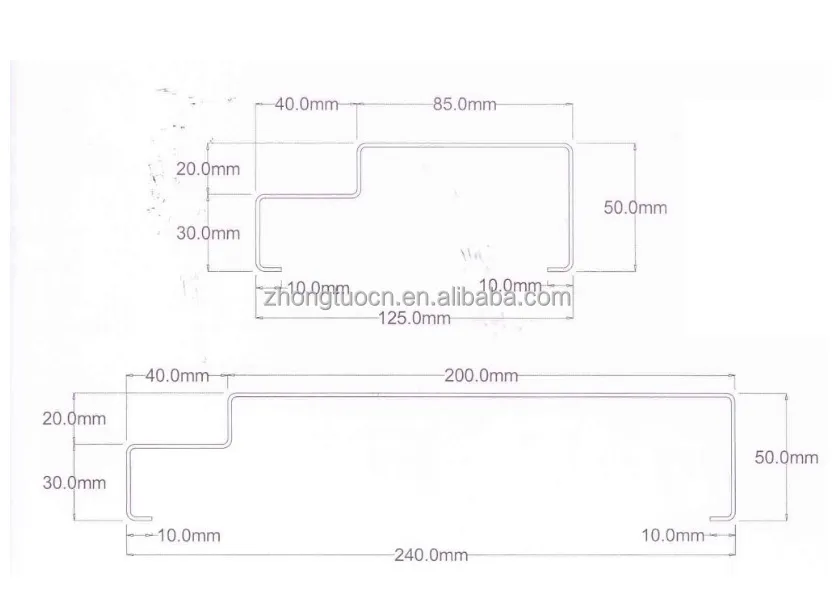

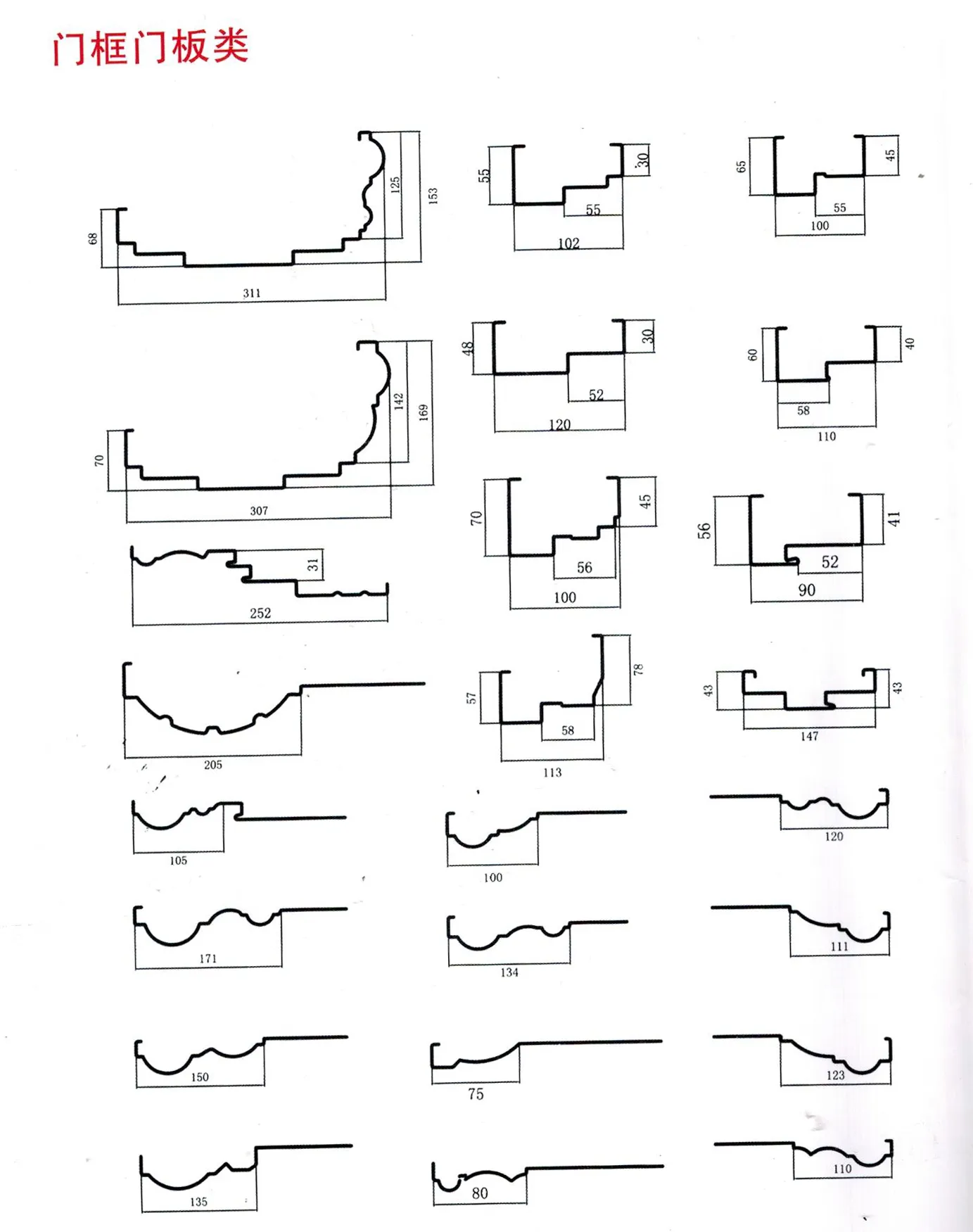

Machines are customized as your drawing,here hot sale drawing profiles for your reference.

Why Choose Us

Company Profile

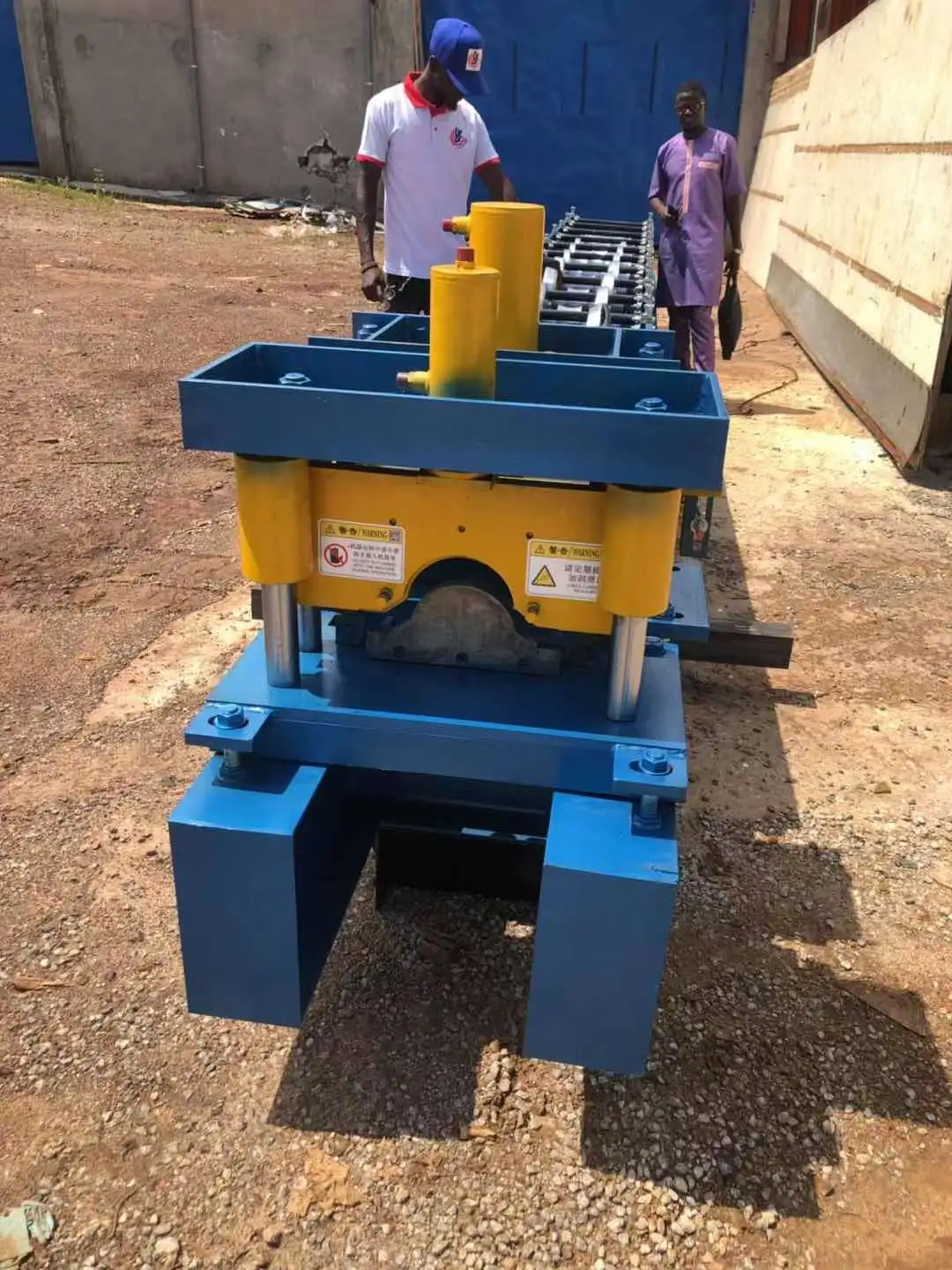

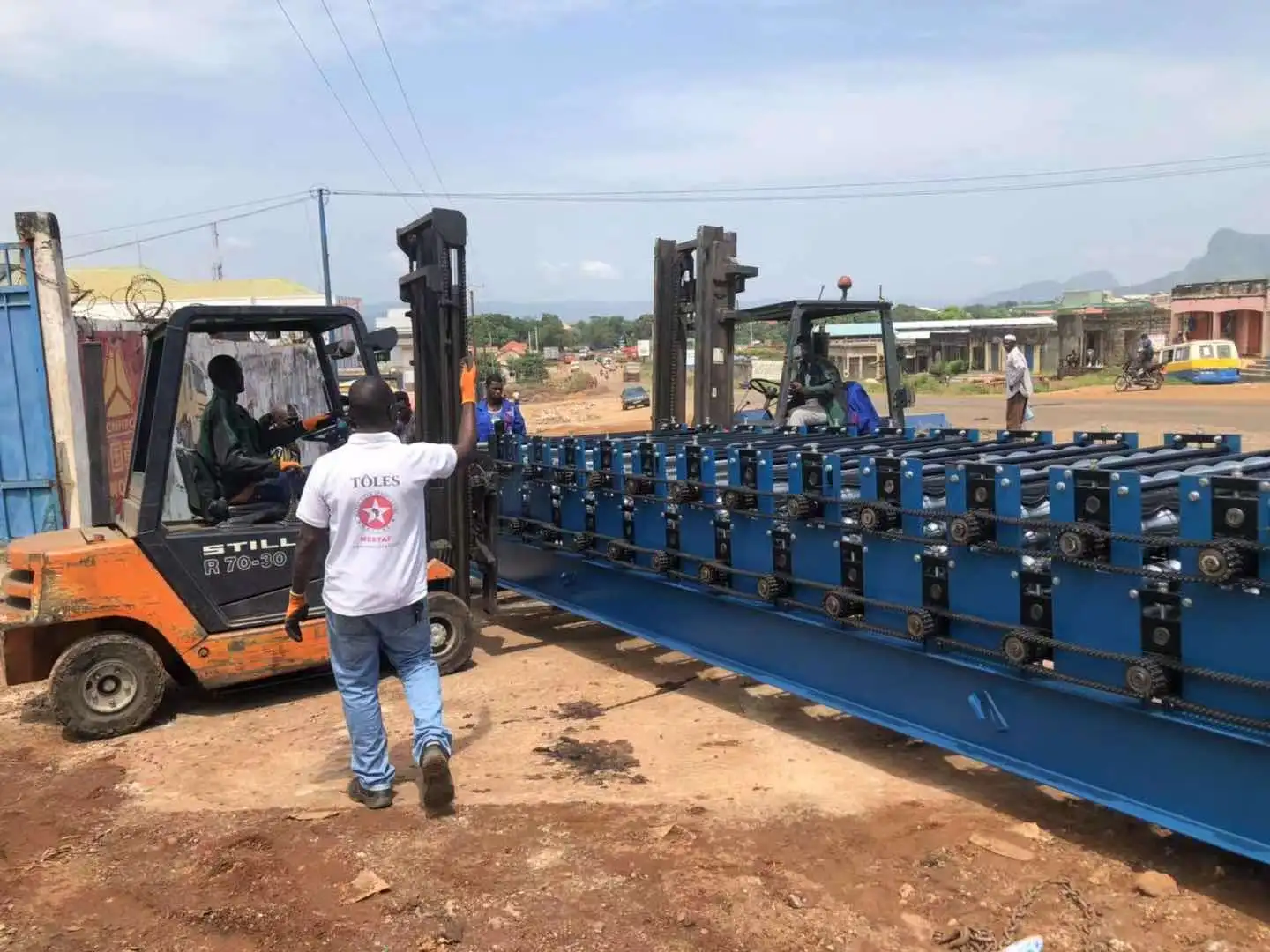

Customer Photos

customer good feedback of our machines:

Product packaging
