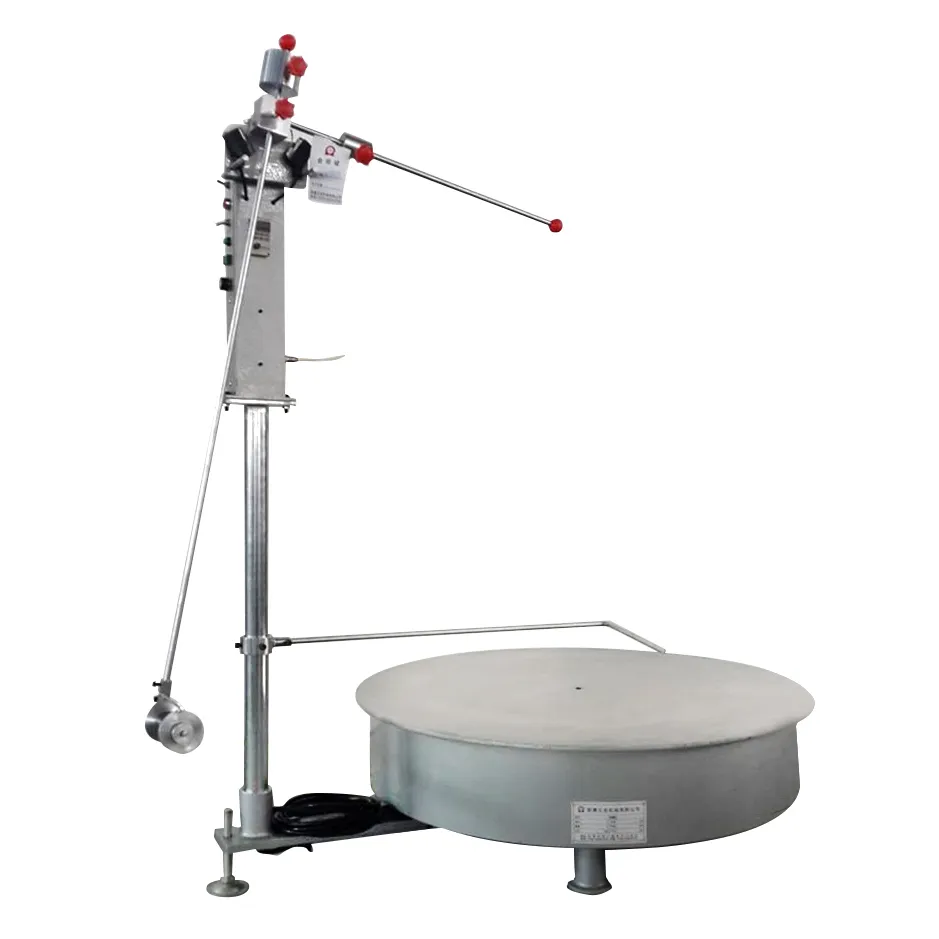

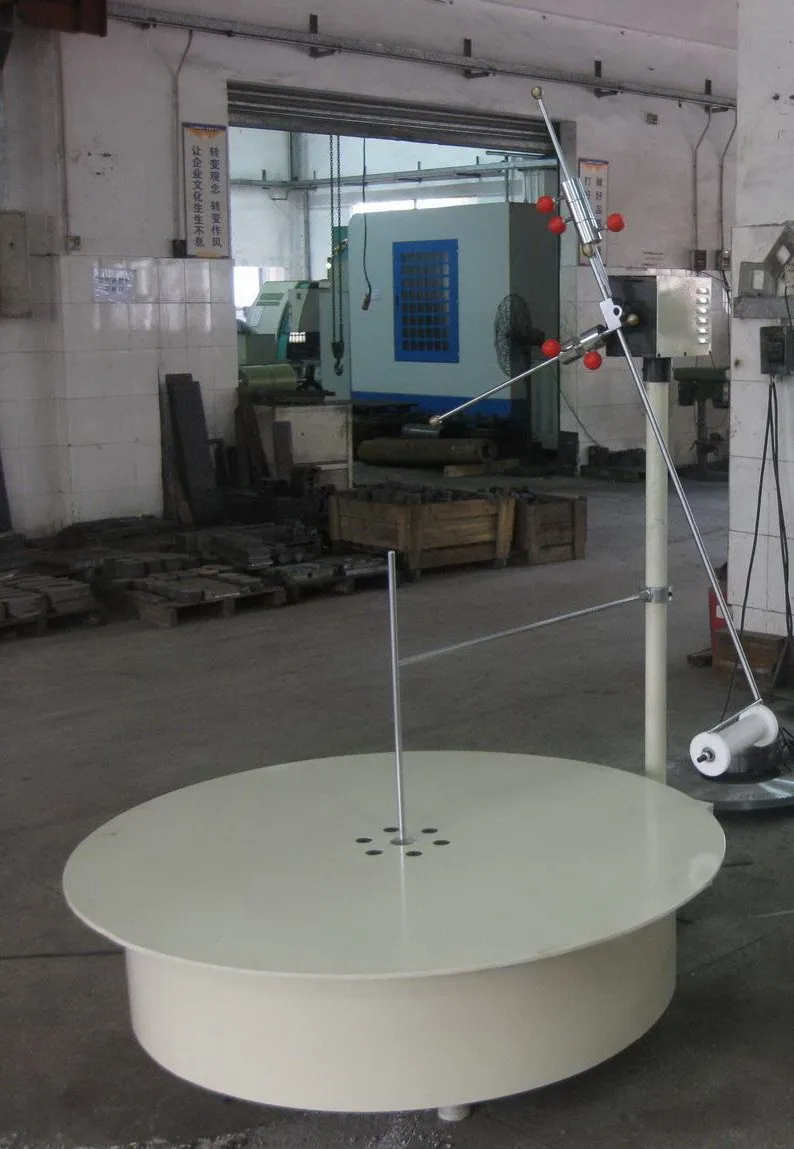

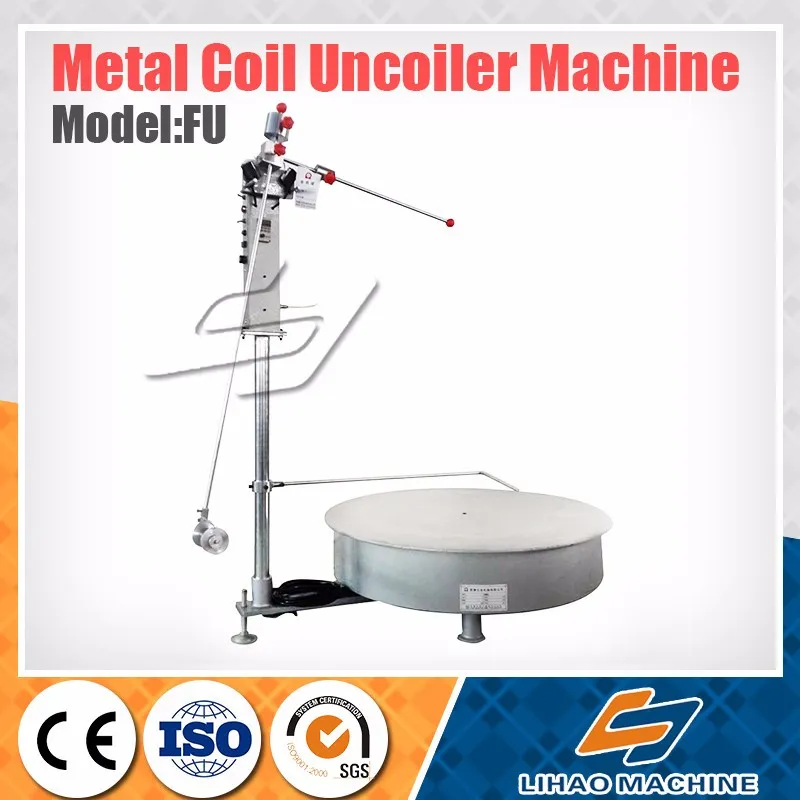

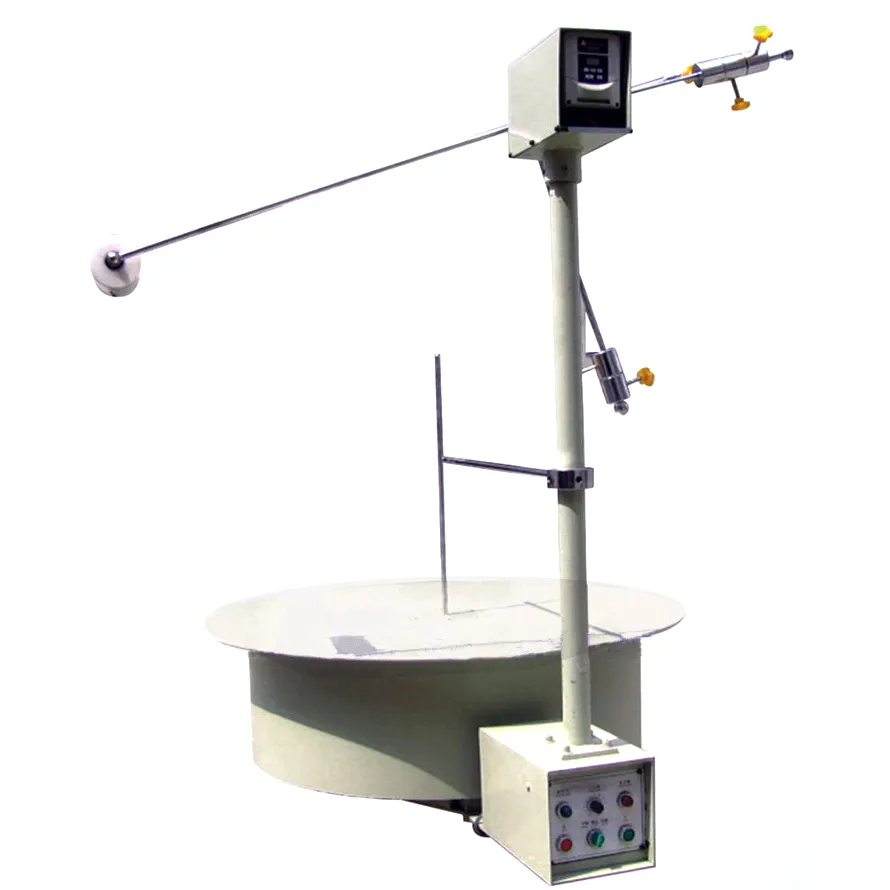

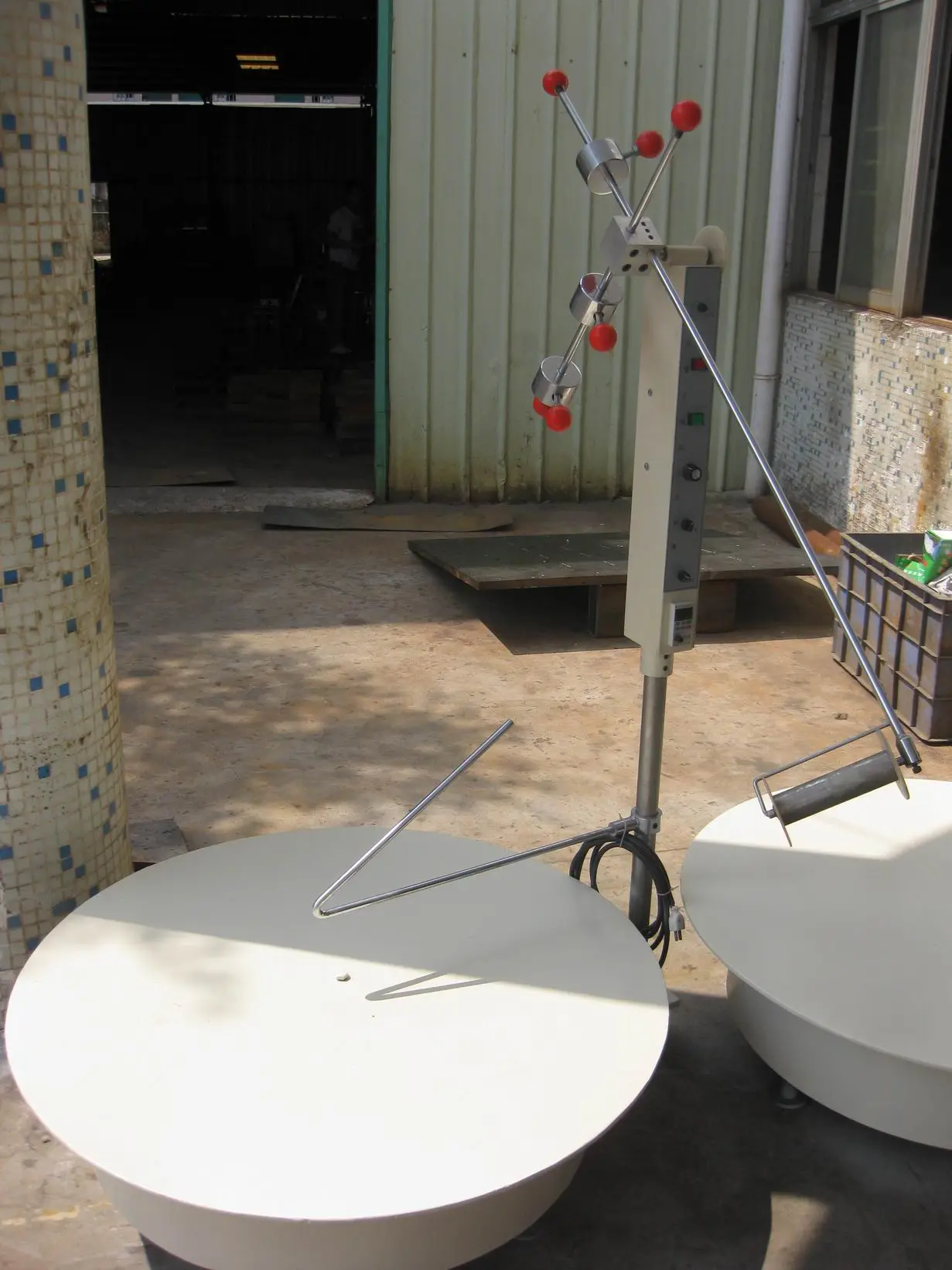

Steel Coil Small Flat Light Decoiler Machine Price for Sale 450

Electronic Flat Uncoiler

Features:

1.Adopt horizontal turntable feeding style, with large loading capacity, can up to 2T, the coil material can be placed overlapped to reduce the material loading times and save material changing time. It adopts two-stage speed and can adjust and track the machine working speed separately, the feeding speed can up to 0-24m/min.

2.With reasonable structure, low gravity center for discharging material.

3.Two-stage speed adjusted automatically, adopt tension switch device, the tension, the first stage and second stage can be adjusted individually, feeding smoothly.

Working principle:

Flat decoiler adopts horizontal flat carrying material method, through induction swing rod to control frequency conversion motor drive disc rotation, material through the steering wheel into the pulling roller, speed regulating motor drive the pulling roller rotating through the tensioner, feeding the material, when the material length is more than the press machine needed, swing rod swing downward, disc motor speed will slow down and eventually stop, at the moment, the pulling roller continue to rotating. When the flat disc stop, the material is pulled tightly, the pulling roller will stop, but the roll motor will continue to rotate, the tensioner skidded and does not work, the tension can be adjusted to pull the material without damage, thus to continuously feed in a cycle.

The machine has the characteristics of strong structure, overlapping placed, speed adjustable, and variable speed, easy operation and so on. It is suitable for all kinds of metal, nonmetal and thin coil material.

Specification :

Standard Accessory :

1.    Coil material head up/down controller

2.    LED display and speed controller

3.    Emergency stop
