Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Steel
Use
ROOF
Voltage
380V,50HZ,3P
Rolling Thinckness
0.3-0.8mm
Feeding Width
1200mm

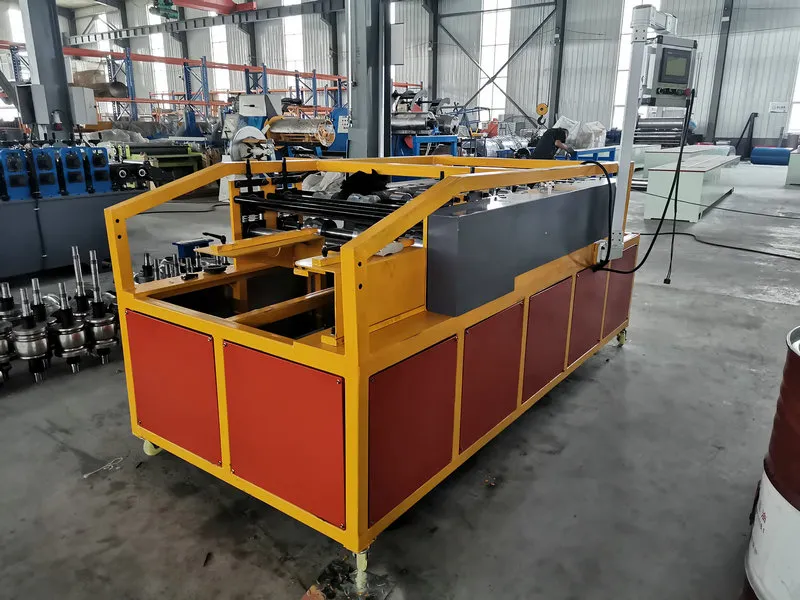

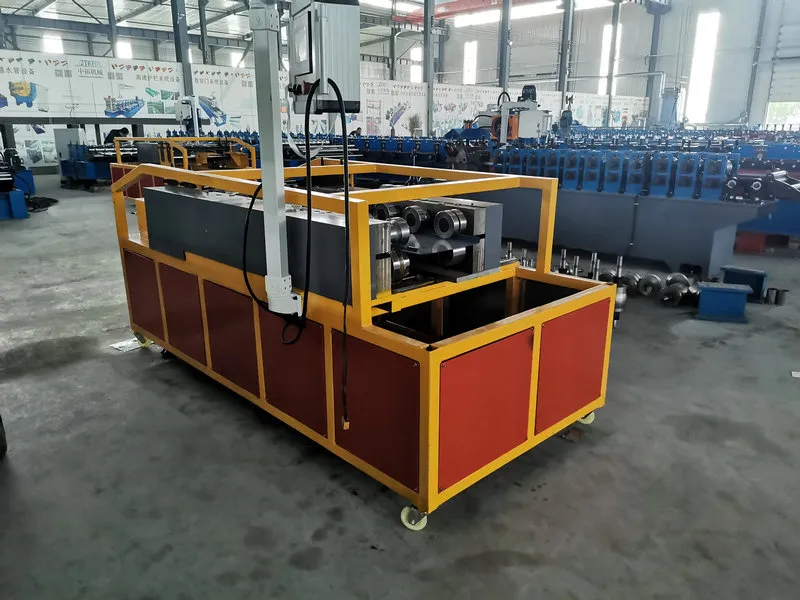

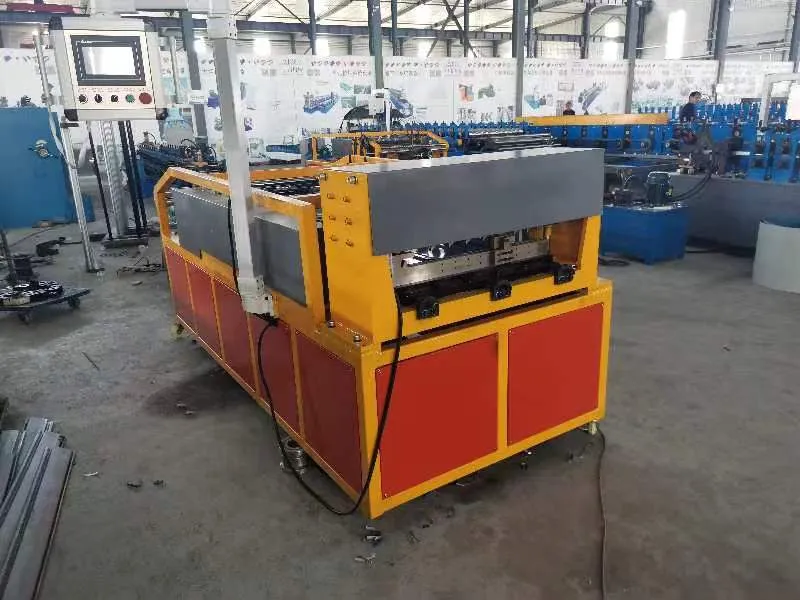

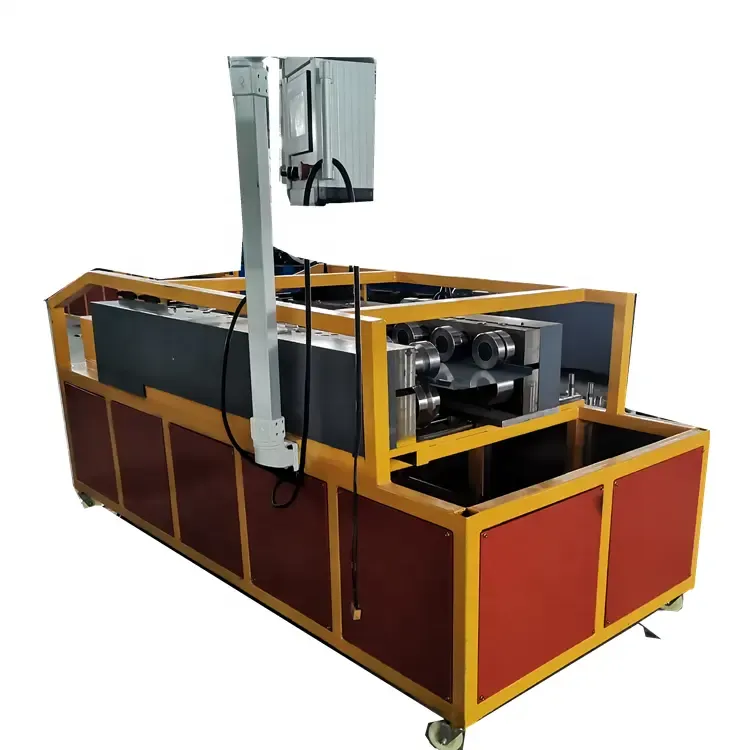

ZTRFM Standing Seam Roll Forming Machine Metal Roofing Machines For Sale

The machine produce panel for standing seam roof with a double seam. works with all types of roof covering: steel (including polymer-coated), cooper (including painted), aluminium, zinc, aluzinc, zinc-titanium. The material maybe in rolls or in sheets. Optimized configuration of grading rollers ensure high quality of the profile. The machine can moving automatically to produce different width, no need change cutter. The machine has PLC control system to control the cutting length, running speed, quantity. Under the machine, has wheels, so you can move it freely. The machine volume is small, won't need too much space.

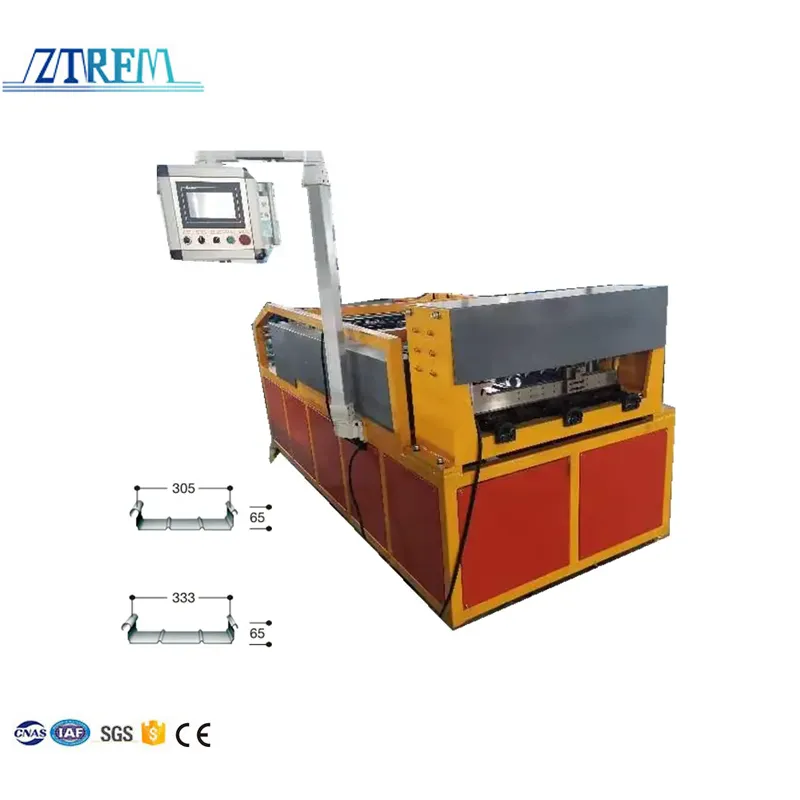

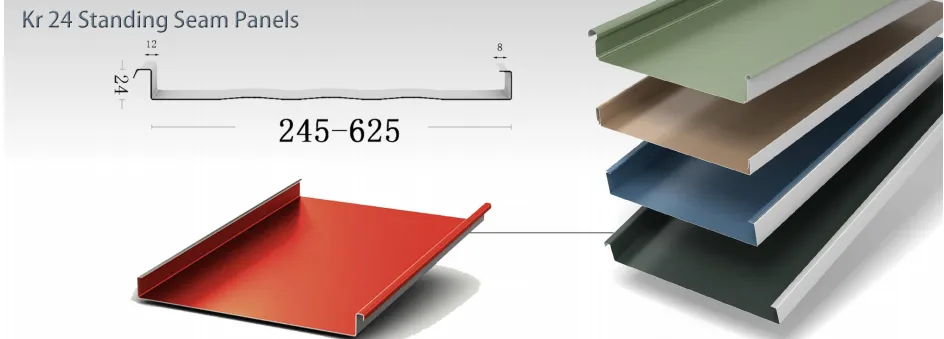

Profile drawing for reference:

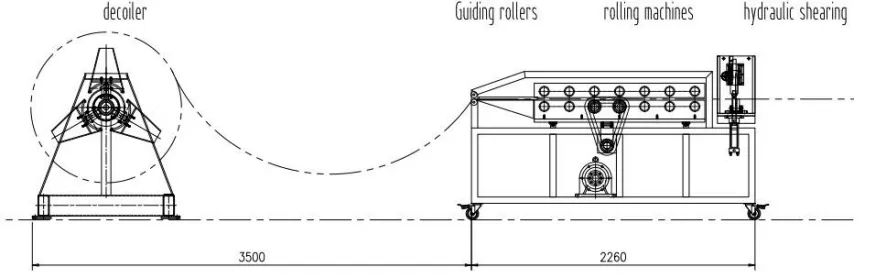

Working Flow as below:

ZTRFM Standing Seam Roll Forming Machine Metal Roofing Machines For Sale
Working speed	15 m/min
Power	8 KW
Voltage	Customize (Usually 380V-3P-50HZ)
Machine size	2.31.31.5 m
Weight	1.5 T
Roller shaft diameter	45 mm
Roller station	7 Rows
Roller shaft material	45# steel
PLC brand	Delta
Screen type	Touch screen
Screen language	English/ Chinese or customize
Encoder	Omron
Hydraulic motor power	3 KW
Cutting type	Hydraulic Cutting
Cutting material	Cr12
Cutting length tolerance	+- 1 mm/ 3 m

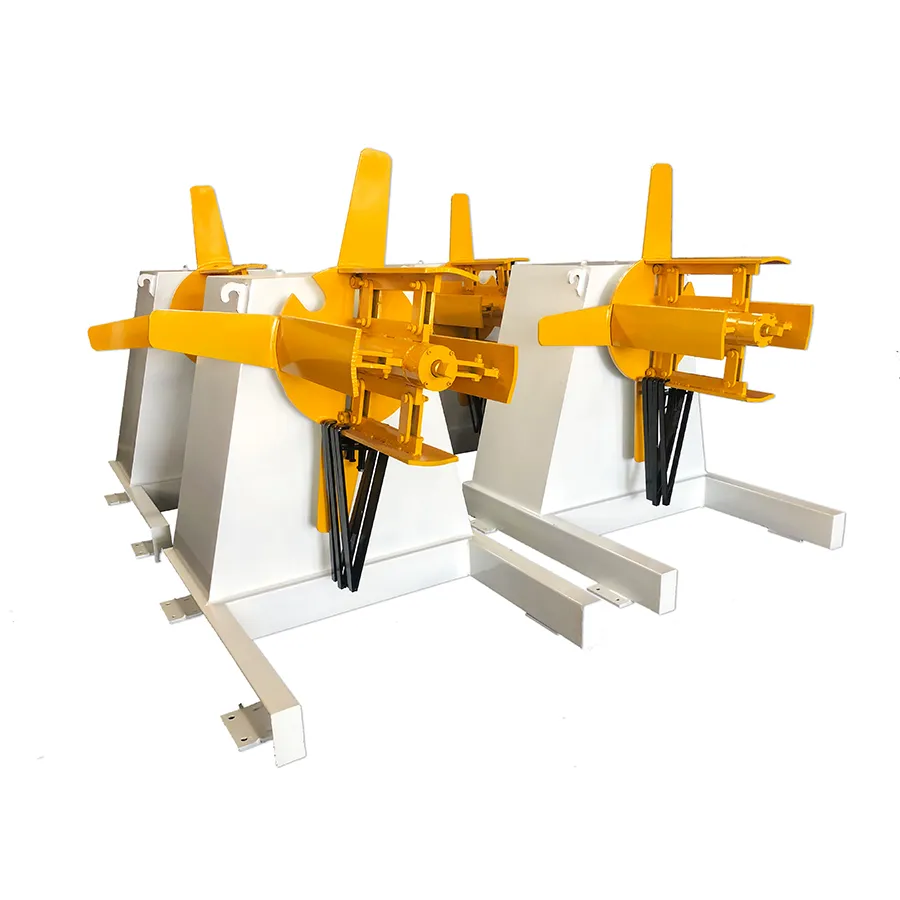

Manual De-coiler

1. Type: passive
2. Coil width: max 400 mm
3. Loading capacity: 3 tons
4. Inner diameter: 450-550 mm

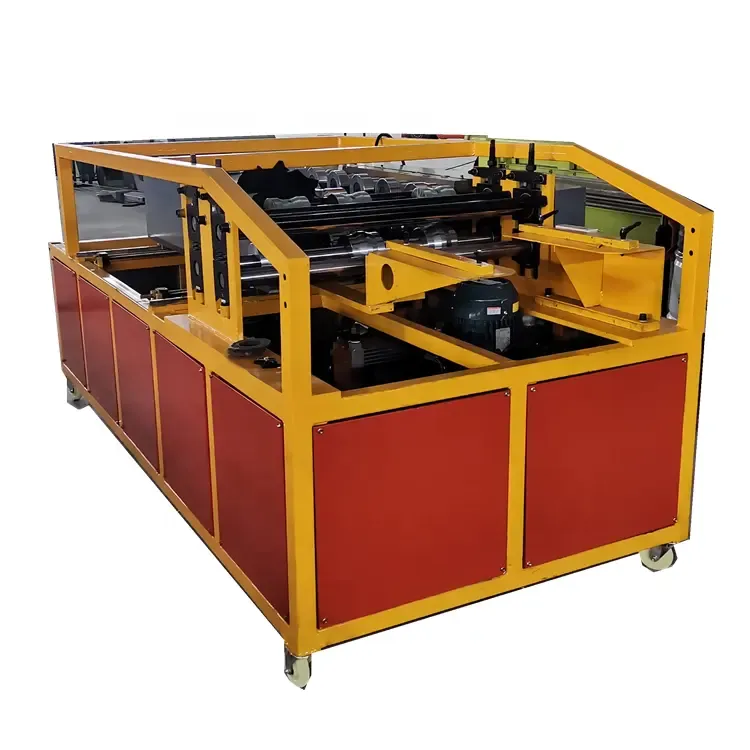

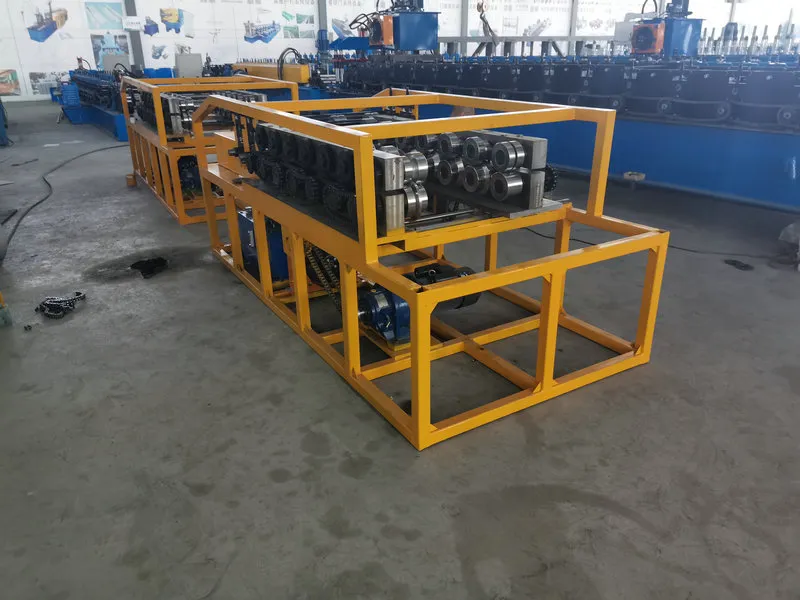

Forming device

1. Machine structure: wall panel structure
2. Main power: 3 KW siemens motor
3. Roller stations: 7 stations
4. Roller material: 45# steel with quenched treatment, polished and coated with chrome, surface with 0.05mm
5. Diameter of shaft: 70mm
6. Shaft material: 45# steel
7. Max rolling speed: 12-15m/min
8. Transmission: by gear

Shearing Mechanism

1. Feature: Ensure stability, precision and cutting speed

2. Function: Automatic cutting controlled by PLC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

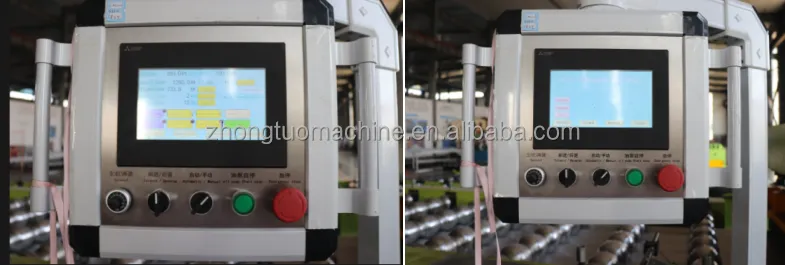

PLC control system

1. PLC brand: Delta(Taiwan)
2. Frequency converter brand: Delta(Taiwan)
3. Encoder: Omron
4. Function: Automatic control the length,quantity and batch

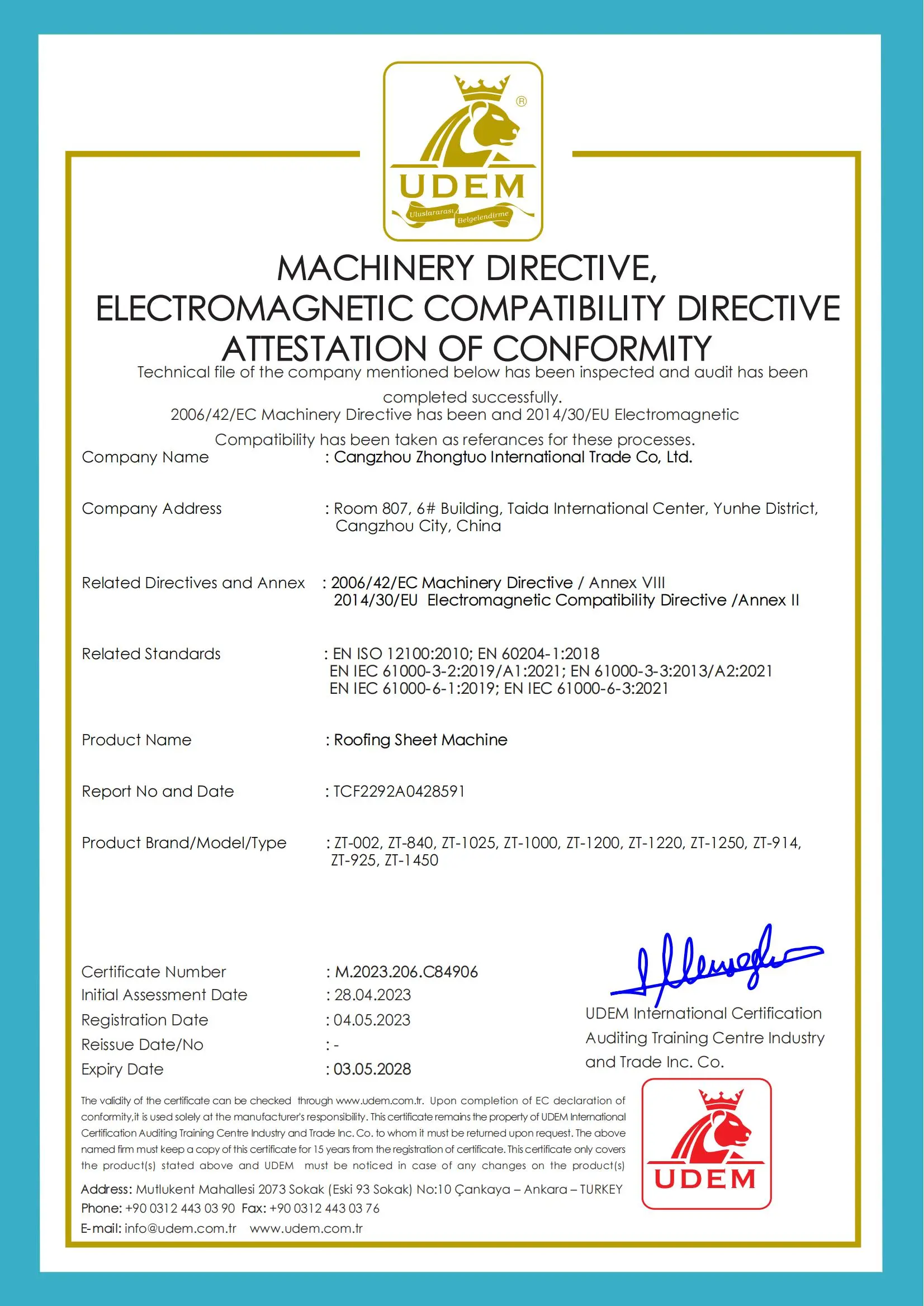

CE(No.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
