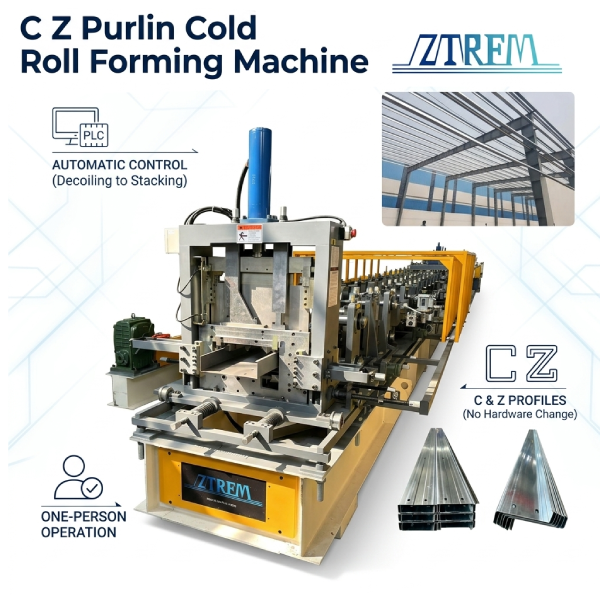

Stable CZ Purlin Cold Roll Forming Machine Full Automatic High Speed 1.0-3.0 mm for both c and z purli

C Z Purlin Cold Roll Forming Machine 15 Tons Reliable Continuous Production

A C/Z purlin production line often runs long shifts. Steel coil goes into the decoiler, then through leveling, punching, forming, and cutting, and finally reaches the receiving table. A CZ Purlin Cold Roll Forming Machine needs a stable structure to keep output consistent. If the base shakes, the frame vibrates, or the transmission slips, the finished purlins end up with poor straightness, uneven cuts, or wrong lengths. A major breakdown can interrupt the production line.

Advantages of the C Z Purlin Cold Roll Forming Machine

This cz full automatic purlin roll forming machine offers advantages in both structural design and production flow.

• H beam welded base helps maintain frame stability during long runs

• Cast iron stands support stable forming at each roller pass

• Complete line runs from decoiling to stacking without extra transport between steps

• PLC control coordinates all stations for consistent line rhythm

Why Continuous Production Demands Structural Stability

Continuous C/Z purlin production places steady demands on equipment structure. Vibration, chain tension changes, and long running hours all add up over time. A machine with unstable structure will drift further from accuracy the longer it runs.

Two stability challenges in continuous production:

Vibration buildup

High speed roller rotation sends vibration to neighboring stands. The longer the run, the more noticeable the effect.

Tension fluctuation

As the strip travels through the line, speed matching between stations directly affects strip tension.

Technical Parameters

How the Base and Frame Support Continuous Forming

The H beam welded base and cast iron stands form the foundation of the equipment. Each plays a different role.

H beam welded base

The base carries the weight of the entire line. The H beam cross section gives it good bending resistance under both vertical and lateral loads. After welding into a single frame, the base helps maintain machine levelness during operation. Roller alignment stays supported, so relative positions between stands do not shift from base deformation.

Cast iron stands

The forming section consists of multiple roller stands. Each stand mounts on a cast iron housing. The cast iron structure helps damp vibration during roller rotation, which supports stable forming at each pass. The strip does not pick up extra deformation from stand movement.

Division of work

The base keeps the whole machine level and stable. The stands keep each roller station positioned accurately and help control vibration. Together, they let the strip bend gradually from the first roller to the last under stable support.

From Coil to Finished Product in One Line

The complete line links multiple processing steps together, reducing intermediate transport between steps.

Production flow

• Decoiling: the coil unrolls and enters the leveling unit



• Leveling: removes coil stress to prepare for forming




• Punching: completes hole patterns according to drawings



• Forming: multiple roller stands bend the strip into C or Z sections

• Cutting: hydraulic system cuts to length

• Stacking: automatic stacker arranges finished products neatly

Value of reducing intermediate steps

If punching is outsourced, the factory must transport the strip out and wait for it to come back. This involves transport, waiting, and a second setup. Time and cost both increase. When the equipment configuration includes the needed processing steps, a complete line finishes them in one pass. The strip goes from coil to finished stack without leaving the line.

Applications and Industry Scenarios

This equipment can produce purlins for the following industries and scenarios:

• Steel structure workshops: wall girts and roof purlins

• Logistics warehouses: rack support structures and roof systems

• Solar power: mounting brackets for solar panels

• Agricultural facilities: greenhouse frames and livestock shelters

• Advertising: support frames for large billboards

• Light steel villas: wall studs and roof secondary structures

Different applications require different sizes, lengths, and hole patterns. The equipment needs to deliver consistent output that meets these requirements in continuous production.

The question from the beginning was how C/Z purlin continuous production stays stable. Base, frame, transmission, punching, forming, cutting, and stacking all affect the final output. The value of this equipment does not come from one single component. It comes from how every part of the line works together. A sound structural design and a complete production flow are what make long running production dependable. For a shop running long shifts, the C Z Purlin Cold Roll Forming Machine delivers steady output when every part works in sync.
