Split Set Friction Rock Bolt Roll Forming Machine 30-50mm PLC ZTRFM Friction Bolts Production Line

Overview

PLC Engine-Driven Split Set Friction Rock Bolt Roll Forming Machine with product cross-section engineering drawing

The Zhongtuo PLC Engine-Driven Split Set Friction Rock Bolt Roll Forming Machine is an automatic production line for forming open-seam friction rock bolts (Split Set anchors) from steel strip at 25 m/min. The machine rolls flat steel strip progressively through multiple forming stations — progressively bending it into a longitudinally open circular tube with a flared bearing-plate end — and cuts each bolt to the specified length (800–6000 mm adjustable). Output pipe diameter is 30–50 mm, adjustable to suit standard mining Split Set sizes (SS33, SS39, SS46 and SS52).

The machine is built on a rigid grey-painted box-section base with a blue-painted forming bed and yellow accent trim. Individual yellow worm-gearbox units drive each forming station; a 30 kW motor powers the line via PLC control and a hydraulic pump unit. The entire machine measures 12,000 × 1,280 × 1,900 mm and weighs 5,500 kg. It is used by mining consumable manufacturers, tunnel support product suppliers and rock reinforcement equipment producers worldwide.

• Friction rock bolt (Split Set) roll forming; pipe diameter 30–50 mm, length 800–6000 mm adjustable
• Forming speed 25 m/min; 30 kW; PLC + engine + hydraulic pump
• Machine dimension 12,000 × 1,280 × 1,900 mm; weight 5,500 kg; voltage 380 V
• 2-year warranty; machinery test report and video outgoing-inspection provided

Key Features

• Adjustable pipe diameter 30–50 mm; length 800–6,000 mm. The roller toolset is adjustable to produce any standard Split Set size (SS33 through SS52) by adjusting the forming rolls; pipe length is set via the PLC cut-length parameter without changing tooling.
• 25 m/min forming speed. Continuous forming at 25 m/min delivers high throughput for high-volume mining consumable orders.
• Individual yellow worm-gearbox per station. Each forming station is independently driven by a worm gearbox, providing precise torque control and making individual station maintenance straightforward.
• PLC + engine + hydraulic pump — three-component drive. PLC manages forming speed, cut length and production count; the engine provides the primary power; the hydraulic pump drives the flying cut-off and bearing-plate flaring unit.
• Integrated bearing-plate forming. The bearing-plate end (flared collar) is formed in-line on the same machine, eliminating a secondary press operation and producing a complete Split Set bolt in one pass.
• Heavy-duty grey box-section base. The steel box-section base cabinet provides a rigid foundation for the blue forming bed, absorbing vibration and maintaining shaft alignment across the full 12-metre line length.
• 2-year warranty; easy to operate. Machinery test report and video outgoing-inspection provided with shipment; on-site engineer support available.

Technical Specifications

Item	Specification
Product name	PLC Engine-Driven Split Set Friction Rock Bolt Roll Forming Machine
Product formed	Split Set friction rock bolts (open-seam pipe anchors)
Pipe diameter range	30–50 mm (adjustable; covers SS33 / SS39 / SS46 / SS52)
Pipe length range	800–6,000 mm (adjustable via PLC)
Forming speed	25 m/min
Motor power	30 kW
Voltage	380 V
Control system	PLC
Core components	PLC, engine, hydraulic pump
Transmission	Individual worm gearbox per forming station
Machine dimension (L × W × H)	12,000 × 1,280 × 1,900 mm
Machine weight	5,500 kg
Warranty	2 years
Machinery test report	Provided
Video outgoing-inspection	Provided
Place of origin	Hebei, China

Machine Structure

Steel strip is fed from a decoiler into the infeed guide, then passes through a sequence of blue-painted forming stations each driven by an individual yellow worm gearbox. The first group of stations bend the flat strip progressively into an open C-shape and then a closed circle, while the later stations size and calibrate the pipe diameter and close the longitudinal seam gap to the Split Set specification. At the exit end, a hydraulic unit forms the flared bearing-plate collar and a flying cut-off shears the bolt to the programmed length. Finished bolts exit onto a receiving cradle.

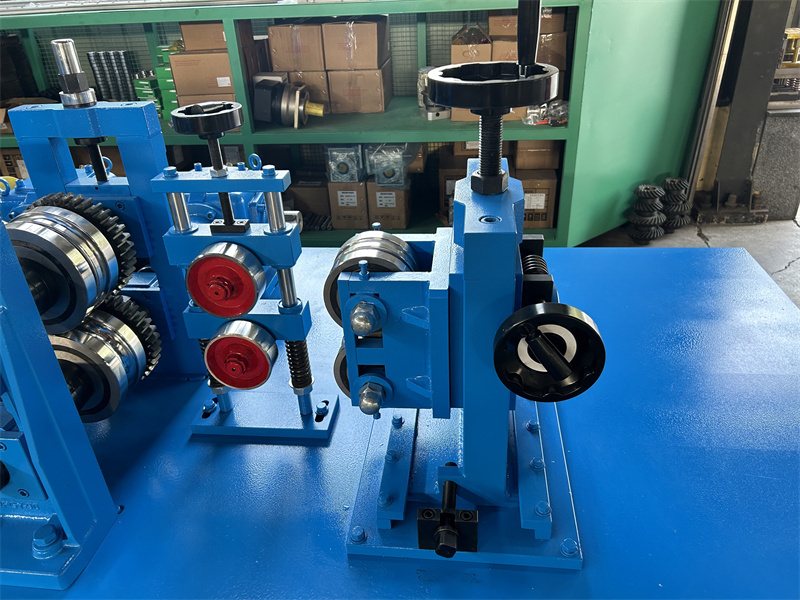

Forming station detail showing red adjustment wheels, helical gear roll pairs and fine-adjustment screw mechanism

Full forming line side view showing individual yellow gearbox units, forming station sequence and 30 kW motor

Full machine three-quarter front view showing the complete roller station array on the blue/grey/yellow box-section frame

Exit end of the machine showing a finished open-seam friction rock bolt tube (approx. 38 mm diameter) leaving the forming bed

Product & Applications

Split Set friction rock bolts are passive rock reinforcement anchors used in underground hard-rock mining, tunnel construction and civil excavation. The open-seam tube is driven into a pre-drilled hole slightly smaller than the bolt diameter; the elastic compression of the split tube generates friction along the full borehole length, providing immediate active load transfer without grout or resin. The flared bearing-plate end retains the wire-mesh or strap panel against the rock face. Common applications include gold, copper and iron ore mine roadways, tunnels, underground car parks and cut-and-fill stopes.

Finished galvanized Split Set bolts (bundle, left) and installed friction rock bolt with mesh in underground mine roadway (right)

Customization Options

Item	Option
Pipe diameter	30–50 mm; standard sizes SS33, SS39, SS46, SS52; other diameters per drawing
Pipe length	800–6,000 mm; set via PLC parameter
Machine dimension	Adjustable per customer workshop requirements
Voltage	380 V standard; other voltages on request

Certificate

Delivery

Item	Detail
Selling unit	1 set
Machine weight	5,500 kg
Lead time	50 days for 1 set; 60 days for 2 sets

About Us

Cangzhou zhongtuo Cold Roll Forming Machinery Co. Ltd, established in 1996, It is a manufacturer dedicated to the design and manufacture of different types of cold roll forming machines.We provide ODM,OEM and one-stop service, From the raw material to the machine,and Related accessories you all can buy from us.The machines we can produce include: roof tile making machine, cz purlin making machine, light steel keel making machine, metal embossing machine, door system forming machine, ceiling system forming machine, high frequency pipe welding machine, slitting line, cut to length line, shelf system forming Machine, floor decking forming machine, color stone tile production line, etc.

FAQ

What Split Set sizes can this machine produce?

Pipe diameter 30–50 mm covering standard sizes SS33, SS39, SS46 and SS52. Diameter is set by adjusting the forming rolls; other diameters are available per customer drawing.

Can the bolt length be changed without tooling changeover?

Yes. Bolt length from 800 to 6,000 mm is set via the PLC cut-length parameter with no mechanical adjustment required.

Is the bearing-plate end formed on the same machine?

Yes. The flared bearing-plate collar is formed in-line by the hydraulic unit at the exit end, producing a complete Split Set bolt in a single pass.

Can the voltage be customized?

Yes. Standard is 380 V; other voltages are available on request and confirmed at order.

What is the delivery lead time?

50 days for one set; 60 days for two sets.

What after-sales support is provided?

2-year machine warranty; machinery test report and video outgoing-inspection provided with shipment. On-site engineer support available.
