Sound barrier wall panel machine noise barrier wall profile making machine 25M/MIN+CUM+customized

Name: Sound barrier wall panel machine noise barrier wall profile making machine 25M/MIN+CUM+customized
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT115880682

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

25M/MIN

Model Number:

CUM

Max. Working Width:

customized

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Work Pressure
195 Mpa---350 Mpa
Voltage
380V/50HZ 3Phase(as Customer's Request)
Power(W)
22KW

Product Description

Highway Sound Barrier Walls Panel Machine Acoustic Noise Barrier Walls Profile Making machine

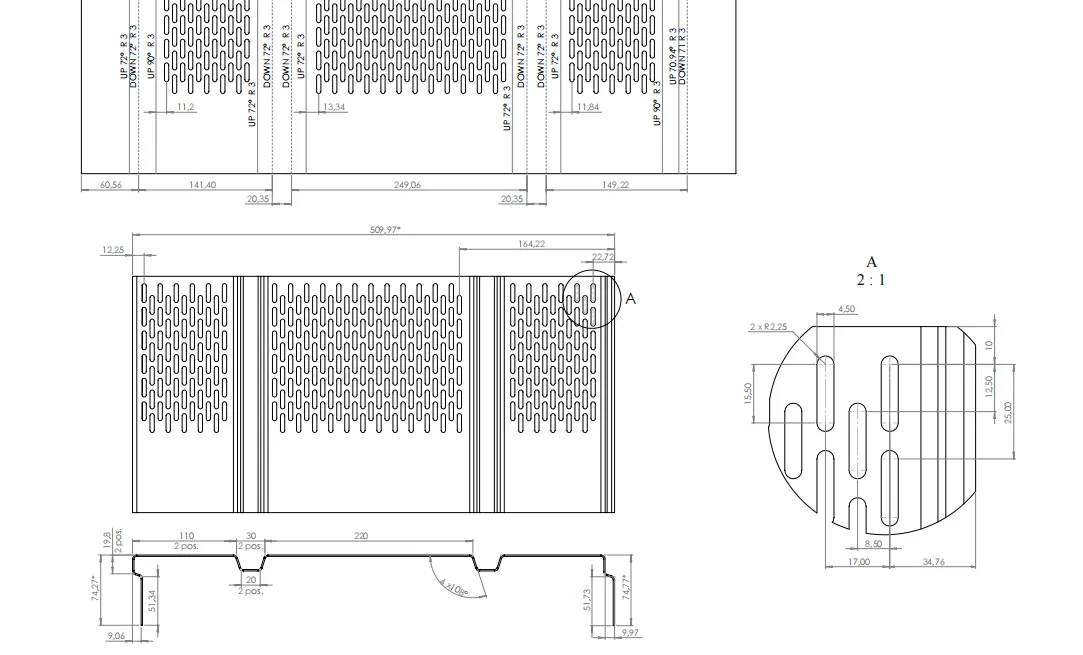

Highway Sound Barrier Walls Panel Machine- Acoustic Noise Barrier Walls Profile Making machine is designed for making the wall panel profiles by rolling forming machine working principle for highway. AIL Sound Walls are the smart choice to block unwanted noise from road traffic, railways, generators or cooling systems. These absorptive or reflective sound barrier wall systems are easy to install with local crews and light equipment. Available in a variety of attractive colors and textures, these low-maintenance noise barrier walls are impervious to rain, snow and ice, and will not rust, rot or stain. Here I will take the following drawing profile for example, to show how the machine is designed.

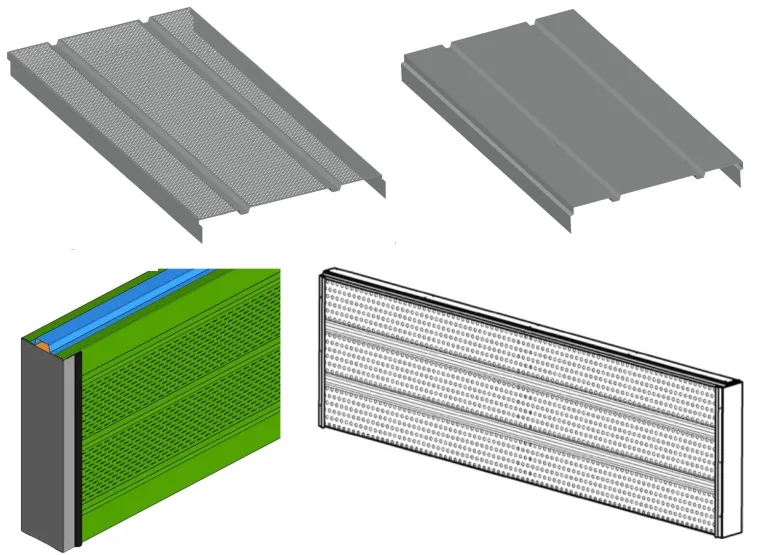

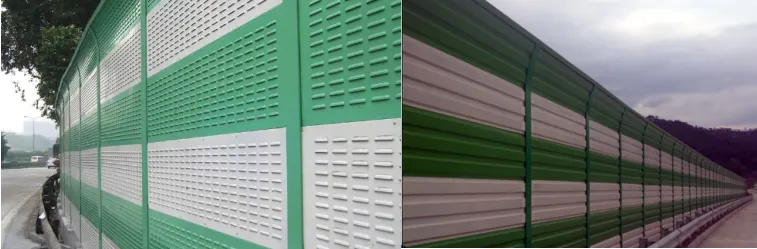

Acoustic Noise Barrier Walls Profile actually is made by two parts, one is the surface panel to absorb the sound and another side is the down panel without any holes. And use the connection bar to make them together. Here are some application usage pictures of the barrier panels for your reference:

Highway Sound Barrier Walls Panel Machine

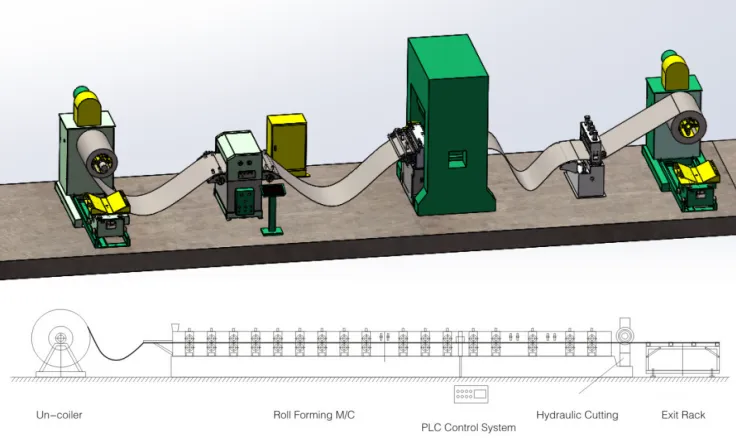

The noise barrier wall profile making machine is composed by the following elements: the punching production line and the main rolling forming machine line. Hydraulic decoiler with NC coil feeder leveling --> Punching Machine- recoiler with damping system

As to the punching line:

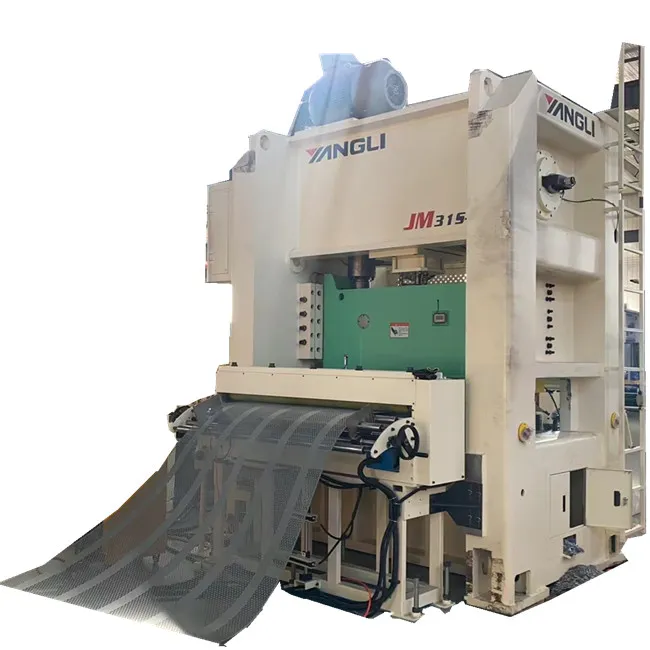

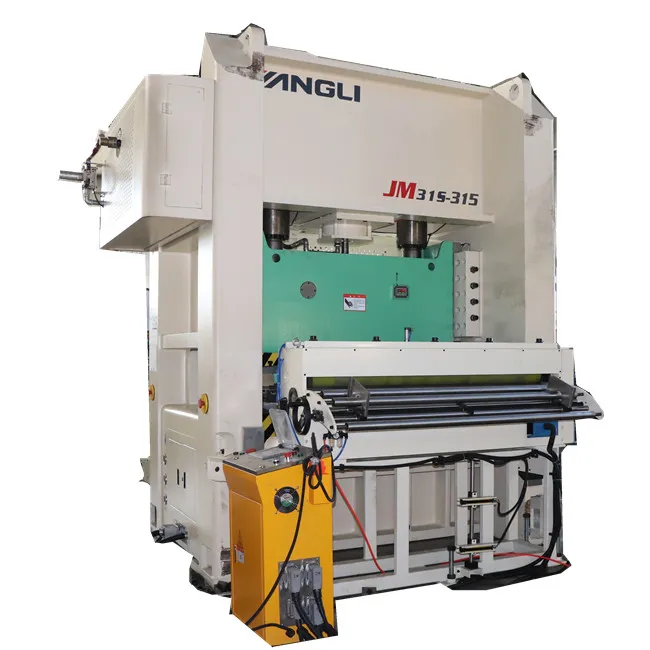

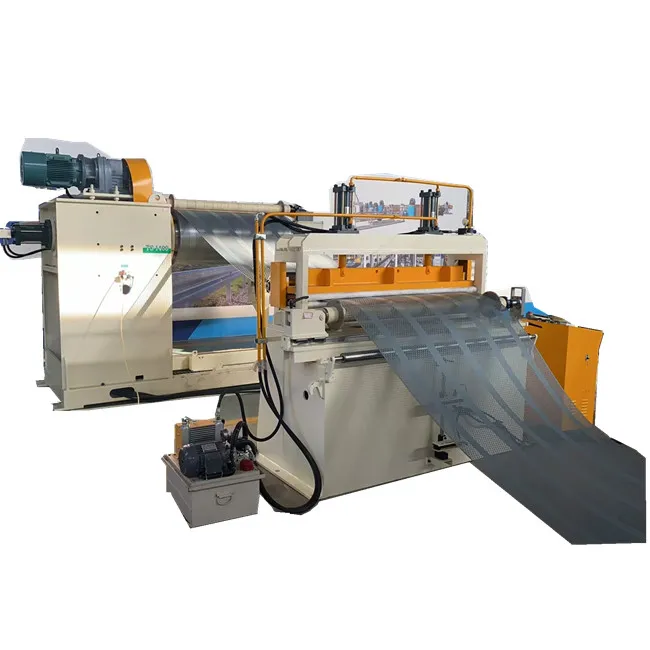

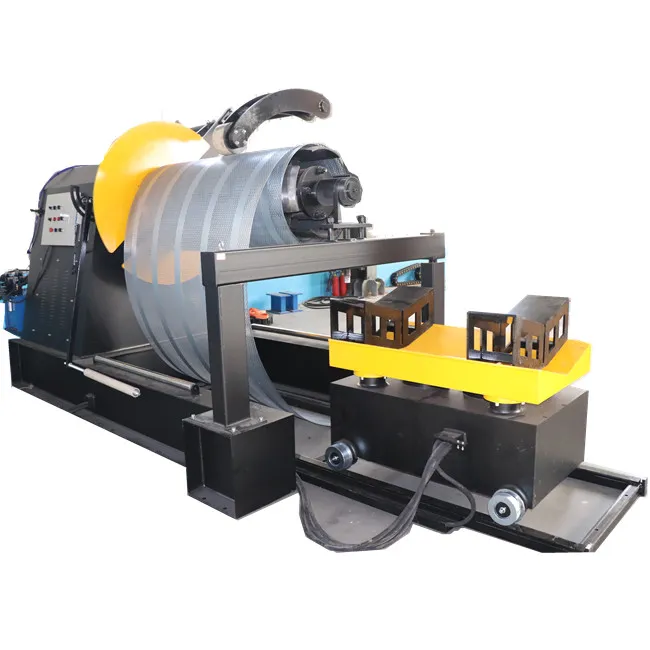

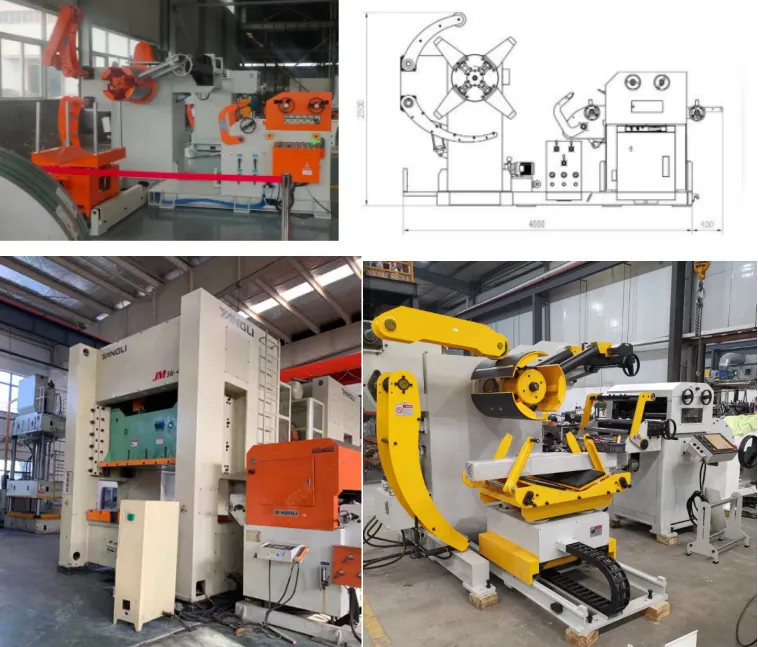

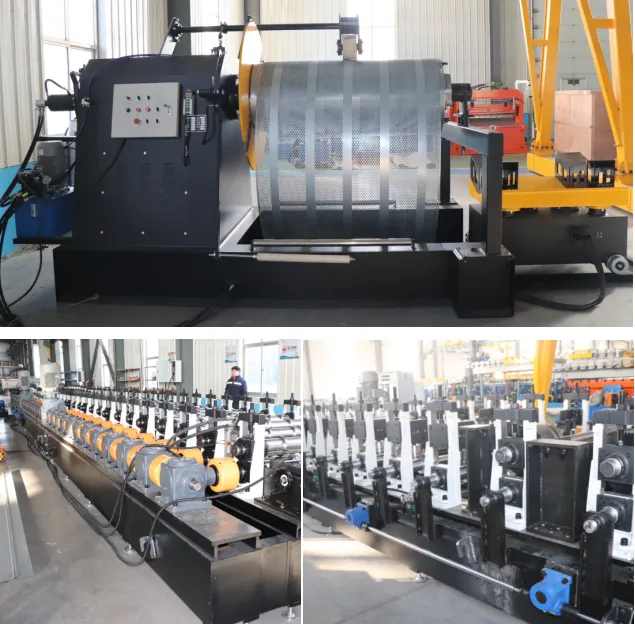

The decoiler could be automatic or manual one or 5 ton or 10 ton with loading car or without. As to the punching machine, you can choose high speed or normal speed. Here are some production line pictures for your reference.

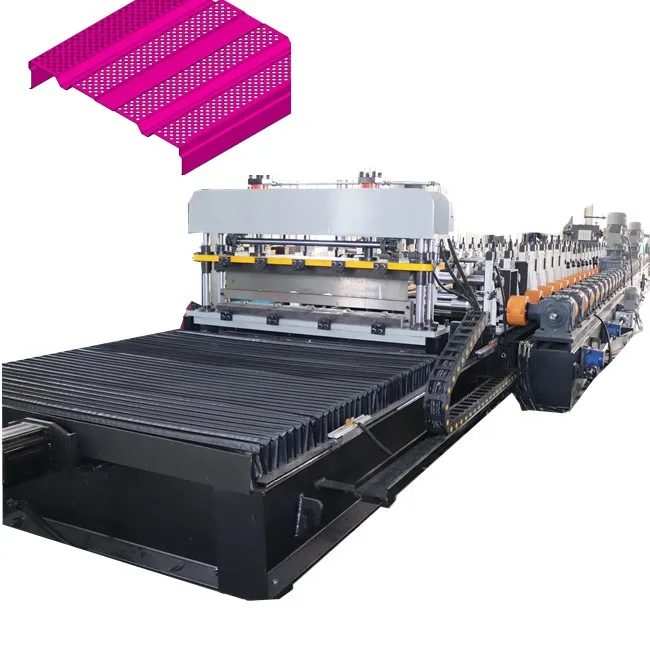

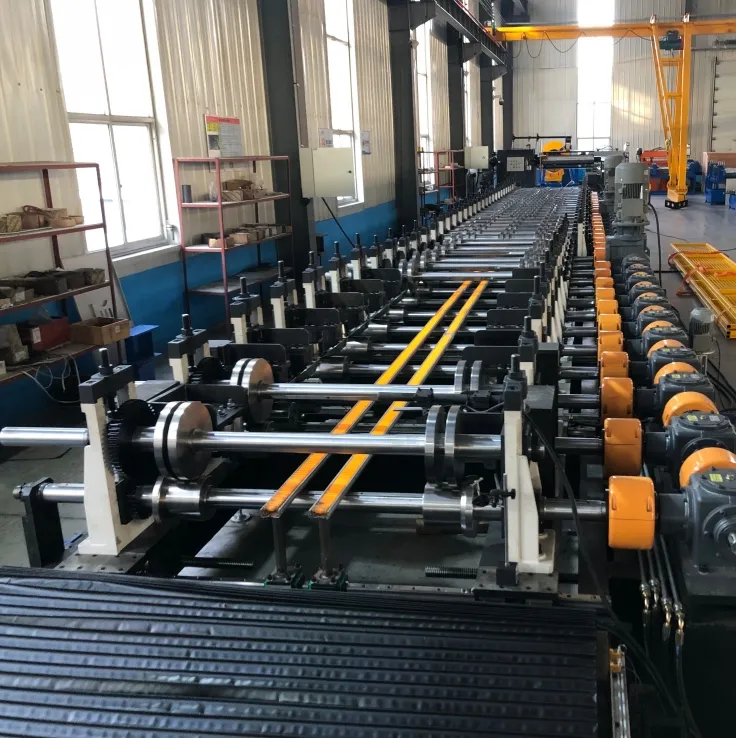

As to the main rolling forming machine to make Sound Barrier Walls Panel:

1.For this sound barrier panel machine, the punching width, hole quantity are adjustable. 2.The panel width is adjustable. 3.The transmission we use gearbox. 4.High speed running, the rolling speed can reach 15 to 25 meter per minute. 5.The machine we use molding frame thickness is around 35mm thick. 6.The roller material is Gcr12Mov. 7.Servo motor driven, speed more faster. 8.Servo tracking shearing system. 9.Siemens PLC and motor. 10.SKF bearing for long time to use.

Product Paramenters

Highway Sound Barrier Walls Panel Machine Acoustic Noise Barrier Walls Profile Making machine
1.Formed Material	PPGI,GI,AI		Thickness:0.8 -1.2mm
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		32rows(As your requirement)
		Diameter of shaft		80mm solid shaft
		Material of rollers		Gcr 15 with quenched teeatment
		Machine body frame		Metal steel welded
		Drive		Chain transmission
		Dimension(LWH)		95008001200(customize)
		Weight		About 15T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		15KW
		Hydraulic system power		5.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	60-70m/min(customized)		The speed depends on the shape of the tile and the thickness of the material.

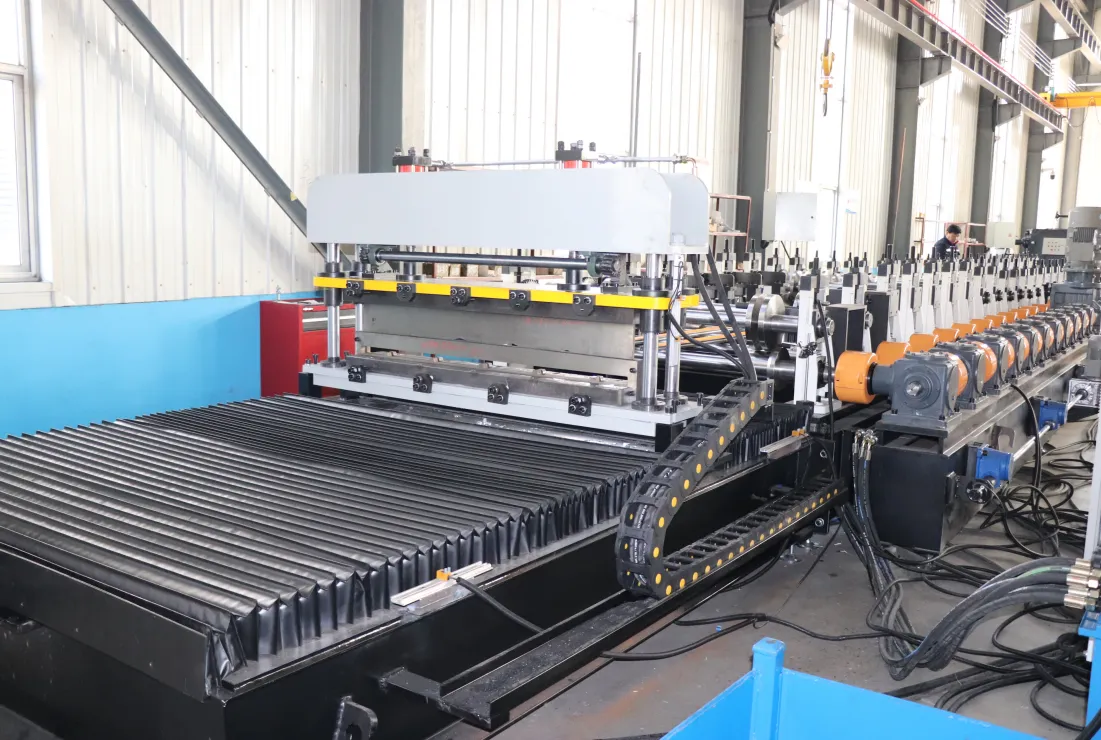

Products Display
