Solar Structure Channel Roll Forming machine With Punch Press 0-20m/min

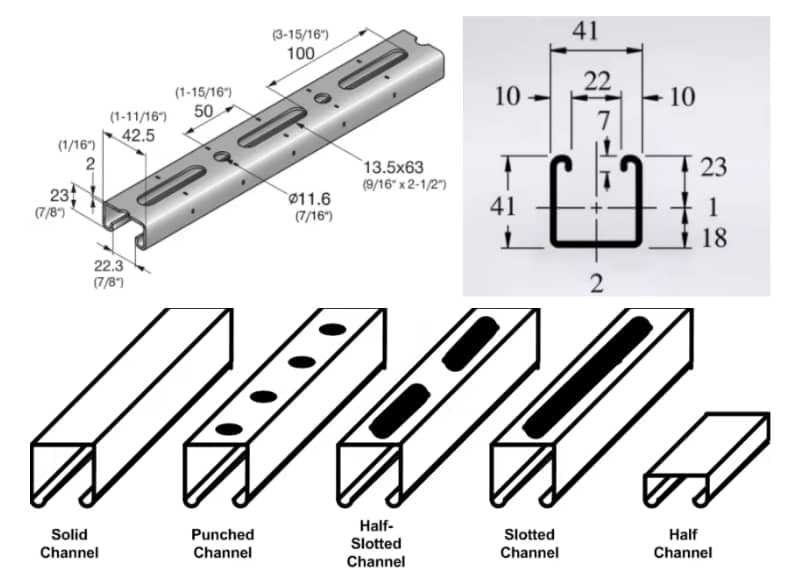

Pattern diagram:

Core Features：

1.High-precision molding

• The CNC system (PLC) and servo drive enable a forming accuracy of ±0.1mm, ensuring consistent bracket dimensions and meeting millimeter-level installation requirements.
• The intelligent detection system can monitor material defects in real time and automatically issue alerts to ensure product quality.

2.High-efficiency automated production

• Fully automated integrated design, capable of integrating processes from feeding, forming, punching to fixed-length cutting and stacking, with only 1-2 operators required for the entire line, achieving a production efficiency improvement of over 300%.
• The high-speed model can achieve a production speed of 35 meters per minute, with a daily output of 60 tons, which is 1.5 times that of the traditional mode.

3.Significant energy savings and cost reduction

• Compared to traditional equipment, it saves over 40% in energy consumption and reduces production costs by 20-50 yuan per ton.
• Material utilization rate increased by 15%, reducing waste and supporting green manufacturing.

Main application scenarios：

• Large scale ground photovoltaic power station

We need high-strength, large-scale, and standardized brackets. Recommend using high-speed and multi pass equipment with a production capacity of over 10 tons per hour and adjustable roller spacing, suitable for large-scale base projects in the northwest and other regions.

• Distributed rooftop photovoltaics (residential/commercial)

Space is limited, requiring lightweight and portable devices. Recommend foldable or detachable equipment, with a weight controlled within 2 tons, for easy transportation and on-site processing.


Machine image:

Frequently Asked Questions (QA)：

Q1: How many meters can a high-speed machine produce per minute?
A: Depending on the size of the profile and the complexity of punching, the stable production speed of C-type photovoltaic bracket profiles is generally between 0-20m/min.

Q2: What materials can be produced?
A: It can handle coil materials such as cold-rolled steel, hot-rolled pickled steel, galvanized steel, zinc aluminum magnesium, stainless steel, and aluminum alloy. The yield strength of materials typically ranges from 235MPa to 550MPa, with a common thickness range of 1.5-2.5mm.

Q3: How long does it take to change specifications?
A: When using standardized quick change roller sets, skilled workers can complete the entire set of section replacement within 0-20 minutes; If equipped with an automatic roll changing system, the time can be shortened to 5-10 minutes.

Q4: Can the equipment punch holes online? What is the punching accuracy?
A: Okay. The mold adopts a block type structure and uses servo motors to follow the linear speed for online punching. The hole spacing accuracy can reach ± 0.5mm and supports any programming combination of various circular holes, installation long holes, and drainage holes.

Q5: Do you provide customized designs?
A: Fully supported. We will provide free hole design and overall line planning based on the profile section diagram, finished product length, and production capacity target you provide, to ensure that the equipment perfectly matches your product.

Q6: How can after-sales service be guaranteed?
A: Provide warranty, free installation and debugging guidance, and offer on-site engineer services worldwide. Lifetime provision of software upgrades, spare parts supply, and remote technical support.
