Solar Panel Bracket Roll Forming Machine for PV Mounting System Production High Precision

Solar Mounting Roll Forming Machine for Photovoltaic Bracket Production

Description:A solar mounting roll forming machine is a fully automatic cold roll forming line designed to produce photovoltaic support profiles from galvanized steel, aluminum-zinc-magnesium coated steel, aluminum strip, or high-strength cold-rolled steel. Instead of cutting and welding brackets one by one, the machine continuously forms flat metal coil into finished solar racking profiles such as C channels, U channels, strut channels, solar rails, tracker brackets, carport supports, and custom PV mounting sections.

For solar racking factories, steel service centers, EPC suppliers, and exporters, this equipment is the core of scalable bracket manufacturing. It combines decoiling, leveling, servo feeding, inline punching, roll forming, cut-to-length, and stacking into one synchronized production process.

Why Solar Bracket Manufacturers Choose Roll Forming

Traditional fabrication methods such as press brake bending, manual cutting, and drilling create inconsistent hole positions, higher scrap rates, and heavy labor dependence. A dedicated PV bracket roll forming machine solves these problems by producing identical profiles hour after hour.

The main advantages are higher output, better hole-pitch accuracy, lower material waste, fewer operators, and faster order delivery. For export markets, this means solar mounting components can be supplied in containers with consistent quality, ready for on-site bolt assembly without rework.

Profiles You Can Produce

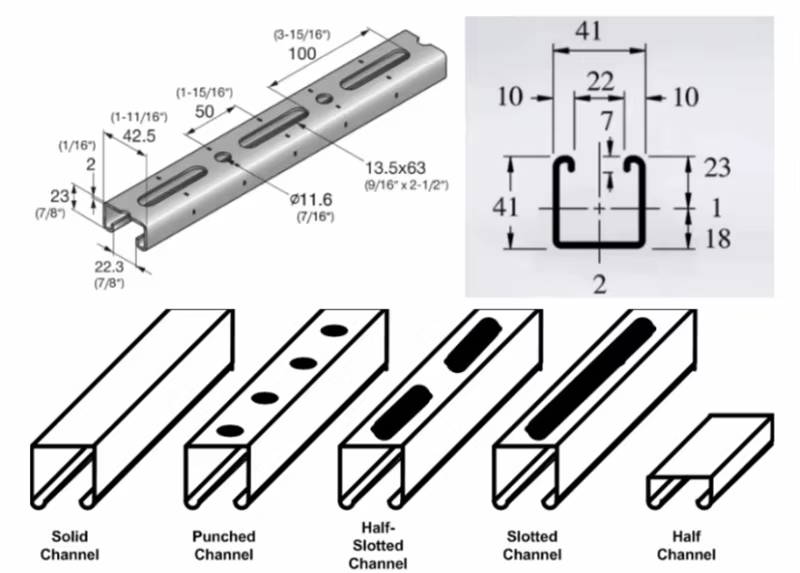

A well-configured solar mounting roll forming machine can produce multiple photovoltaic structural profiles. Common outputs include 41x21 mm and 41x41 mm strut channels, C60 to C140 ground-mount rails, U-channel roof racking, slotted channels for modular solar frames, omega profiles, L-brackets, foundation clips, and heavy-duty carport or tracker support sections.

With quick-change spacers or automatic size-change cassettes, one production line can handle several profile sizes. This is especially valuable for distributors serving both rooftop solar installers and utility-scale solar farm contractors.

How the Production Line Works

The process starts with a hydraulic or motorized decoiler that holds the metal coil. The strip then passes through a leveling unit to remove camber and coil memory. A servo feeder positions the material precisely before the hydraulic or servo punching station creates round holes, oblong slots, grounding holes, and custom mounting patterns.

After punching, the strip enters the main roll forming section. Here, a series of hardened rollers gradually shapes the metal into the required solar bracket profile. The forming stations are designed to control spring-back, maintain straightness, and protect the zinc coating from scratching.

Finally, a hydraulic flying shear or tracking cut system cuts the profile to length without stopping the line. Finished brackets move to a run-out table or automatic stacker, ready for packing and shipment.

Key Features Buyers Look For

International buyers usually evaluate the machine on profile flexibility, punching accuracy, thickness range, production speed, control system, and after-sales support. A competitive solar bracket roll forming machine should support 1.5 to 4.0 mm material thickness, 10 to 25 m/min forming speed, and servo punching with hole-position repeatability around ±0.3 mm.

Rollers are typically made from GCr15, 45# steel, or Cr12MoV and then heat-treated and hard-chrome plated for long service life. Shafts are usually 40Cr or 45# steel with quenching and tempering treatment. The PLC system can be Siemens, Mitsubishi, Delta, or equivalent, with a touch-screen HMI for length setting, batch quantity, hole pattern selection, fault alarm, and production data monitoring.

Voltage and frequency should be export-configurable. Popular options include 380V/50Hz, 415V/50Hz, 460V/60Hz, and 480V/60Hz three-phase power. CE, ISO9001, FAT report, operation manual, electrical drawings, and spare-part lists are important for overseas customers.

Material Compatibility

Most photovoltaic brackets are made from pre-galvanized steel, hot-dip galvanized steel, Zn-Al-Mg coated steel, aluminum, or stainless steel. Zn-Al-Mg material is increasingly popular because it offers better edge corrosion protection for outdoor solar farms.

For rooftop systems, lighter gauges are common. For ground-mounted solar farms, carports, and solar trackers, thicker and higher-yield materials are used. The machine should be selected according to the maximum thickness, yield strength, coil width, and profile drawing rather than only by price.

Applications in the Solar Industry

Solar mounting roll forming machines are used for ground-mounted utility solar farms, commercial rooftop PV systems, residential roof racking, solar carports, floating PV support structures, agricultural solar structures, and single-axis or dual-axis solar tracker frames.

Because solar projects often have strict delivery schedules, the bracket production line must run continuously with minimal downtime. Automated roll forming reduces dependence on skilled labor and helps manufacturers fulfill large tenders with stable quality.

Roll Forming vs Manual Fabrication

Press brake and manual fabrication may look cheaper at the beginning, but they are slower, less accurate, and generate more scrap. Roll forming produces a continuous profile with consistent hole pitch, straight edges, and repeatable dimensions.

In high-volume solar bracket production, the difference is significant. Roll forming can run 10 to 25 meters per minute depending on profile complexity, while manual or semi-manual methods rely on multiple operators and secondary processing. Over a year, the labor saving and material saving alone can justify the investment.



After-Sales and Global Support

Solar bracket buyers often come from the Middle East, Southeast Asia, Europe, North America, South America, and Africa. They care about installation, training, spare parts, and remote troubleshooting.

A strong export package includes factory testing video, English operation manual, PLC program backup, hydraulic diagram, electrical schematic, roller drawing, tool list, and optional on-site commissioning. Remote VPN support and stocked wear parts reduce downtime for overseas factories.



Conclusion

The solar mounting roll forming machine is no longer a optional upgrade for PV bracket factories. It is the standard way to produce high-volume, high-accuracy photovoltaic racking components for global solar projects.

If you are building a solar bracket factory, expanding a steel fabrication workshop, or supplying EPC contractors, the right roll forming line helps you reduce labor, control quality, save material, and win larger solar racking orders. Send your profile drawing, material specification, and target monthly output to get a customized quotation and production layout.
