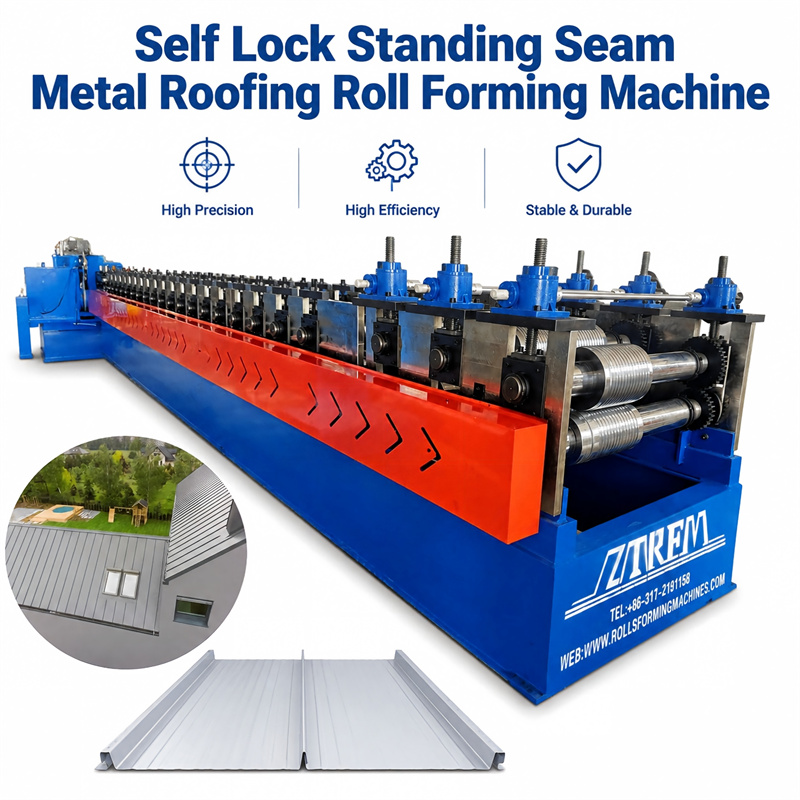

Snap Lock Metal Roof Tile Machine | Self-Locking Standing Seam Roof Panel Roll Former 0–11 m/min

The Snap Lock Metal Roof Tile Machine is a specialized roll forming system for producing self-locking and snap-lock standing seam roof panels. By forming interlocking edges directly during the roll forming process, the machine creates roofing panels that can be connected on site without requiring a separate field-seaming operation for suitable snap-lock profiles.

The system is designed for manufacturers producing architectural metal roofing for residential, commercial, industrial, and other construction projects. According to the required profile, the machine can be engineered for steel, aluminum, or copper coils and can produce continuous roof panels with concealed fastening edges and consistent dimensions.

Self-Locking Roof Panel Roll Forming Process

During production, the metal coil passes through multiple forming stations in sequence. Each station gradually changes the flat strip into the required standing seam or snap-lock profile while maintaining the dimensional accuracy of the locking edges.

The finished panels are designed with specially formed side joints. Once installed, adjacent panels can engage through their matching edges, creating a concealed-fastener roofing system with a clean architectural appearance.

The self lock roofing sheet roll forming machine can be customized according to the customer's required panel geometry, effective width, material thickness, and locking structure. Common architectural snap-lock panel widths can include 12-inch and 16-inch designs, while other dimensions can be developed according to project requirements.

This makes the equipment suitable for roofing manufacturers that need to produce different panel specifications while maintaining a continuous forming process.

Automatic Panel Length Control and Hydraulic Cutting

Length control is an important part of the Snap Lock Roof Panel Machine. An encoder tracks the material movement through the forming line and sends length information to the control system.

After the operator enters the required panel length, the system can automatically monitor the forming distance. When the preset length is reached, the hydraulic cutting unit performs the cutting operation.

Depending on the production configuration, the machine can use either hydraulic stop cutting or tracking cutting. The cutting blades are manufactured from quenched Cr12 material to provide the required strength and wear resistance.

After one panel is cut, the forming process can continue with the following panel. This reduces manual measuring and makes it easier to produce different roof panel lengths from the same coil.

Main Components and Machine Construction

The standing seam forming machine is built around a welded steel frame and a series of precision forming rollers. The main shaft uses forged 45# steel and undergoes machining processes to achieve the required dimensional accuracy.

The forming rollers are made from Cr12 steel and can be quenched to approximately HRC58–62. Hard-chromium plating can also be applied to the roller surfaces when additional wear resistance is required.

The production line can be equipped with different material-feeding and handling configurations according to the customer's requirements.

Item	Specification
Material Width	290–600 mm
Effective Width	220–530 mm
Coil Thickness	0.5–0.8 mm
Roofing Profile	Standing Seam / Snap Lock
Forming Speed	0–11 m/min
Forming Stations	6
Main Motor	1.5 kW
Decoiler	Manual or Hydraulic
Decoiler Inner Diameter	508 mm
Decoiler Outer Diameter	600 mm
Loading Capacity	4–5 tons
Shaft Diameter	60 mm
Shaft Material	Forged 45# Steel
Roller Material	Cr12, quenched HRC58–62
Cutting Blade	Cr12, quenched HRC60–62
Transmission	Chain Drive
Cutting Method	Hydraulic Stop or Tracking Cutting
Machine Dimension	Approx. 1500 × 1100 × 1200 mm
Machine Weight	Approx. 5.9 tons
Electrical System	380V / 50Hz / 3 Phase or Customized

The complete system can include a decoiler, leveling unit, servo feeder, roll forming machine, hydraulic cutting system, stacking equipment, PLC control cabinet, and hydraulic system. The final configuration can be adjusted according to the customer's production requirements.

Materials and Roofing Applications

The machine can be designed to work with different metal materials. Steel is commonly selected for general construction applications, while aluminum and copper can be considered for architectural projects where lower weight, corrosion resistance, or a specific appearance is required.

Typical applications include:

• Residential metal roofing

• Commercial buildings

• Workshops and warehouses

• Industrial buildings

• Institutional construction

The finished snap-lock panels are particularly useful for projects where the roof requires a clean surface without exposed fasteners.

Snap Lock Machine vs. Electric Seaming Machine

A portable standing seam metal roof electric seaming machine and a snap-lock roll forming machine are used at different stages of the roofing process.

A portable electric seamer is normally used at the installation site to close or mechanically seam standing seam joints after the panels have been installed. In contrast, the snap-lock roll forming machine creates the locking edge as part of the manufacturing process.

Therefore, a manufacturer producing self-locking panels does not need to rely on the same field-seaming process used for mechanically seamed standing seam systems.

For this reason, customers should select the equipment according to the specific roofing profile and installation method required by their project.

Roof Panel Machine for Customized Production

A roof panel machine for sale snap lock can be configured for different panel widths, locking geometries, materials, and production requirements.

The forming rollers are manufactured according to the customer's approved profile drawing. This is important because snap-lock and standing seam profiles can vary considerably between roofing systems and markets.

Before machine production, customers can provide:

1. Roof panel profile drawing

2. Required material

3. Coil thickness

4. Panel effective width

5. Required panel length

6. Production speed requirements

7. Voltage and electrical standards

Based on these details, the roll tooling, feeding system, cutting method, and control configuration can be determined.

Complete Metal Roofing Production Solutions

The snap-lock roof panel line can also be combined with other roofing machinery to expand the range of products manufactured in the same facility.

For example, a Ridge Cap Roll Forming Machine can produce ridge caps for roof peaks, while a Roof Flashing Roll Forming Machine can manufacture flashing profiles used around roof edges, walls, and other transitions. A Roof Drip Edge Roll Forming Machine can also be added for producing edge-protection components.

This combination allows roofing manufacturers to develop a broader product range instead of producing roof panels alone.

Why Choose a Snap Lock Roof Panel Machine?

The main advantages of this equipment include:

Pre-formed locking edges:
The machine forms the snap-lock connection during production, reducing the need for additional field forming for suitable profiles.

Automatic length measurement:
An encoder and control system allow operators to set the required panel length for automatic production.

Flexible material selection:
The machine can be designed for steel, aluminum, or copper according to the tooling and production requirements.

Customized roof profiles:
Roll tooling can be manufactured according to customer drawings and required snap-lock dimensions.

Continuous roll forming:
The production process integrates coil feeding, forming, cutting, and optional stacking into a continuous workflow.

Concealed fastening design:
The finished profile can provide a clean architectural appearance without exposed fasteners on the main roof surface.

FAQ

What is a snap-lock metal roofing panel?

A snap-lock metal roofing panel has specially formed edges that engage with the adjacent panel. The connection creates a concealed-fastener roofing system and can eliminate the need for separate field seaming for suitable profiles.

What is the difference between snap-lock and standing seam roofing?

Snap-lock roofing uses pre-formed interlocking edges that can be connected during installation. Some other standing seam systems require mechanical seaming after the panels are installed. The appropriate system depends on the roof design and manufacturer's profile.

What materials can the snap-lock machine produce?

Depending on the machine configuration and tooling, the system can be designed to process steel, aluminum, or copper coils. Material thickness and mechanical properties should be confirmed before final machine design.

What is the production speed?

The listed configuration has a forming speed of up to 11 m/min. Actual output depends on the panel profile, material, thickness, cutting method, and other production conditions.

Can the panel width be customized?

Yes. The forming rollers can be designed according to the required roof panel profile and dimensions. Customers should provide a profile drawing or detailed measurements before tooling production.

Does the machine require a portable electric seaming machine?

Not necessarily. A portable electric seaming machine is used for mechanically seamed standing seam systems. A snap-lock roll former produces panels with pre-formed locking edges, so the installation process is different.

What is the warranty?

The standard warranty period is 12 months. Components affected by manufacturing quality issues can be handled according to the agreed warranty terms.

How are installation and operator training provided?

Customers can receive installation and operation training at the factory. For customers who cannot visit the factory, operation manuals, instructional videos, and online technical support can be provided.

The Snap Lock Metal Roof Tile Machine provides an automated solution for manufacturing self-locking standing seam roof panels with concealed fastening edges. With automatic length measurement, hydraulic cutting, customized roll tooling, and continuous forming, the system can support different architectural metal roofing production requirements.

For manufacturers entering the snap-lock roofing market or expanding an existing metal roofing product range, the machine can be configured around the required profile, material, panel width, thickness, production speed, and cutting method.
