simple hydraulic cutting to length machine  simple steel coil cut to length line machine

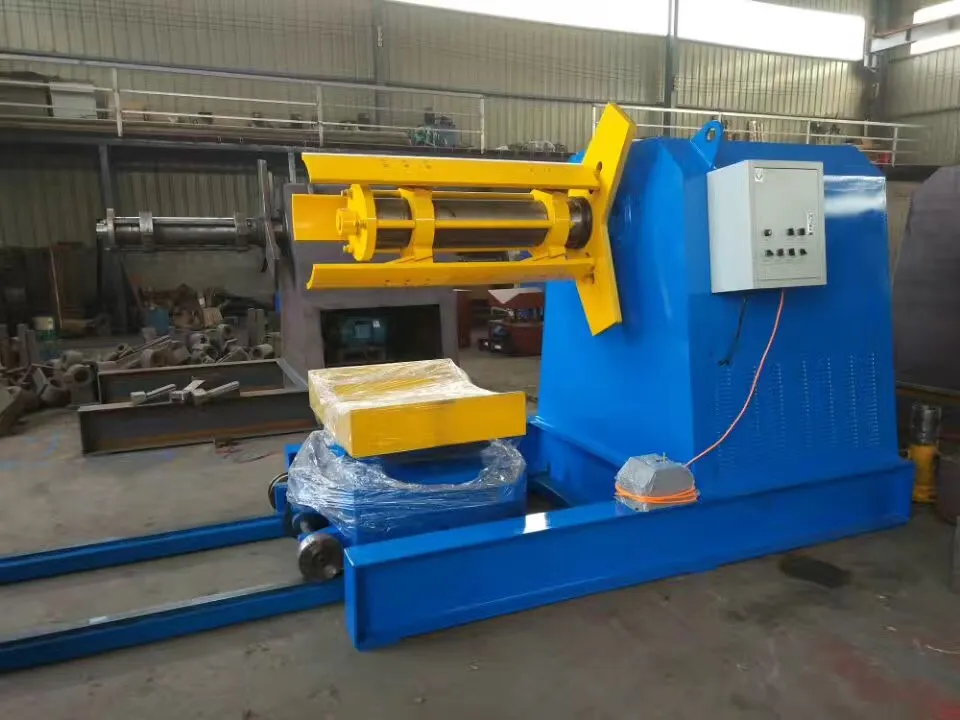

Decoiler

A. Supporting the coils and doing uncoiling.
B. The hydraulic oil pump station is to control the core shrinking and expanding to fit to the inner
diameter of coils.
C. Motor drive the coils running and can do forward and reverse running as well as do the decoiling with tension.
D. The core can ensure the expand range φ450 of the coils inner diameter. It will provide the rubber band to ensure the 550 mm diameter.

Carrying capacity	5 tons
Max coil width	1250 mm
Core inner diameter	450-550mm
Max coil diameter	1500mm
Feeding speed	0-25 m/min (adjustable)
Driving motor power	3 kw
Hydraulic motor power	3 kw
Structure	welding by the steel plates and profiled bar.

The brake system is controlled by pneumatic, the pneumatic pump station is provided by customer. There is a inductor which is placed on the ground, if the material touch on the inductor, the decoiler will stop working automatically and restart automatically as well. The main advantage of the inductor is to avoid the material head up more on the ground.

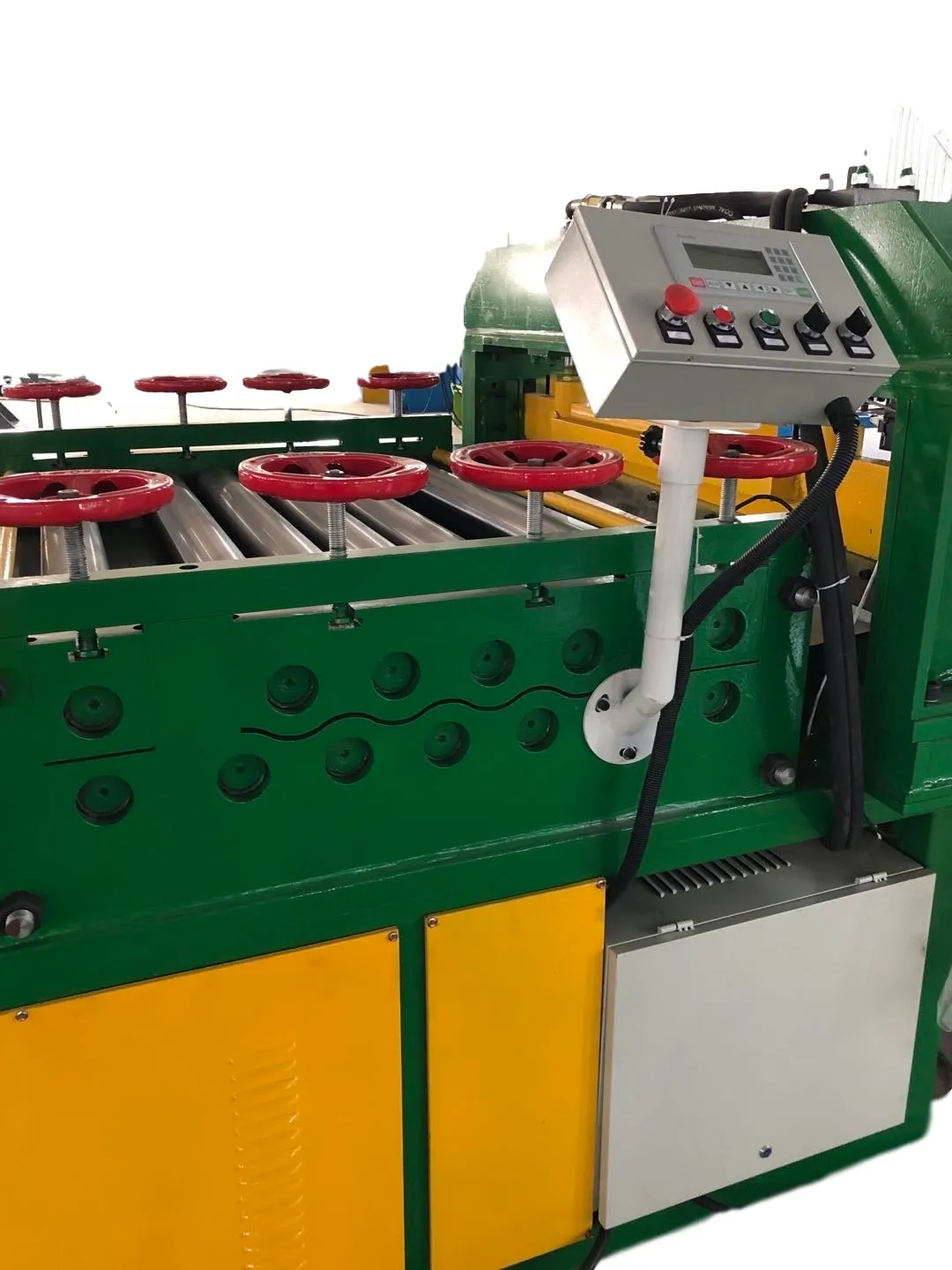

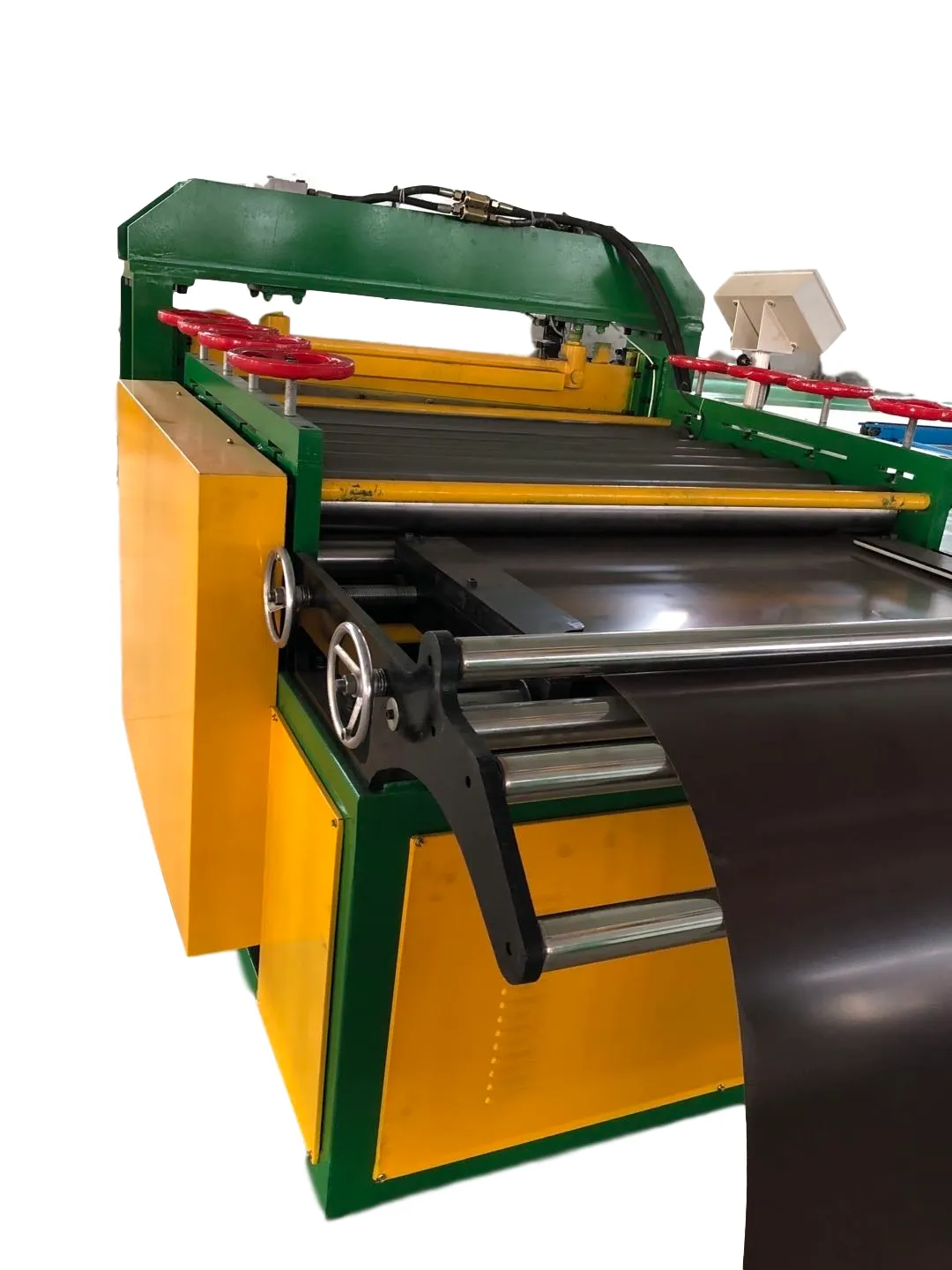

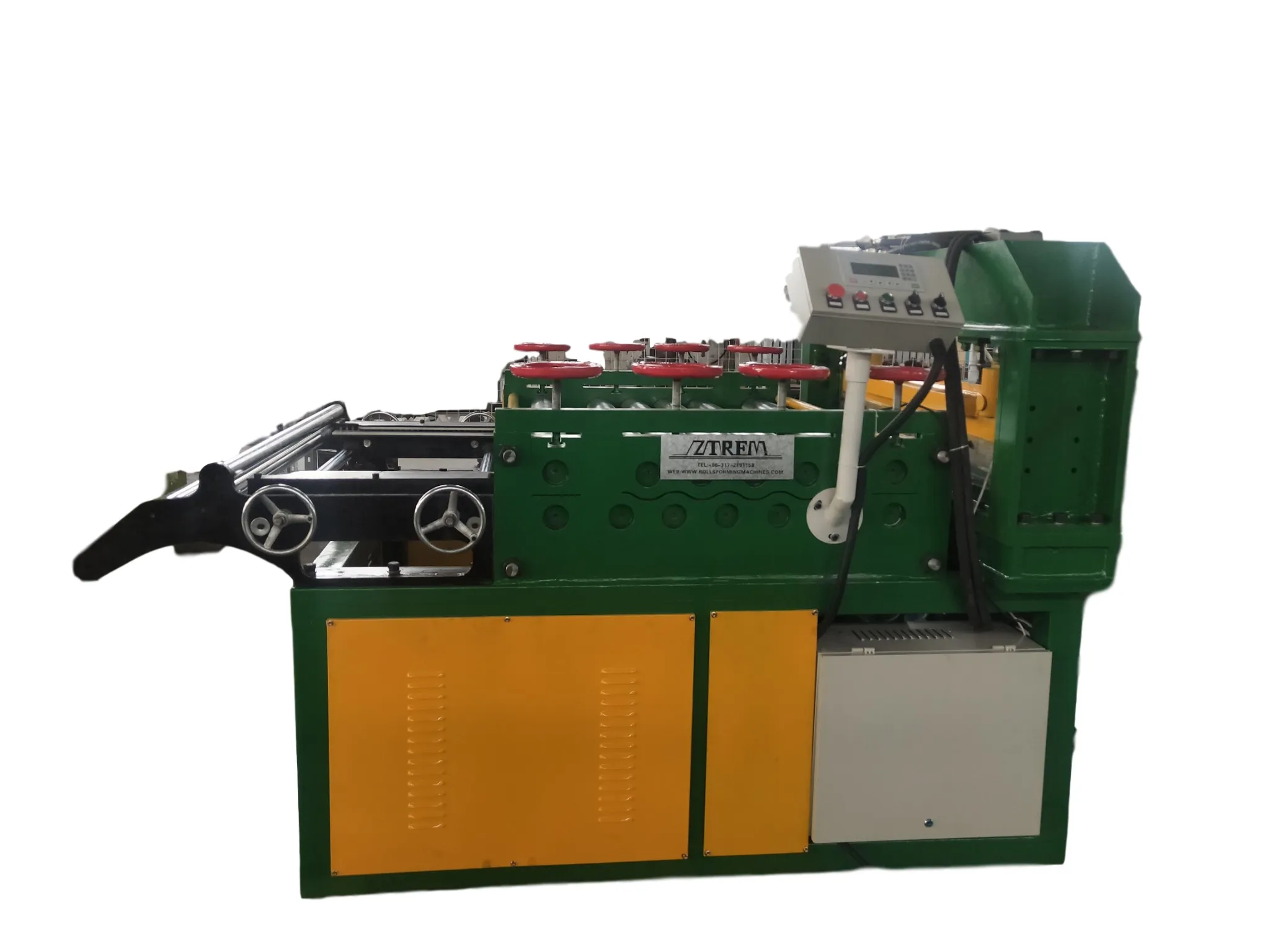

LEVELING&FEEDING DEVICE

feeding device
Feeding device Adjustable
Rolling shaft material 45# STEEL
Shaft diameter 70 mm
Work speed 0-15 m/min
Machine basic frame Steel plate welded
Driving power 3 kw

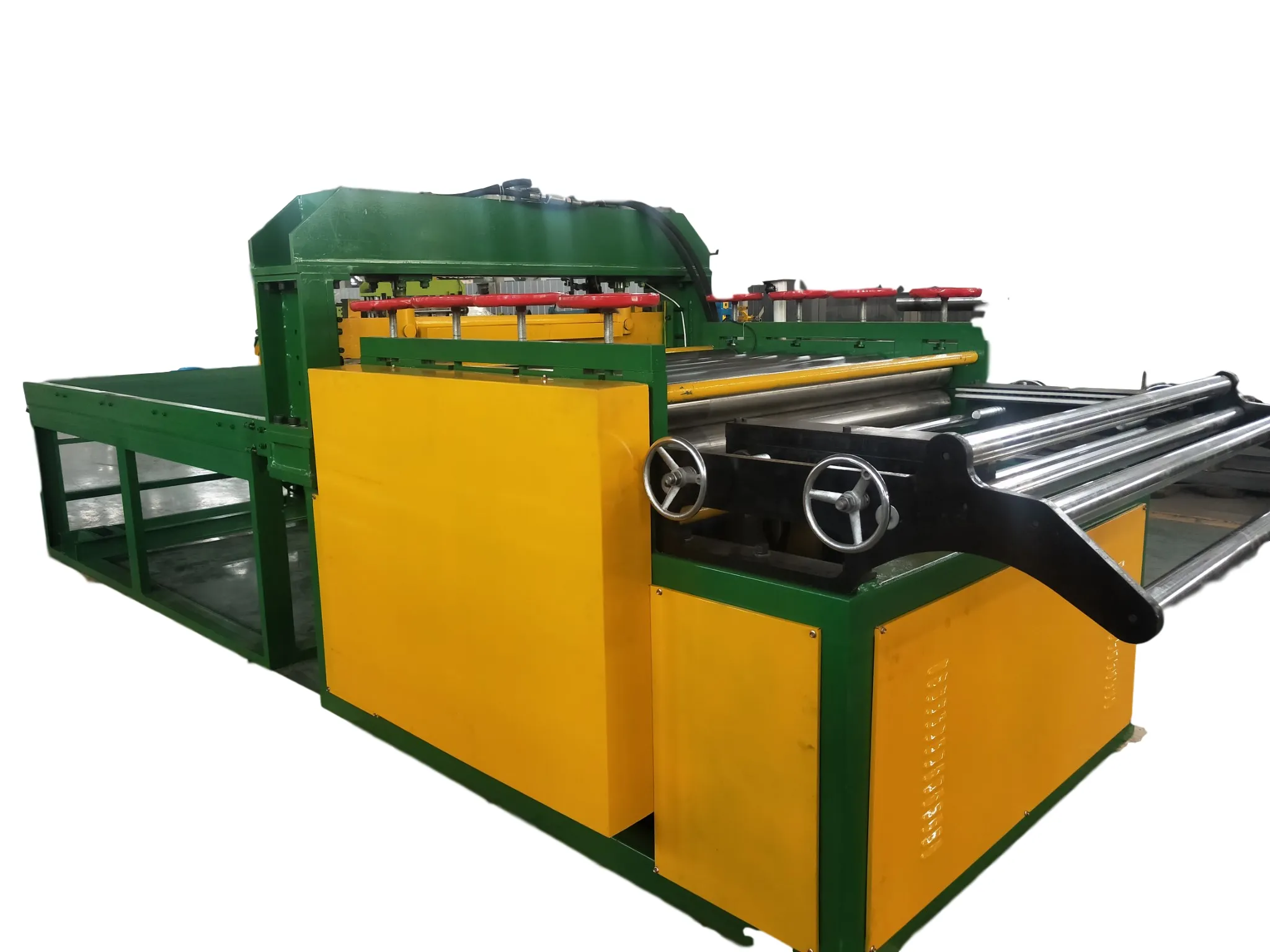

shearing Cutter material Cr12
Cutting width ≤1250mm
Cutting length Adjustable



 PLC control system

Control system Screen type: Touch screen & buttons
Screen language: English/Chinese
Function: cutting length and quantity control, speed adjustment

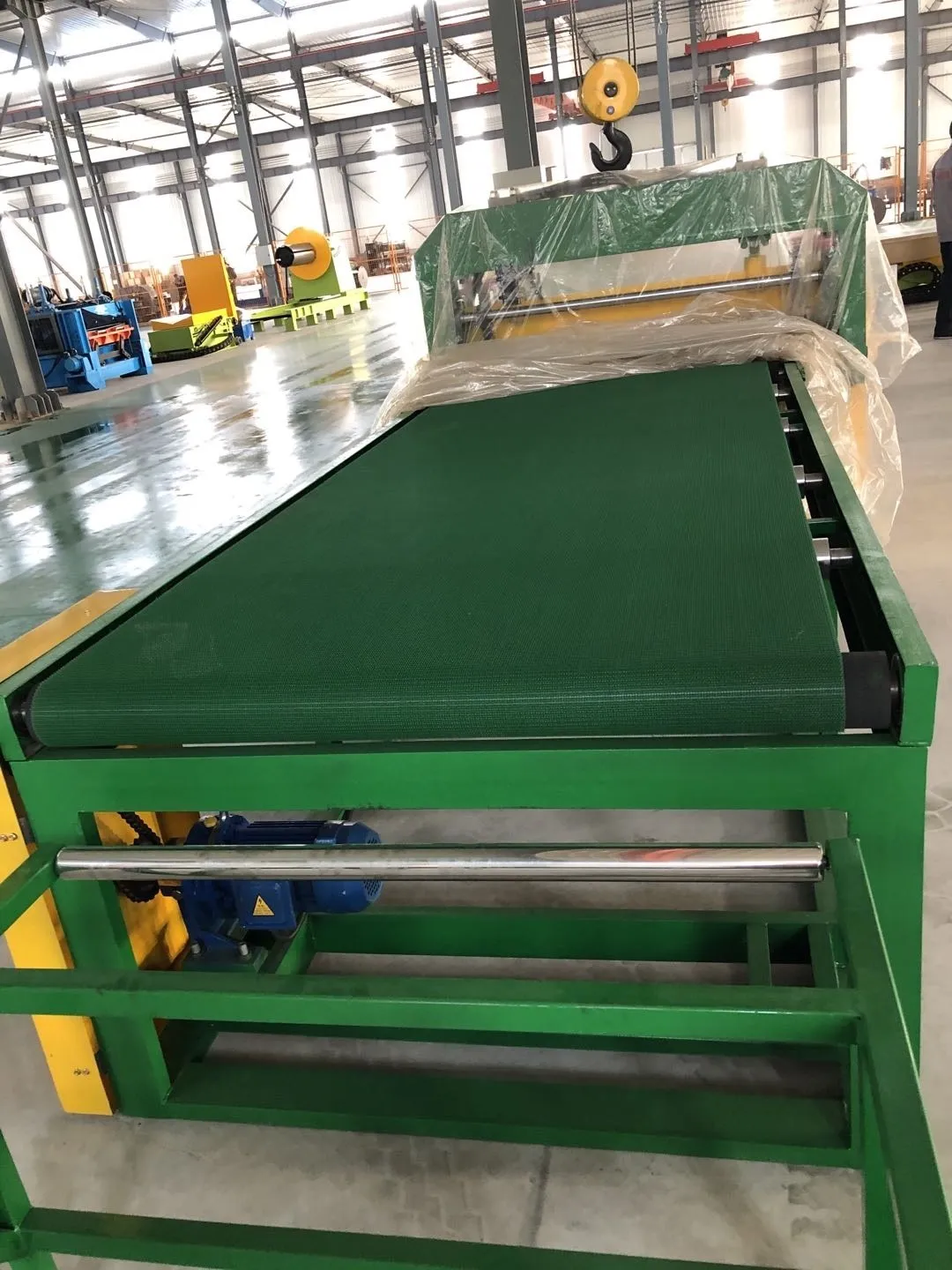

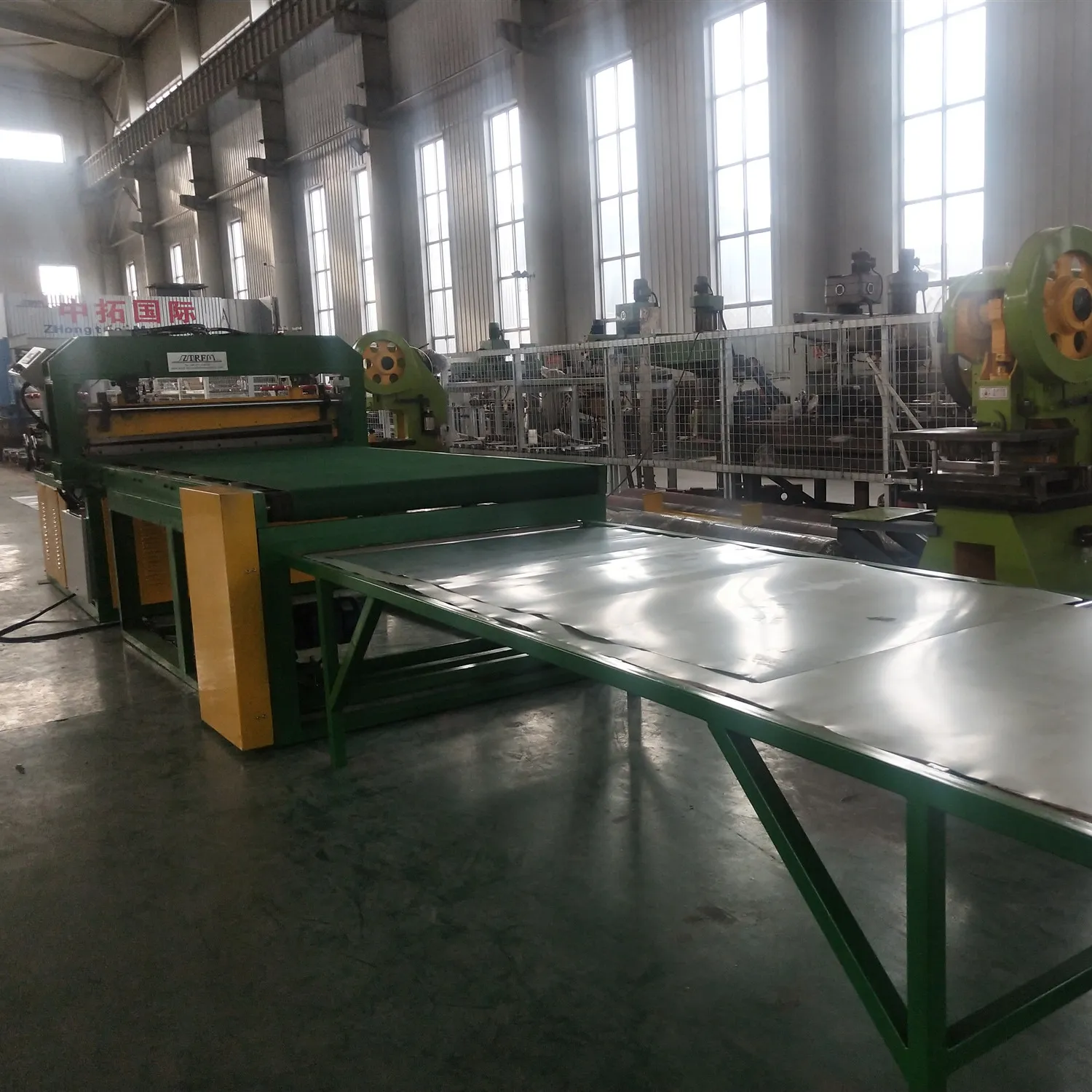

Receiving Table

Table Conveyor length 3 meters long
Driving motor 3 kw
