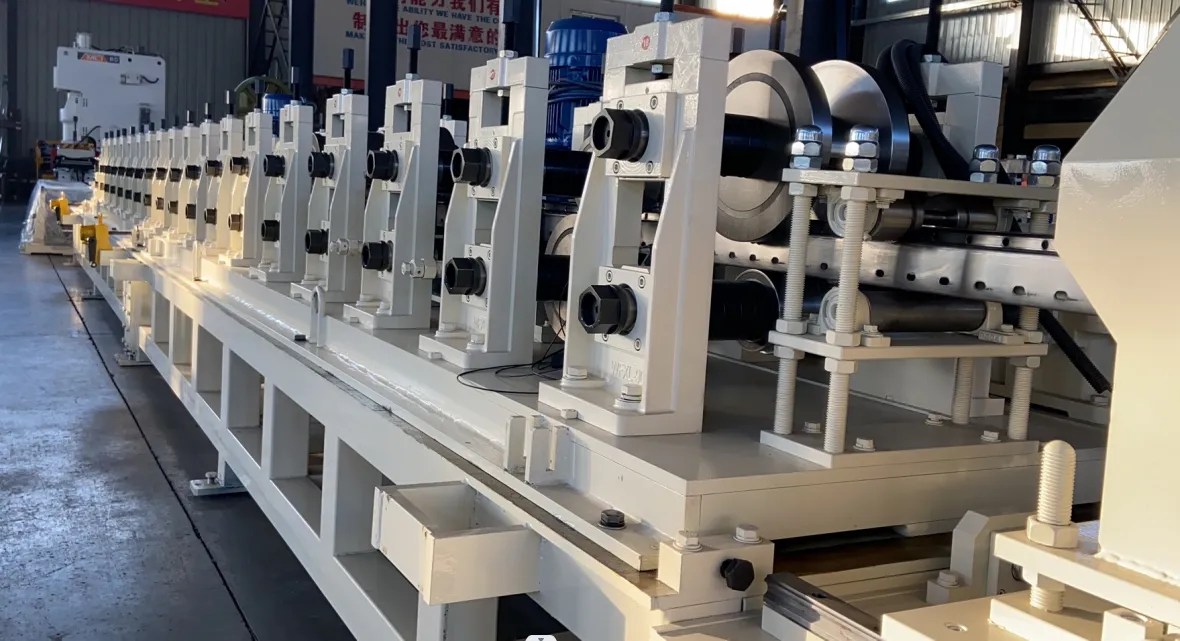

Shelves Rack Pillar Beam Upright Roll Forming Machine Steel Storage Rack Machine customized+1000mm

What is the application of Supermarket shelf roll forming machine?

Our company specializes in making all kinds of supermarket shelf roll forming machines since 1996.  The upright shelf system nomrally uncludes by the column, steel plate composition. Column with roll forming process, with the oblique rod, horizontal rod connected to form a column. According to the needs of the side beam with a layer of laminates or beams used, the board can be adjusted for every 50 mm pitch up and down any height, the shelf for the modular structure, high stability, easy installation and disassembly. Unit shelf each load between 200kg-800kg, the total load is generally not more than 5000kg. Unit shelf span is usually not more than 2.6m, the depth of not more than 1.2m, the height is generally within 5m. Applicable to carrying small and medium goods. Widely used in shopping malls, supermarkets, corporate warehouses and institutions and other industries

What is the working flow of Supermarket shelf roll forming machine?

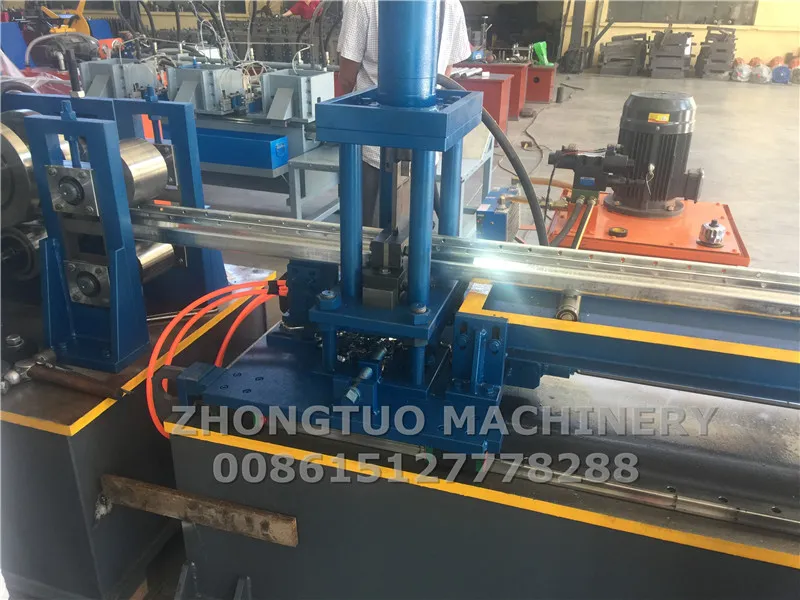

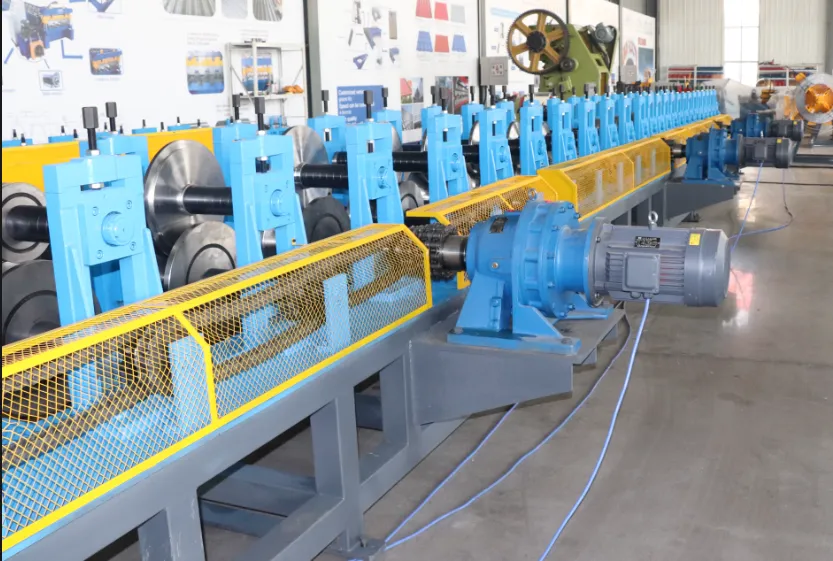

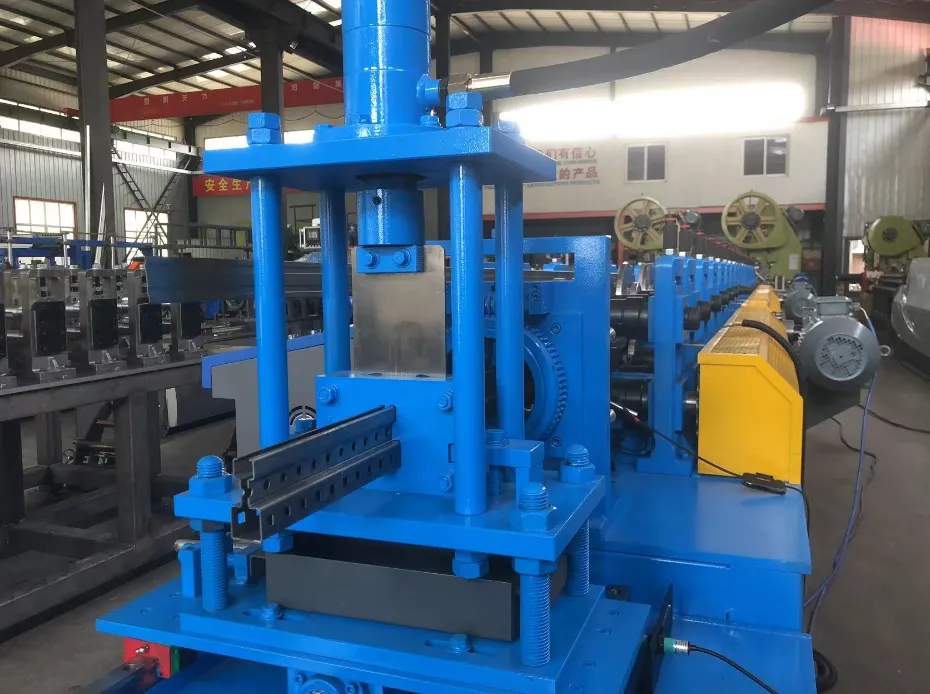

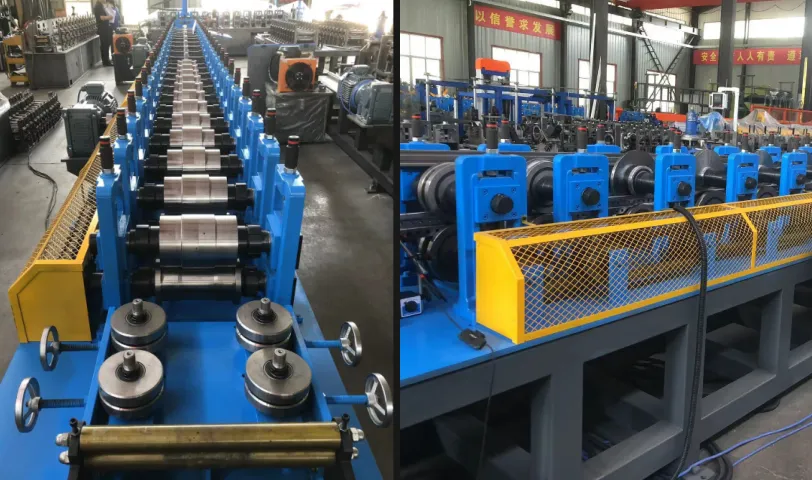

It is consisted of decoiler, main forming machine,cutting device,runouttable.The working flow is as follows:

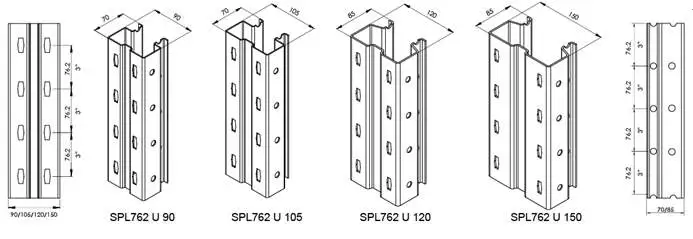

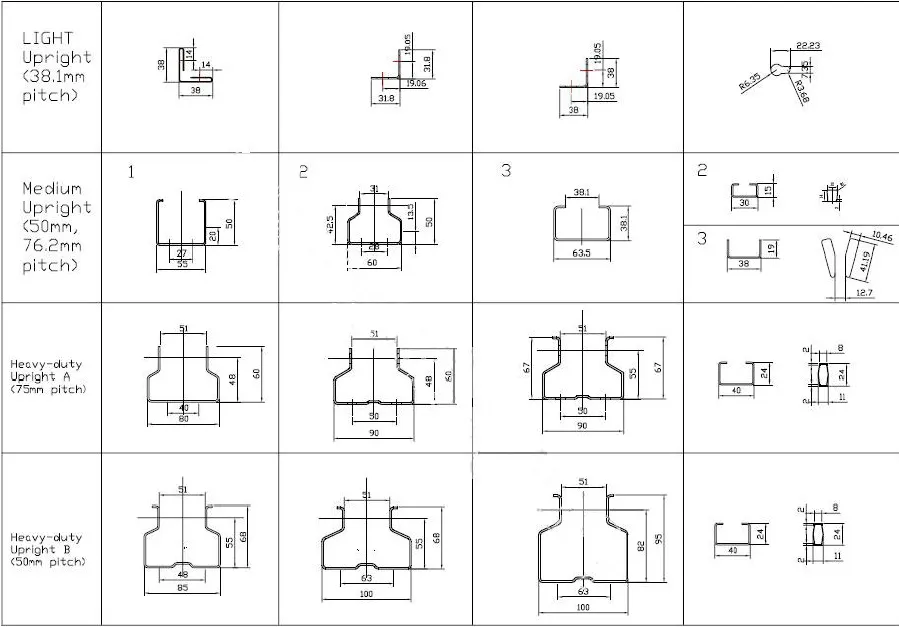

Some drawings of Supermarket shelf roll forming machine

If you want to buy the machine, first you should give us a profile drawing like the following.

And if you don't have a drawing, we can recommend you the most popular steel door frame drawing in your country.The following is some drawings for your reference.

The basic Information of Supermarket shelf roll forming machine

If you want to know more about our products,please copy and paste the link into your web browser.

https://www.youtube.com/channel/UCea3FfE-LRSPhycSuiY4snA

Cangzhou ZHONGTUO Roll Forming Machinery Co., Ltd is a professional manufacturer and exporter of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,South America, Australia and so on.

We specialized in manufacturing Color steel roll forming machinery, C UM Z purlin roll forming machine,Glazed tile roll forming machine, steel floor deck roll forming machine, shutterdoor roll forming machine, metal stud and track roll forming machine,highway guardrail roll forming machine, downspout machine,roller shutter guide rail machine,Steel Door Frame Making Machine,no beam roof tile machine, weldingpipe machine.

FAQ:

1.How to get a quotation of Steel Door Frame Making Machine?
Give me the profile drawing and thickness for the steel door frame,this is the important.
Other spicific requirements is welcome,such as the speed,power and voltage you want.

2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.

4. What is your after-sale service?
Steel Door Frame Making Machine's  warranty period is 24months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of the equipment.

6. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
