Shelf Upright Machine Roll Forming Machine Shelf Upright Roll Forming Machine

Product Overview

The shelf upright machine is a fully automatic roll forming line that produces pallet rack uprights (rack shelf columns) for stacking racks and shelves. With 16 forming stations, GCr15 quenched rollers and imported SIEMENS/DELTA PLC control, it forms, punches and cuts upright columns in one continuous line at a stable 20 m/min.

• Multi-station precision forming: 16 stations, accurate profiles, smooth surfaces, tight tolerance
• Fully automatic PLC line: auto decoiling, feeding, forming, punching and cutting, one operator
• Online punching, no second processing: holes punched during forming, ready to assemble
• Customized to your rack profile: roller sets built to your exact upright drawings
• Heavy-duty long service life: 350H steel main frame, GCr15 rollers, Cr12MoV blade
• CE, BV, STV, ISO certified

Key Features

• Multi-Station Precision Forming - 16 forming stations with GCr15 quenched rollers and 45# steel forged shafts give accurate upright profiles with smooth surfaces and tight tolerance, forming uniform pallet rack columns every run.
• Fully Automatic PLC Line - Imported SIEMENS/DELTA PLC with servo drive runs auto decoiling, feeding, forming, punching and cutting in one line. One operator controls all, cutting labor cost and errors at stable 20 m/min.
• Online Punching - No Second Processing - Hydraulic punching station and optional 80-ton press punch holes and slots during forming. Columns come out ready to assemble, eliminating separate punching lines, saving time and cost.
• Customized to Your Rack Profile - Roller sets are built to your exact shelf upright drawings, covering different heights, hole patterns and slot designs. Full customization with free custom design within 3 days.
• High-Speed Output - Up to 20 m/min (65.62 ft/min) forming speed, fed stably by hydraulic decoiler and leveler, supports medium and large warehouse rack production and shortens order lead time.
• Heavy-Duty Long Service Life - 350H steel main frame, GCr15 quenched rollers and Cr12MoV cutting blade ensure long-term reliability under continuous production.

Technical Specifications

Machine Structure

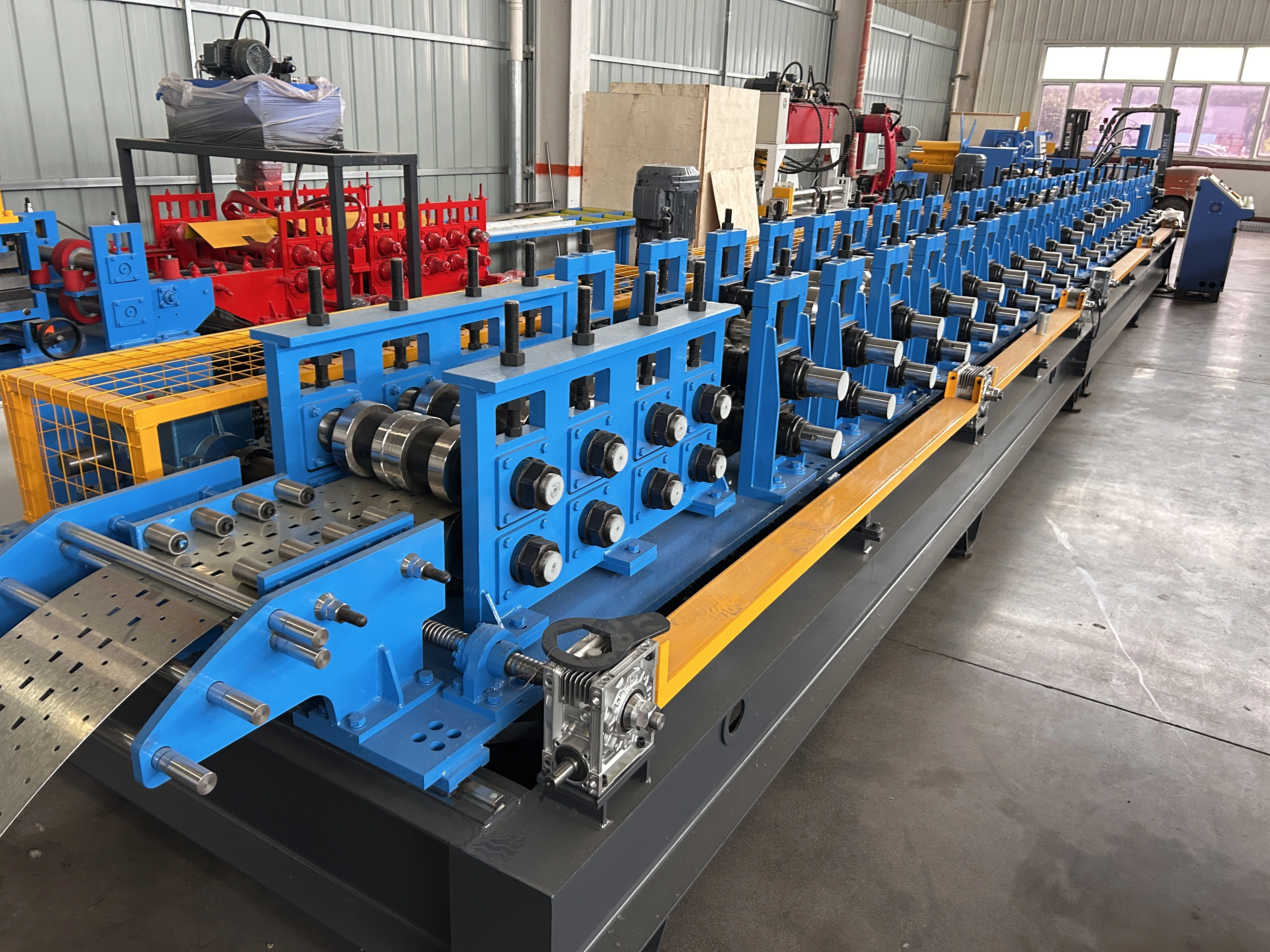

The line features a long series of bright blue forming stations with heavy polished rollers, a yellow guide rail, and adjustment mechanisms; the galvanized strip enters pre-punched and is progressively bent into the upright profile.

Finished Product

The finished galvanized rack upright has a U-shaped cross-section with flanges, evenly spaced circular holes punched along the flanges and interior walls, and a rectangular punch-out at the end - ready to assemble without secondary processing.

Certifications

The machine is CE certified for international procurement (CE trust No. 4Q230524.CZIDW02 / 4Q230524.CZIDW03), supported by certificates from COTECNA, UDEM and SAC; the company holds CE, BV, STV and ISO certifications.

Company Profile

Zhongtuo Roll Forming Machinery Co., Ltd (ZTREM) operates a modern factory, an international showroom with development history and honors walls, and a high-capacity manufacturing floor, delivering complete roll forming solutions to global buyers.

Packing & Shipping

• Package size: 1000 x 130 x 160 cm; machine weight: 10000 kg
• Delivery time: 56 days for 1 set, 80 days for 2 sets
• Machinery test report and video outgoing inspection provided; overseas engineer service available
