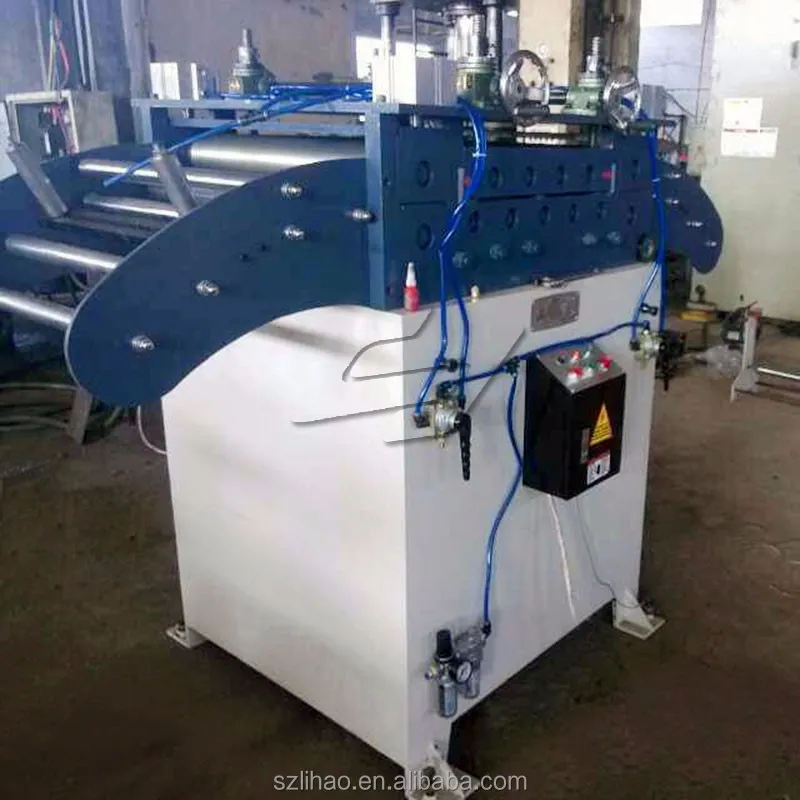

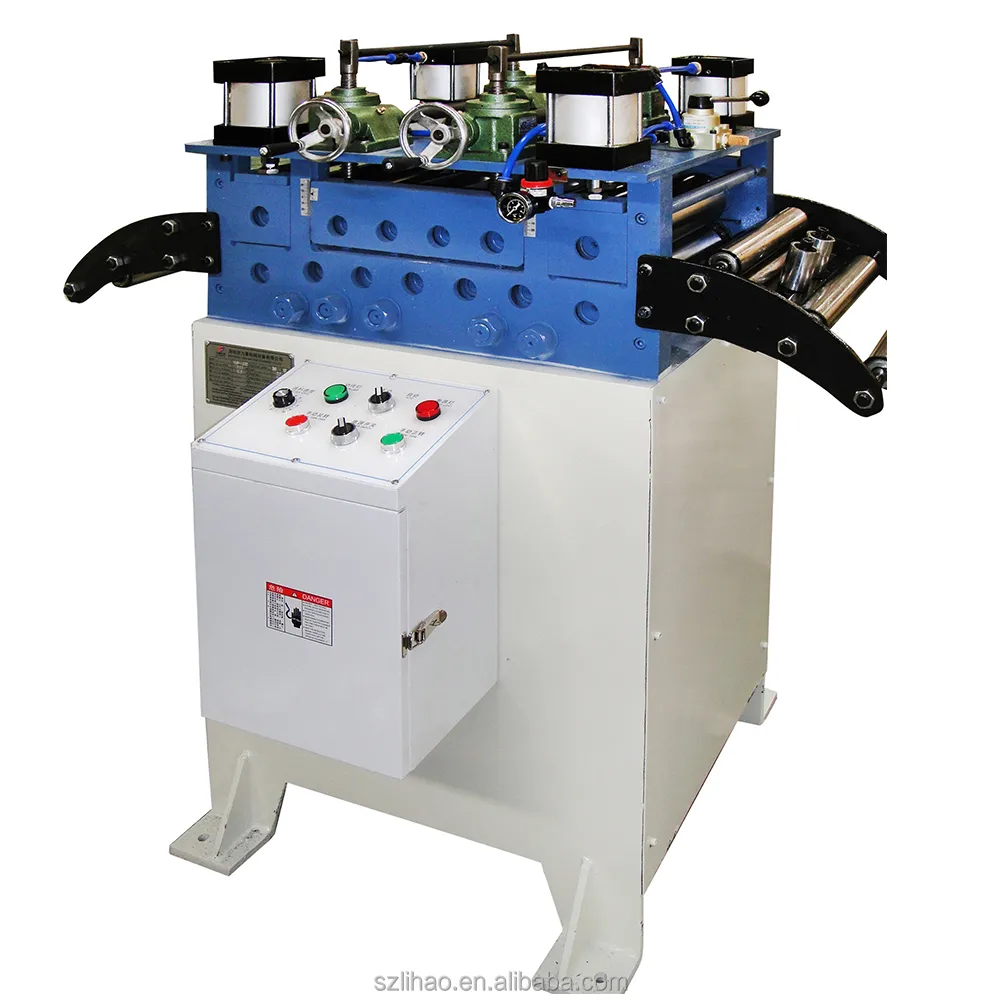

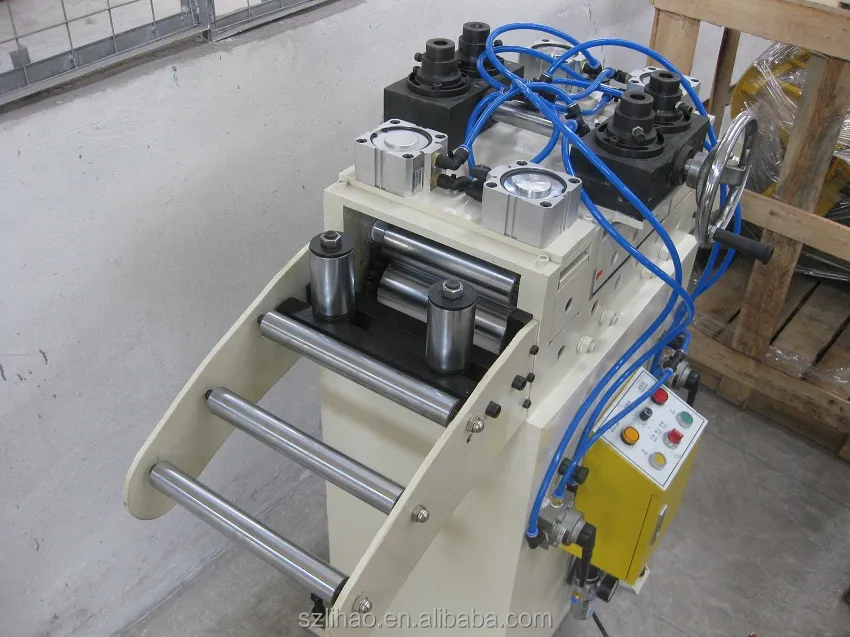

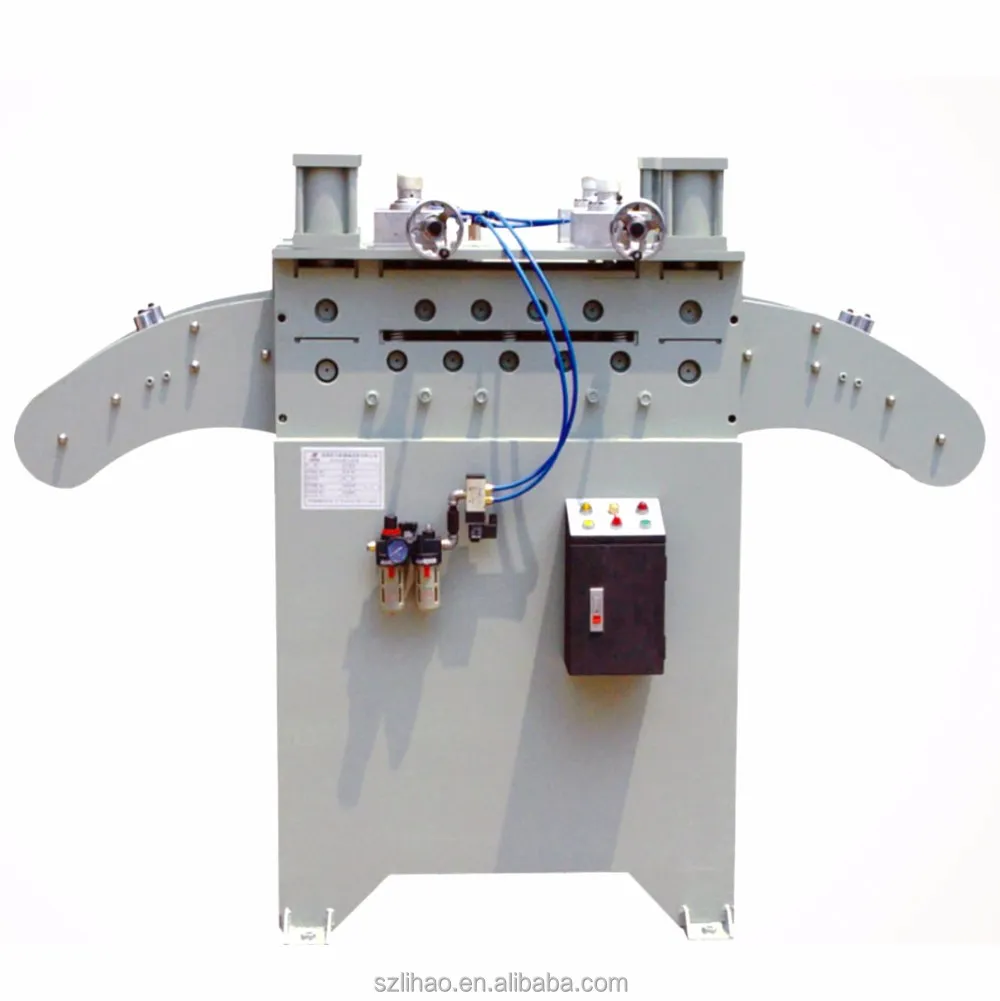

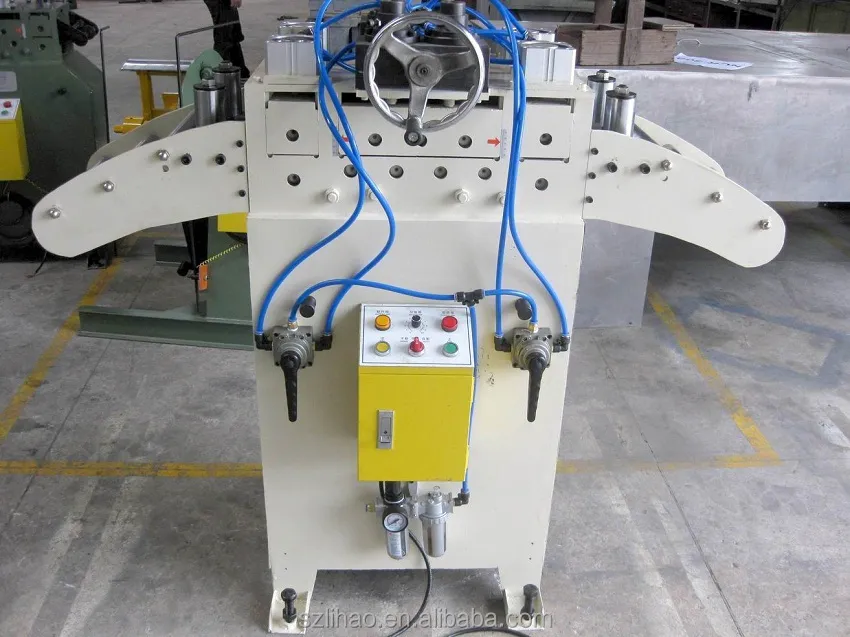

Sheet Metal Straightener Roller Straightening Machine Flatter Machine HS-400

Shenzhen Lihao Machine Equipment Co., Ltd

Sheet Metal Straightener Roller Straightening Machine Flatter Machine HS-400

Name: Sheet Metal Straightener Roller Straightening Machine Flatter Machine HS-400
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT80022811

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

model number:

HS-400

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Voltage
380-440v, 220-380V
Power(W)
2
Feeding Speed
20 M/Min, 15 m/min

Straightener for Thick Material Sheets (HS TYPE)

Description :
We are the Manufacturer and Supplier of Metal Sheet Straighteners of various dimensions. Straightener of high precision, high speed and special structure for sheet is a powerful new equipment, used in high-speed pressing. It can improve the quality and quantity of press workpieces.

Feature :

Suitable for straightening difference thicker metal sheets.
Equipped with Japanese magnetic contactor and electronic components, minimum breakdown.
Efficient automatic material feeding equipment, a dramatic increase in productivity is achieved by land up with Uncoiler ( MT-type). Double head Coil cradle (DBMT-type).
Straightening capacity is full enhanced by back-up rolls
The rack of input and output to assist and support the material.
All rolls are made of bearing steel, have all been quenched, hard-chrome plated and grinded with mim HRC60.

Specification :

HS Type ( For Thickness 0.4-2.2mm)

Type	HS-200	HS-300	HS-400	HS-500	HS-600
Max.Material width	200mm	300mm	400mm	500mm	600mm
Material thickness	1.5-6.0mm
Max.Feed speed	15m/min
Motor	2HP	3HP	3HP	5HP	5HP

Straightening Performance

Type	HS-200	HS-300	HS-400	HS-500	HS-600
Material Thickness(mm)	Material Width(mm)
3.2	200	300	400	500	600
4.0	200	300	400	500	600
4.5	200	300	400	400	400
5.0	200	250	300	300	300
6.0	180	180	200	200	200

Introduction:

·The head of straightener

1,The head adopts design of parallel roller, the upper 4 rollers/lower 5 rollers, totally 9 refined roller structure.

2,Adopts large cylinder press material,more suitable for processing high precision products,The adjustments adopts synchronous worm gear and worm screw ,it can effectively prevent material from deviation and deformation.

3,Support roller adopts galvanizing roller without power, material integrated forming,surface resistance to scraping grinding, using mechanical bearings, rotating flexible and durable. 4,It adopts cost iron hand wheel , and its surface is electroplated, it is the most traditional hand wheel.

·Straightener roller

1,The straightener wheel is made of solid bearing steel, thickened and electroplated after intermediate frequency, and the surface hardness is not low HRC58, to ensure the durability of material.

2,Use forging round steel with GCr15,after preheating treatment( spheroidizing annealing ),then turning, miliing,medium frequency treatment, rough grinding, cold stabilization, then fine grinding, finally electroplating .Maximize the guarantee of precision degree ,concentricity, smoothness and hardness, extend the service life of straightening roller.

·Drive gear

The gear processing process includes the following process:gear blank processing-tooth surface processing-heat treatment-Tooth surface finishing. Raw parts are mainly forged parts,By normalizing treatment, improve its cutting, to facilitate cutting.;according to the gear design drawings, rough machining, and then half fine processing. ,lathe,rolling,gear shaping,make the gear basically formed;then by heat treatment to improve the mechanical properties. According to the design requirements of the drawings, the final finishing, finishing benchmark finishing the tooth type. After the above treatment, our gear grade can reach grade 6 ,high wear resistance and strength high ,long service life.

·Power section

1,Adopt model 80 worm gear vertical reducer,using the gear speed converter, the motor will be mechanism in which the number of revolutions is reduced to the desired number of revolutions and greater torque is obtained.

2,Use vertical motor ,low vibration, low noise, fixed rotor part of pure copper coil, life for the ordinary coil ten times, two ends of ball bearings, low friction, low temperature .
