Servo-Controlled Slotted Angle Steel Roll Forming Production Line 0-15m/min

Automatic Servo-Controlled Slotted Angle Steel Roll Forming Production Line

What is an automatic servo controlled perforated angle steel roll forming production line?

The perforated angle steel roll forming production line is a set of fully automatic cold bending equipment specifically designed for producing metal perforated angle steel. It starts from metal coil (steel coil) and undergoes continuous processing to directly produce finished perforated angle steel. The entire production line usually consists of the following core units:

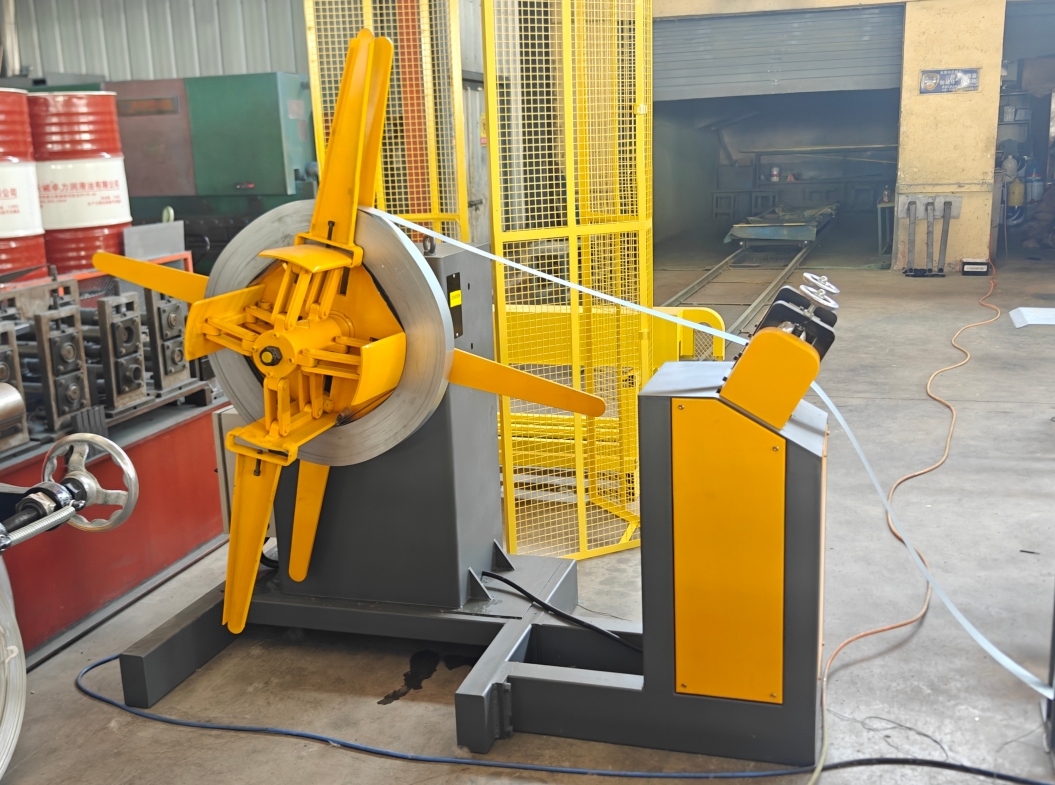

1 .hydraulic/manual unwinding machine for carrying metal coils, actively unwinding, with a load capacity of 3-15 tons
2. Leveling and feeding system to eliminate internal stress in the coil material and ensure the flatness of the board surface
3. servo feeding systems are driven by servo motors to achieve high-precision step-by-step feeding

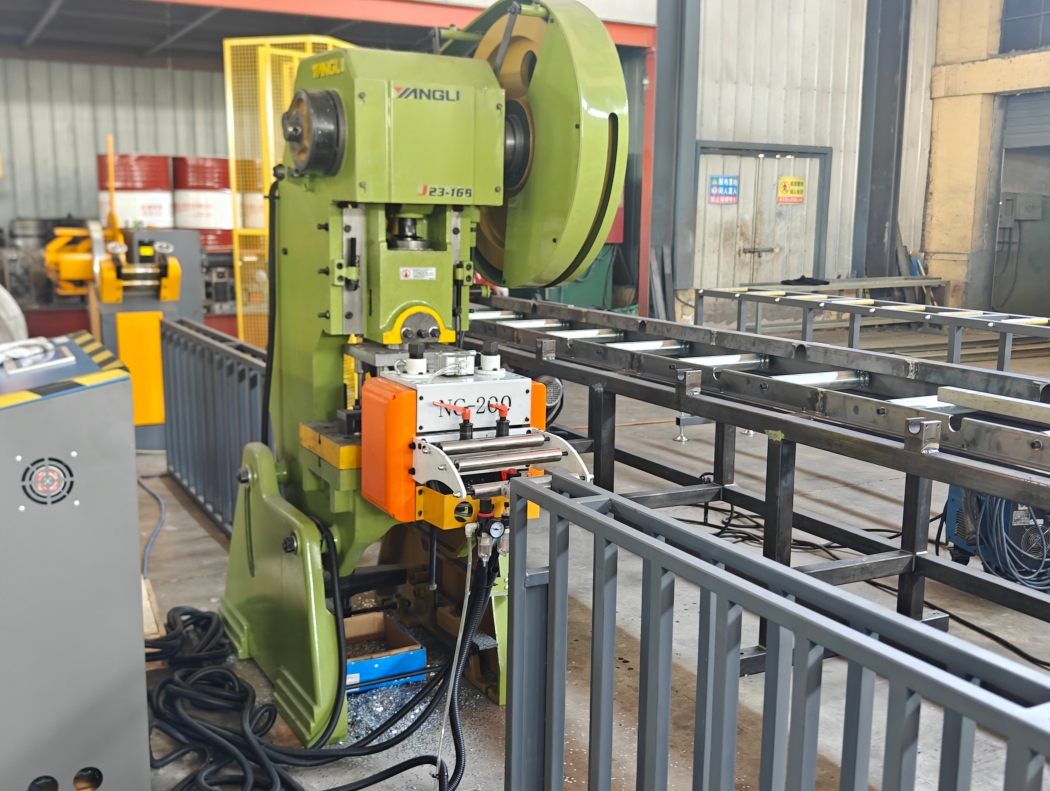

4. precision punching units punch slot holes on the two wings of the angle steel according to the set spacing
5.roll forming machine uses multiple passes of alloy rollers to cold bend flat plates into L-shaped angle steel
6.hydraulic cutting system accurately cuts the finished product according to the set length
7. PLC intelligent control system for fully automatic control and coordinated operation of the entire line
8. automatic discharge stacking platform for neat stacking of finished products, convenient for packaging and transportation

Widely applicable fields：

Perforated angle steel is a widely used industrial profile, described as “one of the most versatile, time-saving, labor-saving, and cost-effective structural materials”. The perforated angle steel produced by this production line is mainly used for:

1.Warehousing and Logistics Industry

• Heavy duty shelving columns and beams

• Supermarket shelves, display shelves

• Storage cage, pallet rack

2.Industrial manufacturing field

• Workbench, equipment bracket

• Assembly line frame, conveyor bracket

• Fixtures and maintenance platforms

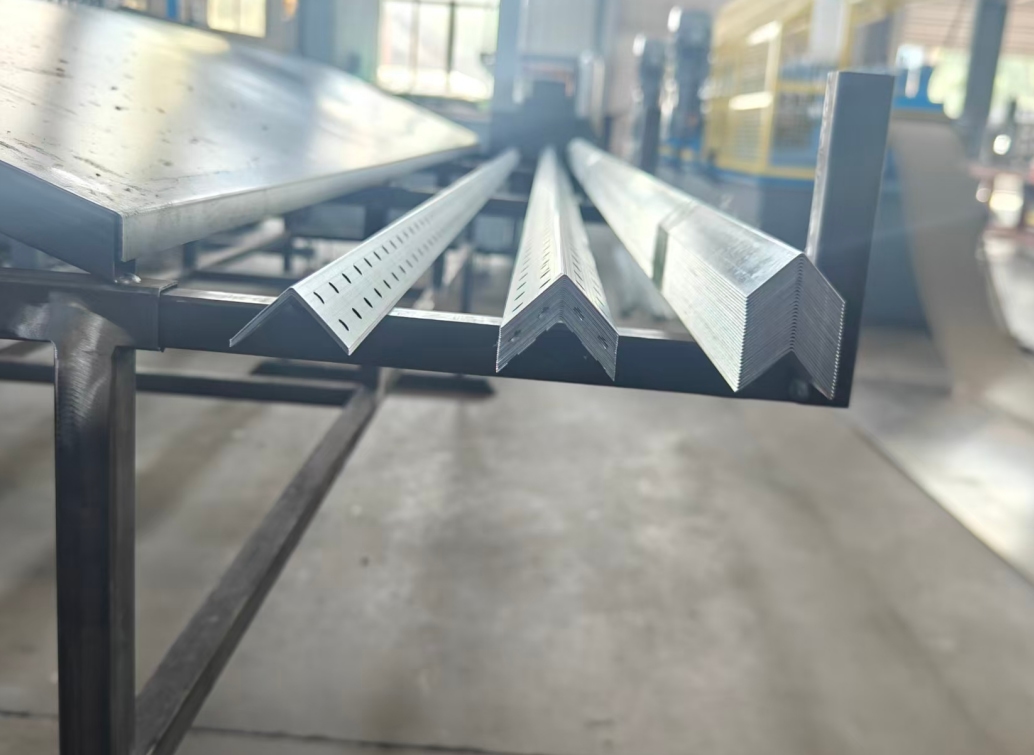

Pattern diagram：


Product Attributes :

1.Formed Material	PPGI,GI,AI		Thickness:0.25-0.9mm
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler
3.Main body	Roller station		10 rows
	Diameter of shaft		50mm solid shaft
	Material of rollers		45# steel, hard chrome plated on the surface
	Machine body frame		400 H steel
	Drive		Chain transmission
	Dimension(L*W*H)		8500*1000*1200
	Weight		5.5T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		5.5KW
	Hydraulic system power		4KW
6.Voltage	380V 50Hz 3Phase		As your requirement

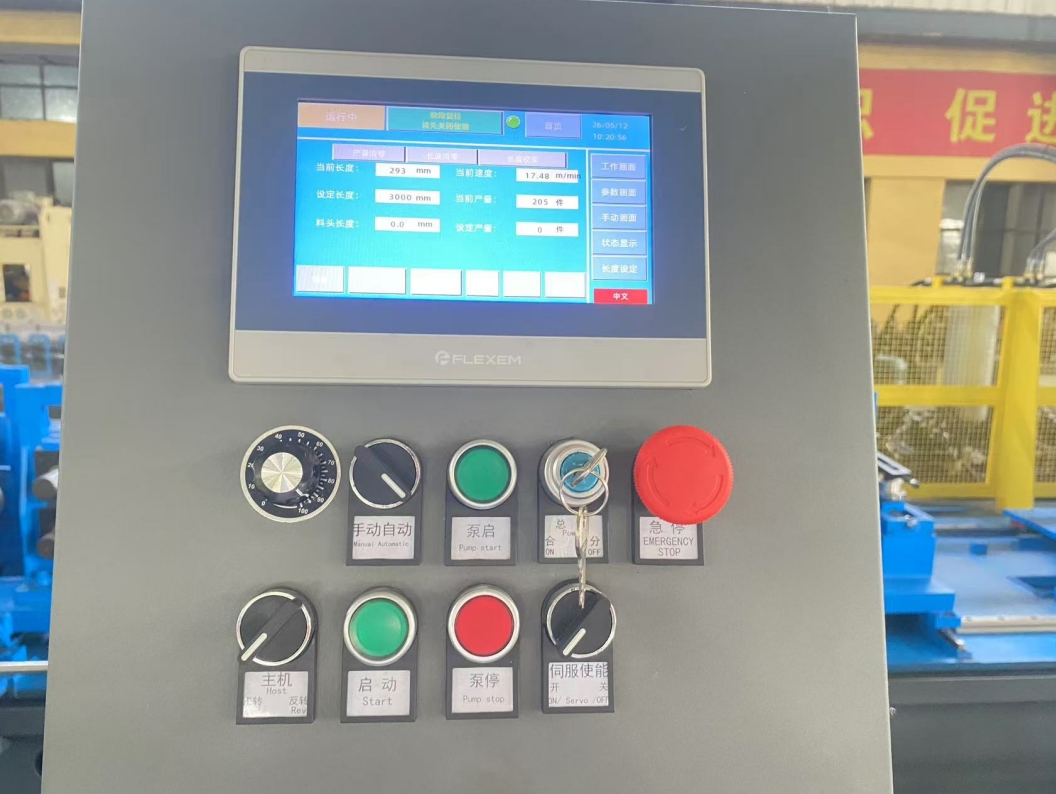

7.Control system	Electric Box		Customized(famous brand)
	Language		English(Support multiple languages)
	PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	0-15m/min		Speed is adjustable according to customer’s request.

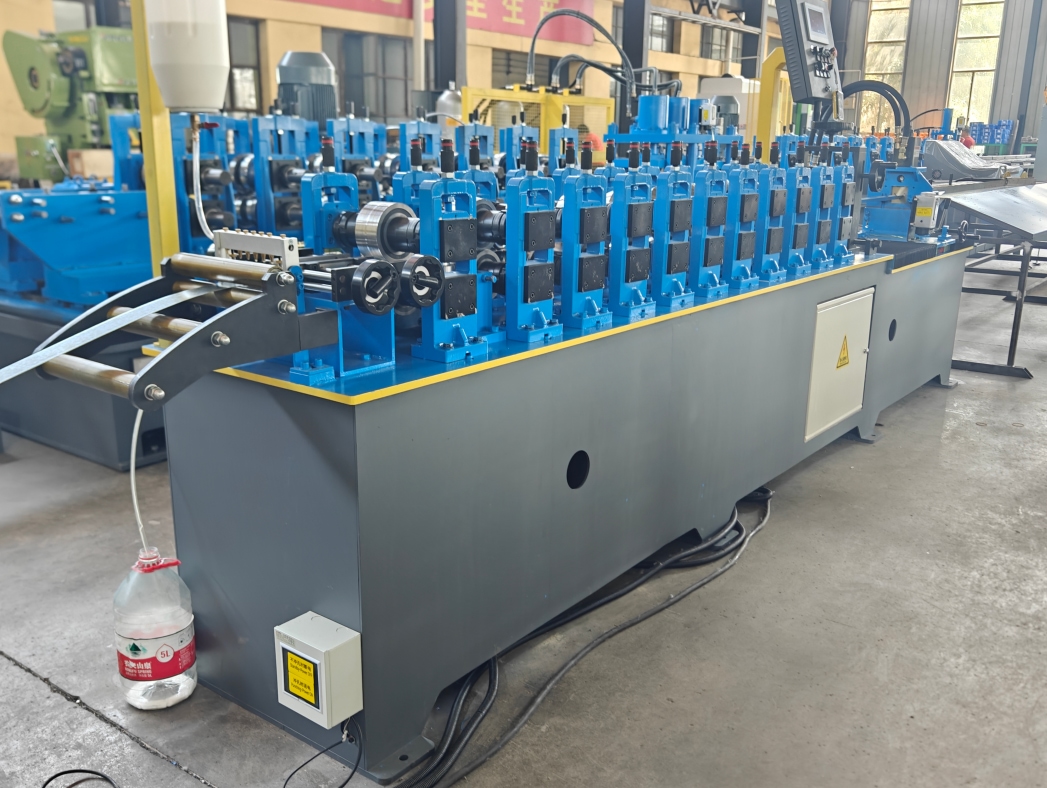

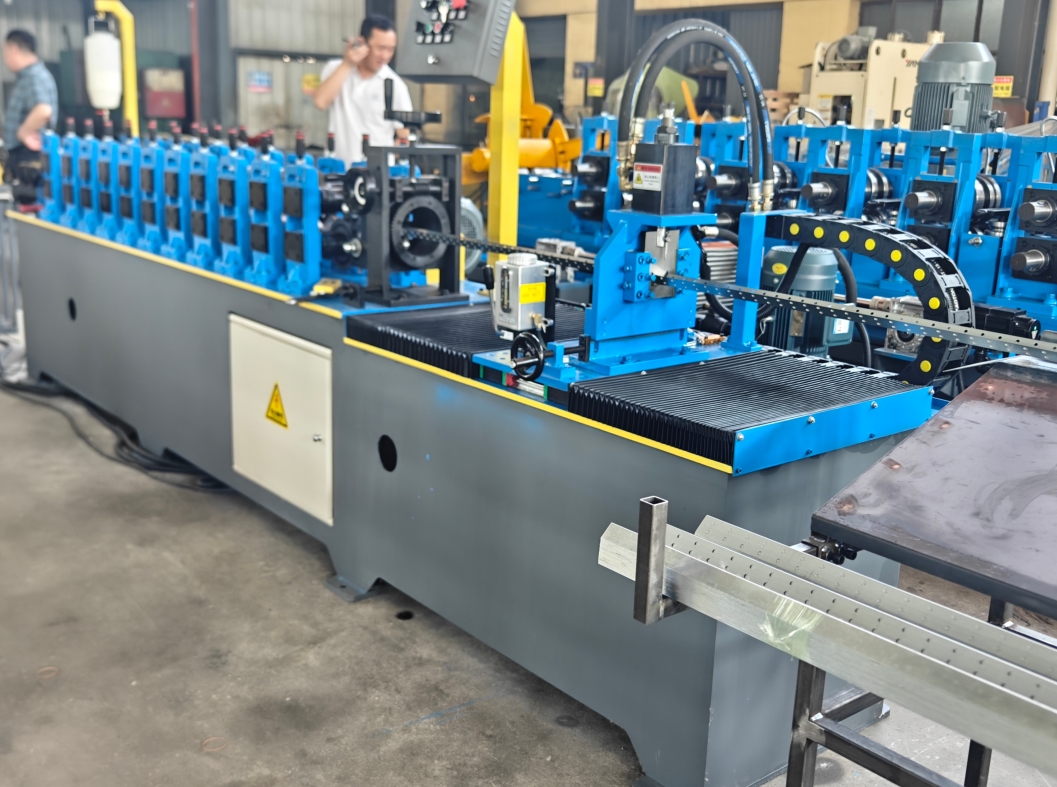

Machine photo:

Why choose our perforated angle steel roll forming production line?

✅ High precision – servo full closed-loop control, industry-leading punching and forming accuracy

✅ High efficiency – integrated punching and forming, continuous production, daily output can reach several kilometers

✅ Labor saving – fully automated operation, 1-2 people can operate the entire production line

✅ Low loss – precise sizing and intelligent control, high material utilization rate

✅ High quality – alloy roller+precision machining, product surface is smooth and uniform in size

✅ Long lifespan – Key components are made of high-quality materials and heat treatment processes, ensuring long-lasting durability

✅ High cost-effectiveness – under the same quality, the price has a significant advantage compared to European and American brands
