Product Overview

The Self-Locking Snap Lock Standing Seam Machine is engineered for premium commercial buildings, luxury villas, transport terminals, and architectural steel structures requiring rapid job-site or factory panel production. The click-to-lock seam interlock eliminates the requirement for mechanized electric seaming robots or manual hand crimpers, saving substantial installation labor.

The line accommodates PPGI, PPGL, galvanized steel, and aluminum-magnesium-manganese alloy coils with an infeed width of 610mm and thicknesses from 0.4mm to 0.8mm. The finished panels feature a 465mm effective coverage width, 64mm seam height, and pre-punched fastener clips, providing 100% watertight protection on slopes as low as 2°.

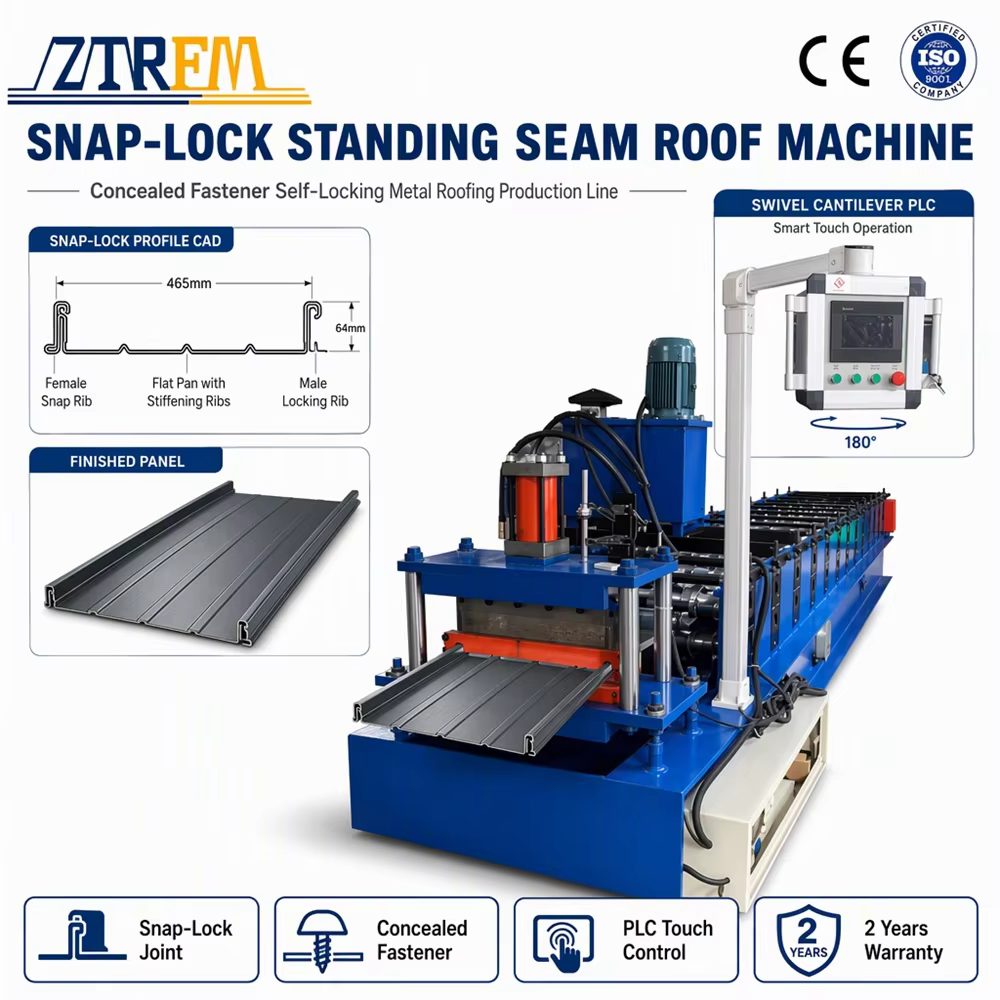

1: Snap-Lock Standing Seam Machine Overview & 465mm CAD Profile

Key Technical Features

• Tool-Free Snap-Lock Interlock: Unique female snap rib and male locking rib lock firmly with hand pressure, accelerating roofing installation speed by over 40% compared to traditional double-lock standing seams.
• Mirror Hard Chrome Plated Rollers: Roller dies are precision turned from 45# forged carbon steel and electroplated with 0.05mm hard chrome to eliminate coil scuffing and preserve paint coatings.
• High-Rigidity 350-400 H-Beam Bed: Heavy structural steel bed frame stress-relieved to ensure long-term mechanical alignment and minimal vibration during continuous rolling.
• Integrated Hydraulic Shearing Unit: Contoured shear blades manufactured from Cr12 vacuum heat-treated die steel (HRC 58-62) produce crisp, burr-free cuts matching the exact profile shape.
• Digital Rotary Encoder Measurement: High-resolution optical encoder tracks panel lengths with ±1mm cutting accuracy, supporting automatic multi-batch scheduling.

2: Hydraulic Profile Cutting Station Discharging Formed Panel

Technical Specifications

3: Complete Machine Bed Perspective View with Cantilever Control Arm

Progressive Forming Stations & Width Adjustment

The multi-station forming line adopts precision-machined side stands and calibrated leadscrews. Intermediate forming passes gradually shape the 64mm vertical ribs and snap retention catches without stretching the material.

• Gradual Forming Progression: Multi-pass stations gently contour the male and female seams, eliminating internal stress and edge curling.
• Side Guide Leadscrew Adjustment: Infeed and forming side guides are easily adjusted via handwheels to accommodate varied coil slit widths.
• Heavy Gear & Chain Transmission: Synchronized industrial chain transmission ensures equal rotational torque across all upper and lower roller pairs.

4: Forming Stands Overhead View with Infeed Guide Plates & Leadscrews

Snap Lock 465mm Profile Geometry & Blueprint

The snap-lock standing seam profile provides sleek, modern architectural shadow lines and robust mechanical interlocking:

• Effective Cover Width: 465 mm
• Seam Height: 64 mm (2-1/2") high standing seam for superior water shedding
• Female Snap Rib: Precision-contoured outer seam that snaps over the concealed male rib
• Male Locking Rib: Upright rib featuring pre-punched fastener slots and snap retention barb
• Stiffening Ribs: Dual longitudinal intermediate ribs provide enhanced pan flatness against oil-canning

5: Forming Station Rolling Blue Stiffened Panel

Architectural Roofing Applications

With its concealed fasteners and high 64mm vertical rib height, this panel profile is ideal for prestigious commercial and residential architectures:

• Modern Architectural Villas: Delivers clean, continuous vertical shadow lines without unsightly exposed screw heads.
• Public & Commercial Infrastructure: Installed on airports, railway stations, convention centers, and sports arenas requiring extreme wind uplift ratings.
• Low-Slope Metal Roofing: 64mm rib height enables safe rainwater drainage on roof slopes down to 2° without leakage risks.

Supply Scope & Ocean Shipping

Turnkey supply scope includes 5-ton passive/hydraulic decoiler, automatic roll forming main machine with adjustable infeed guides, Cr12 hydraulic profile shear unit, standalone hydraulic pump station, Siemens PLC touchscreen cantilever console, and finished product runout tables.

All precision chrome rollers and shafts are coated with anti-corrosion protective grease. The entire machine chassis is securely anchored inside a 40ft HQ shipping container using steel wire cables and timber chocks. The electrical control console and hydraulic station are hermetically wrapped in waterproof film and crated in export plywood cases.

Quality Standards & Certifications

All production units adhere strictly to ISO9001:2015 international quality management benchmarks. The equipment is fully certified under the European Union Machinery Directive (2006/42/EC) and Low Voltage Directive (2014/35/EU), carrying official CE conformity marks for global industrial deployment.

6: CE Certification & ISO9001 Quality Management Verification
