Russian Click-clock Folding Roof Machine Wall Cladding Panel Machine Anti Aging Wall Cladding Machine 20 M/Min+Russian Click-clock Folding Roof Machine+7.5KW

Cangzhou Zhongtuo International Trade Co., Ltd

Russian Click-clock Folding Roof Machine Wall Cladding Panel Machine Anti Aging Wall Cladding Machine 20 M/Min+Russian Click-clock Folding Roof Machine+7.5KW

Name: Russian Click-clock Folding Roof Machine Wall Cladding Panel Machine Anti Aging Wall Cladding Machine 20 M/Min+Russian Click-clock Folding Roof Machine+7.5KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT69972503

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

20 M/Min

Model Number:

Russian Click-clock Folding Roof Machine

Power(W):

7.5KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Steel
Use
Wall
Voltage
380 V
Rolling Thinckness
0.4-0.8 mm
Feeding Width
625mm/415mm

Company Profile

Cangzhou ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

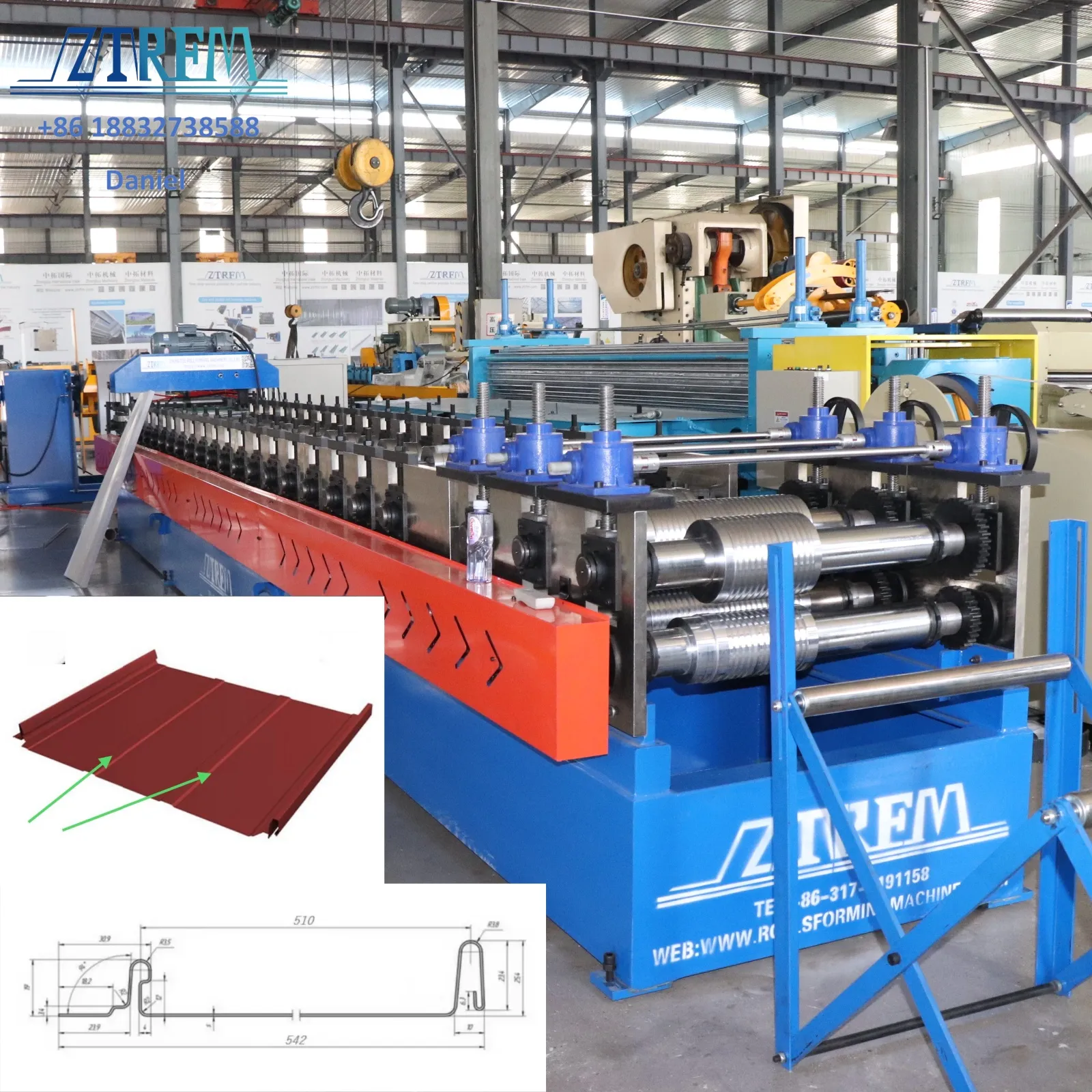

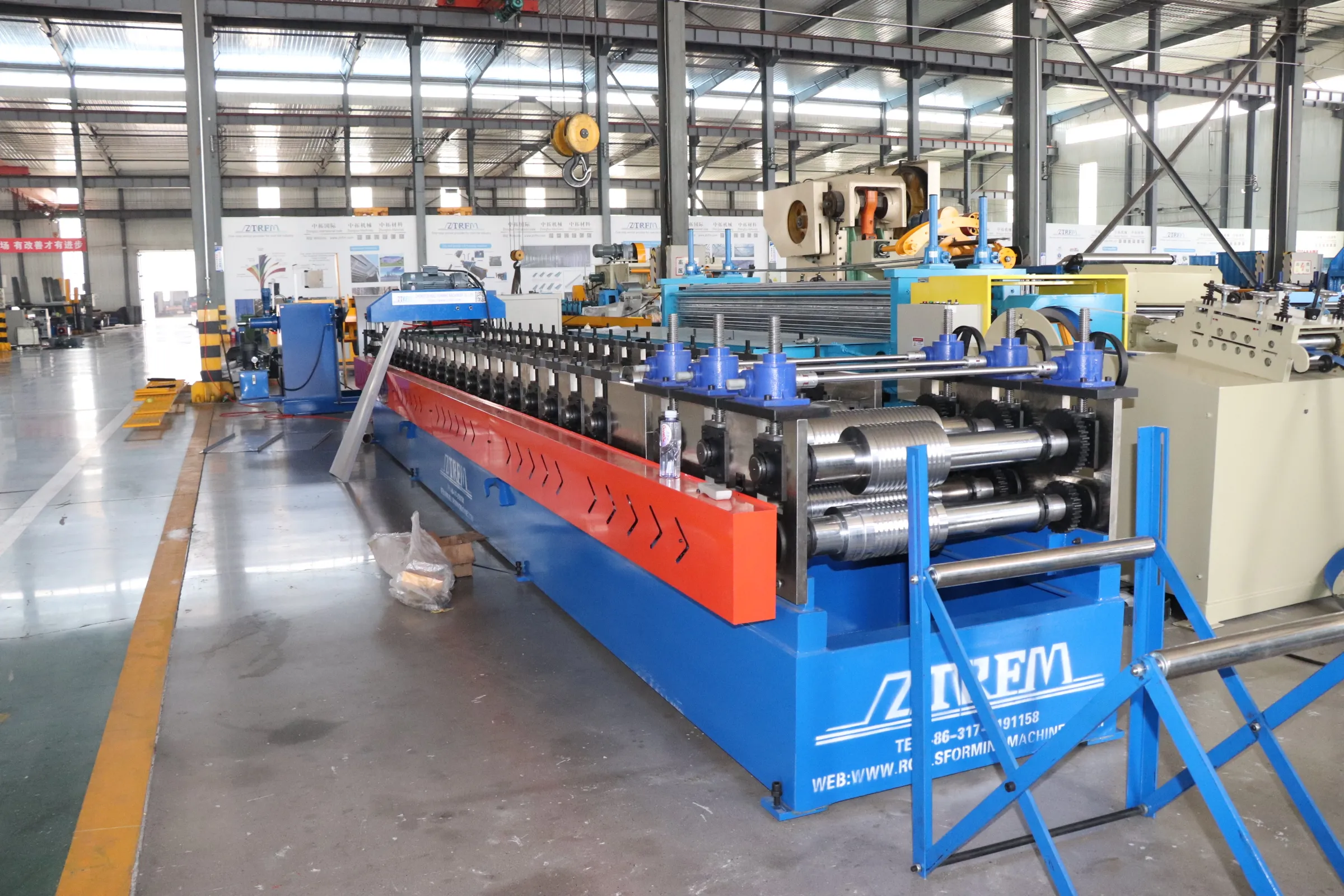

Russian Click-clock Folding Roof Machine

Click-clock Folding Roof Machine are available in several types and forms – from normal wooden panels to 3D wall panels. Their types differ in material, texture and dimensions. Some of the common indoor wall cladding types is wood cladding, steel cladding, stone cladding, etc.

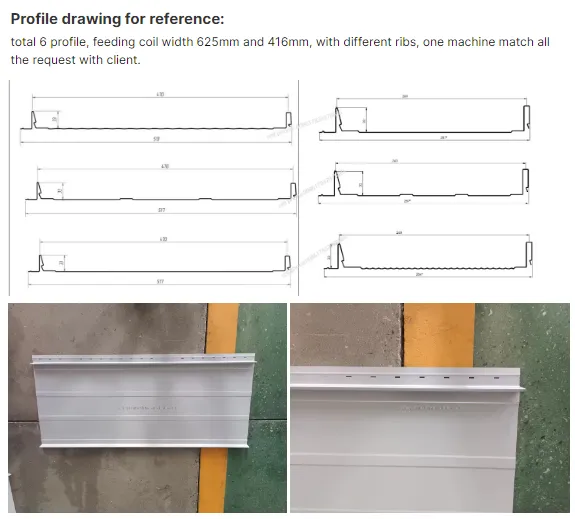

This example Click-clock Folding Roof Machine we customized for Belarus client, one machine produce 6 profile, change profile autoamtic, adjust width by motor. Client require different ribs at the bottom, machines design as client's request. When clients come to inspect machine quality, they are much satisfied.

Machines' advantages 1. high efficiency:

high degree of automation can be continuous production, significantly improve the production efficiency. 2. Reliable Siemens PLC:

adopting precise Siemens control system to ensure the dimensional accuracy and surface quality of the tiles. 3. diversified production:

according to the market demand, adjust the parameters of the equipment to produce a variety of models and styles of color steel roof tiles. 4. strong durability:

color steel tile has excellent corrosion resistance, weather resistance and bearing capacity, applicable to a variety of building environment. 5. Economic and environmental protection:

color steel tile can be recycled, reducing the waste of resources, while reducing the pollution of the environment. 6. Easy to install:

trapezoidal color steel tile is light in weight and easy to install, which saves construction cost and time.

Click-clock folding roof machine
Raw Material	PPGI
Raw Material		Material thickness:0.3-0.8mm Coil width ：416-625mmmm Effective width:260 mm, 470mm
Machine Frame	350# H steel welded,Steel plate welded structure
Material Of Rollers	45# Steel,Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life
Rolling station	Roller stations :18 rows
Diameter of shafts	Φ75mm solid
Material of shafts	45# STEEL,Tempering treatment to prevent deformed and improve hardness
Forming speed	20 m/min
Voltage	380V/50HZ/3P (as requested)
Transmission way	By Chains with cover
Main motor	7.5 KW

5T Manual Decoiler

Work type: passive type Structure: Steel channel welded for the basic frame

Usage：To support the coil and make the uncoiling
Loading capacity: 3 tons Inner diameter: 450-550mm (manual adjustment) Coil width: 800mm Brake system: manual brake

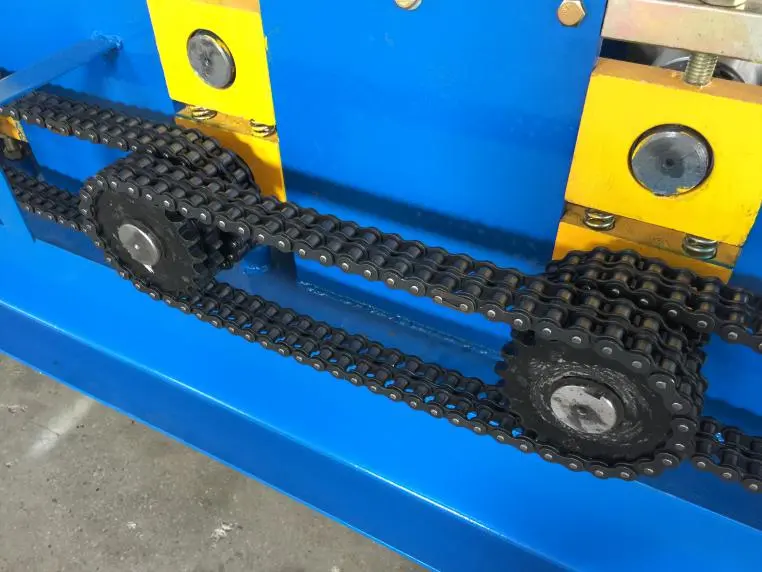

Transportation

1.Double chains transmission
2.Ensure the high speed of the machine

3.This design will make machine more strong, to prolong the machine using life.

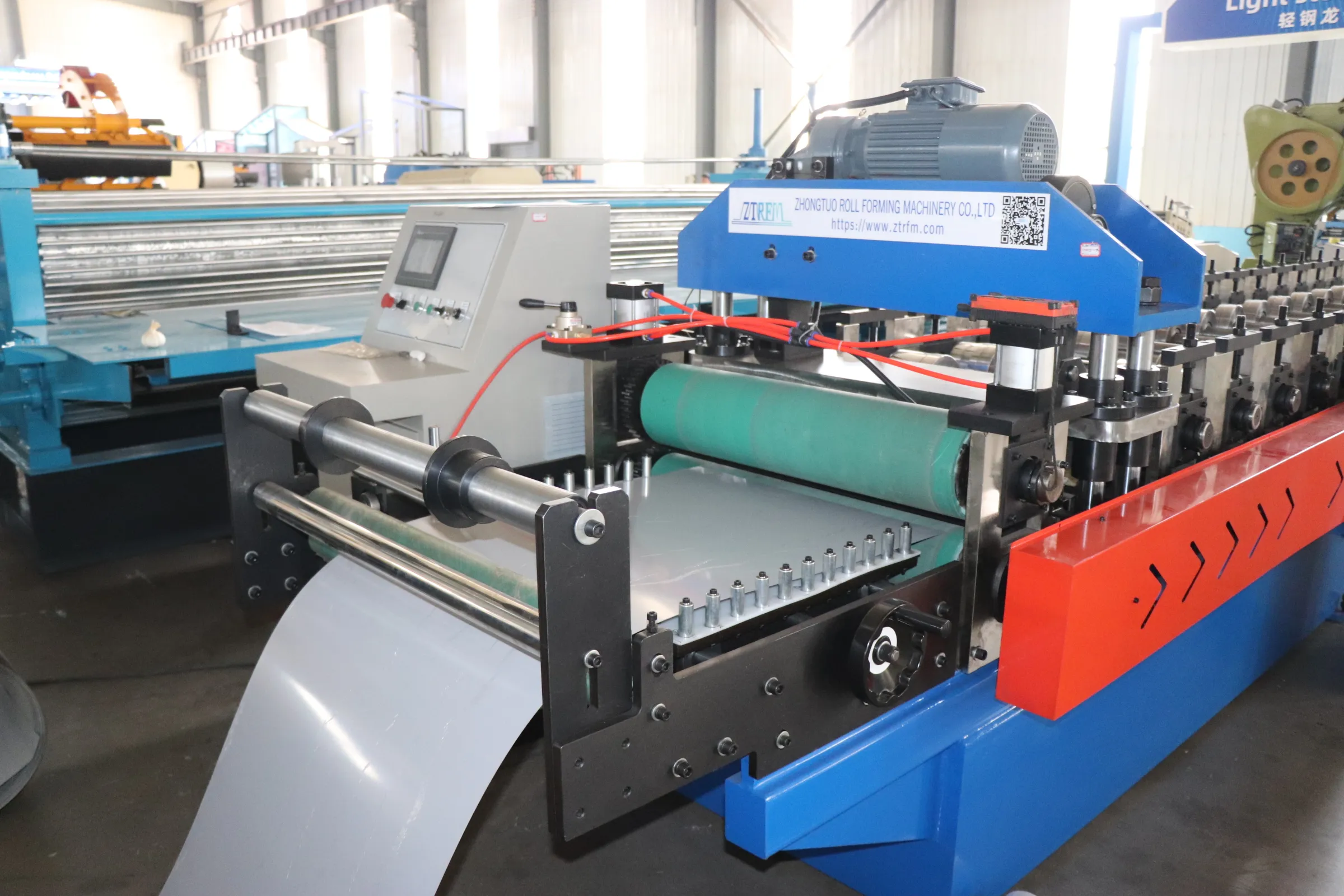

Feeding device

1.Protect coil material

2.With handwheels for easy adjustable.

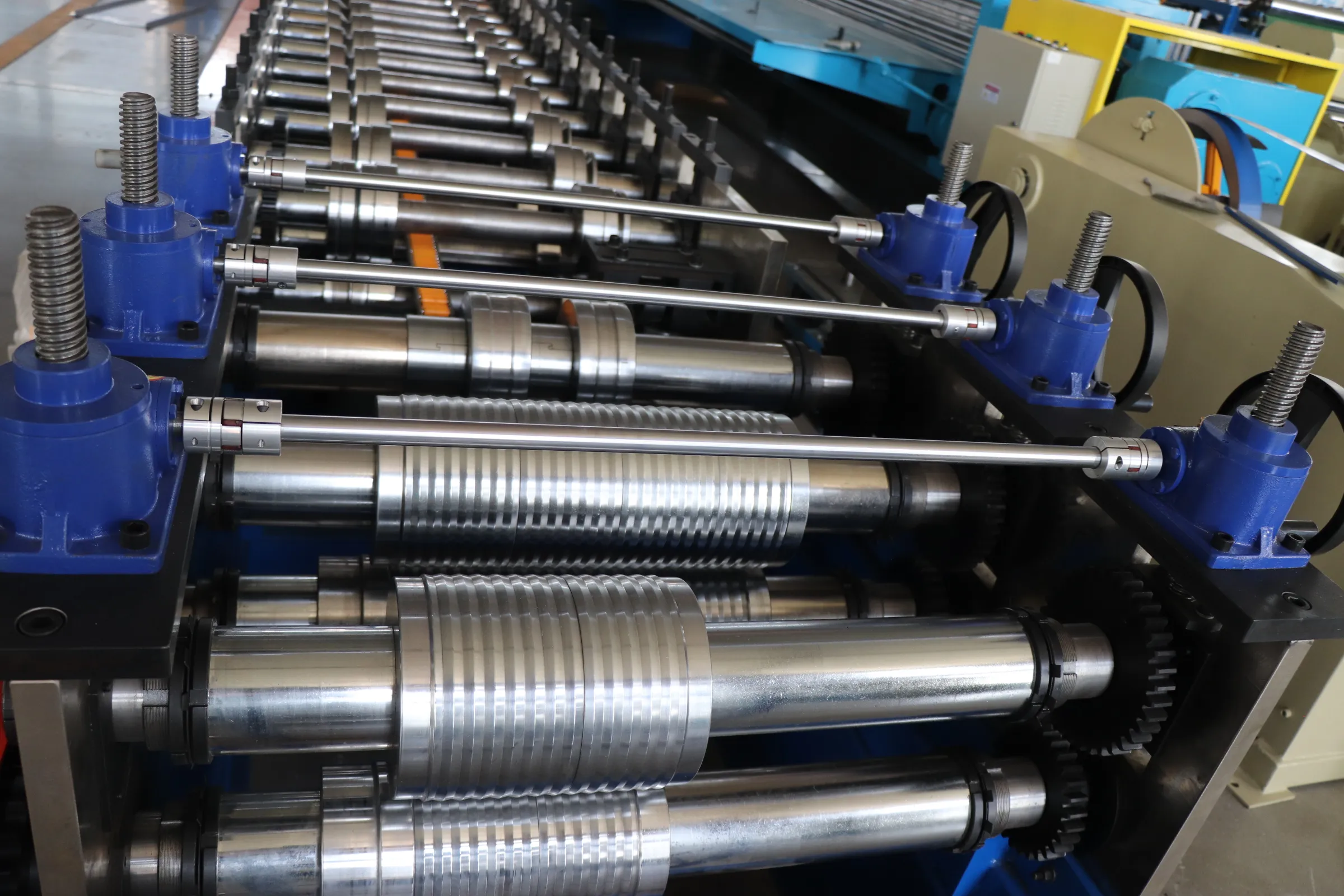

Rollers and shaft

1.Surface with chromed treatment
2.Material:45# steel

Pre-Cutting system

1.Fully automated knuckle pressing

2. Fully automated cut of products

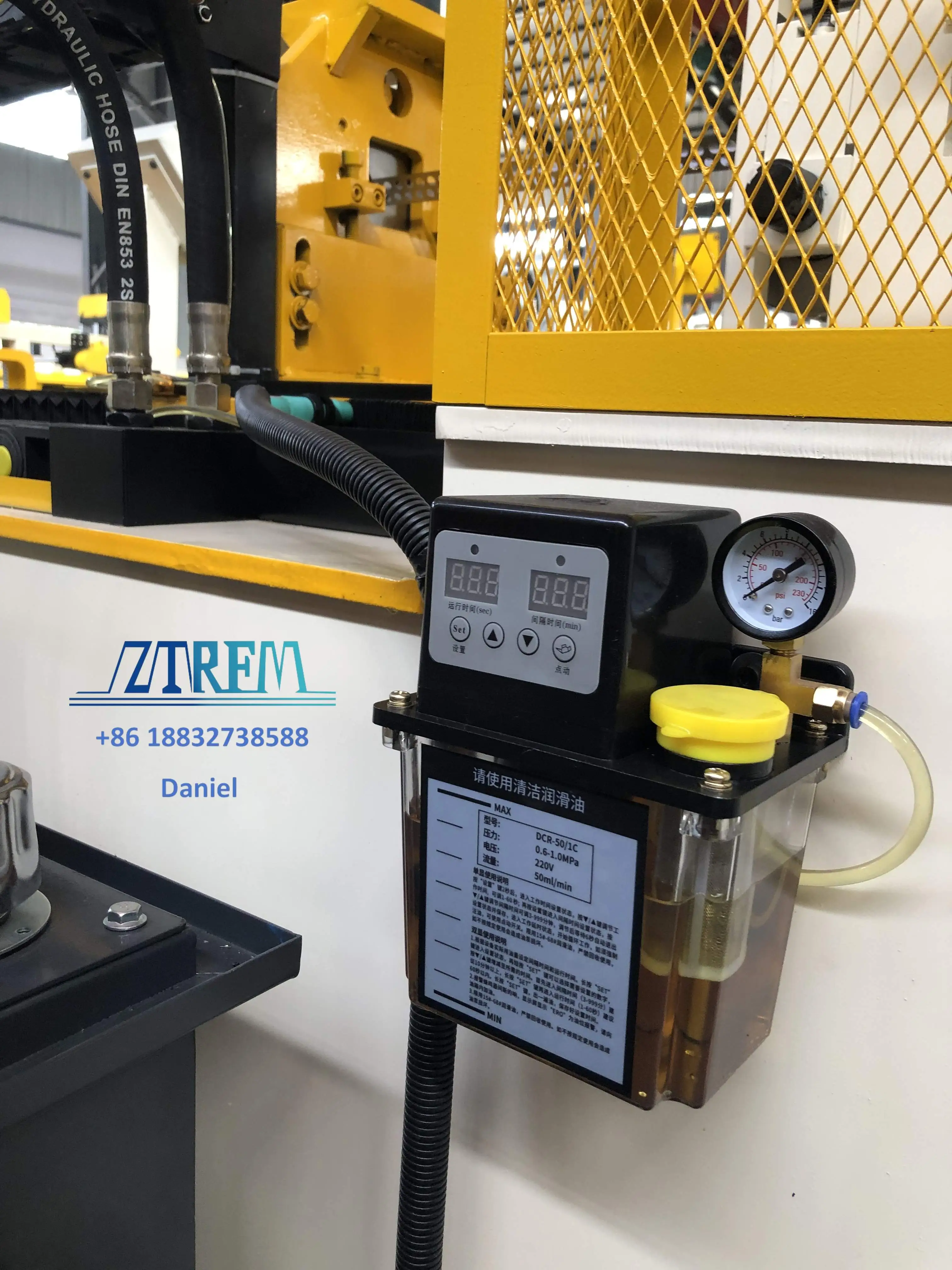

Automatic oil filler

1.Automatic lubrication for the cutter

2.Reduce machine maintenance time and cost

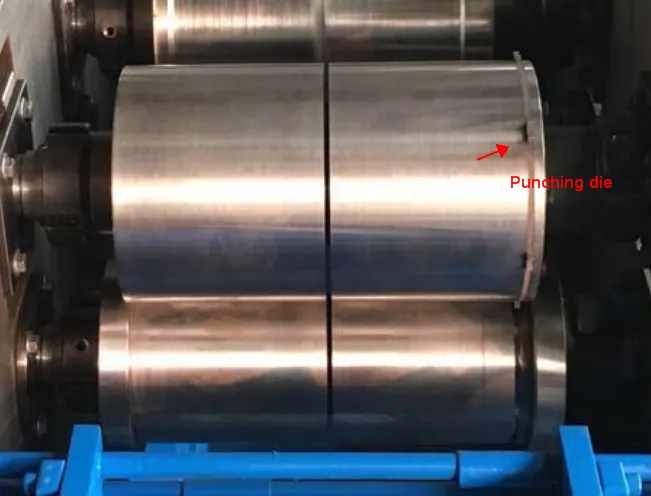

Punching hole Device

1.3 rows punching rollers 2.Our design will concentrate the molding in the first three rows, by adjusting the first three rows of rollers can be completed to
change the molding, it is very convenient.

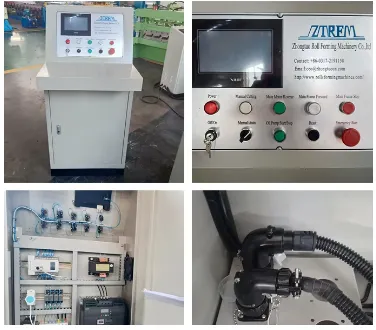

PLC control system

1.Adopt Siemens electronic control, can support remote control

2.Adopt touch screen for easy operation.

3.Adopt aviation plugs for easy installation

4.Languages can be customized

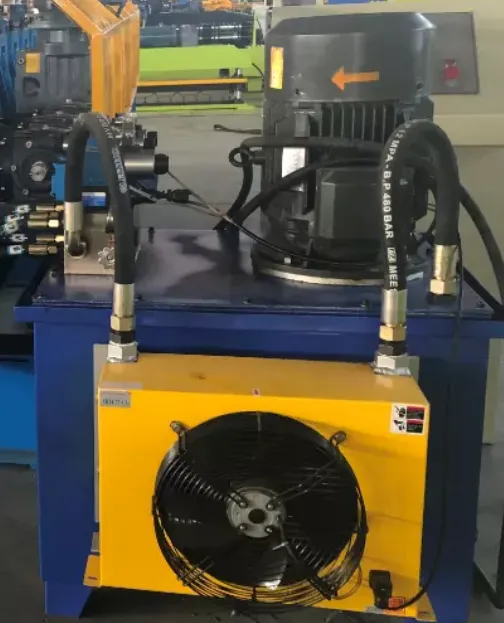

Hydraulic station

1.Updated type

2.Low noise

3.Cooling fan for long service time.

Thermometer

The temperature of the hydraulic station can be measured in real time, more convenient and faster

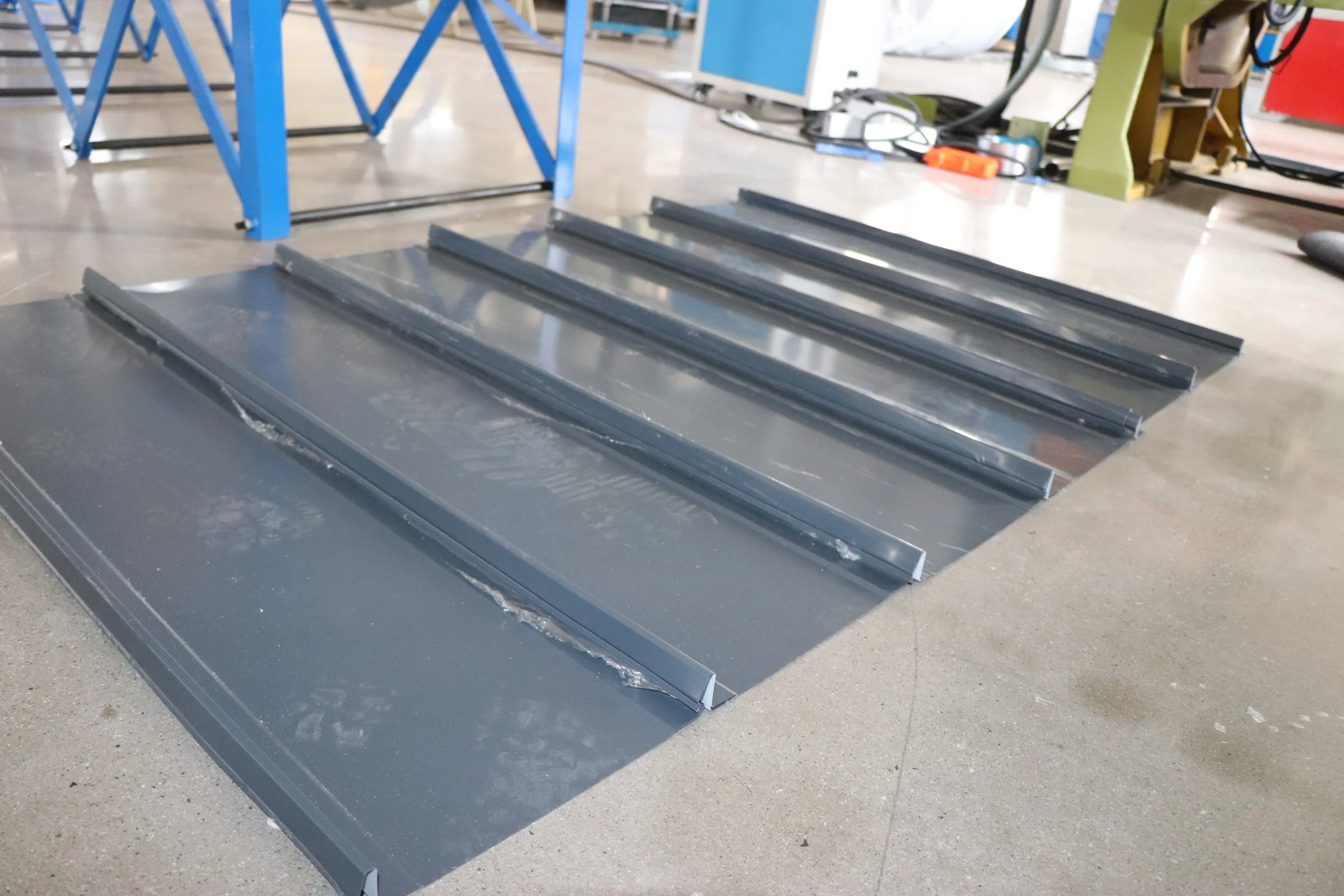

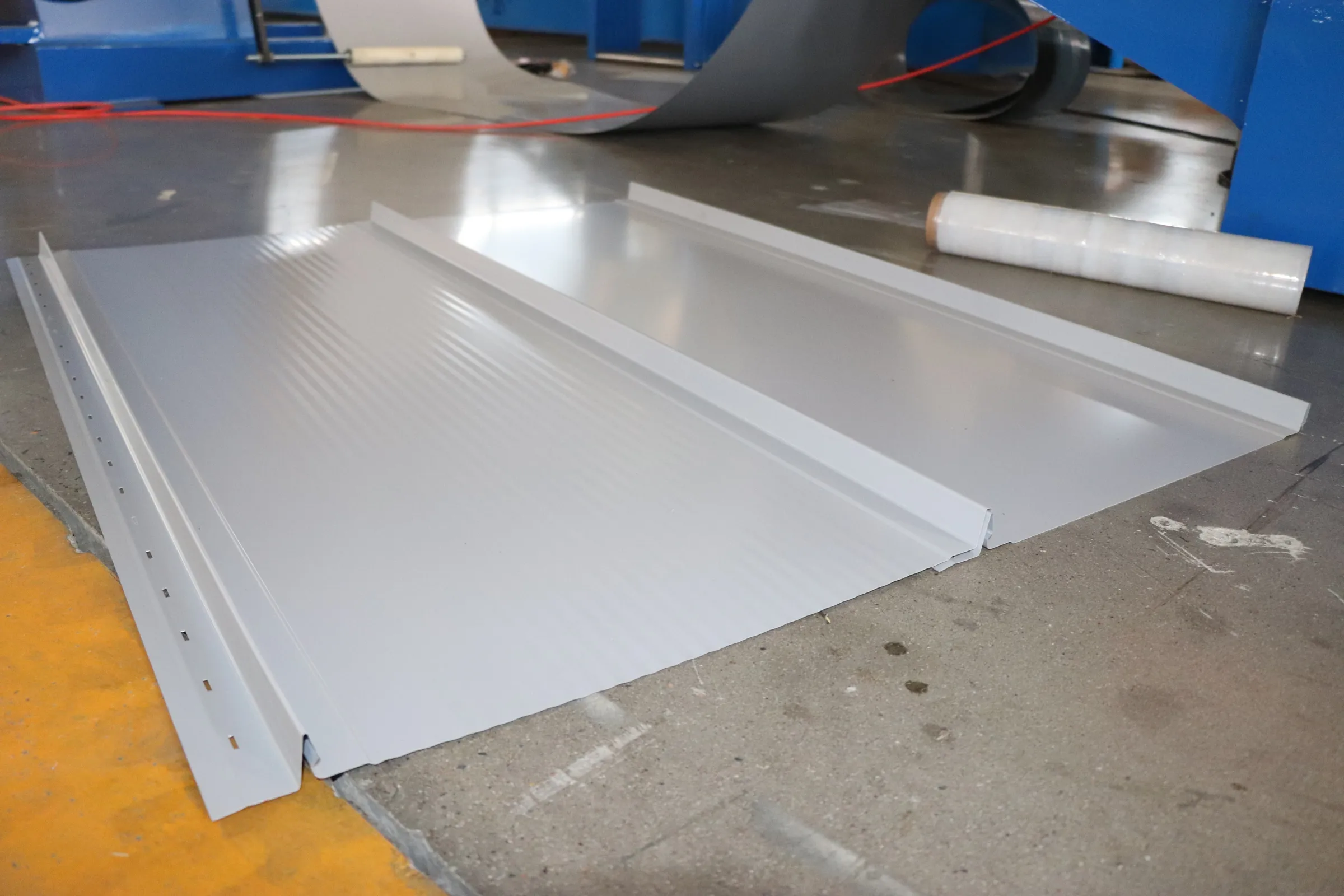

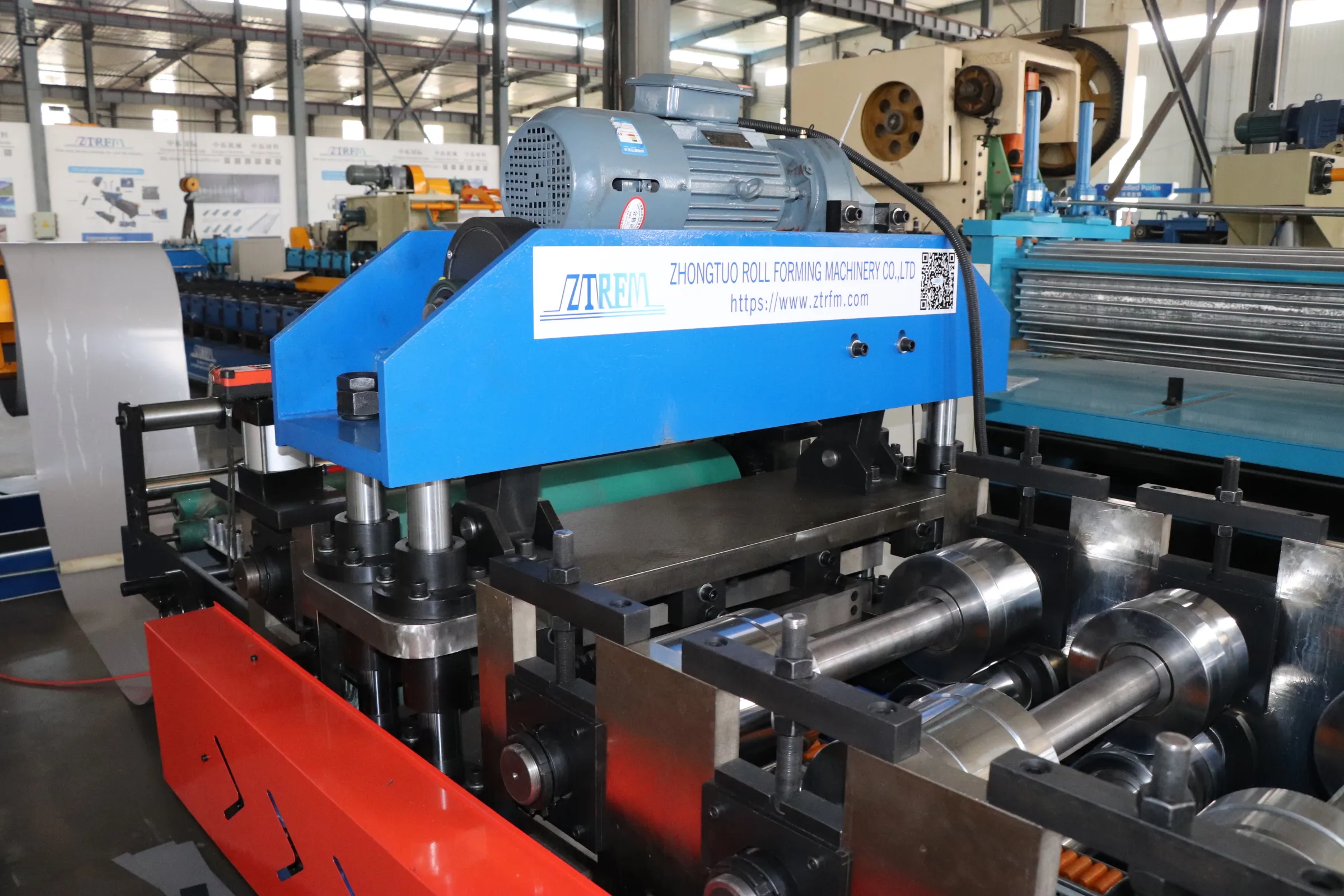

Product display

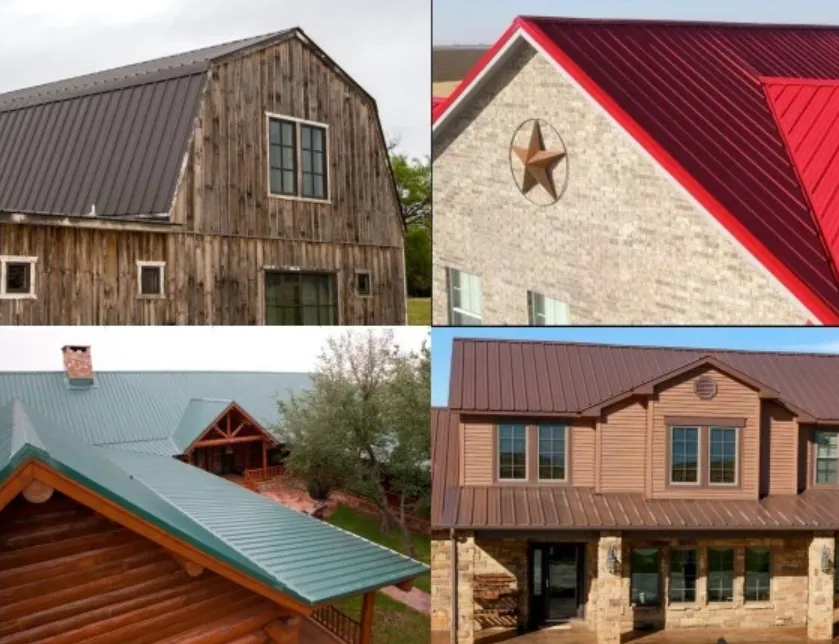

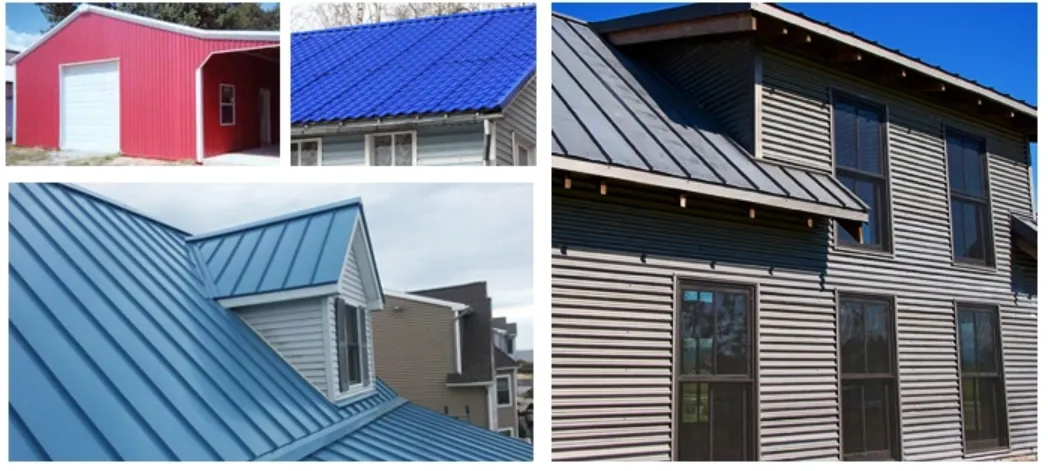

Application

Exhibition

Certification

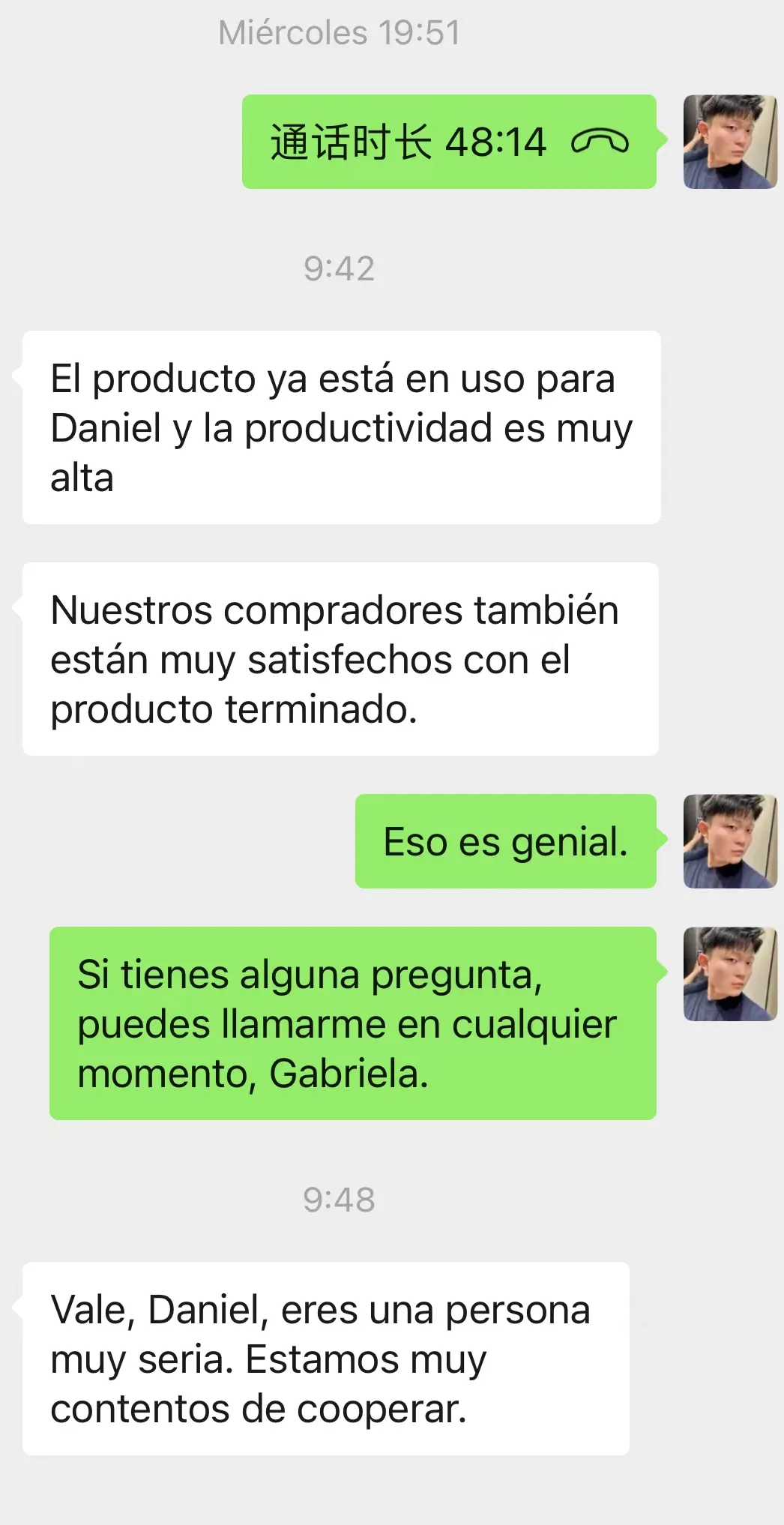

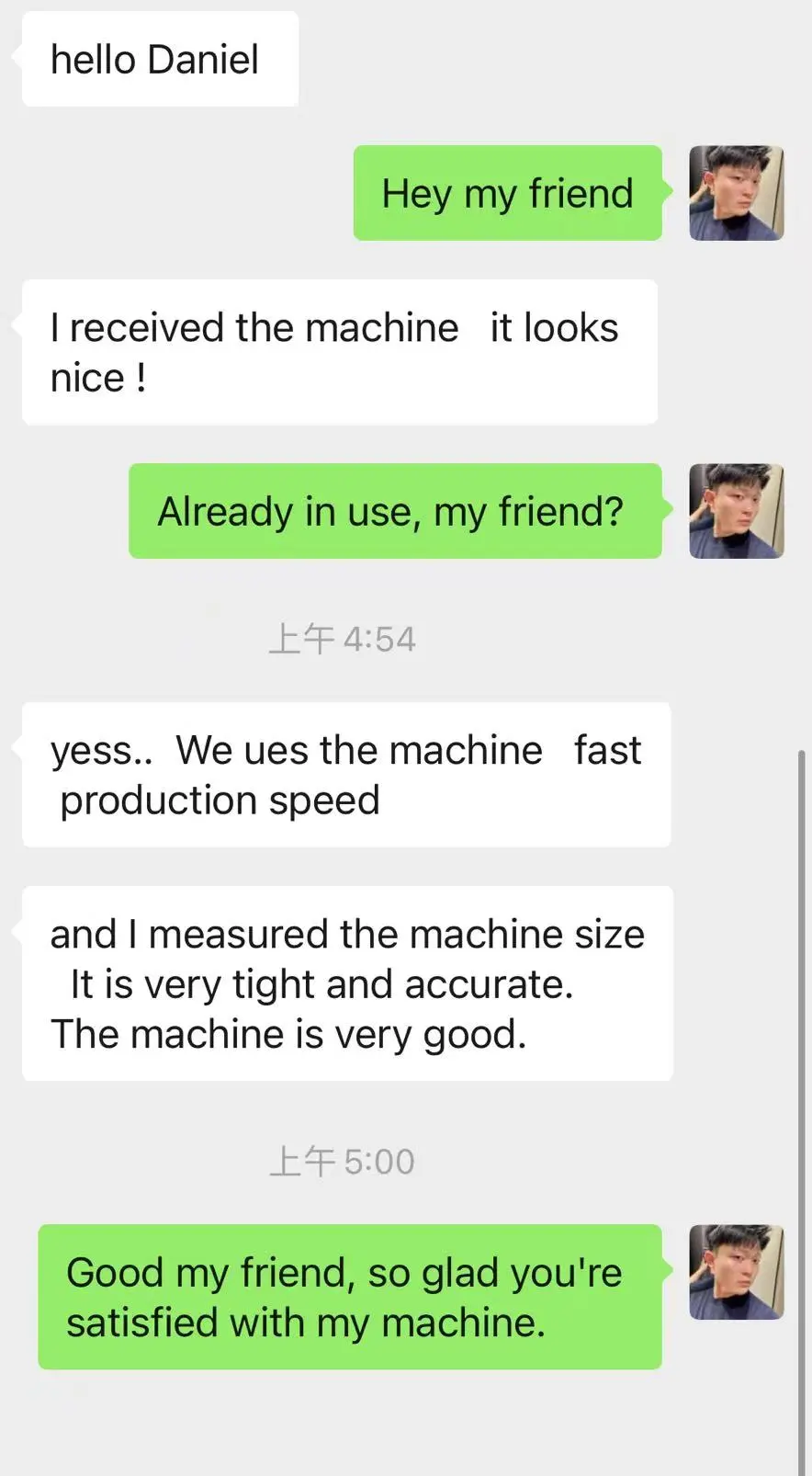

Customer Photos
