Rugged Steel Frame Purlin Roll Forming Heavy Duty Keel Machine 480 v 60 hz 3 phase

Steel Frame Purlin Machines 20 Forming Stations for Thick Plate Production

Thick plate production puts punching and forming on the same line. These steel frame purlin machines process 1.2 to 2.7 mm galvanized and cold rolled steel. Punching and forming share one machine frame. Punching looks like a single step, but when the structure isn't rigid enough, the problem isn't only failing to punch through. It can also show up as hole position drift, machine vibration, or unstable output over long runs.

Where These Machines Are Used and Why Punching Gets Hard

Applications That Need This Machine

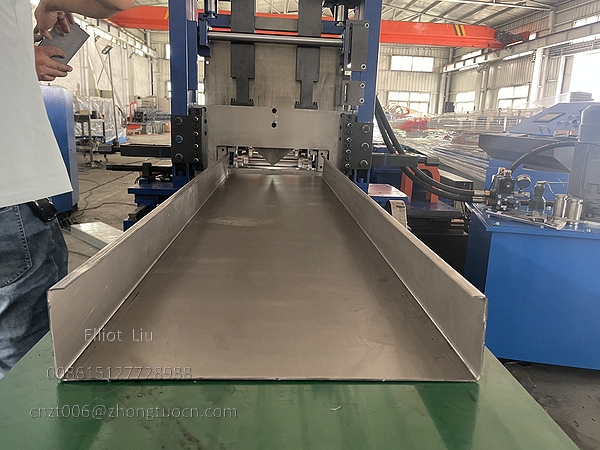

These steel frame purlin machines mainly process larger cold formed steel sections, with material thickness from 1.2 to 2.7 mm. Typical products include structural supports, frame profiles, and purlin sections.

What these applications share is thicker material, larger cross sections, and holes that need to match installation points downstream. Thick plate provides load capacity. Punching provides assembly fit. When both exist at once, the structural demands on the equipment become more critical.

Why Thick Plate Is Harder to Punch

Thick plate punching has two common issues. The first is failing to punch through. Thicker plate needs more punching force, and mechanical punching struggles with both force and speed at this level. The second is losing hole accuracy. Punching creates an instant impact force that the machine structure has to carry. When rigidity is insufficient, that force can cause slight frame movement, and hole position accuracy can drift over continuous production.

Hole accuracy isn't only about frame rigidity. Feed stability, positioning method, and control system response also affect the result. These factors need to work together on the same machine.

Machine Advantages for Thick Plate Punching and Forming

The load bearing structure has three parts that work together for thick plate punching and continuous forming.

Cast Steel Frame

The forming frame uses a cast steel structure. This gives the machine a rigid base for punching impact and continuous forming loads. Since the punching station and forming station share the same frame, a more rigid frame helps reduce structural movement between them.

H Beam Welded Base

The machine base uses H beam welded steel. The base carries the forming frame, punching system, and hydraulic system. A rigid base helps steel frame purlin machines hold position over long production runs.

Hydraulic Punching System

Punching uses hydraulic drive. Hydraulic punching delivers concentrated force, which suits thick plate work. The punching load is carried by the frame and base together, rather than by the punching unit alone.

Key Specifications

Why Forming Stations Matter for Thick Plate

Thick plate forming needs to account for springback.

During cold forming, the outer layer stretches while the inner layer compresses. When the forming force is removed, internal elastic stress releases and the material tries to return to its original shape. That is springback. Thicker material means more noticeable springback.

This machine uses 20 forming stations. More stations mean each roller station handles less deformation per step, and the material flows gradually to the target shape with internal stress released along the way. Combined with Cr15 quenched rollers and a 230 mm shaft, the forming process stays more stable.

This doesn't mean 20 stations eliminate springback. It means forming station count, roller material, and shaft rigidity all affect the result when forming thick plate.

Matching the Machine to Your Production

Back to the original question: when thick plate punching won't go through or won't stay accurate, the cause usually isn't the punching unit itself.

To judge whether a rollforming purlin machine fits your production, look at frame structure, base design, punching method, forming stations, and material thickness together. If your material thickness falls between 1.2 and 2.7 mm, and hole accuracy and continuous production stability are your main concerns, the structural configuration deserves priority attention. These steel frame purlin machines are built around exactly that set of requirements.
