Long Span Roof Roll Construction Machine 13 Roller Stations for Stable Forming
When two machines look similar but sit at different price points, the real difference often shows up over time. Panels may start to vary, edges may not align, and the cause is not always obvious. The control system and the operator are easy to blame. But the core components that handle forming and cutting often tell the real story. When you choose a long span roof roll construction machine, details like rollers, shafts, blades, and forming stations deserve more attention than the total price tag.
Where Core Component Quality Shows Up
This long span roof roll construction machine mainly serves projects that need continuous forming and long panels:
-
Industrial buildings and warehouse roofing
-
Logistics centers and distribution stations
-
Agricultural barns and greenhouse structures
-
Grain storage and feed warehouse buildings
These projects share one thing: long panels, continuous production, and requirements for flatness and consistency after forming. In this scenario, a long span roofing sheet making machine uses rollers, shafts, blades, and forming stations that directly take part in forming and cutting. Their condition affects whether the equipment can keep producing panels steadily.
Different profiles need different core component configurations. Produced profiles can be customized based on customer requirements, from cross section shape to effective width, all adjustable to project needs.
How Core Components Affect Forming Stability
Roller Material and Hardness Toughness Balance

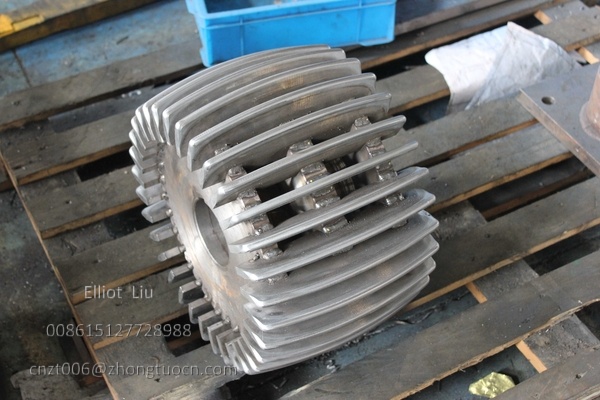

For a long span roof roll construction machine, rollers are the parts that directly touch the panel. Their material and condition directly affect forming quality. After roller wear, the panel surface may show scratches, forming angles may deviate, and profile consistency may drop.
Why is harder not always better? Harder rollers resist wear, but they may lose toughness. Rollers that lack toughness can crack under load. Balancing hardness and toughness depends on the working conditions and the material being formed.
The 305 and 680 models use 45# steel rollers with chrome plating and quenching, hardness HRC58-62. The 800 model uses 45# steel rollers with chrome plating. Roller material and heat treatment can be customized based on project requirements.
Forming Station Design and Forming Process
Roller material determines what the rollers are made of. Forming station design determines how the panel is gradually formed. After the panel enters the forming machine, it needs gradual deformation. How much deformation per step is decided by the station design.
The 305 and 680 models use 13 forming stations plus 2 sizing stations. Gradual deformation can reduce residual stress inside the panel, making the formed profile more stable. If there are too few stations, the deformation per step is too large, the panel tends to spring back, and the profile becomes unstable. Station configuration can be customized based on project requirements.
The 800 model station configuration is not confirmed in the current data.
Shaft Material and Running Stability
On a long span roof roll construction machine, the shaft does more than support the rollers. Shaft material and machining condition affect the relative position stability of the rollers during operation. If the shaft lacks rigidity or machining accuracy, the rollers may shift slightly during running. This shift is not visible in a single pass, but over time it can affect profile accuracy.
The 305 and 680 models use 45# steel, adjusted shafts. The 800 model shaft material is not specified. Shaft material can be customized based on project requirements.
Blade Material and Cutting Quality
For a long span roof roll construction machine, blade material directly affects cutting quality after forming. The 305 model uses Cr12MoV blades. The 680 and 800 models use Cr12Mov. Both are tool steels that resist impact and wear after heat treatment.
Blade material can be customized based on project requirements.
Machine Advantages of the Core Component Design
For a long span roof roll construction machine, core component design focuses on stable forming over long production runs. Roller material and heat treatment are selected to support consistent forming quality. Forming station layout is designed to reduce residual stress during gradual deformation. Shaft material is chosen to help maintain roller alignment during operation. Blade material is selected for cutting quality.

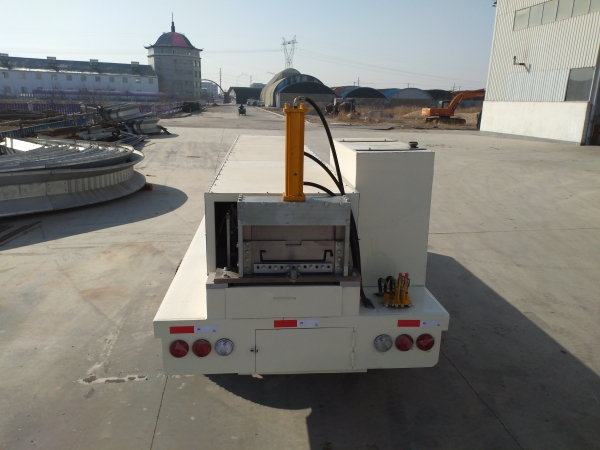

For the 305 and 680 models, the 13 forming stations plus 2 sizing stations support gradual forming. For the 800 model, the H type steel base frame and detachable bending section support large span and mobile work.
These design choices apply across the 305, 680, and 800 models, with different configurations for different project scales. Configurations can be customized based on project requirements.
Parameter Reference
| Parameter | 305 Model | 680 Model | 800 Model |
|---|---|---|---|
| Total weight | Approx. 8T | Approx. 10T | Approx. 13T |
| Overall size (L×W×H) | 8800×2200×2080mm | 9500×2270×2400mm | 10000×2250×2200mm |
| Maximum span | 26m | 36m | 42m |
| Effective width | 305mm | 680mm | 800mm |
| Feed width | 600mm | 1000mm | 1250mm |
| Thickness range | 0.6 to 1.6mm | 0.5 to 1.6mm | 0.8 to 1.5mm |
| Roller stations | 13 forming plus 2 sizing | 13 forming plus 2 sizing | |
| Base frame type | H type steel base frame | ||
| Drive system | Electric motor | Electric motor | Full hydraulic + 40HP diesel engine |
| Control system | Siemens PLC | Siemens PLC |
Speed, voltage, drive system, roller material, shaft material, blade material, forming stations, and profiles can be customized based on project requirements.
What This Means for Machine Selection
Why can two machines that look similar perform so differently over time? Core components affect long term running condition, not short term output.
When purchasing a long span roof roll construction machine, besides price and span, you also need to look at roller material and treatment, forming station design, shaft material, and blade material. This information doesn't require deep mechanical knowledge to understand, but you do need to confirm it before buying.
Many parameters and profiles of an arch roof forming and curving machine can be customized. They are not fixed.
If you are evaluating a long span roof roll construction machine, send us your target profile, common thickness, project span, and customization needs. We will help you judge the configuration based on your actual needs.
