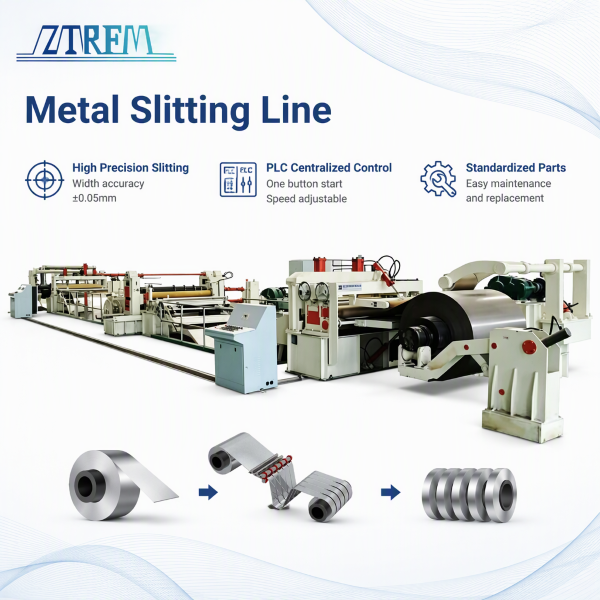

Metal Slitting Line Handles 1600mm Width with Precision

A metal slitting line addresses the width difference between coils from the mill and downstream production needs. Steel coils often come in specific widths, but downstream lines may need strips of different widths for their dies, forming rollers, and welding units. This difference is why coil slitting is necessary. The machine slits wide coils lengthwise into narrow strips for direct use downstream.

Width Difference Between Wide Coils and Downstream Production

Wide metal coils and downstream required strip widths may differ. Downstream manufacturing equipment, dies, and forming roller sets are usually designed for specific widths. If the width does not match, the material cannot enter the production line directly. A slitting steel machine helps bridge this width difference.

Applications Why These Production Scenarios Need Slit Metal Strip

Different production scenarios need slit strips because production equipment has specific requirements for incoming width:

• Automotive stamping: The feed width of stamping dies is determined by part design. Wide coils cannot go directly into the stamping line. They need to be slit to match the die width to ensure smooth feeding and stable stamped part dimensions.

• Welded tube production: Continuous welding requires consistent strip width. Slit strips with uniform width help stabilize the welding process and reduce adjustments caused by incoming width fluctuations.

• Construction C/Z purlins: Cold roll forming lines feed material at a fixed width. Uniform slit strip width supports consistent profile dimensions.

• Electrical cores: Transformers and motor cores use stacked silicon steel strips. Consistent slit strip width supports neat stacking, which is important for core assembly.

These scenarios share a common need: production lines have specific requirements for incoming width. A metal slitting line processes wide coils into these specific widths.

What Does a Slitter Do

A slitter cuts a wide metal coil longitudinally into narrower strips. A metal slitting line is the complete production line or equipment system that performs this slitting process.

Slitting solves the specification conversion problem. There is a difference between the supply width of wide coils and the strip width required by downstream lines. A metal slitting line performs width conversion between the two, allowing factories to use standard mill width material to meet different order width requirements.

This conversion process also brings production autonomy. Factories do not need to completely rely on external narrow strip suppliers for specifications and scheduling. They can adjust slitting width flexibly according to their own orders. A sheet metal slit machine gives them this flexibility.

Equipment Configuration and Working Range of Metal Slitting Line

After understanding the production needs of slitting, next let's look at the equipment system that completes this task. This metal slitting line consists of multiple units and runs continuously from coil loading to finished coil unloading.

Machine Advantages

This slitting steel machine offers the following value in production:

Dual looper buffer design: There is a looper between the uncoiler and the slitting head, and another between the slitting head and the recoiler. The loopers balance speed differences between upstream and downstream processes, reducing the impact of speed fluctuations on slitting.

PLC centralized control: The whole line uses PLC variable frequency control. The main control panel provides high and low speed adjustment and manual feeding functions.

Parameters Machine Parameter Table

The production parameters of this sheet metal slit machine are as follows:

These parameters define the working range of the equipment, including material thickness and width, coil size and weight, slitting accuracy, installation space, and operating requirements. A metal slitting line with these parameters supports various production needs.

How Slit Strip Moves to Downstream Production

The operation flow of this equipment runs continuously in the following order:

• Entry coil car delivers the coil to the uncoiler

• Uncoiler grips the coil from inside, then rotates to unwind

• Press and pinch device feeds the strip forward

• Hydraulic cutter trims the uneven coil head

• Looper 1 is located between uncoiling and slitting

• Side guide device keeps the strip centered

• Slitter uses circular blades to cut the strip lengthwise into multiple narrow strips

• Scrap winder collects edge trim from both sides

• Looper 2 is located between slitting and recoiling

• Tension stand establishes stable recoiling tension

• Recoiler winds narrow strips into tight, uniform finished coils

• Exit coil car carries finished coils away

Under normal continuous production, the metal slitting line runs the coil through each unit in sequence to complete lengthwise slitting and recoiling. Finished narrow strip coils can directly enter downstream stamping, welded tube, cold roll forming, or core stacking processes.

Summary and Production Value

The slitter performs width conversion. A metal slitting line is the complete system that performs this task, allowing factories to use standard mill width coils to meet different strip width requirements.
