Round Roof Gutter Roll Forming Machine Water Gutter Machine Price Rain Gutter Making Machine ZTRFM-G01+9kw

Cangzhou Zhongtuo International Trade Co., Ltd

Round Roof Gutter Roll Forming Machine Water Gutter Machine Price Rain Gutter Making Machine ZTRFM-G01+9kw

Name: Round Roof Gutter Roll Forming Machine Water Gutter Machine Price Rain Gutter Making Machine ZTRFM-G01+9kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT83696326

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ZTRFM-G01

Power(W):

9kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
roll forming machine
Tile Type
Steel
Use
roof rain gutter
Voltage
380V or as required
Rolling Thinckness
0.3-0.8mm
Feeding Width
914-1450mm

Product Description

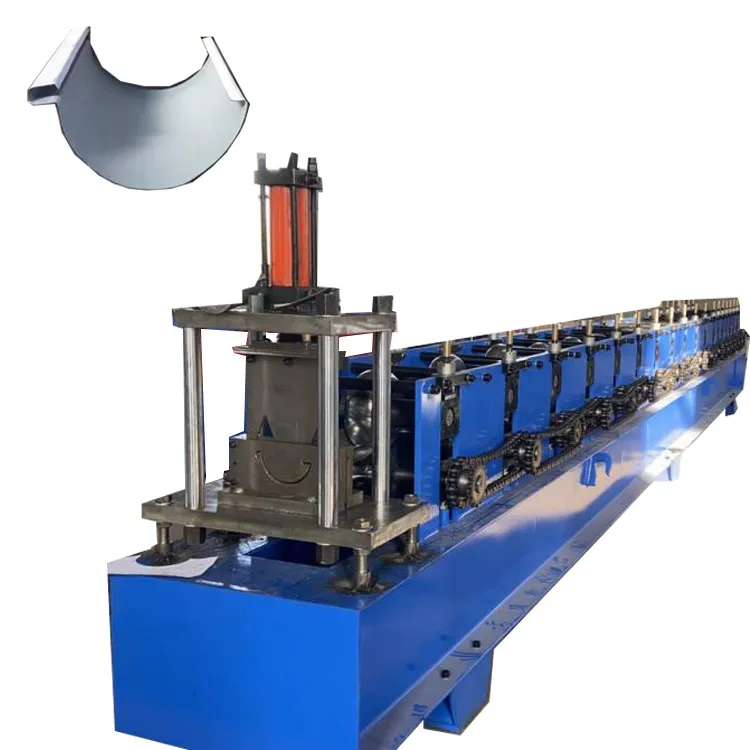

Round roof gutter roll forming machine water gutter machine price rain gutter making machine

This gutter machine fully automatically produces half round gutters or rectangular gutters in different lengths and sizes.
Alongside the standard gutter profiles, custom shapes can also be produced depending on the roll set. A visualized touchscreen display allows for easy operation of the machine. The entered parameters can be saved separately for each gutter profile, enabling quick retooling. Since all materials behave differently in the manufacturing process,material-specific values can also be saved in the program.

Round roof gutter roll forming machine water gutter machine price rain gutter making machine
1.Formed Material	Aluminium, steel, titanium zinc, zinc, pre-weathered titanium zinc, Uginox, Ugitop, copper, coated steel		Thickness（0.4-0.9mm） Width（customized）
2.Decoiler	Hydraulic automatic decoiler		Ordinary decoiler(will give you as free）
3.Main body	Roller station		10-20 rows(As your requirement)
		Diameter of shaft		70mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		350 H steel
		Drive chain		1.2inch(As your requirement)
		Dimension(LWH)		1320024003000（customize）
		Weight		12T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		5.5KW
		Hydraulic system power		7.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized（famous brand）
		Language		English（Support multiple languages）
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	12-35m/min		The speed depends on the shape of the tile and the thickness of the material.

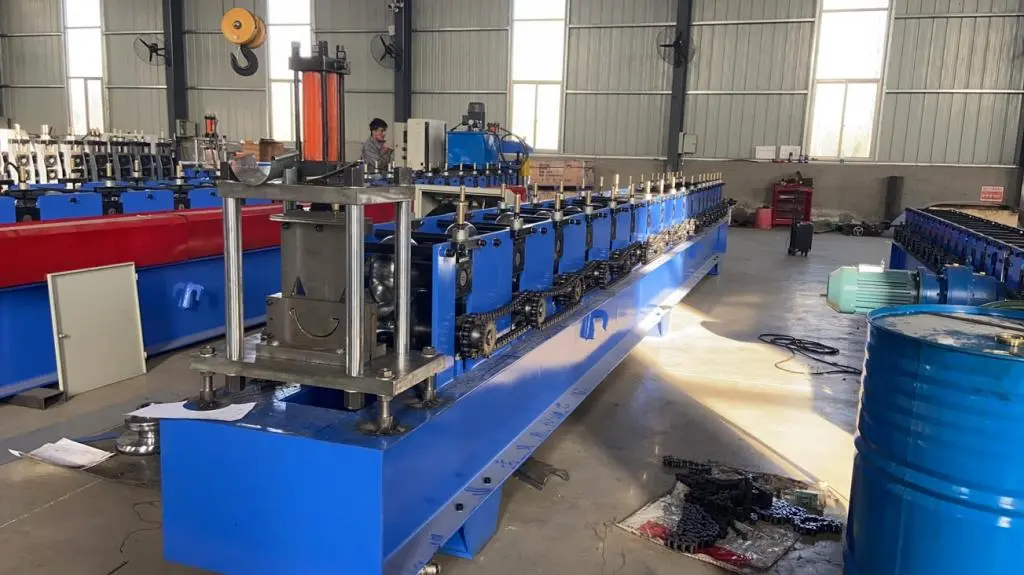

Products Display

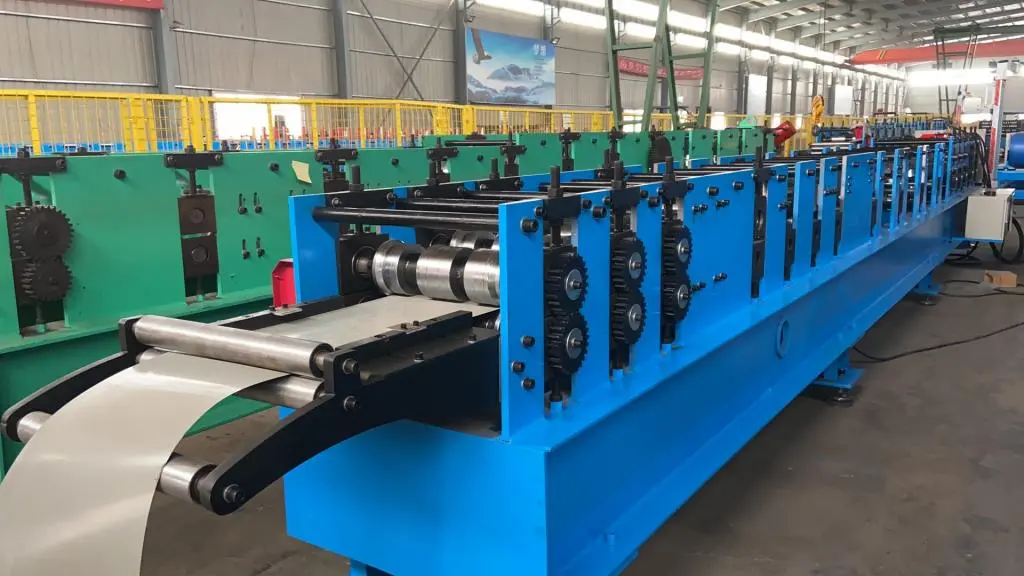

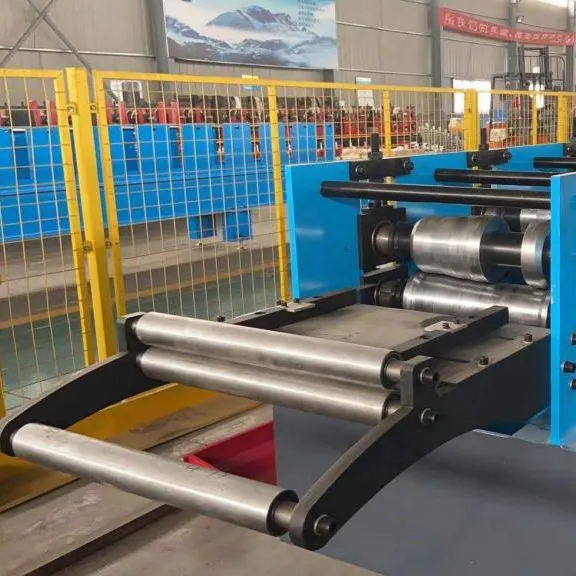

Feeding material device

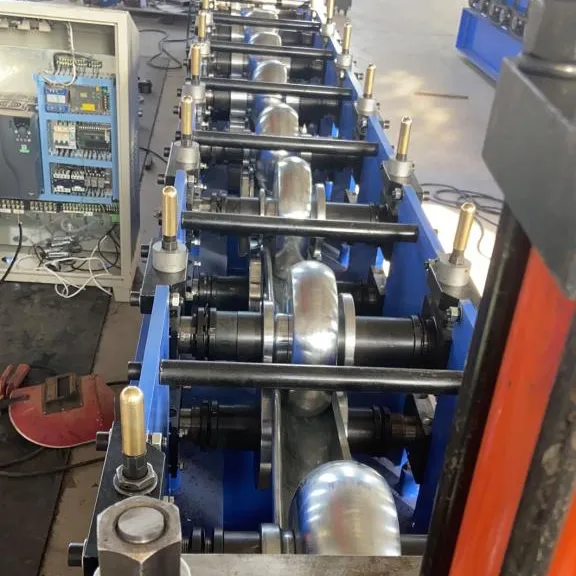

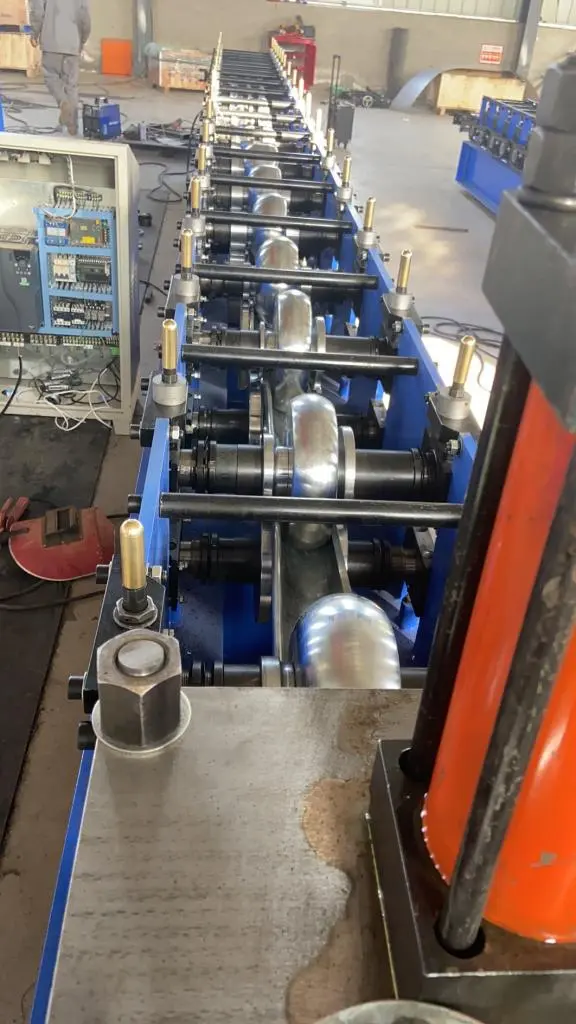

Roll forming device

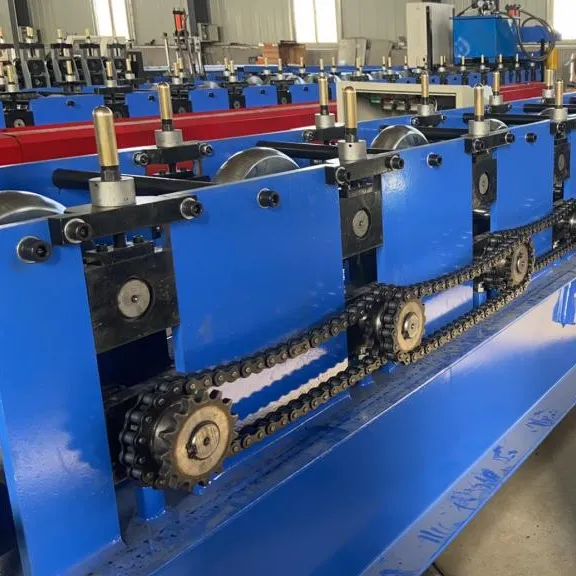

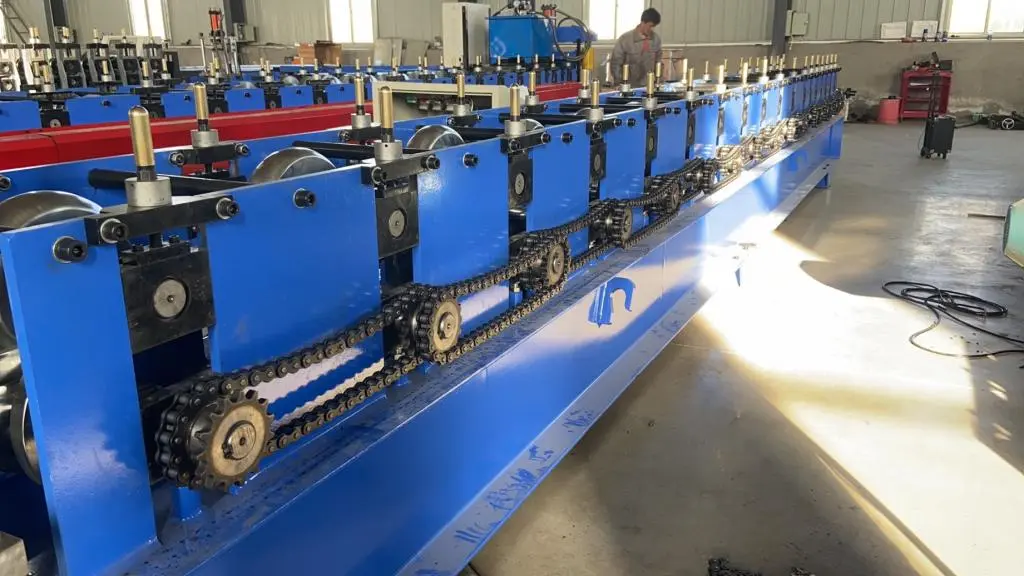

gear and chain transmission device

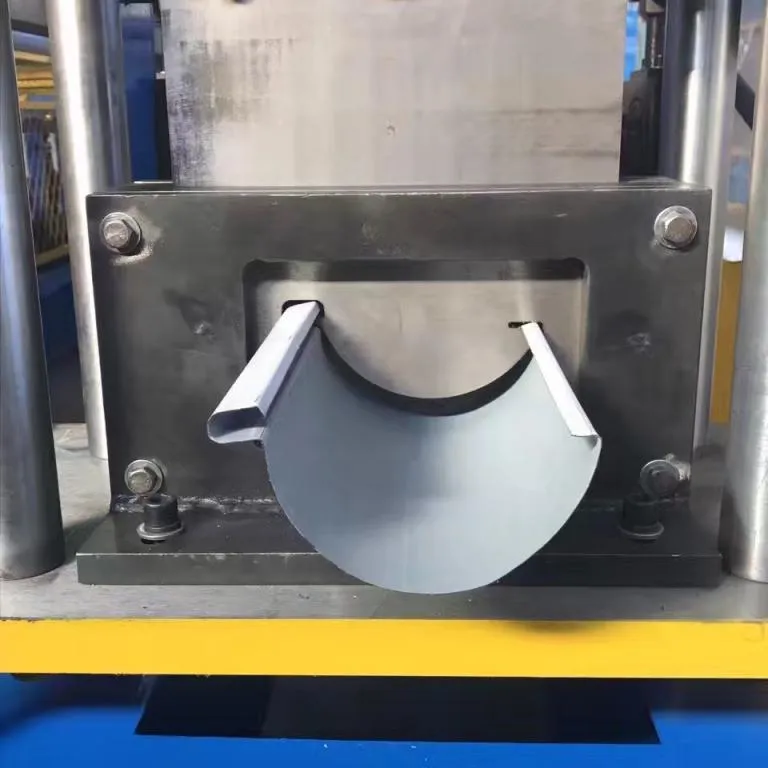

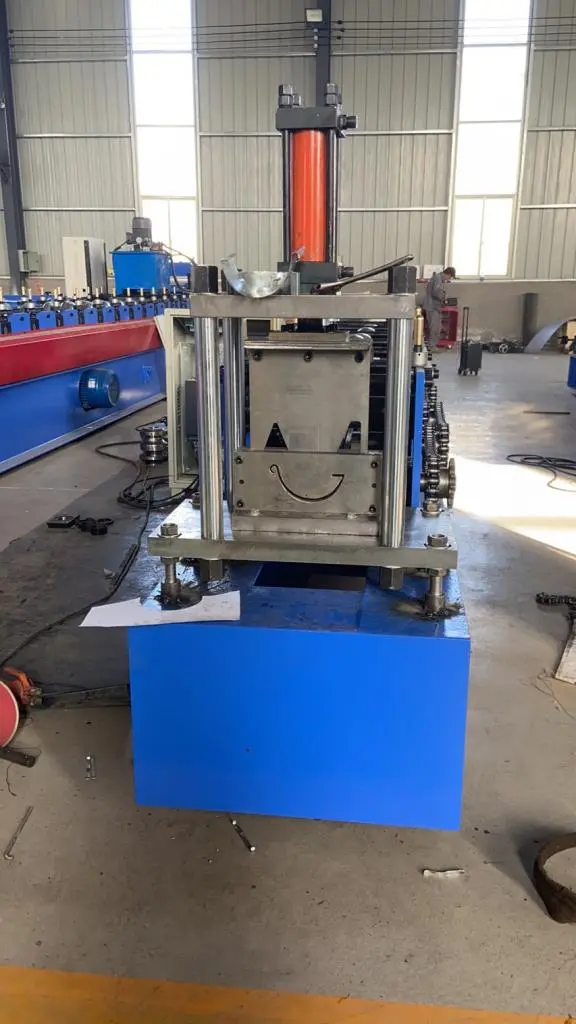

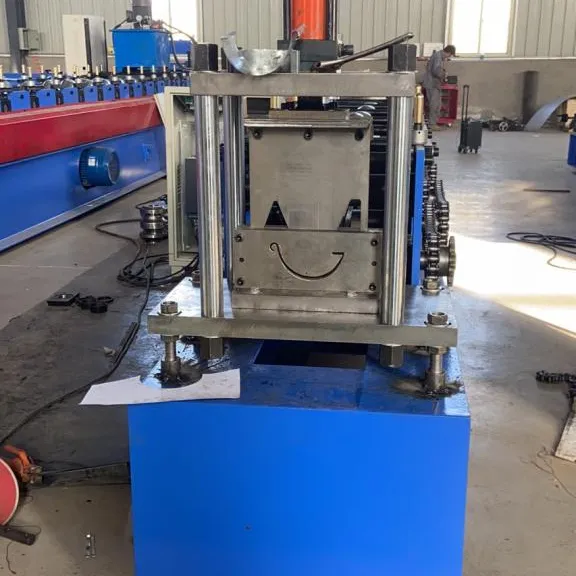

hydraulic cutting device

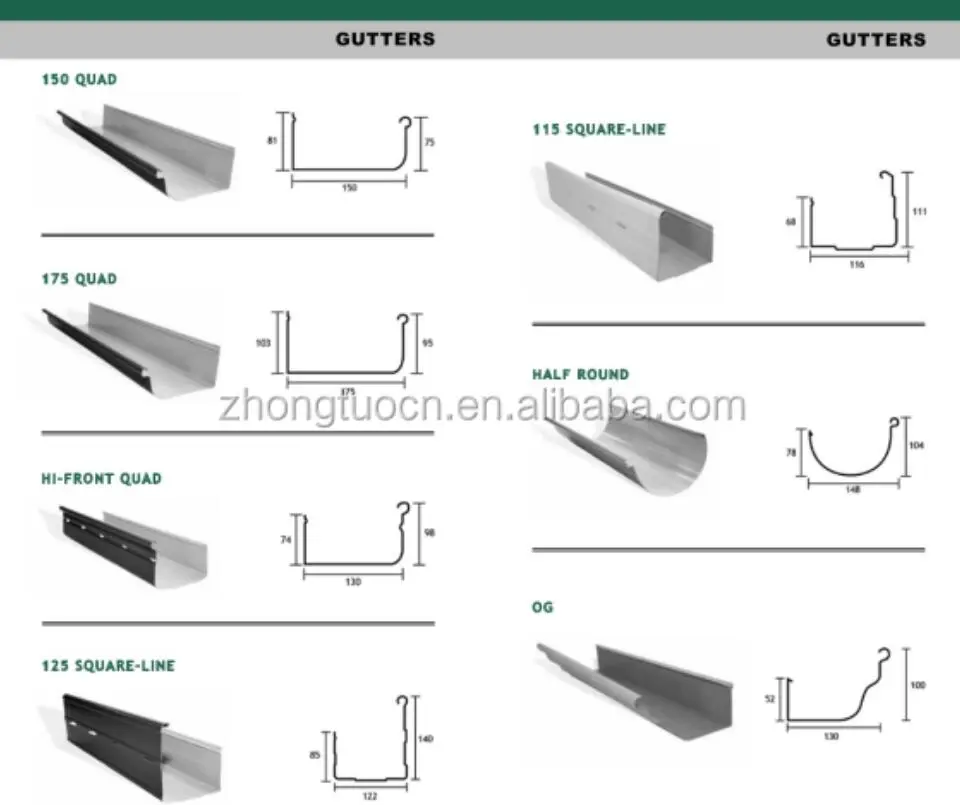

Possible guter types: K-Style, Berlin gutter, half round gutter, rectangular gutter, roof gutter, edge gutter, French drain,Dutch gutter

Generally, we are especially manufacturing machines according to different technical requirements.If any points is not ok for you, please contact us, we can do some change for you

Why Choose Us

Key benefits of our gutter roll forming machine: * High flexibility through quick, easy retooling. (the machine can be converted from nominal size 333 to 250 in approx. 5 min). * During production of 2 m gutters, 2 strips can be manufactured at the same time. * Roll sets can also be added later at minimal cost to further extend your range of products. * Large production volumes and extremely short retooling times. * Negligible to no stock keeping of finished gutters. * Minimal labor costs through simple one-man operation. * Remote maintenance for quick and easy troubleshooting. * Modern recipe management by use of a touchscreen display. * Equipped with all safety devices incl. safety guards, light curtains, etc.

Company Profile

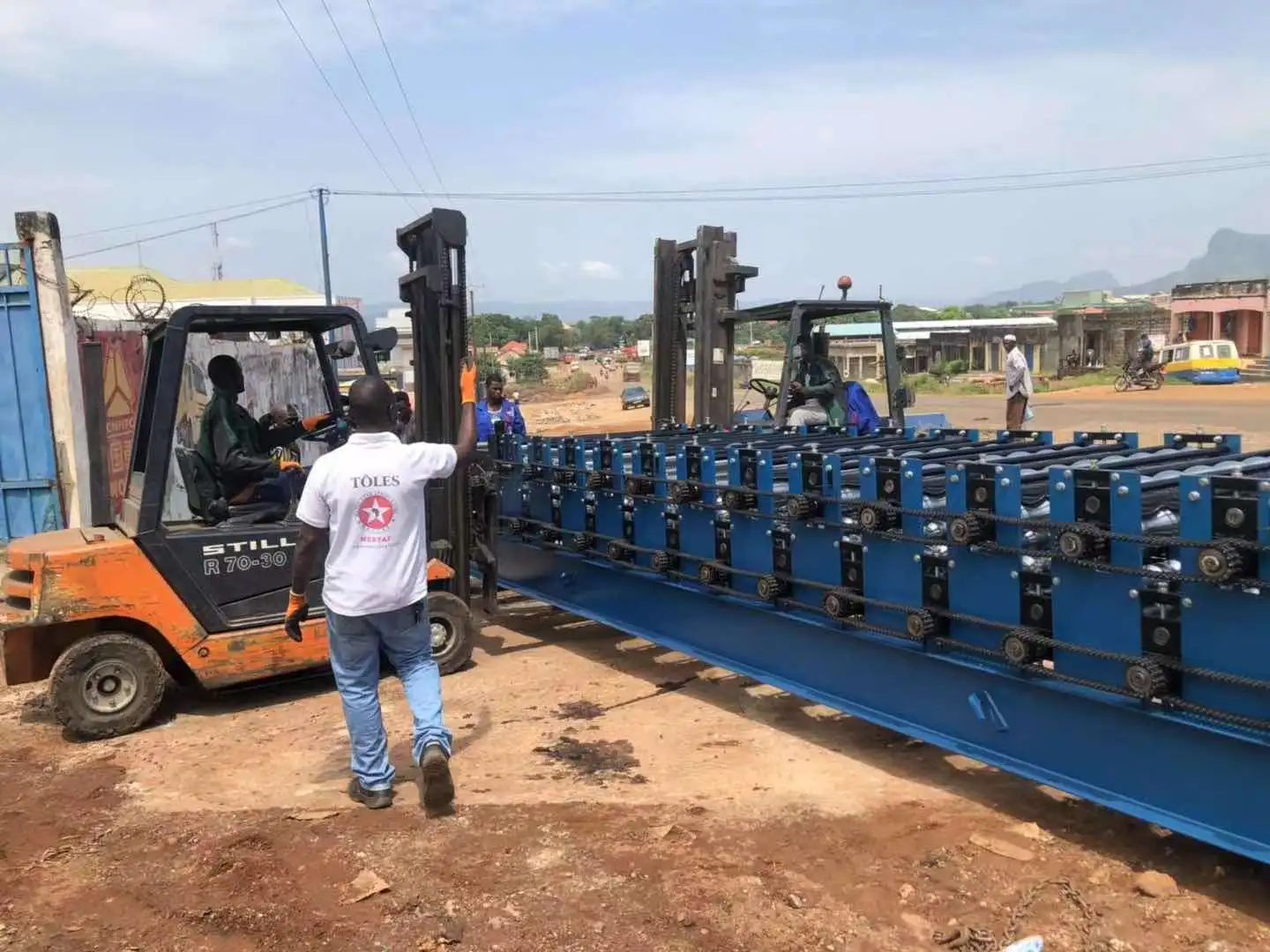

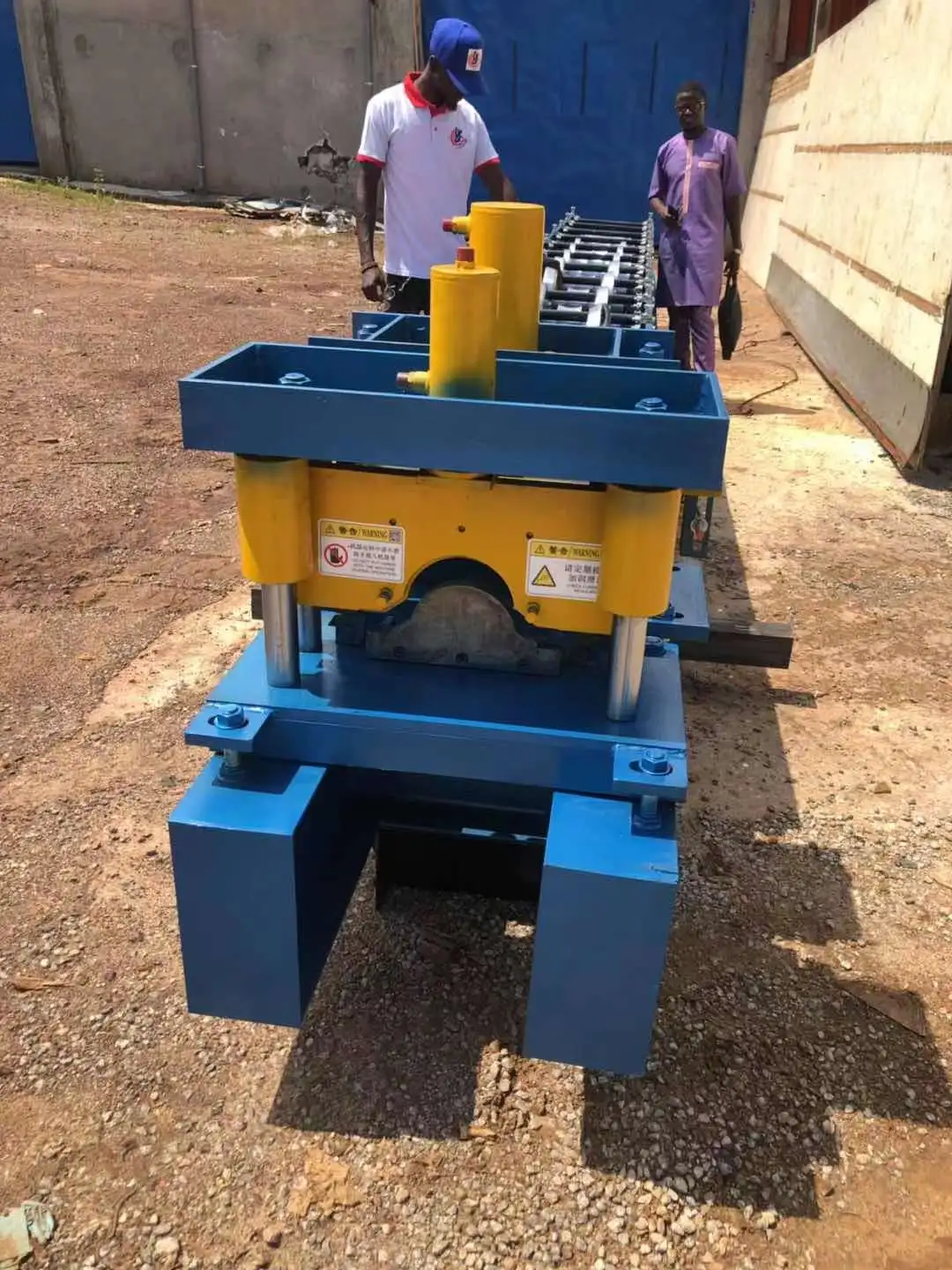

Customer Photos

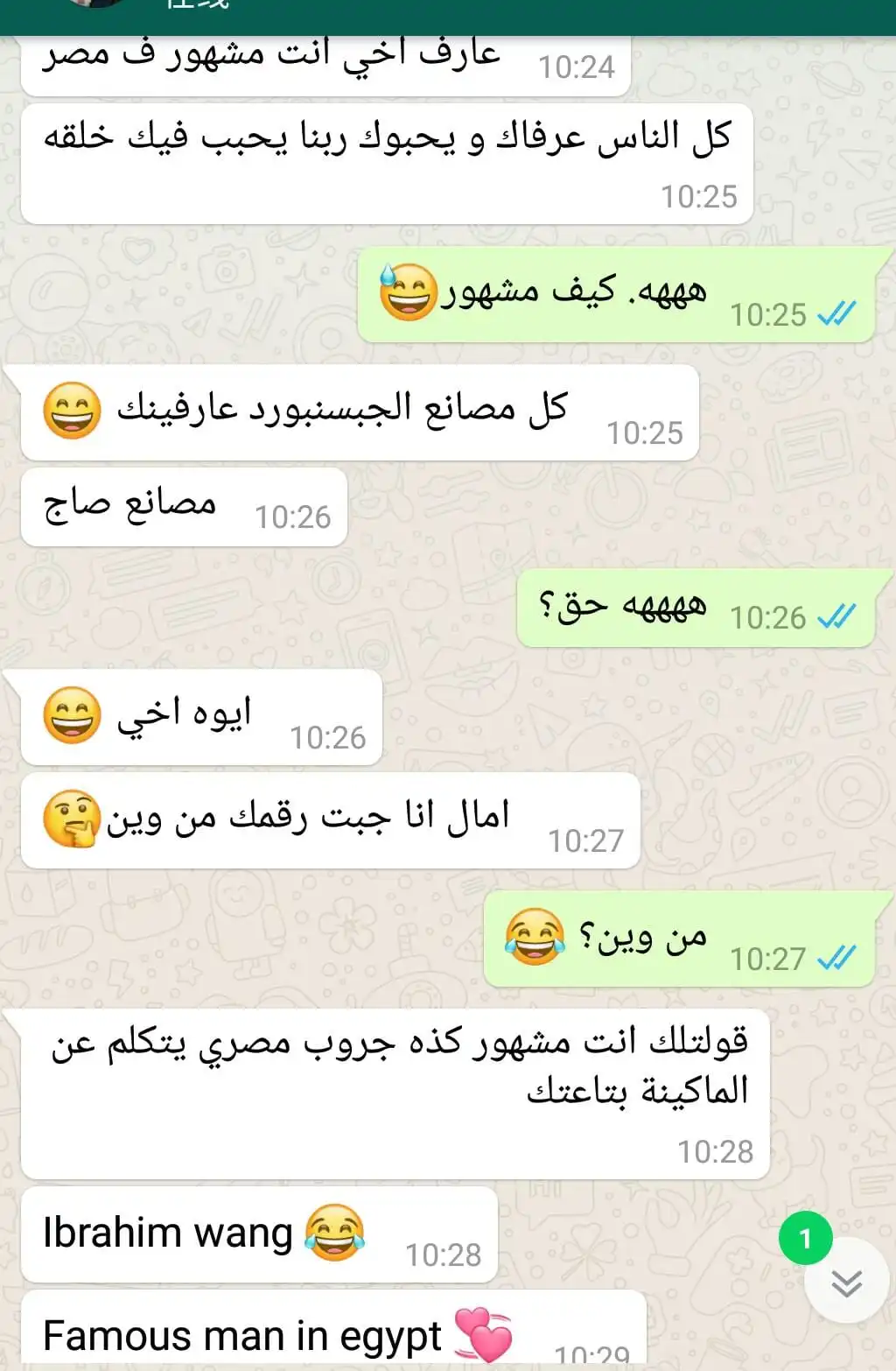

customer good feedback of our machines:

Product packaging
