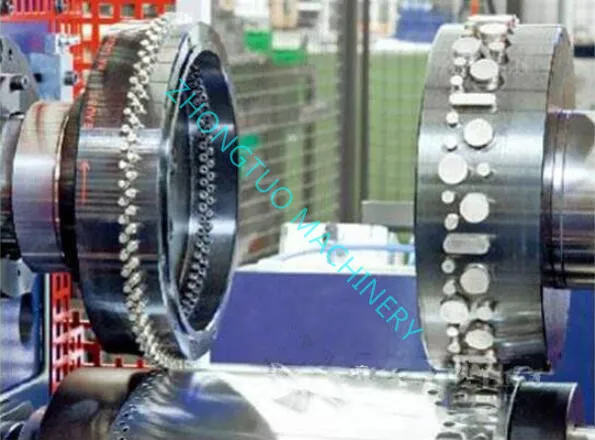

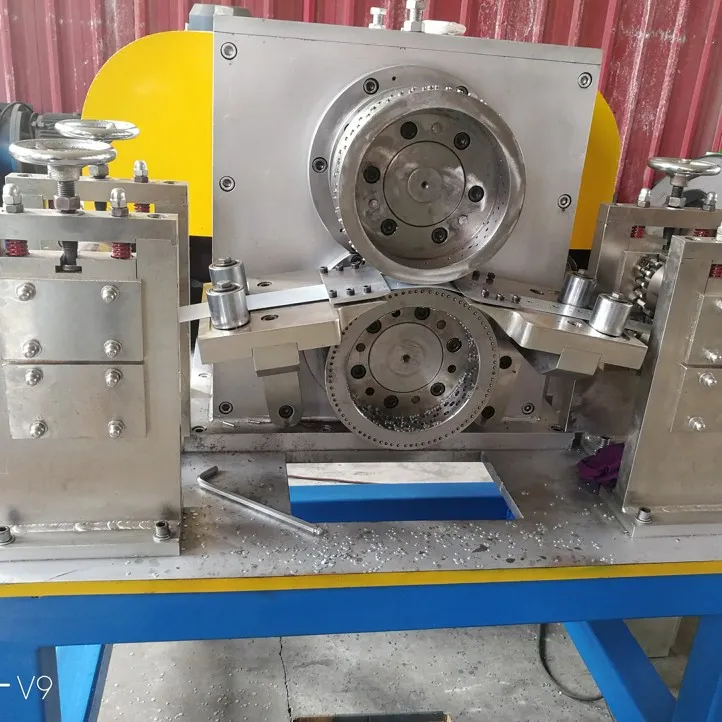

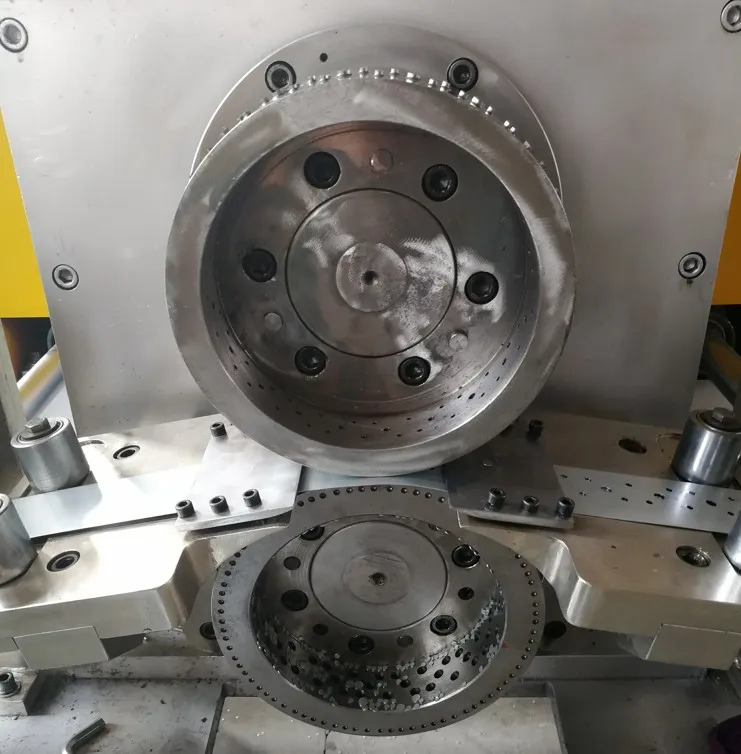

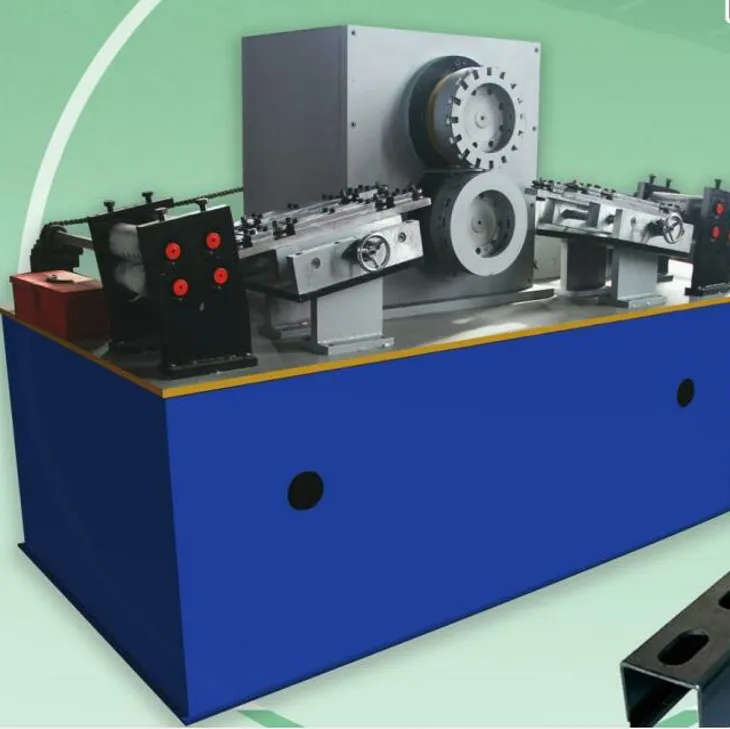

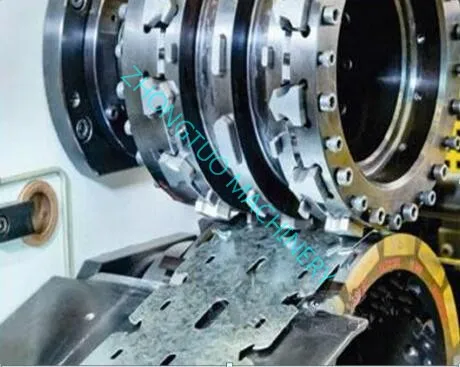

Rotary Punch & Shear Equipment machine for easy metal punching

The Zhongtuo rotary punch and shear machines series could be work as stand-alone machines. The modular design consisting of the cylinder drawing unit, punching unit and cylinder discharge guarantee precise product channelling and reliable transport of the material. The rotary punch machines draws the material from the cylinder drawing unit completely automatically through the punch plug-in unit up to the cylinder discharge. The rotary punch is coupled to the powered coiler and profiling system via a loop control system between the spool and profiling system. A metering wheel in the profiling system registers the line speed. All units of the rotary punch have their own servo drives. The drives are synchronised electronically.

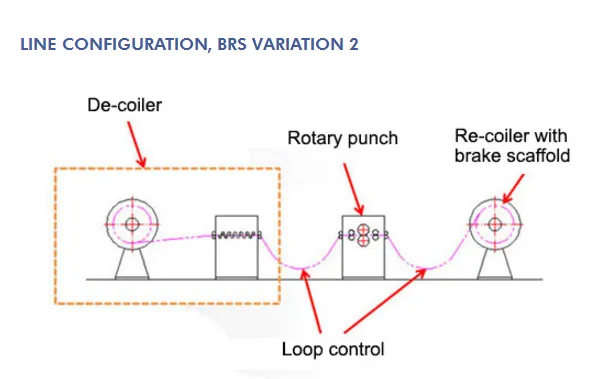

Here are the working flow of Rotary Punch & Shear Equipment for easy metal punching application for your reference.

The rotary punch machine working as follows:

Supported material coild width	22.22mm to 50mm
Working speed	0 to 100m/min adjustable
Notching pitch	195.2mm
Feeder length	0~9999.99mm
Accuracy	≤0.2mm ±1%.
Electricty	220/ 440V 60hz,3PH
Motor power	2.5 kw
transducer	3kw
reducer	speed ratio 40 corner
Feeding coil direction	From left to right
Machine size	2000x1600x1300mm
Weight	2000KG

For the design of rotary punching, you can either use it together decoiler to recoiler. Or you can use it together with the cut to length. And you can use it together with the rolling forming machine to make the metal profiles with PLC.

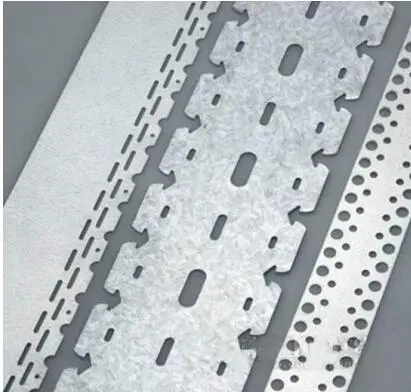

Here are some samples of the Rotary Punch & Shear Equipment samples for your reference:

Why choose Zhongtuo roof panel machines?

1. Professional design and after sell service.

2. Give two years warrenty for all elements of the machine.

3. We allows you to deliver machine first and then finish the payment. We never worry that you do not like our machine quality.
