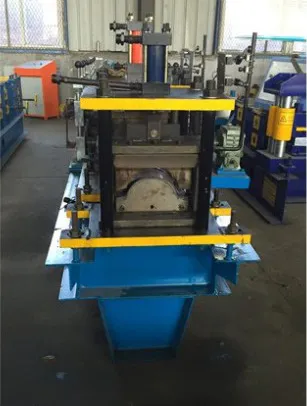

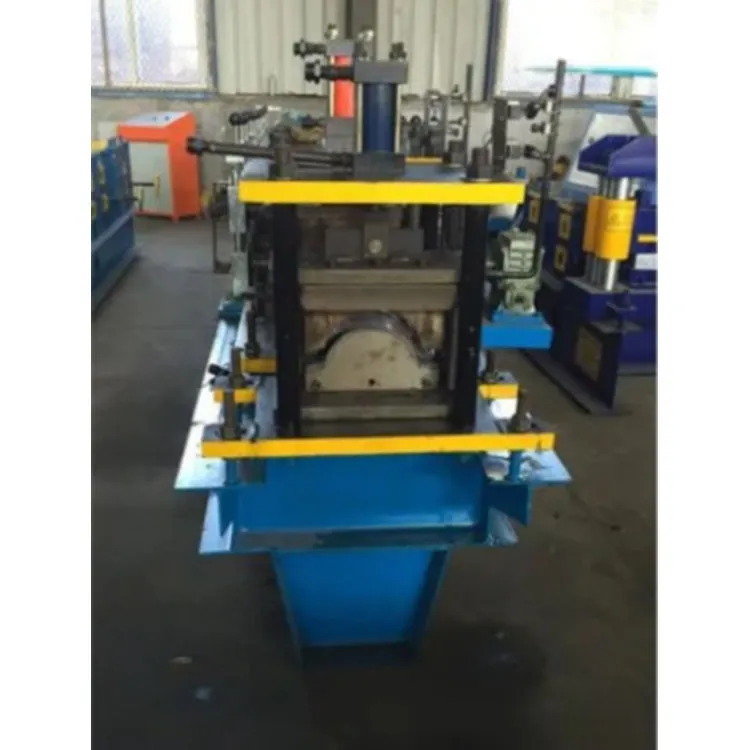

Roof Ridge Cap Roll Forming Machine Metal Roof Ridge Cap Roll Forming Machine 3-5m/min+7kw

Cangzhou Zhongtuo International Trade Co., Ltd

Roof Ridge Cap Roll Forming Machine Metal Roof Ridge Cap Roll Forming Machine 3-5m/min+7kw

Name: Roof Ridge Cap Roll Forming Machine Metal Roof Ridge Cap Roll Forming Machine 3-5m/min+7kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT70811453

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

3-5m/min

Power(W):

7kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Steel
Use
ROOF
Voltage
380V,50HZ,3P Or as request
Rolling Thinckness
0.3-0.8mm
Feeding Width
max 1250mm

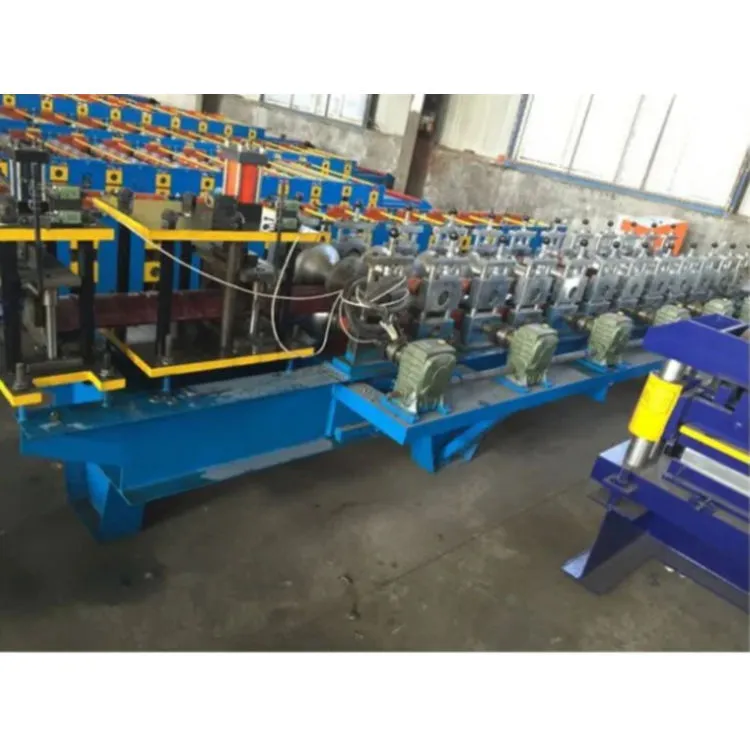

ZTRFM Metal Roof Ridge Roll Forming Machine Roof Panel making machine

ZTRFM Roof Panel Ridge Caps making machine for Metal roof ridge flashing roll forming machine is to make ridge cap suitable for steel roofing sheet top,we can design the machine as per the different sizes of the Ridge caps.

We supply the whole production line which include the Decoiler,roll former,punching press and cutting device and run-out table.The PLC control system can control the machine's speed,can produce different lengths and quantity.Very easy to operate.

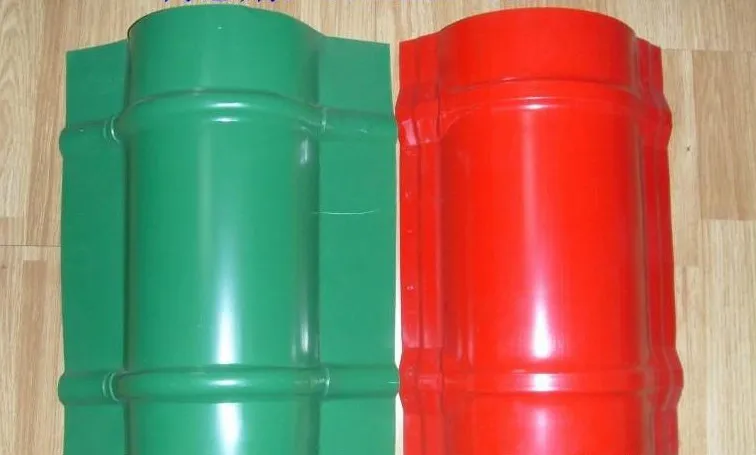

The application for the finished product:

Profile drawing for reference:

ZTRFM Metal Roof Ridge Roll Forming Machine Roof Panel making machine
Working efficiency	8-12m/min
Thickness of Material	0.3-0.8mm
Thickness of Material	0.3-0.8mm	Chromed treatment, make the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life
Roller station	13 rows(As your requirement)
Diameter of shaft	70mm solid shaft
Material of rollers	45# steel, hard chrome plated on the surface
Machine body frame	350 H steel
Drive	Chain transmission
Transmission	By chains
Cutter	cr12mov material, no scratches, no deformation
Motor Power	4KW
Hydraulic system power	5.5KW
Voltage	380V 50Hz 3Phase
Forming Speed	2-3m/min

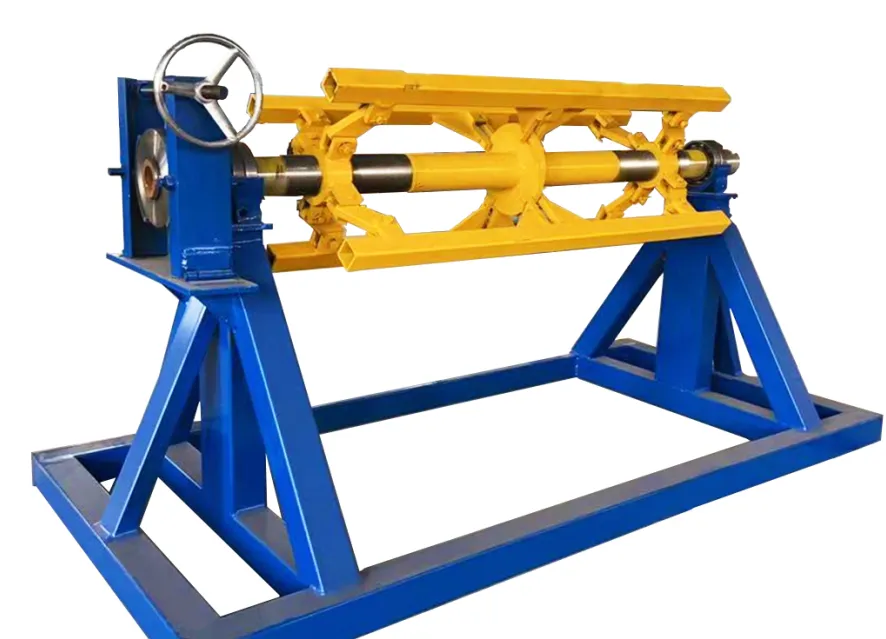

Manual Decolier

Structure: welded by the steel plates and profiled bar.

1. No power,it is drived by the roll forming machine
2. Need to adjust the decoiler shaft manually according to coil inner diameter
3. With simple brake and handwheel for easy working

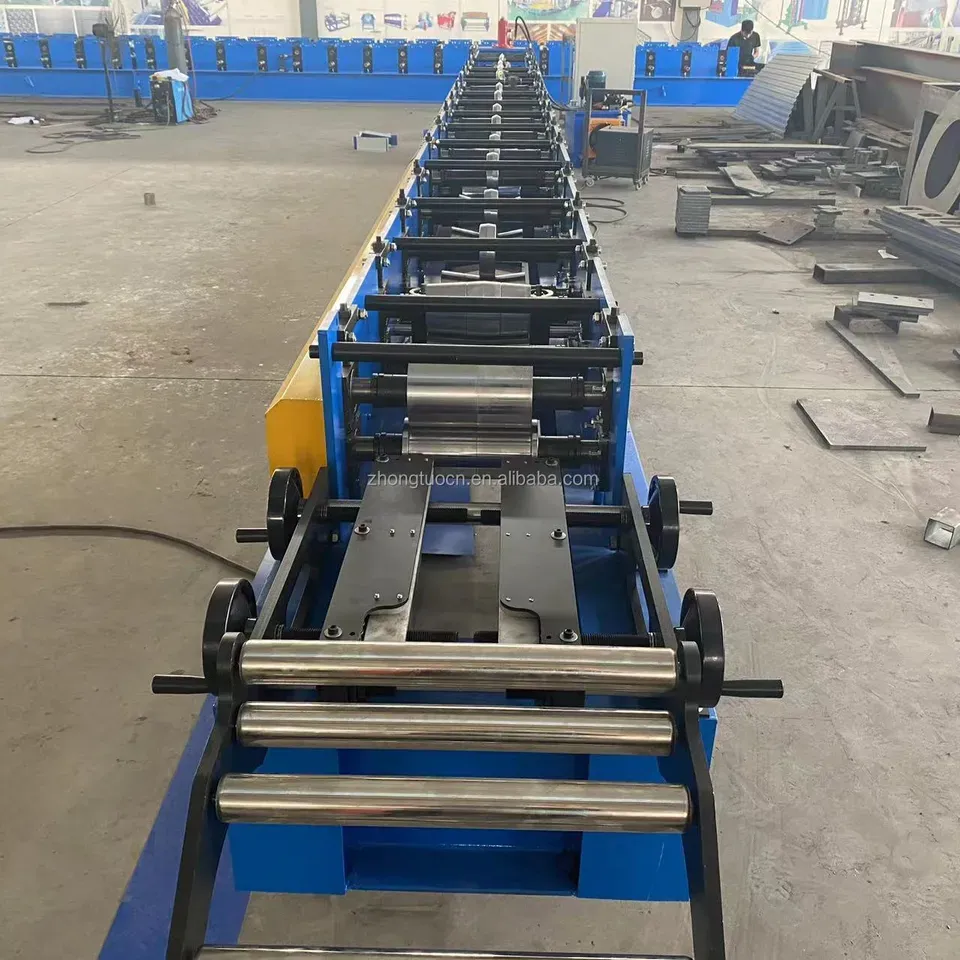

Entry Beach

Usage:Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

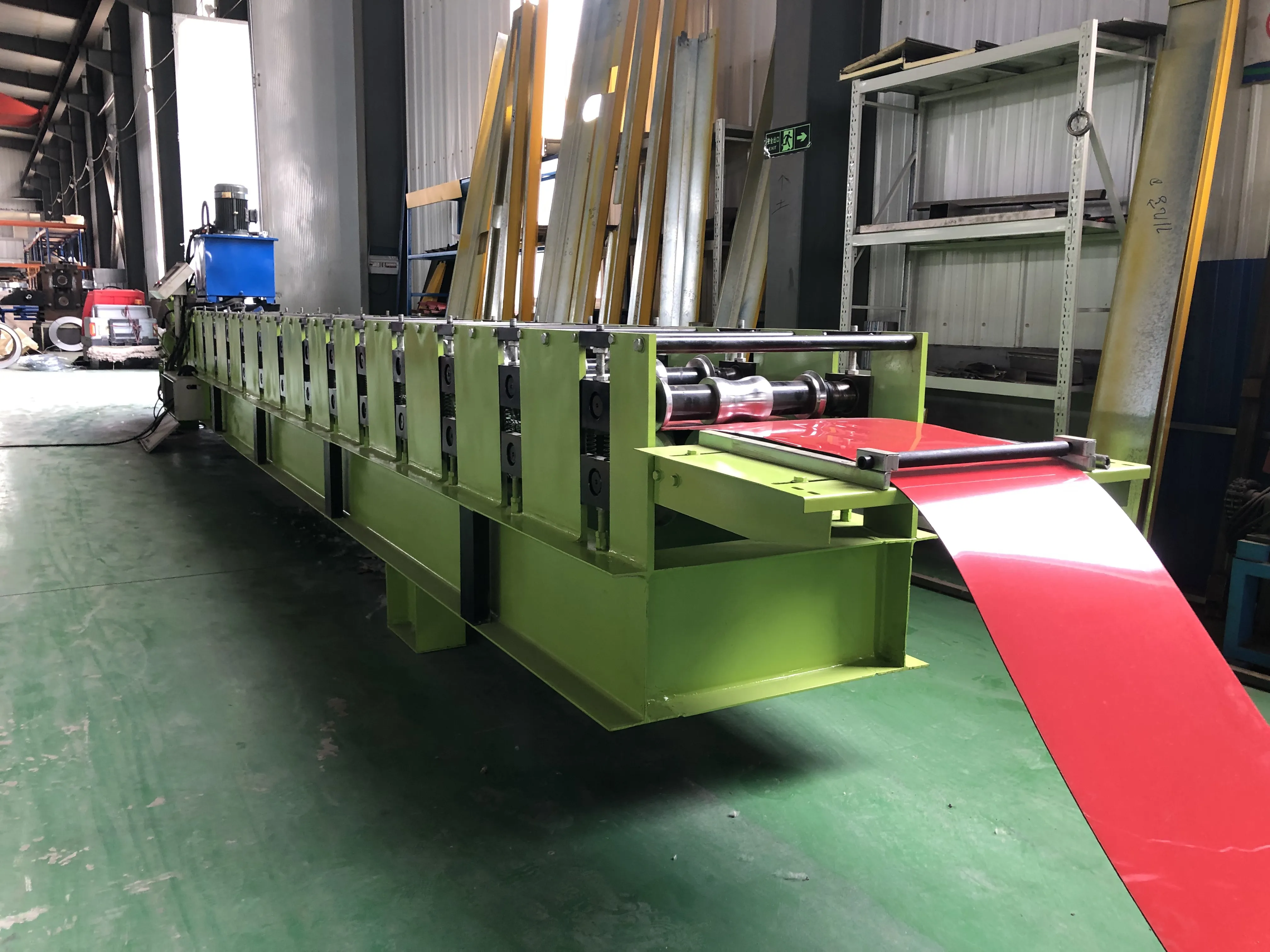

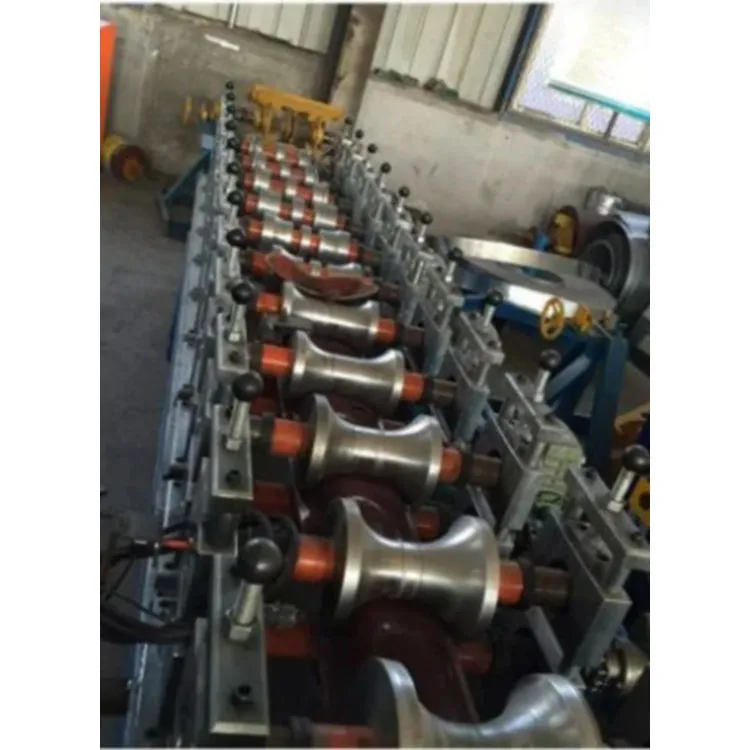

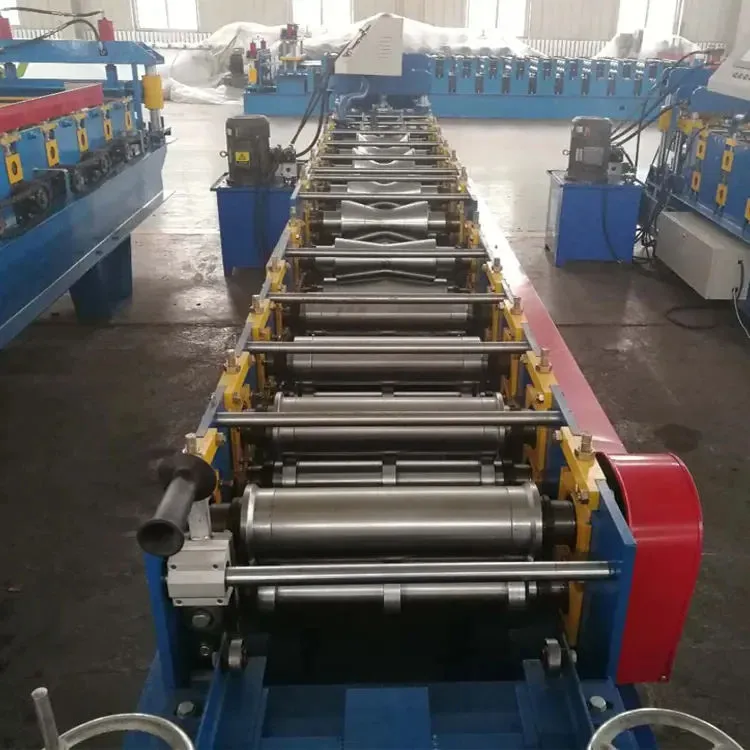

Main Roll Forming System

Feature: Ensure stability , precision and lifetime.

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

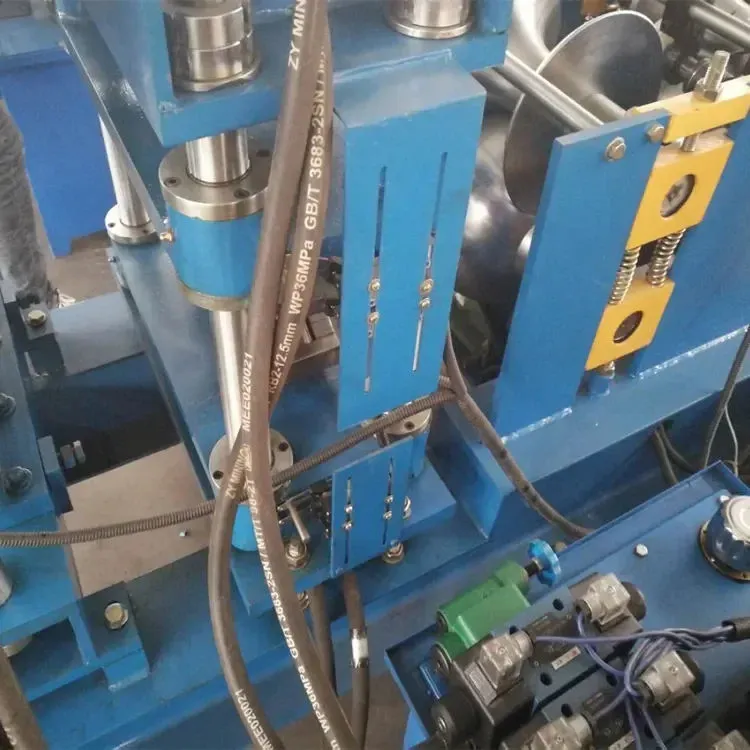

Shearing Mechanism

1. Feature: Ensure stability, precision and cutting speed

2. Function: Automatic cutting controlled by PLC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

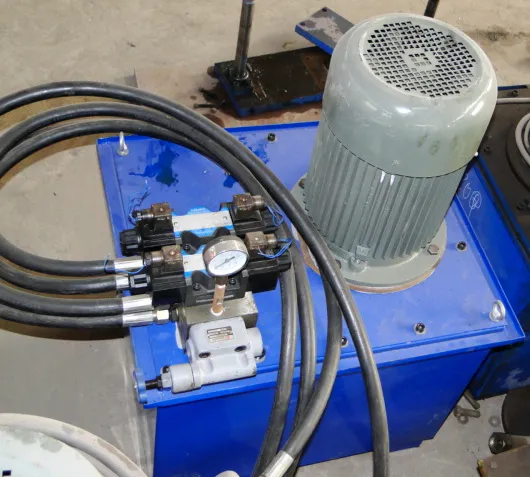

Hydraulic Station

1. Hydraulic station motor: 5.5KW
2. Hydraulic oil: 46# hydraulic oil

All of our hydraulic stations are equipped with fan cooling,which can cool down the coil’s temperature after long time working or
the working at hot weather.

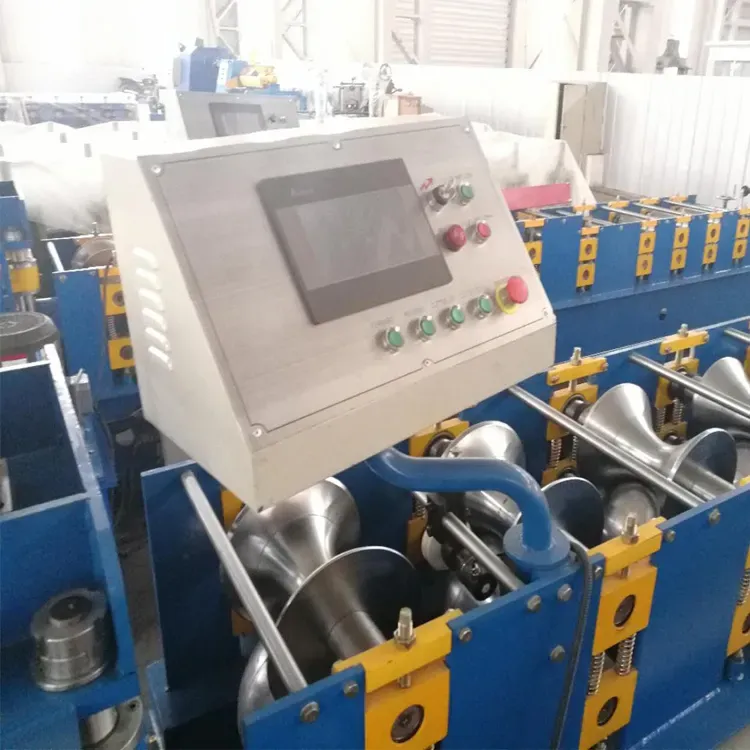

PLC control system

1. PLC brand: Delta(Taiwan)
2. Frequency converter brand: Delta(Taiwan)
3. Encoder: Omron
4. Function: Automatic control the length,quantity and batch

CE(No.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
