Rolling Shutter Slat Door Roll Forming Machine Price in China Metal Slat Door Making Machine ZTRFM+0-25m/min+according to profile drawing

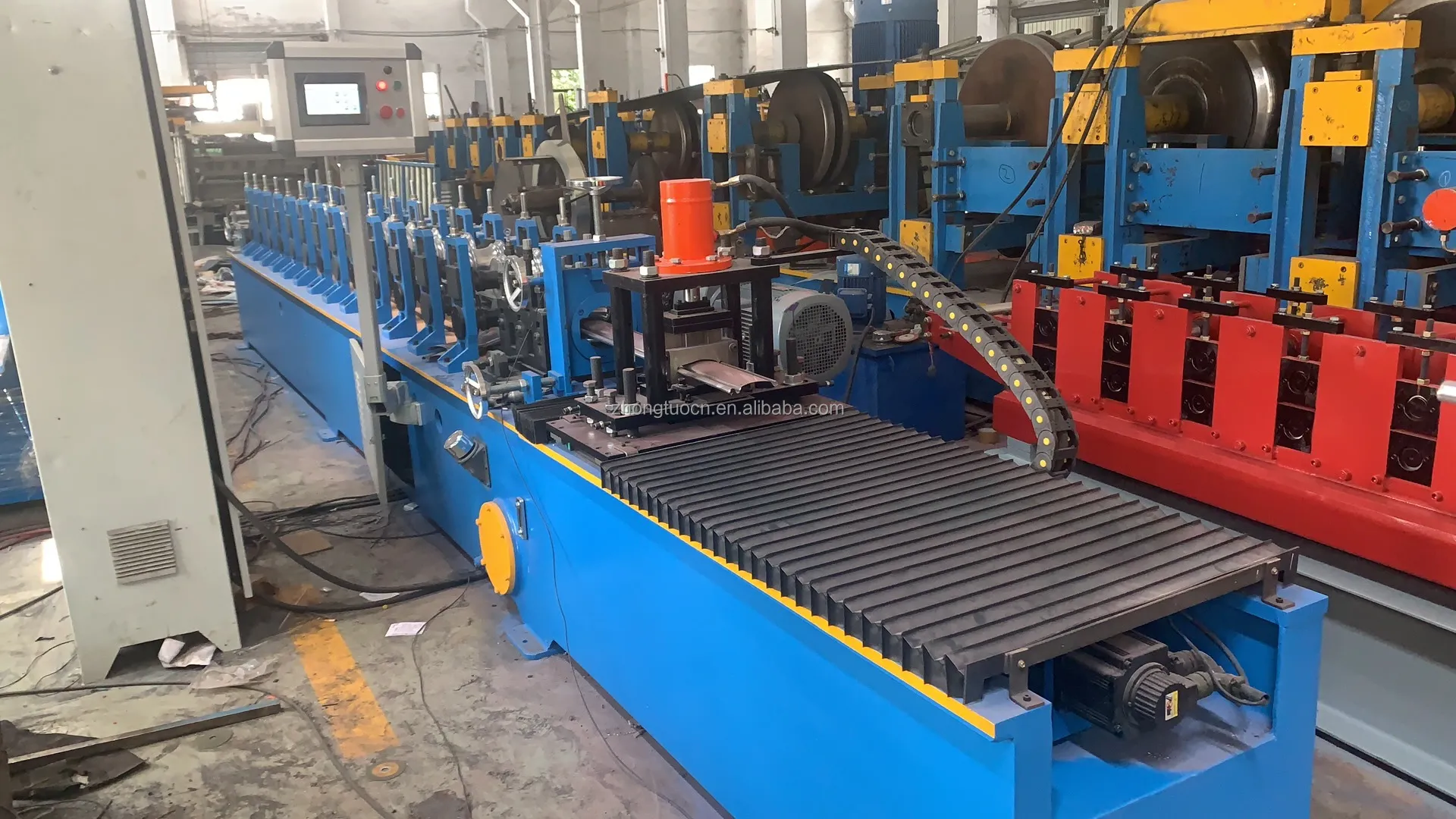

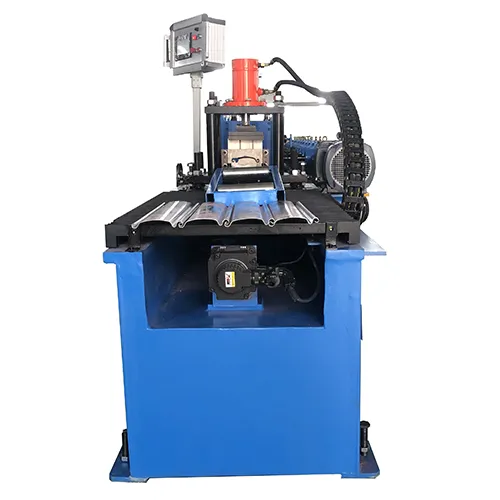

Zhongtuo Metal rolling shutter door forming machine shutter slat making machine  could be used to make the rolling shutters in batch fully automatically, especially this one, it can produce two types shutters at the same time, that means one machine for two profiles.  This rolling shutter door speed can reach 25 meter per minute.

Long lifetime: 10 year +++

Perfect shaping: no burr no distort

Cutting type:Servo motor drived flying cutter,cutting without stop

Transmission:By gearbox

Quality warranty: Strict testing before shipment

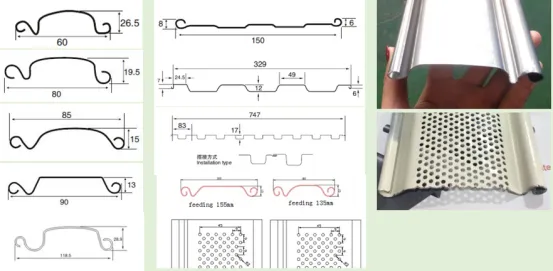

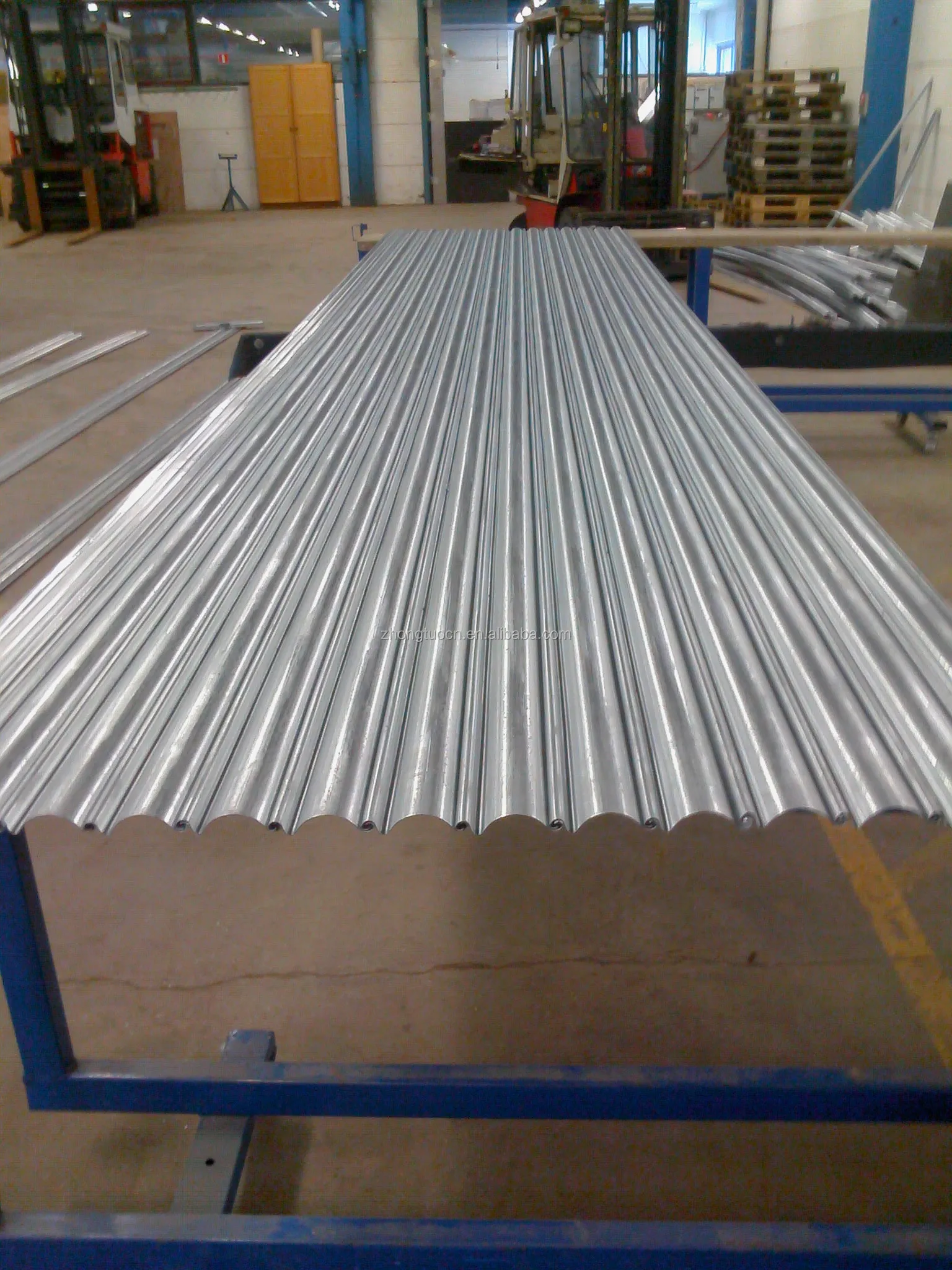

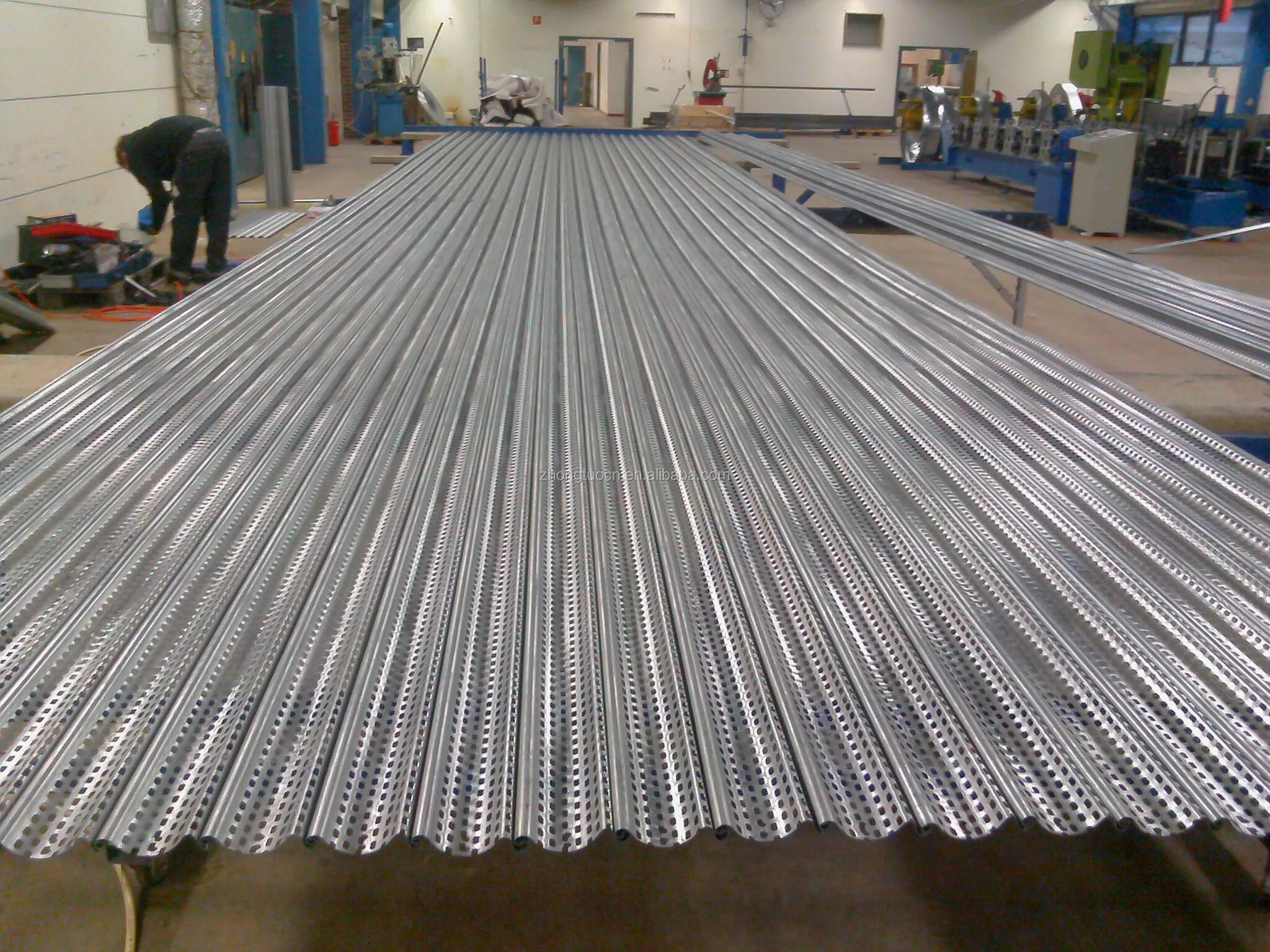

Here are popular drawing profiles of rolling shutter from clients:







Rolling shutter slat door roll forming machine price in China Metal slat door making machine parameters

Item	Name	Description
1	Machine structure	Iron Cast steel structure
2	Main power	5.5KW
3	Forming stations	16 stations
4	Way of drive	chain drive
5	Diameter of shaft	60mm
6	Max rolling speed	20-25m/min
7	Thickness	0.5-1.2mm galvanized steel or prepainted sheet,G550Mpa
8	Material  width	150-300mm (as the profile drawing design)
9	Material of roller	Cr12 with quenched treatment
10	Material of blade mould	Cr12, quenched 58-62
11	Way of cutting	hydraulic cutting(stop to cut)
12	Length cutting tolerance	+/-1.0mm
13	Hydraulic pressure	16Mpa
14	Hydraulic power	4kw
15	Control system	PLC  control from Taiwan
16	Encoder	Omron



Work Flow of of the whole line:

Decoil---Feeding steel belt---punching holes if needed--roll forming--hydraulic cutting and punching head holes--hydraulic shearing--receive table



No.1 Feeding part

Scientific design: Our feeding part adopts bearings on each side

Advantage: Protect PPGI & Help raw material go ahead  smoothly

Bearing Brand: China Famous Harbin Brand

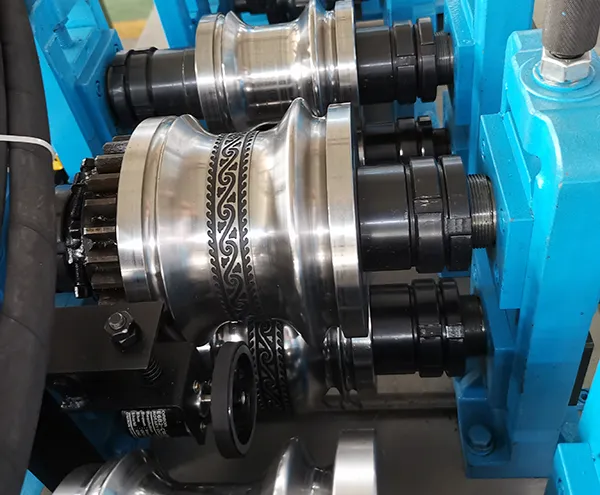

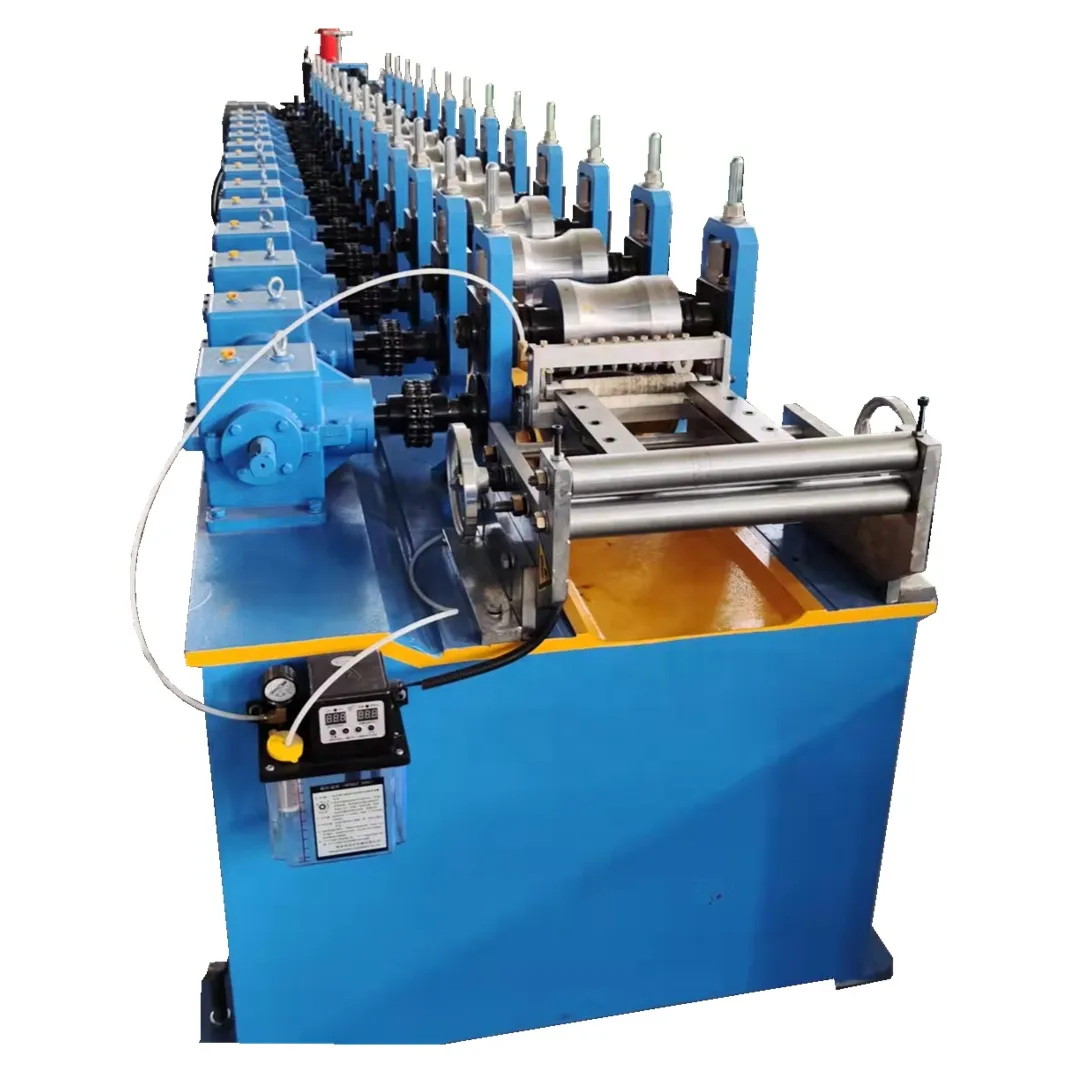

No.2 Shaping Part of Metal rolling shutter door forming machine shutter slat making machine



Scientific Design A: Cast Steel Roller Fixer

Advantage: Compared with middle plate, Cast steel can support more stable shaping

Scientific Design B:  we put counter inside of rollers

Advantage :To ensure count accuracy

Scientific Design C:Gears set on Shaft

Advange: To balance strength of each roller. Ensure better shaping.

Scientific Design D:Control station installed on the machine

Advange: 1.Save place.2.No neet to connect the wire any more,easy to install

Scientific Design E:Loading hook installed in the machine

Advange: Easy to load the machine,will not damage the body of machine

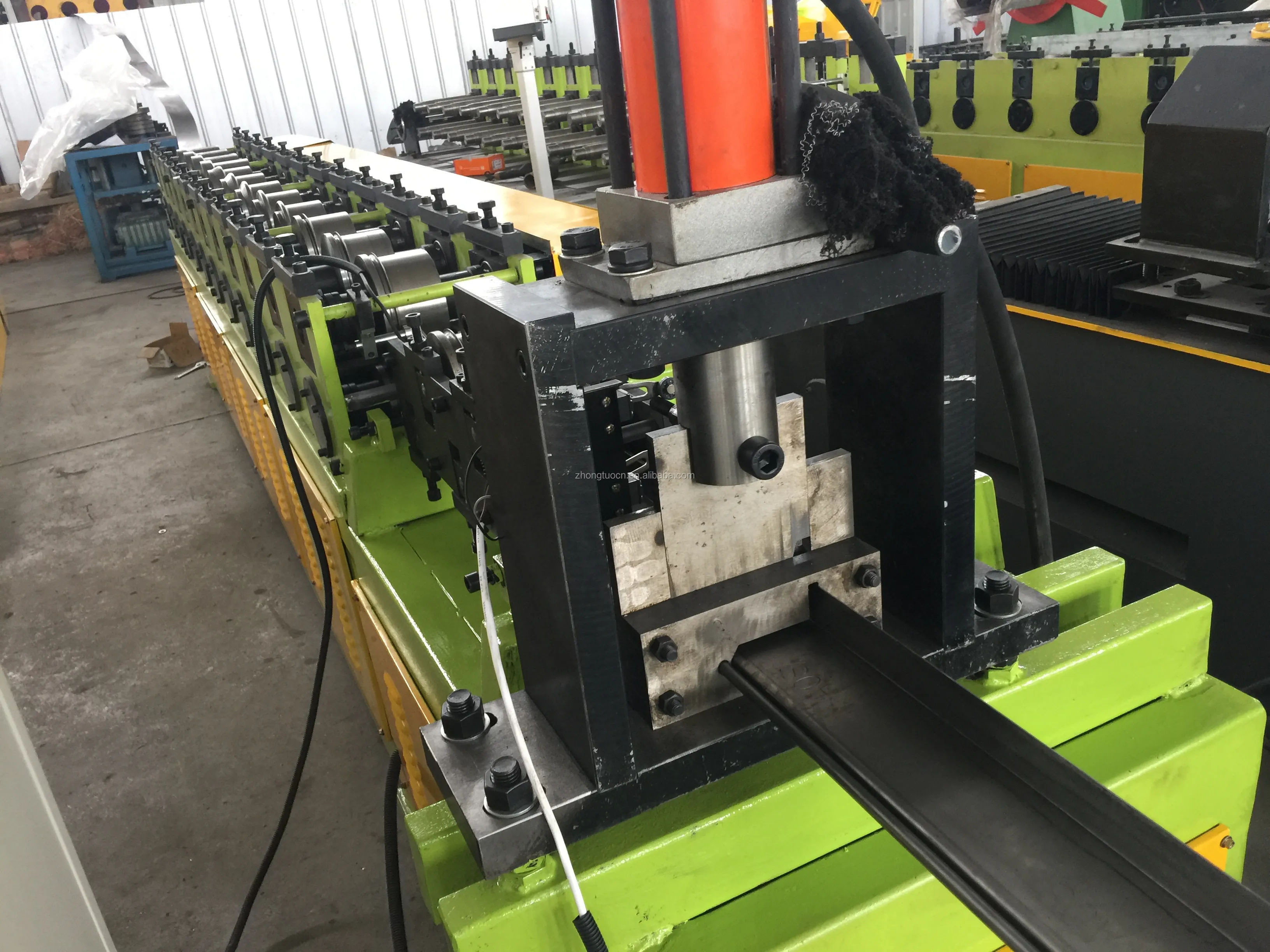

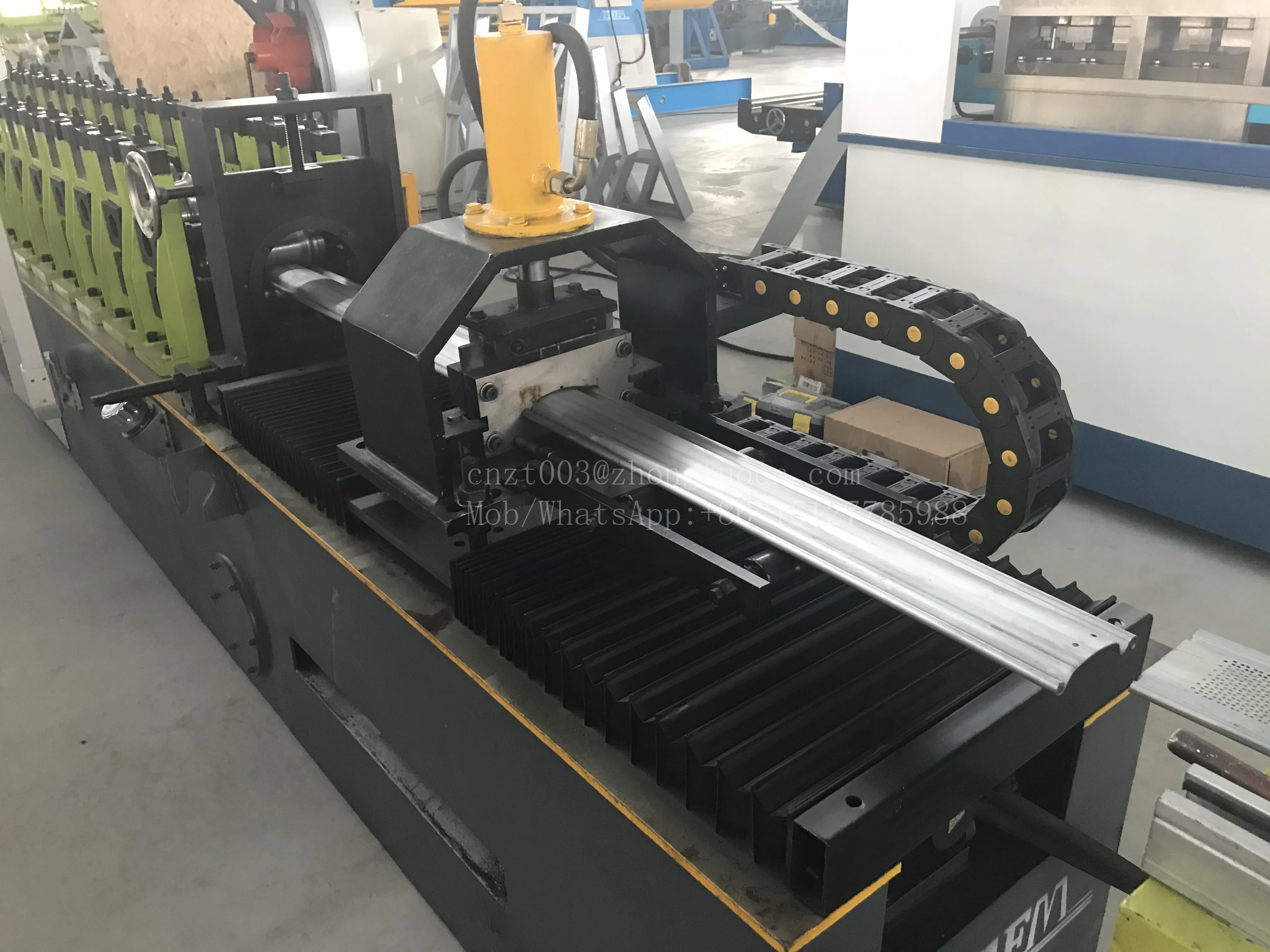

No.3 Hydraulic Cutting of Metal rolling shutter door forming machine shutter slat making machine

Scientific Design A: It adopts High quality steel pillars

Advantage: Considering that the thickness of the steel strip is generally thick,

the high quality steel column can withstand the pressure and reaction force better.

Therefore, the life of the machine will be extended and the cutting effect will be better.

Scientific Design B: It adopts powerful motor

Advantage:The motor power is enough to ensure that the cutting effect is neat.

Scientific Design C: Bigger fans

Advantage: The wind is strong to ensure that the hydraulic oil cools down quickly.

This design has a better cutting effect and a longer working time.

Scientific Design D:Oil pump installed inside of the machine

Advange: Can save place for customers

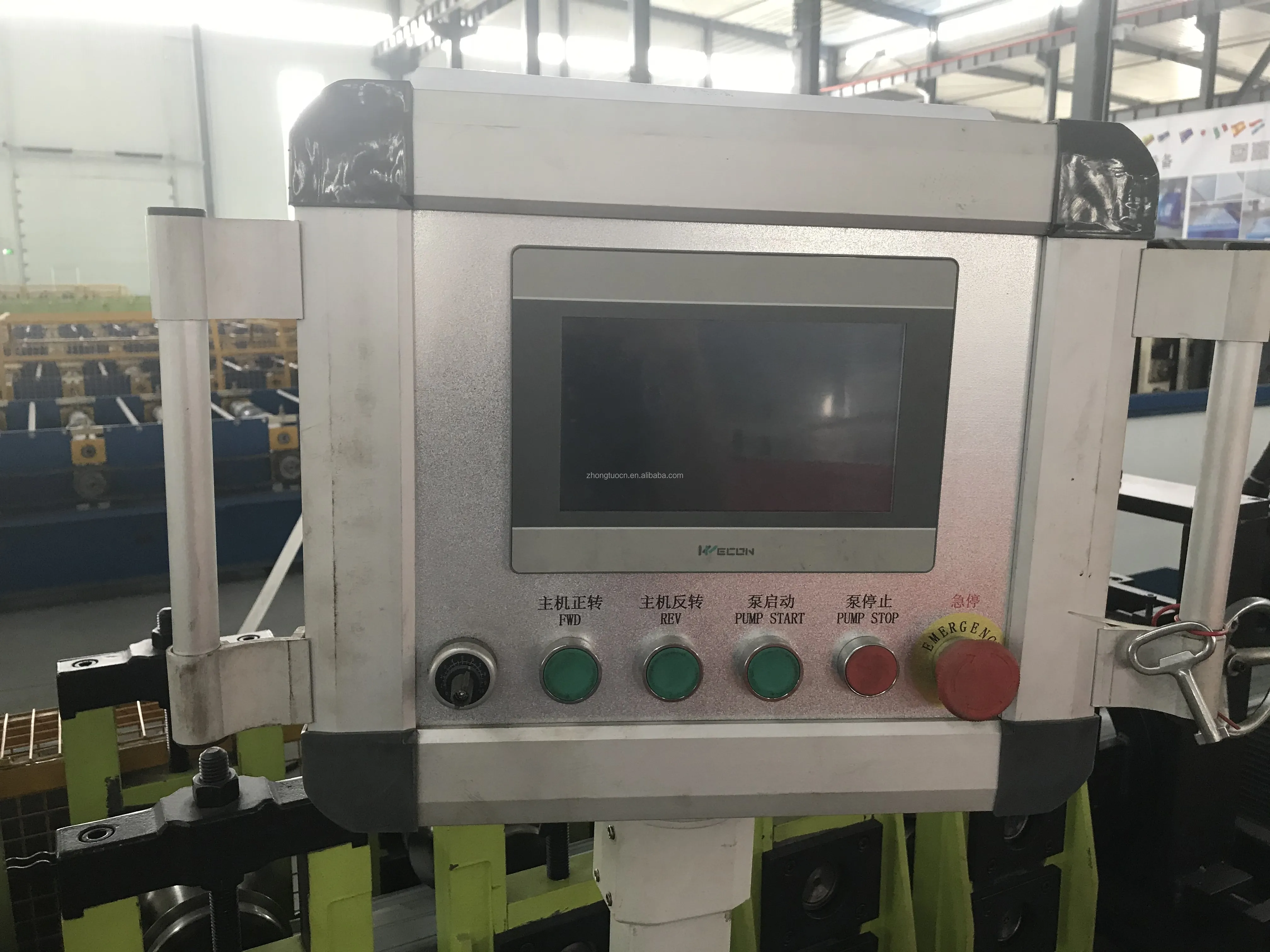

No.4 Control system of Metal rolling shutter door forming machine shutter slat making machine

Scientific Design A: Control panel installed in the machine

Advantage: No need to connect the wire when the machine arrive at customers' factory,easy to install







Other types metal rolling shutter door machine:



Single set rolling shutter forming machine                                  Roll shutter guide forming machine





Roll shutter end forming machine                                           Normal speed roll shutter forming machine





Australian type rolling shutter machine



More profiles of the rolling shutter:





1. Quality Control

A. Every parts of machine is examed carefully without any omit.

B. Welcome to our factory to check machine

2. Installation & Training

A. We supply video to teach buyer how to install and operate machine

B. Welcome customers come to our factory, we are glad to teach you face to face.

C. Our technicians could come to customers' factory to install machine

3. After-sale service

A. One year warranty for parts and shipment of parts is free.

B. 24hours*365 days technical support online.
