Rolling Shutter Machine Roll up Door Machine

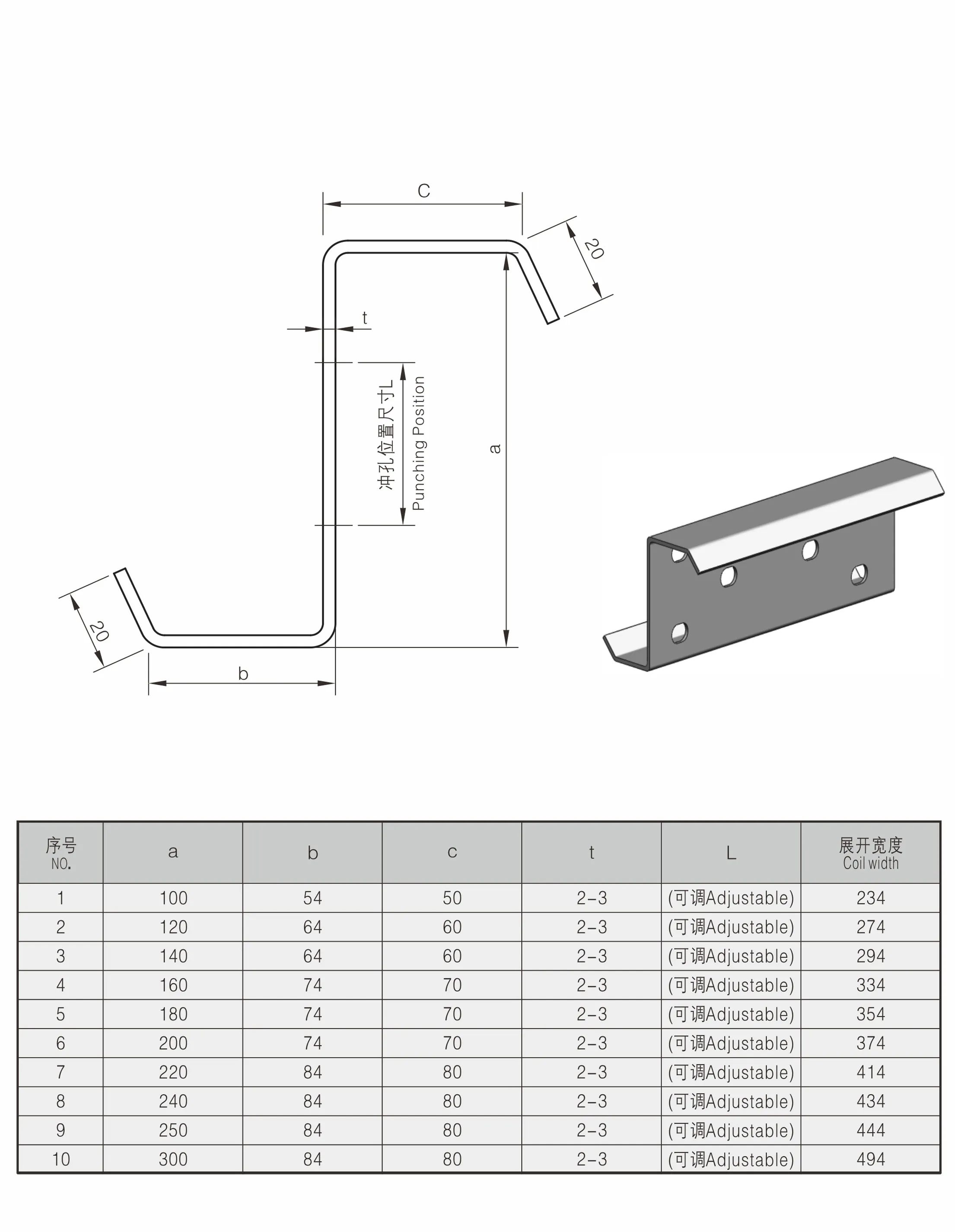

Steel Profile Z purlin is widely used in purlin and metal steel structure building and wall beam.Also can be assembled into the lightweight roof truss,bracket and other architectural components.In addition, it can also be used in light industria manufacturing of machinery, such as columns, beams.

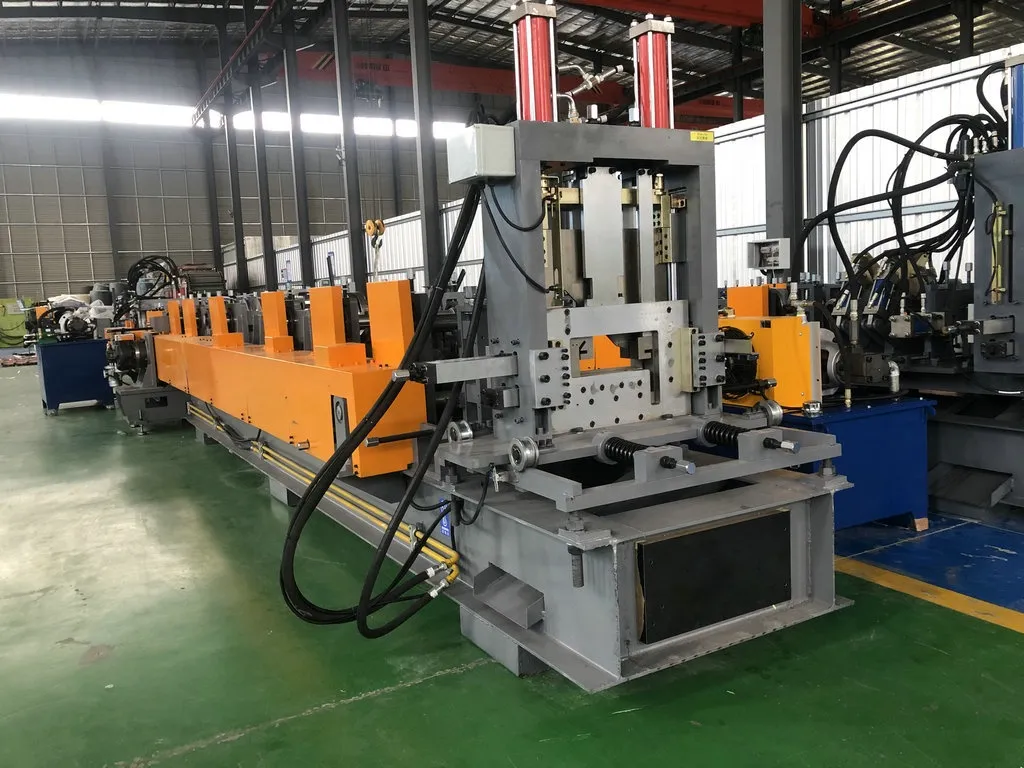

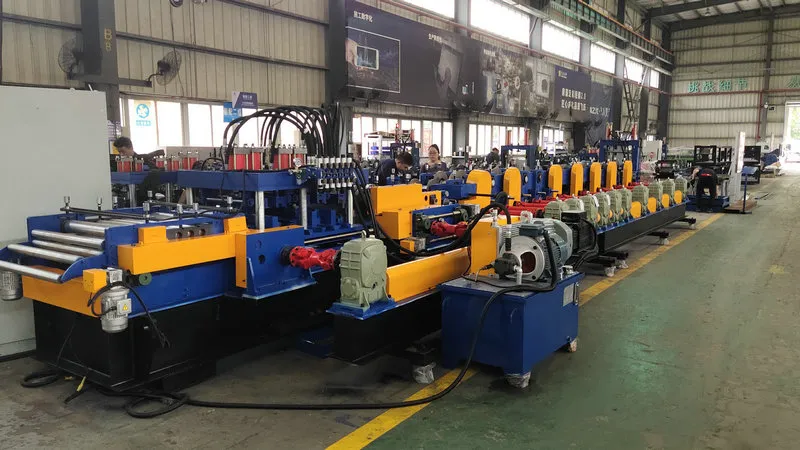

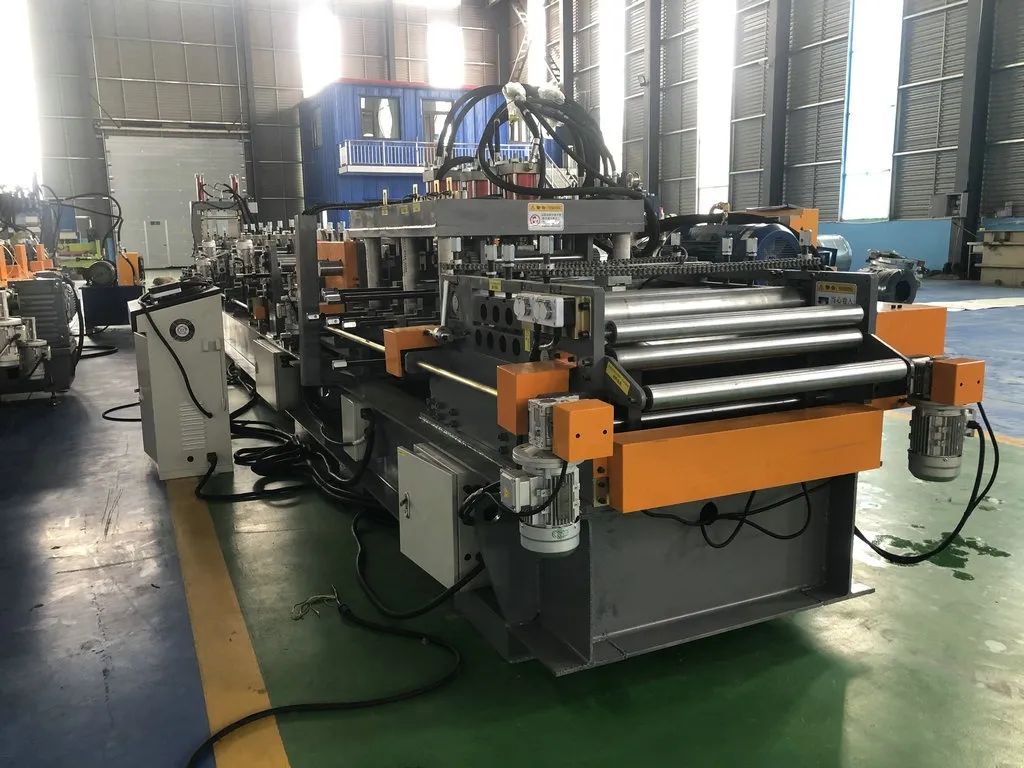

Automatic Z purlin roll forming machine is used to produce for our American customer. Our factory support customized, for example, about and Z purlin profile drawing, voltage, machine color, electric part brand, and other details.You can choose punching holes or not. Both and Z purlin can be produced on one machine, changing shape between Z by spanner. Changing or Z purlin dimension can be adjust by electric control system.

Intechangeable Z Purlin Roll Forming Machine Features

1. Stepless rapid type change roller forming equipment | motor | servo motor | hydraulic pressure
2. Strong upgrading of professional performance
3. N series breaks through conventional specifications in purlin production,
4. With multi-version models, it has fast board output and stable output power,
5. High precision type change, high durability and other characteristics can meet your production needs under different conditions.

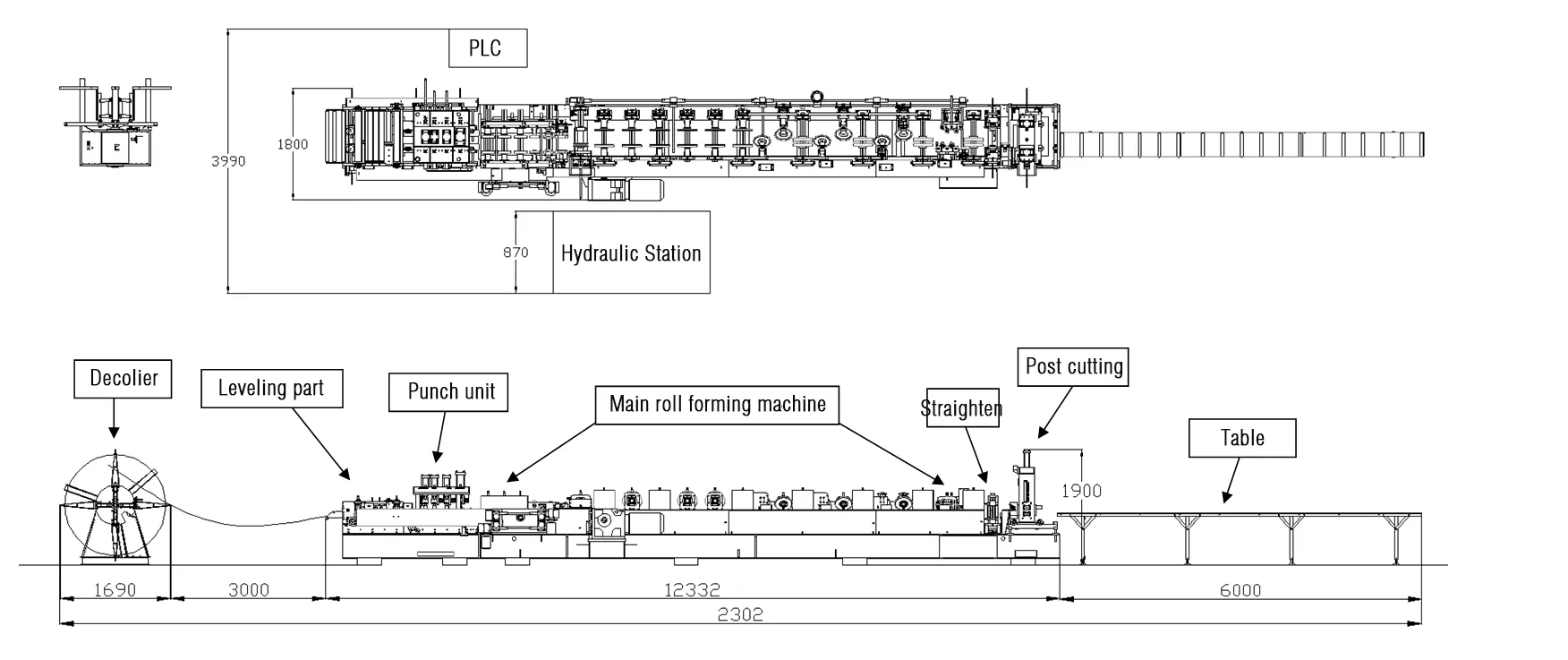

Processing Flow

Uncoiling → Feeding material into machine →Roll forming → Auto cutting →Products receiving table

Technology Specification

1. Material	GI		Thickness:1.5-3 mm (standard)
2. Decoiler	3 Tons Hydraulic automatic decoiler		3 Tons Manual decoiler(will give you as free)
3. Main roll forming machine	Roller station		18 rows (As your requirement)
		Diameter of shaft		80 mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		400 H steel
		Drive		Gear and chains transmission
		Dimension(LWH)		1500018001600(customize)
		Weight		16T
4. Cutter	Automatic		Cr12mov material, no scratches, no deformation
5. Power	Motor Power		11KW*2 sets,Siemens brand
		Hydraulic system power		15 KW
6. Voltage	380V 50Hz 3Phase		As your requirement
7. Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8. Forming Speed	25 m/min		The speed depends on the shape of the tile and the thickness of the material.

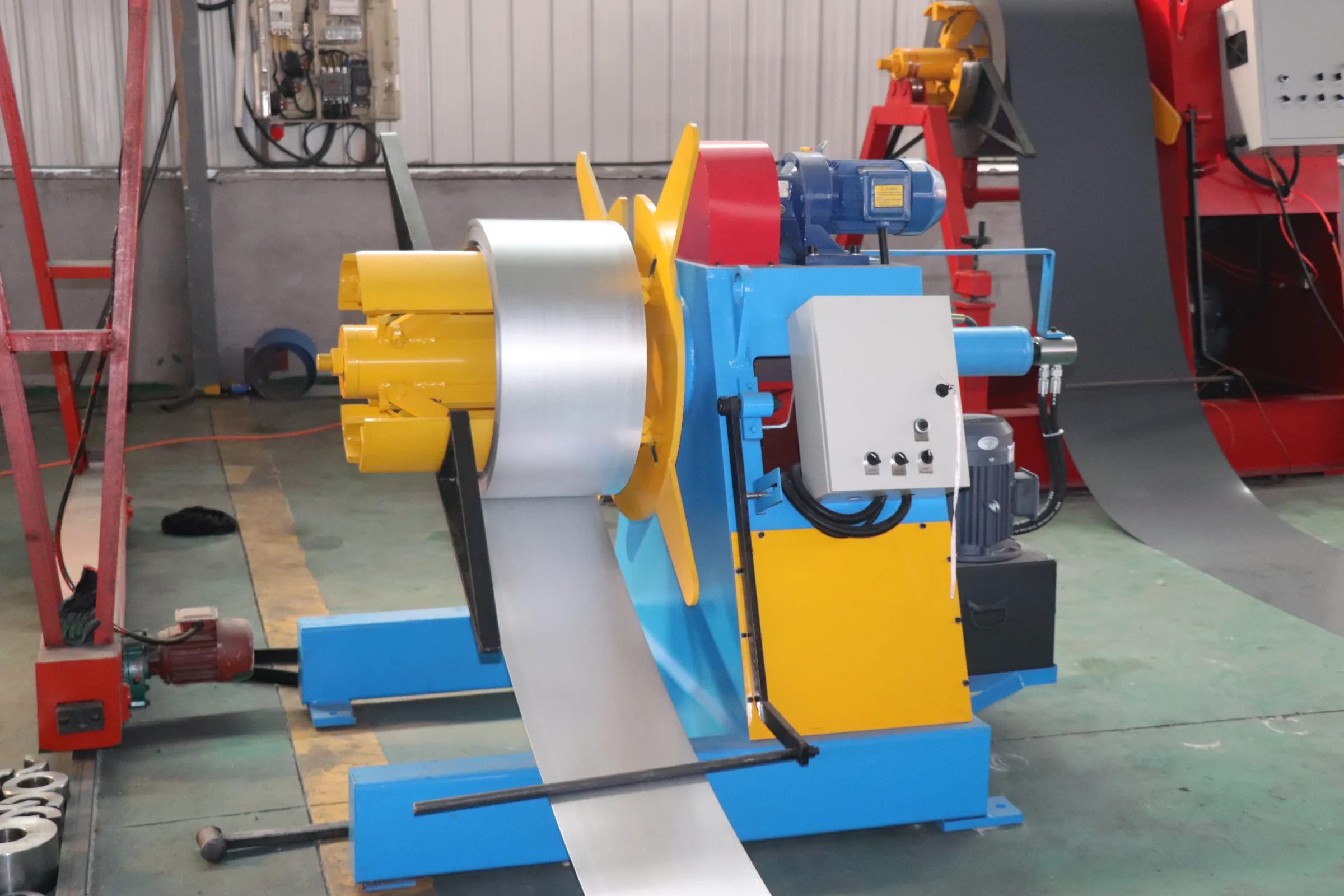

5t Hydraulic decoiler with loading car

Capacity:5 tons Coil inner diameter:450-550mm Feeding width: max 1250mm Structure: welded by the steel plates and profiled bar. The shrink and expand of core is automatically, with pneumatic brake,The coil moving forward or reverse is pulled which controlled by electric control system inside hydraulic decoiler.

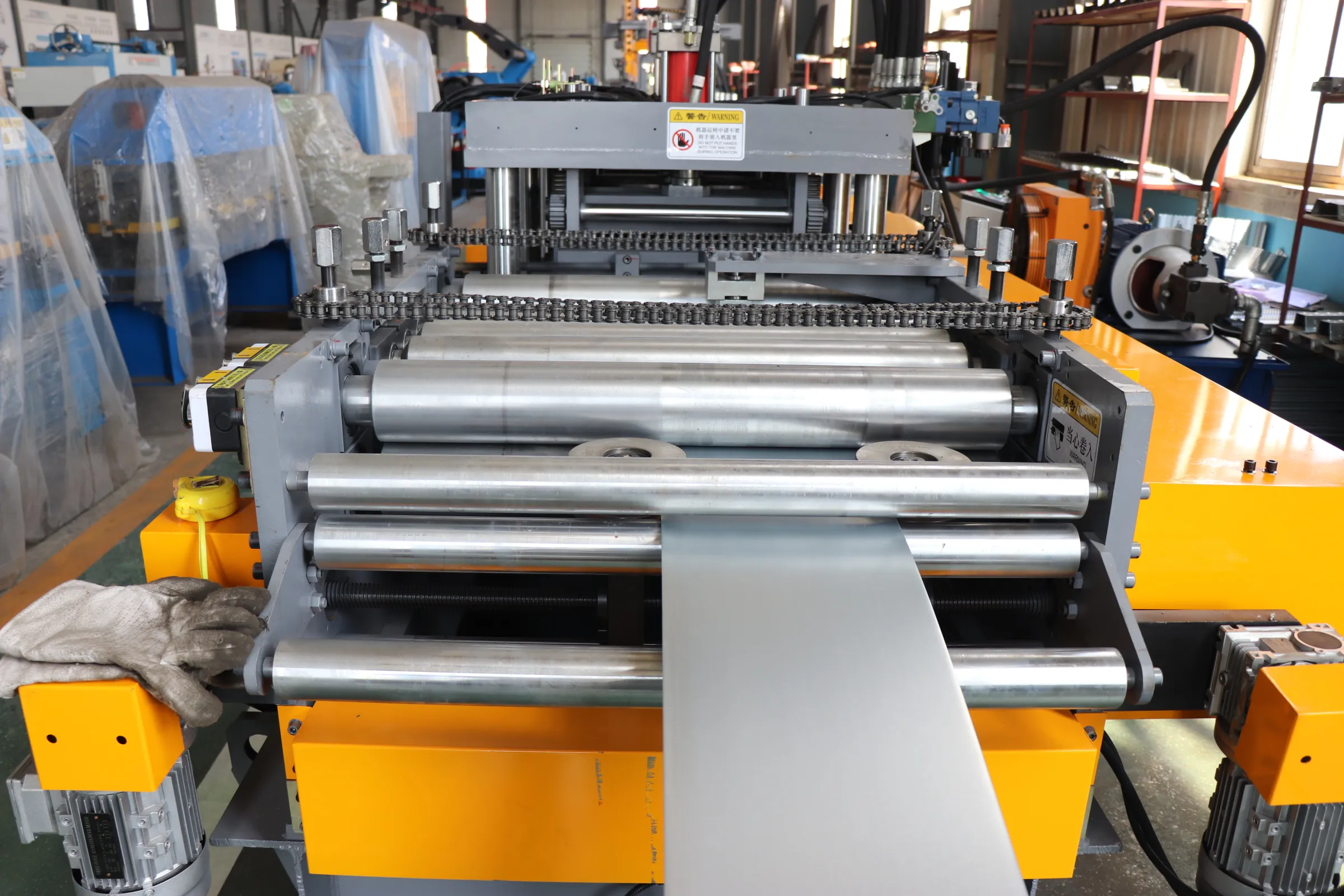

Feeding Device

1.Hand wheels on both sides can be used to adjust the feeding width. 2.Four stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface. 3.There are three rows of orange plastic rollers can make the steel coil go into the machine smoothly.

Transmission

Gearbox can provide more stable and strong power from motor to each forming stations.

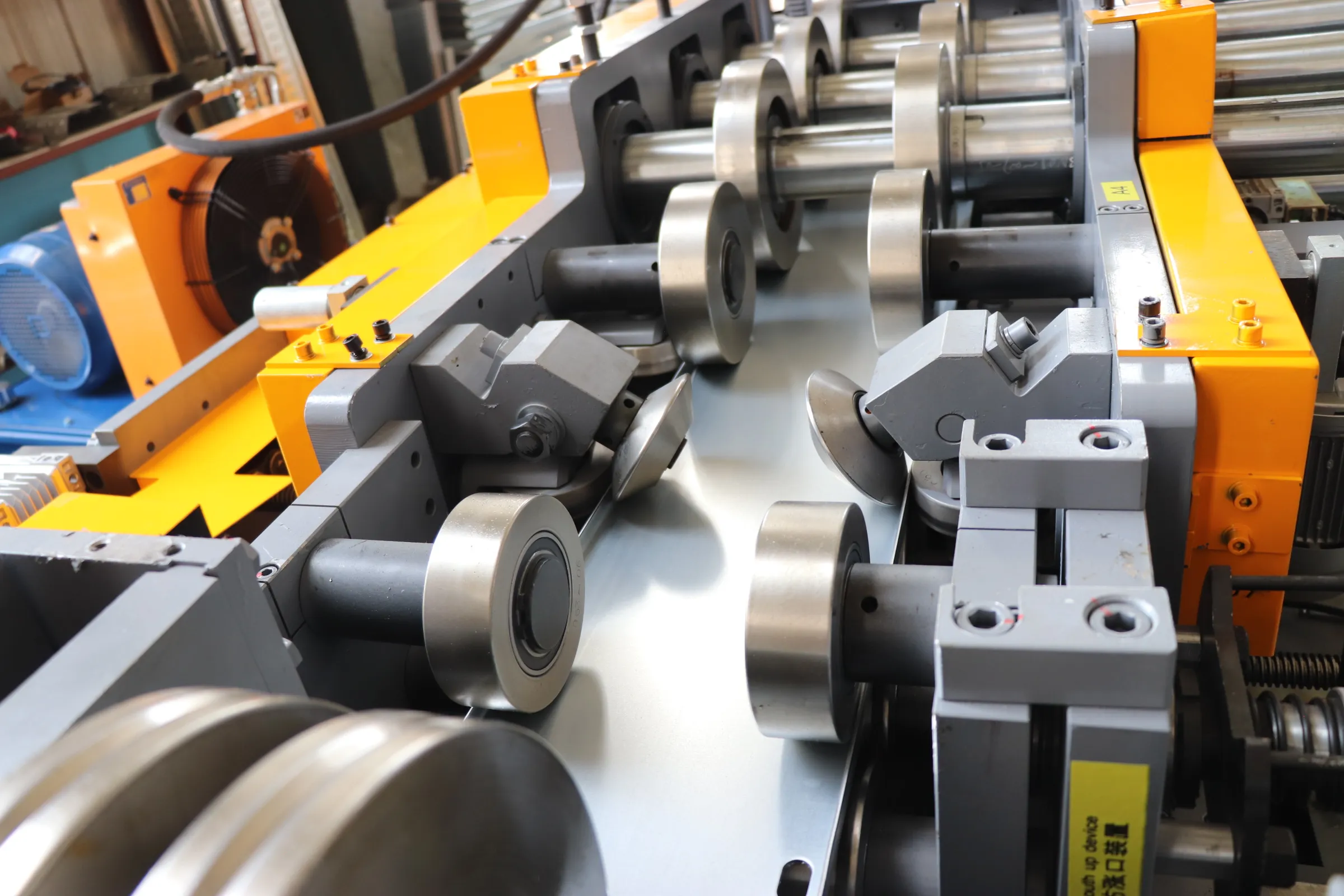

Roll Forming And Transmission Device

1.rollers thick chromed good hardness for long service time. 2. Each roller has number and with keynotes, it can fix on the shaft stablely 3.gear and double chain,stable

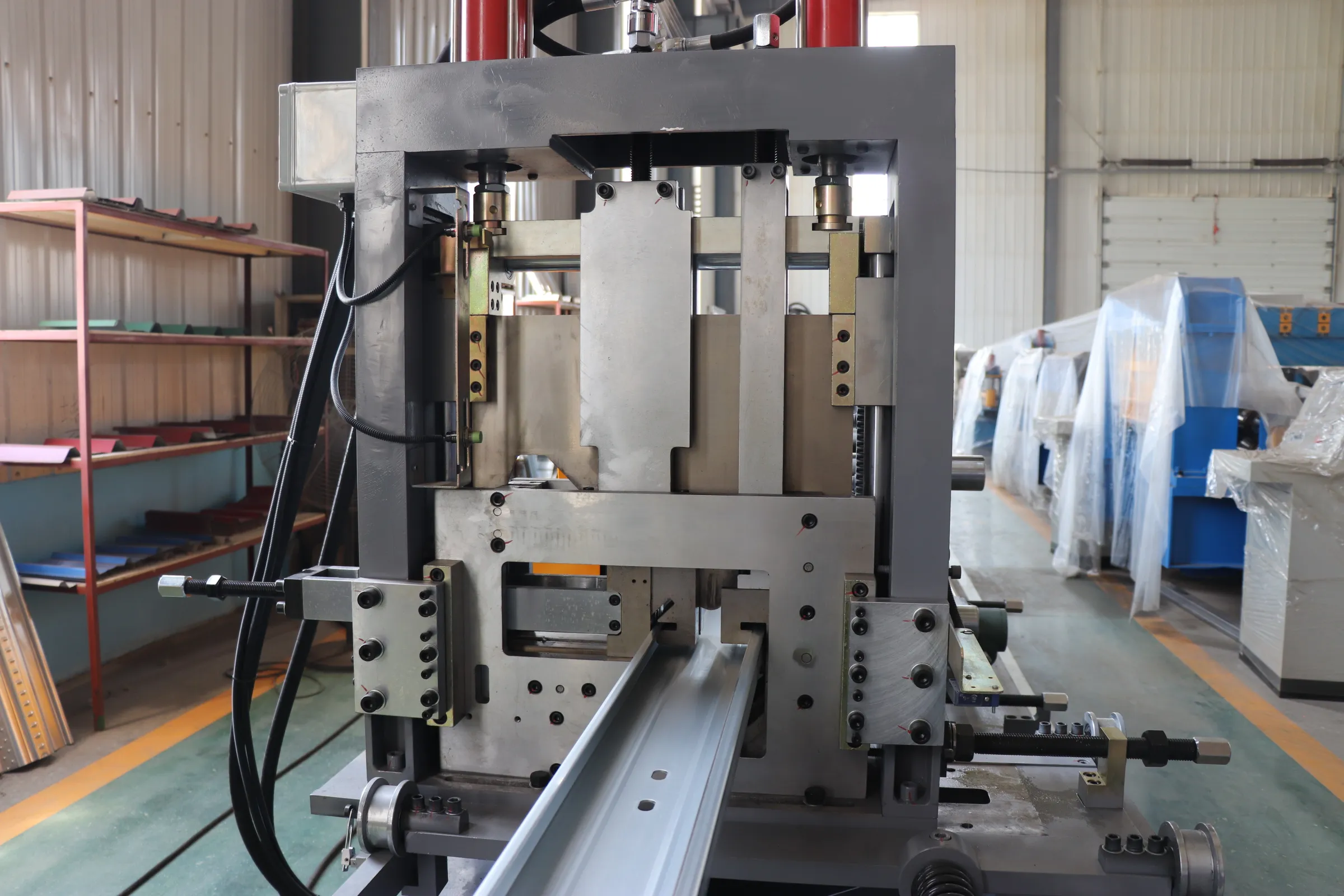

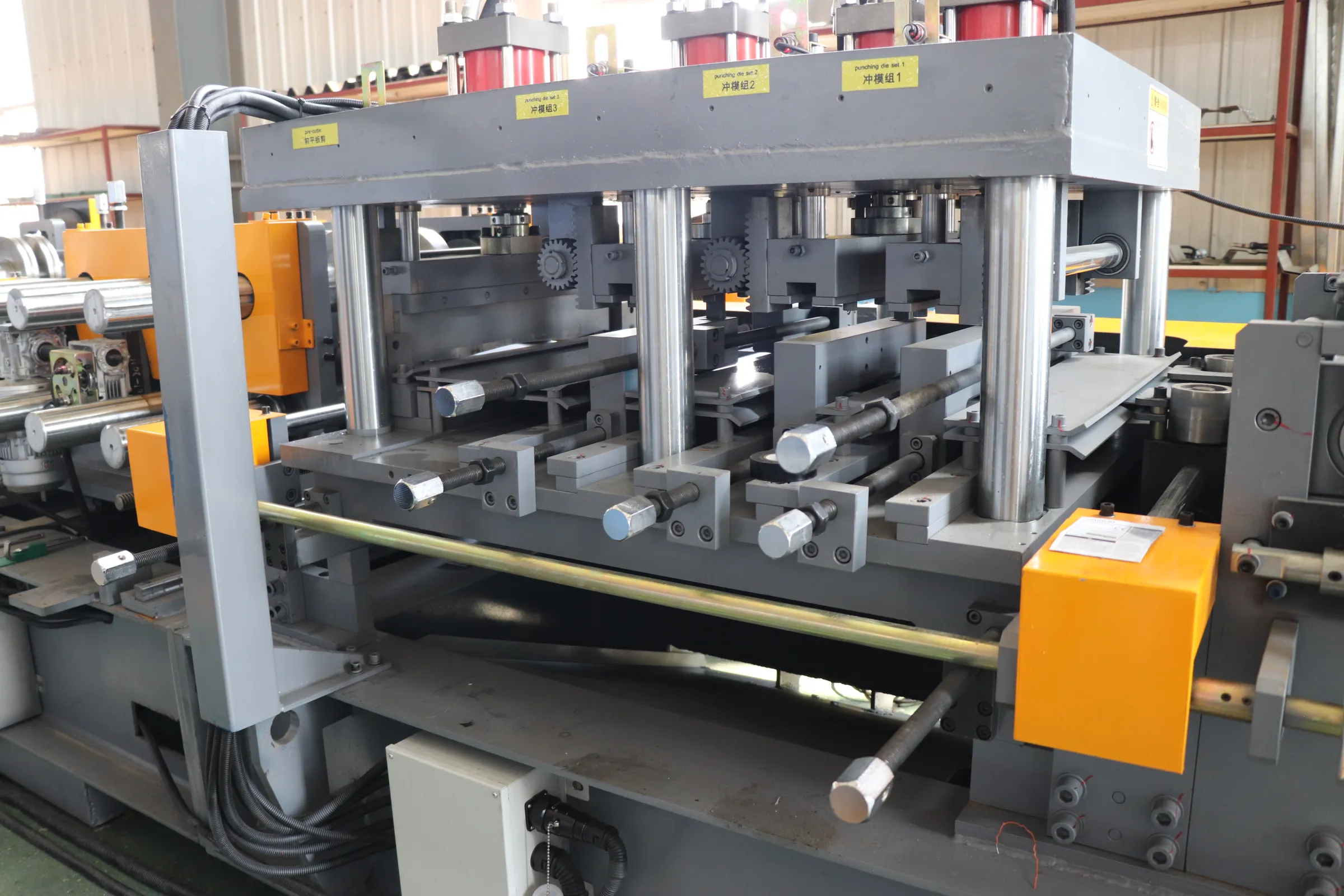

Hydraulic Cutting Device

Hydraulic tracking type cutter, non-stop to cut the sheet in fixed length. High precision and good flatness. Working speed is very high

PLC control system

PLC brand:Delta(Taiwan) PLC, and transducer and touched screen ● Encoder brand:Omron ● Electrical components:Schneider ●Operating language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.

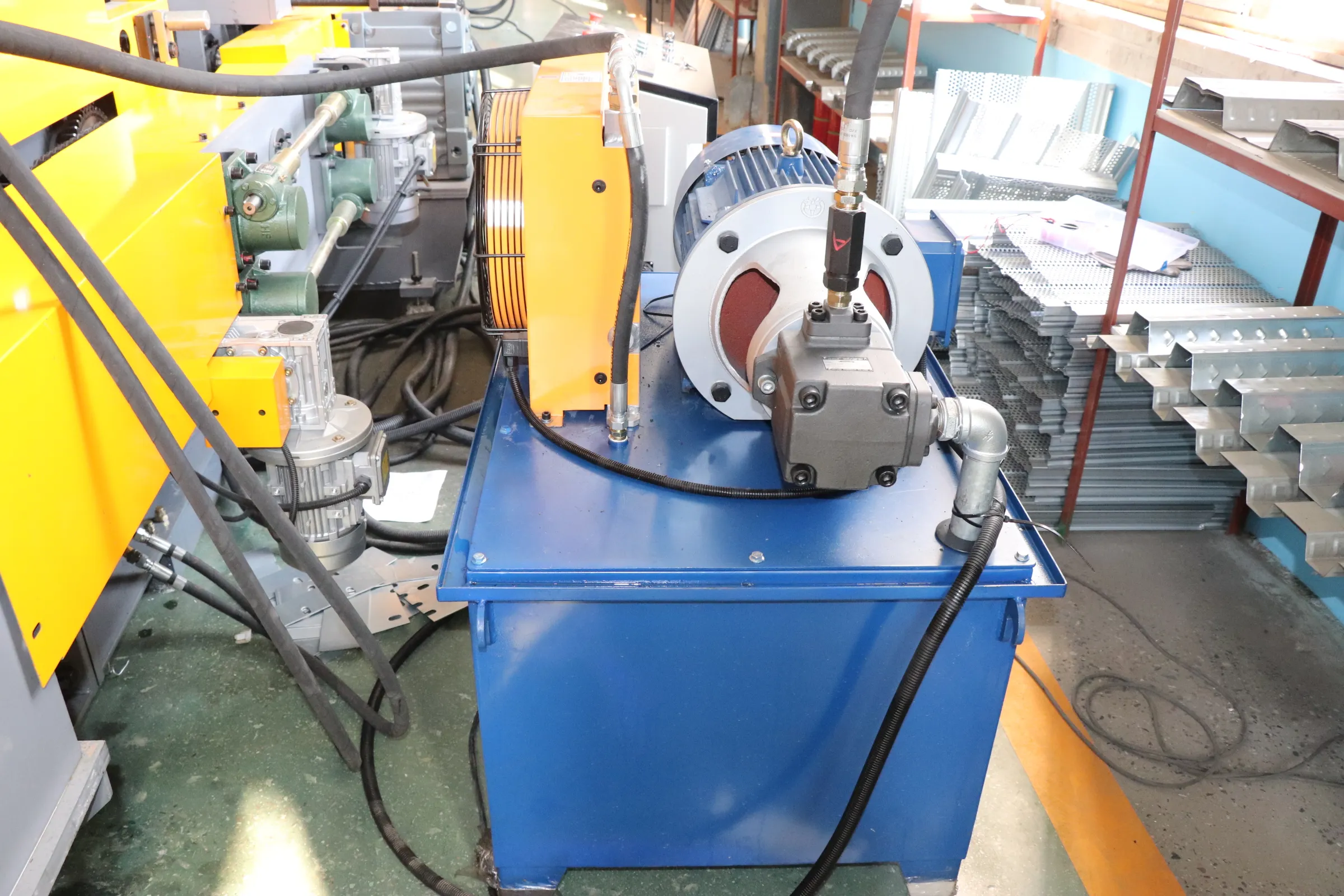

Hydraulic station

● Hydraulic station motor:5.5KW ● Hydraulic oil:46# hydraulic oil ● Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism valve

CE(NO.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
