Rolling Shutter Door Machine Automatic Steel Rolling Shutter Profile Roll Forming Machine Rolling Shutter Door Machine

The Rolling Shutter Door Machine is an automatic cold roll forming system developed for manufacturing steel rolling shutter door profiles with consistent dimensions and reliable forming quality. By continuously feeding metal coils through a series of precision forming stations, the machine gradually shapes the raw material into the required shutter slat profile. A complete Rolling Shutter Door Making Machine can integrate decoiling, material feeding, guiding, roll forming, hydraulic cutting, PLC control, hydraulic power, and finished-product collection, providing an efficient solution for continuous shutter door profile production.

The Rolling Shutter Machine is suitable for processing galvanized steel, PPGI, and other compatible metal materials. It can be designed according to the customer's required profile drawing, material thickness, coil width, production speed, and finished-product length. During operation, the material passes through the forming rollers step by step, which helps maintain a smooth surface and accurate profile geometry. The finished products can be used for industrial roller shutters, commercial doors, garage shutters, warehouse doors, factory entrances, shopping malls, and other building applications.

High-Precision Rolling Shutter Profile Roll Forming

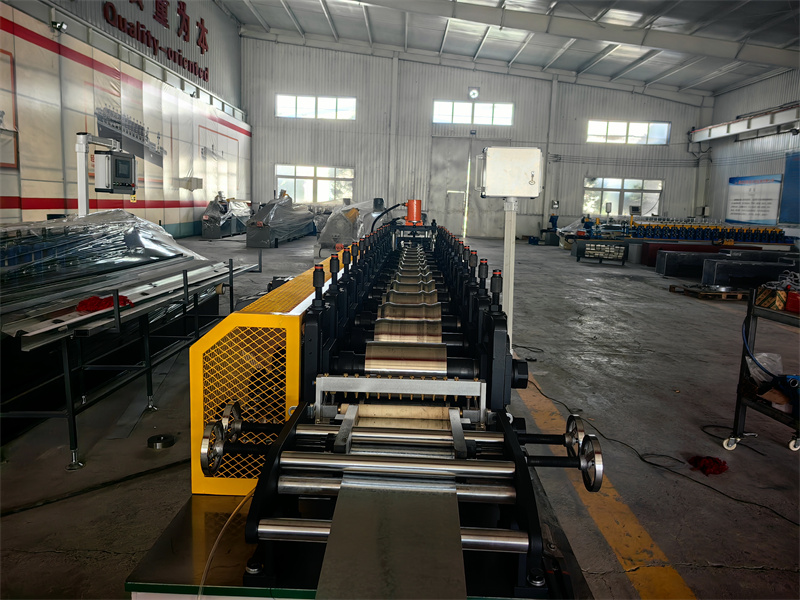

The forming section is the core of the Rolling Shutter Door Making Machine. The roller sets can be manufactured from high-quality No. 45 forged steel and processed with precision machining equipment to achieve stable forming accuracy. Roller shafts can be ground to improve dimensional precision, while surface treatment such as hard chrome plating can enhance wear resistance and extend the working life of the forming rollers.

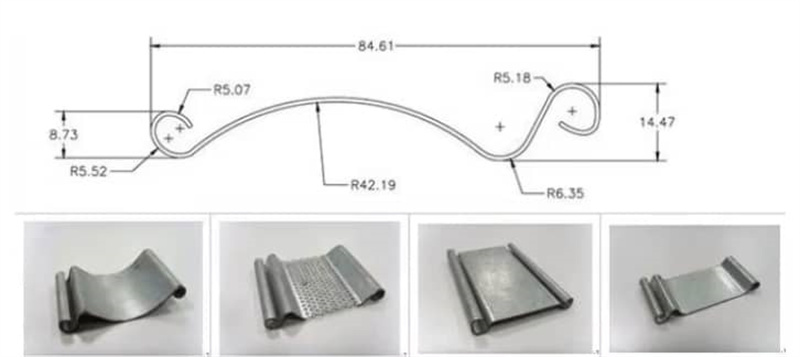

The machine frame adopts a strong welded structure to provide stable support for the forming system. The motor, gearbox, and transmission components work together to provide continuous forming power. According to different rolling shutter profile designs, the number of forming stations and roller configuration can be adjusted to achieve the required profile shape. This makes the Rolling Shutter Profile Roll Forming Machine suitable for producing different shutter slats and customized steel door profiles.

Automatic Cutting and PLC Control System

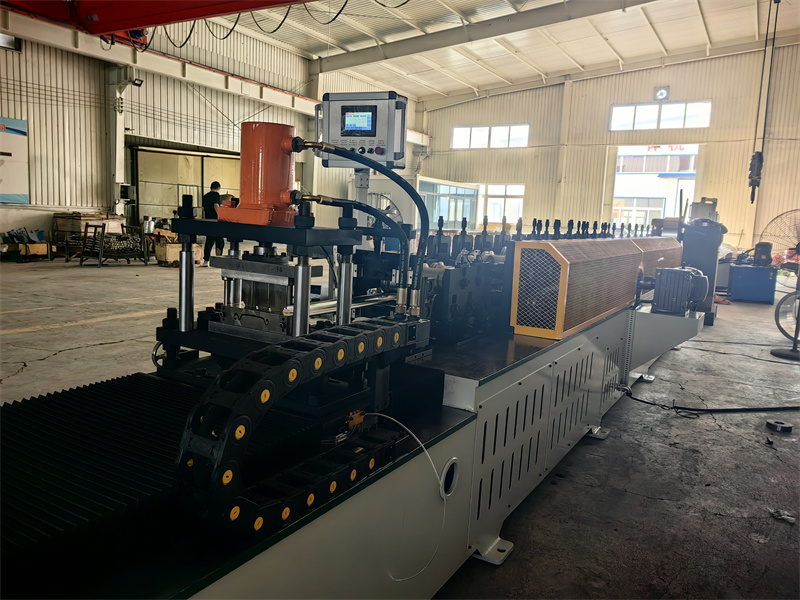

The Roller Shutter Door Machine is equipped with an automatic post-cutting system for producing shutter profiles with preset lengths. An encoder continuously measures the formed material during production. When the profile reaches the target length entered into the PLC controller, the machine automatically stops the forming process and activates the hydraulic cutting system. After cutting, the production line automatically resumes operation.

The PLC control system provides convenient operation and centralized management of the machine. Operators can set the cutting length, production quantity, and other parameters through the control panel. The hydraulic station supplies power to the cutting unit, while the rigid welded cutting frame helps maintain stable cutting performance. This combination of automatic length measurement, hydraulic cutting, and PLC control reduces manual intervention and improves production efficiency for rolling shutter manufacturers.

Rolling Shutter Machine Specifications

Flexible Configuration for Different Shutter Door Profiles

Different rolling shutter door projects require different profile dimensions and material specifications. Therefore, the Rolling Shutter Door Machine can be customized according to the customer's technical requirements. The roller design, forming stations, decoiler capacity, transmission system, cutting configuration, and PLC functions can be adjusted according to the required production process.

For example, manufacturers producing lightweight shutter doors may require a different roller configuration from manufacturers producing heavy-duty industrial shutters. The machine can also be configured with different decoiler options according to coil weight and production requirements. Protective guards can be added around the forming and transmission areas to improve operator safety during production.

Efficient Production of Steel Rolling Shutter Profiles

After the forming process is completed, the finished shutter profiles are automatically transferred to the output table for collection and stacking. The continuous production method allows manufacturers to reduce repetitive manual operations while maintaining stable production efficiency. Compared with separate manual forming processes, a dedicated Rolling Shutter Slat Roll Forming Machine provides a more consistent and efficient method for manufacturing large quantities of shutter door profiles.

The machine can also be incorporated into a larger rolling shutter door manufacturing line. Depending on the final product requirements, manufacturers can combine the main shutter profile machine with equipment for producing other components of a complete shutter door system. This allows the production process to cover not only the shutter curtain but also supporting frames, bottom slats, guide rails, and other metal profiles.

Complete Rolling Shutter Door Production Solution

A complete rolling shutter manufacturing system can include several complementary roll forming machines. The Door Frame Roll Forming Machine is used to produce steel door frame profiles, while the Shutter Door Bottom Slat Roll Forming Machine manufactures bottom slats or bottom rail profiles used at the lower section of the shutter curtain. Meanwhile, the Shutter Door Guide Rail Roll Forming Machine produces side guide rails that control and guide the movement of the rolling shutter door.

By combining these machines with the main Rolling Shutter Door Machine, manufacturers can establish a complete production solution for different rolling shutter door components. This modular approach makes it easier to expand production capacity and manufacture a wider range of shutter door products according to market demand.

Related Rolling Shutter Door Machines

• Rolling Shutter Door Machine – Main machine for producing rolling shutter door slat profiles.

• Door Frame Roll Forming Machine – Designed for manufacturing steel and metal door frame profiles.

• Shutter Door Bottom Slat Roll Forming Machine – Used to produce bottom slats and bottom rail profiles.

• Shutter Door Guide Rail Roll Forming Machine – Used to manufacture side guide rails and tracks.

For customized Rolling Shutter Door Making Machine solutions, the production line can be engineered according to the customer's profile drawings, raw material specifications, required output, and finished-product dimensions. This allows the machine configuration to match the actual production requirements while providing stable forming quality, automatic cutting, convenient operation, and efficient continuous production.
