Rolling Forming Machine for Step Tiles Roofing Sheets Russian Hot Sale Product Genre Tile Making Machinery Step Tiles Roofing Sheets Rolling Forming Machine in Russian+7.5KW+30 m/min

Cangzhou Zhongtuo International Trade Co., Ltd

Rolling Forming Machine for Step Tiles Roofing Sheets Russian Hot Sale Product Genre Tile Making Machinery Step Tiles Roofing Sheets Rolling Forming Machine in Russian+7.5KW+30 m/min

Name: Rolling Forming Machine for Step Tiles Roofing Sheets Russian Hot Sale Product Genre Tile Making Machinery Step Tiles Roofing Sheets Rolling Forming Machine in Russian+7.5KW+30 m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT53002055

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

Step Tiles Roofing Sheets Rolling Forming Machine in Russian

Power(W):

7.5KW

Production Capacity:

30 m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
roof panel making machine
Tile Type
Colored Steel
Use
ROOF
Voltage
440 V, 380 V, 220V Electrical Equipment
Rolling Thinckness
0.3-0.8mm
Feeding Width
1200mm

Company Profile

CANGZHOU ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

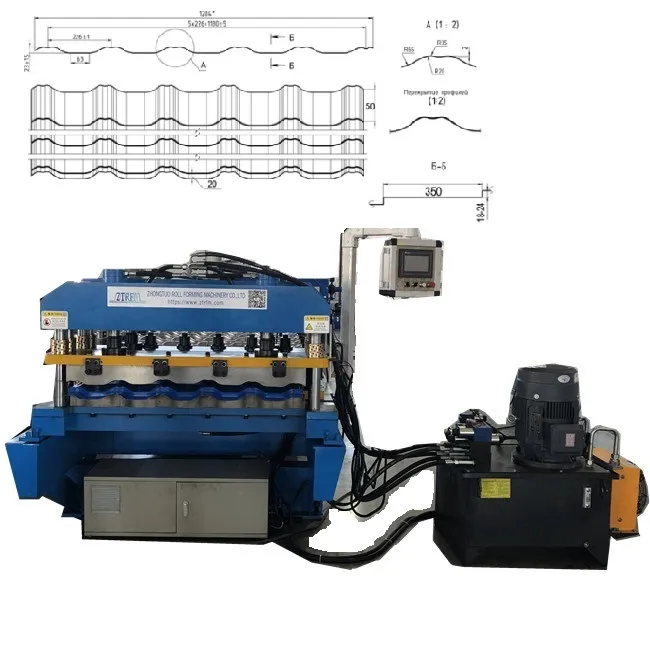

Step Tiles Roofing Sheets Rolling Forming Machine in Russian

Step Tiles Roofing Sheets Rolling Forming Machine is designed to make the metal step tiles

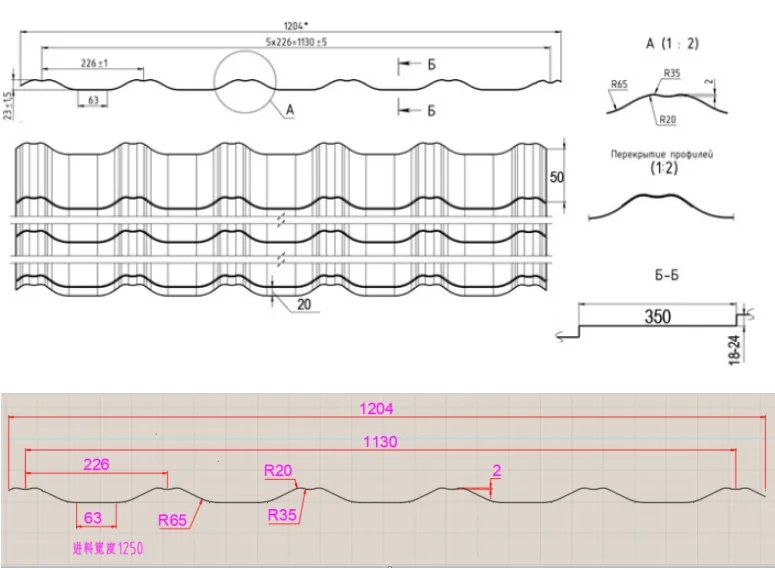

in batch fully automatically. Step tile galvanized roof sheets are made of galvanized steel, which is known for its corrosion resistance. These sheets are lightweight and easy to install and then it is super popular. The metal rolling forming machines are designed to make such type profiles according to the customer drawing profiles. Here I will take a random popular drawing profile in Russian for example to show you how the metal roofing sheet machines are designed.

Features of this mode Step Tiles Roofing Sheets Rolling Forming Machine in Russian 1. Using pillar frame more beautiful and accurate. 2. Easy to do the daily maintenance and upkeep. 3. 24 roller station to make the shape more beautiful and more faster speed. 4. For the stepping part is the most complicated and special where can make sure the stepping depth adjustable and will not damage the surface of the coil. 5. Even if the for thin sheet and thicker sheet, the pad at the stepping part adjustable. 6. Strong shearing blade holder can hole the embeded blades inside and then bearing shearing power and then the blades will be more durable. 7. Shearing could be neat and clean with 3D lace shearing.

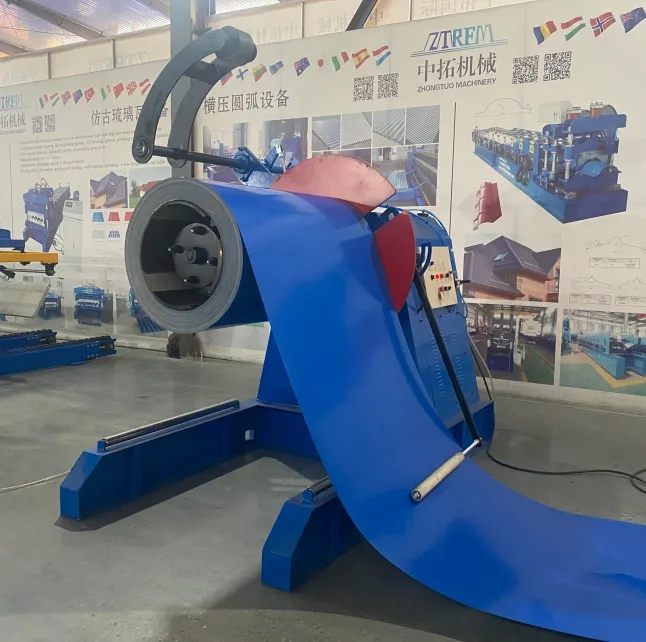

Hydraulic Decoiler

1.Working type: Motor

2.Loading capacity: 10 tons

3.Coil inner diameter: 450-1000 mm

As to the decoiler, you can either choose hydraulic one or manual one.

Transportation

1Chains transmission
2.Ensure the high speed and stable efficiency of the machine

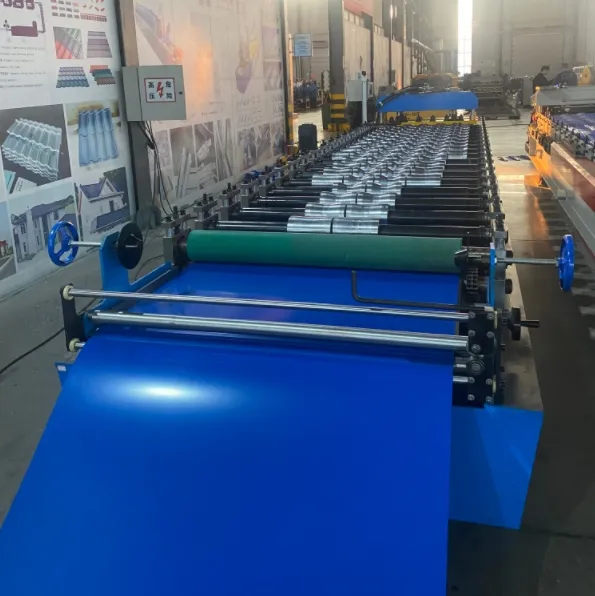

Feeding device

1.Protect coil material

2.With handwheels for easy adjustable.

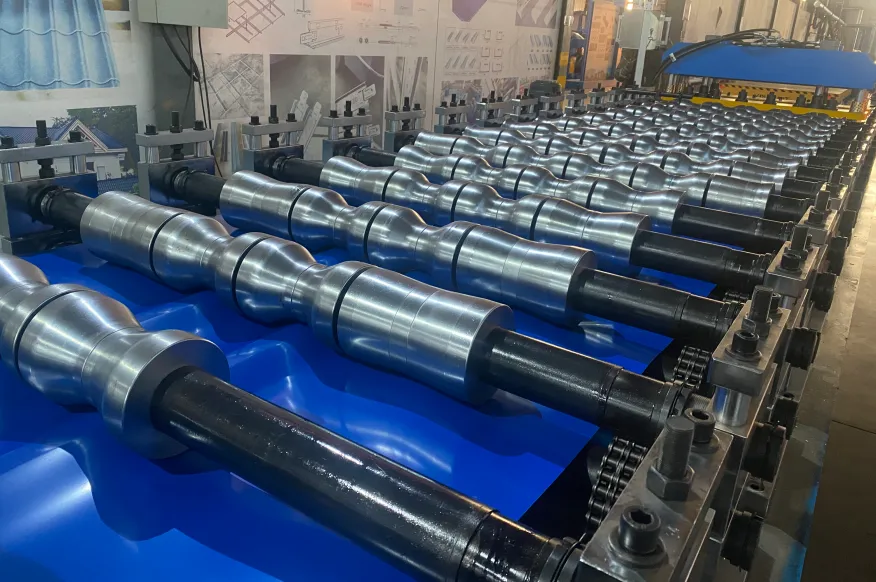

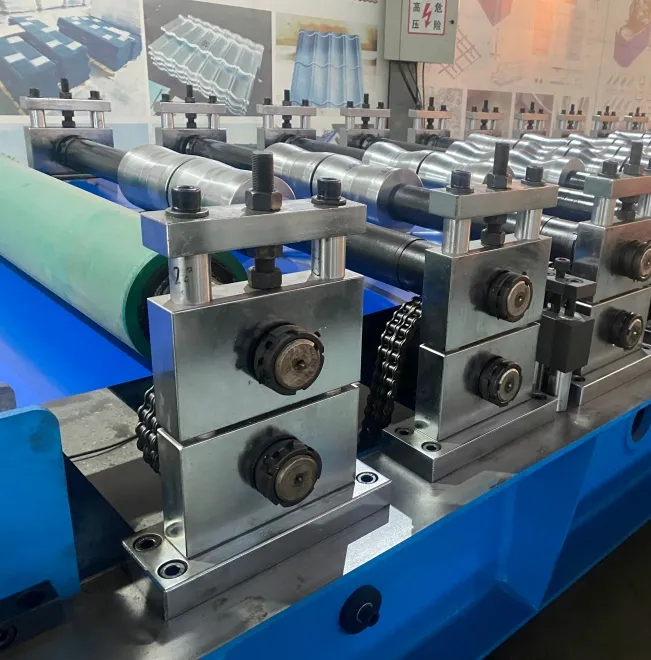

Main roll forming machine

1.Shaft material:45# steel with quenched treatment
2.Shaft diameter: 70mm
3.Roller station:18 stations
4.Roller material: 45# steel with chromed
5.Motor power: 5.5kw
6.Speed: 20m/min
7.Transmission:gear and chain
8.Voltage:customized

Strong shaft and high density chroming rollers, long time to use and will not go rusting.

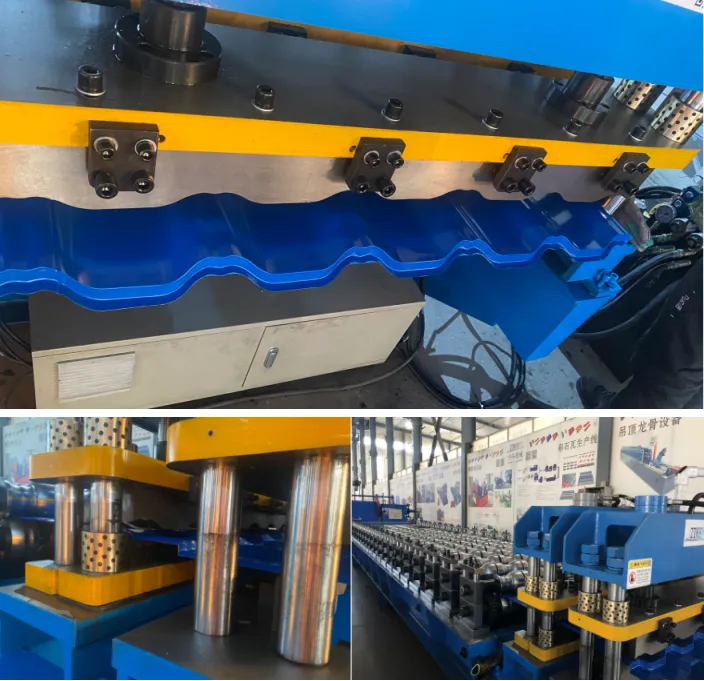

Shearing system

1.Feature: Strong shearing blade holder can hole the embeded blades inside and then bearing shearing power and then the blades will be more durable.
2.Shearing could be neat and clean with 3D lace shearing.
3.Material of mold: Cr12 quenched

4.Pillar supporting system, to make the frame more stronger to work long time.

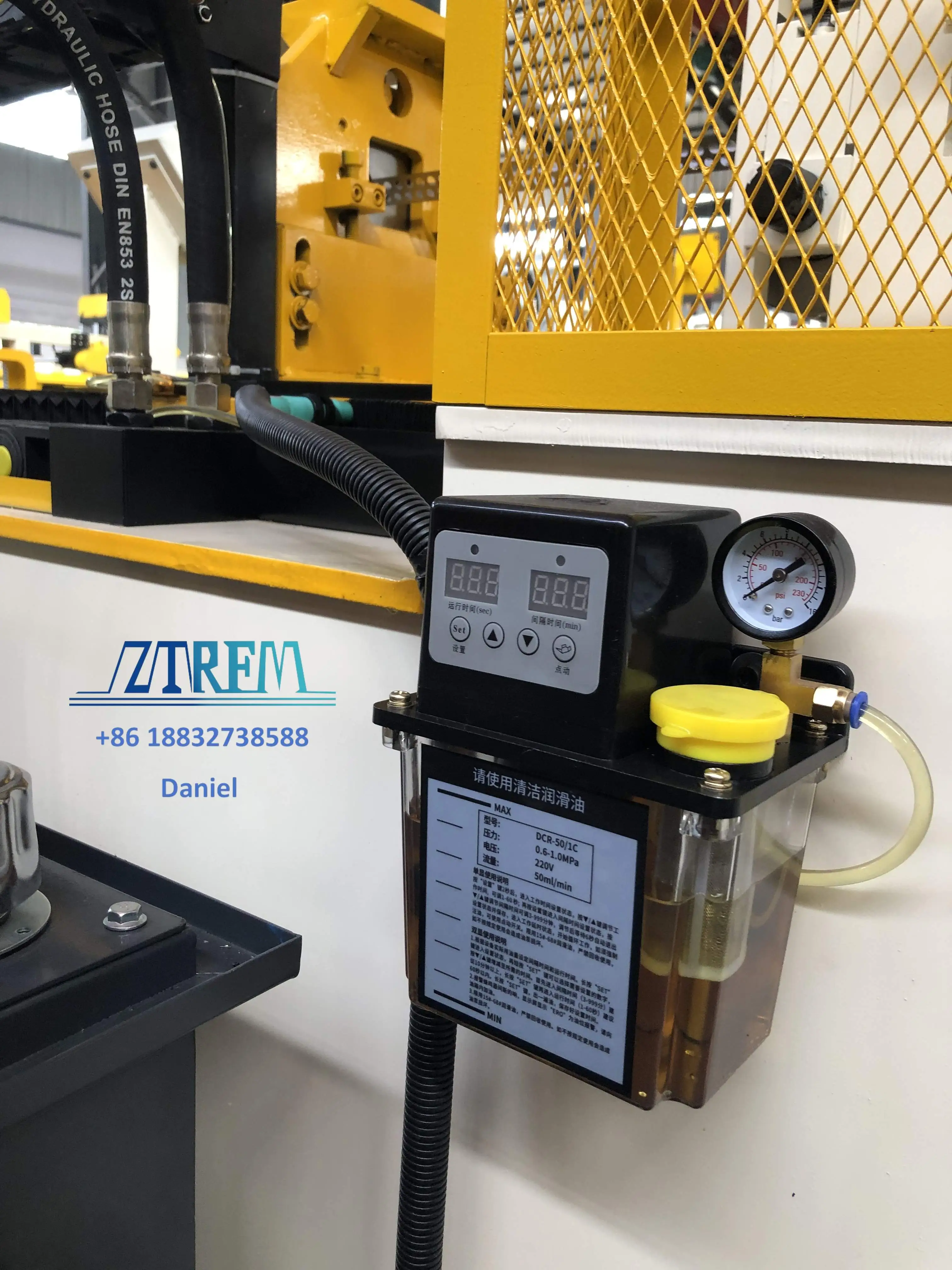

Automatic oil filler

1.Automatic lubrication for the cutter

2.Reduce machine maintenance time and cost

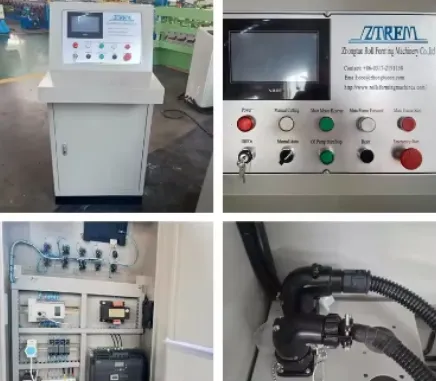

PLC control cabinet

1.Adopt Siemens electronic control, can support remote control

2.Adopt touch screen for easy operation.

3.Adopt aviation plugs for easy installation
4.Languages can be customized

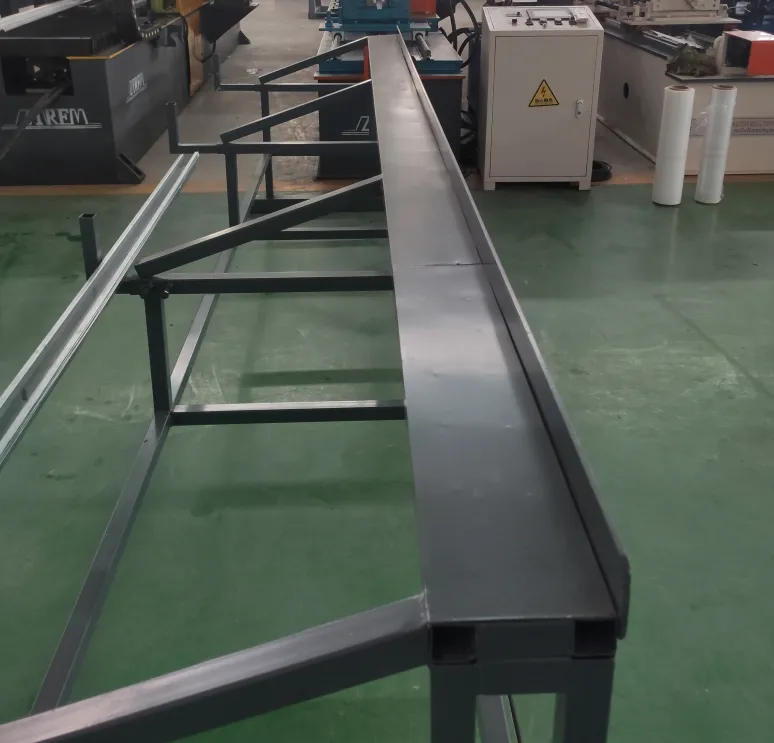

Production receive table

1.Convenient collection of finished products

2.Protecting worker safety

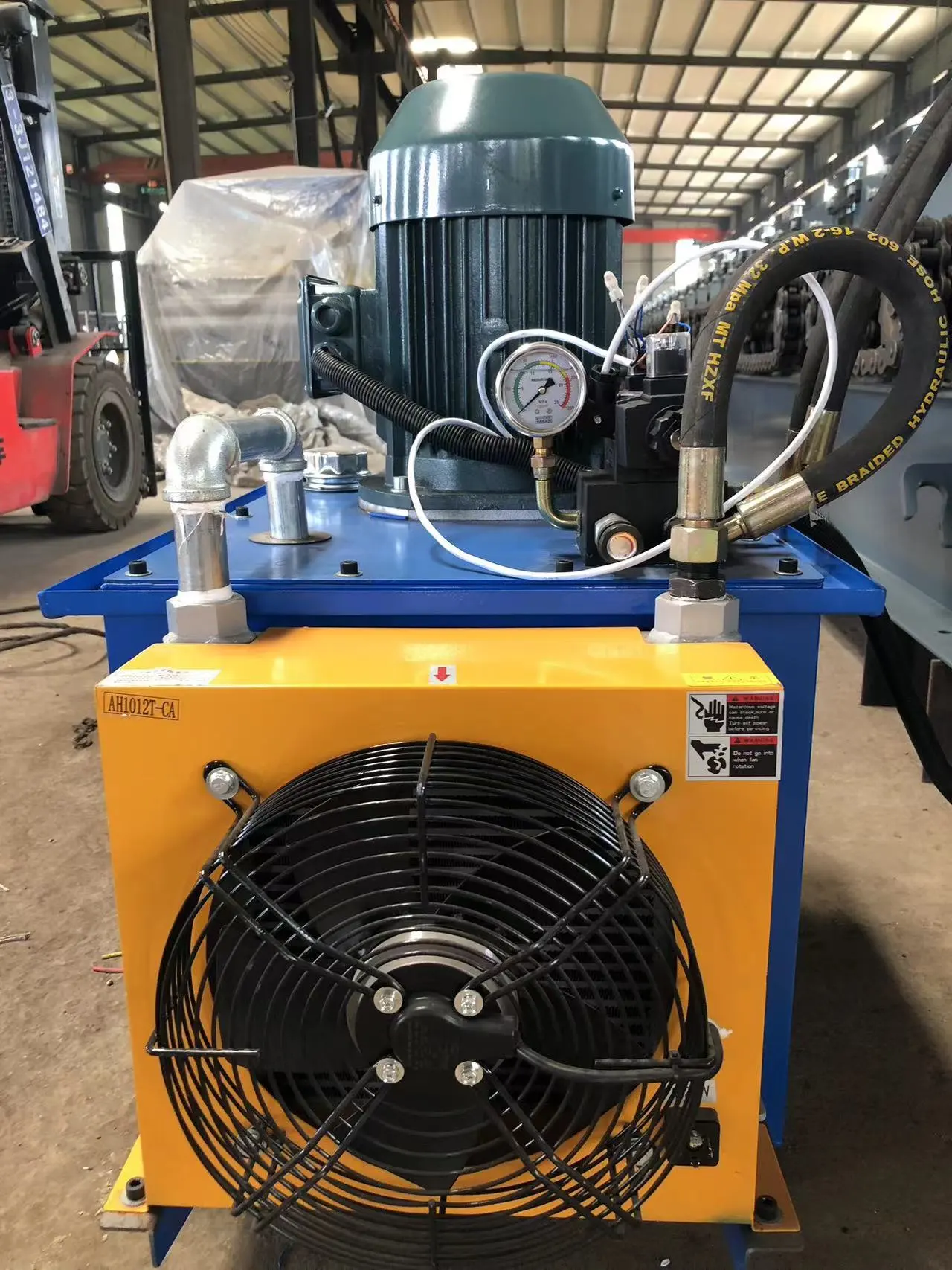

Hydraulic station

1.Updated type

2.Low noise

3.Cooling fan for long service time.

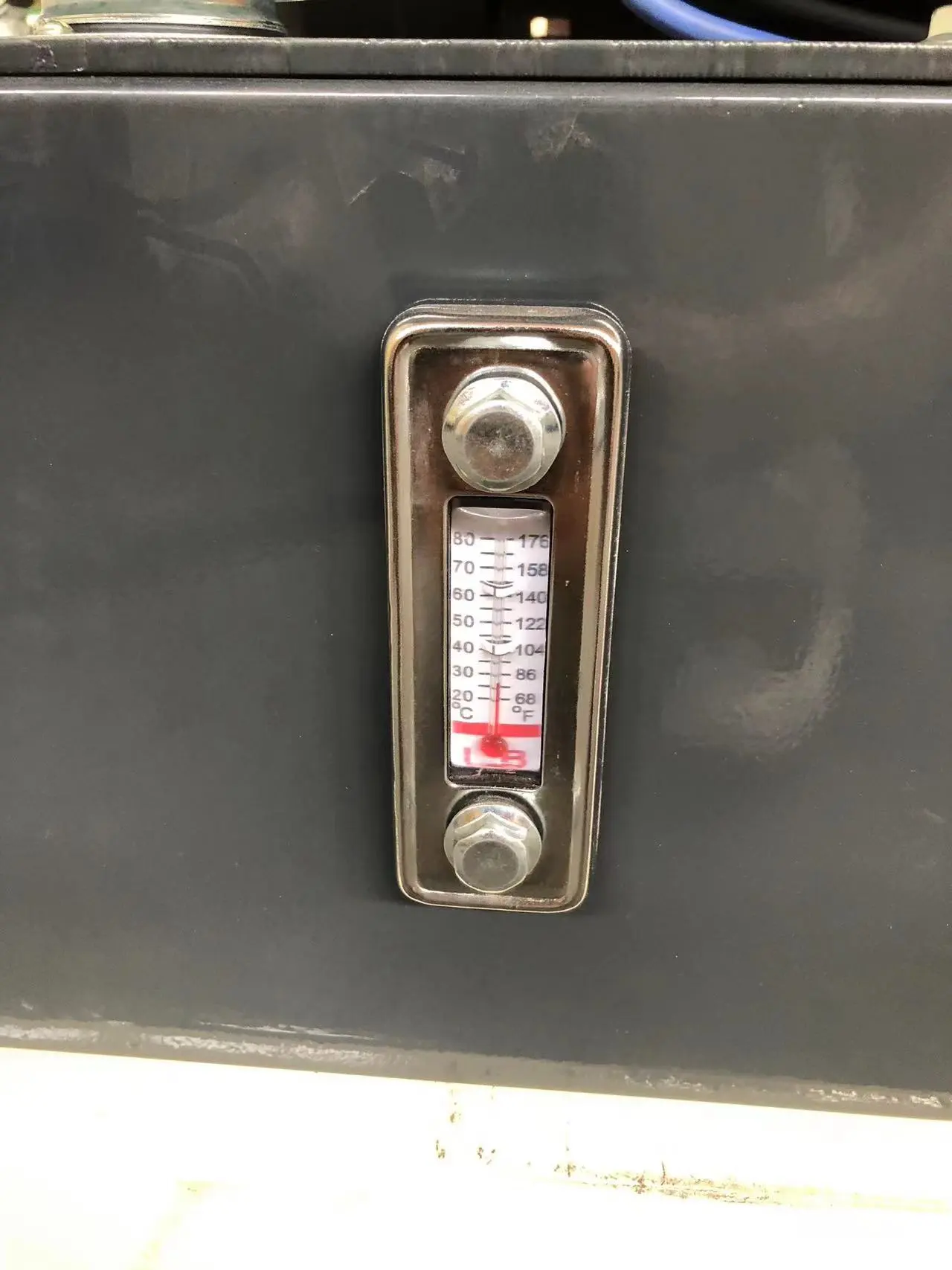

Thermometer

The temperature of the hydraulic station can be measured in real time, more convenient and faster

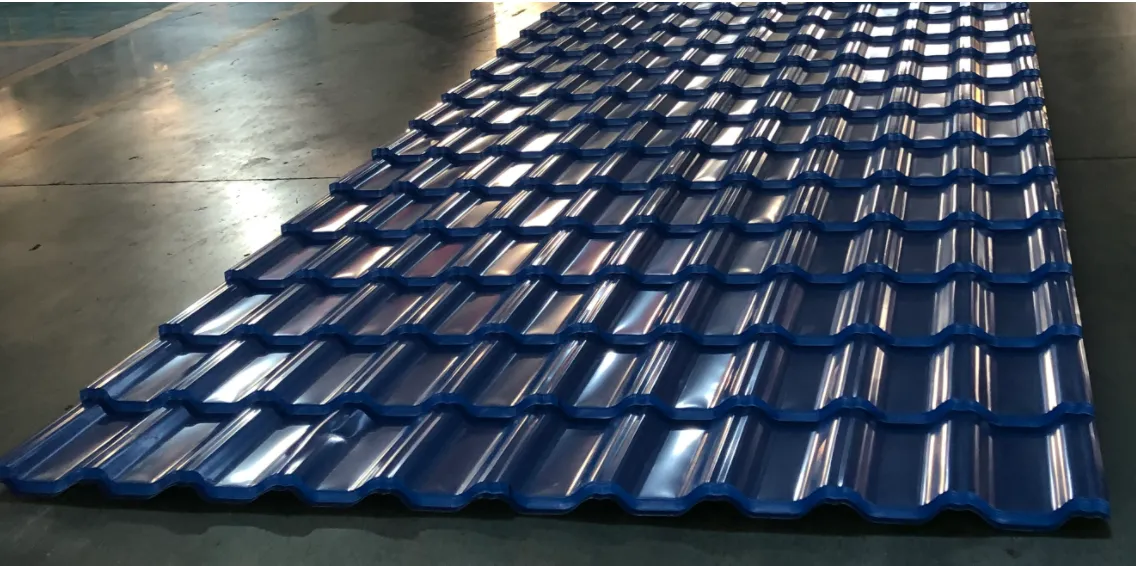

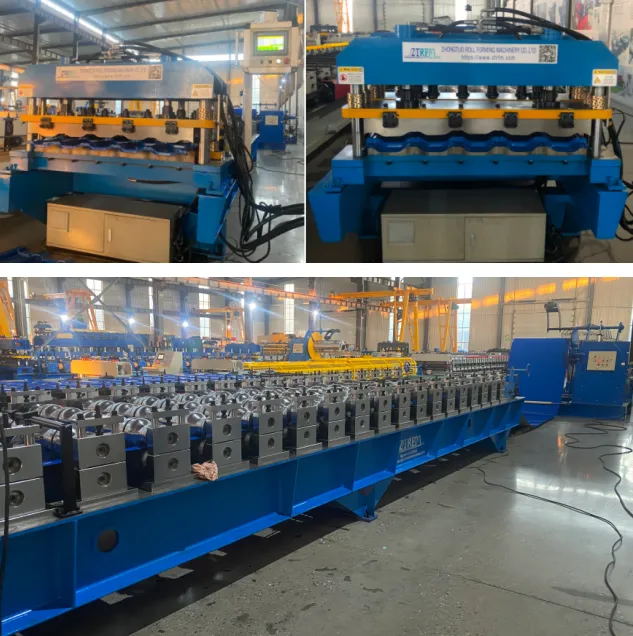

Product display

Meanwhile for the machine design, we like to share idea with you and then customize according to your requirements. Update our machine quality with your professional help, waiting for your more professional comments.
