Robust Slotted Steel Strut Channel Frame Ventilated Design Hot-Dip Galvanized Finish for Industrial Construction Cable Laying 1-6 m+10-1000 mm

Robust Slotted Steel Strut Channel Frame Ventilated Design Hot-Dip Galvanized Finish for Industrial Construction Cable Laying 1-6 m+10-1000 mm

Name: Robust Slotted Steel Strut Channel Frame Ventilated Design Hot-Dip Galvanized Finish for Industrial Construction Cable Laying 1-6 m+10-1000 mm
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:10 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥10Set

Order CodeZT101087253

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Length:

1-6 m

Width:

10-1000 mm

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications
- Application
  Network, Industrial, Construction, Managing Cables, Cable Support, Cable Wiring, Cable Laying
- Material
  Steel
- Max. Working Load
  depend on the size
- Side Rail Height
  10-100 mm
- Type
  Ventilated Or Perforated Trough
Products Description

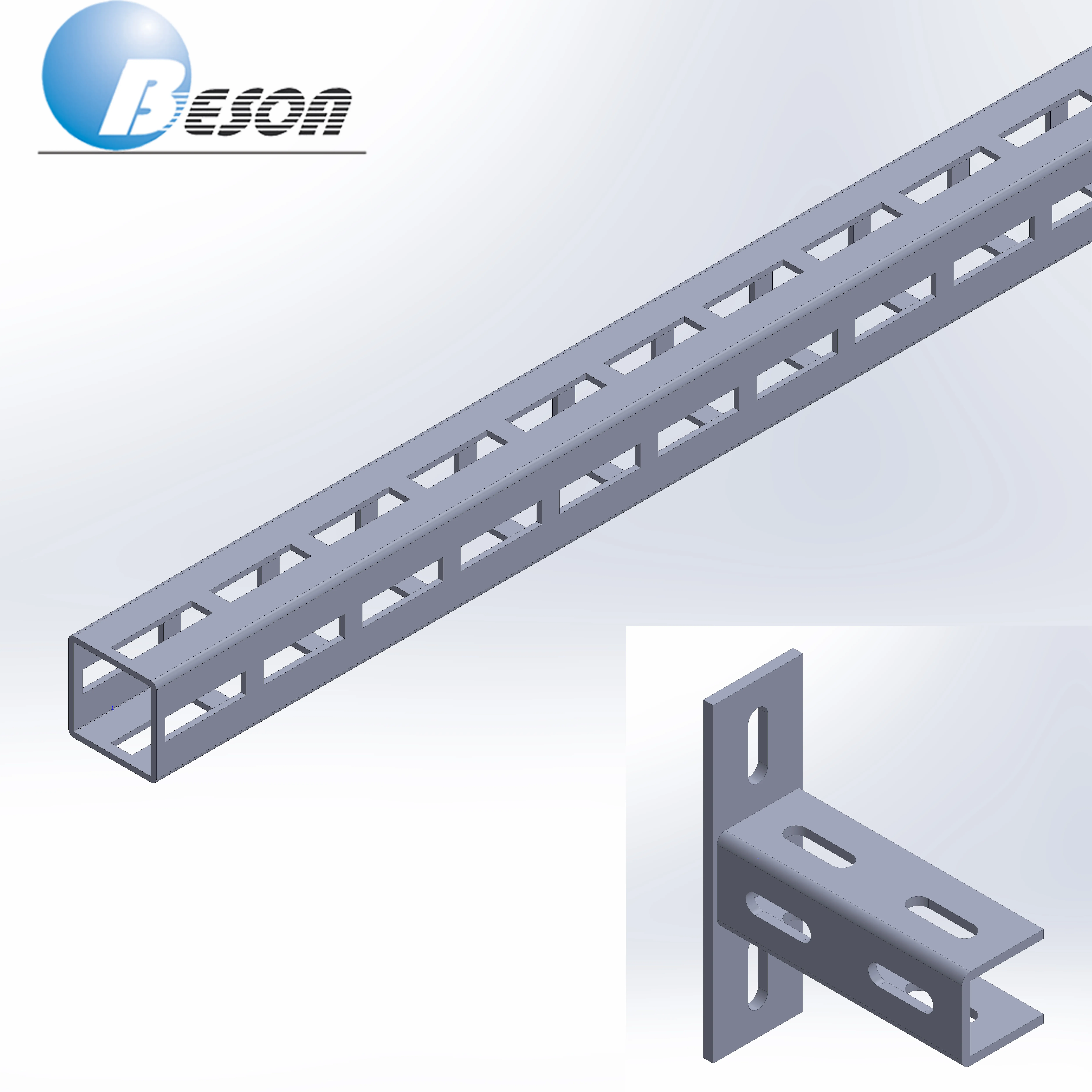

BESCA Frame is a fully modular, adjustable support system which is an economical and time-saving alternative to standard welded construction.
●Labour saving
●Fully dismountable
●Minimum lead times for finished product
●Comprehensive range of accessories
●Advanced modular bolting system
●High torsion stiffness
●Fully compatible with BESCA channel, cable and pipe support systems.

Size
100x100mm
Thickness
3mm
Length
3m, 6m
Slot Size
65x15.5mm
Slot Spacing
80mm centres
Span M 3.0
Load per M(kg) 1325
Span M 2.5
Load per M(kg) 1922
Span M 2.0
Load per M(kg) 2535
Span M 1.5
Load per M(kg) 3390

Two-Way Bracket
Three-Way Bracket (Left)(Right)
2484 Angle Bracket

Beam Clamp
1026 Angle Bracket
1068 Angle Bracket

2072 Base Plate
1325 Angle Bracket
2240 End Cap

Related Products

BC4 Aus Cable Tray Perforated Cable Tray

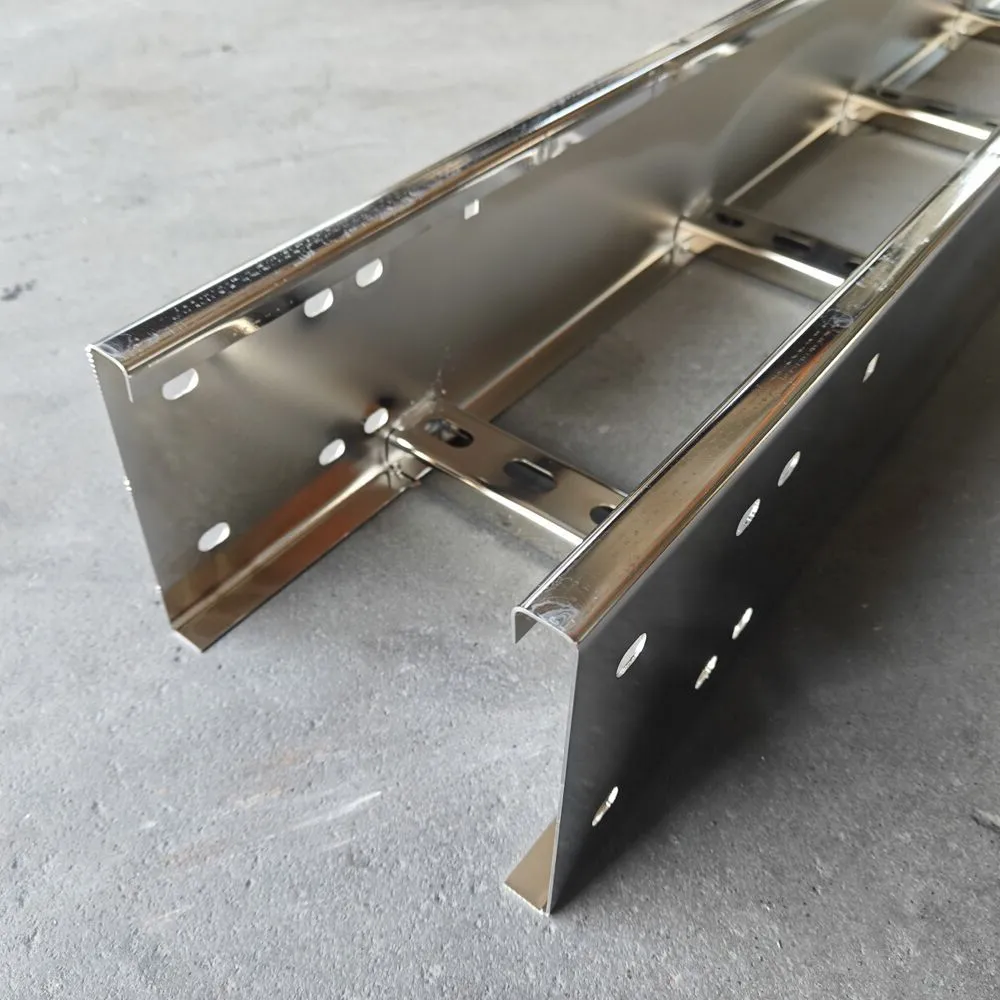

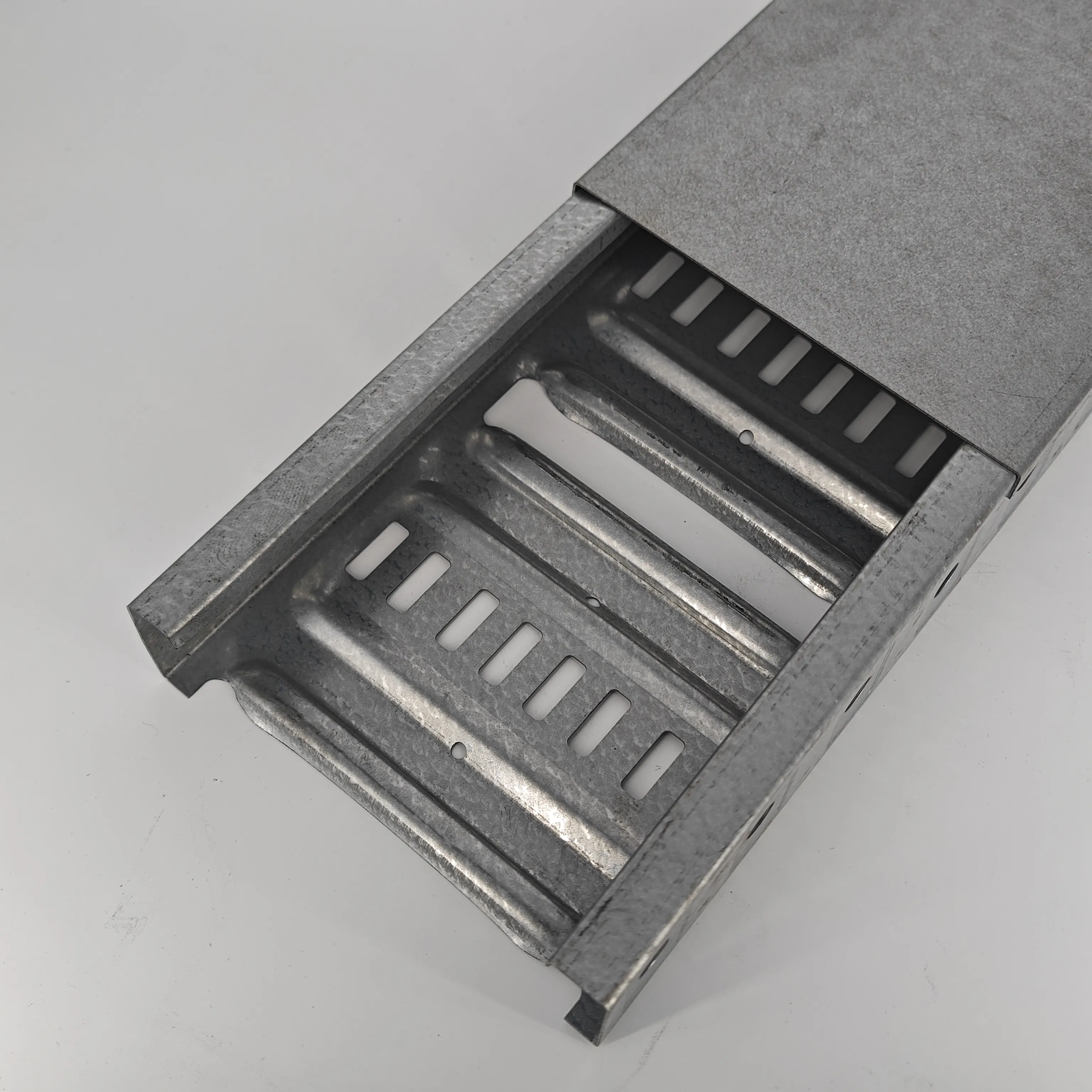

Cable Ladder Cable Trunking

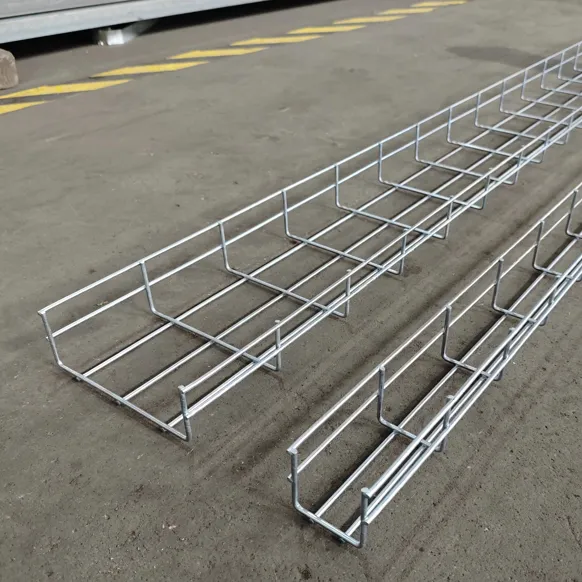

Wire Mesh Cable Tray Wireway

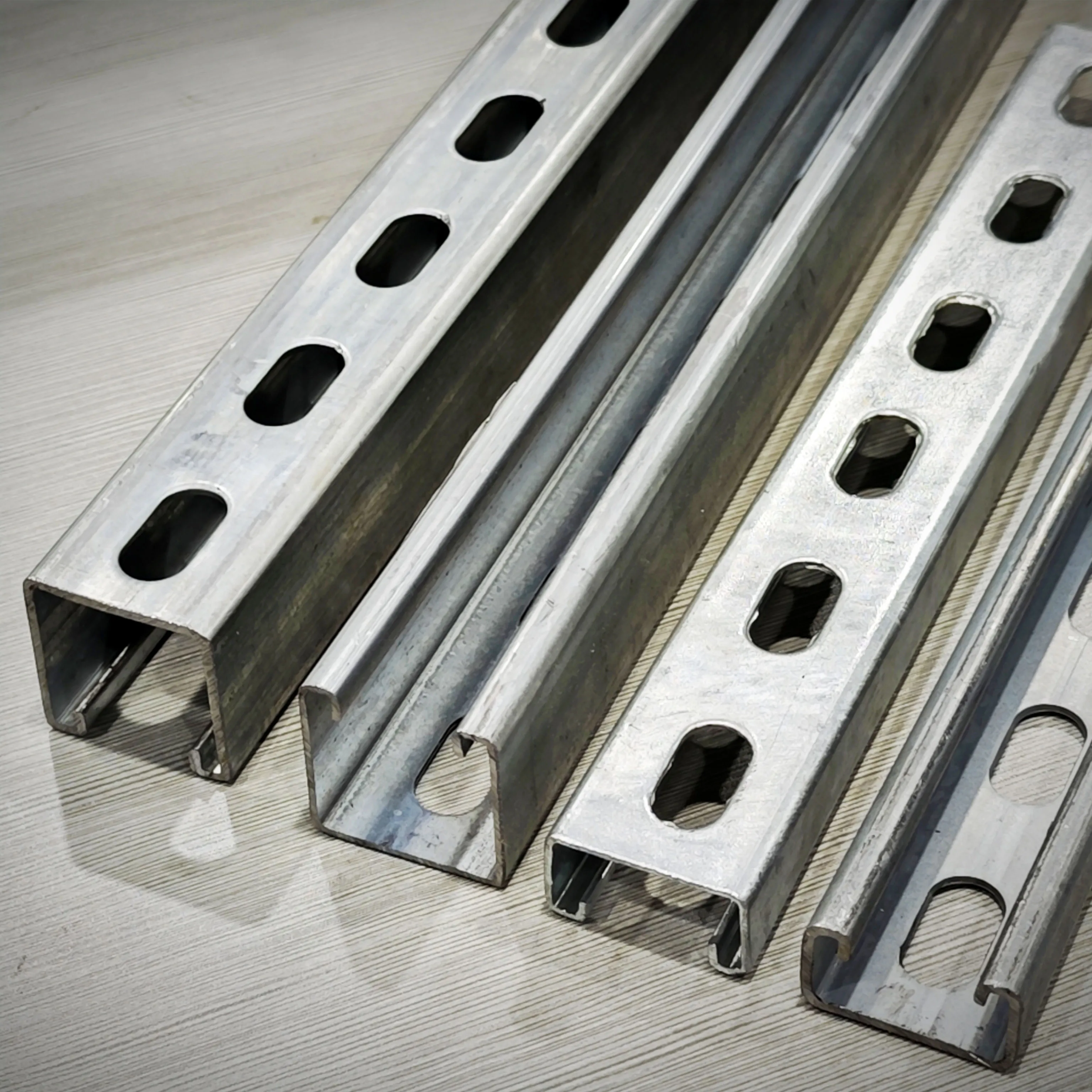

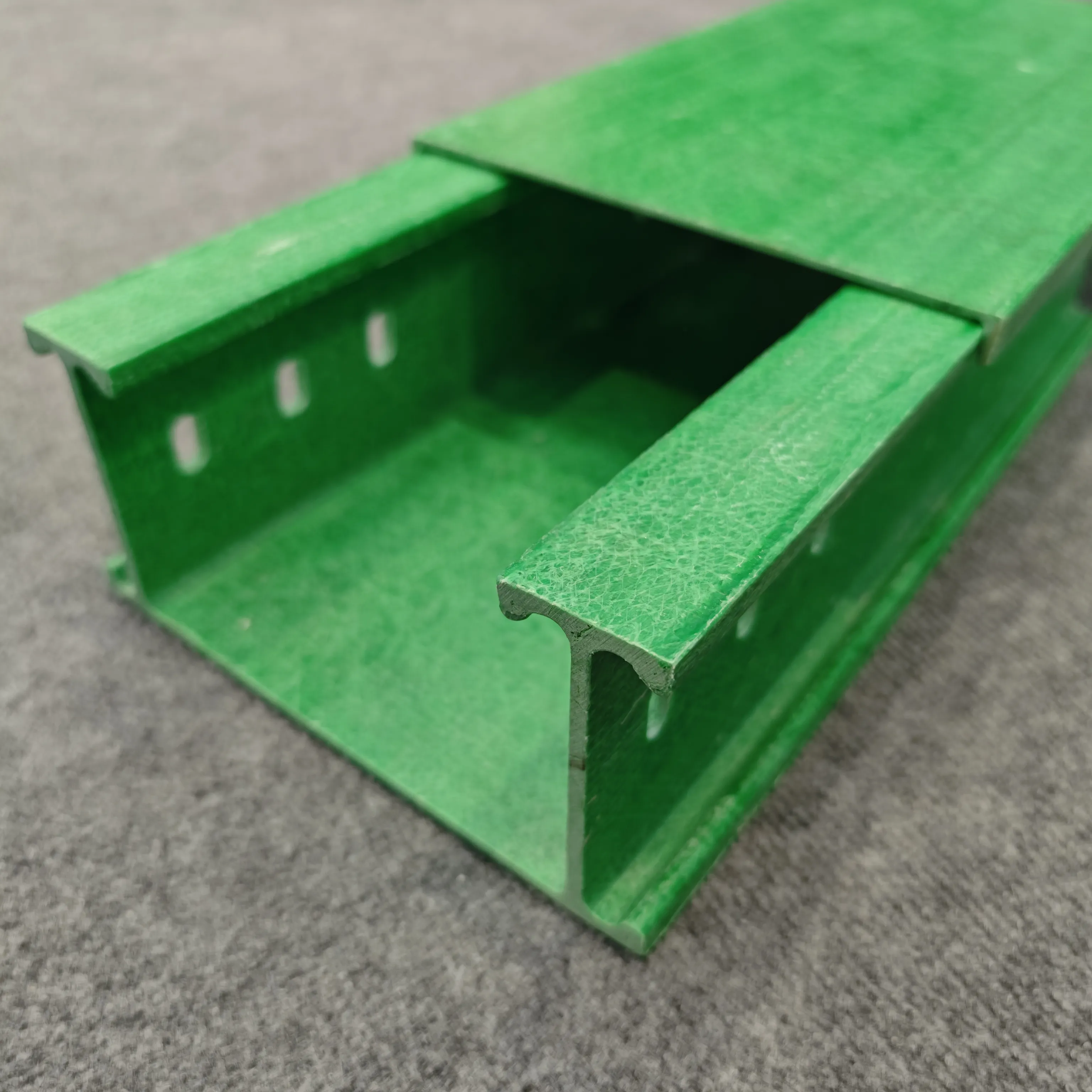

Strut Channel FRP GRP Cable Tray

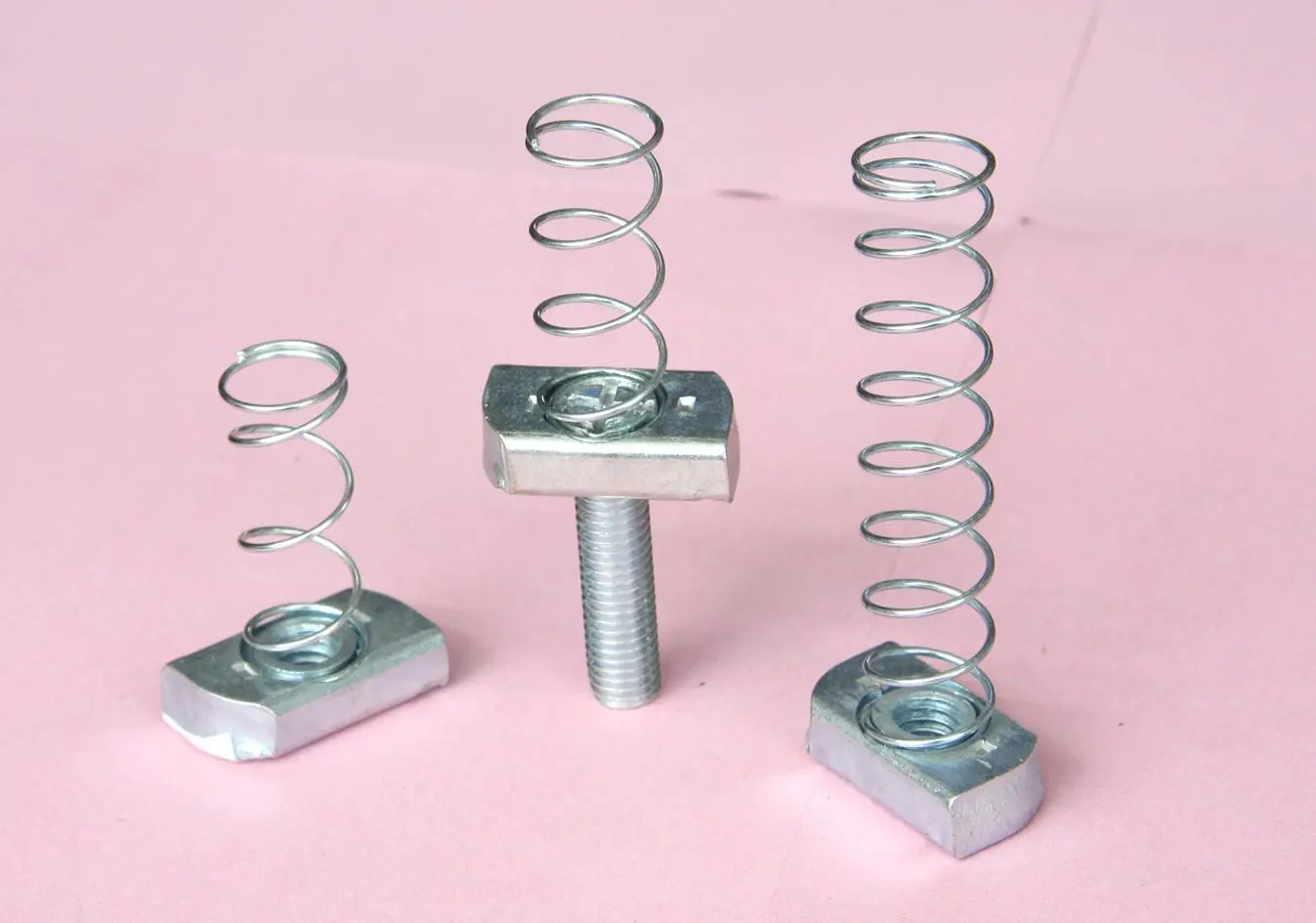

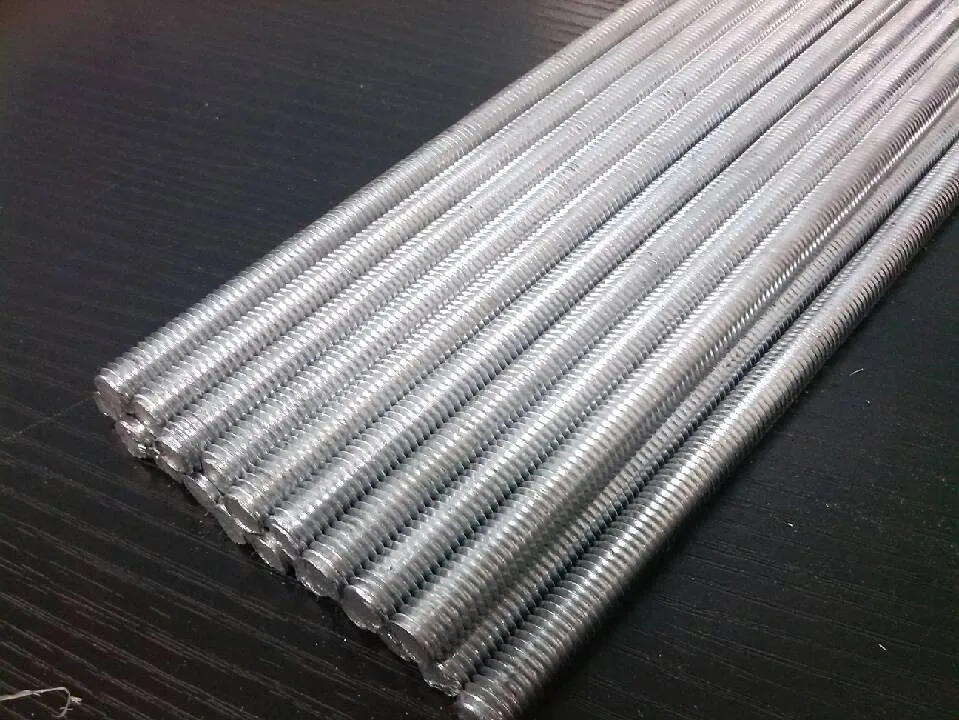

Threaded Rod Nut & Bolt

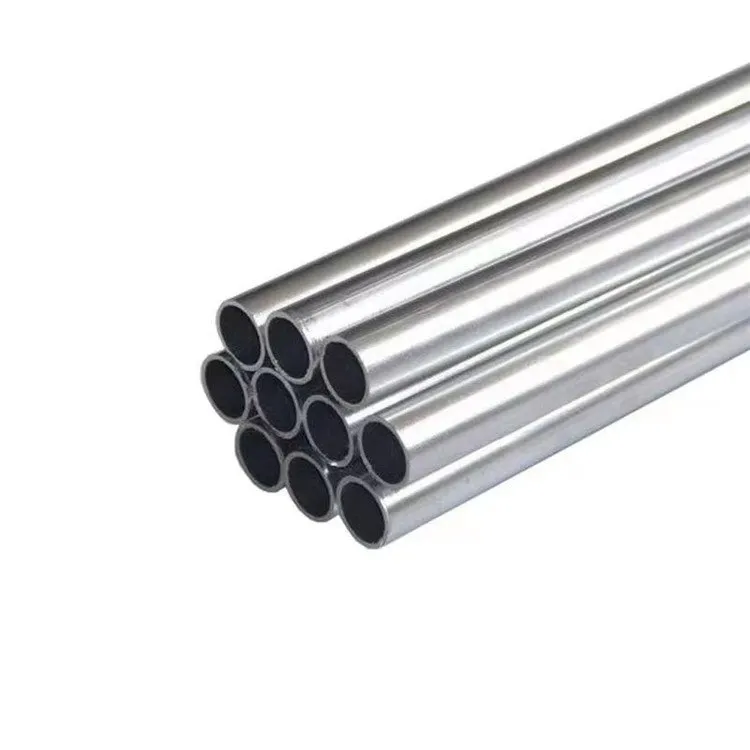

Conduit Aluminum Cable Tray
